| Model NO. | ZY-10HL | Condition | New |
| Customized | Customized | Voltage | 220V,380V,400V |
| Composition | Stainless Steel 304 | Processing Material | Stainless Steel 304 |
| Process | Ferment | Name | Beer Brewing Equipment |
| Certificate | CE/ISO/UL | Control | Semi-Automatic |
| Tank Thickness | 3mm Outer / 2mm Inner | Insulation | 80mm/100mm Polyurethane |
| Transport Package | Iron Frame, Wooden Case | Specification | 50L-10000L |

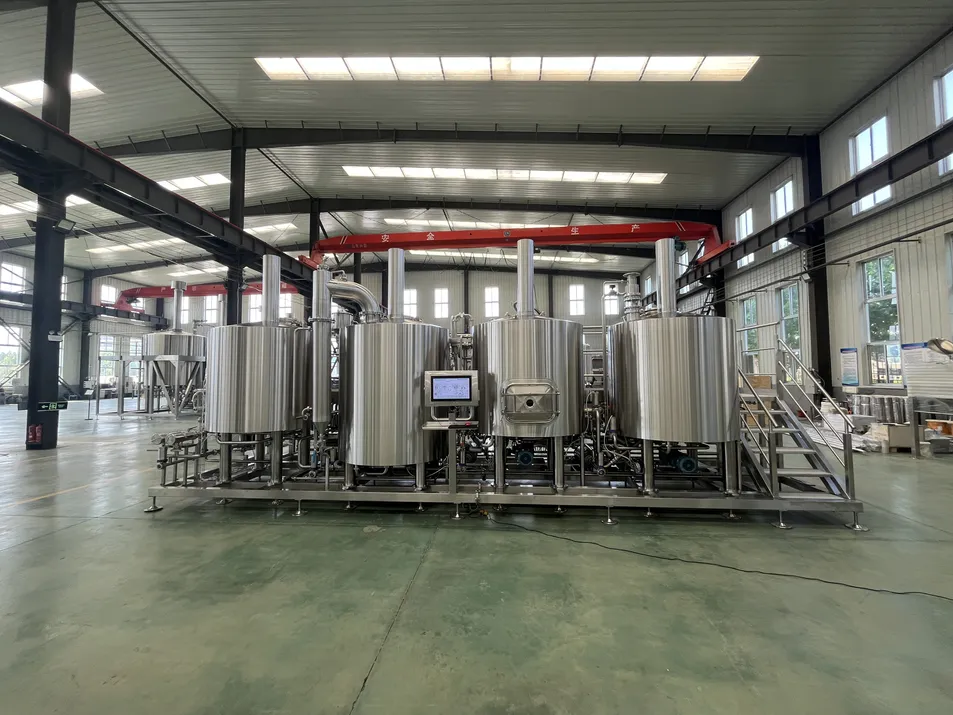

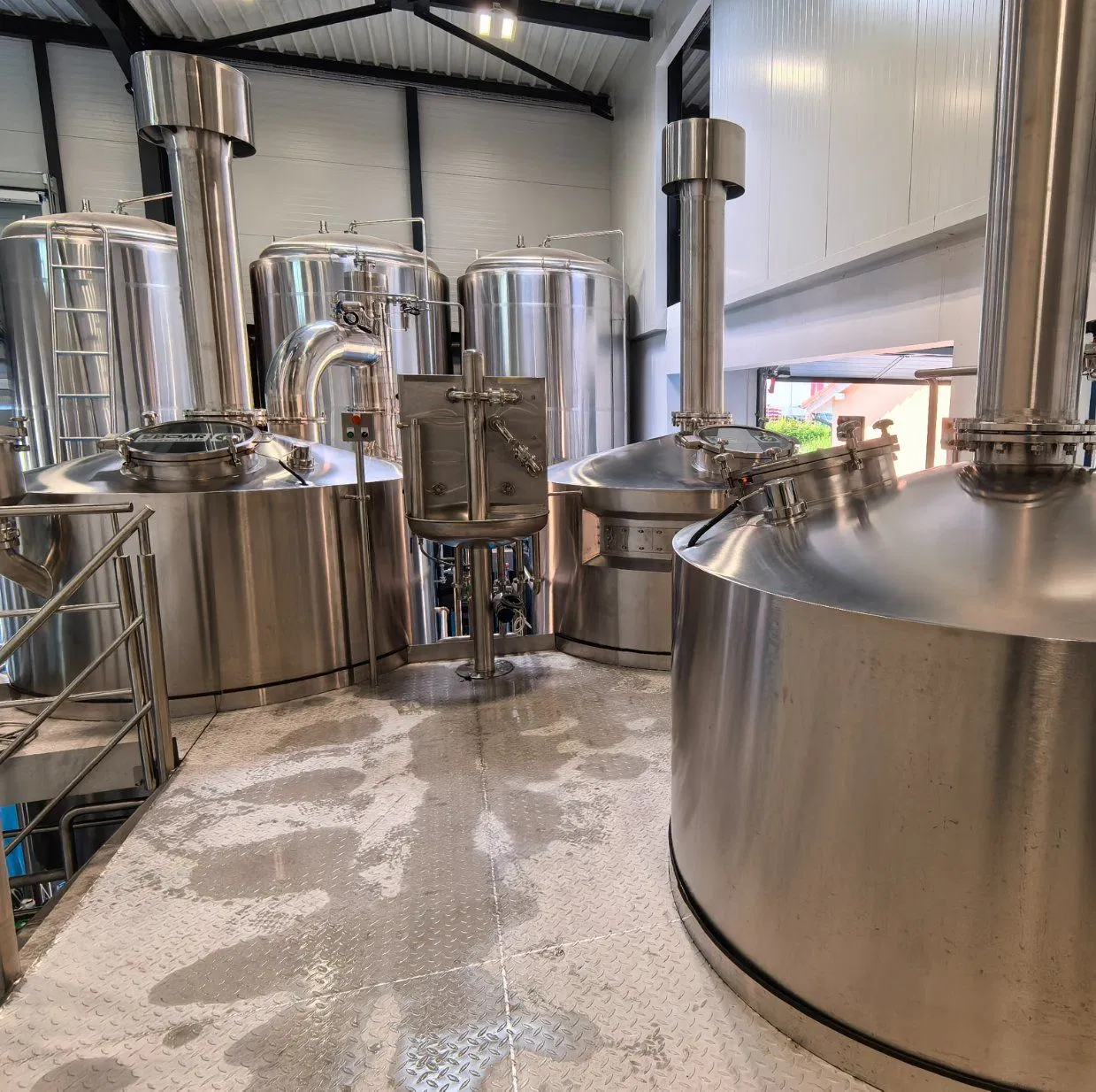

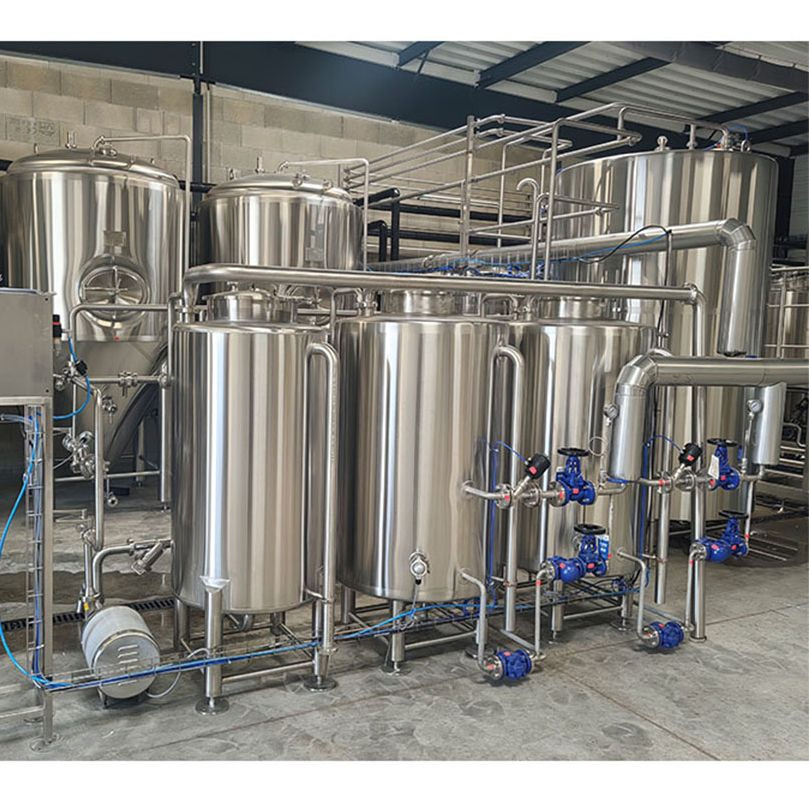

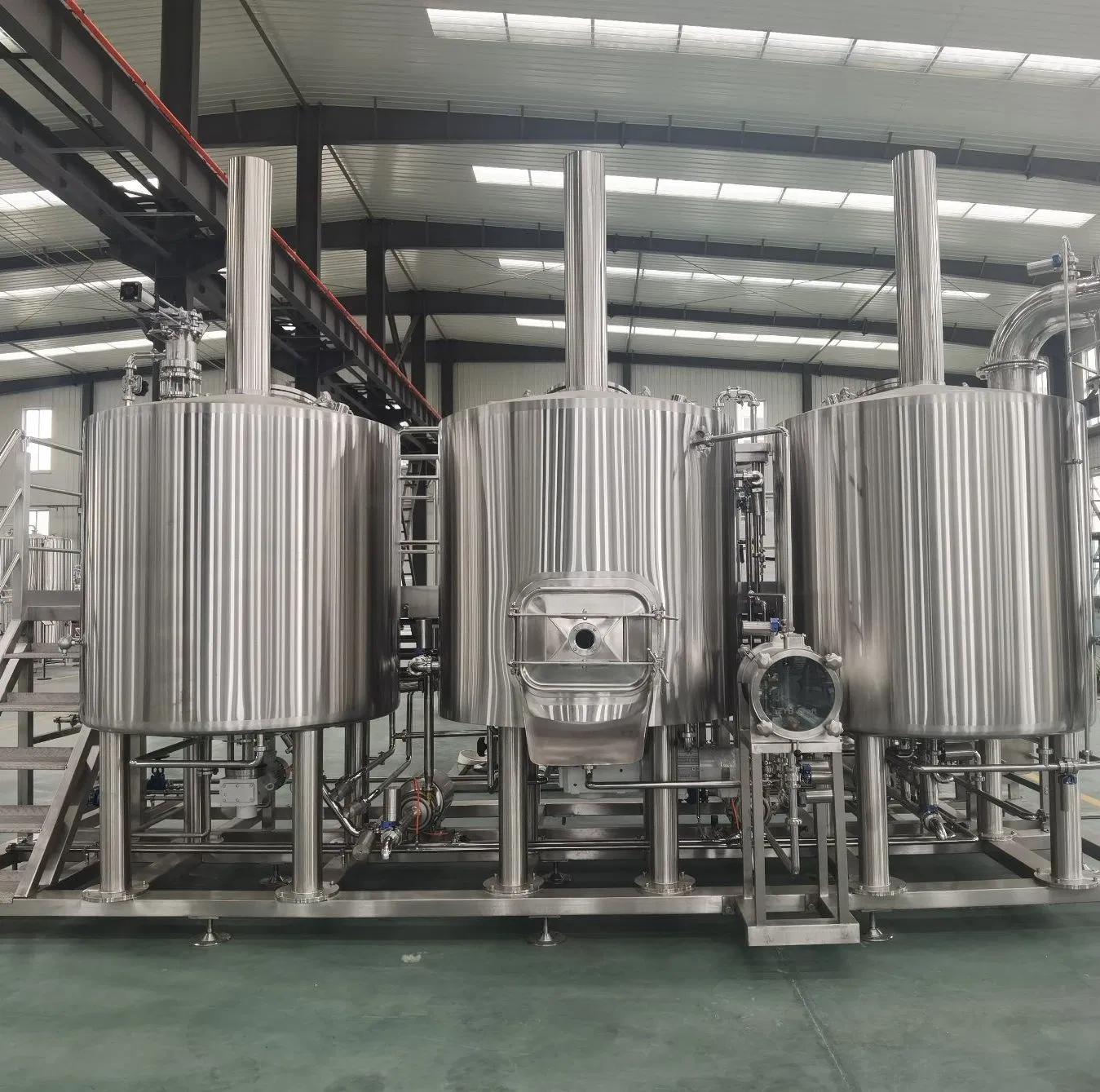

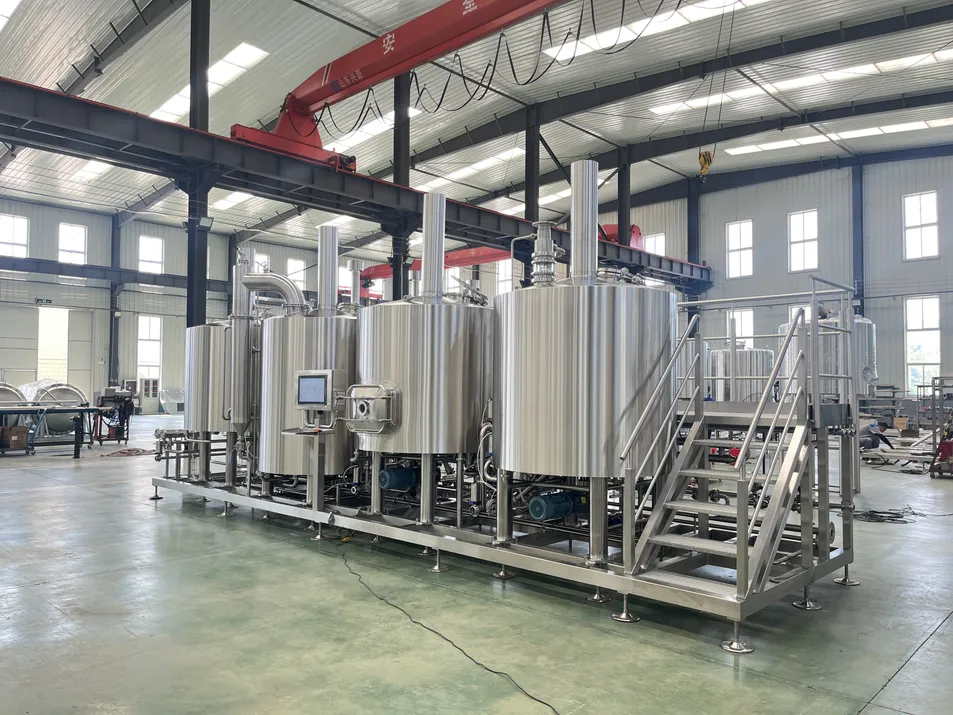

| 10HL Four Vessel Automatic Brewhouse System | ||
|---|---|---|
| Malt Mill | 500kg/h | 2 rollers, SS material, Explosion proof motor |
| Mash Tun | 10HL | Bottom stir, VFD control, Steam jacket heating |
| Lauter Tun | 10HL | Adjustable stir blade, Automatic grain out system |
| Kettle | 10HL | Steam jacket, Energy recovery unit, 8-10% evaporation |
| Whirlpool | 10HL | Flat bottom with 1 degree slope, efficient wort collection |

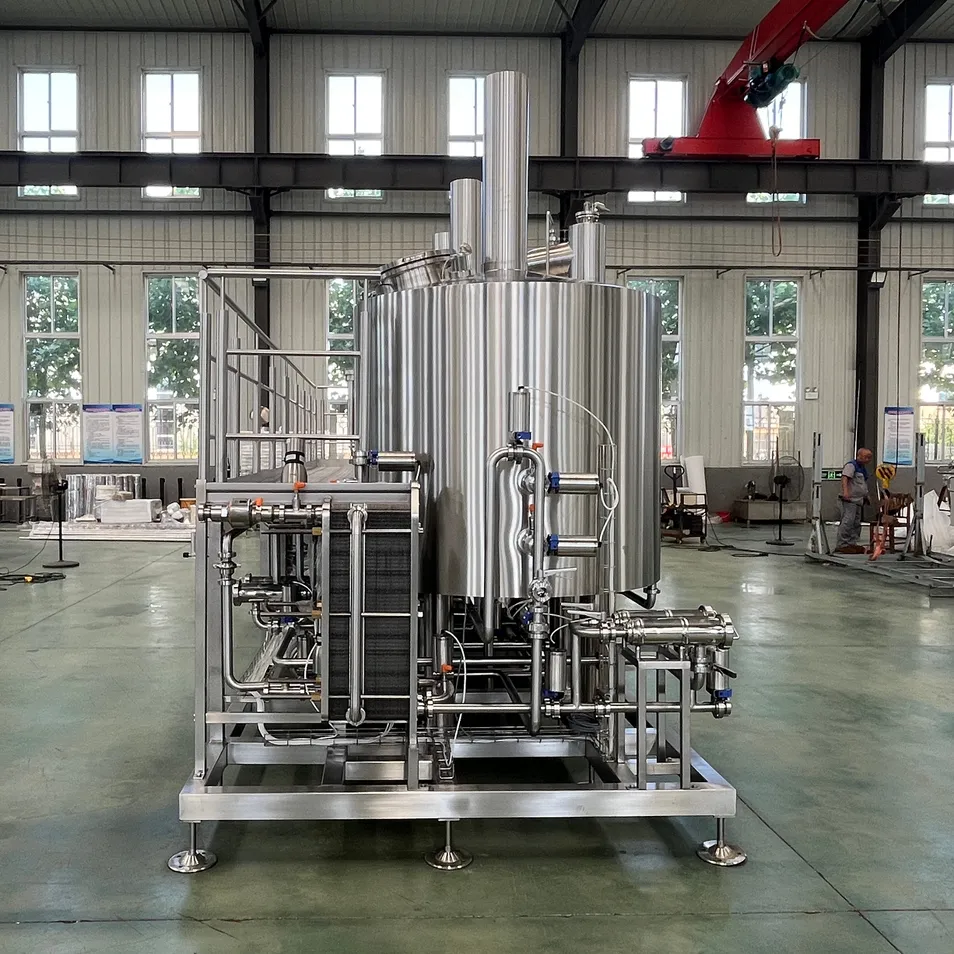

| Heat Exchanger | 20HL/H | Double stage cooling (Cold water/Glycol) |
| Water & Control Station | ||
|---|---|---|
| Hot Water Tank | 20HL/30HL | Steam heating, Insulated, for hot water storage |
| Cold Water Tank | 20HL | Jacketed, connected with glycol loop |
| Control Panel | PLC System | Stainless steel IP55, Siemens/Schneider components |
| Software | Industrial HMI | Customized programming for automation |
| Service Content | Warranty & Remarks |
|---|---|
| Main Parts | 3 years guarantee for main vessels. No leaking, quality standards compliant. |
| Auxiliary Equipment | 2 years for pumps, motors, mills, and chillers. |
| Electrical Components | 2 years for control panels, sensors, and flow meters. |
| Life-long Support | Online technical support, maintenance evaluation, and expansion design. |
All main vessels are constructed using high-quality Stainless Steel 304, ensuring durability, hygiene, and resistance to corrosion.
Yes, we offer fully customized solutions with production capacities ranging from 50L to 10,000L to fit your space and production goals.
The system supports multiple heating options, including steam (powered by electric, natural gas, or LPG), direct electric heating, or gas-fired systems.
We provide various levels of automation, ranging from semi-automatic PLC control with mechanical switches to fully automated systems with HMI touchscreens.
We provide a 3-year warranty for the main vessel bodies and a 2-year warranty for auxiliary equipment (pumps, motors) and electrical components.

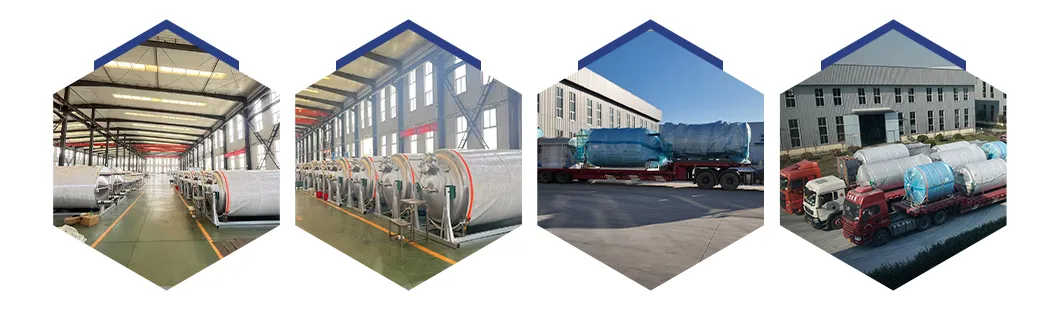

Yes, equipment is securely packed in iron frames or wooden cases for global transport, and we offer life-long technical support for all our users.
