10inch 4K 4MP Pipeline Cleaning Camera 512 Location Sewer Drain Inspection Camera System
10inch 4K 4MP Pipeline Cleaning Camera 512 Location Sewer Drain Inspection Camera System
10inch 4K 4MP Pipeline Cleaning Camera 512 Location Sewer Drain Inspection Camera System
10inch 4K 4MP Pipeline Cleaning Camera 512 Location Sewer Drain Inspection Camera System
10inch 4K 4MP Pipeline Cleaning Camera 512 Location Sewer Drain Inspection Camera System
1 / 5
10inch 4K 4MP Pipeline Cleaning Camera 512 Location Sewer Drain Inspection Camera System
10inch 4K 4MP Pipeline Cleaning Camera 512 Location Sewer Drain Inspection Camera System
10inch 4K 4MP Pipeline Cleaning Camera 512 Location Sewer Drain Inspection Camera System
10inch 4K 4MP Pipeline Cleaning Camera 512 Location Sewer Drain Inspection Camera System
10inch 4K 4MP Pipeline Cleaning Camera 512 Location Sewer Drain Inspection Camera System

10inch 4K 4MP Pipeline Cleaning Camera 512 Location Sewer Drain Inspection Camera System

Customization: Available
Technology: 4MP
Style: Mini Camera
Send Inquiry

Product Description

Basic Specifications

Model NO.
PD160-23mm
Type
Video Camera
Sensor
1/2.8" Sony Sensor
Resolution
4MP (2560*1440pix)
Camera Diameter
23mm Min.
Waterproof Rate
IP68
Light Source
12 PCS LED Lamps
Battery
6200mAh Lithium
Push Cable
30m Fiberglass
Monitor
10inch Touch Screen

Product Overview

10inch 4K 4MP Pipeline Cleaning & Sewer Drain Inspection Camera System

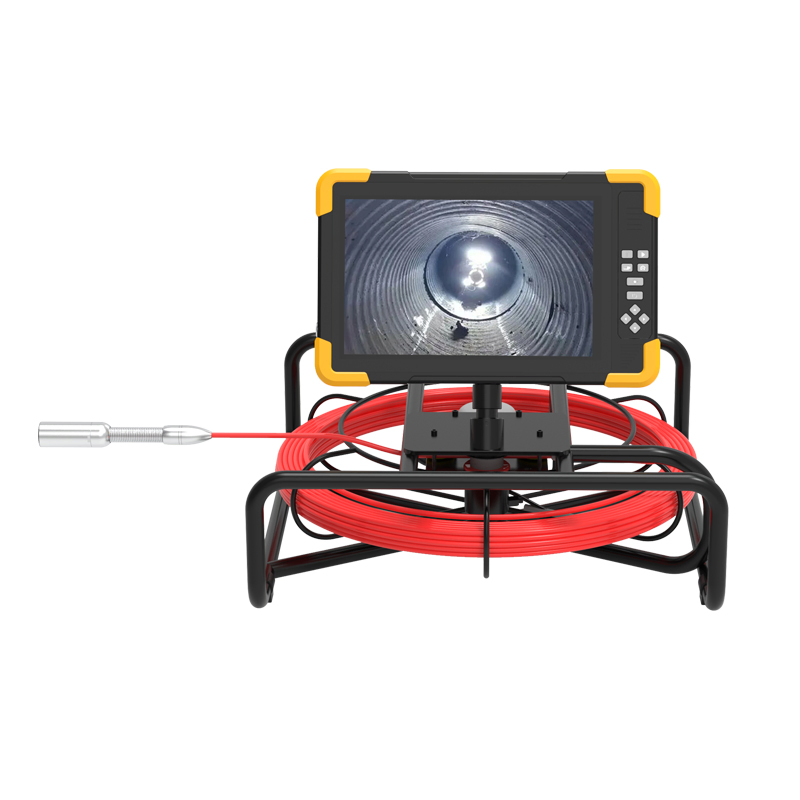

This professional inspection system features a 23mm 4MP camera head, a 30M push cable with a professional reel, and a high-definition 10-inch 4K monitor. Integrated with a 512Hz locator for precise positioning.

Pipeline Inspection Camera System

Primary Applications

  • Pipe Cleaning: Inspect for rust, corrosion, dust, and cracks in water pipes.
  • Shipbuilding: Inspection of boilers, steam turbines, diesel engines, and internal pipelines.
  • Industrial Machinery: Checking engine scars, wear, gearboxes, and hydraulic systems to reduce downtime.
  • Electronics: Verifying wiring status and machine working conditions.

Key System Features

  • High-Res Imaging: 4MP Sony Sensor with 2560*1440px resolution.
  • Wide View: 180° view angle for comprehensive inspection.
  • Adjustable Lighting: 12 LEDs with brightness control via monitor.
  • Durable Build: Stainless steel cable reel with integrated brake.
  • Advanced Monitor: 10.1 inch touch screen (IP66) supporting 4K/2K recording.
  • Smart Functions: 10x zoom, image flip, WiFi transmission to mobile apps.

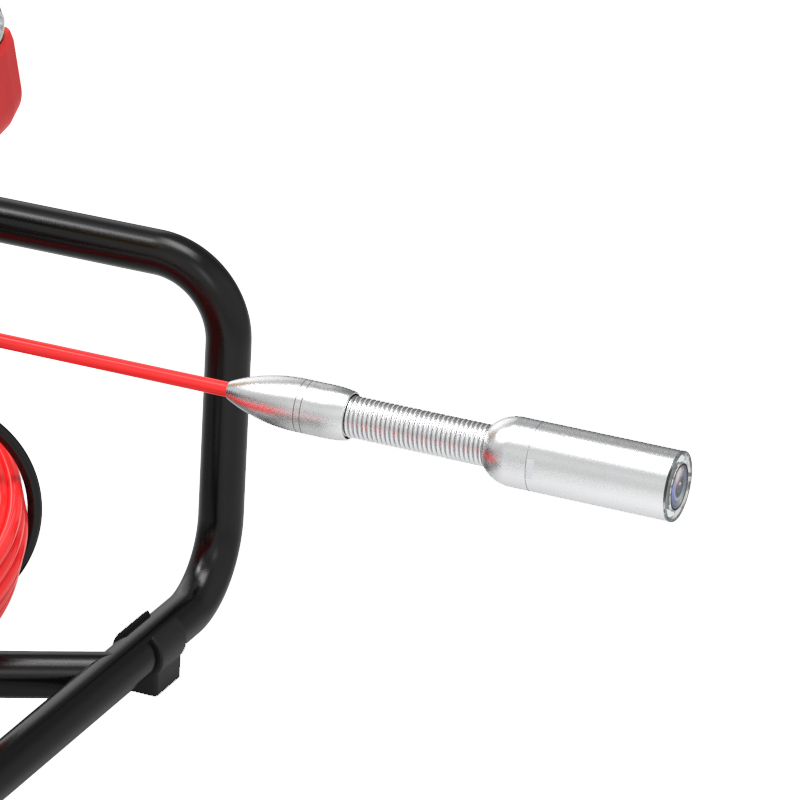

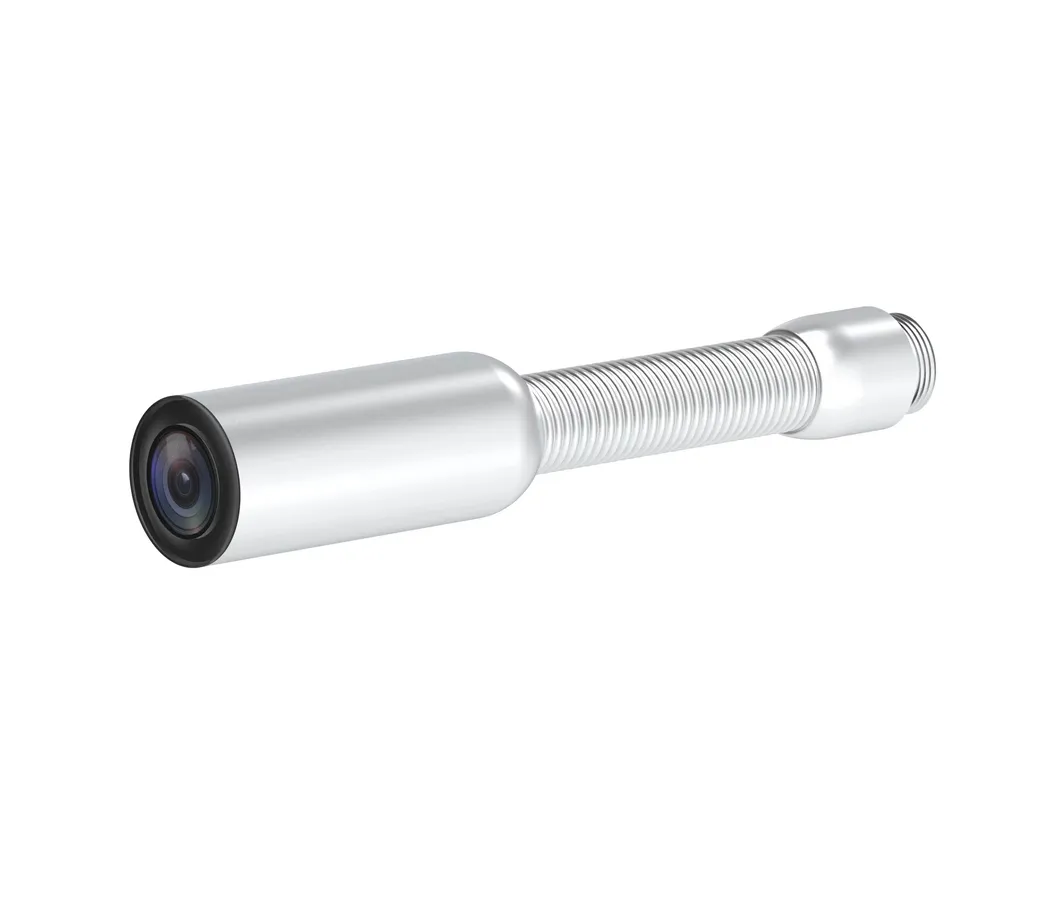

Camera Head Details

Detailed Components

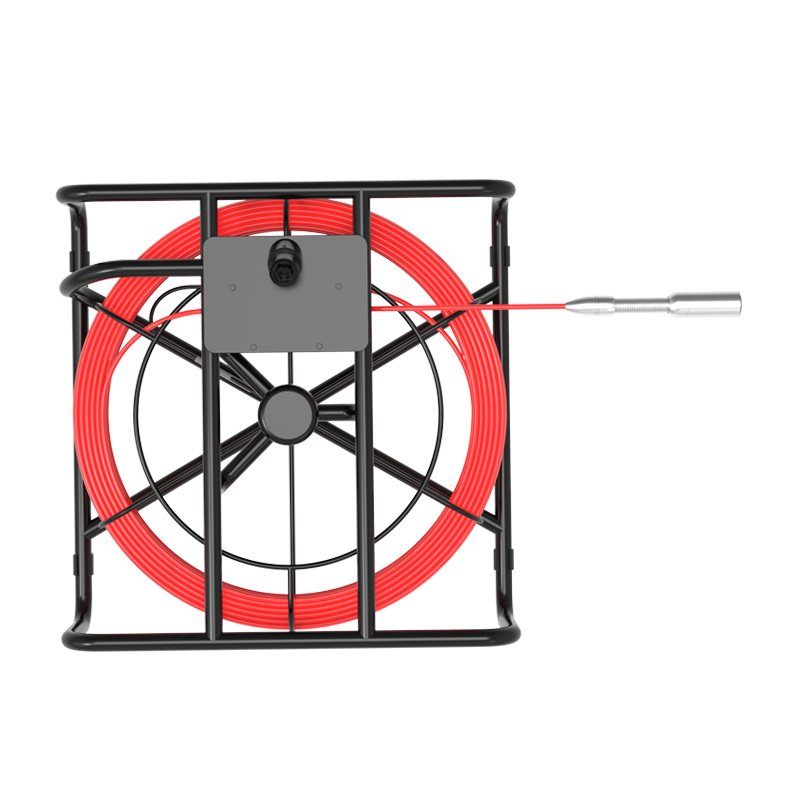

Cable Reel System

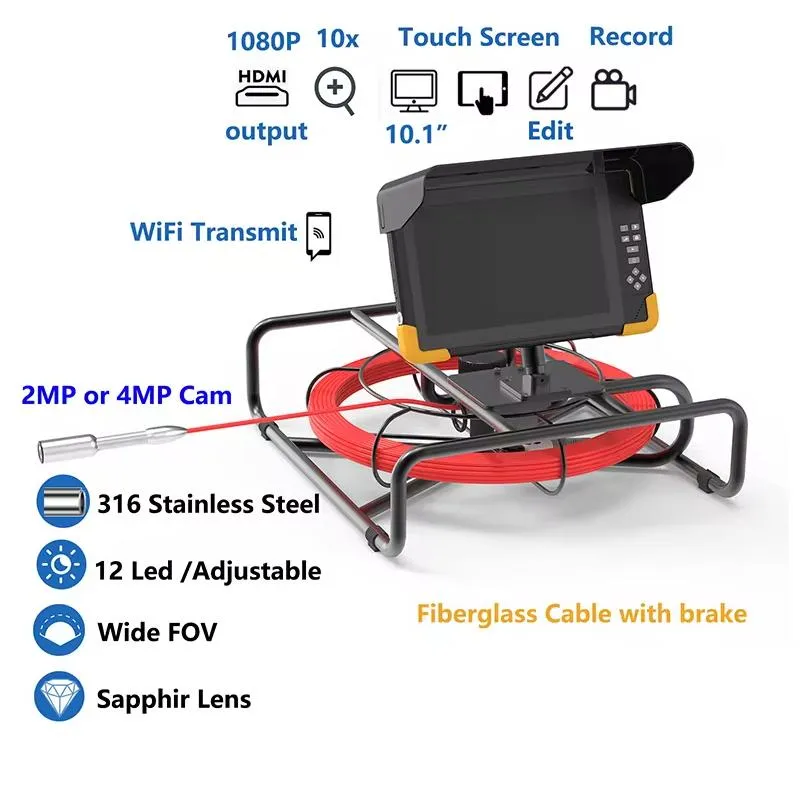

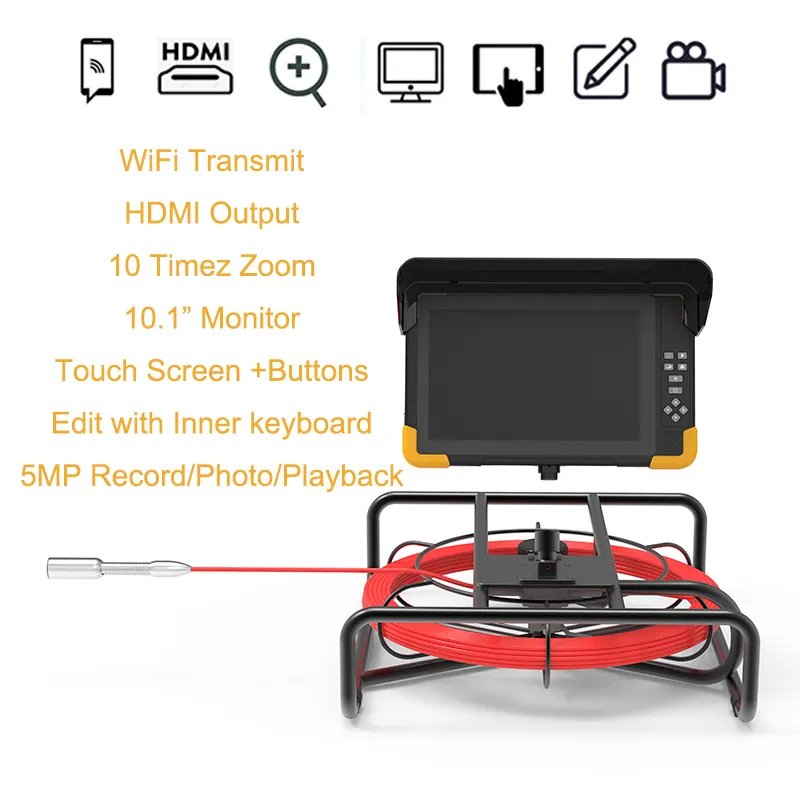

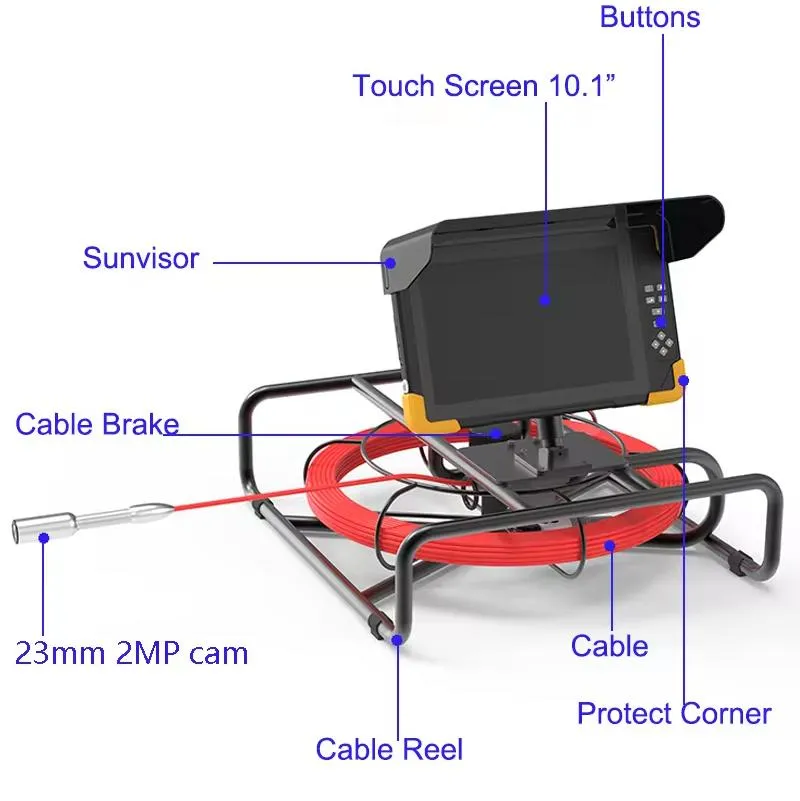

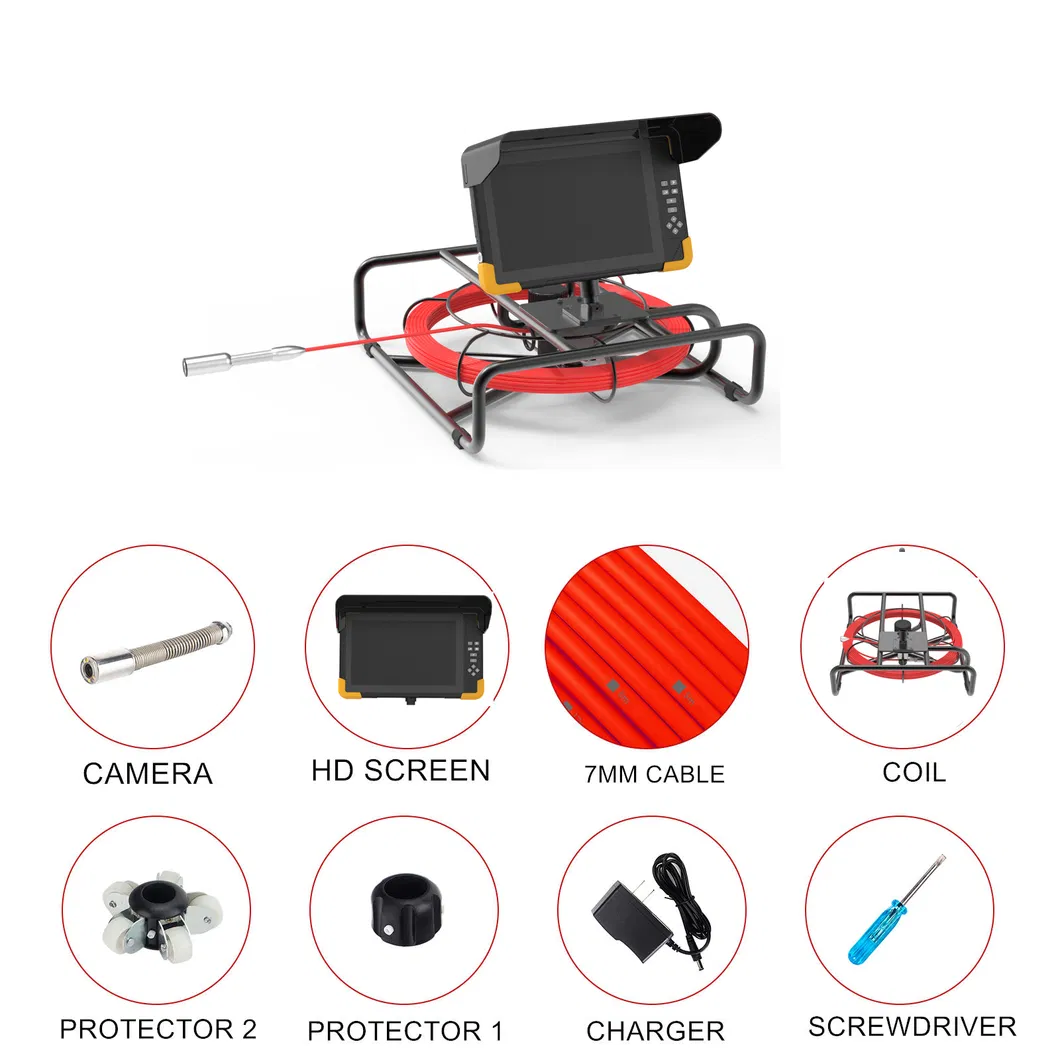

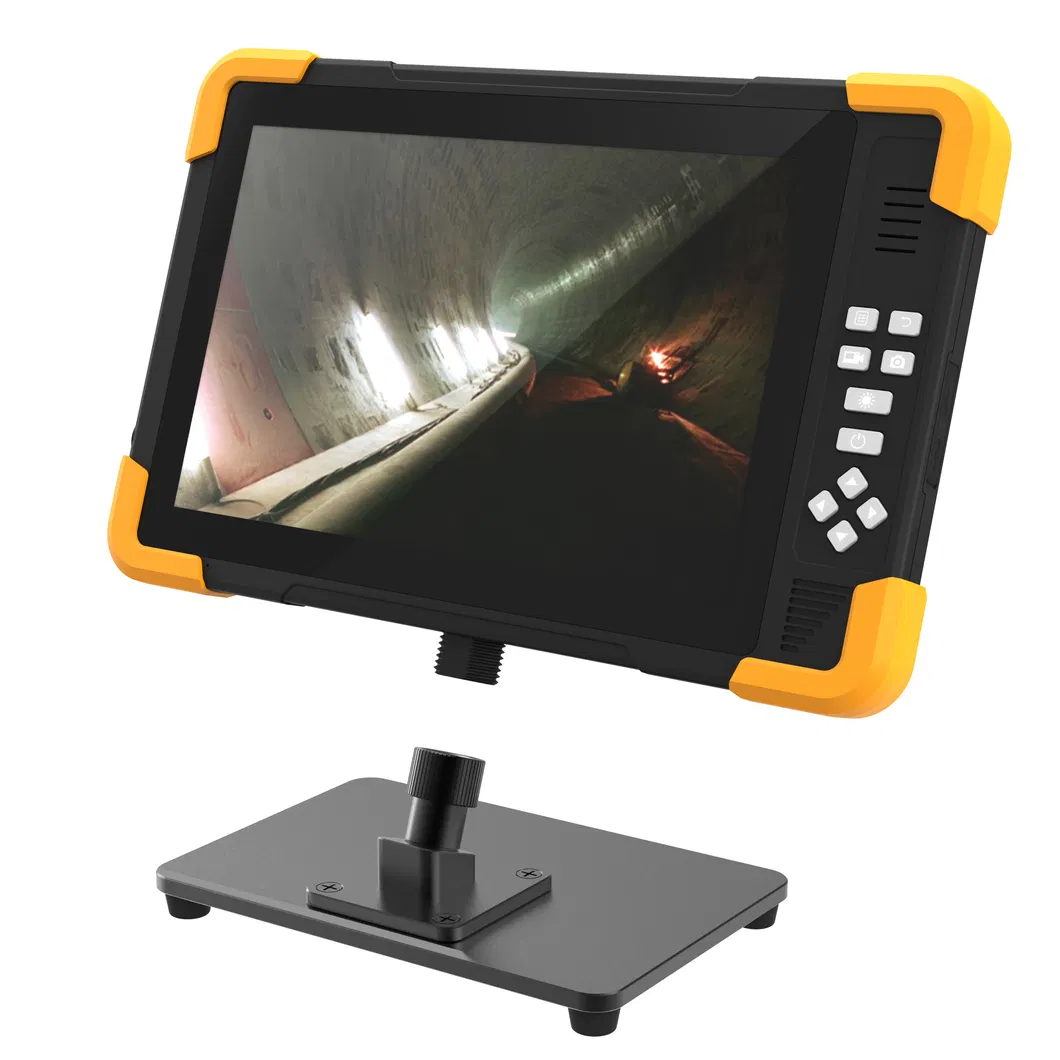

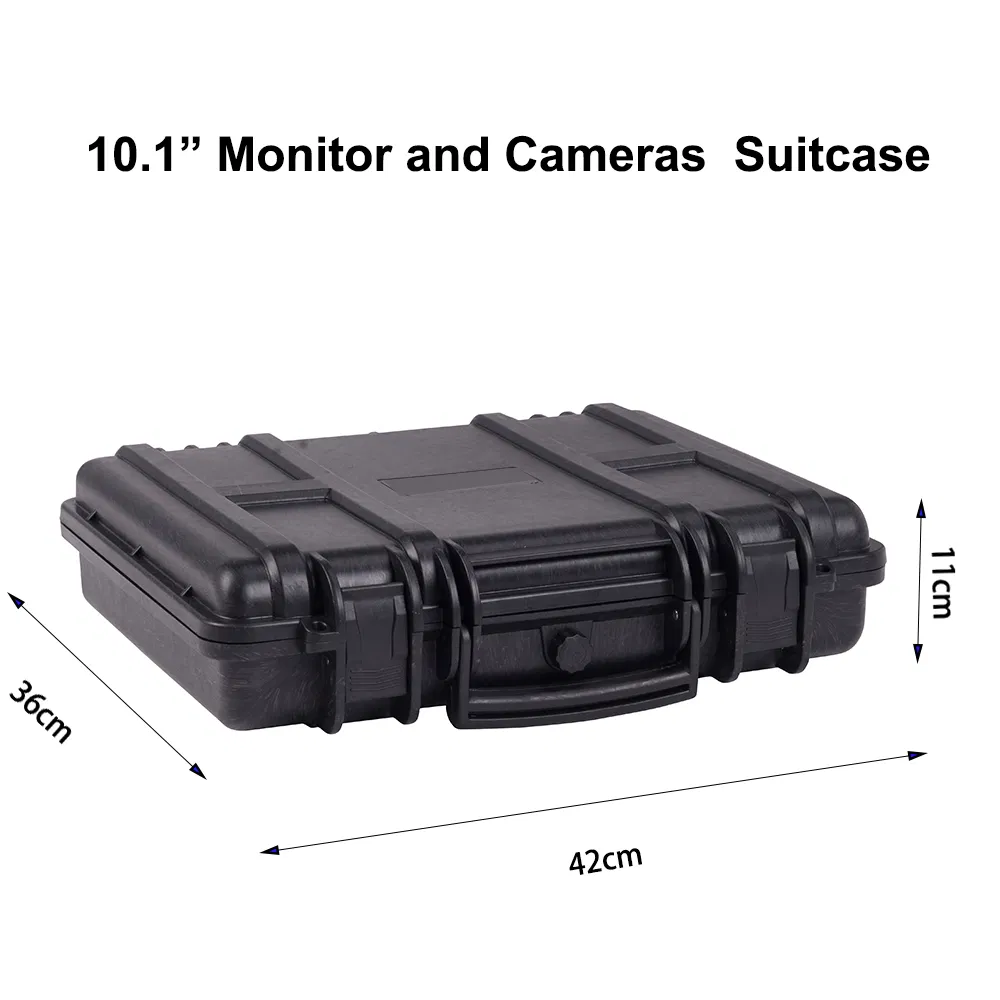

Monitor Interface Camera Head Close-up System Accessories Protective Case Field Usage Full Kit

Technical Specifications

Camera Module
Resolution4.0 Mega Pixel (2560*1440px)
Dimensionø23mm*57mm (Total length with spring: 133mm)
Housing316L Stainless Steel, Sapphire Glass
View Angle180°
Cable & Reel
Cable MaterialGlass Fiber (ø7.5mm)
Standard Length30m (Optional 10-60m)

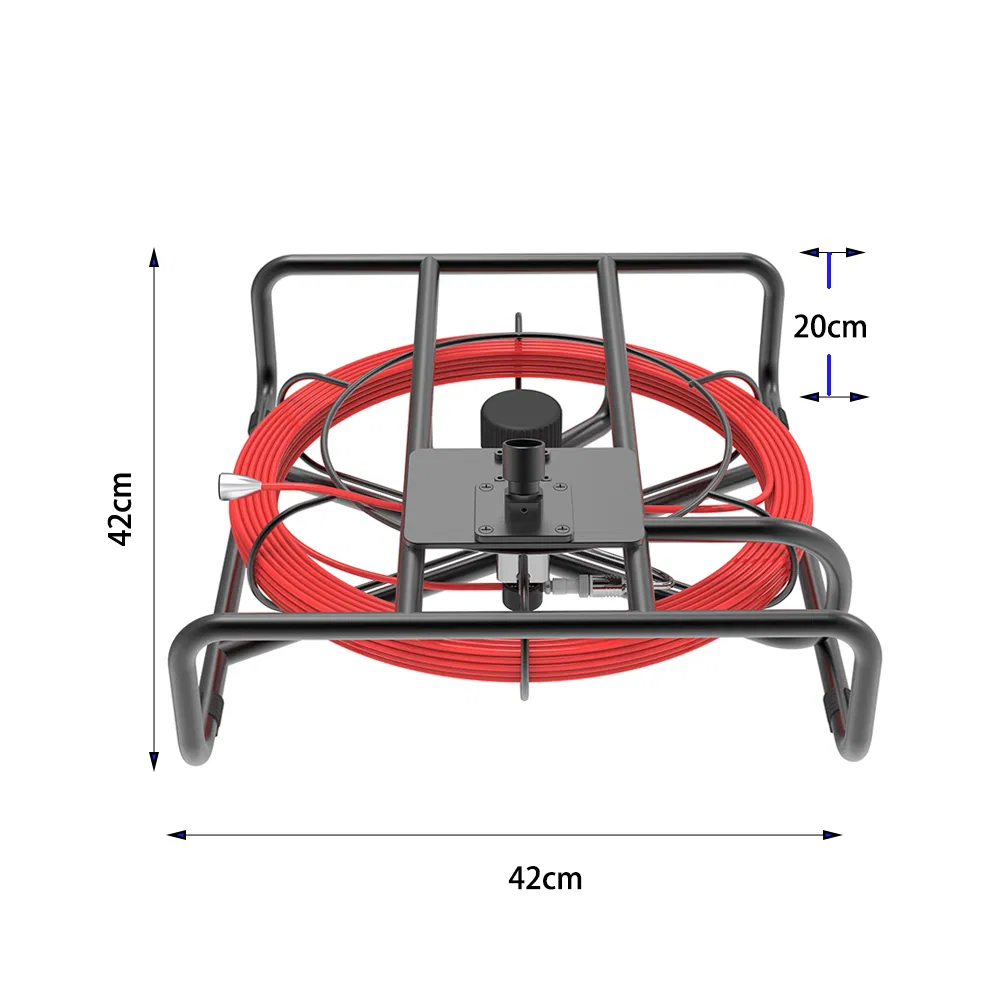

Reel Size42*42*20cm with Brake
Monitor & Recording
Display10.1 inch Capacitive Touch Screen (1230*800 px)
Video FormatMP4 (H.264 Compression)
StorageTF Card (Up to 256GB)
Battery Life6-8 Hours (6200mAh)
ProtectionIP65 Waterproof Grade

Frequently Asked Questions

1. What is the diameter of the camera head and what size pipes can it enter?
The camera head has a minimum diameter of 23mm, making it ideal for inspecting small to medium-sized sewer lines and drain pipes.
2. Does the system support location tracking?
Yes, the camera head is equipped with a 512Hz transmitter/locator, allowing you to pinpoint the exact location of the camera underground using a receiver.
3. How long does the battery last on a single charge?
The system uses a high-capacity 6200mAh rechargeable lithium battery that provides approximately 6 to 8 hours of continuous working time.
4. Is the monitor waterproof for outdoor use?
The 10.1-inch touch screen monitor is rated IP66, providing excellent protection against dust and water splashes, suitable for professional outdoor environments.
5. Can I view the inspection footage on my smartphone?
Yes, the system supports WiFi wireless transmission, allowing you to view and manage the live video feed on your mobile device via a dedicated app.
6. What is the maximum storage capacity for recordings?
The system supports TF cards from 2GB up to 256GB. It comes with a default 64GB card for immediate use.
