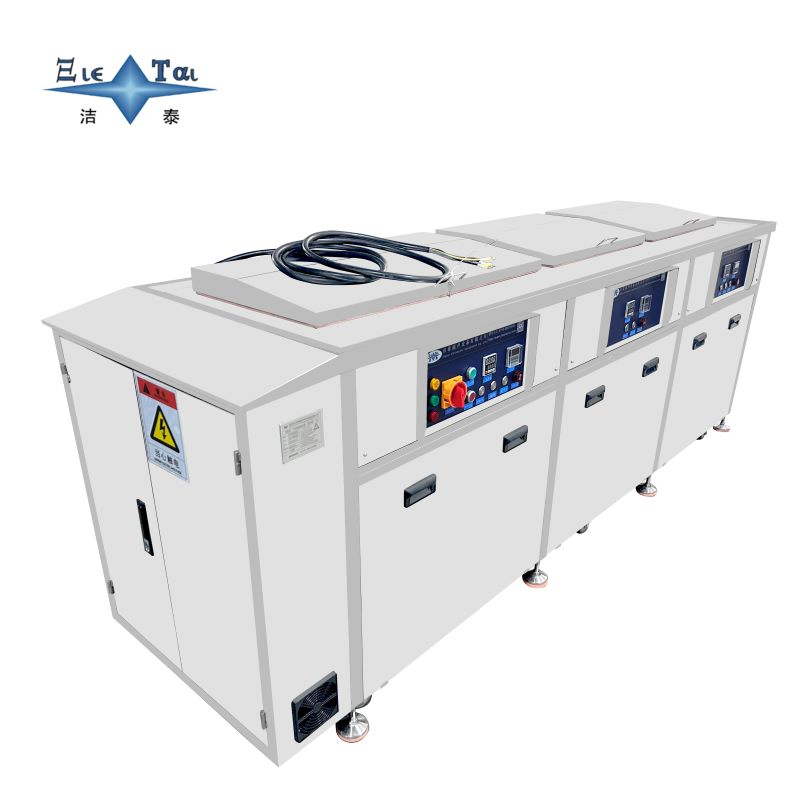

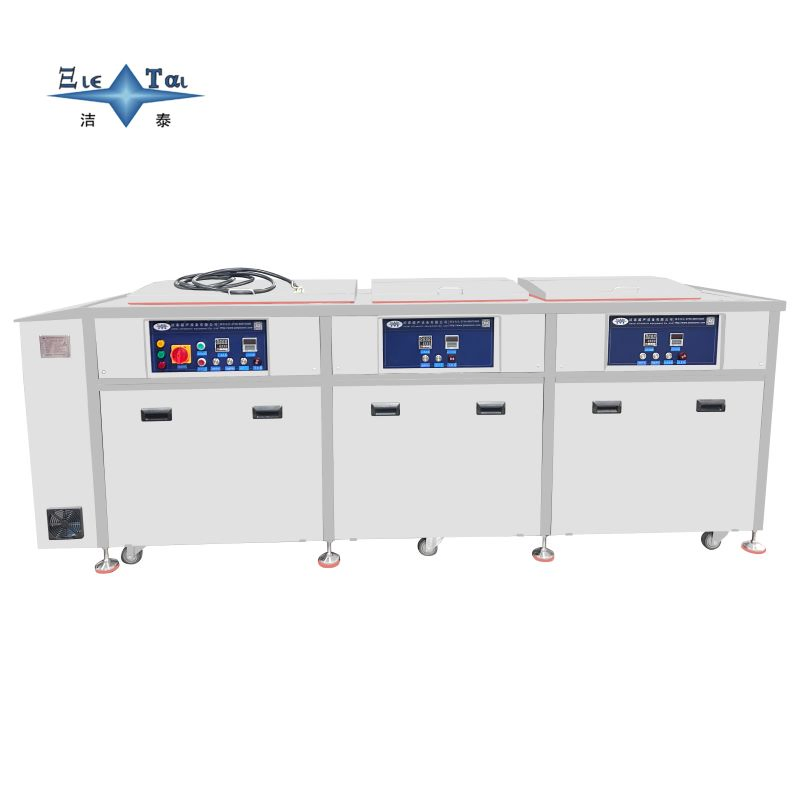

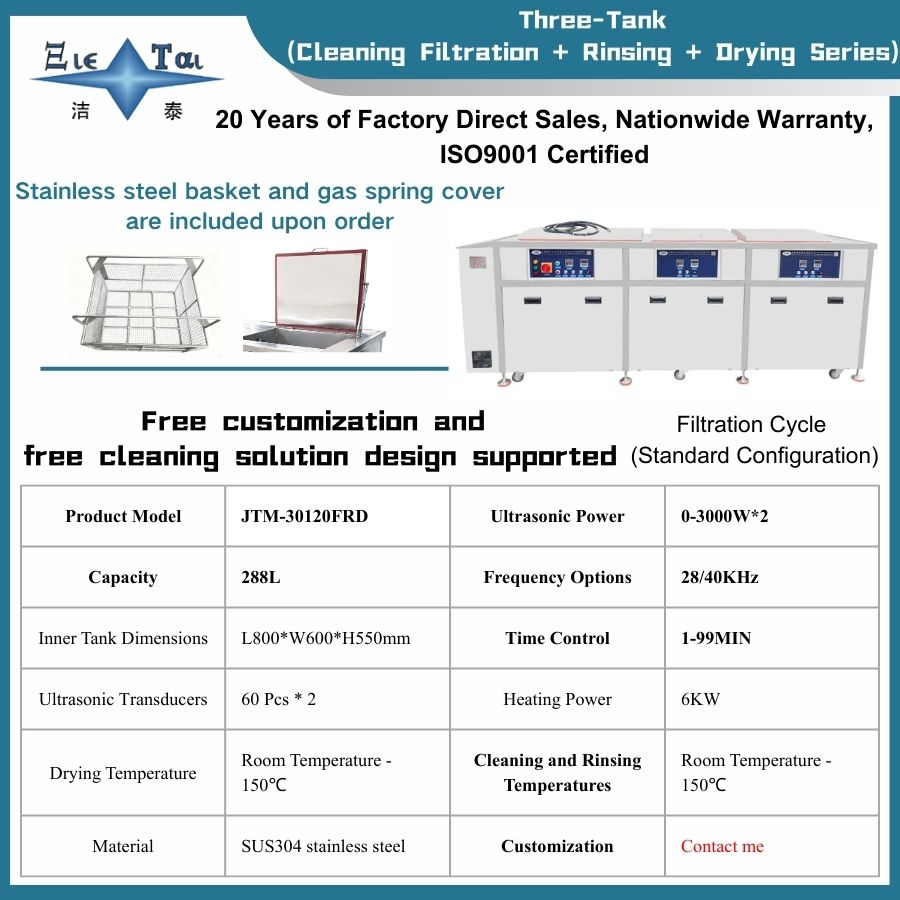

288L Heavy Duty 3-Tank Ultrasonic Cleaning Equipment with Filtration, Rinse and Dry Process

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.
JTM-30120FRD
Application
Precision Hardware / Auto Parts
Cleaning Media
Wet Cleaning
Automation
Semi-automatic
Cleaning Precision
Precision Industrial Cleaning
Control
CNC
Principle
Physical Cleaning
Certification
CE, RoHS
Condition
New
Customized
Customized
Feature
High Efficiency
Capacity (L)
288 L
Inner Tank Material
SUS304 (T2.0)
Ultrasonic Transducer
60 PCS * 2
Ultrasonic Power
0-3000W*2 Adjustable
Ultrasonic Frequency
28/40kHz (Optional)
Time Control
1-99min
Heating Power
6 Kw
Temperature Control
Normal Temperature - 95℃
Power Supply
Single-Phase 220V/Three-Phase 380V
Drying Temp
Normal - 150℃
Filter Accuracy
10um
Tank Size
800*600*550 mm
Transport Package
Wooden Case / Wooden Frame
⚙️ Product Description

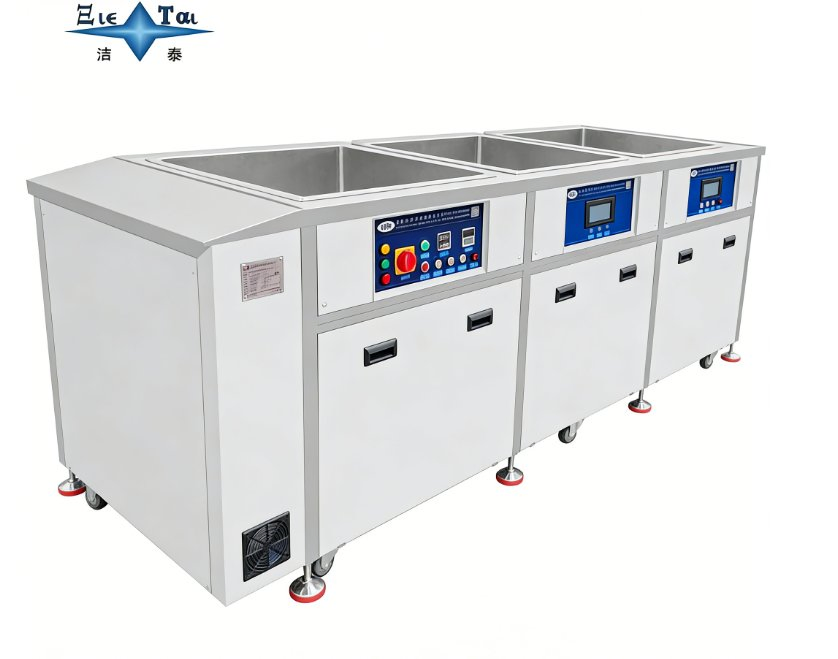

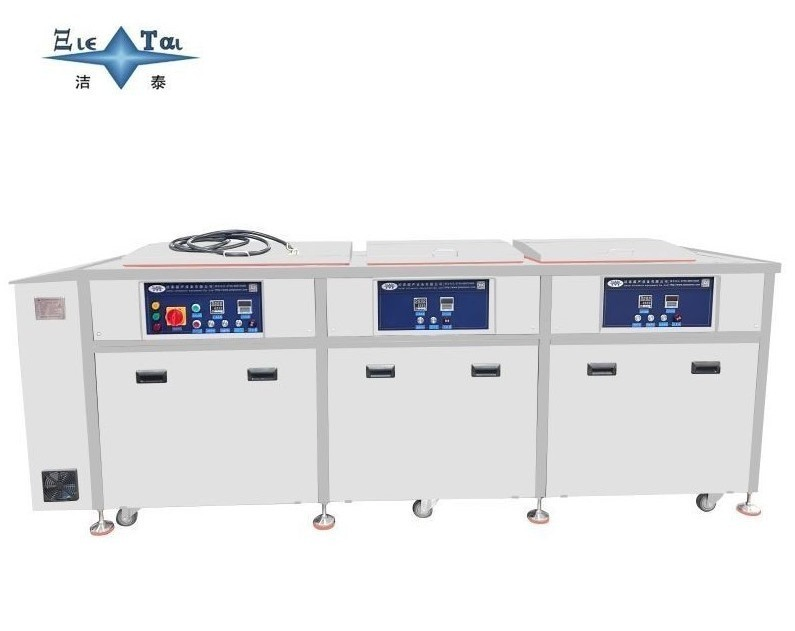

Triple Tank Ultrasonic Cleaning + Filtration + Rinsing + Drying Series
The 288L Industrial-grade system is a fully integrated turnkey solution, engineered to streamline high-precision component cleaning workflows by combining four core functions: Cleaning, Filtration, Rinsing, and Drying.

1. This triple-tank configuration eliminates the inefficiencies of separate processes, ensuring consistent, repeatable cleanliness that meets strict industrial quality standards. It is widely applicable to automotive components, electronic parts, medical instruments, aerospace components, precision hardware, and optical devices.

2. Constructed with SUS304 stainless steel-welded inner tanks for superior corrosion resistance and load-bearing capacity. The first tank features high-performance industrial transducers generating intense cavitation effects to dislodge micron-scale contaminants like heavy oil, grease, and metal shavings. Integrated with a 10μm precision filtration system, it extends cleaning agent life. The second tank serves as a dedicated rinsing tank, while the third tank is equipped with an industrial-grade forced hot air drying system for efficient, water-spot-free results.

🖼️ Product Visuals
Frequently Asked Questions
What are the main functions of this triple-tank system?
The system combines four core industrial functions into one turnkey solution: Ultrasonic Cleaning, Precision Filtration, Rinsing, and Hot Air Drying.
What materials are the cleaning tanks made of?
The inner tanks are constructed from high-quality SUS304 stainless steel, providing excellent corrosion resistance and durability for heavy-duty industrial use.
What is the capacity and dimensions of the cleaning tank?
The system has a 288L capacity with an inner tank size of 800*600*550 mm, making it suitable for high-volume precision hardware and auto parts.
Can the ultrasonic power and temperature be adjusted?
Yes, the ultrasonic power is adjustable from 0-3000W per tank, and the cleaning temperature can be controlled from normal room temperature up to 95℃.
How does the filtration system benefit the cleaning process?
The integrated 10μm precision filtration system filters dislodged contaminants in real-time. This extends the service life of your cleaning agents and prevents the recontamination of parts.
What types of contaminants can this machine remove?
It effectively removes stubborn contaminants including heavy oil, lubricating grease, metal shavings, flux residues, polishing compounds, and oxide layers from complex surfaces.
