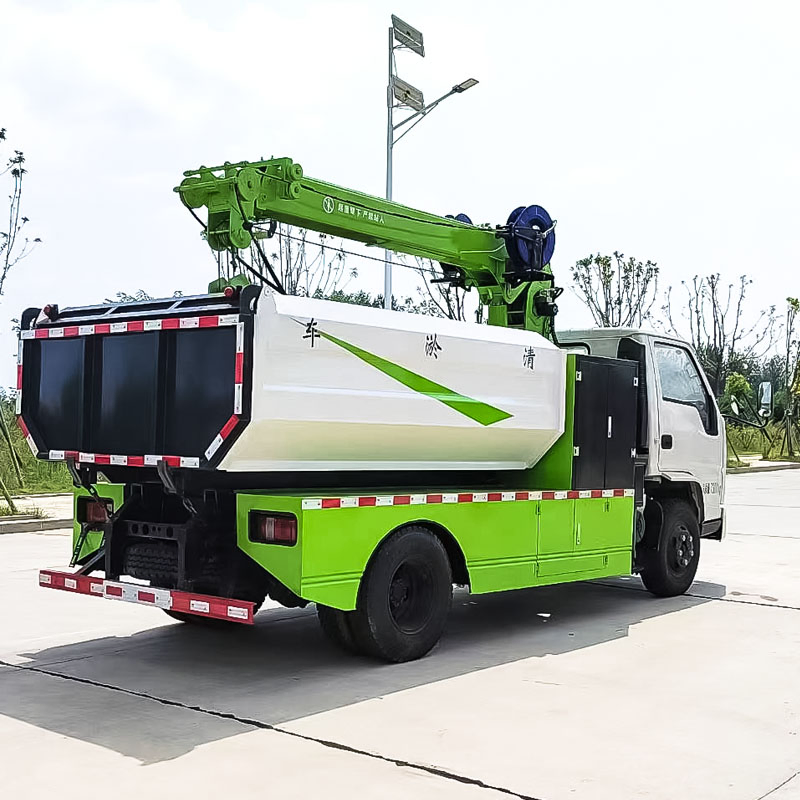

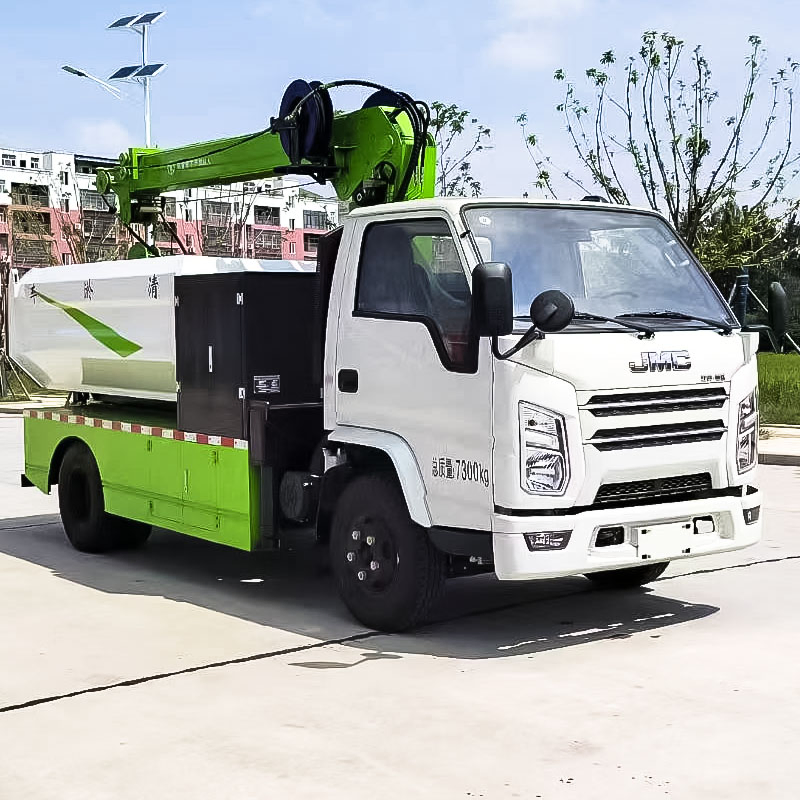

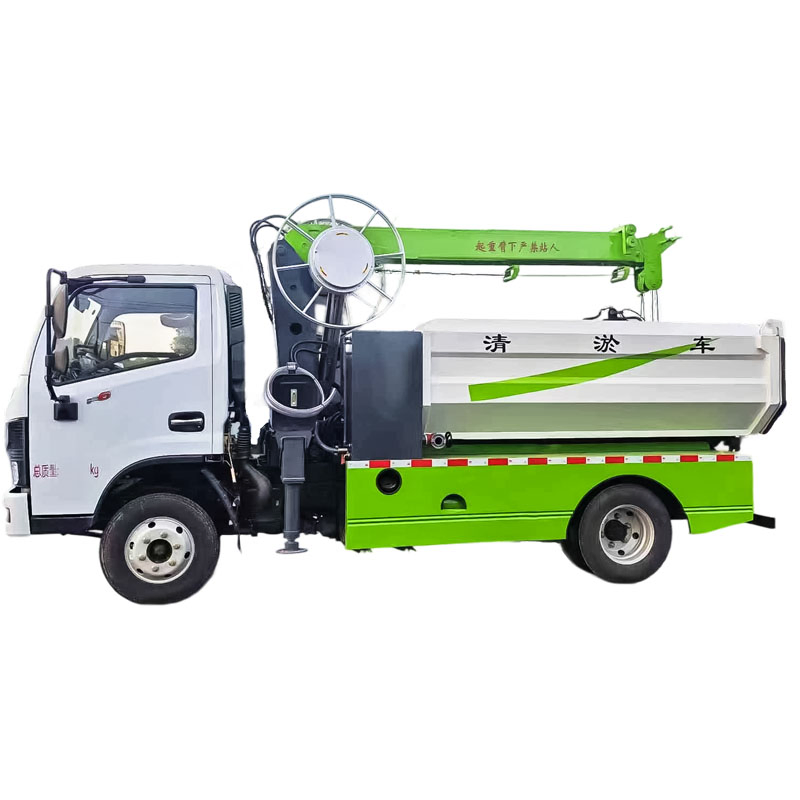

3360 mm Wheelbase Dredger with ABS System for Septic Tank and Biogas Digester Maintenance

Customization: Available
After-sales Service: 1 Year
Warranty: 12 Months

Product Description

ℹ️
Basic Info & Overview
Model NO.
CLW5070TQY6DX
Fuel
Diesel
Certification
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Emission Standard
Euro 3
Condition
New
Gross Vehicle Weight
7300 Kg
Wheelbase
3360 mm
Max. Speed
80, 90 Km/H
Origin
Hubei, China
Production Capacity
50000 Pieces/Year
🚛
Product Description

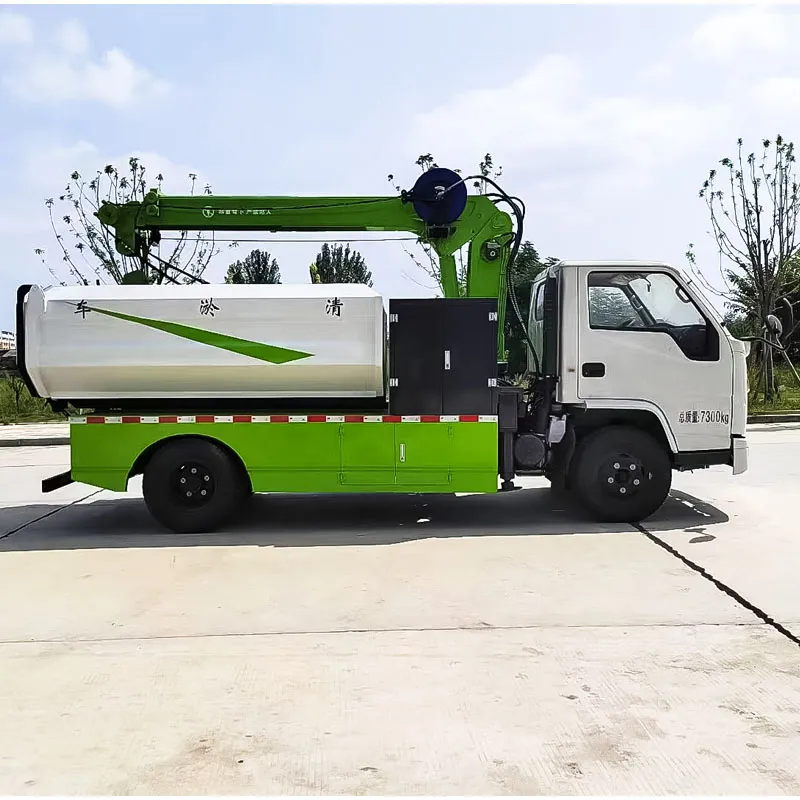

Dredging Vehicle

Dredging Vehicle is a versatile workhorse, integrating excavation, sediment removal, suction, and self-discharging. Engineered to extract, contain, and dispose of thick sludge, compacted sediments, and solid debris like gravel and broken bricks, it excels in unclogging manholes, septic tanks, and drainage systems.

A critical asset in emergencies—from post-flood cleanup to industrial waste handling—it boosts sanitation efficiency. Equipped with advanced hydraulic excavation and high-powered vacuum systems, it outperforms manual dredging. A built-in anti-backflow device prevents reflux, protecting components and extending service life, redefining sediment management efficiency.

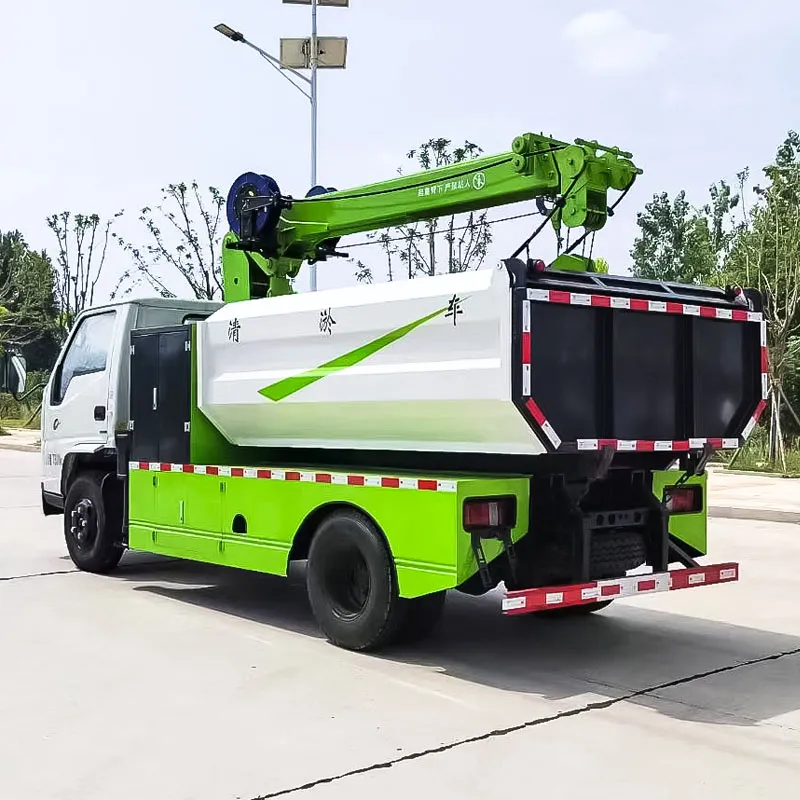

Work Details 1
Work Details 2
Work Details 3
📋
Technical Parameters
Vehicle Main Information
Model No.CLW5070TQY6DX Dredging Vehicle
Emission StandardEuro 2/3/4/5/6
Curb Weight5100 kg
Rated Load Capacity2070 kg
Overall Size5750, 5995, 5800 × 2000 × 2950, 3150 mm
Drive Wheel4×2
Chassis & Engine
Chassis BrandJMC
Tire Specification7.00R16LT 14PR
Horse Power115/122/122 Hp
Upper Configuration
Tank Capacity150 L
Robotic Arm Descent Depth8/10 m
Operating MethodManual and Wireless Remote Control
⚙️
Decomposition Diagram & Advantages

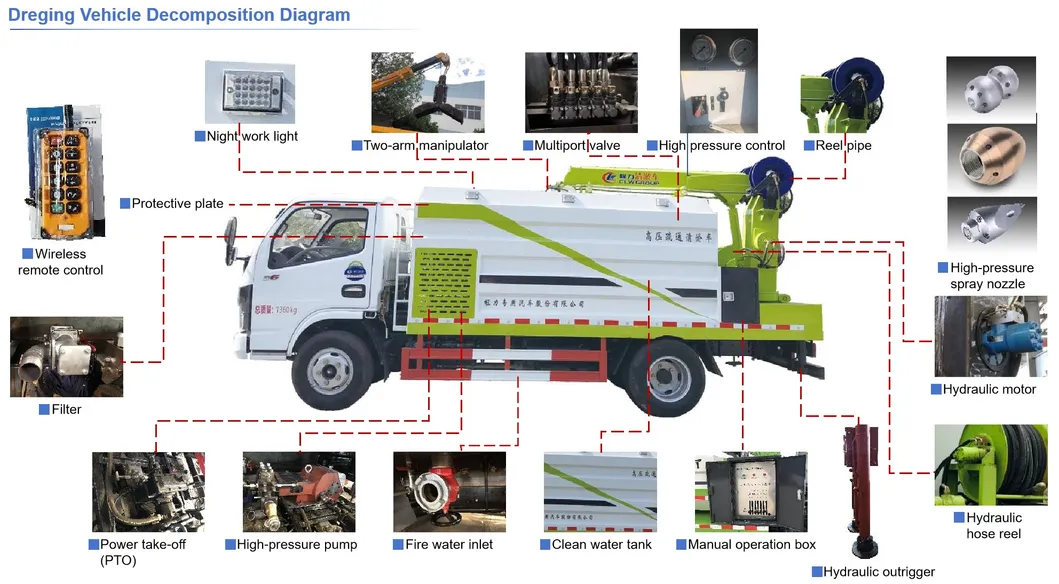

Decomposition Diagram
1
Strong adaptability: Suitable for cleaning sediments in manholes, debris pools, oil pools, biogas digesters, and septic tanks in any harsh environment.
2
Large digging depth: Capable of digging up manhole garbage at a maximum depth of 10 meters. The working range of the mechanical arm is 1000-1100mm with a volume of 0.075 cubic meters.
3
Thorough self-discharging: 5-cubic-meter carriage with a U-shaped bucket design and double-cylinder hydraulic jack for complete discharge.
4
Excellent structural performance: Two-piece hydraulic mechanical arm fully welded with 16mm-thick steel plates for stability.
5
Efficient Operation: Both manual and wireless operation modes are available, making it time-saving and labor-saving.
🏭
Factory & Manufacturing

The manufacturer is a large enterprise appointed by the Ministry of Industry and Information Technology of China, specializing in various special trucks for greenery, environmental cleanliness, oil, and chemical industries. Equipped with solid technology, flawless inspection, and advanced equipment, it has passed ISO9001-2008 and 3C (China Compulsory Certification).

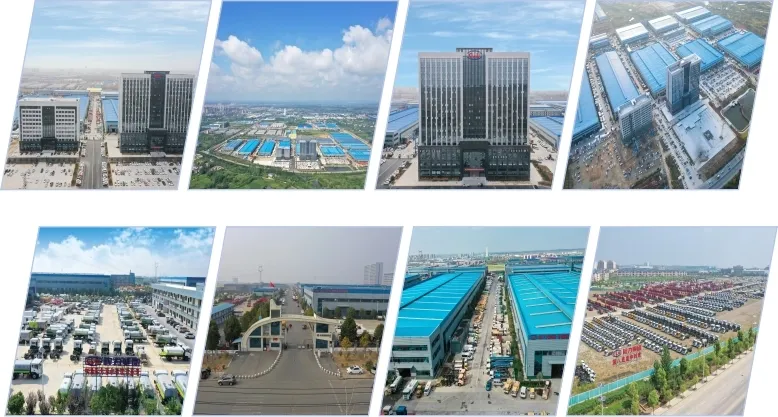

Factory Display
Certifications
Related Products
🛳️
Production Lines & Shipment

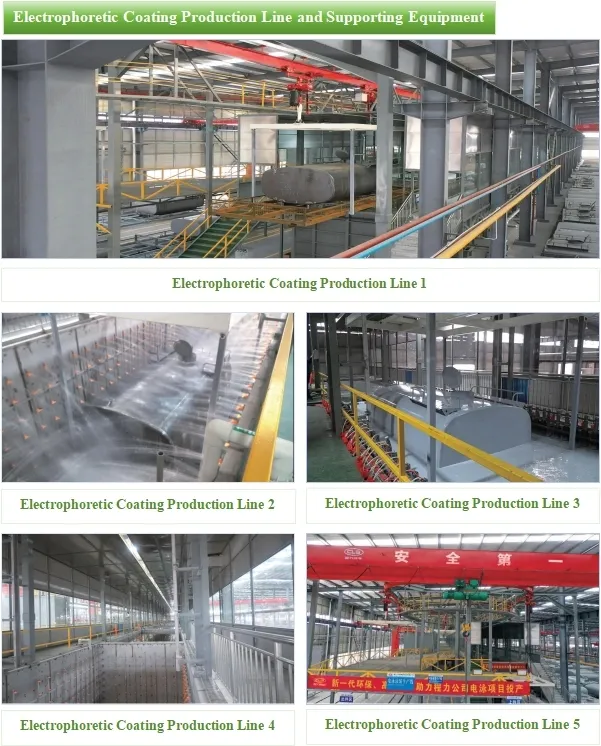

Line 1

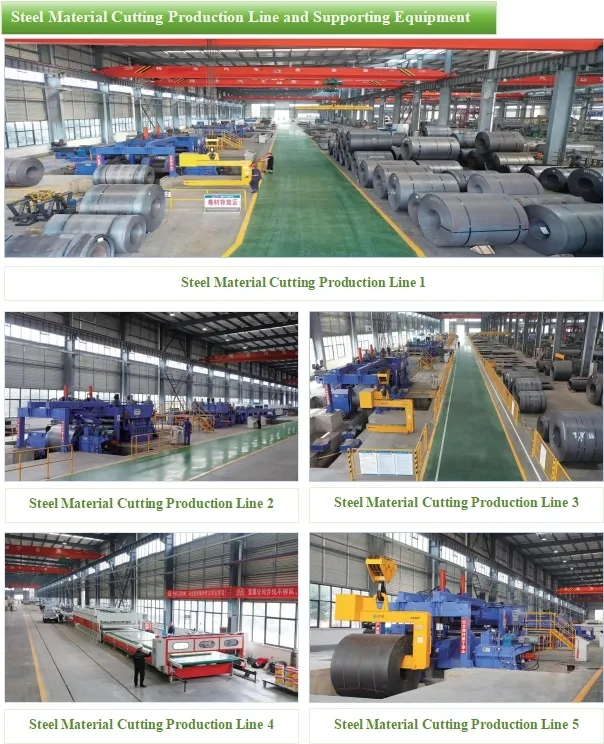

Line 2

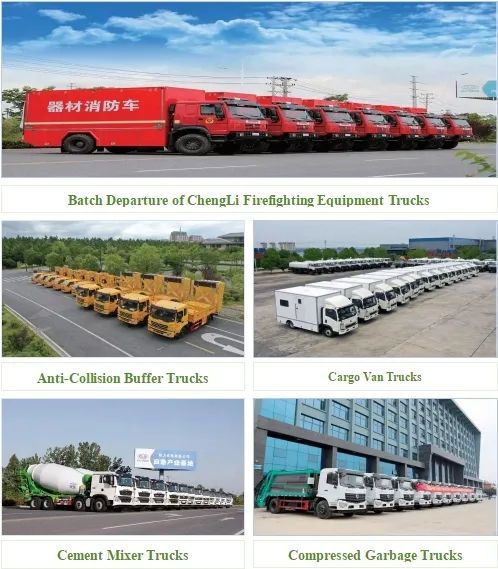

Shipment 1

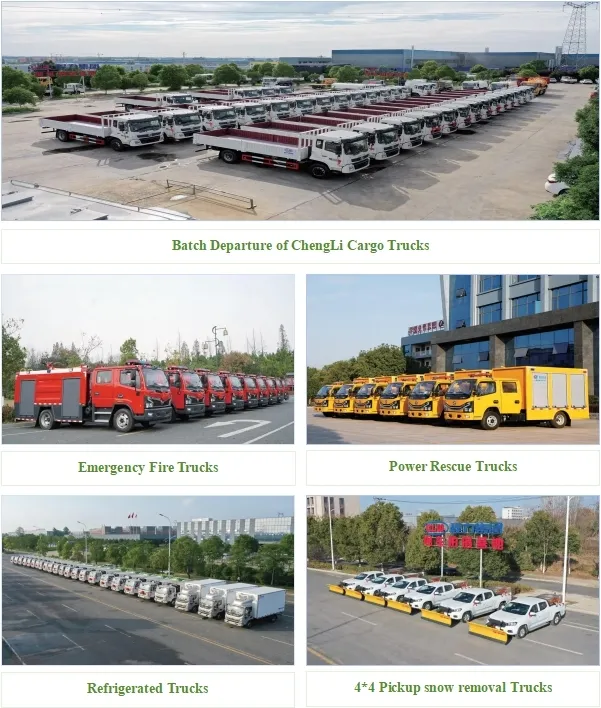

Shipment 2
Frequently Asked Questions
Q1: Is your company a factory or trading company?
A: We are a leading manufacturer of special trucks, tankers, trailers and spare parts in China. You are welcome to visit our production base for special purpose vehicles.
Q2: What are your terms of payment?
A: T/T 30-50% as deposit and the rest before delivery. We will show you photos of the products and packages before you pay the balance. L/C terms are also acceptable.
Q3: Can you customize the product according to requirements?
A: Yes, we have a professional R&D team and can produce the product exactly according to your specific requirements.
Q4: What is the price of your product?
A: We are direct sales from the factory, so the price is very competitive. Price depends on your special needs and configuration.
Q5: Do you test all your goods before delivery?
A: Yes, we conduct 100% testing on all vehicles and equipment before they leave our facility.
Q6: What service can I get from you?
A: We provide lifelong tracking service and a one-year free warranty. We also offer free training and technical support for repairs and maintenance.
