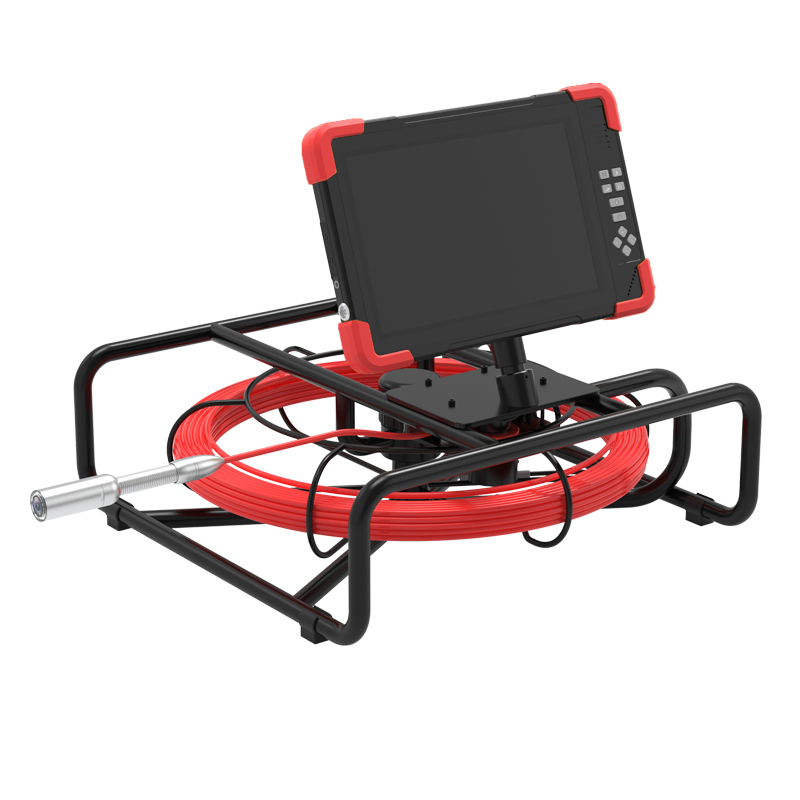

10.1" 4K Monitor 30m Sewer Pipe Inspection Video Camera Industrial Endoscope System with 512Hz Locator
10.1" 4K Monitor 30m Sewer Pipe Inspection Video Camera Industrial Endoscope System with 512Hz Locator
10.1" 4K Monitor 30m Sewer Pipe Inspection Video Camera Industrial Endoscope System with 512Hz Locator
10.1" 4K Monitor 30m Sewer Pipe Inspection Video Camera Industrial Endoscope System with 512Hz Locator
10.1" 4K Monitor 30m Sewer Pipe Inspection Video Camera Industrial Endoscope System with 512Hz Locator
1 / 5
10.1" 4K Monitor 30m Sewer Pipe Inspection Video Camera Industrial Endoscope System with 512Hz Locator
10.1" 4K Monitor 30m Sewer Pipe Inspection Video Camera Industrial Endoscope System with 512Hz Locator
10.1" 4K Monitor 30m Sewer Pipe Inspection Video Camera Industrial Endoscope System with 512Hz Locator
10.1" 4K Monitor 30m Sewer Pipe Inspection Video Camera Industrial Endoscope System with 512Hz Locator
10.1" 4K Monitor 30m Sewer Pipe Inspection Video Camera Industrial Endoscope System with 512Hz Locator

10.1" 4K Monitor 30m Sewer Pipe Inspection Video Camera Industrial Endoscope System with 512Hz Locator

Customization: Available
Technology: 4MP
Style: Mini Camera
Send Inquiry

Product Description

Basic Specifications
Model NO.
PD160-23mm
Type
Video Camera
Sensor
CMOS
HDMI Format
2560*1440pix
Resolution
4MP (1080P)
Lens Type
Manual Focus
Certification
CE, FCC, RoHS
Features
Waterproof, High Definition, Mini Size
Effective Distance
≧30m
Sensor Size
1/2.9"
Product Name
30m Sewer Pipe Inspection Video Camera
Light Source
12 PCS LED Lamps
Waterproof Rate
IP68
DVR Monitor
10.1 inch Touch Screen
Battery
6200mAh Rechargeable Lithium
Push Cable
30m Fiberglass
Location
512Hz Locator Support
Sewer Pipe Inspection System
Product Overview

10.1" 4K Monitor Sewer Pipe Inspection System with 512Hz Locator

This professional industrial endoscope system combines a high-performance 4MP 23mm camera with a 30m rugged push cable and a 10.1-inch 4K touchscreen monitor for superior inspection accuracy.

Configuration: 4MP 23MM camera + 30M push cable + professional cable reel + 10inch 4K monitor

Primary Applications

  • Tubular/Water Pipe Cleaning: Inspect for rust, corrosion, dust, and cracks after cleaning operations.
  • Shipbuilding Industry: Precision inspection for boilers, steam turbines, diesel engines, and complex pipelines.
  • Industrial Machinery: Internal monitoring of engine scars, gearboxes, and hydraulic systems to reduce downtime.
  • Electronics Manufacturing: Verification of product wiring status and machine component working conditions.

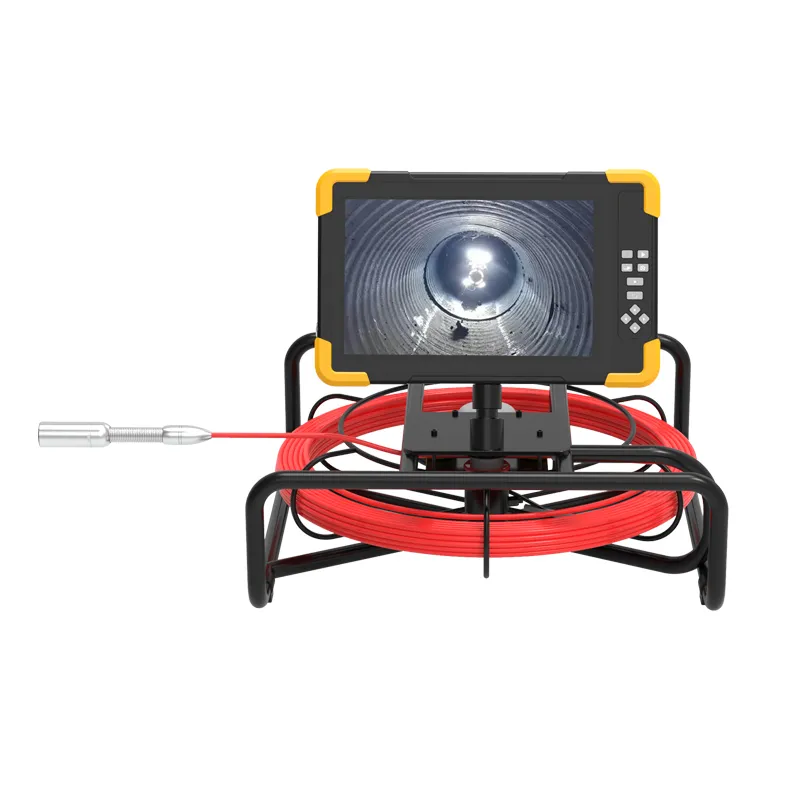

Pipe Inspection Usage
Technical Highlights
  • 4MP Sony Sensor with 2560*1440px Resolution
  • Ultra-wide 180° Viewing Angle for complete coverage
  • 12 Adjustable High-intensity LEDs for dark environments
  • 23mm Diameter Camera Head with multiple skids (40mm and 90mm)
  • Stainless Steel Cable Reel with integrated brake system
  • 7.5mm Diameter High-strength Fiberglass Cable
  • 10.1 Inch Capacitive Touch Screen (1280*800) with IP66 Rating
  • Advanced DVR: 10x Zoom, Image Flip, Photo Editing, and Password Protection
  • Wireless Connectivity: WiFi transmission for mobile APP viewing

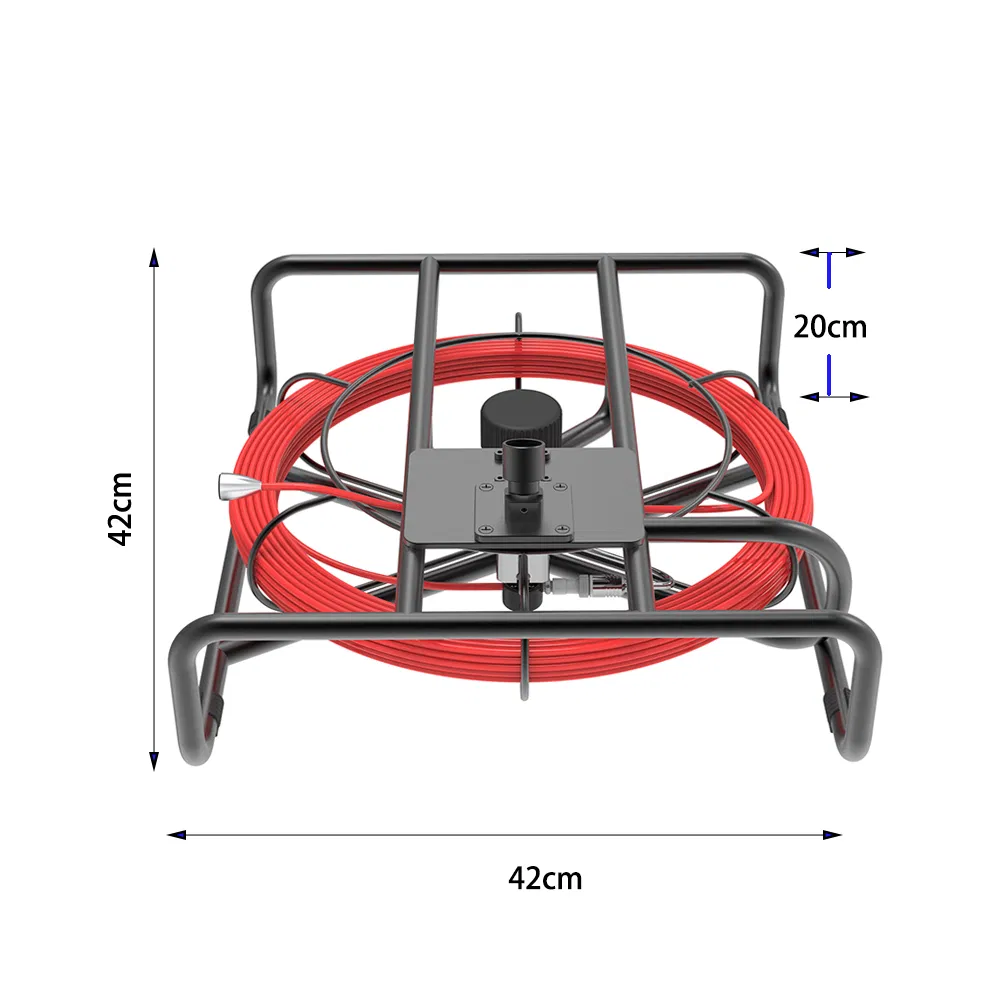

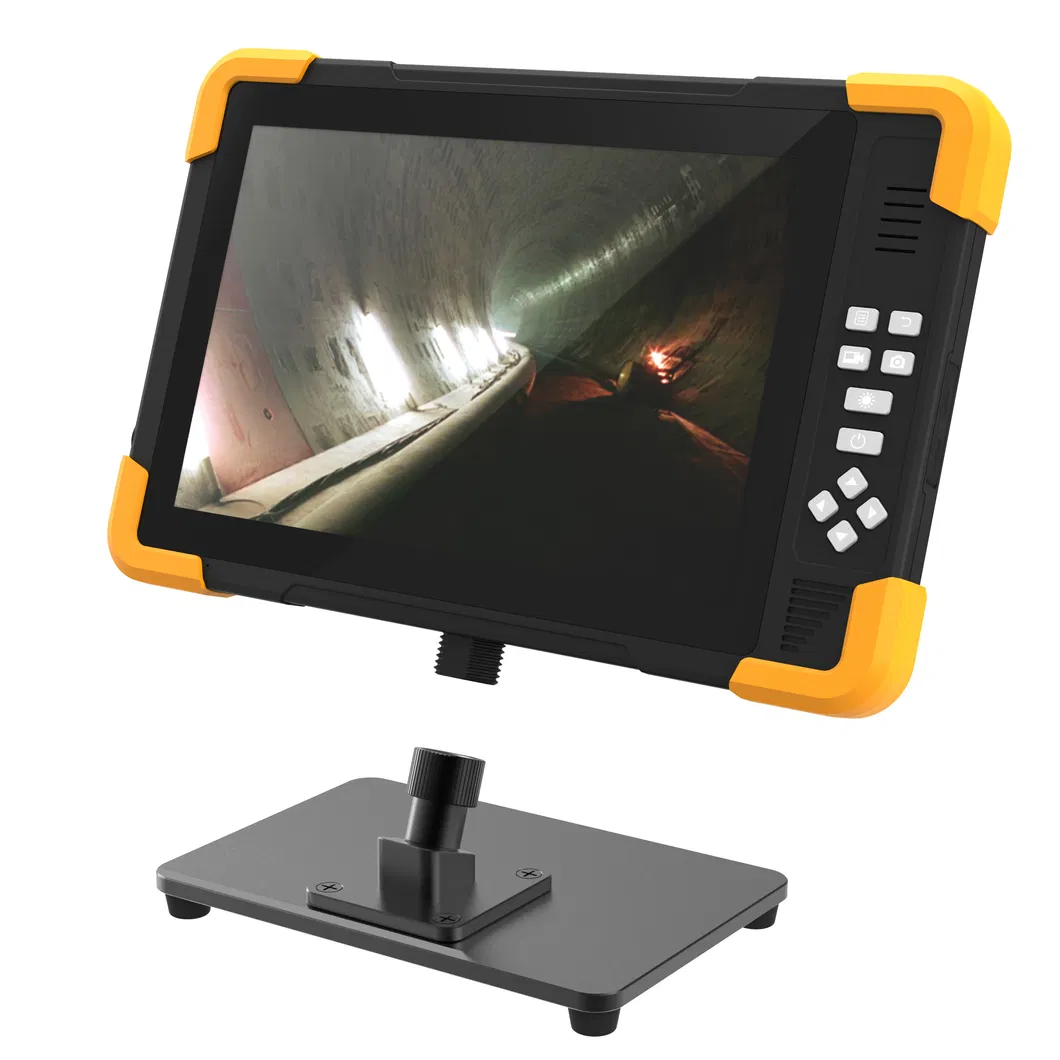

Camera Specs Cable Reel Monitor Interface
Detailed Specifications
Category Parameter Description
CameraResolution4.0 Mega Pixel (2560*1440px)
Dimensionø28mm*57mm (Total length with spring: 133mm)
View Angle180°
Housing316L Stainless Steel, Sapphire Glass
Illumination12 Adjustable LEDs
CableLength30m (Standard)
MaterialFiberglass
Diameter7.5mm
MonitorDisplay10.1 inch Capacitive Touch Screen
Recording4K, 2K, 1080P (MP4 Format)
StorageTF Card Support up to 256GB
Battery12400mAh (6-8 hours working time)
ConnectivityHDMI Output, WiFi App Support, USB DC 5V

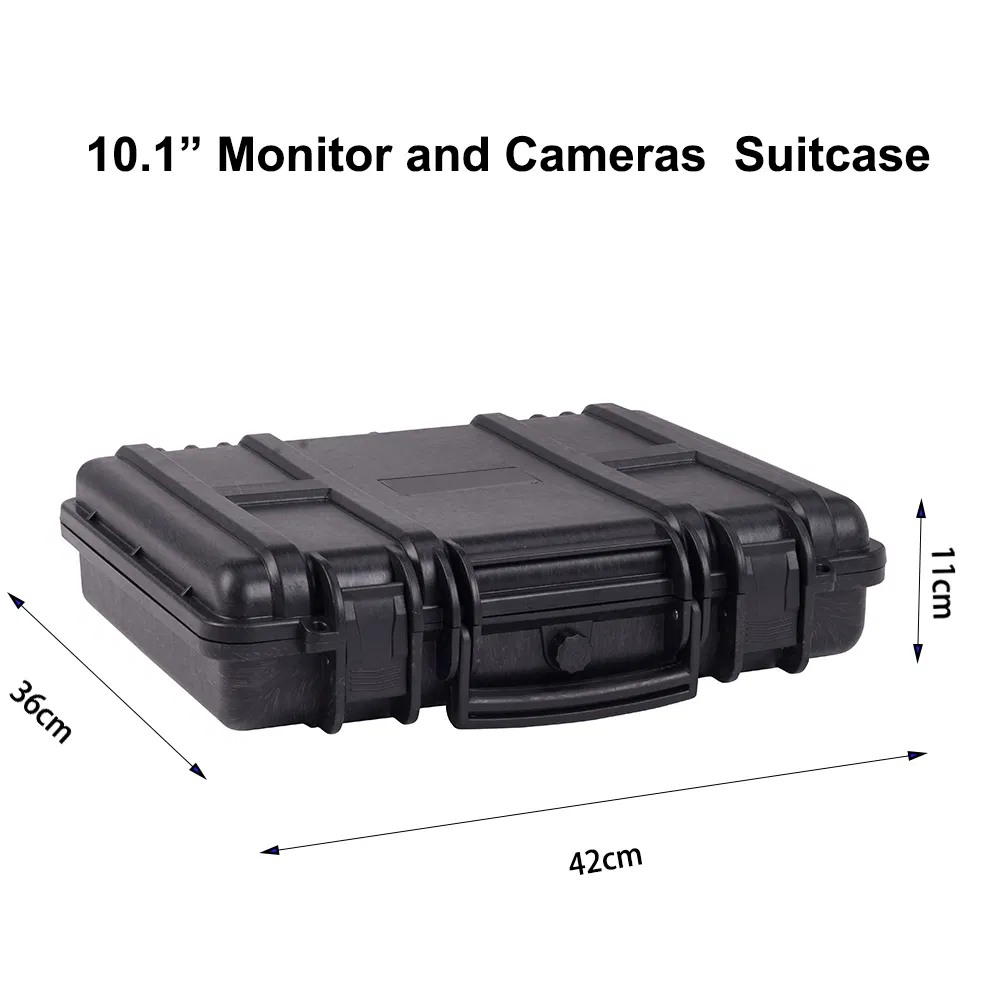

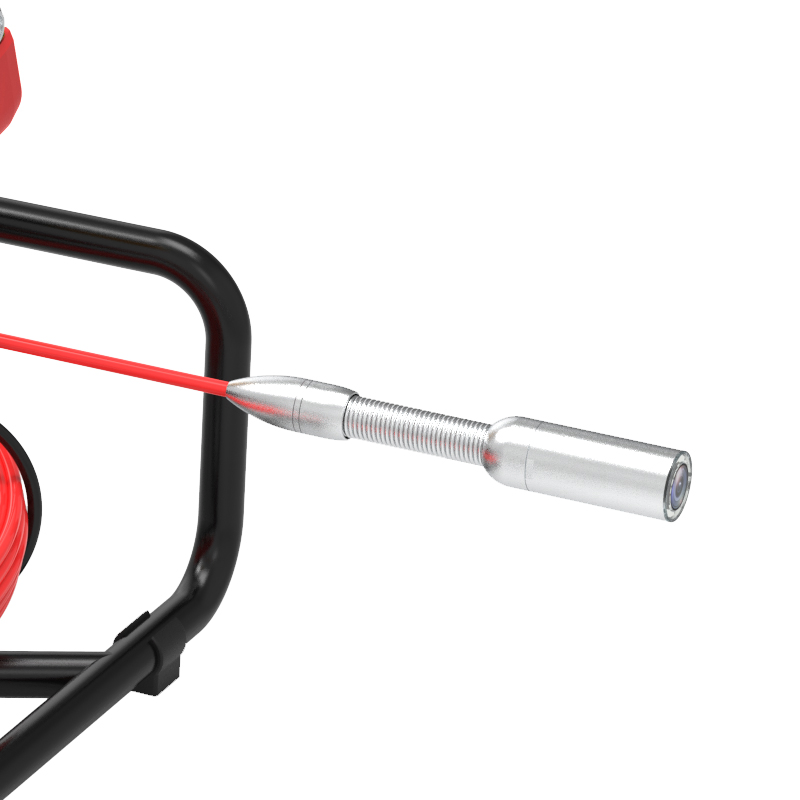

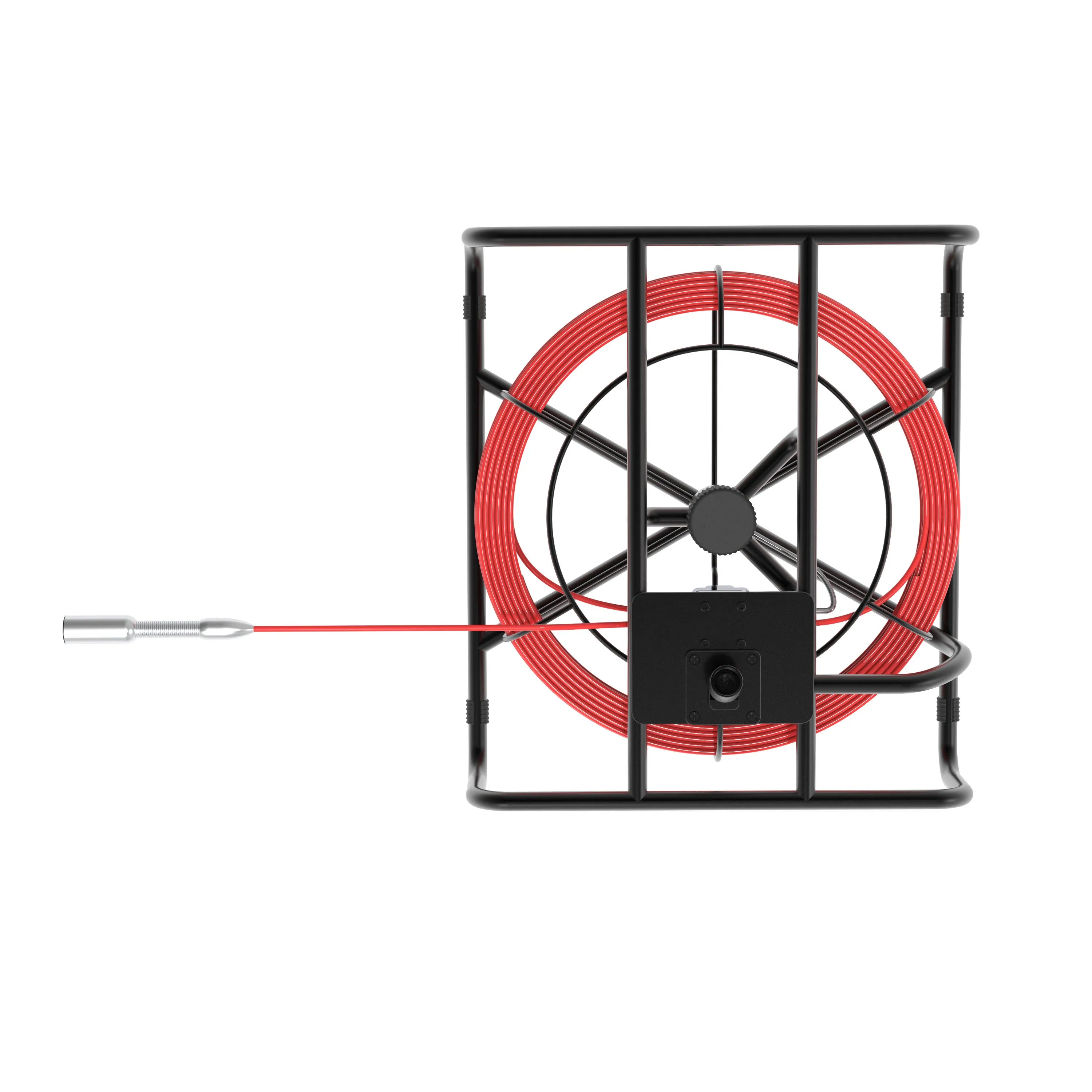

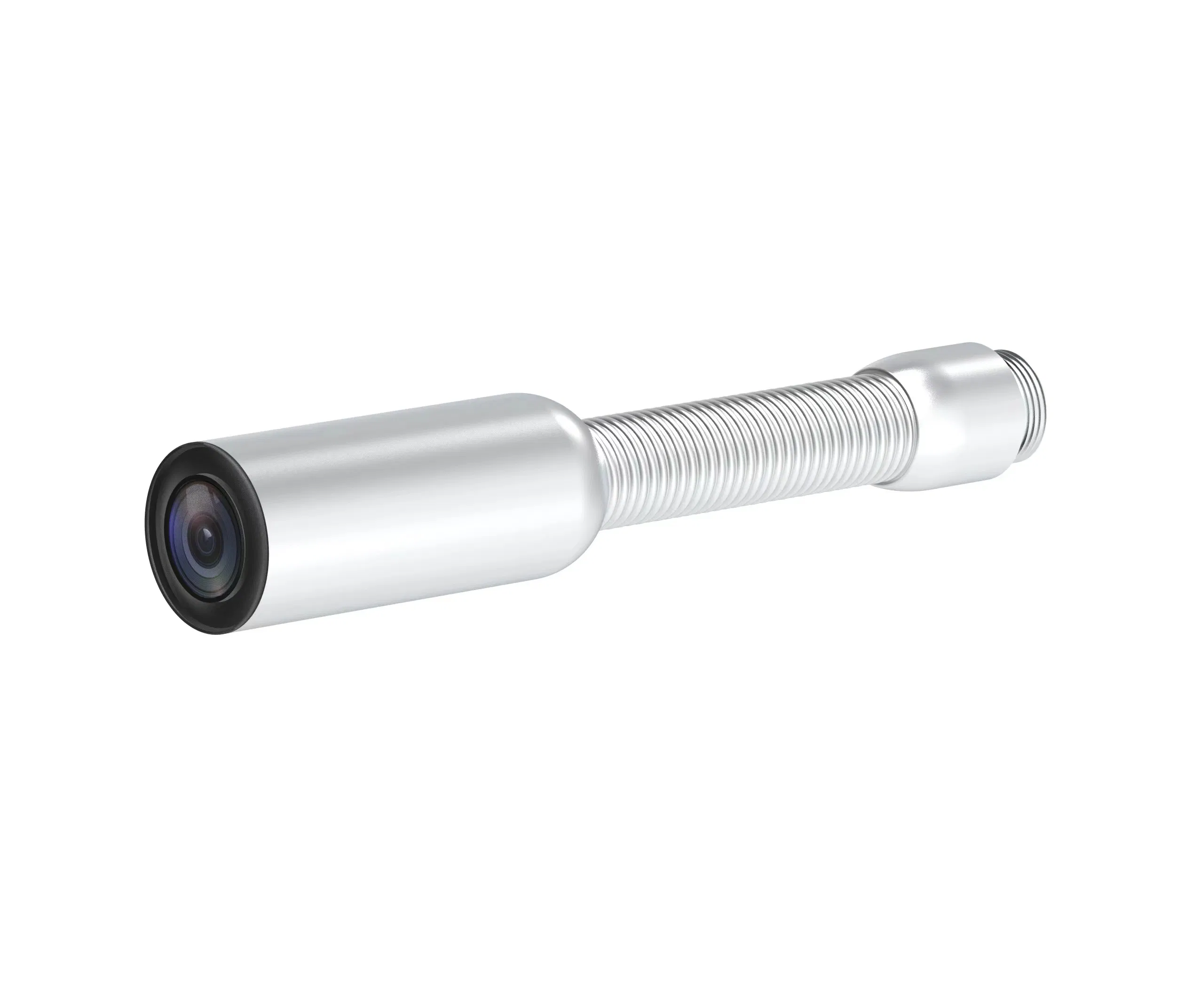

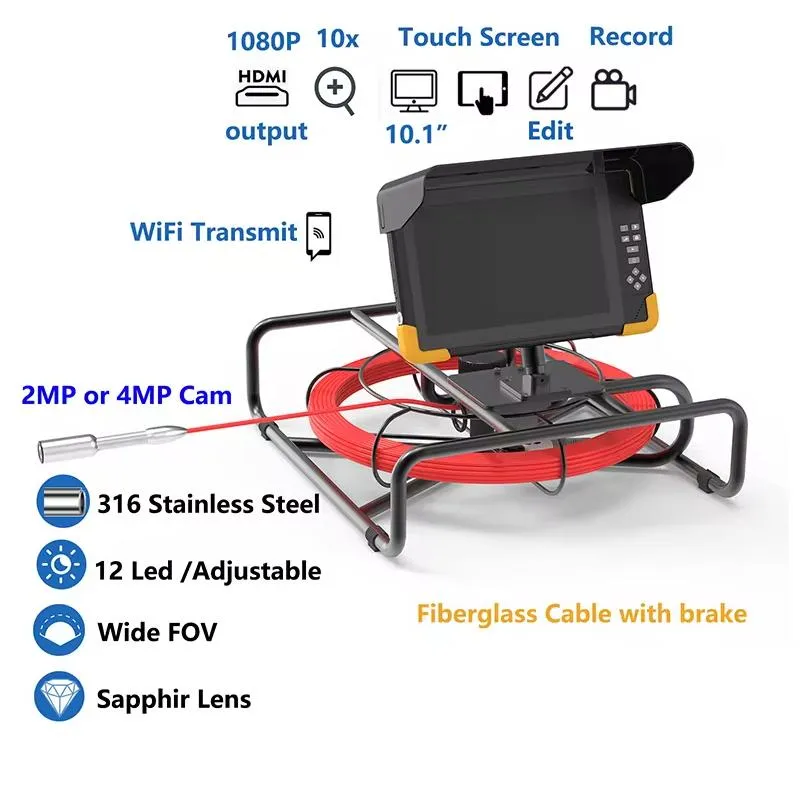

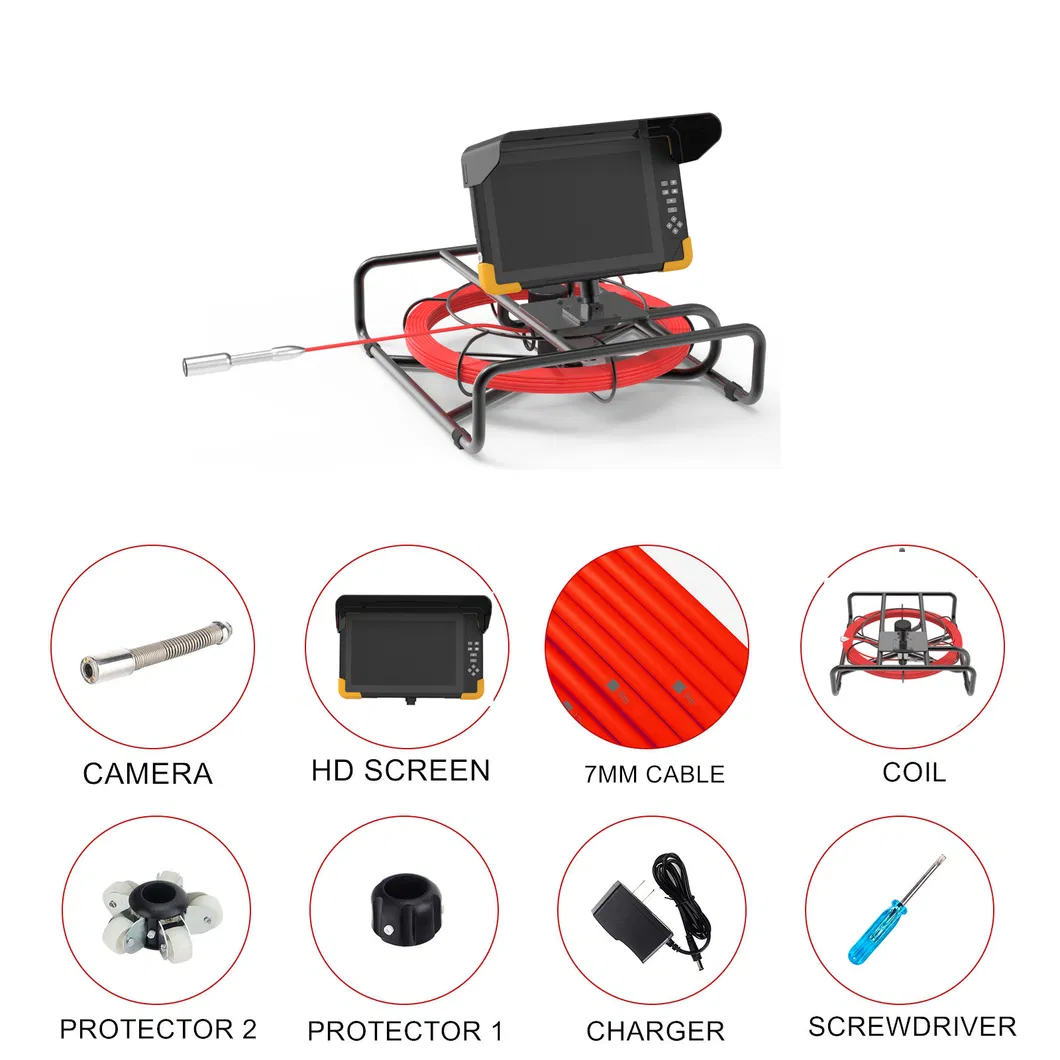

System Components Camera Head Detail Monitor Bracket
Production & Quality Control

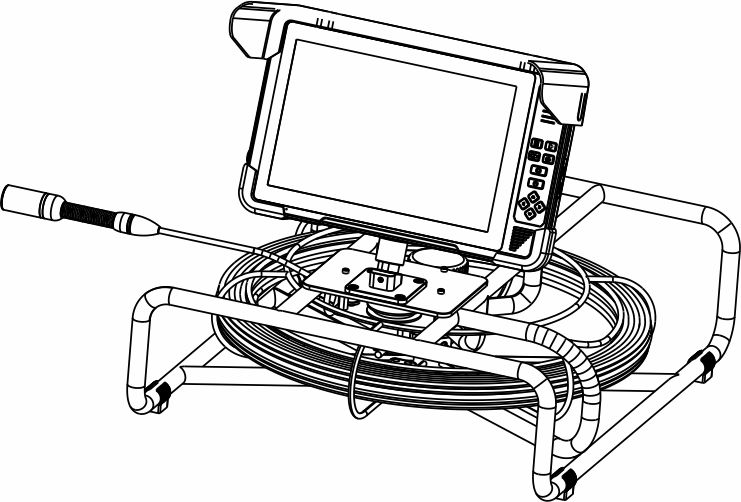

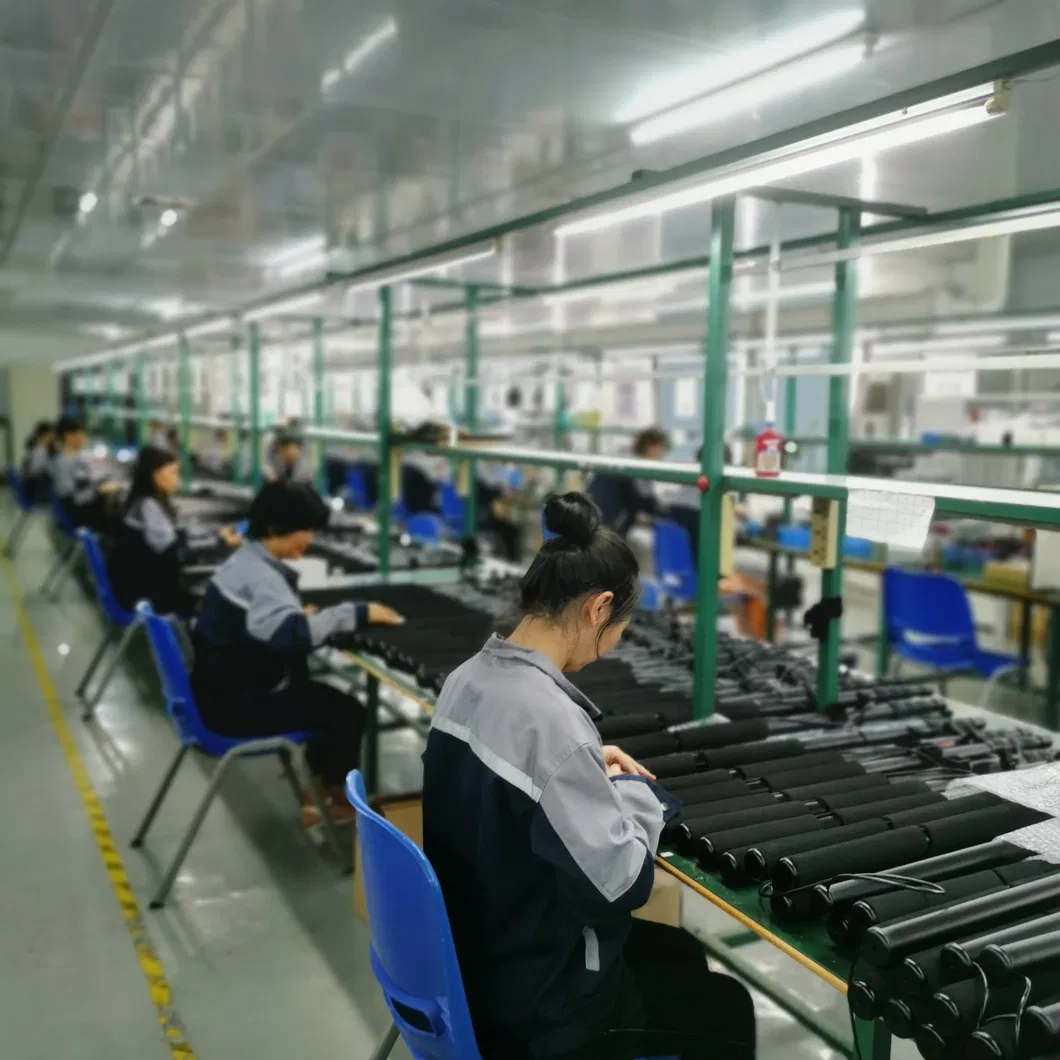

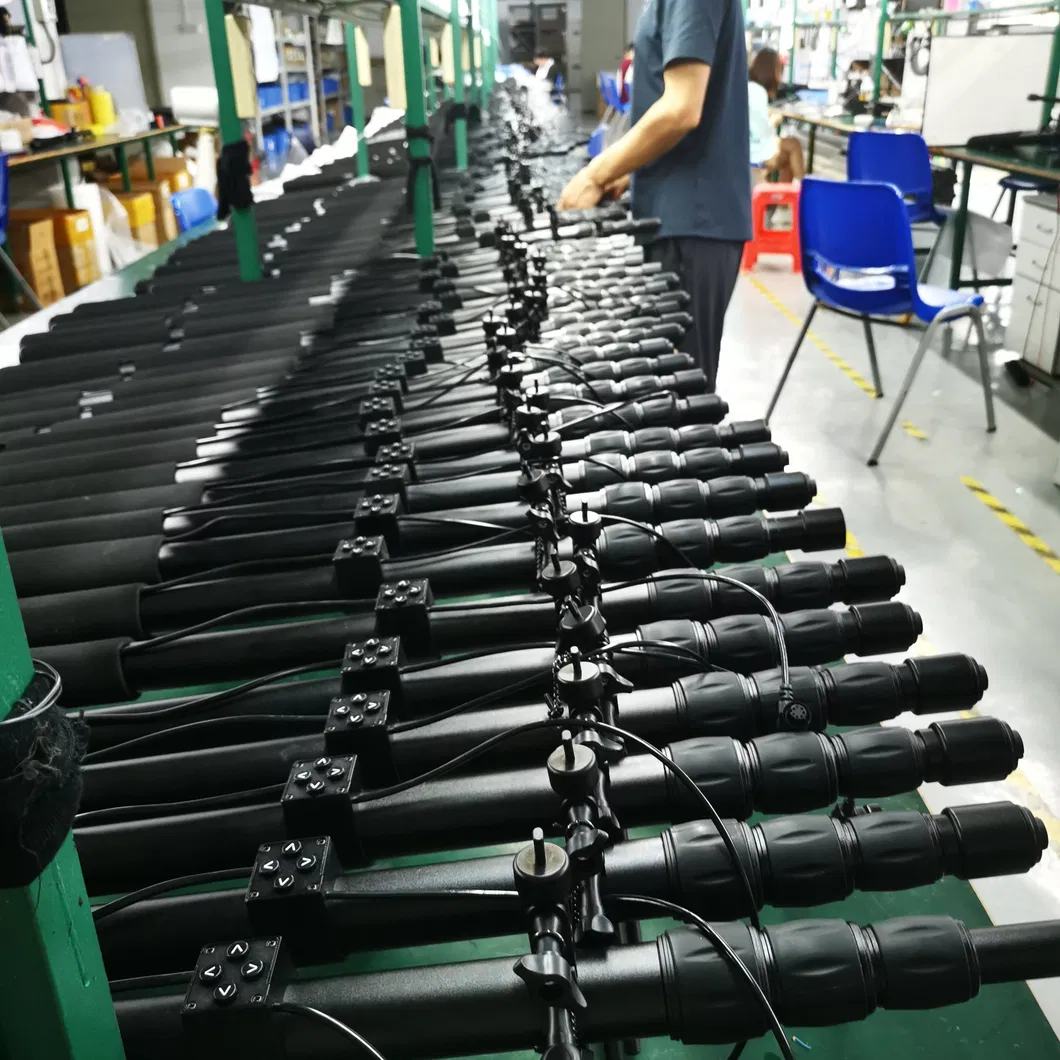

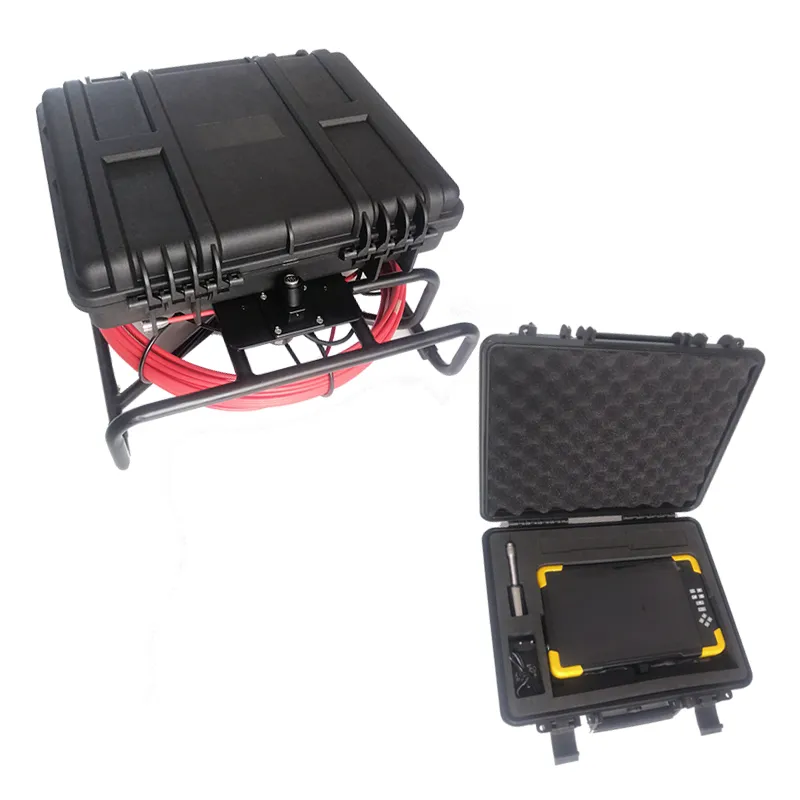

System View Factory Environment Quality Testing
Frequently Asked Questions
What is the image quality of the inspection camera?
The system utilizes a 4MP Sony Sensor providing high-definition resolution up to 2560*1440px, ensuring clear visibility for even the smallest cracks or obstructions.
How long does the battery last on a single charge?
The system is equipped with a high-capacity 12400mAh lithium battery, supporting approximately 6 to 8 hours of continuous operation in the field.
Is the camera head waterproof?
Yes, the camera head features an IP68 waterproof rating and is constructed with 316L stainless steel and sapphire glass to withstand harsh underwater environments.
Can I view the inspection footage on my phone?
Absolutely. The system supports WiFi wireless transmission, allowing you to sync and view the live feed on your mobile device through a dedicated application.
What kind of pipes can this system inspect?
With its 23mm camera head and flexible push cable, it is ideal for sewer pipes, water mains, industrial pipelines, and HVAC ducts with a variety of diameters.
Does the system support 512Hz locating?
Yes, the camera system is compatible with 512Hz locators, making it easy to pinpoint the exact position of the camera head underground or inside walls.
