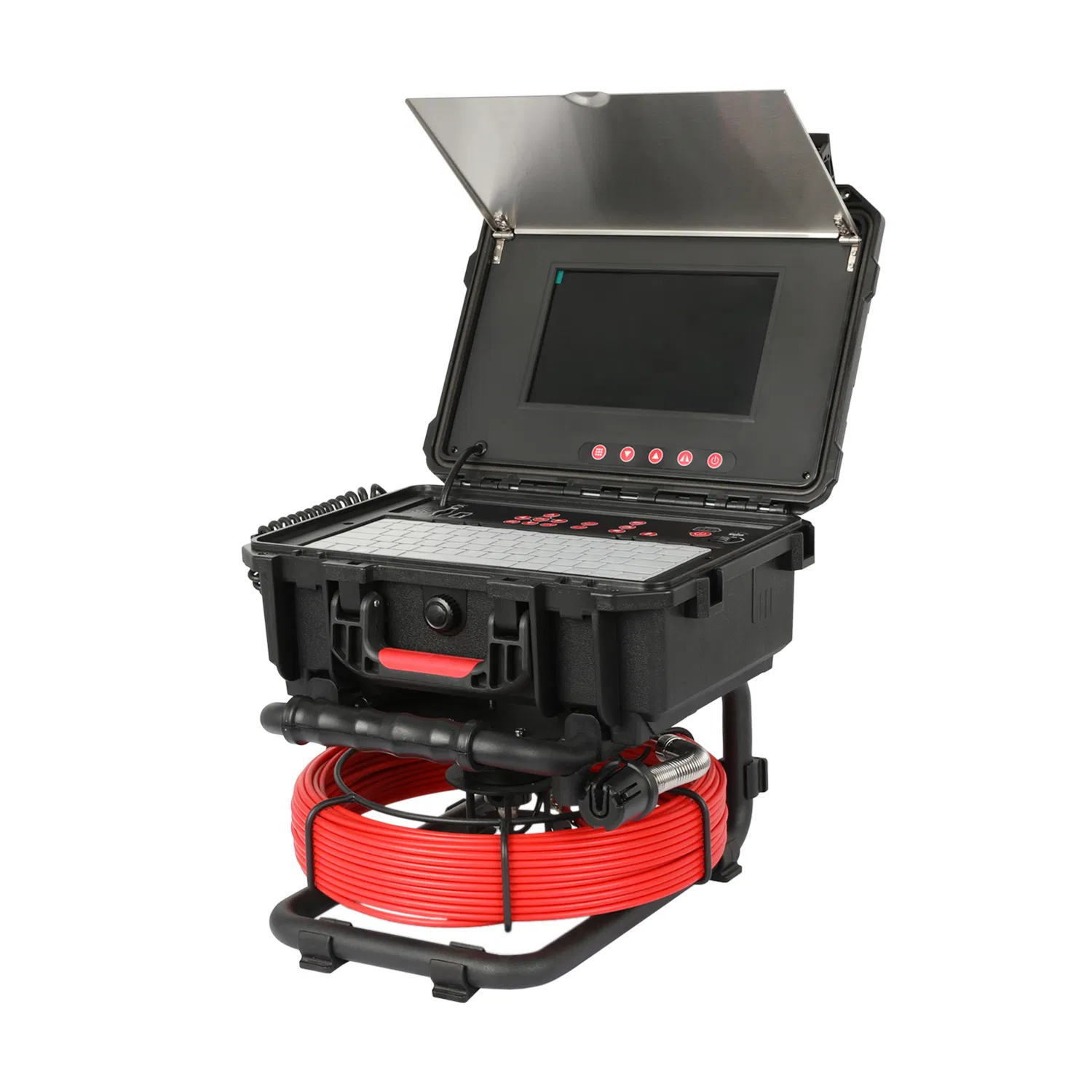

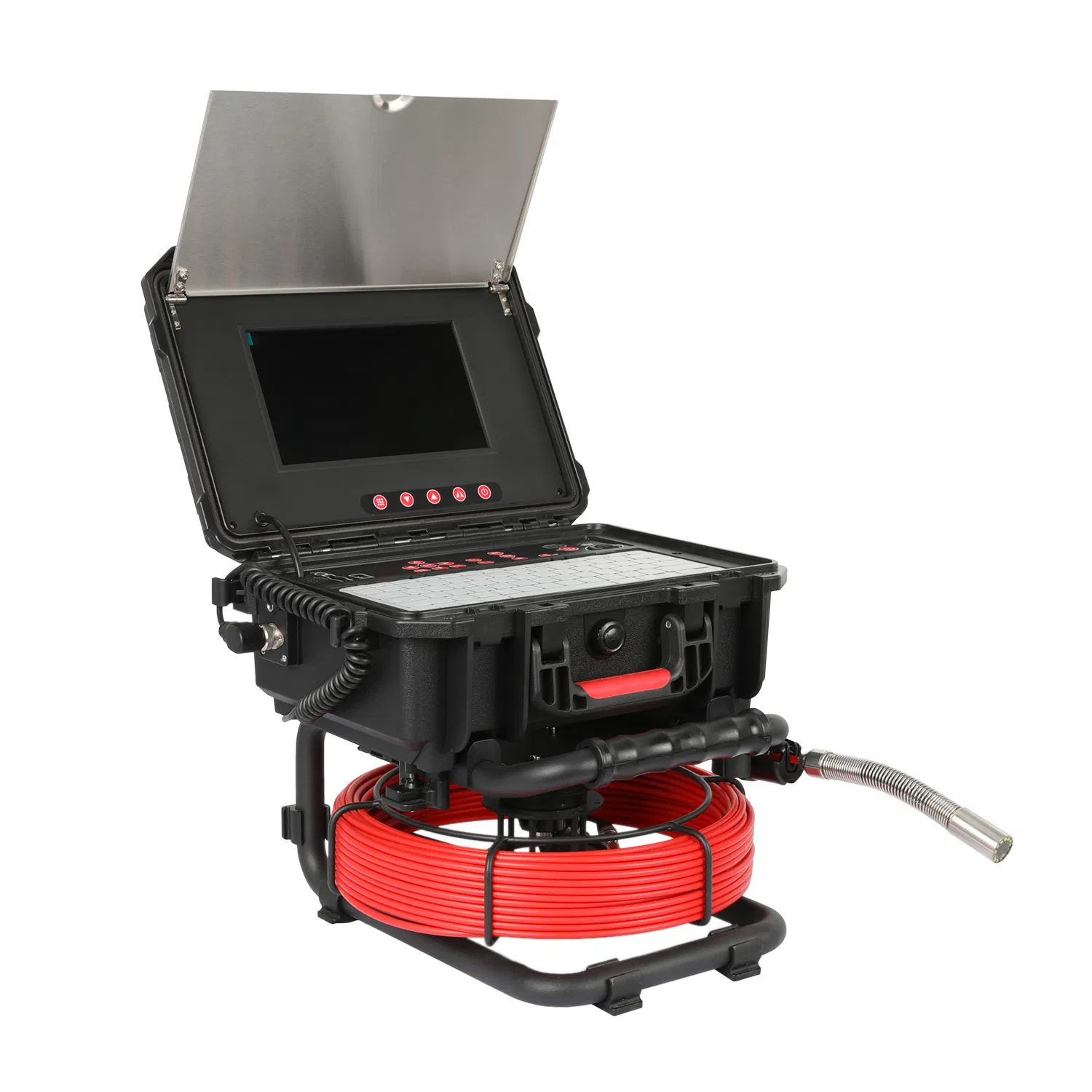

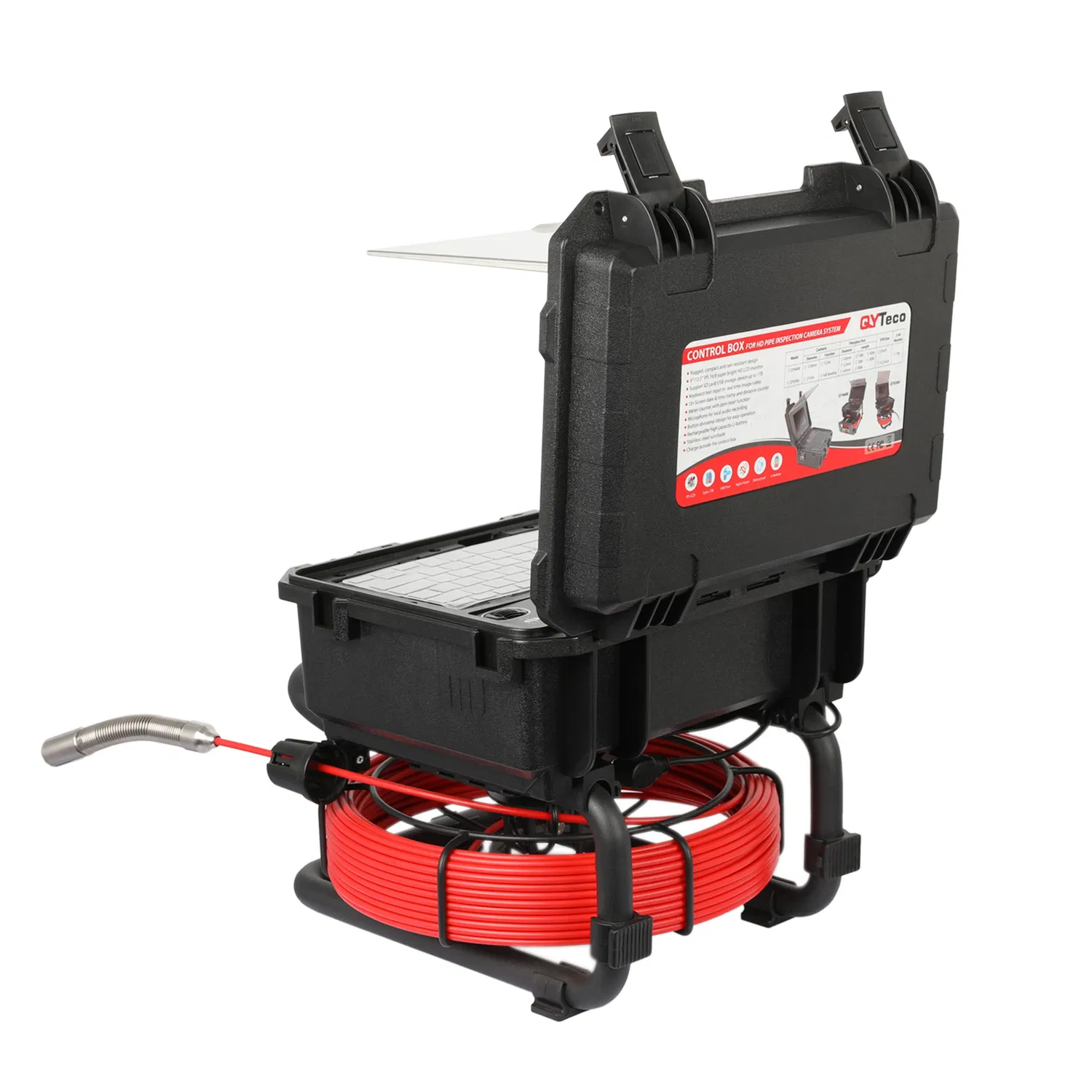

Available 512Hz and Self-Leveling Sewer Drain Cleaning Video Inspections Maintenance Pipe Inspection Camera System

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
QY6565-10M-21mm-5.3mm-9-TOP
Type
CCTV Camera
Sensor
CMOS
HDMI Format
1280*720
Horizontal Resolution
1280*720
Kind
Fixed Focus 5-20cm
Certification
CE, FCC, CCC, RoHS, EMI/EMC, ISO9001
Feature
Waterproof, High Definition, Mini Size
Effective Distance
10-60m
Sensor Size
1/3 inch
DVR Screen Size
9inch
Cable Diameter
5.3mm
Cable Length
10m
Camera Diameter
21mm
512Hz Sonde
With
Self-Leveling
With
Production Capacity
1200PCS/Year
Product Description

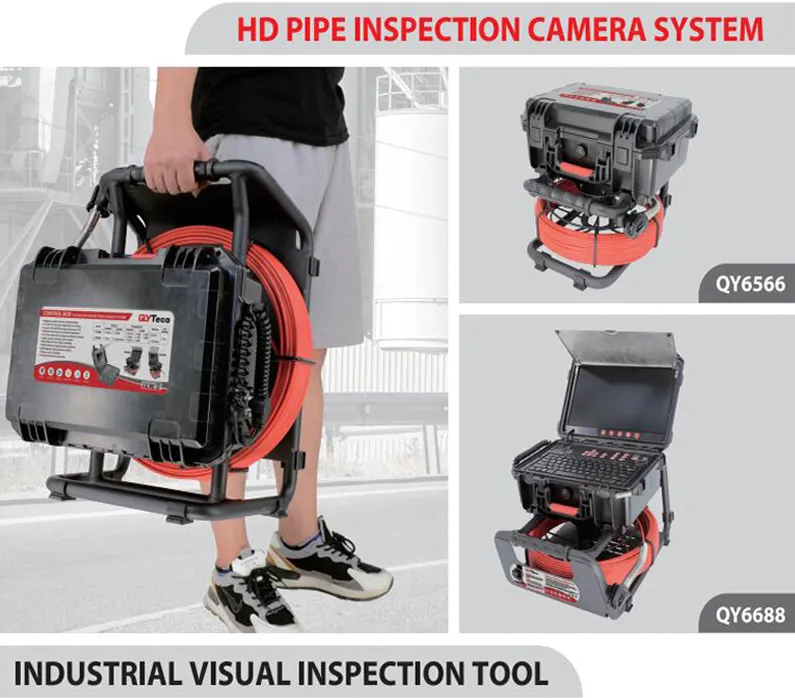

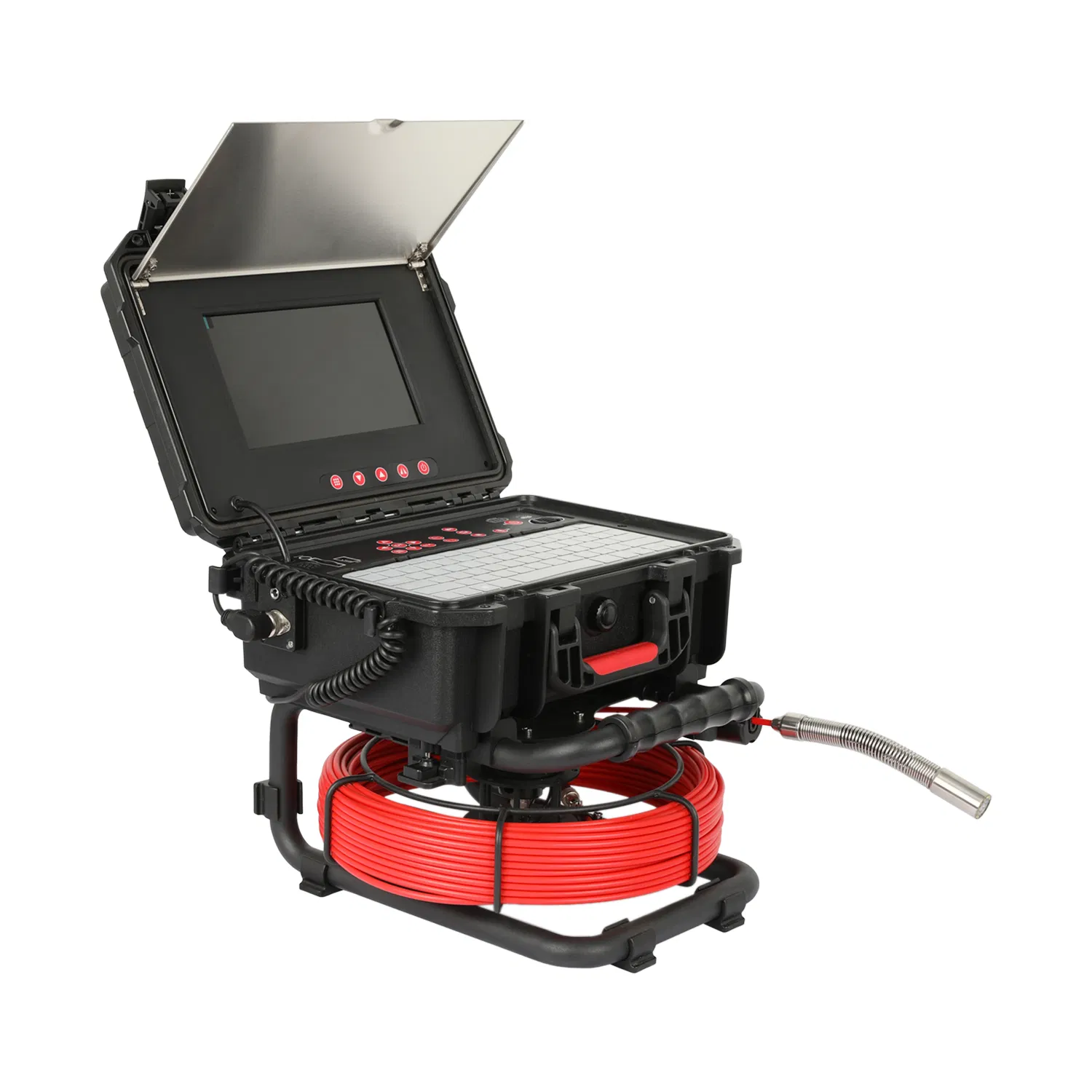

HD Pipe Inspection Camera System

This HD pipe inspection camera system features a compact, rugged, portable, and humanized design for efficient operation in sewers, drains, ducts, chimneys, milk pipes, water mains, central air conditioning, heating systems, and plumbing-related sites. It is suitable for pipes with an inner diameter of 15mm-200mm.

The system consists of three main parts:

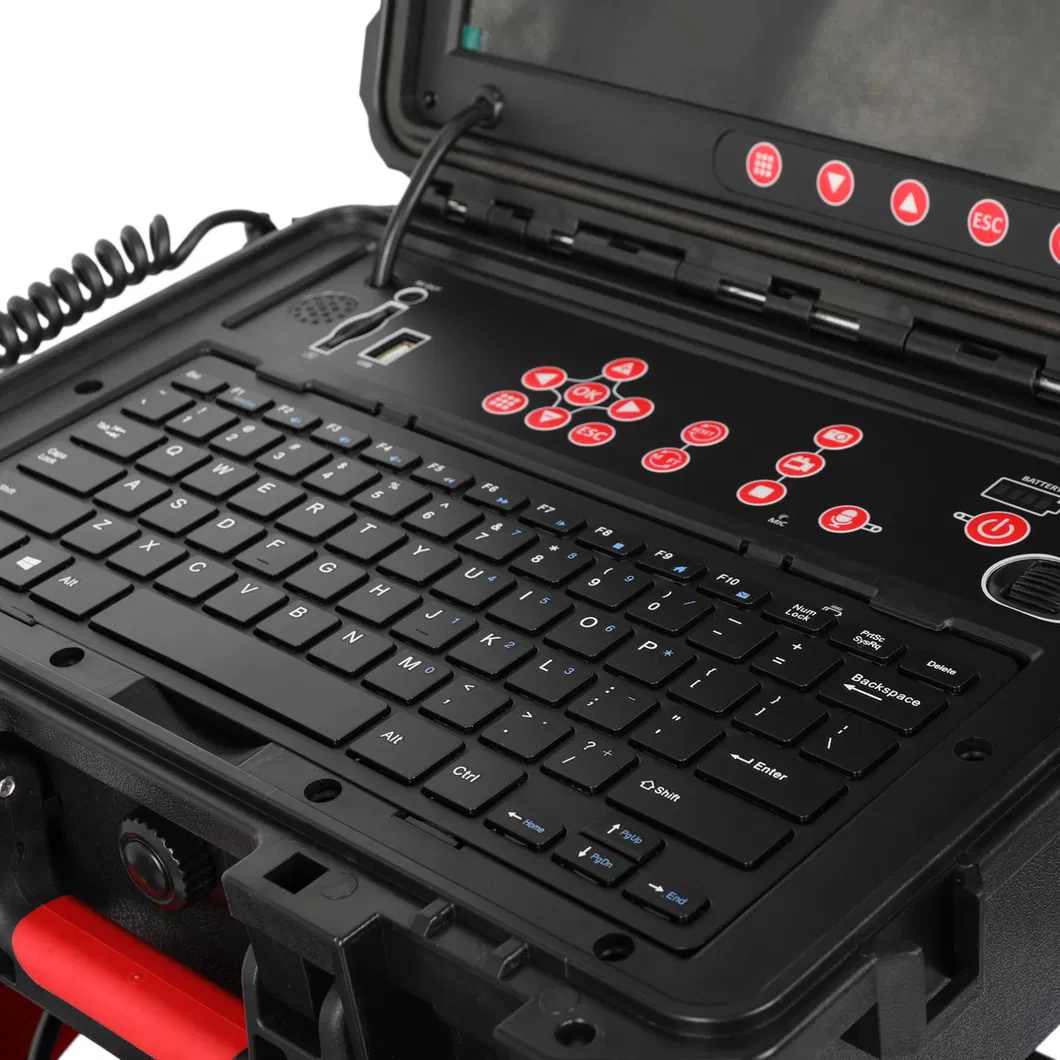

  • Control box with 9inch or 13.3inch big IPS DVR and wireless keyboard.

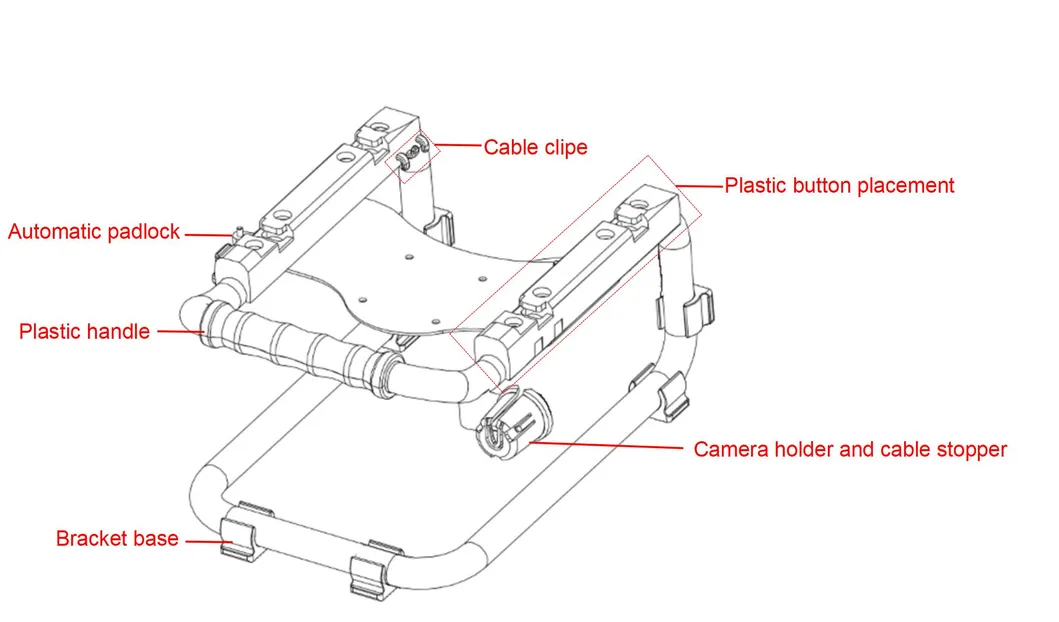

  • Metal frame with automatic padlock.
  • Cable reel with meter counter, fiberglass push rod, and 12.8mm or 21mm HD Camera.

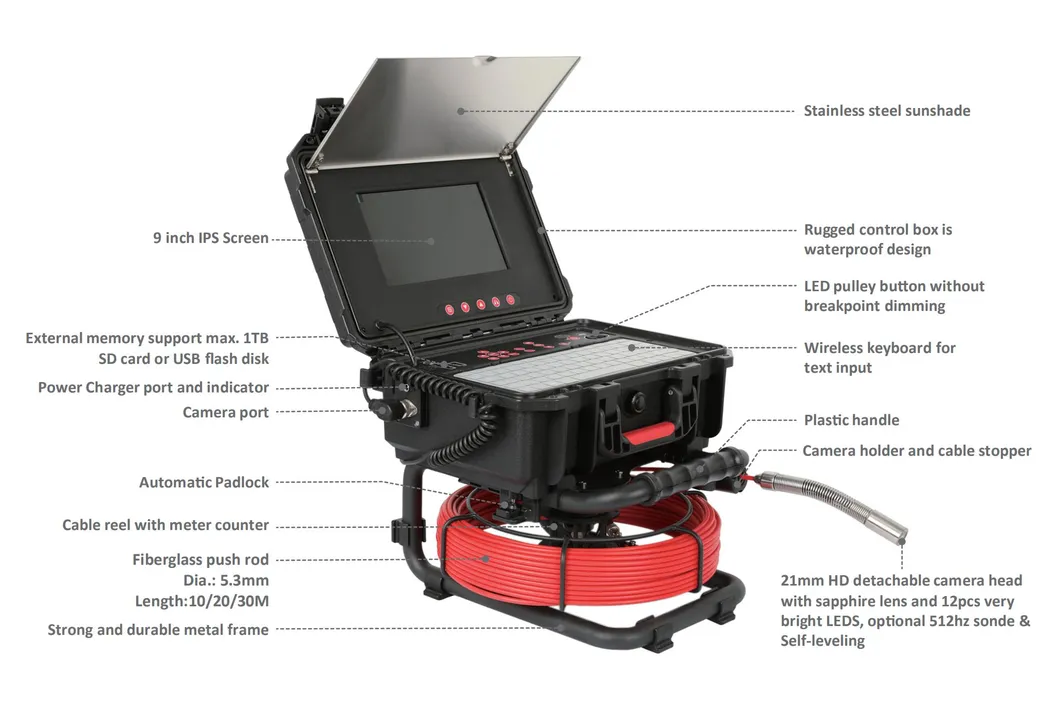

Pipe Inspection Camera Features
Outlook Design Features
1
Automatic Padlock Function: The control box is installed on the metal frame with a fool-proof automatic padlock design.
2
Power Charge Port: Features an external LED indicator light, allowing charging without opening the toolbox.
3
Dust & Water Protection: Power input port designed on the side of the spindle to prevent accumulation.

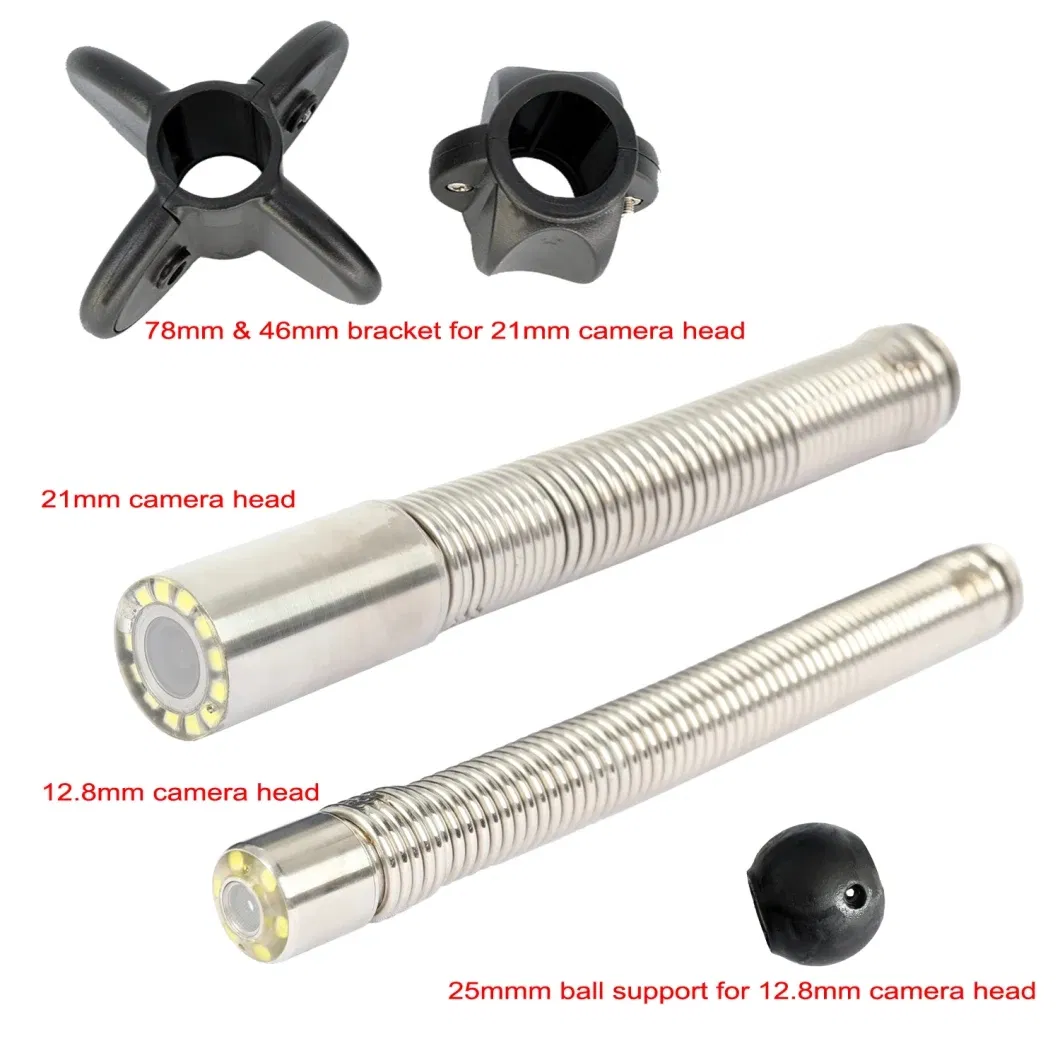

Design Detail 1 Design Detail 2
4

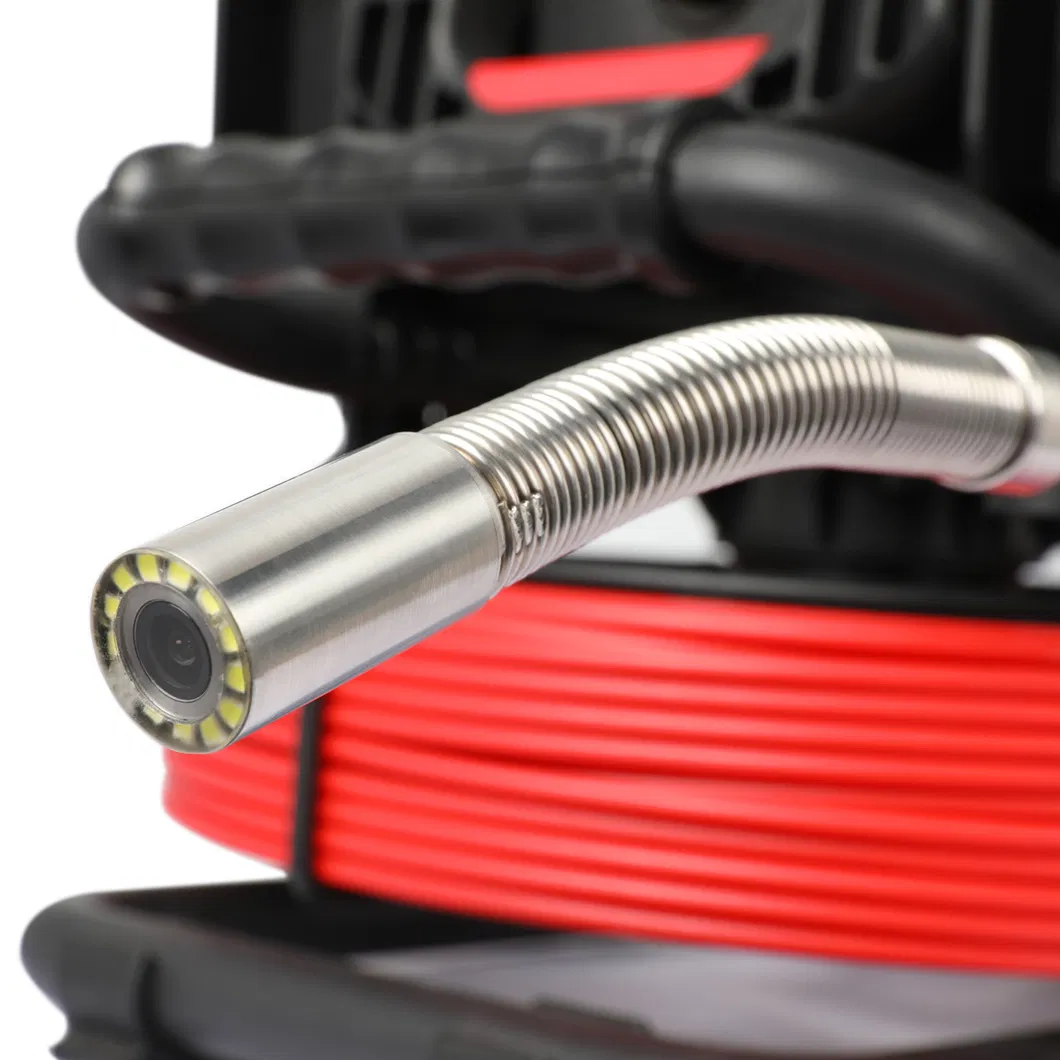

Detachable HD Camera Head: The 21mm HD camera head is detachable for easy replacement and maintenance. Available with or without self-leveling.
Functional Advantages
Function Design Overview
  • Sapphire glass lens cover and 304 stainless steel housing.
  • Whole system waterproof design.
  • On-Screen date, time stamp, and distance counter.
  • Meter-Feet switching for easy unit conversion.
  • Microphone for local audio recording.
  • Pulley button for breakpoint-free LED dimming.
  • Rechargeable battery lasts up to 7.5 hours.

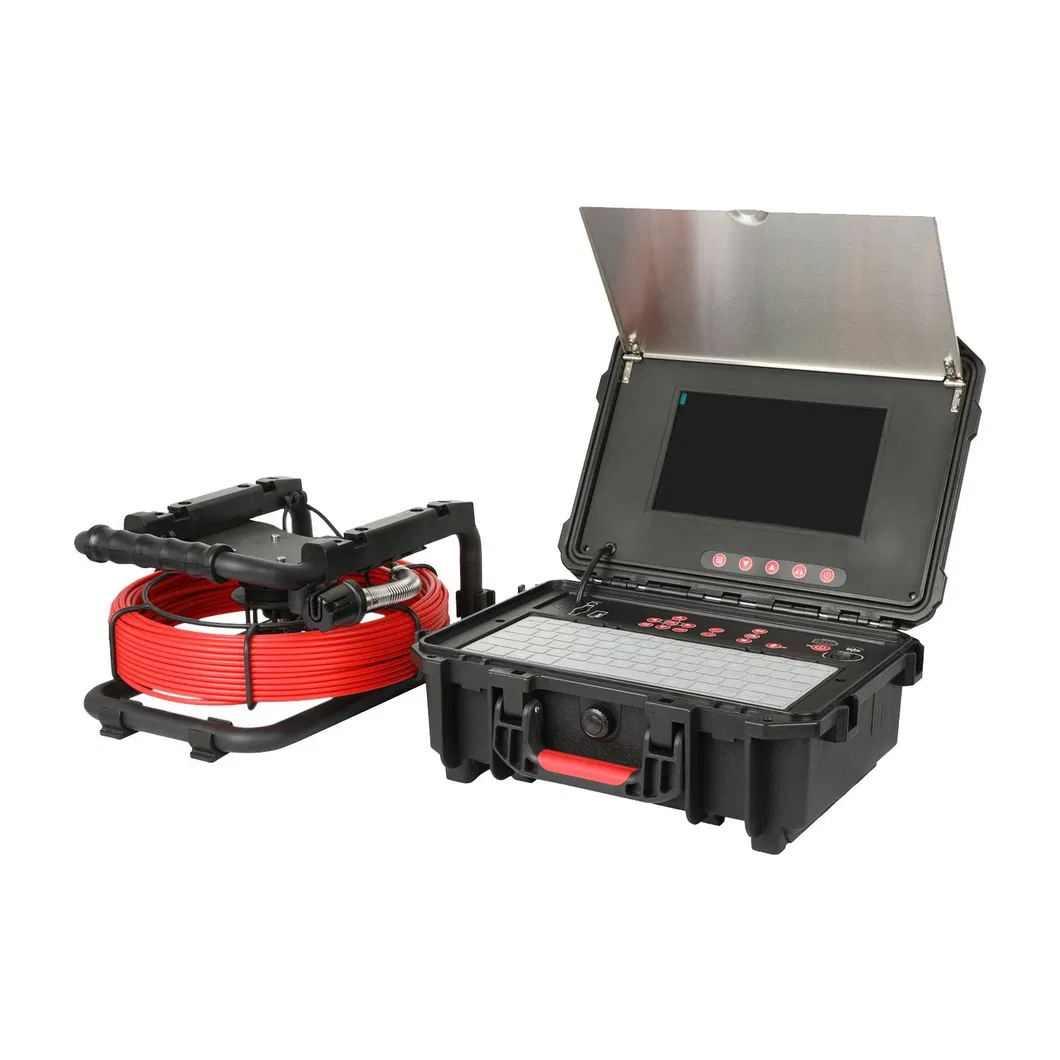

Detailed View
Industrial Applications
Application 1 Application 2
  • Locating water intrusion sources.
  • Inspecting insects, corrosion, or blockages inside cavity walls.
  • HVAC duct, sewer pipe, and plumbing inspections.
  • Electrical, wiring, and CATV routing.
  • Aviation and natural gas pipe inspections.
  • Quality assurance and construction appraisal.
Product Parameters

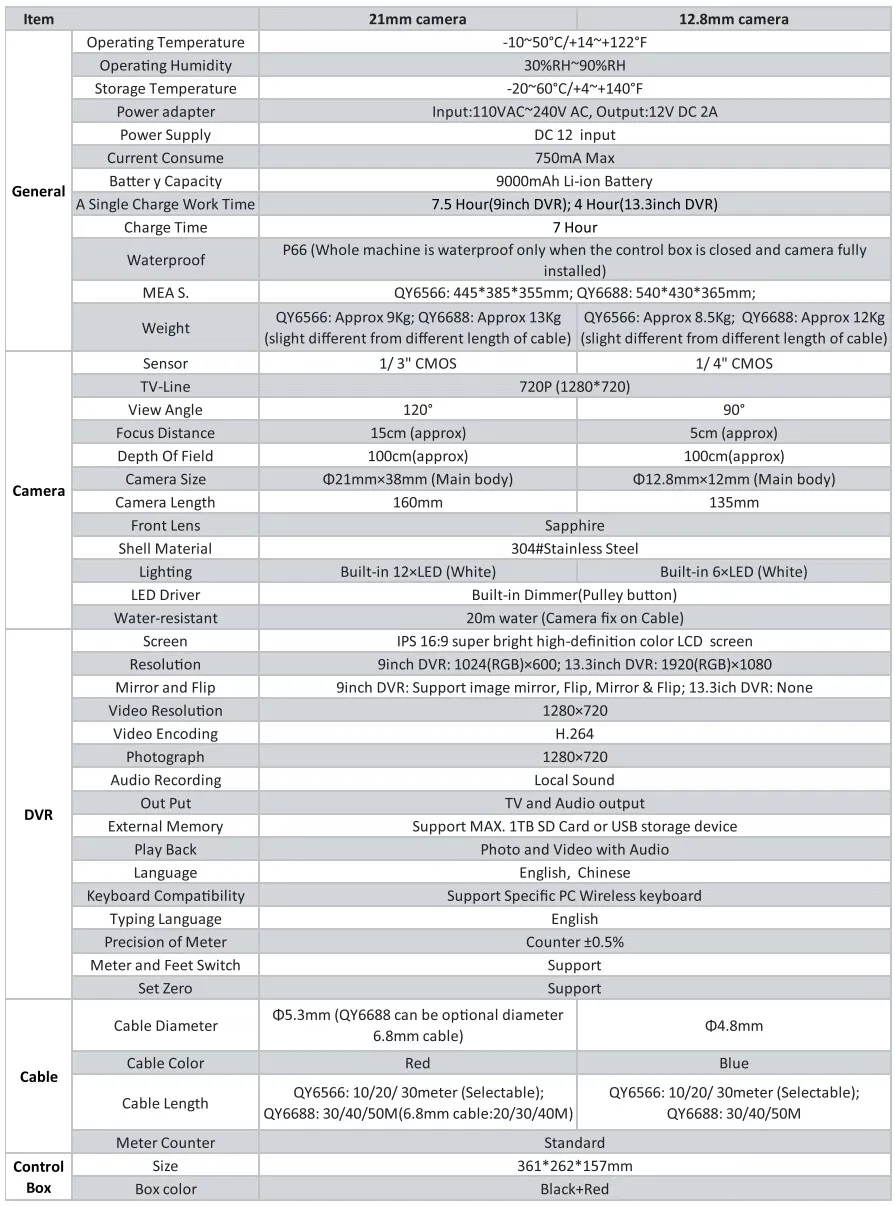

Product Parameters Table
Packaging & Shipping

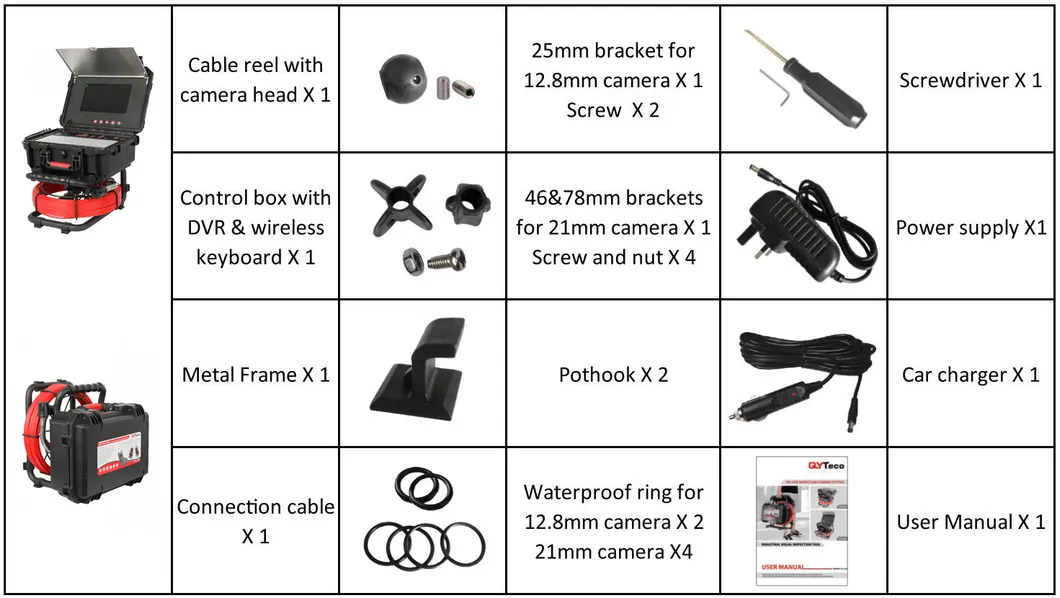

Packing: Standardized professional tool case packaging. Custom requirements can be accommodated upon request.

Shipping: Flexible delivery options including courier, air cargo, and sea cargo. We coordinate the entire process from factory to destination.

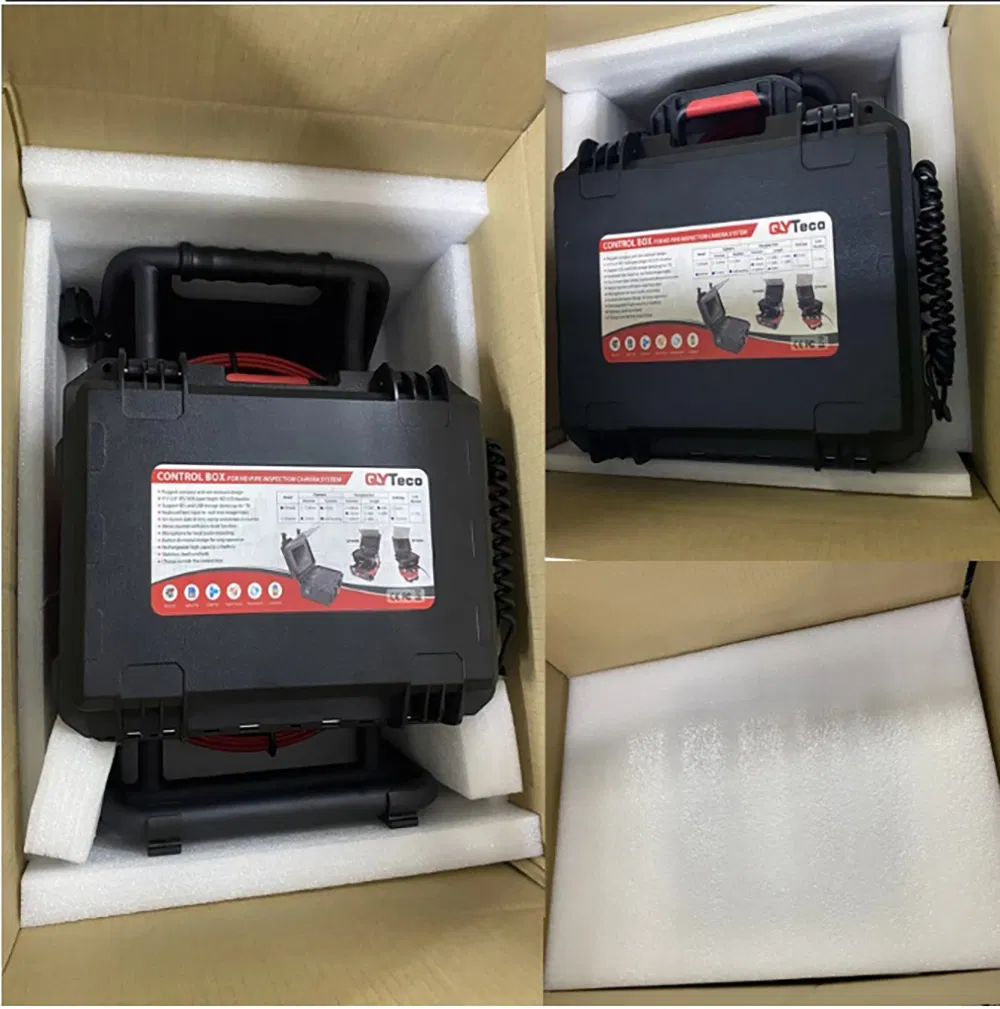

Packaging Box Shipping Case
Our Advantages

R&D Excellence: Professional electronic industry expertise ensuring original designs and high-quality raw materials. We provide OEM/ODM and customized services.

Producer Pricing: Factory-direct pricing with no MOQ for standard products. Fast delivery guaranteed with consistent stock levels.

Warranty: One-full-year warranty for checking and repairing services (excluding man-made damage).

Frequently Asked Questions
1. How do you ensure the quality of the inspection cameras?
We use sapphire glass for lens covers and 304 stainless steel for housings to withstand repeated impacts. Every system is tested for waterproof integrity before shipping.
2. What is the minimum order quantity (MOQ)?
We do not set a MOQ for our standard products. MOQ only applies to OEM, ODM, or highly customized orders.
3. What are the available payment terms?
We currently accept offline orders via T/T and Western Union (Western Union is limited to payments under 2000 USD).
4. What is the standard production time?
Standard products are usually in stock and take 3-15 days. OEM/ODM projects typically require 20-45 days depending on complexity.
5. How long does the battery last during field operations?
The rechargeable battery provides up to 7.5 hours of continuous operation for the 9-inch monitor system.
6. Is technical support available after purchase?
Yes, we provide strong technical support both before and after sales, including a one-year warranty for maintenance and repairs.
