| No. | Parameter | Details |
|---|---|---|
| 1 | Range | 60m |
| 2 | Total power | 22.5KW/24KW |
| 3 | Power supply | 380V 50Hz three-phase four-wire |
| 4 | Dimensions | 2100*1200*2230 mm |
| 5 | Water pump | 4 kW stainless steel centrifugal pump |
| 6 | Spray ring | 2 |
| 7 | Spray head | 60 |
| 8 | Mist particle size | 50-150 (μm) |
| 9 | Water inlet control | Electric mechanical valve, drain solenoid valve |
| 10 | Fan power | 18.5KW |

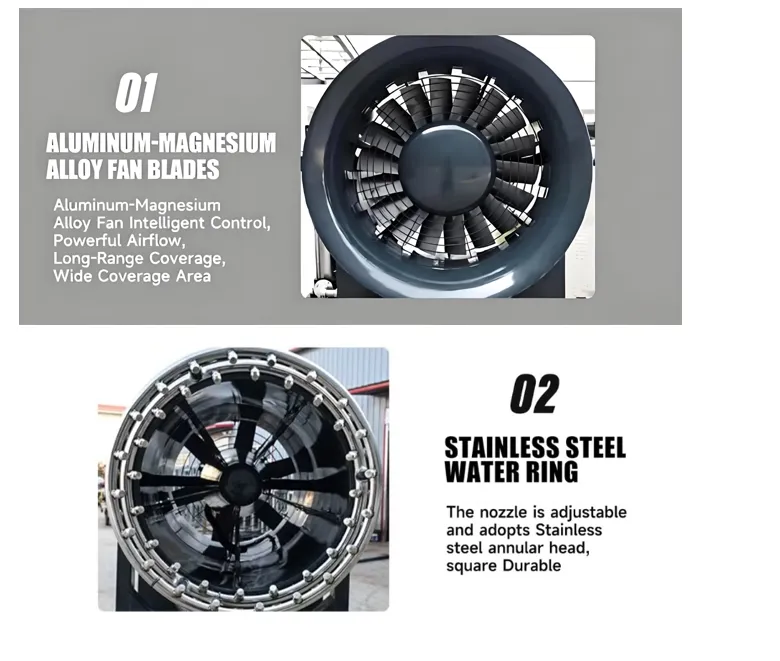

| 11 | Fan blades | 7 Aluminum alloy blades (740 mm) |
| 12 | Rotation Angle | Horizontal: 0-340°, Pitch: 0-45° |
| 13 | Protection | IP55 / Overload, phase loss, and leakage protection |

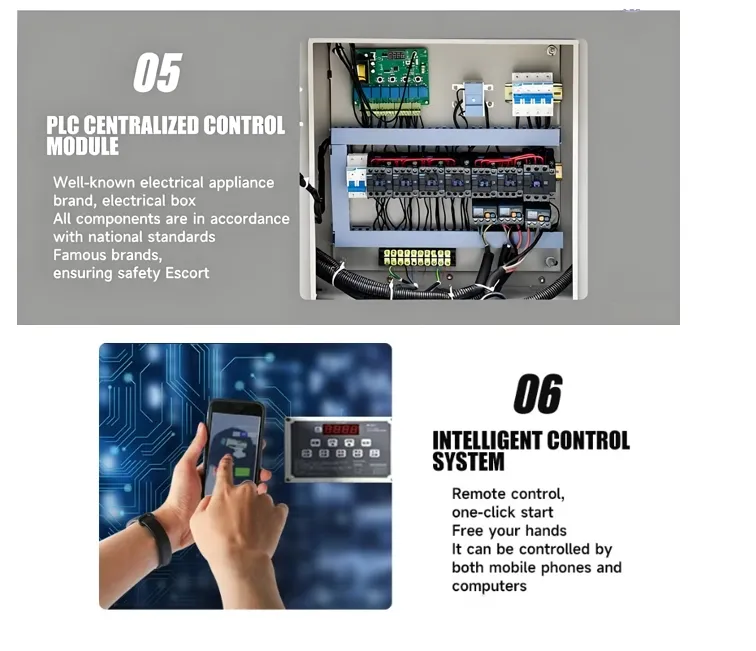

| 14 | Control method | Local, remote, and automatic control |

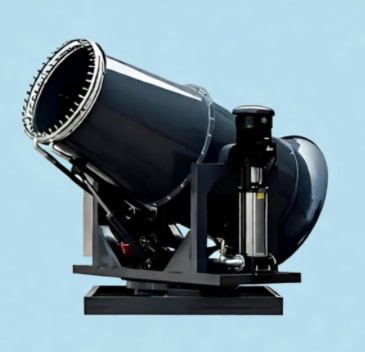

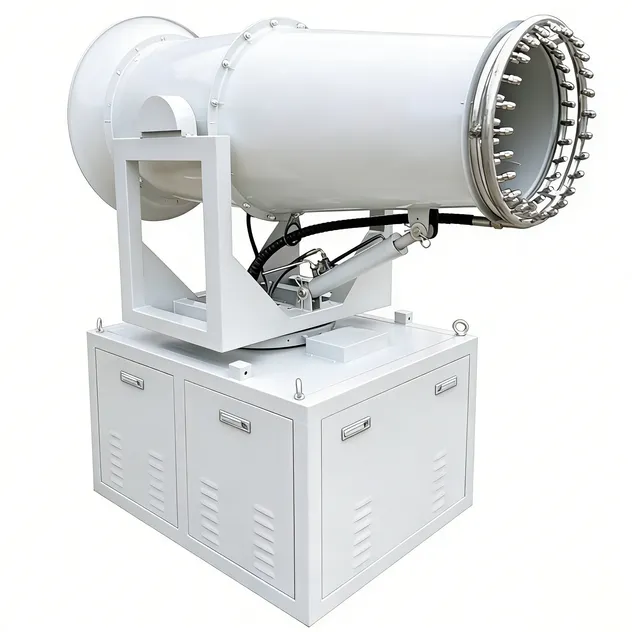

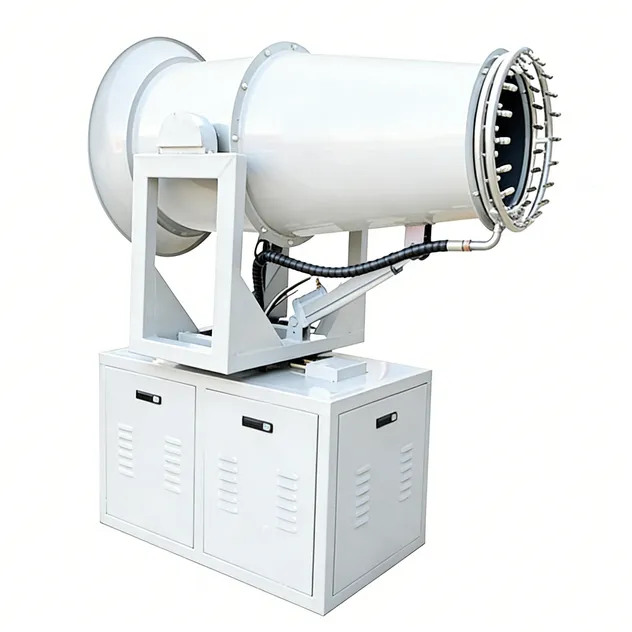

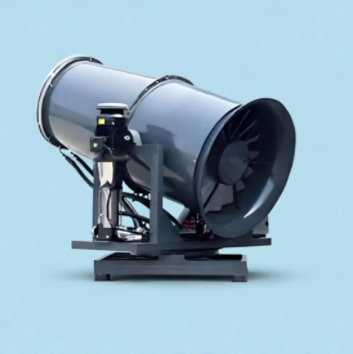

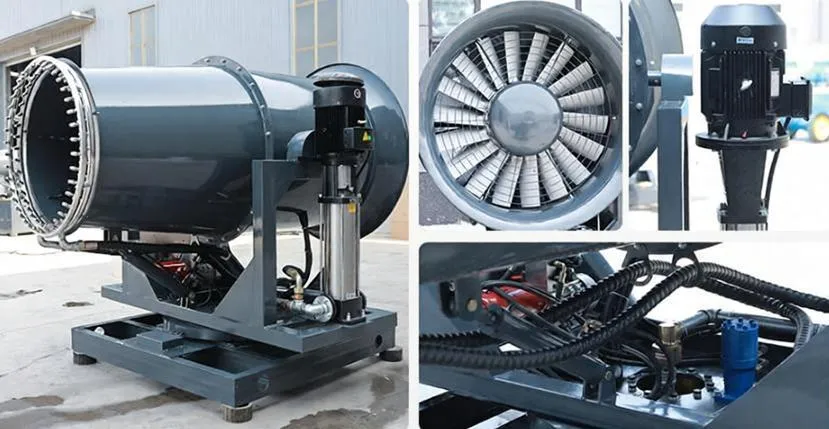

According to the principle of air delivery, the dust removal gun machine uses an advanced stainless steel centrifugal pump and fine atomizing nozzle to atomize the water. It utilizes the air volume and wind pressure of the fan to send the atomized water mist to long distances, covering a larger volume simultaneously. These tiny artificial fog particles can float and suspend in the air for an extended period. The fog length generated by a single nozzle can reach 3-5 meters, and the water mist and dust condense together to achieve efficient dust reduction.
The power options are diverse and can be powered by 380V mains electricity, distribution units, or diesel generator sets:
