Advanced Laser Cleaning Equipment for Heavy-Duty Rust Removal

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
custom
Control Type
Handheld/Automated
Warranty
2 Years
Supply Voltage
Single Phase 220V±10%, 50/60Hz AC
Laser Mode
Pulse
Fiber Length
5m
Cooling Mode
Air Cooling
Total Power
<1kw
Cleaning Range
180*180mm
Cleaning Speed
<30000mm/S
Package Size
70cm * 36cm * 65cm
Gross Weight
40.000kg
Product Overview
Laser Cleaning Equipment

Laser cleaning is a new technology based on the interaction of laser and material, which can achieve the effect of removing surface pollution and attachment. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning, "green" environmental protection, especially suitable for high-speed on-line cleaning in designated areas.

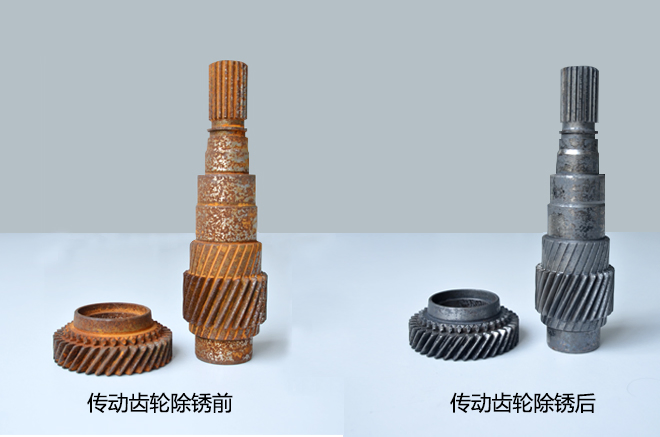

This laser cleaning equipment is a new generation of high-tech products for surface treatment, which is easy to install, control and realize automation. Simple operation: power supply, open equipment, can be no chemical reagent, no medium, no dust, no water cleaning. It can remove object surface resin, paint, oil stains, dirt, rust, coating and oxidation layers. It is widely used in ships, auto repair, rubber molds, high-end machine tools, tracks, and environmental protection.

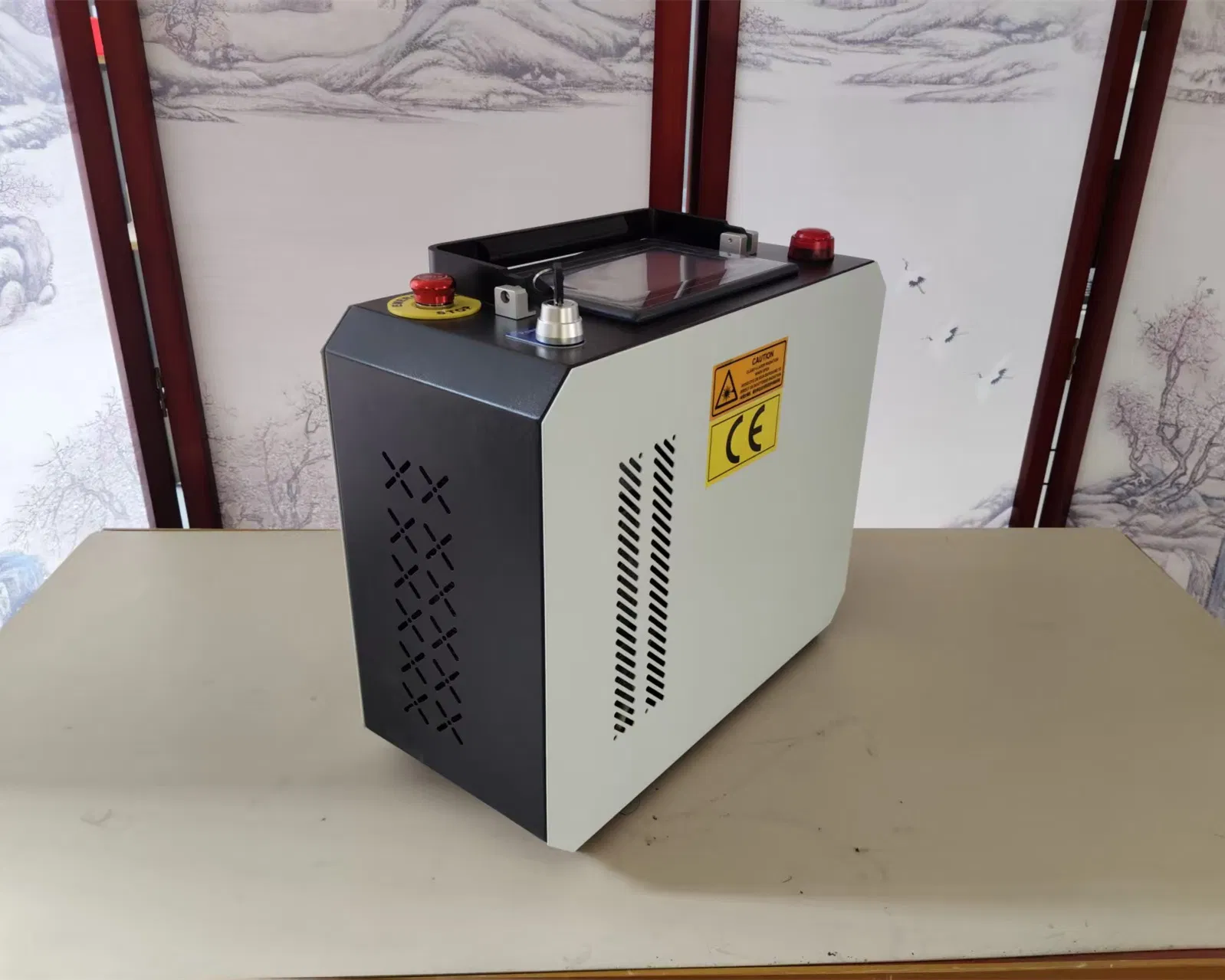

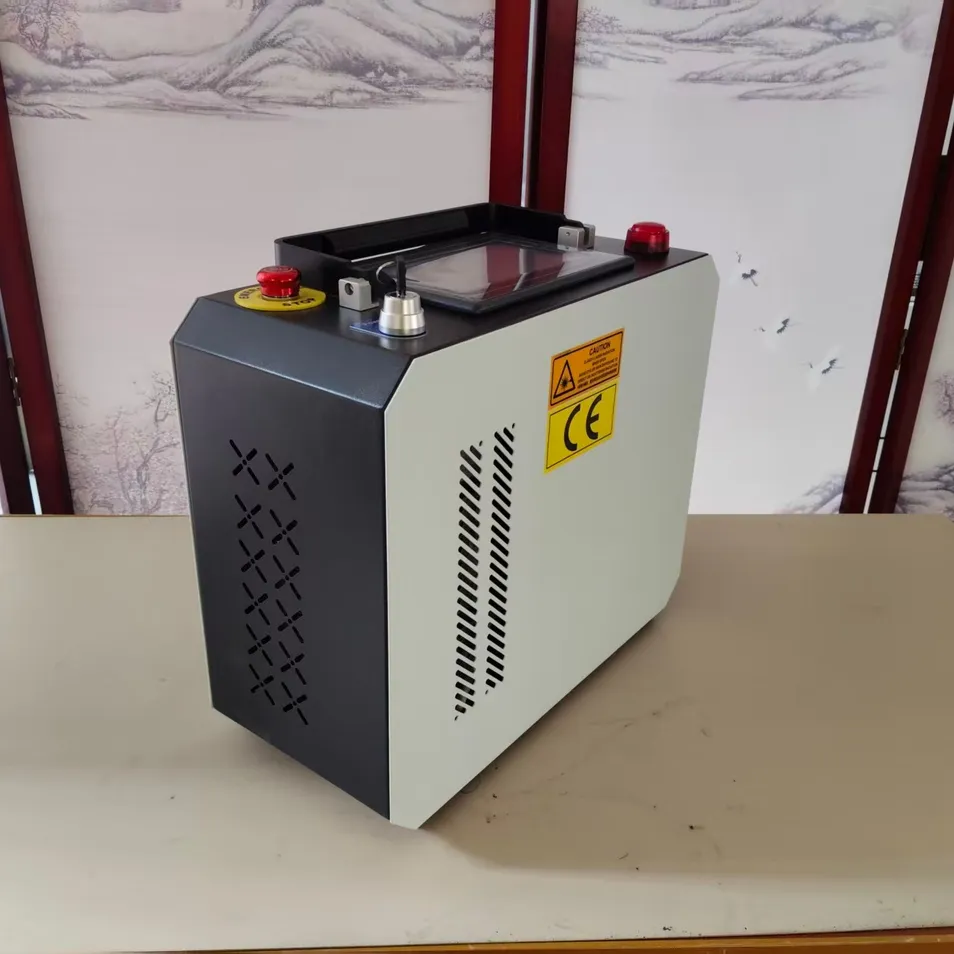

Equipment Detail
Product Advantages
Non-contact cleaning without damaging the matrix of the parts
Accurate cleaning with precise positioning and selective cleaning
No chemical cleaning liquid or consumables needed (Eco-friendly)
Simple operation: Hand-held or automated with a manipulator
Ergonomic design significantly reduces labor intensity
Trolley design with wheels for easy mobility
High cleaning efficiency saves time
Stable laser cleaning system with minimal maintenance

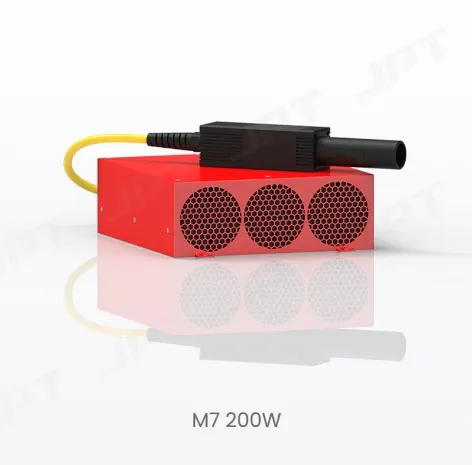

JPT Laser Source Technology

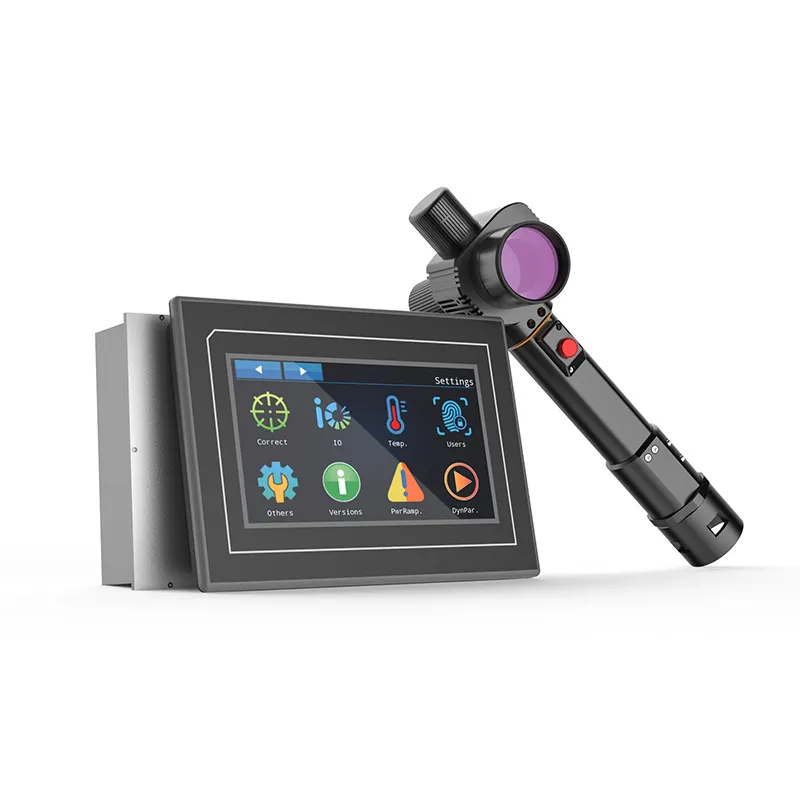

Laser Source Scanner System

The JPT M7 series high-power fiber laser adopts the Master Oscillator Power Amplifier (MOPA) configuration. Compared with Q-switched fiber lasers, the pulse frequency and pulse width of MOPA fiber lasers can be controlled independently, achieving constant high peak power output across a wider range of substrates.

Technical Parameters - Laser Source
Beam Quality (M²)< 1.6
Average Output Power (W)200
Maximum Pulse Energy (mJ)1.5
Frequency Adjustable Range (kHz)1 ~ 4000
Pulse Width (ns)2 ~ 500
Dimensions L×W×H (mm)295 × 255 × 92
Cleaning System Specifications
Technical Parameters - Cleaning System
Cleaning Width / Length<180mm
Cleaning Precision<1mm
Cleaning Speed<30000mm/s
Cleaning ModeLinear / Rectangular / Circular / Elliptical / Sine
Gun Body Weight<850g
Operating Temperature-15~65℃
System Interface
About Our Expertise

We are a high-tech enterprise dedicated to the integrated development, manufacturing, and sales of high-end optoelectronic and laser industrial equipment. Our team consists of senior technical personnel committed to promoting micro-processing and new applications of laser equipment in industrial production. Our product range includes Laser Welding Machines, Robot Laser Welding, 3D Marking, and Laser Rust Removers. Adhering to the philosophy that "Details determine quality," we provide comprehensive laser solutions for global users across automotive, digital products, hardware, and precision machinery industries.

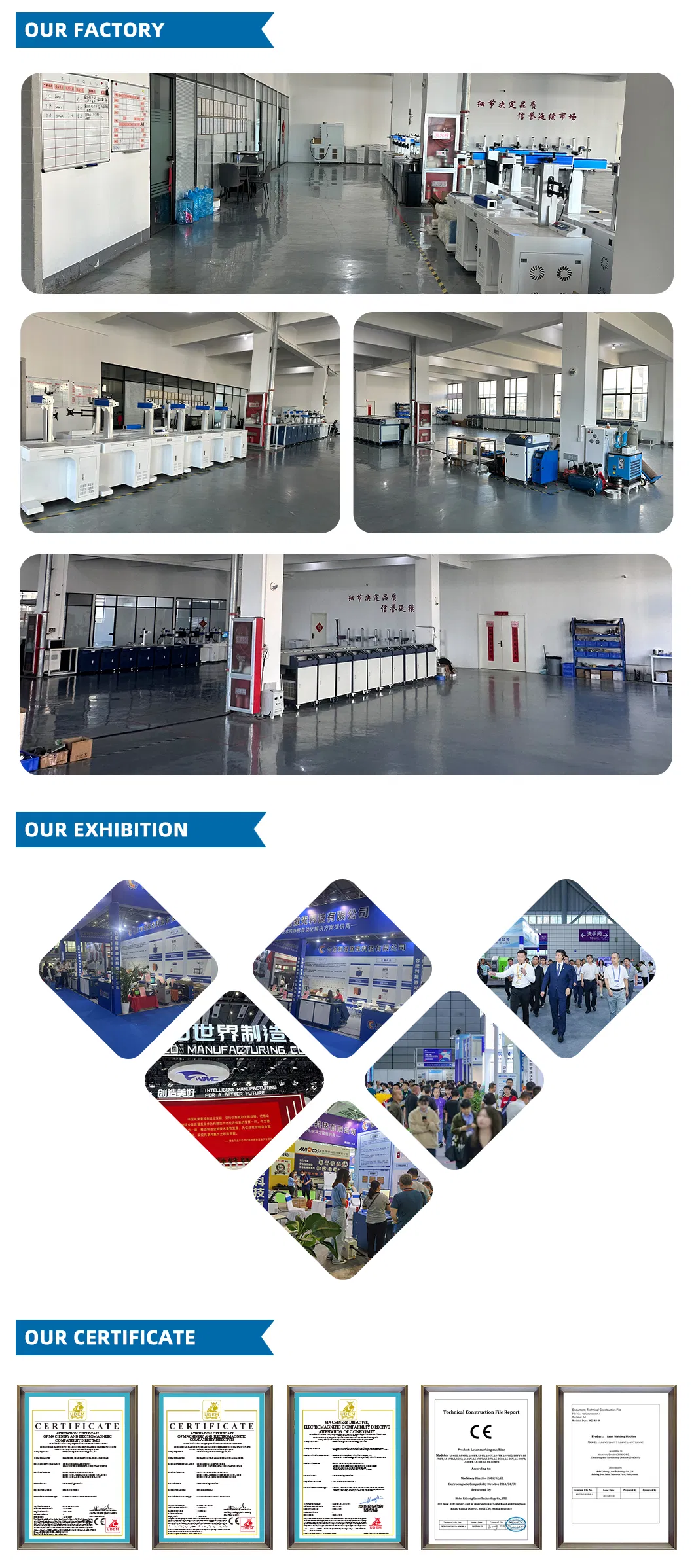

Facility 1 Facility 2
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer and factory based in China specializing in laser industrial equipment.
How long is the delivery time?
For standard machines, it is usually 7-14 days. For customized or non-standard machines, it ranges from 15 to 30 days depending on specific requirements.
What payment methods are accepted?
We accept various payment methods, including T/T, L/C, and other standard international payment terms.
How can I know if this machine is suitable for my application?
Before ordering, we provide full technical specifications. You can also share your specific requirements, and our technical team will recommend the most suitable machine for your project.
What are the main advantages of laser cleaning over traditional methods?
It is non-contact, requires no chemicals or water, causes no damage to the substrate, and is highly precise for selective cleaning.
Is the handheld cleaning gun heavy to operate?
No, the gun body is designed to be ergonomic and lightweight, weighing less than 850g to reduce operator fatigue.
