Advanced Tablet Dust Cleaning System for Pristine Surfaces

1 / 5

Advanced Tablet Dust Cleaning System for Pristine Surfaces

Customization:	Available
Automation Level:	Fully Automatic
Capacity:	800,000 Tablets Per Hr.

Send Inquiry

Product Description

📊 Basic Info & Overview

Model NO.	SZS-200
Certification	CE Certified, GMP Compliant, ISO Certified
Tablet Shape	Oval, Rectangular, Round, Square
Output	800,000 Tablets Per Hr.
Dedusting Distance	6.0 M (20.3 FT)
Max Lifting Height	1220mm
Power Supply	110V, 60Hz, 1pH, or 220V/50Hz
Compressed Air	0.1 M3/Min (35cfm)- 0.1MPa (15 Psi)
Noise Level	<75 dB
Dimensions	6105101330mm
Net Weight	90kg

⚙️ Product Description

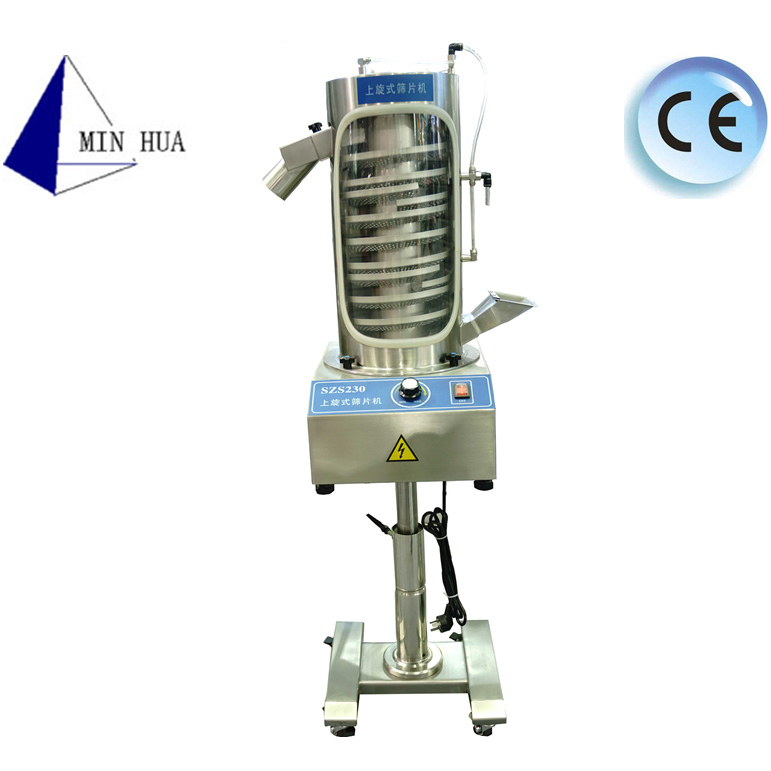

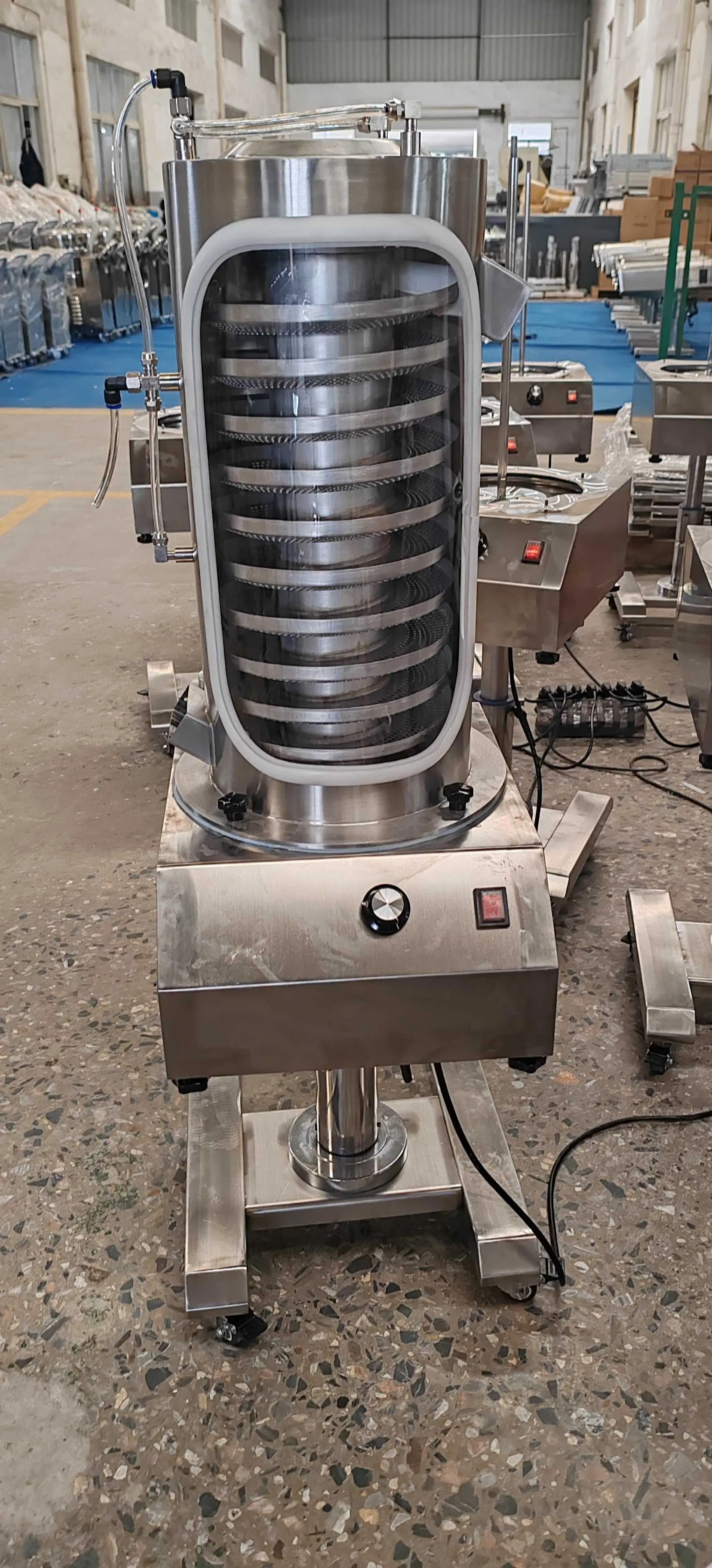

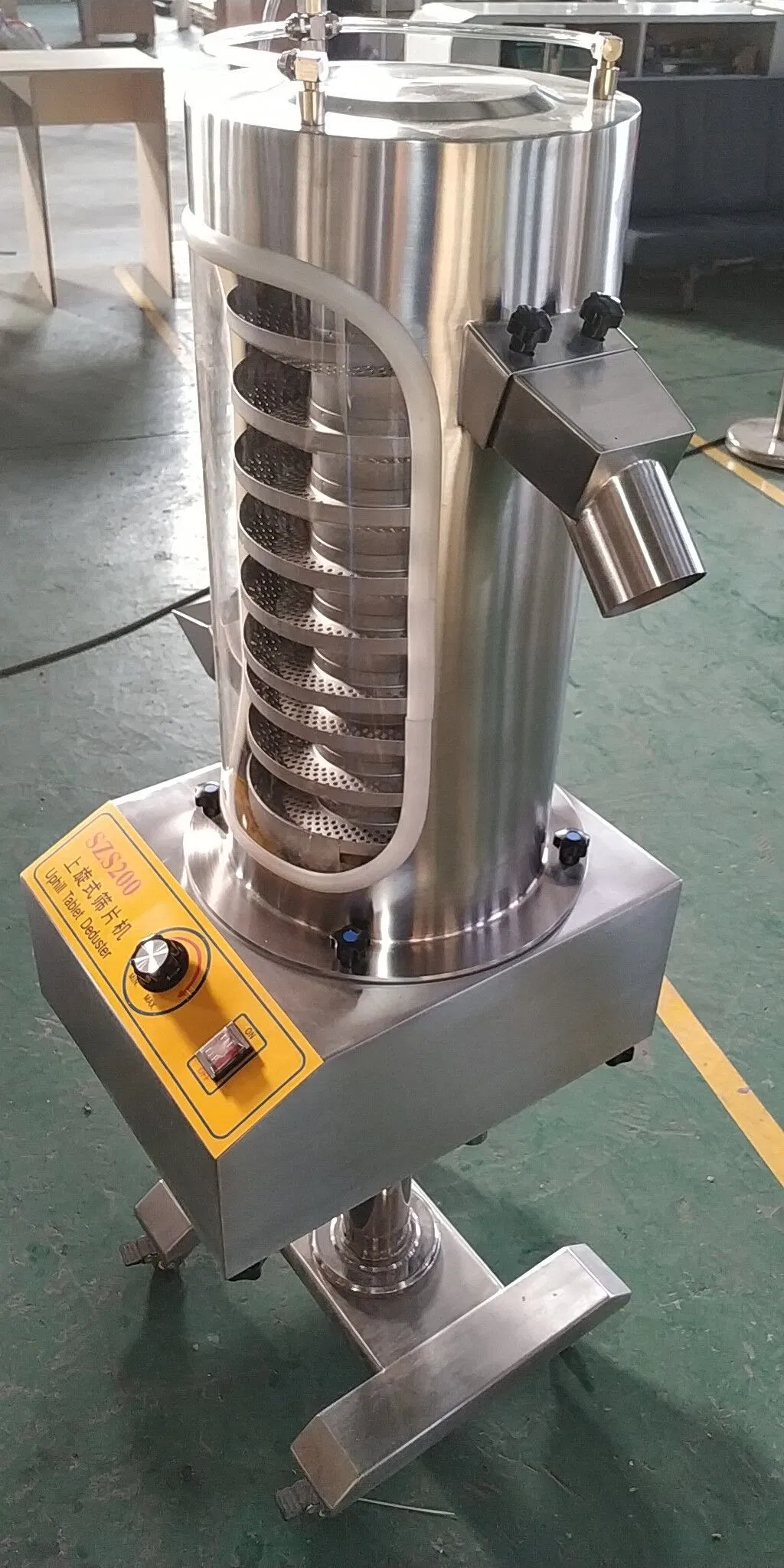

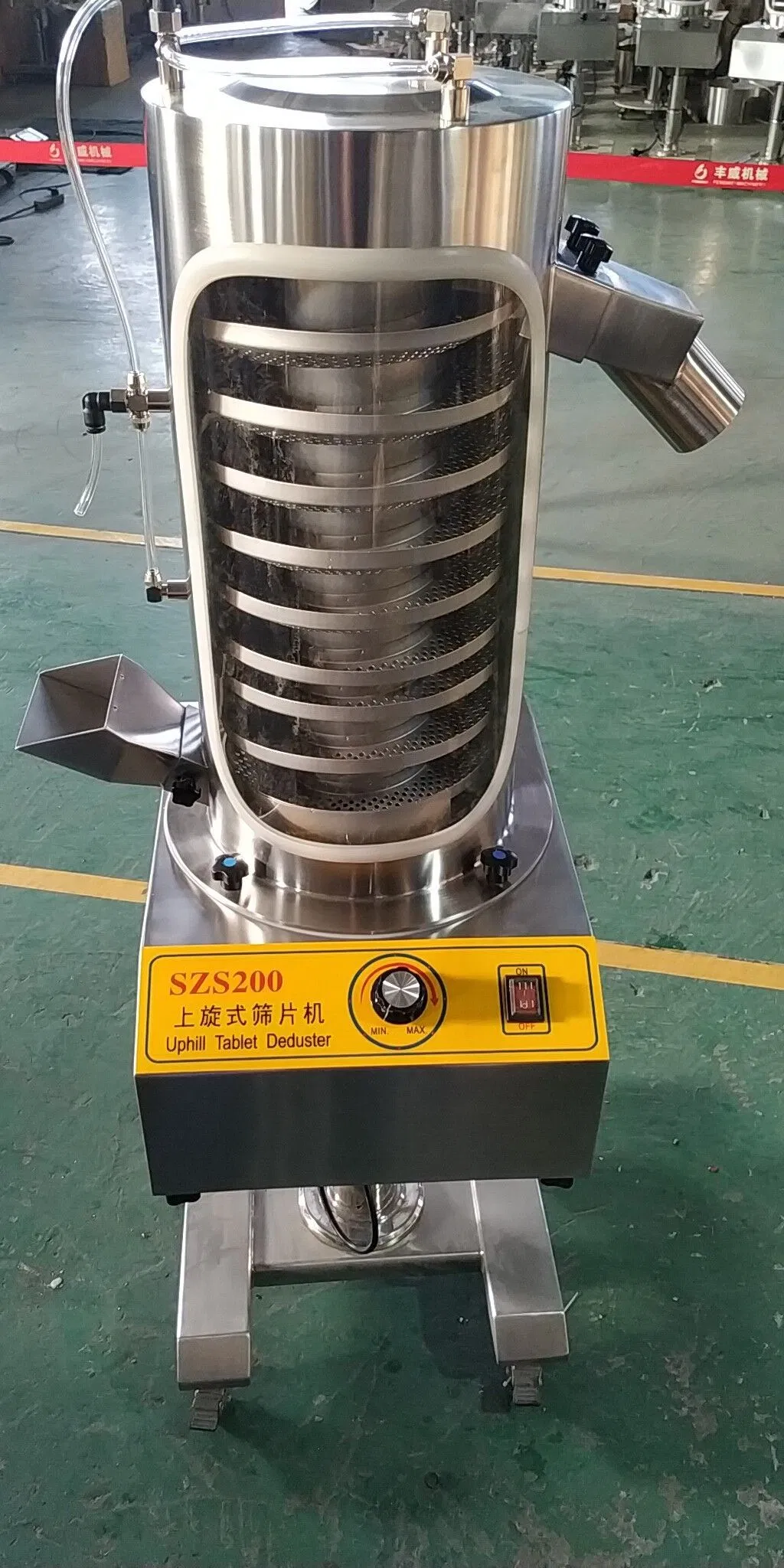

The SZS200 model machine is an economical top rotation type tablet sieving machine. It has three functions such as tablet grinding, dust removing and lifting. The machine inlet can be connected with any model of tablet press and the outlet can be connected with metal detectors. It can realize the linked production mode including tablet grinding, dust removing, lifting and metal foreign matters detection.

KEY FEATURES

• Long tablet dust removing path with automatic tablet face turning and grinding.
• Parts connecting with medicine are made of SUS304/316L meeting GMP standards.
• Building block type design for screen and outer cover; easy-to-adjust outlet height.
• Quick installed connect structure for convenient disassembly and installation with no dead corners for cleaning.
• 360-degree adjustment for inlet and outlet to facilitate production and save space.
• Efficiently handles large batch production for various tablet shapes (φ3-25mm).
• Advanced driving device ensures stable operation with low noise.

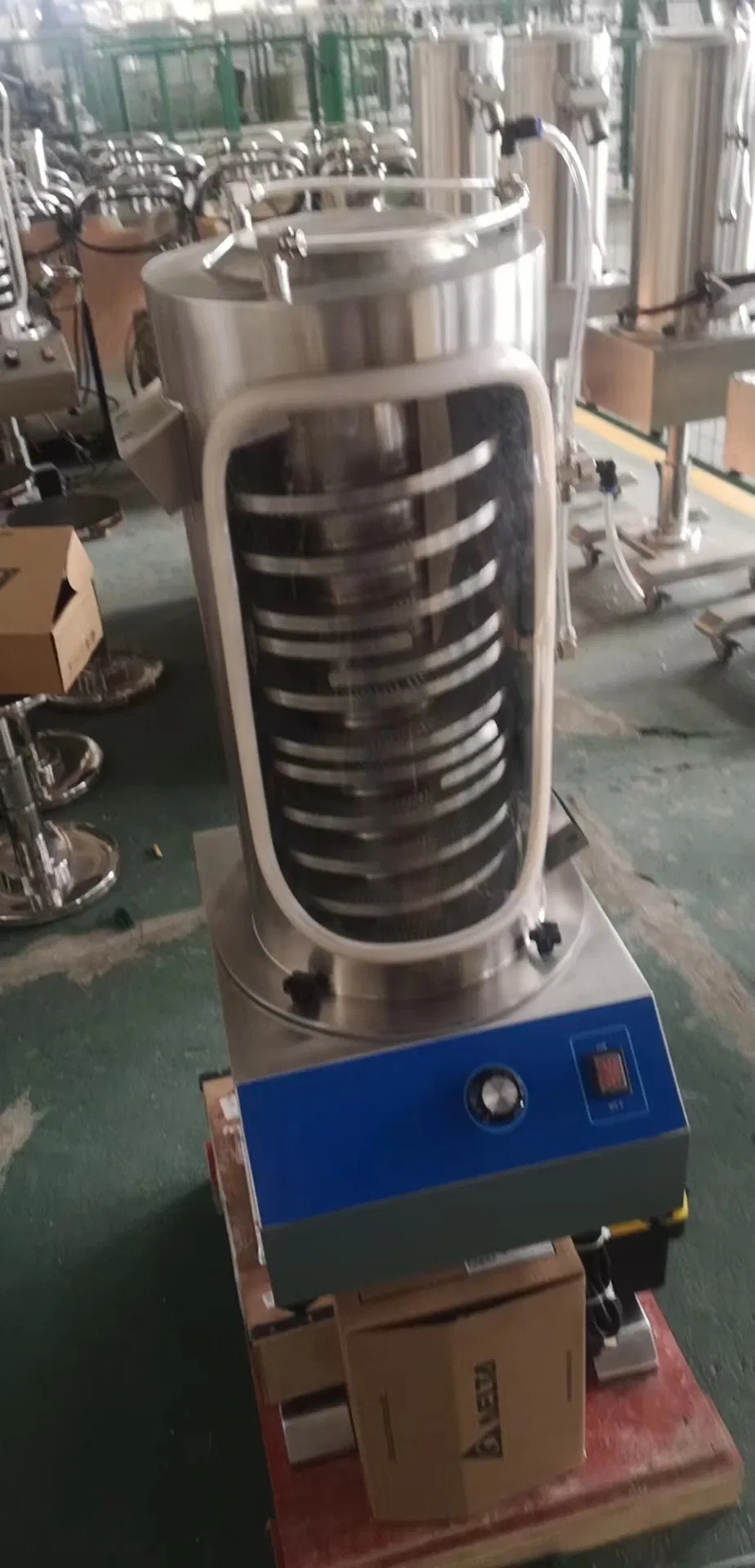

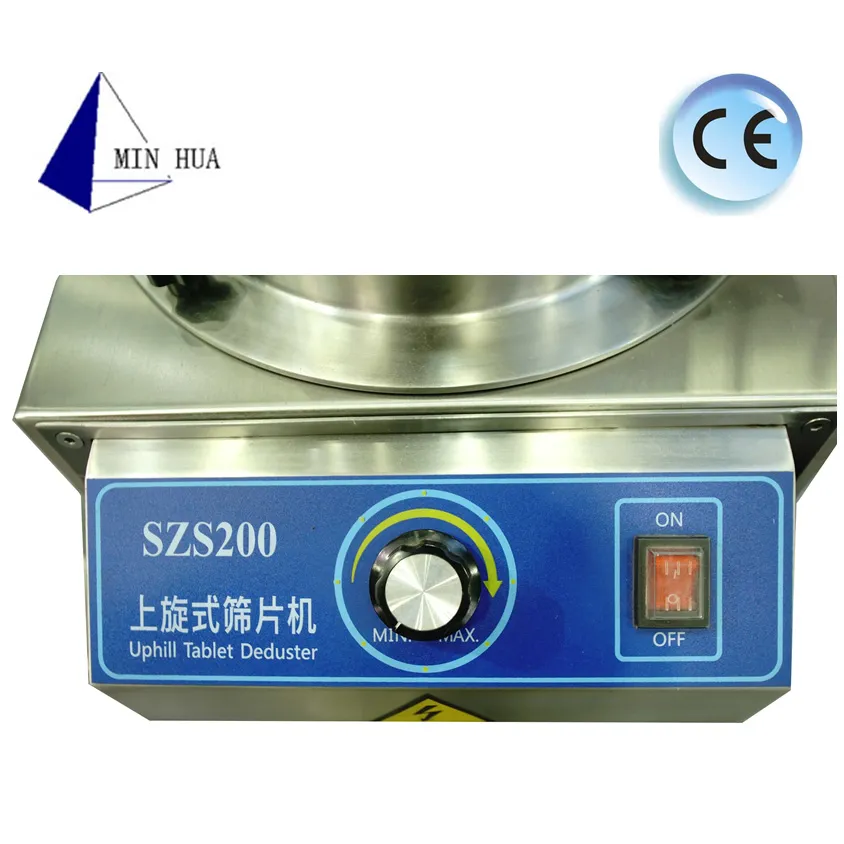

📷 Detailed Photos

📋 Product Parameters

Max. Output	800,000 tablets per hr. (based on φ6mm tablets)
Rated Power	110V/220V, 150W (0.2HP)
Dedusting Distance	6.0 m (20.3 ft)
Tablet Diameter Range	φ3mm - φ25mm
Vacuum Requirement	2.7 m³/min (880CFM) - 0.1MPa
Dimension (LWH)	610mm x 510mm x 1330mm

📦 Packaging & Shipping

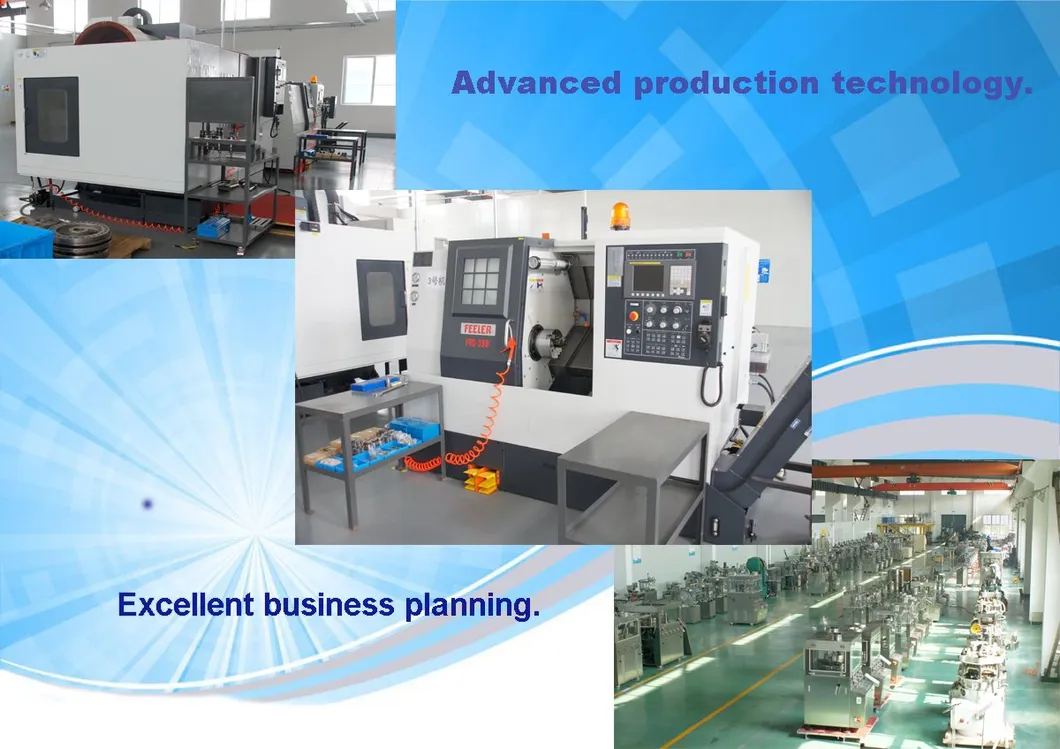

🛡️ Production & Quality Control

Frequently Asked Questions

What are the primary functions of the SZS-200?

The SZS-200 is an economical top-rotation tablet sieving machine that performs three main functions: tablet grinding, dust removal, and lifting.

Is this machine compliant with pharmaceutical industry standards?

Yes, the machine is CE certified and GMP compliant. All parts that come into contact with medicine are made of high-quality SUS304 or SUS316L stainless steel.

What is the production capacity of the SZS-200?

The machine can process up to 800,000 tablets per hour, based on a standard 6mm tablet diameter.

Can the machine be integrated with other equipment?

Absolutely. The inlet can be connected to any tablet press model, and the outlet is designed to connect easily with metal detectors for a fully linked production line.

How easy is it to maintain and clean the unit?

The machine features a quick-install connection structure and a building-block design. This makes disassembly, installation, and cleaning very convenient, ensuring there are no dead corners for hygiene.

What tablet sizes can this machine accommodate?

The SZS-200 is versatile and can handle various shapes of tablets with diameters ranging from 3mm up to 25mm.
