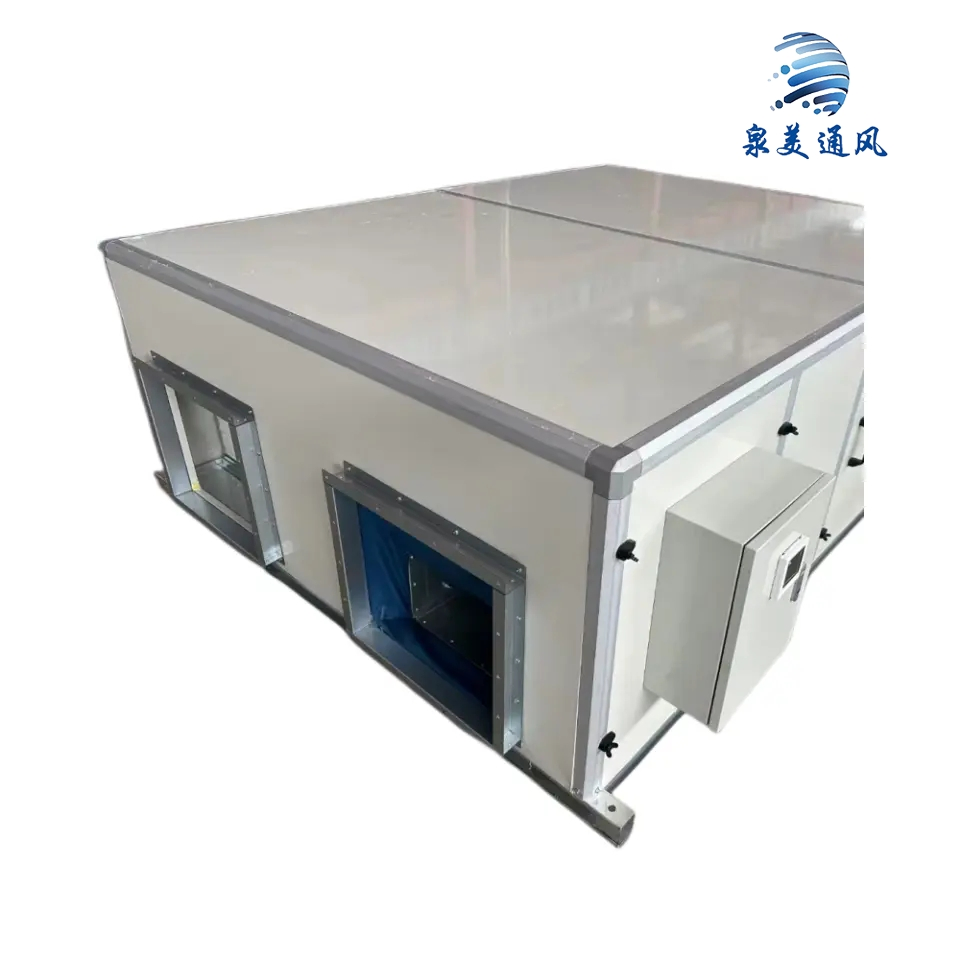

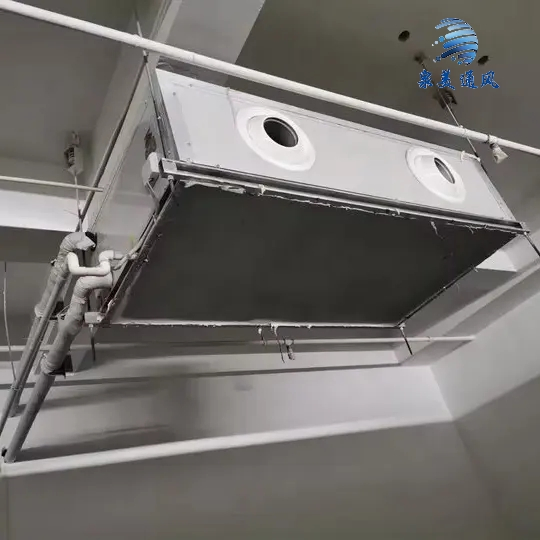

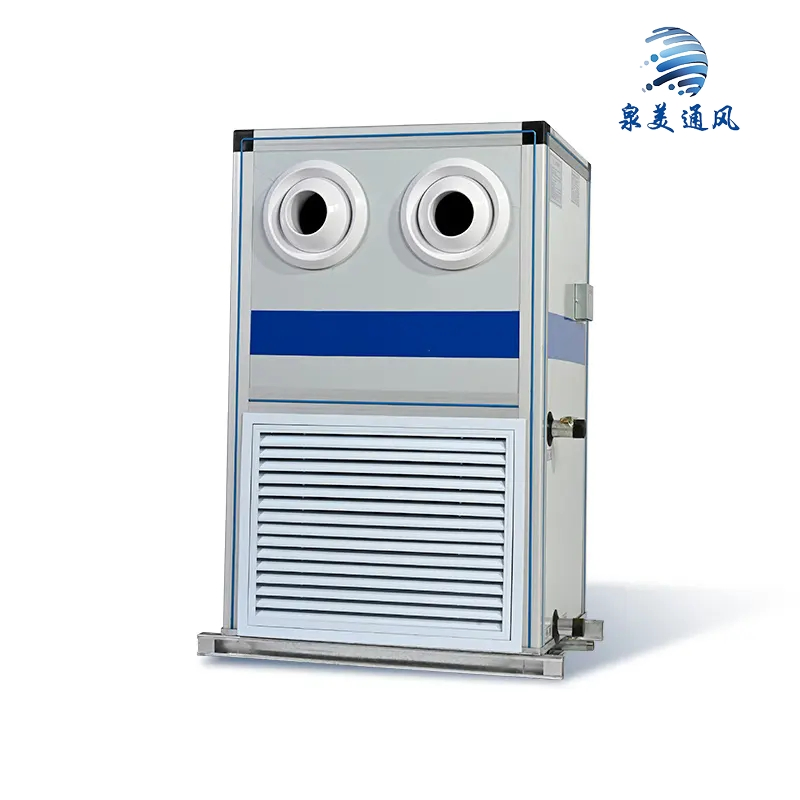

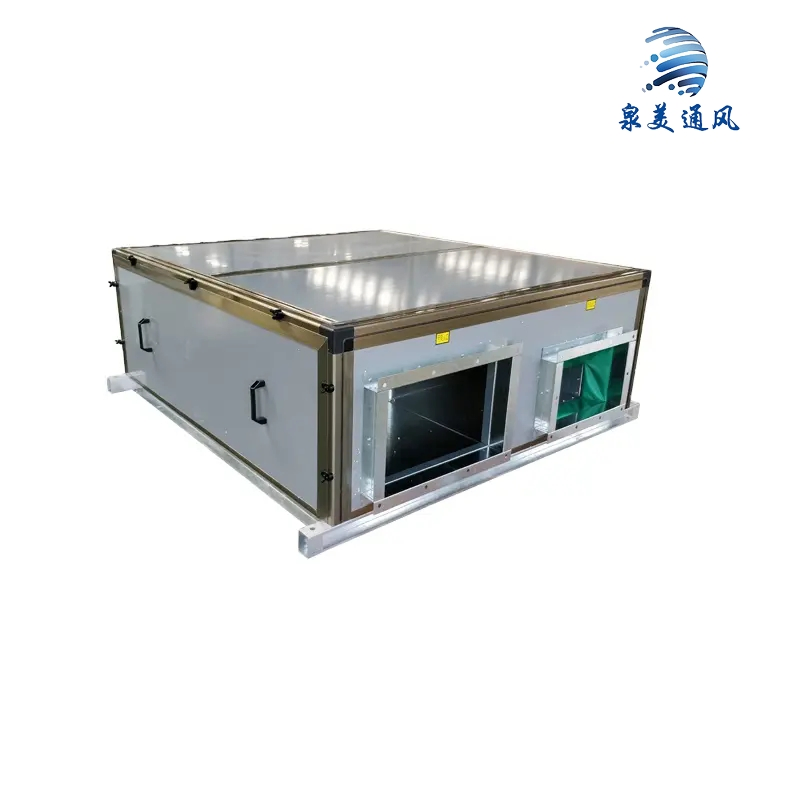

Qm Afghanistan's Best-Selling Standard 6-Row Ceiling-Mounted Central Air-Conditioning Air Handling Unit

Customization: Available
After-sales Service: Online Service
Warranty: 1year

Product Description

📋

Basic Information

Type Air Handling Unit
Air Tube Material Galvanized Sheet
Operating Voltage 380/400 VAC / 230V/50Hz
Application Fields Aerospace
Mounting Floor Standing
Lifetime 10~15 years
Certification ISO, CE
Cooling Capacity 1.8-12.6kw / 47.52kw
Function Cooling & Heating
Dimensions 950mm*1680mm*500mm
🚀

Product Overview

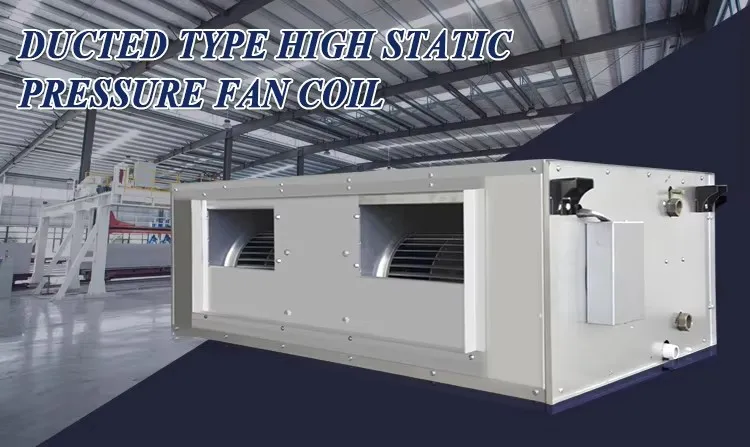

Air Handling Unit Overview Standard AHU Unit
Quality Service 1 Year Warranty
Operation Language Customizable
Product Features Low-noise motor, Low-speed and large-volume fan, Maintenance-free fan motor
⚙️

Technical Specifications

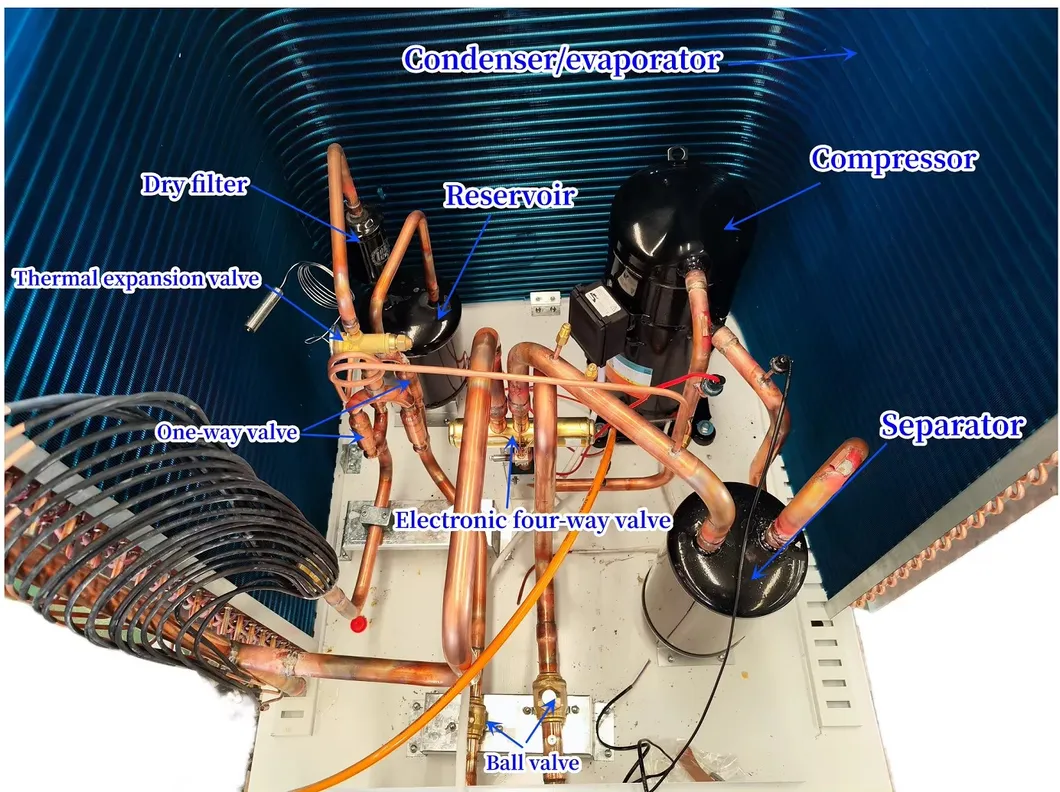

Air Conditioning Outdoor Unit

1. Internationally renowned brand compressors (Copeland/Panasonic).
2. Configurable ultra-low temperature hosts for extremely cold climates.
3. Provides reliable cold and heat sources; supports access to existing central air conditioning systems.

Outdoor Unit

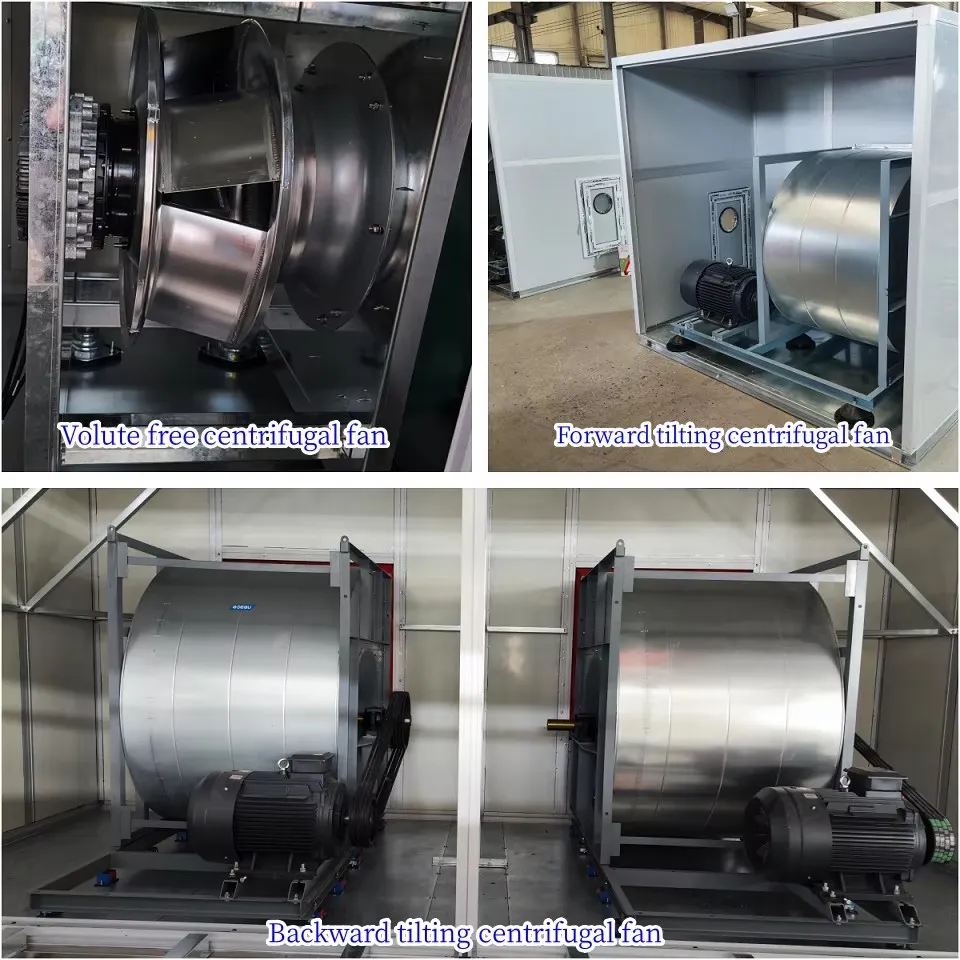

Fan Section
Fan Section

1. Variety of air volume, pressure, and power options available.
2. Configurations include EC brushless, variable frequency explosion-proof, forward tilt, and backward tilt.
3. Customized production according to specific user requirements.

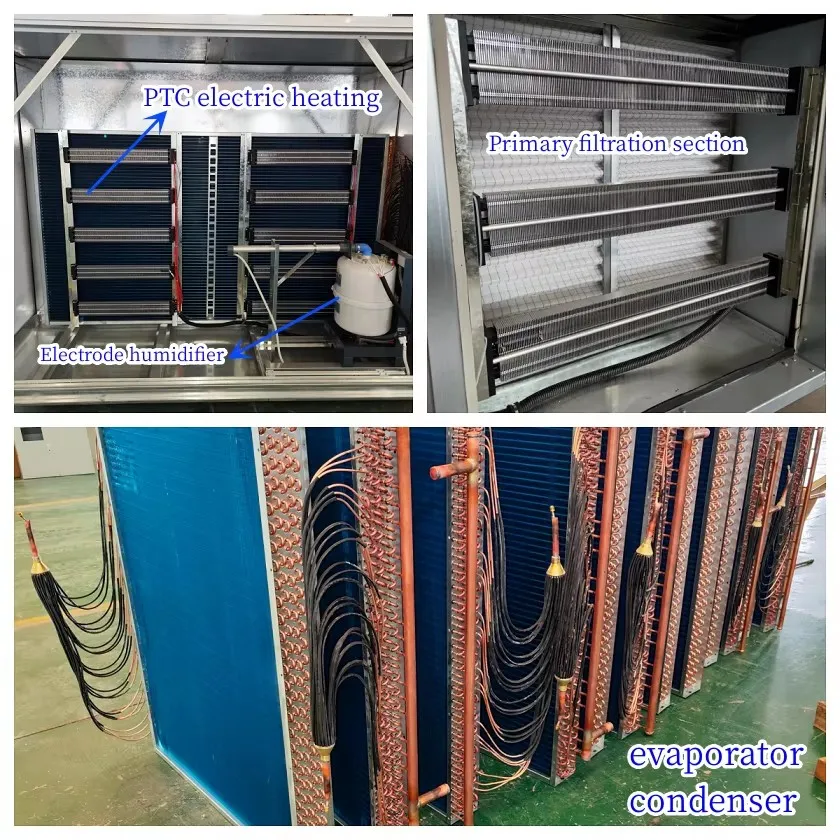

Constant Temperature & Humidity

1. Optimized condensers and evaporators based on cooling capacity.
2. Heating: PTC electric, hot water, steam, or natural gas heating.
3. Humidification: Electrode, wet film, high-pressure micro mist, steam, or ultrasonic options.

Temperature Control

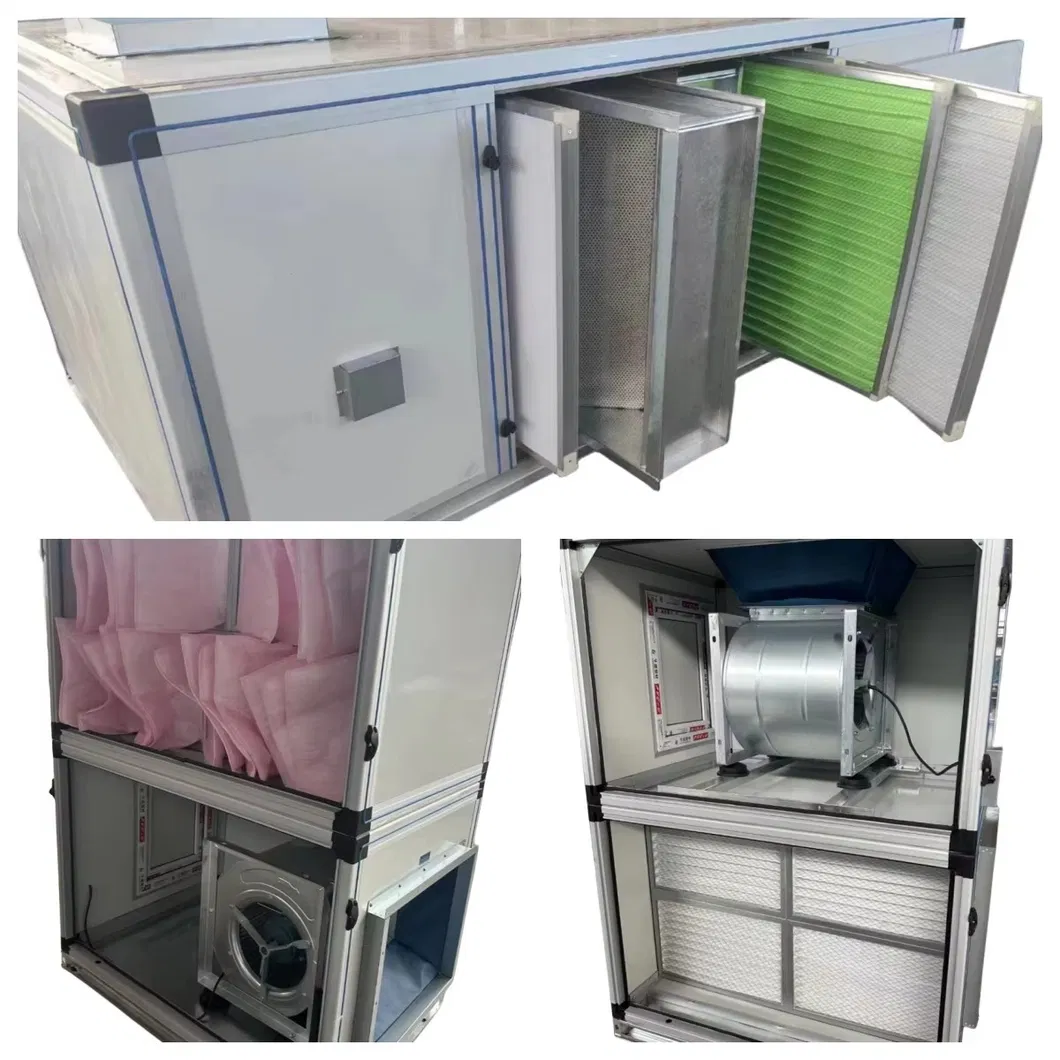

Purification Section
Purification Function Section

1. Filtration levels: G4 (Initial), F8 (Medium), and H13 (High Efficiency).
2. Special Industry Options: Micro electrostatic precipitator, activated carbon, UV sterilization, and ozone sterilization.

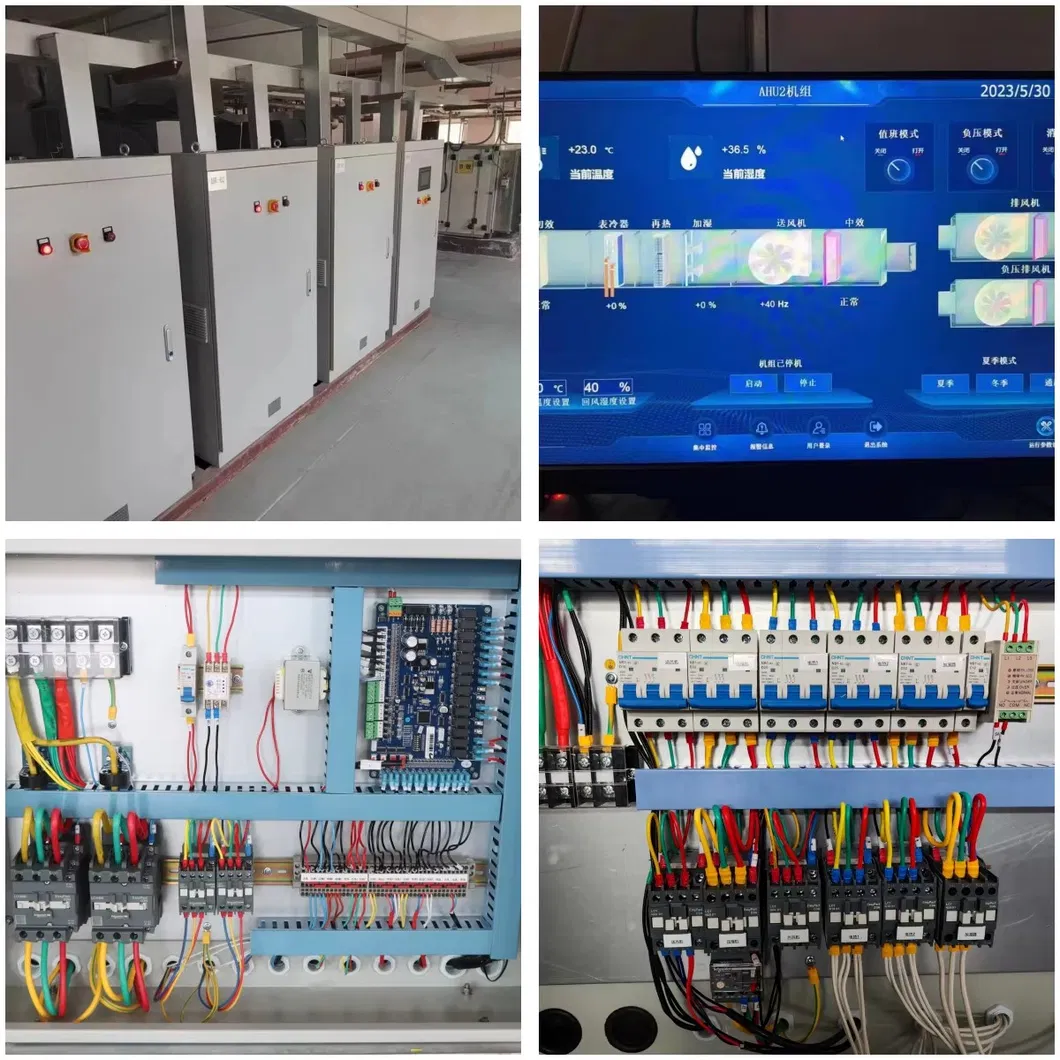

Intelligent Electronic Control System

1. Single-chip microcomputer and PLC control systems.
2. Protection: Motor overload, windless power outage, and leakage protection.
3. Smart Alarms: Blockage alerts for filtration sections.
4. Connectivity: RS485 interface with Modbus protocol for integrated pressure adjustment.

Control System
🖼️

Product Gallery

AHU Detail 1 AHU Detail 2
AHU Banner AHU Structure

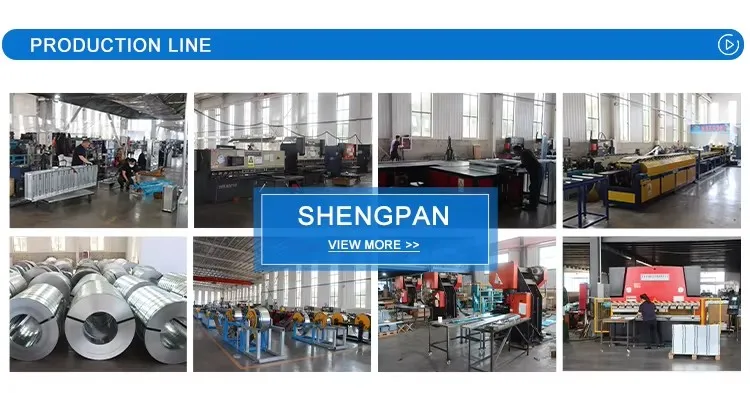

Workshop 1 Workshop 2

Frequently Asked Questions

1. What is the expected lifetime of this Air Handling Unit?
The unit is designed with high-quality materials such as galvanized sheets, providing a service life of approximately 10 to 15 years under normal operating conditions.
2. Does the unit support both cooling and heating functions?
Yes, the unit is multi-functional and supports both cooling and heating. It can be configured with various heating sections like PTC electric, hot water, or steam.
3. What kind of purification filters can be installed?
We offer multiple filtration stages including G4 initial efficiency, F8 medium efficiency, and H13 high-efficiency (HEPA) filters to meet different air quality requirements.
4. Is the control system compatible with building management systems?
Absolutely. Our units feature an integrated PLC system with a reserved RS485 interface and Modbus protocol for seamless integration into central control systems.
5. What maintenance is required for the fan motor?
The unit utilizes high-quality low-noise motors that are designed to be maintenance-free, reducing long-term operational costs and downtime.
6. Can the unit be customized for specific industrial environments?
Yes, we provide customized production. This includes variable frequency explosion-proof fans, special sterilization sections (UV/Ozone), and specific voltage configurations.
