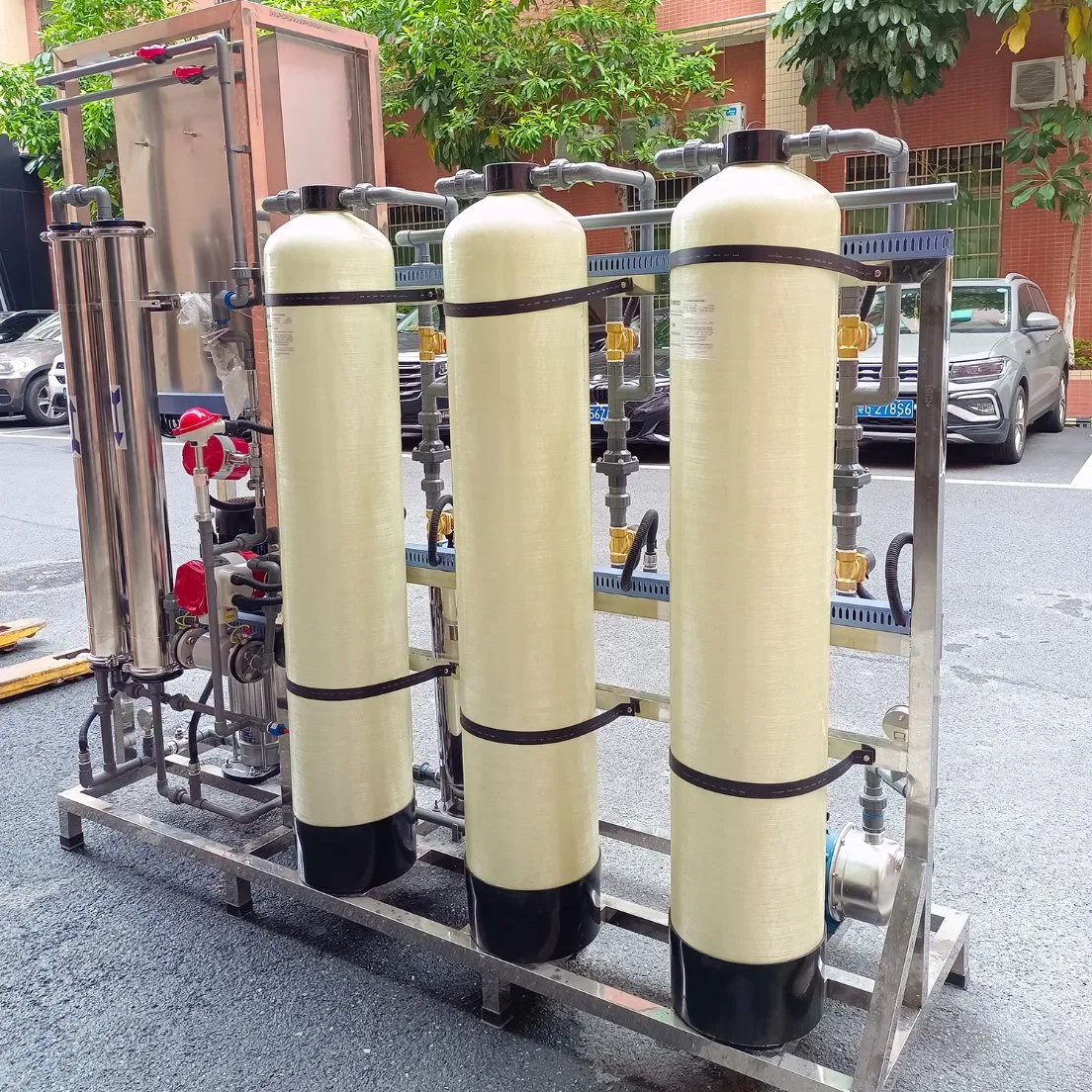

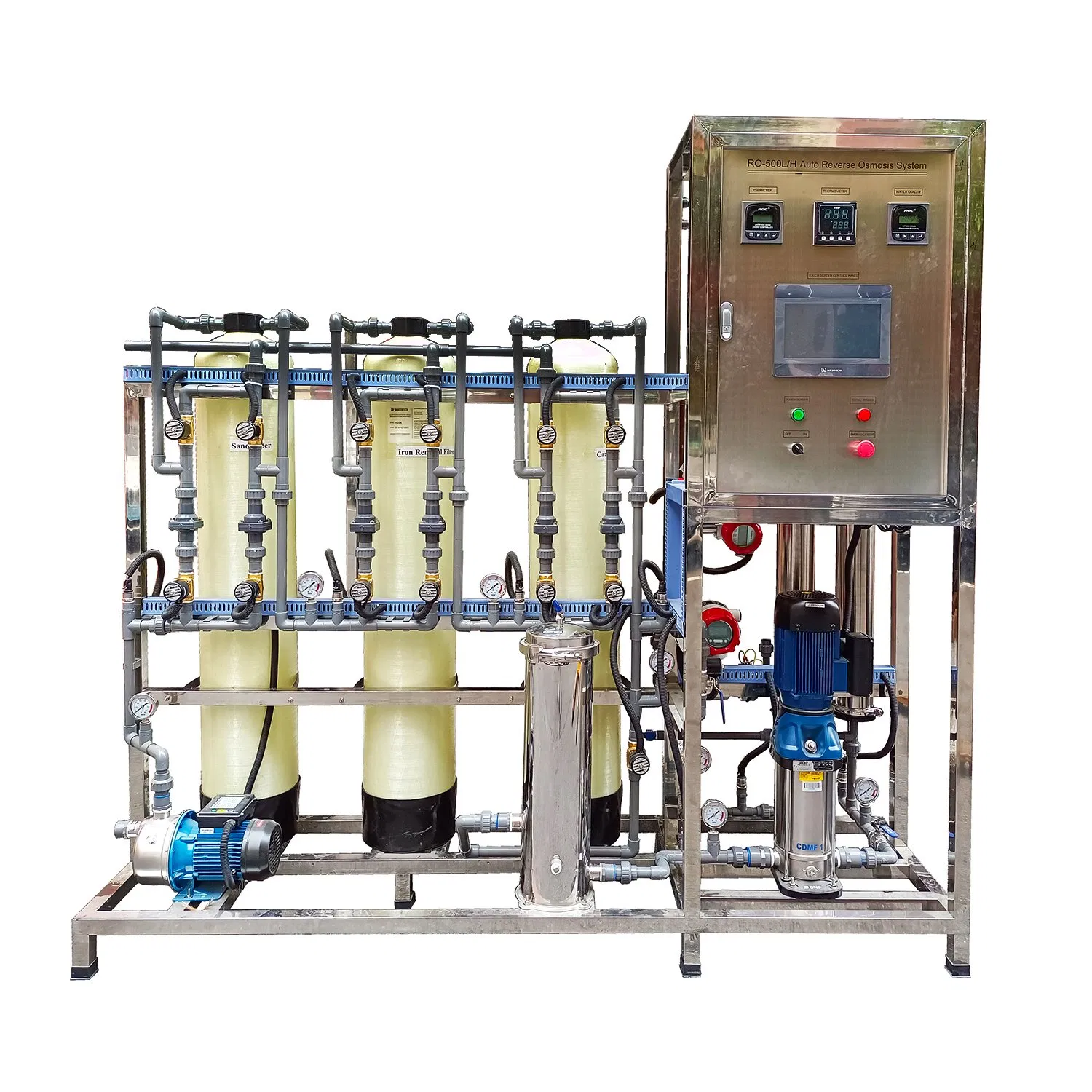

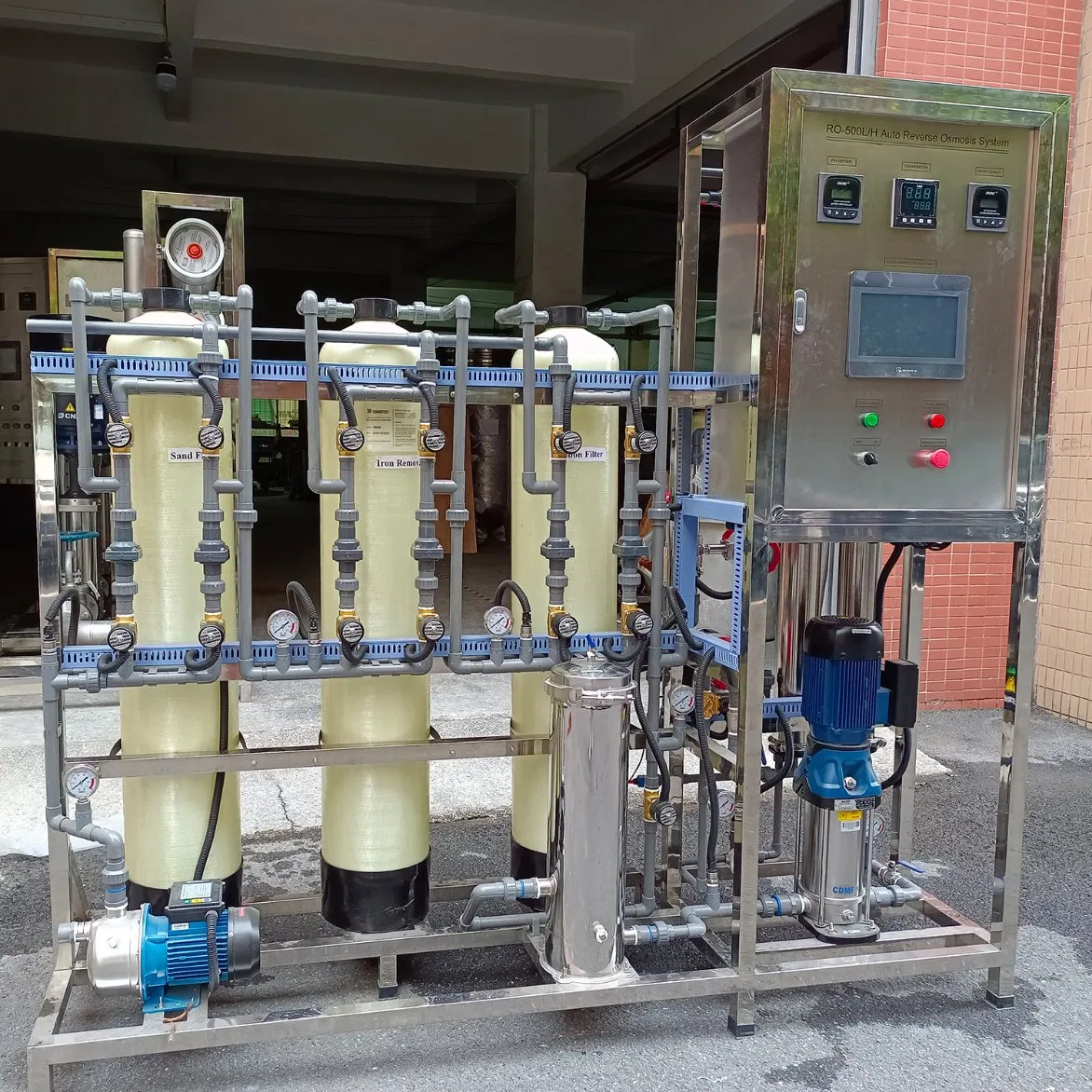

Automatic Flushing 500lph RO Water Purification Treatment Plant Reverse Osmosis Filter System

Customization:	Available
Certification:	ISO9001, CE
Salt Rejection Rate:	98.0%

Basic Specifications

Model NO.

KYRO-500

Application

Water Treatment for Drinking Water

Capacity

500 Liters Per Hour

Motive Force

Electric Power

Type

Reverse Osmosis

Total Power

1.6kw

Pump

CNP

RO Membrane

DuPont/Vontron

Model of Membrane

4040

Membrane Housing

SUS-304 4040

Recovery Rate

>50%

Source of Water

Tap Water, Underground Water etc.

Power Supply

220V/240/380V/420V/450V Etc

Desalination Rate

97%-99%

Transport Package

Wooden Case

HS Code

842121

Production Capacity

200sets/Month

Product Overview

Automatic flushing 500lph RO water purification treatment plant reverse osmosis filter system

The Reverse Osmosis process uses semi-permeable spiral wound membranes to separate and remove dissolved solids, organic matter, pyrogens, sub-micron colloidal matter, and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organics, including pyrogens, and 99% of bacteria in the feed water.

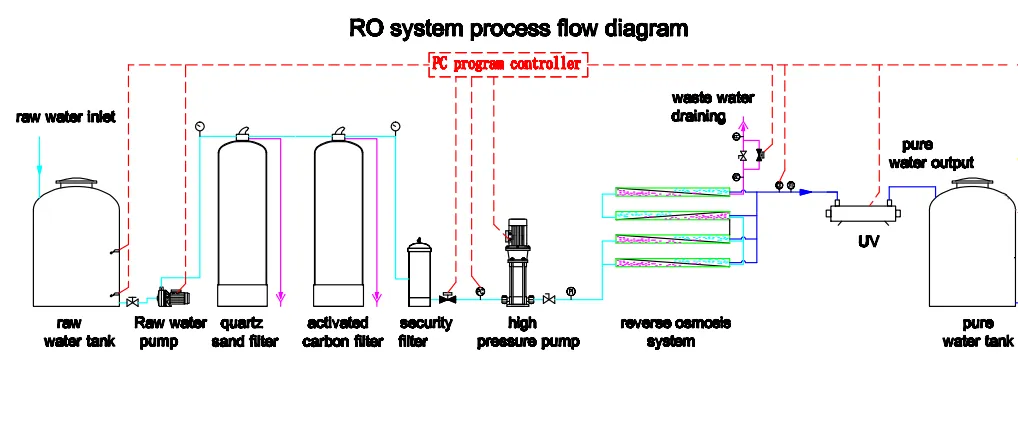

System Components & Functions

Item	Material/Model	Brand	Function
Raw water pump	SS304	China	Provide pressure for raw water
Quartz sand filter	FRP/SS304	China	Remove large particles
Activated carbon filter	FRP/SS304	China	Remove smell, color, bacteria and organic matter
Water softener(Optional)	FRP/SS304	China	Remove hardness
Security filter	PVC/SS304	China	Block impurities > 5micron, protect RO membrane
High pressure pump	SS304	CNP/Grundfos	Provide pressure for RO membrane
RO membrane	LCLE-4040	Dupont	Remove heavy metal ions, bacteria, viruses (>97%)
UV Sterilizer(Optional)	23W	China	Kill 99% bacteria (For direct drinking)
Ozone Generator(Optional)	3g/h	China	Kill 99% bacteria and keep 2 hours (For bottled water)

Main Features

Can run and produce water continuously, highly automatic.
No need for chemicals for regeneration; easy operation and maintenance.
RO system uses imported USA DOW (DuPont) membrane.
Automatic switch on when lack of water, and switch off when full.
RO membrane auto-wash to reduce pollution speed.
Low-pressure switch protects high-pressure pump from damage during water supply stops.
Production water conductivity meter monitors water quality online continuously.
Input water and dense water pressure meters monitor RO differential pressure.

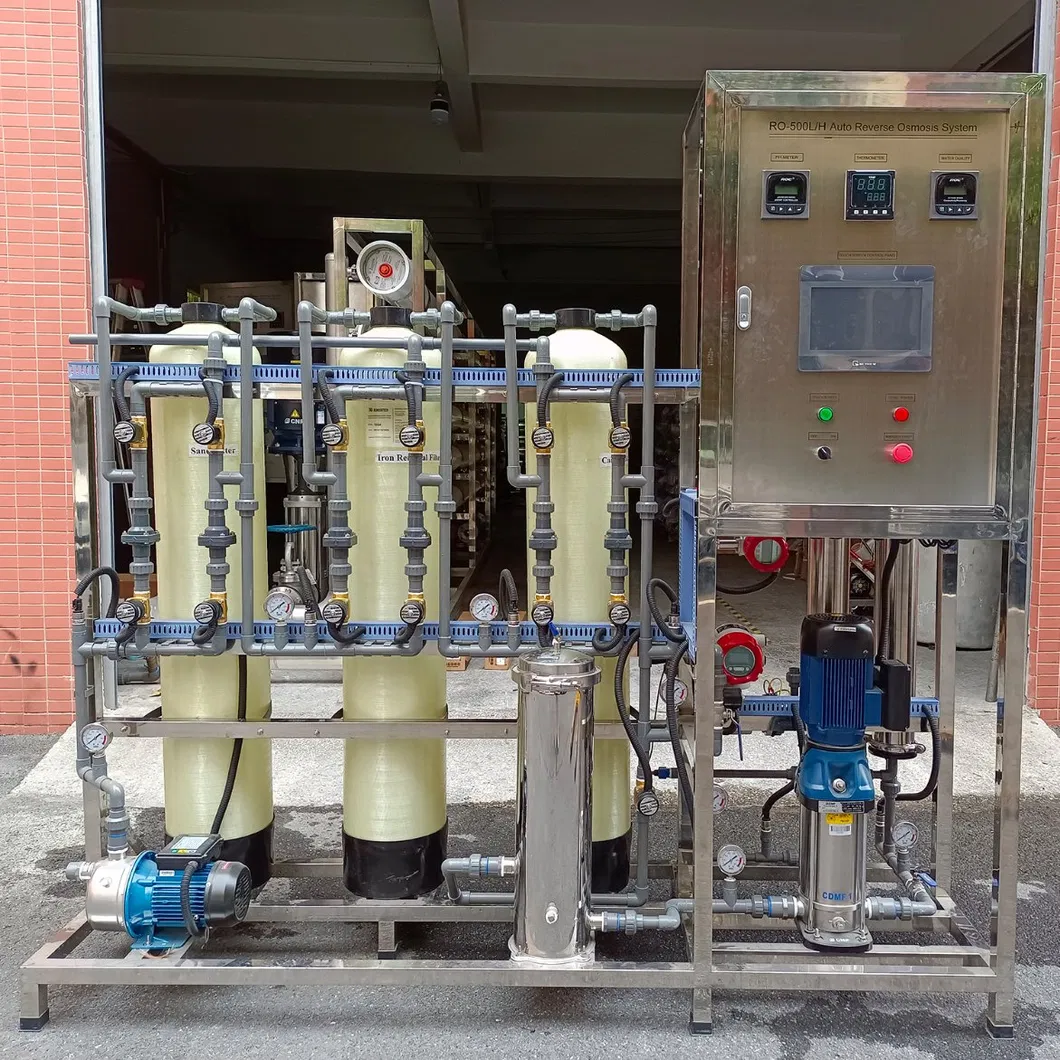

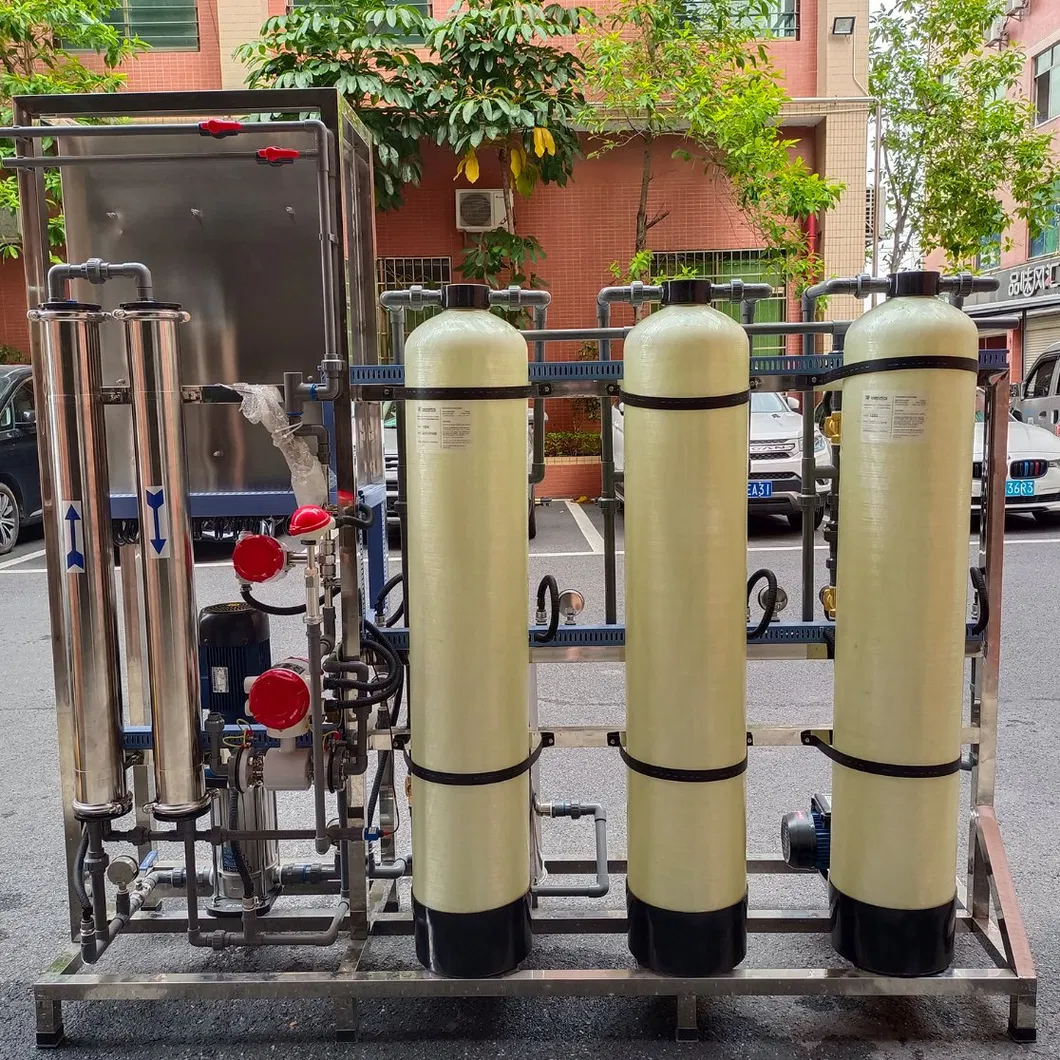

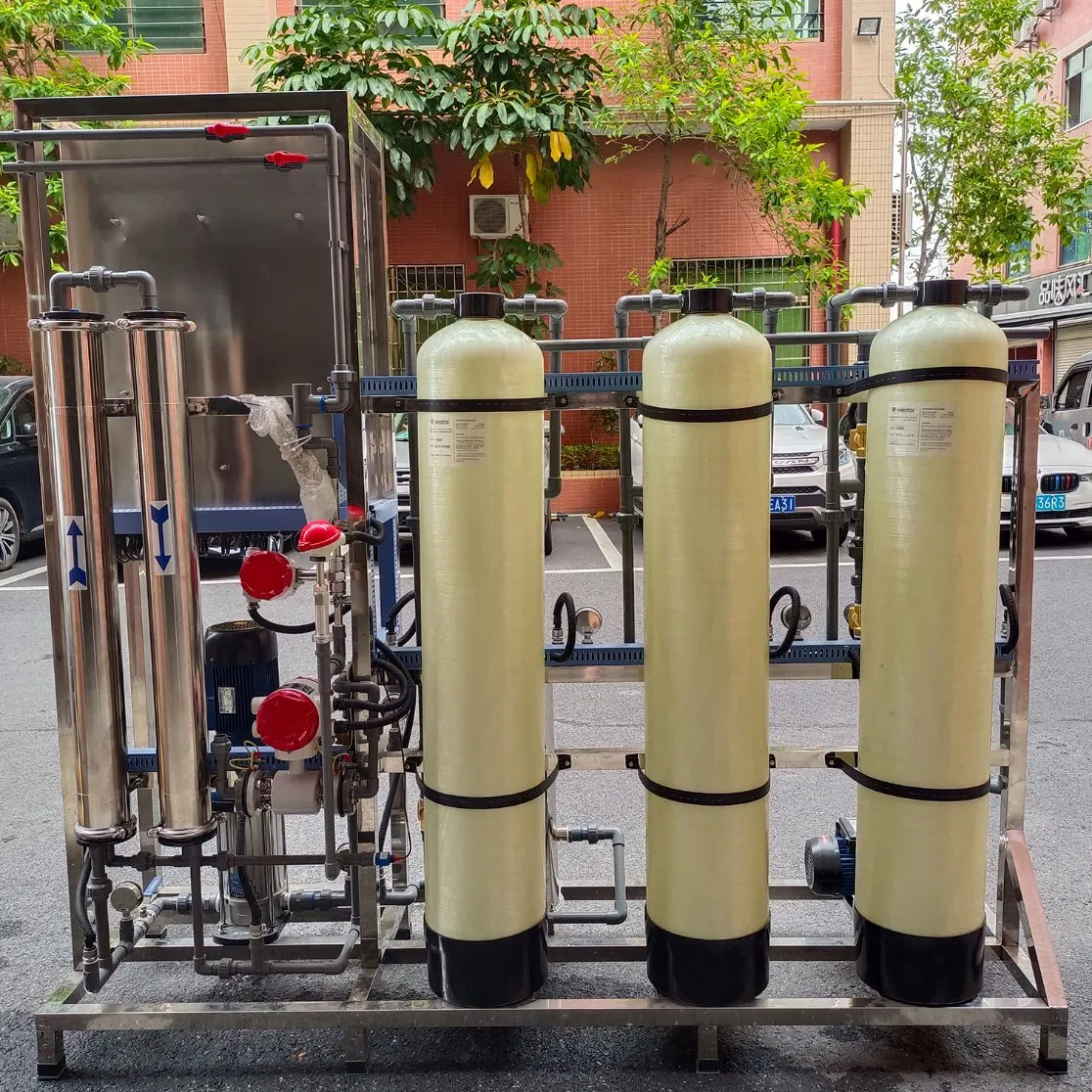

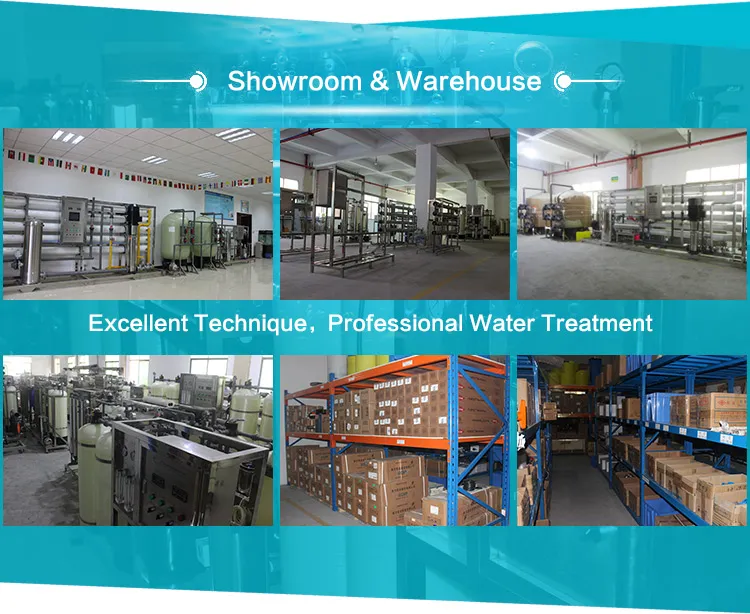

Machine Equipment & Factory Display

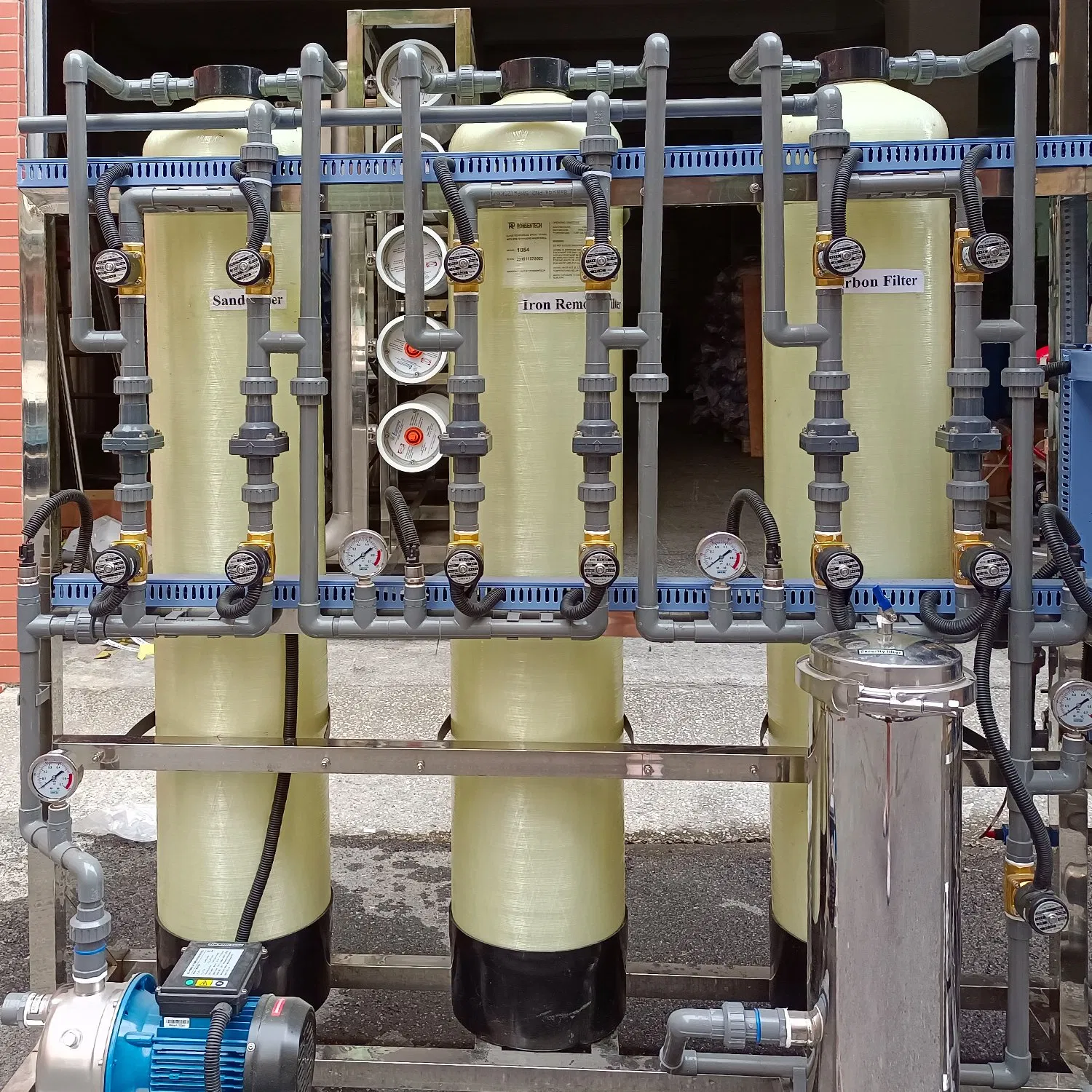

Includes sand filter, Manganese sand filter, carbon filter (flushing automatically), PLC control, PH and conductivity meter.

Certificates & Quality Assurance

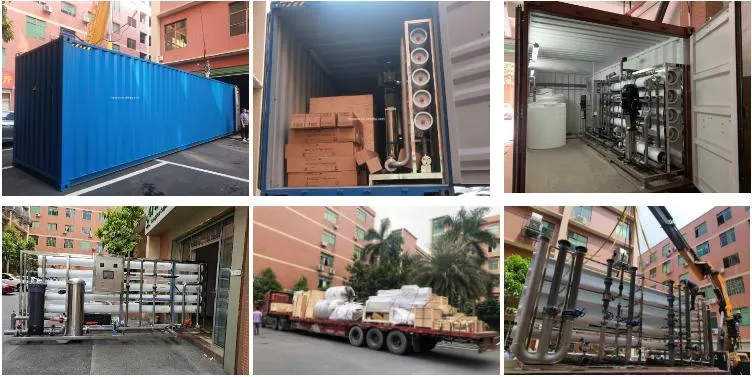

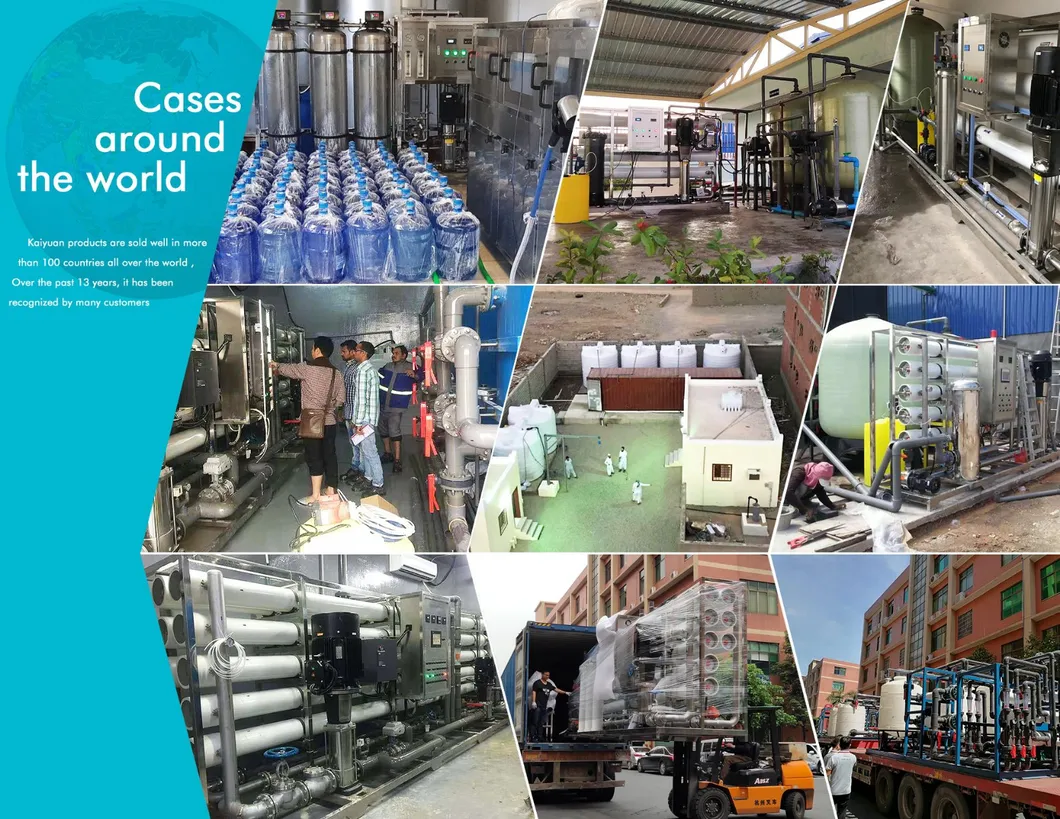

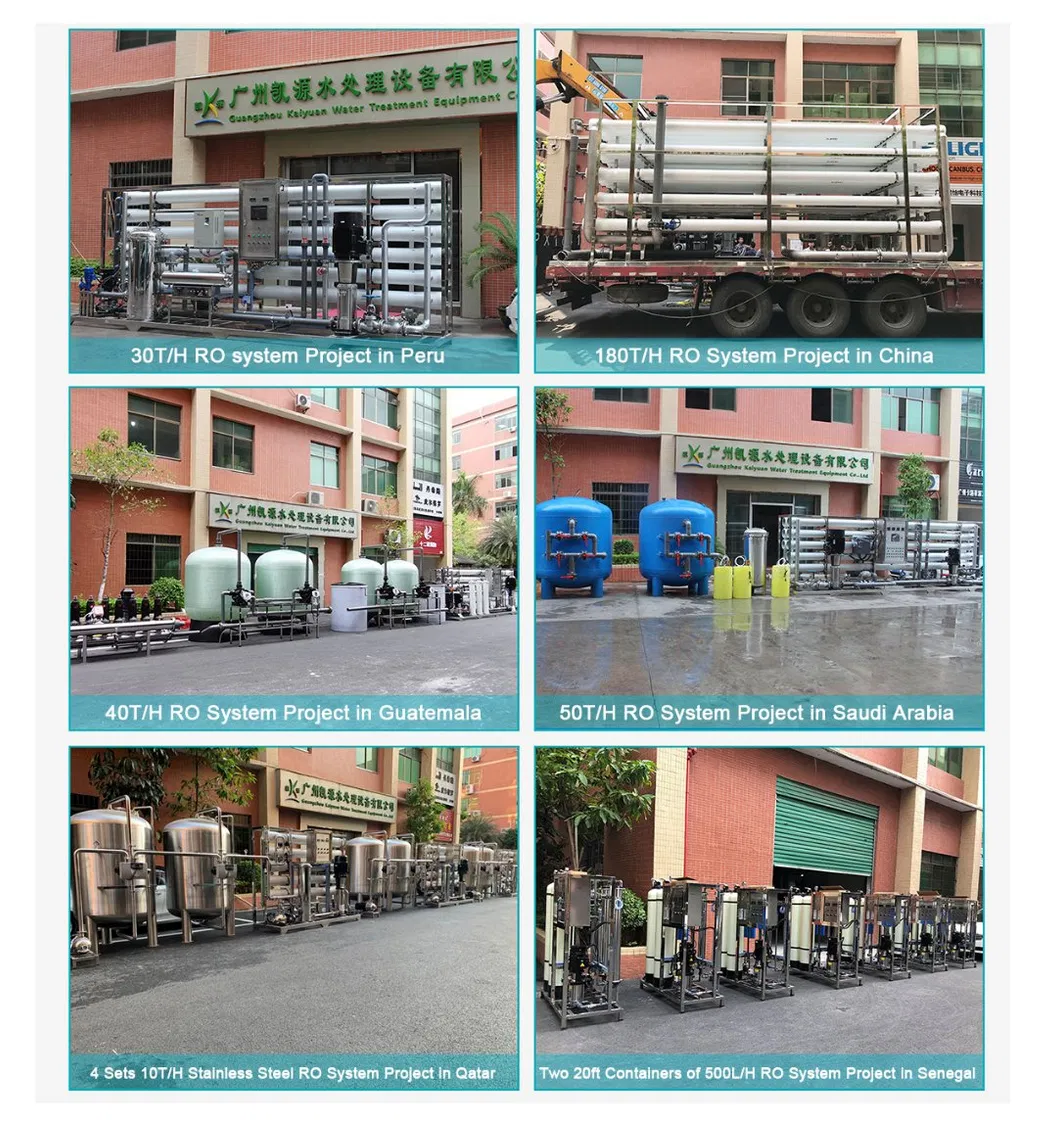

Global Projects & Packing

Frequently Asked Questions

Q: How do I know what size unit to buy?

A: R/O units are rated according to the amount of treated water needed per day or per hour. For example, a 5000LPD unit produces 5000 liters of treated water per day under design conditions. You should examine your water conditions and consider a larger unit if any specific quality issues exist.

Q: What materials are used in the reverse osmosis system?

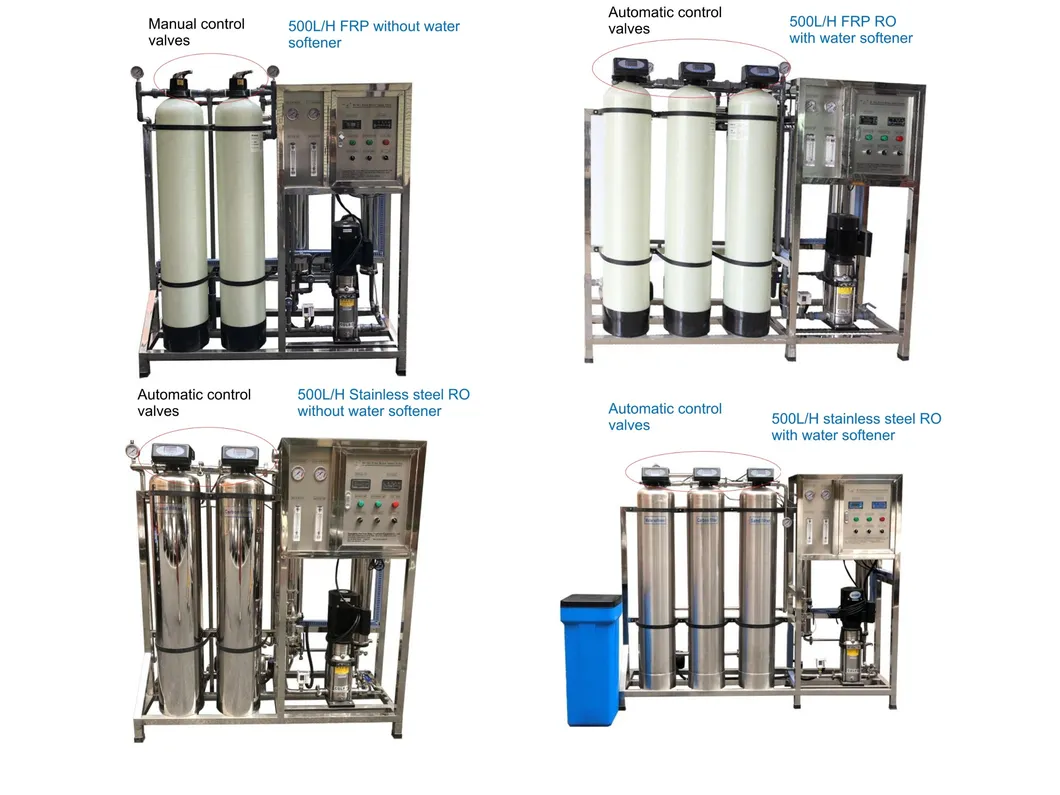

A: You can choose from several configurations: FRP filter + U-PVC pipe, Stainless Steel filter + U-PVC pipe, or full Stainless Steel construction.

Q: What kind of water can the RO system treat?

A: The system can treat city water, underground water, river water, spring water, lake water, brackish water, and sea water.

Q: Is this machine easy to install?

A: Yes, the machine is delivered mostly assembled. You only need to place materials inside filters, perform a backwash, and fast rinse. We provide English instructions and videos to guide you.

Q: What is the packaging and is it suitable for shipment?

A: The machine is packed in a standard wooden case, making it highly suitable for international shipment. Simply open the case to retrieve the machine upon delivery.

Q: What is the warranty policy?

A: We provide a one-year warranty. If any problems occur within the first year, provide photos for our engineers to diagnose. We will send replacement spare parts for free if needed.
