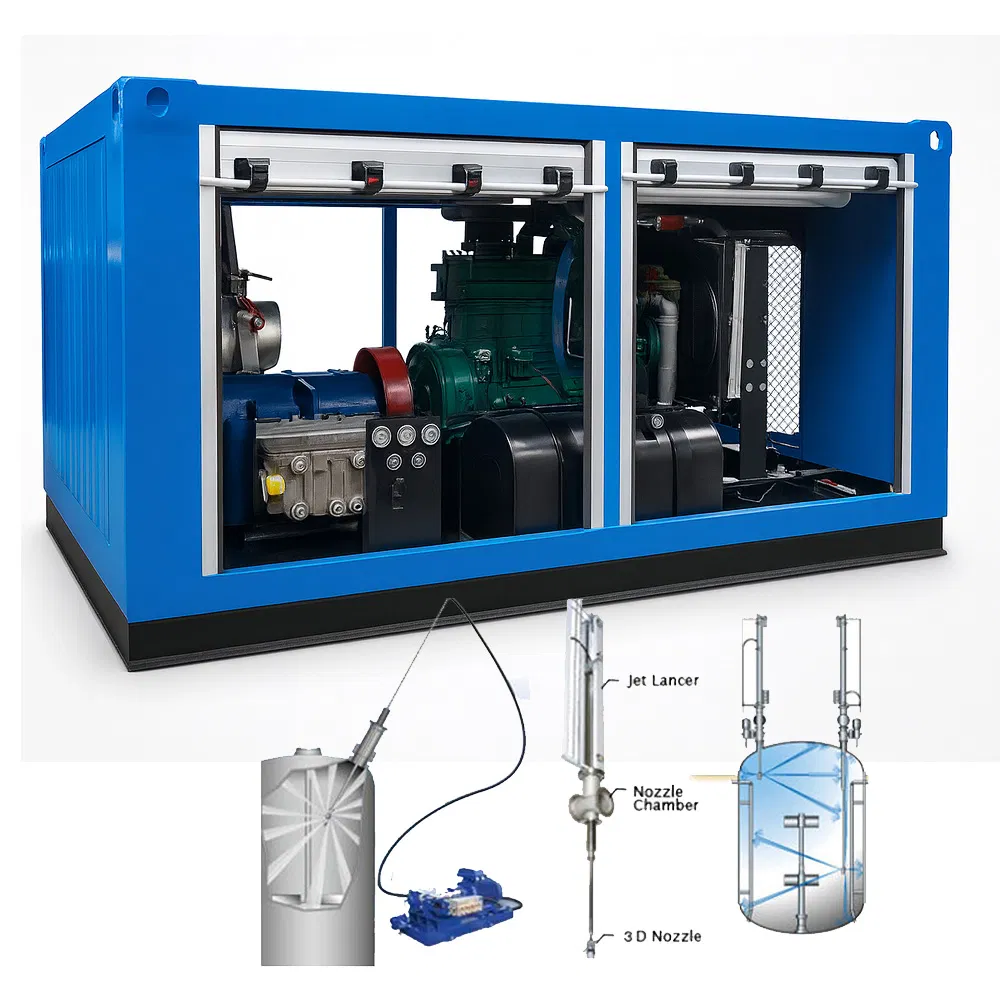

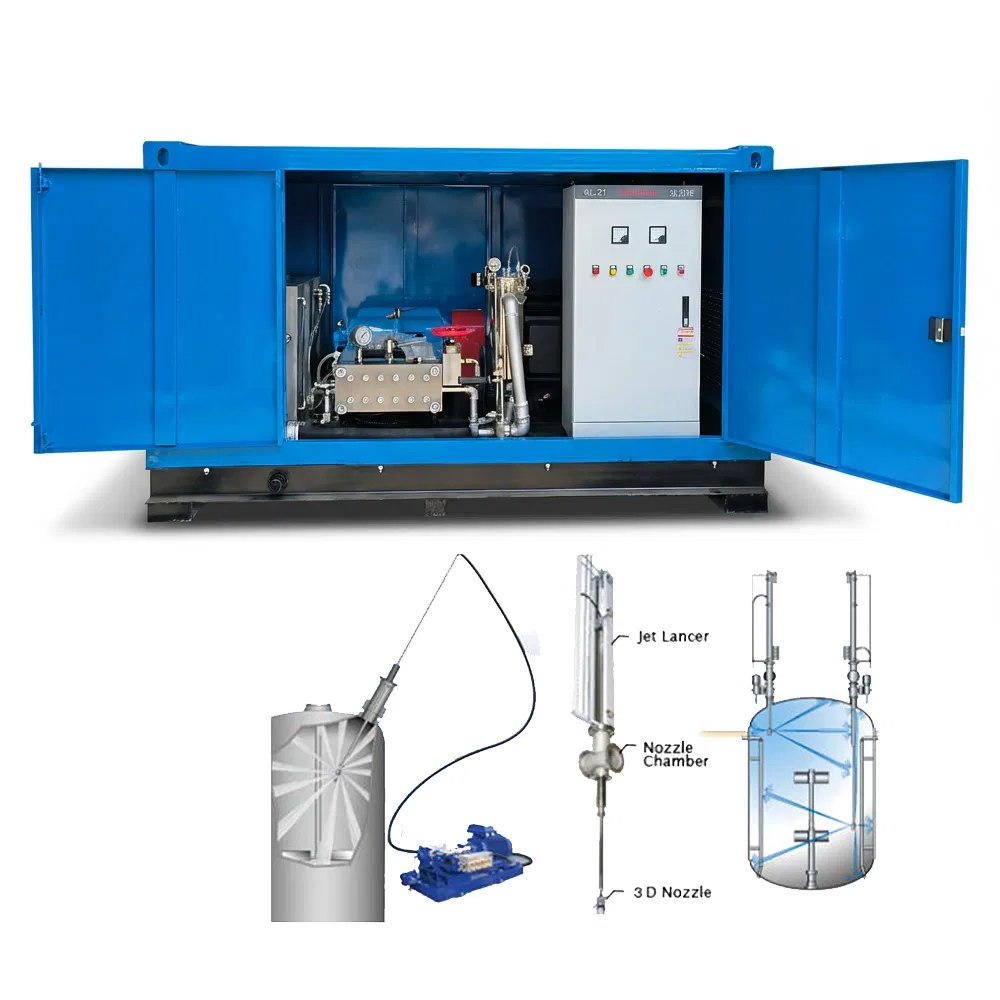

Fully Automatic High Pressure Water Jet Cleaning System for Industrial Reactor Vessels

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.XY80100
TypeCold Water High Pressure Cleaner
Operation TypeFixed
DriveMotor
Nozzle Type3D Rotary Nozzle
ApplicationIndustrial
ConditionNew
CertificationCE
Flow Rate50-110 L/Min
Industry UsedOil Tank Cleaning, Reactor Cleaning
FunctionOil Tank /Reactor Cleaning
Cleaning TypeHigh Pressure Cleaner
Specification1000bar
Production Capacity5000PCS/Month

Packaging & Delivery

Package Size300.00cm * 160.00cm * 190.00cm
Package Gross Weight2600.000kg
Transport PackageWooden Case Packing

Product Overview

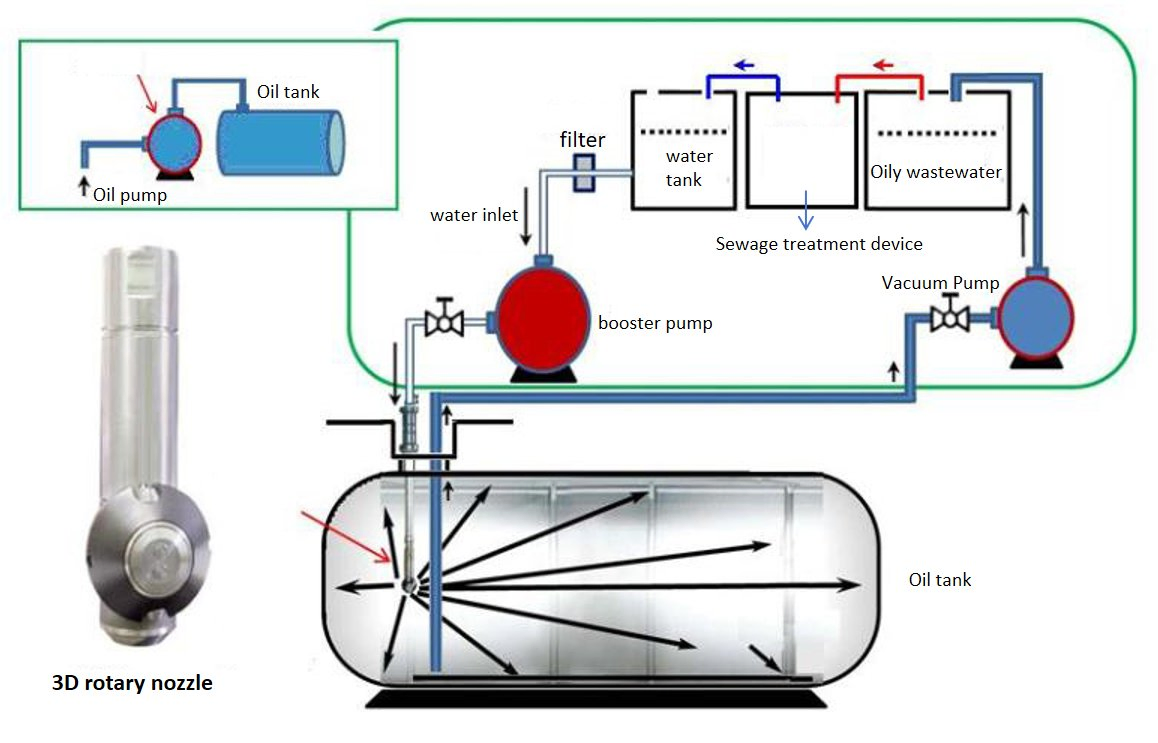

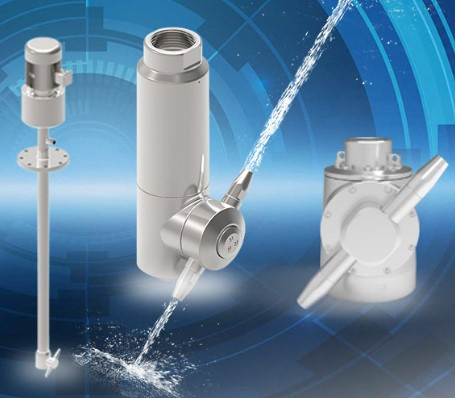

3D rotating nozzle high pressure water jet tank cleaner machine

  • Reduced downtimes thanks to faster cleaning
  • No evacuation of the container necessary
  • Process-integrated operation via the process control system
  • Cold, hot-cleaning with or without cleaning additives
  • More occupational safety without personnel in the container
  • Can also be used up to Ex Zone 0 and 20

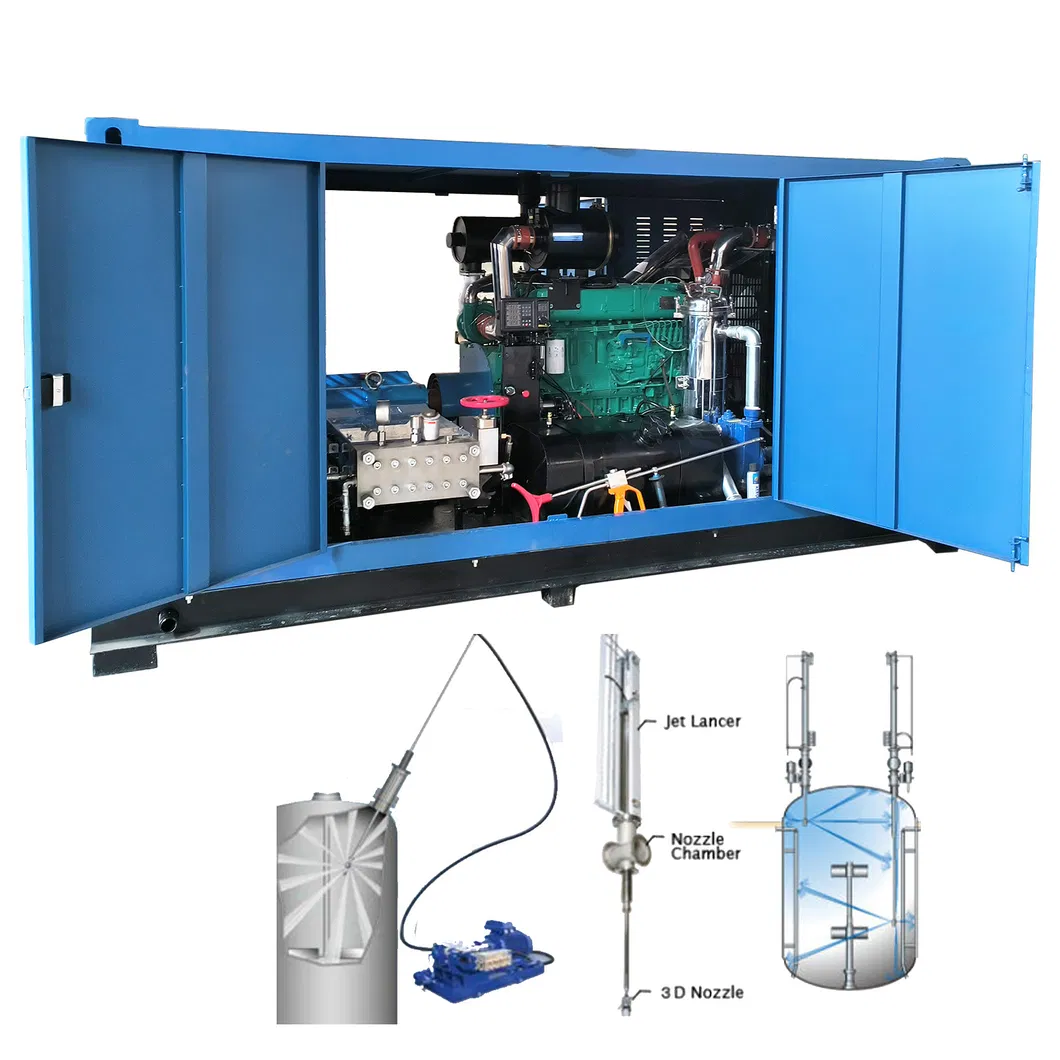

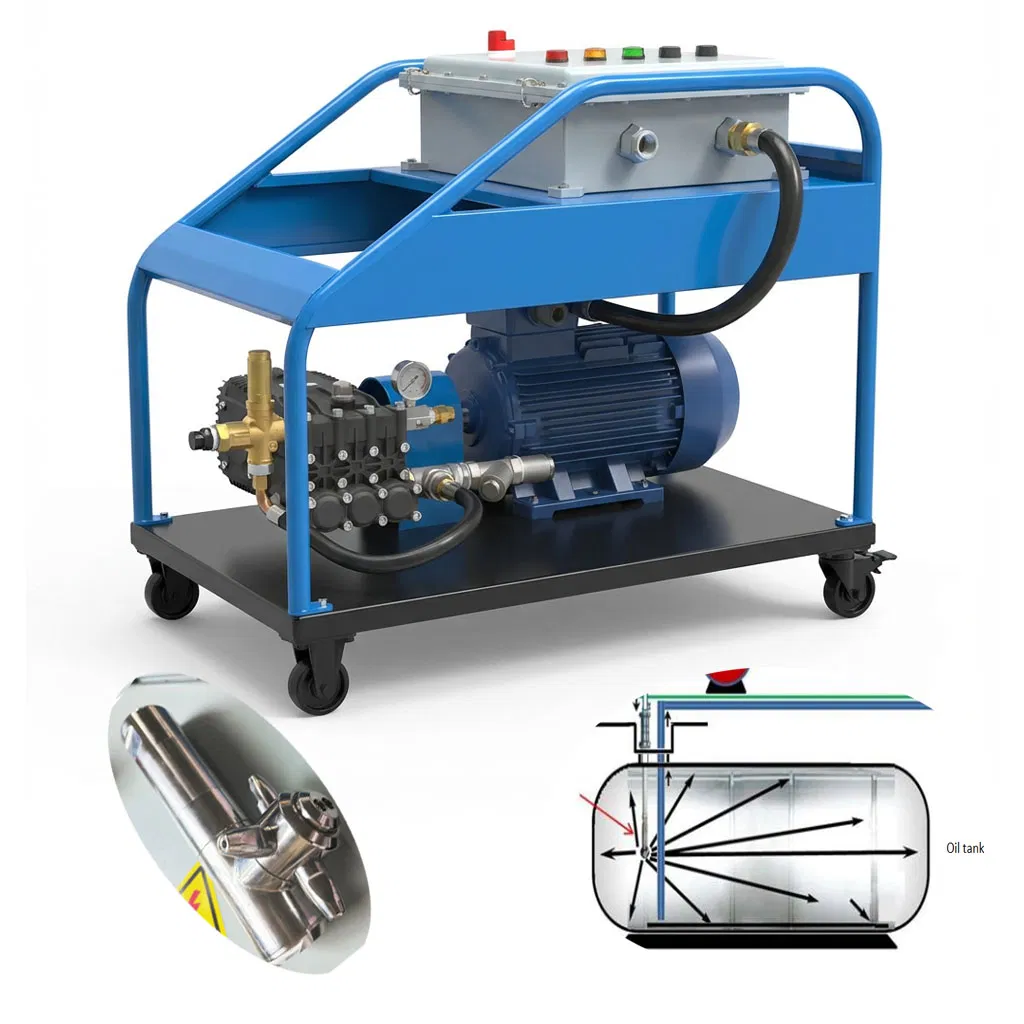

Fully Automatic High Pressure Water Jet Cleaning System

Regular high pressure cleaning of reactor containers not only ensures a clean process, it also supports production times and stabilizes sensitive processes. Complex and hard-to-reach geometries can also be cleaned of all accumulated deposits with the high pressure cleaning. The thorough cleaning of boilers, autoclaves, IBC containers, all kinds of tanks or even silos and spray towers is no problem.

Product Specifications

Rate pressure Water flow Electric motor drive Diesel engine drive
100Mpa/1000bar100 L/min200kw317kw
100Mpa/1000bar80 L/min160kw225kw
150Mpa/1500bar85 L/min200kw264kw
70Mpa/700bar70 L/min90kw120kw
50Mpa/500bar85 L/min90kw120kw

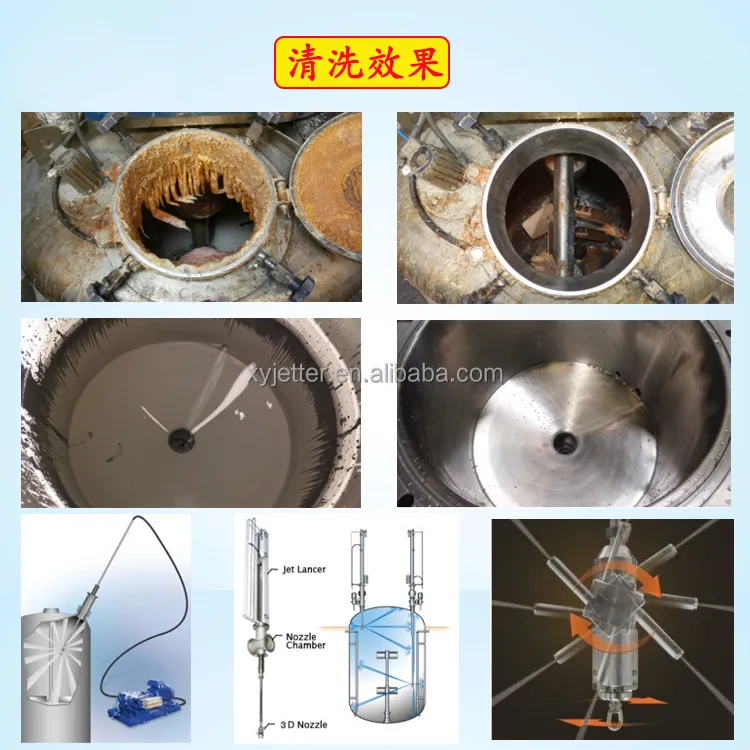

Industrial Specifications

Product Application

Cleaning Industrial pipe/heat exchanger/condenser pipe cleaning, tube/tank cleaning, boiler cleaning, evaporation tank cleaning, concrete surface cleaning, cement cleaning; aluminum formwork cleaning, ship/hull cleaning.
Removing Marine hull rust removal, paint removal, cement removal, scale oxide removal, dephosphorization removal on steel plant, phosphorous removal; road mark removal, rubber removal from airport ground; pile corrosion removal, deburring, etc.
Testing Valve pressure testing, pipe cleaning testing, etc.
Pretreatment Highway overlay treatment, concrete treatment, marine surface treatment, etc.

Application Display

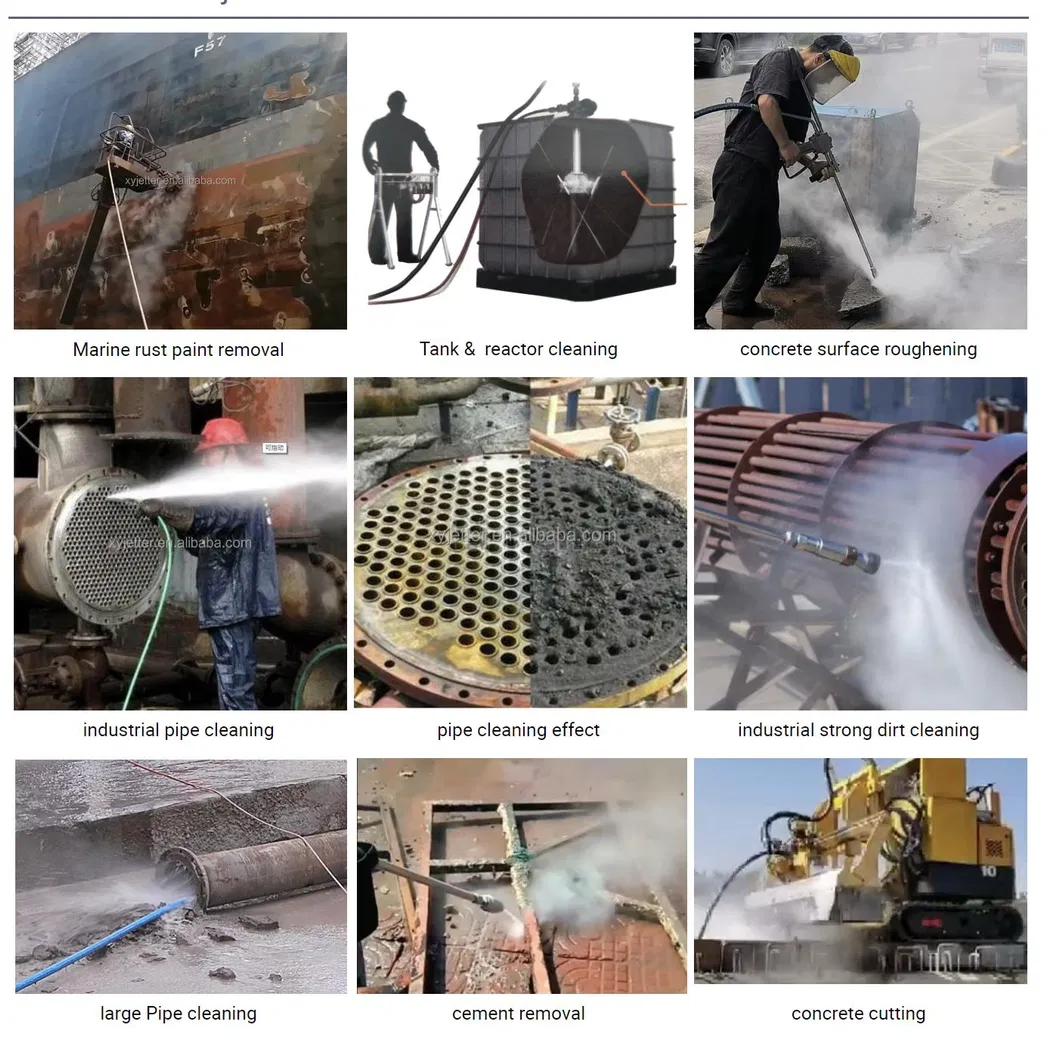

Application Case

High Pressure Water Jet Units

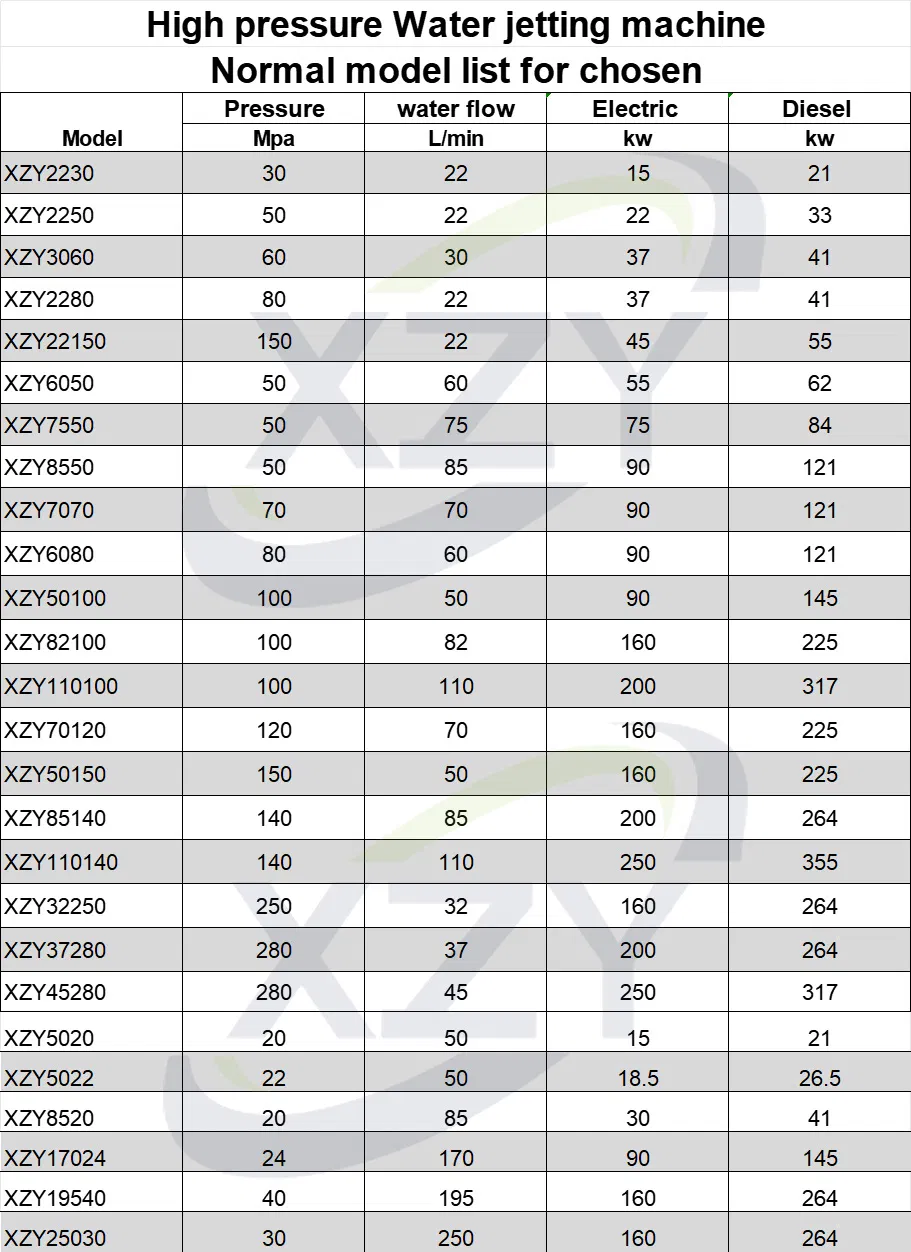

Water Jet Unit 1

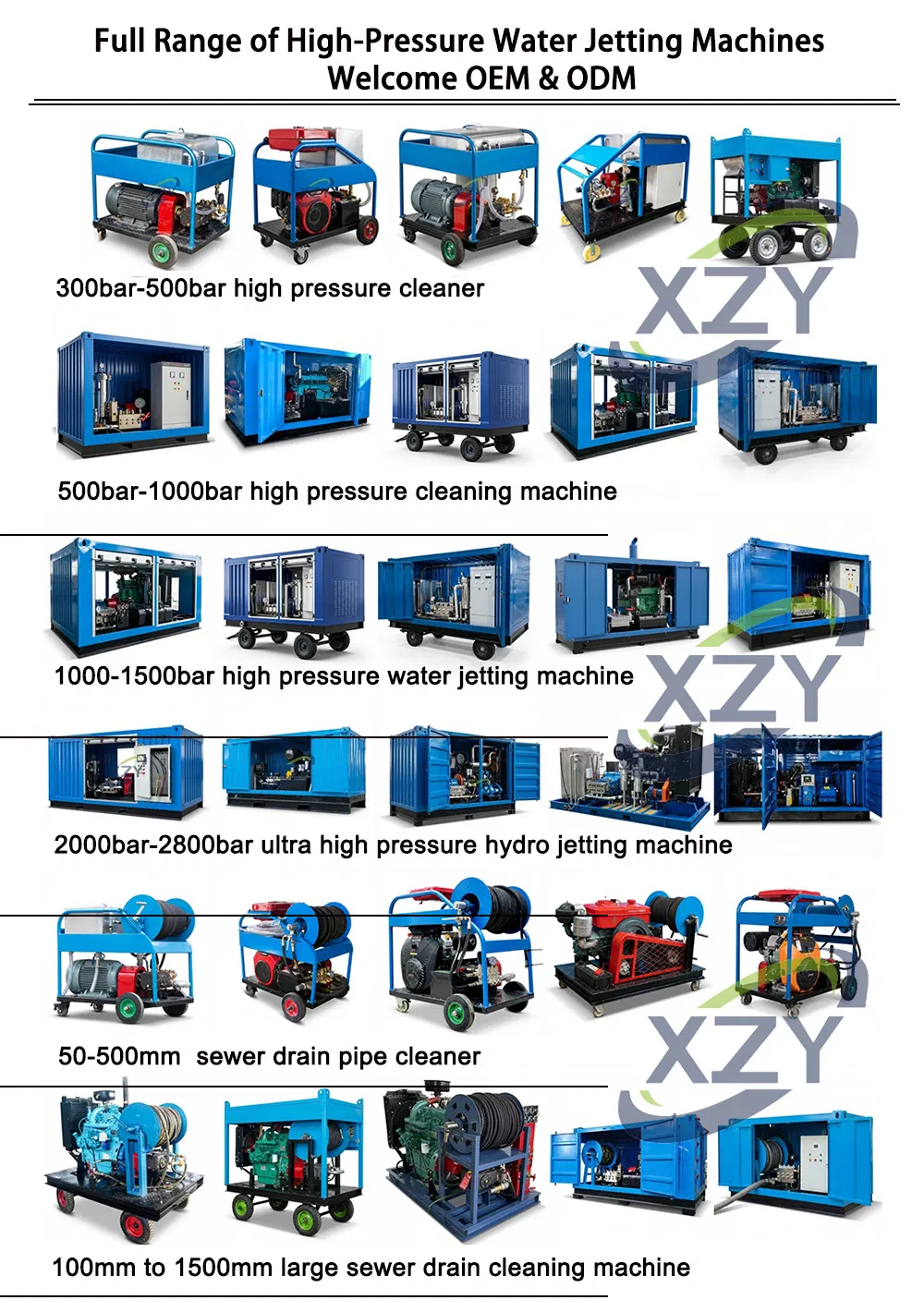

Water Jet Unit 2

Factory Picture Show

Factory Environment

Frequently Asked Questions

Q1: What pressures and flow rates are available in these machines? A1: Pressure ranges from 3,000 PSI to 40,000 PSI (200 to 2800 bar) or more. Flow rates typically range from 15 to 600 L/min.
Q2: How do I choose the right nozzle for my application? A2: Fan Nozzles for surface cleaning; Rotary Nozzles for deep cleaning/descaling; Piercing Nozzles for cutting; Pipe cleaning nozzles for industrial pipes; Turbo nozzles for strong dirt removal.
Q3: What type of water should be used in these machines? A3: Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q4: What are the power options for high-pressure water jetting machines? A4: Electric (indoor/quiet), Diesel (outdoor/high power), and Gasoline (portable/remote locations).
Q5: How long is your delivery time? A5: Normal delivery takes 3-10 days; customized orders need to be confirmed based on requirements.
Q6: Do you offer training on how to use machines safely? A6: We offer online training and instructional videos. If required, technical support can be arranged for on-site training in your country.
