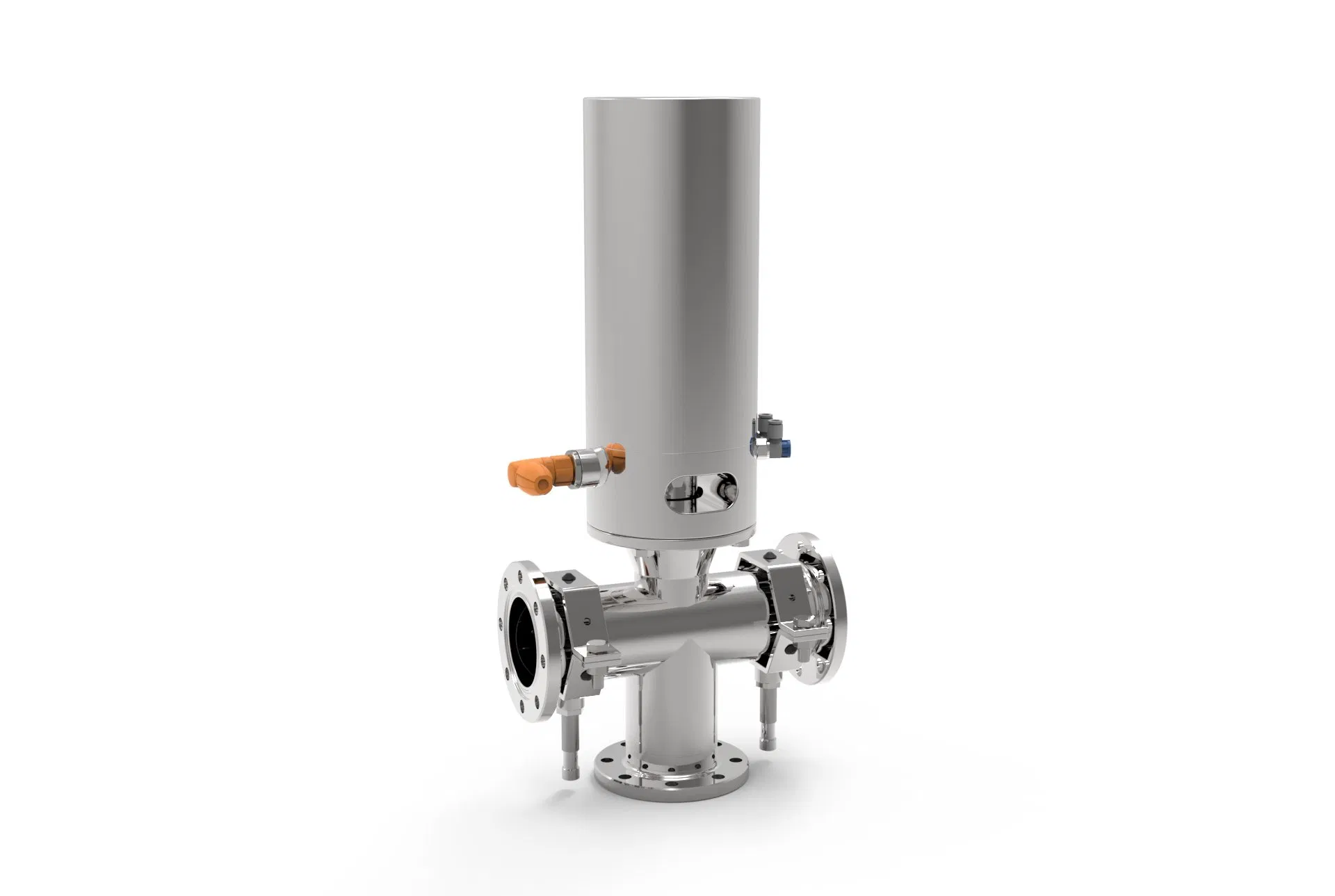

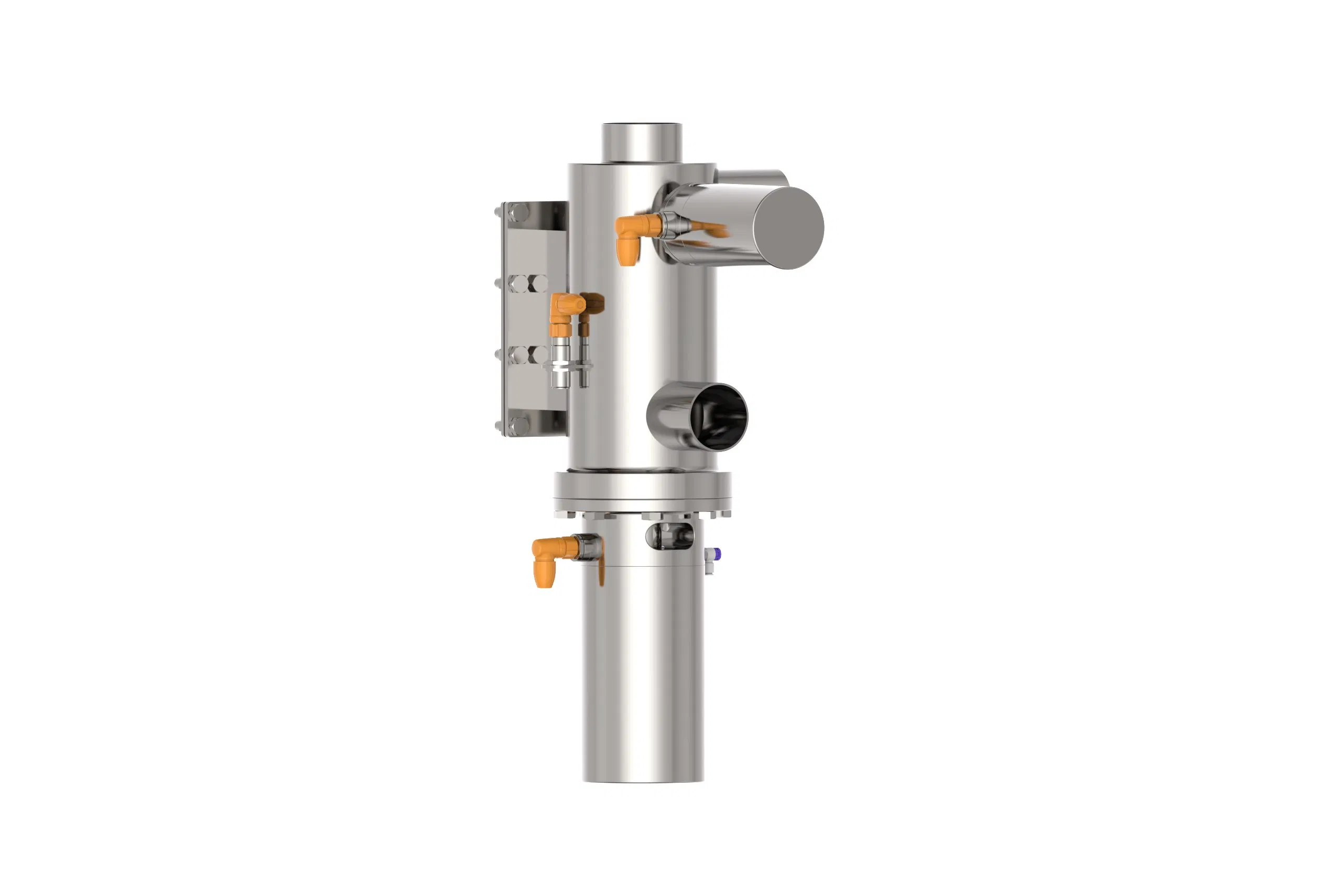

Double-Launch Station Automatic Pigging System DN65 /Pipeline Cleaning/Paints and Coatings

Customization: Available
Application: Cosmetic Industry, Food Industry, Pharmaceutical Industry
Certification: ISO

Product Description

i

Basic Information

Model NO.
DN 65
Control System
Fully Automatic
Customized
Customized
Material
Stainless Steel
ISO Standard
1; 1.25; 1.5; 2; 2.5; 3; 3.5; 4; 5; 6
DIN Standard
DN25-DN150
Medium
Liquid and Air
Temperature
0°C ~ 100°C
Pressure
Pn10
Origin
China
HS Code
8481202000
Capacity
50 set/Year

Product Description

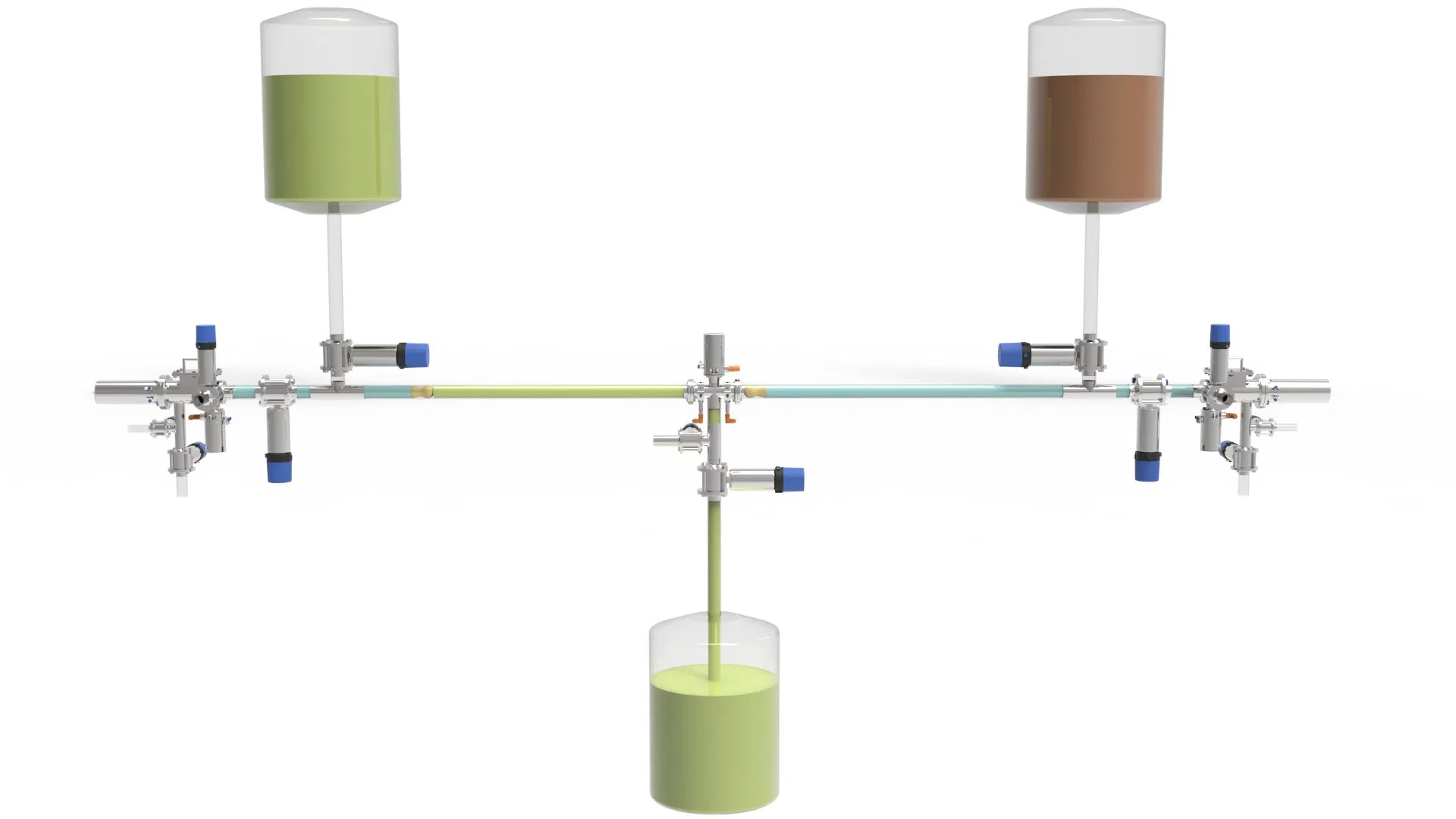

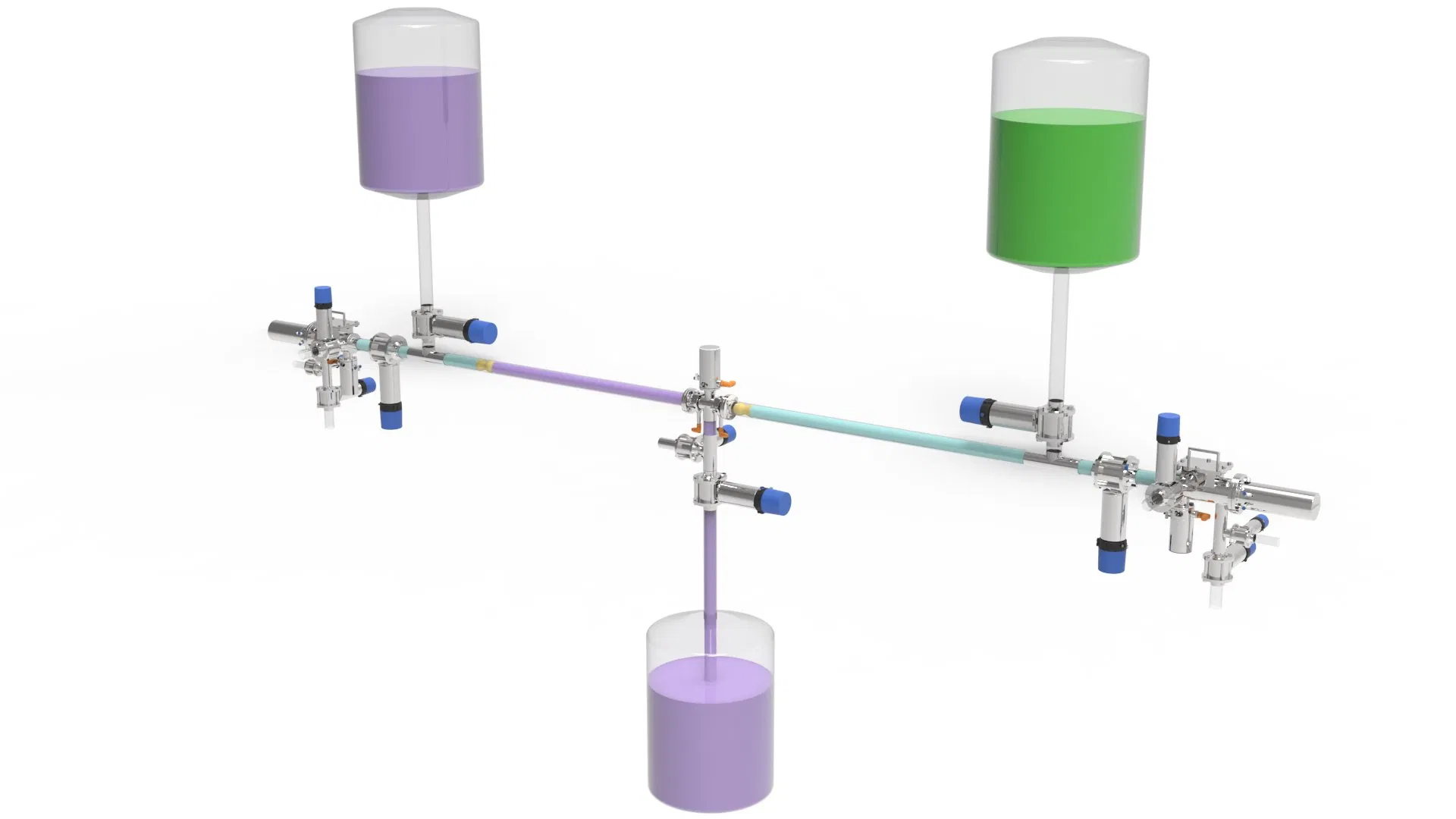

The Double-Launch Station Automatic Pigging System is designed to recover residual product from pipelines with minimal waste and maximum efficiency. It features a hygienic design suitable for food, beverage, pharmaceutical, and cosmetic industries.

Key Features:
Fully automated launch and receive stations
Intelligent control systems with remote support
Up to 99% product recovery rate
Fast ROI within 3 to 6 months
Reduces cleaning time and water usage
Technical Data:
  • Working pressure range: 0 ‐ 10 bar
  • Temperature range: above 0°C ‐ 100°C
  • Main body material: SS304, SS316L
  • Sealing material: EPDM (Default); Optional: VMQ, FKM, FFKM, NBR
  • Surface roughness: Ra≤0.8μm

Product Parameters

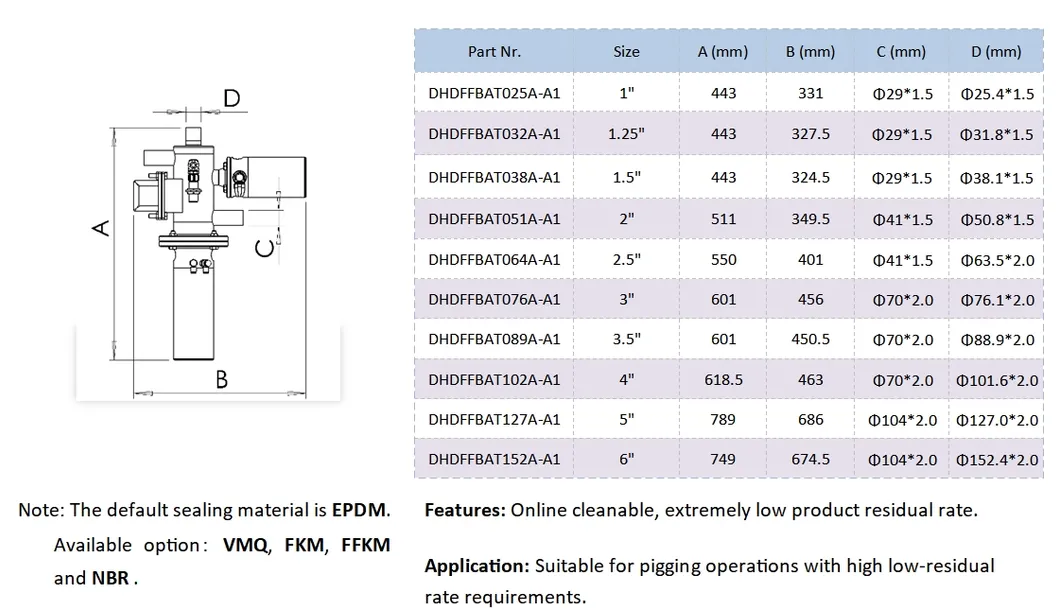

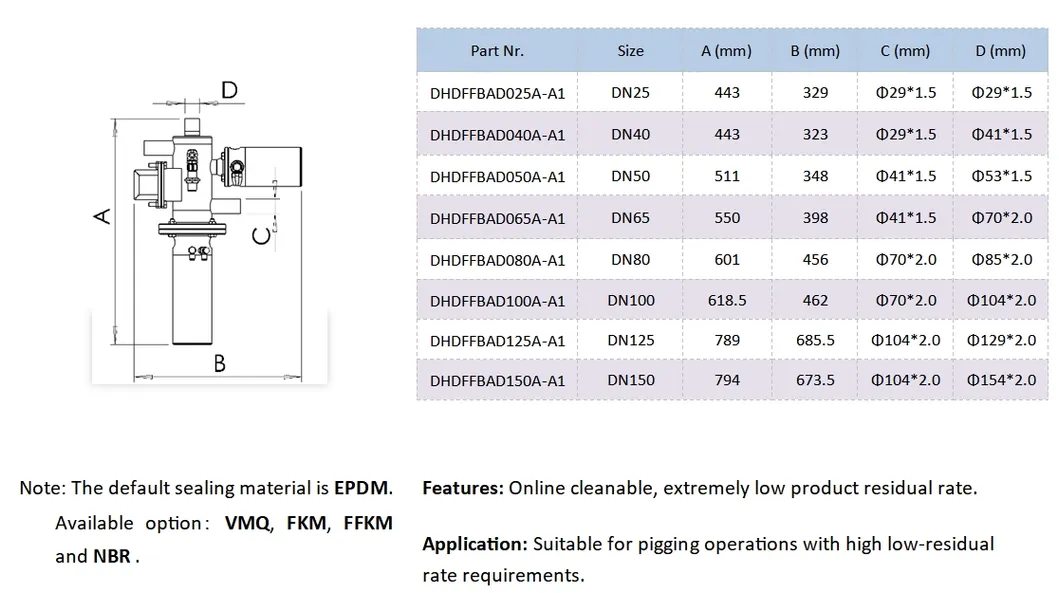

Micro-residue launcher (SUS316L) - ISO & DIN Series

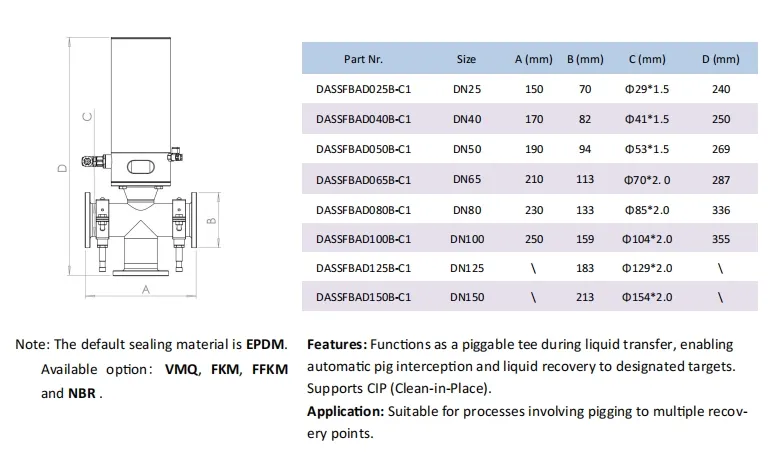

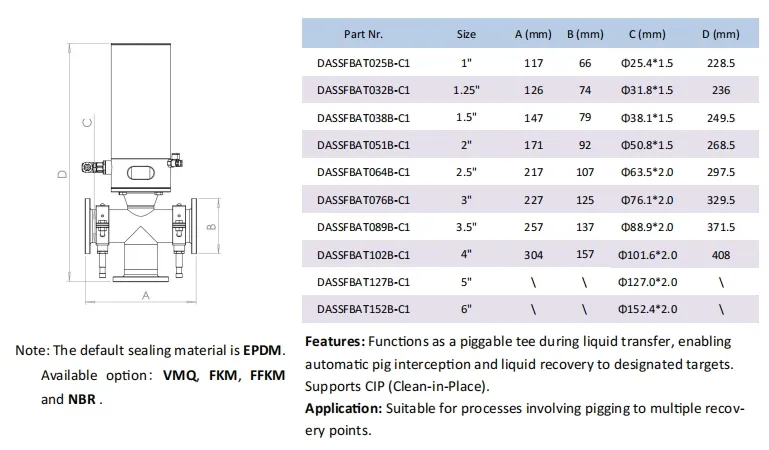

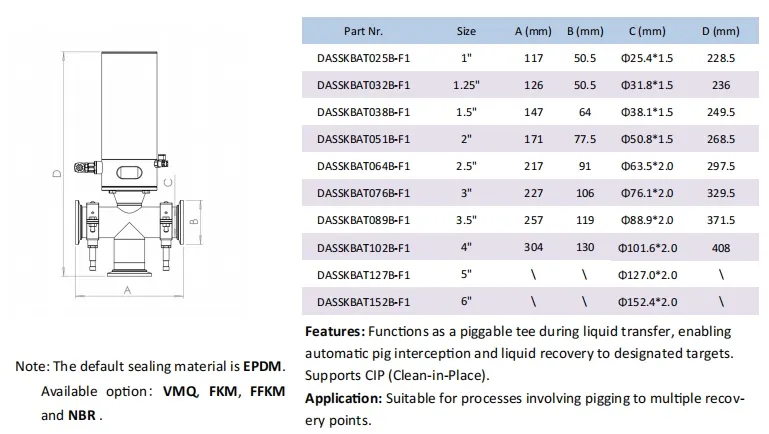

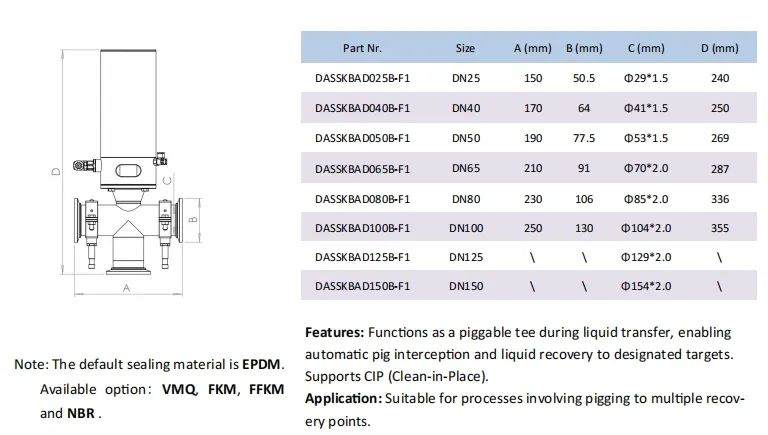

Piggable-tee intermediate stopper (SUS316L)

📷

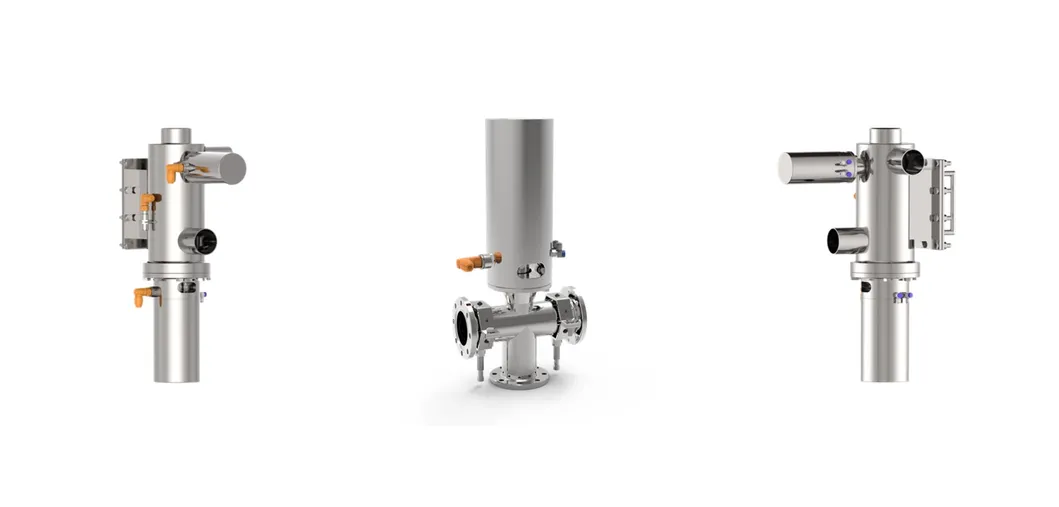

Detailed Photos

🏢

Professional Profile

Production Line

We are an experienced manufacturer of hygienic pigging systems established in 2005. Our product recovery systems are manual, automatic, sanitary, and aseptic. We provide solutions for various industries including dairy, beverage, edible oil, pharmaceutical, cosmetics, and chemicals.

Our focus is on high-quality R&D and updating pigging technology to ensure cost-effective solutions that meet special customer requirements across the globe.

Our Advantages & Service

After-Sales Service:
  • Technical support
  • Staff Training
  • Spare parts and repair kits
  • On-site Maintenance
  • Remote technical guidance
Why Choose Us:

Extensive experience in pigging solutions with a professional technical team, excellent service, and fast delivery. Our proven solutions are widely used in sanitary applications for food, dairy, detergent, and paints.

📦

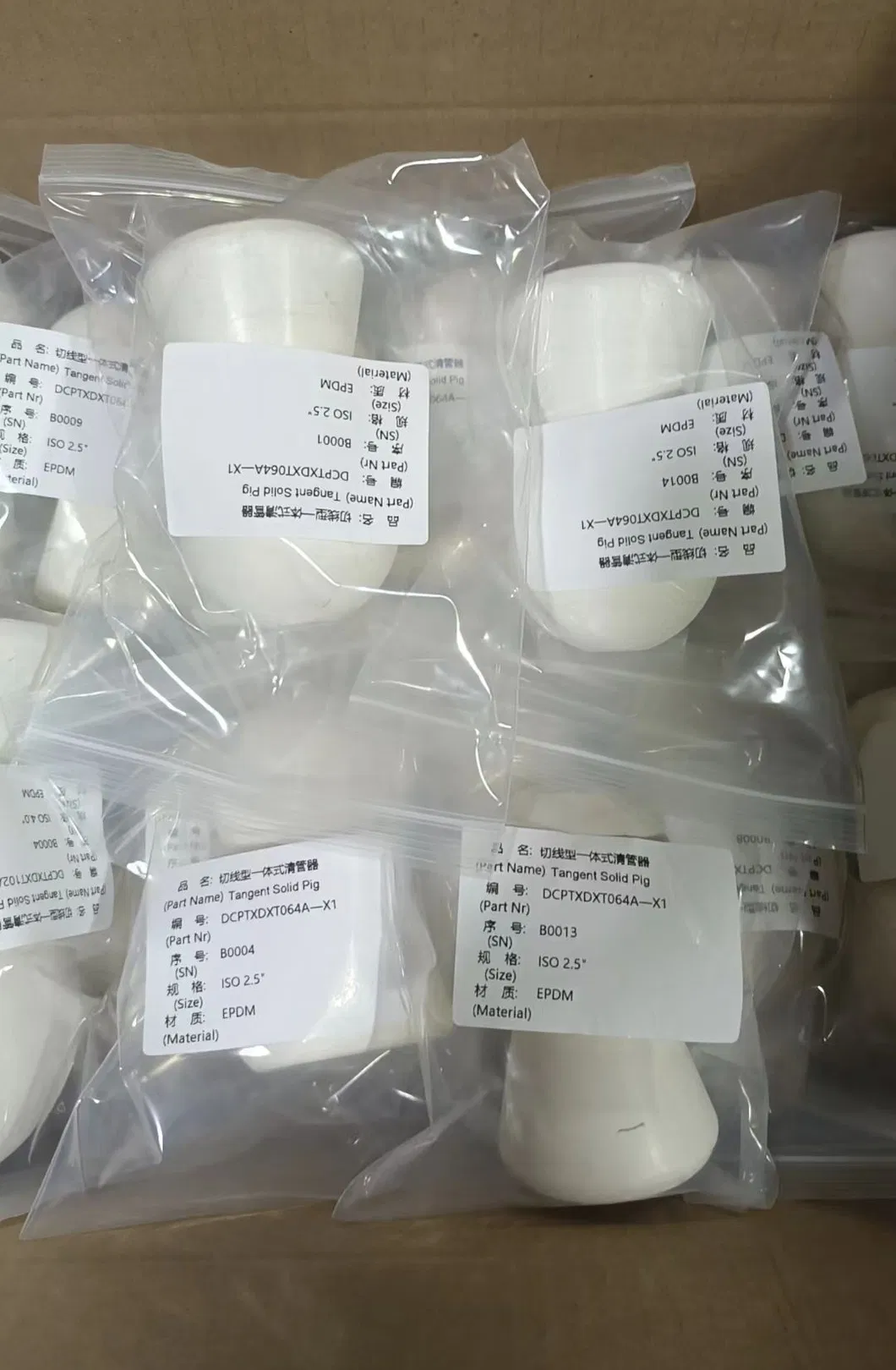

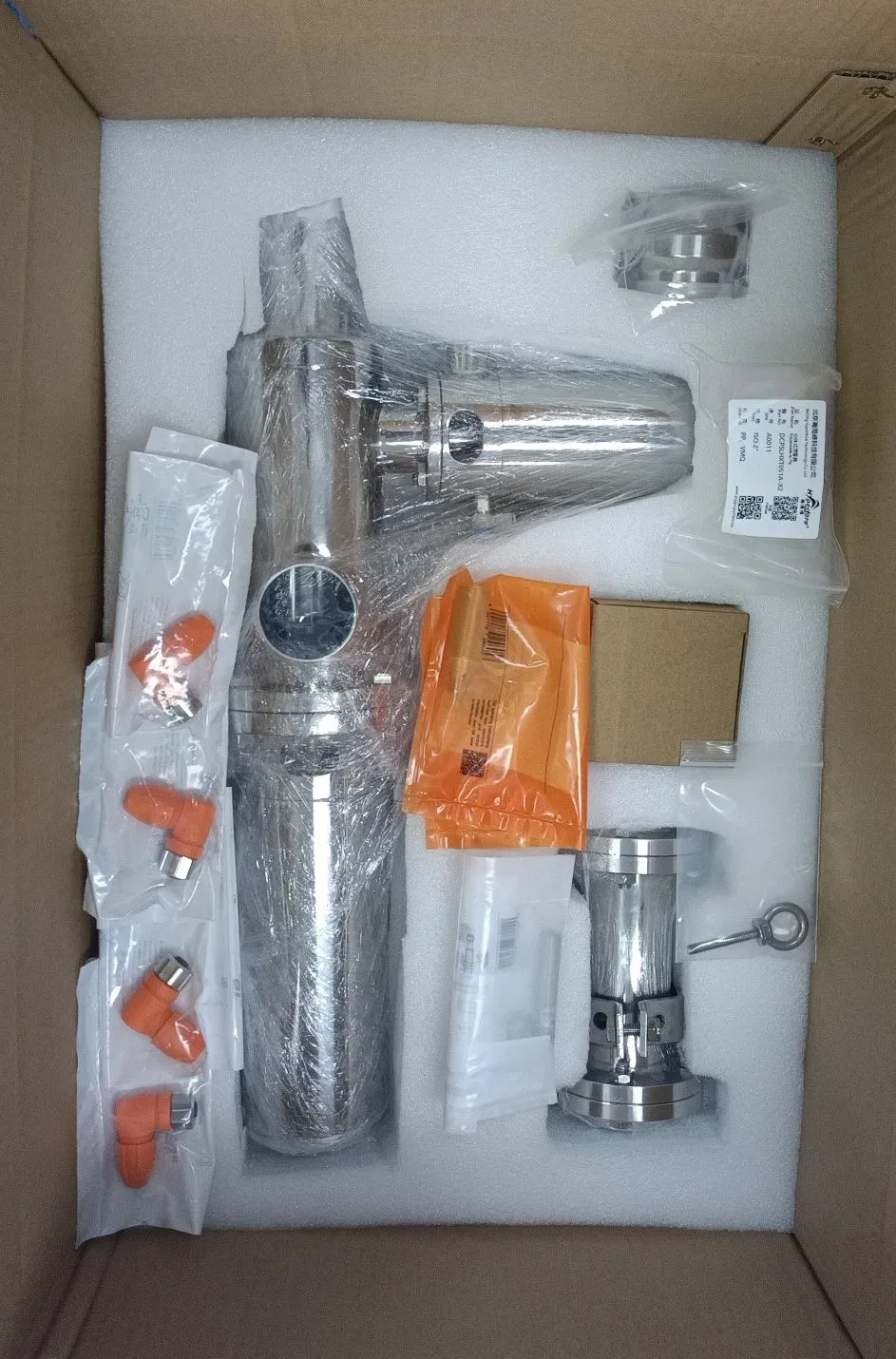

Packaging & Shipping

?

Frequently Asked Questions

What are the advantages of an automatic pigging system?
The system offers reduced product waste, improved yield, faster cleaning cycles, and up to 99% recovery of residual products, providing a rapid ROI within 3-6 months.
Why is it called "pigging"?
The term origin is debated; some say it stands for "Pipeline Inspection Gadget," while others believe it refers to the squeaky sound made by cleaning pigs as they travel through pipes.
How do I choose the right pipeline pig?

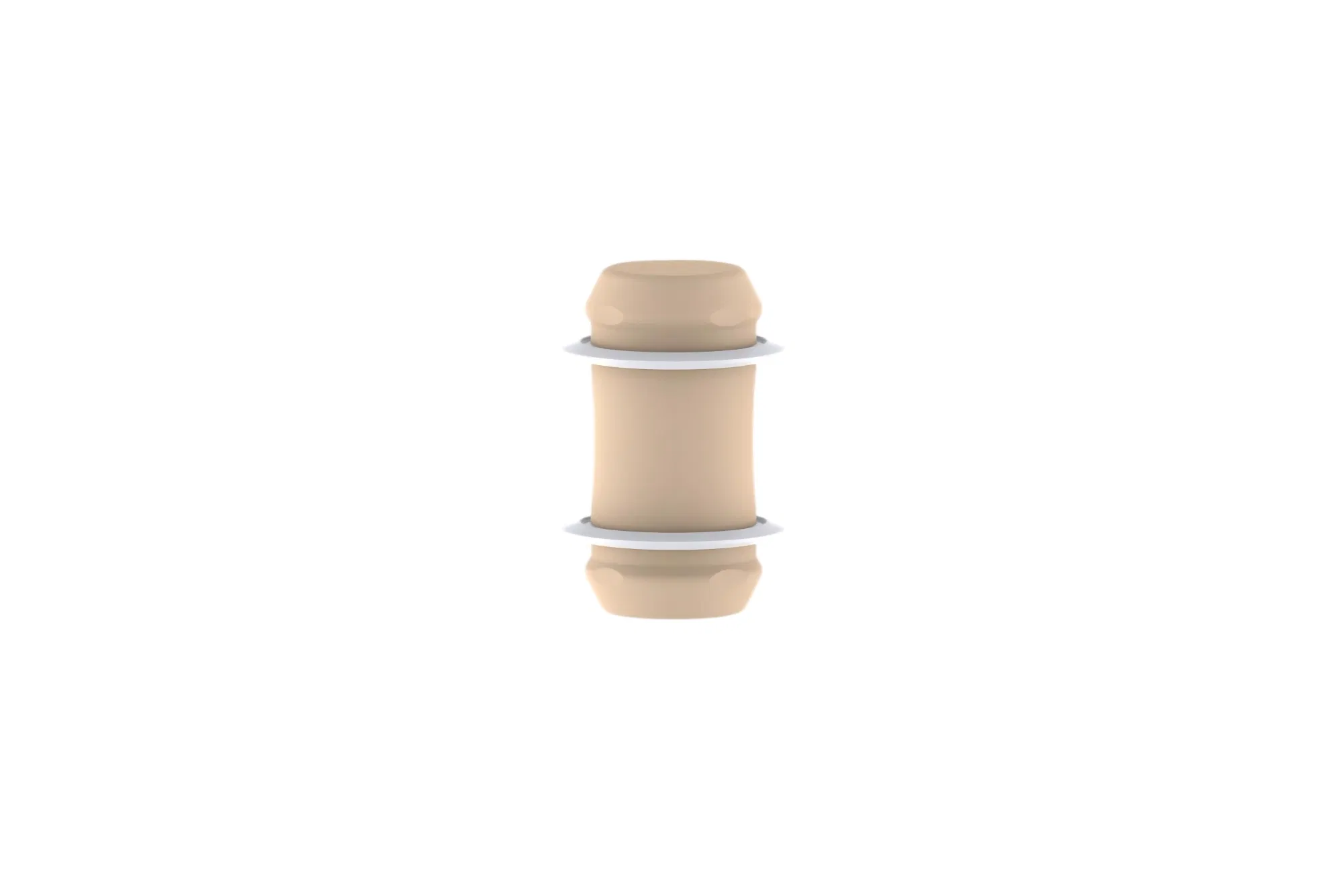

Selection depends on your production process. We offer various types including replaceable lip pigs, lithium battery pigs, PTFE pigs, and double-sphere solid pigs to suit different needs.
What materials are used in the construction of the system?
The main body is typically constructed from high-grade Stainless Steel (SS304 or SS316L) to meet hygienic and sanitary standards for food and pharma industries.
Can the pigging system handle high-temperature liquids?
Yes, the standard temperature range is 0°C to 100°C. Different sealing materials like VMQ or FKM can be selected to optimize performance for specific temperature requirements.
Is the system compatible with existing automation setups?
Yes, the automatic pigging system is designed for easy integration with intelligent control systems and supports sustainable, automated production workflows.
