Basic Specifications

Condenser Rubber Ball Cleaning Device

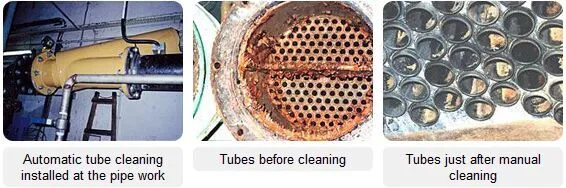

In water-cooled air conditioning systems, impurities in the cooling water circuit accumulate, building up scales and deposits in condenser tubes. This fouling increases chiller energy consumption. The Automatic Tube Cleaning System circulating soft sponge balls through the tubes at pre-set intervals to maintain peak efficiency without damaging the tube surfaces.

Working Procedures

Cleaning balls are introduced via a ball collector partitioned by a screen. When deaerated, these balls have nearly the same specific gravity as cooling water, allowing them to follow the same flow path into the heat exchanger. Once they pass through the tubes, they are intercepted by a strainer and conveyed by a special pump back through the collector to the injection site.

Key Characteristics

• Energy saving: 10% - 40% efficiency boost.
• High Efficiency: 99% rubber ball collection rate.
• Maintenance Free: Automatic PLC computer programming control.
• Protection: Eliminates abnormal pressure and prolongs compressor lifespan.
• Eco-Friendly: Physical processing reduces chemical treatment costs.

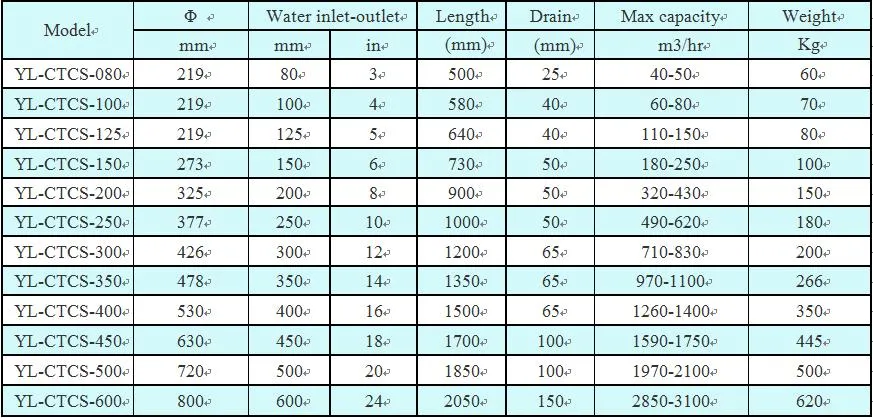

Technical Parameters
