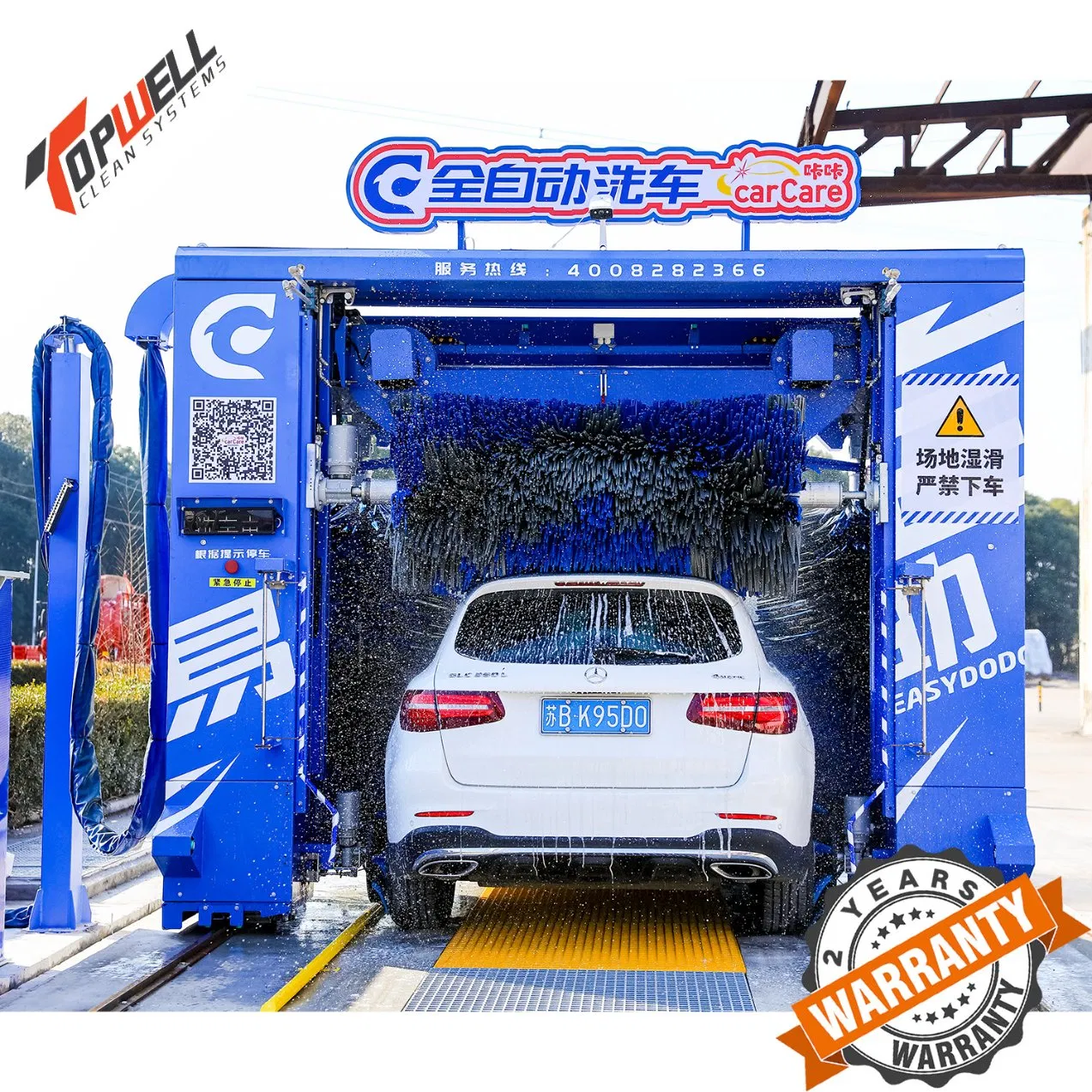

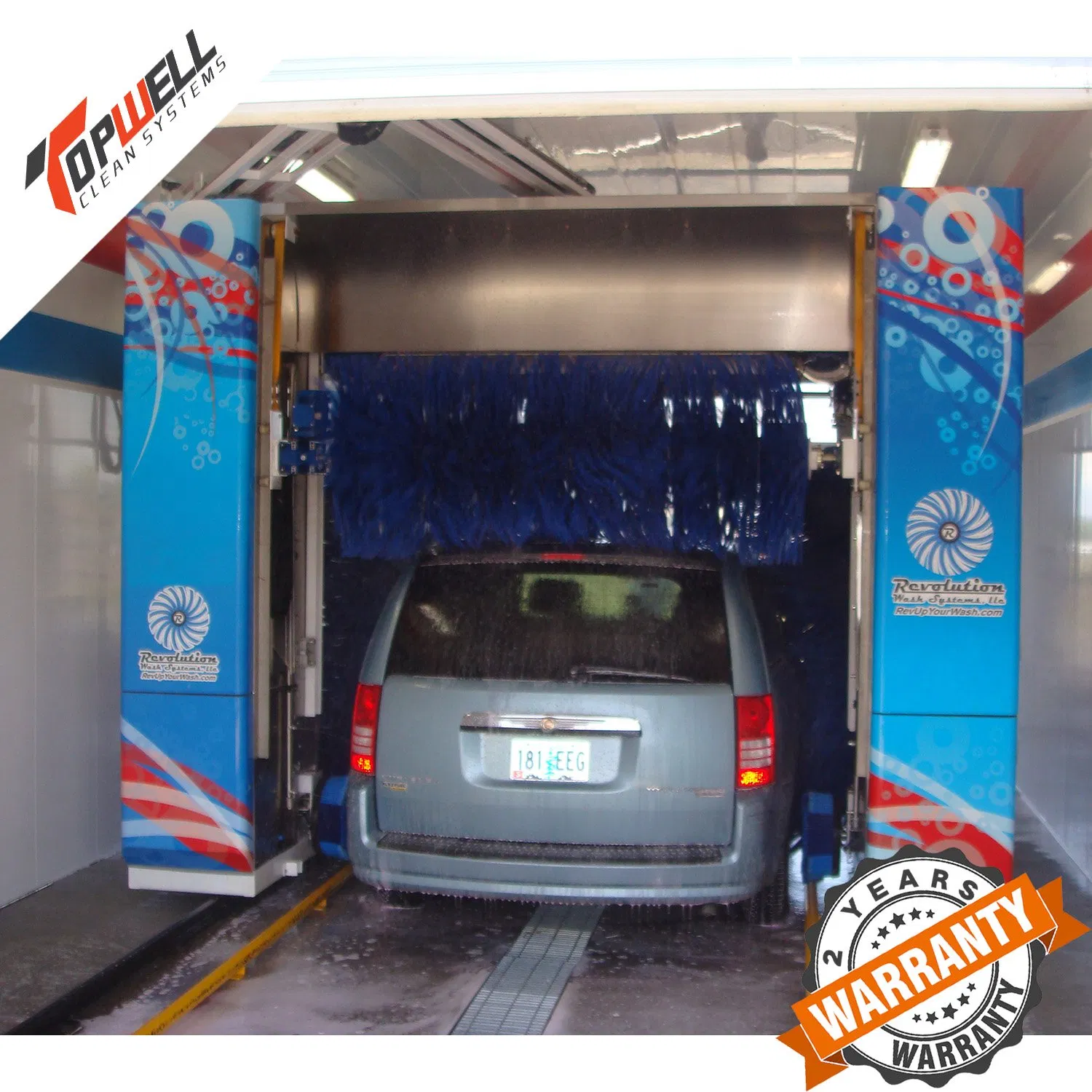

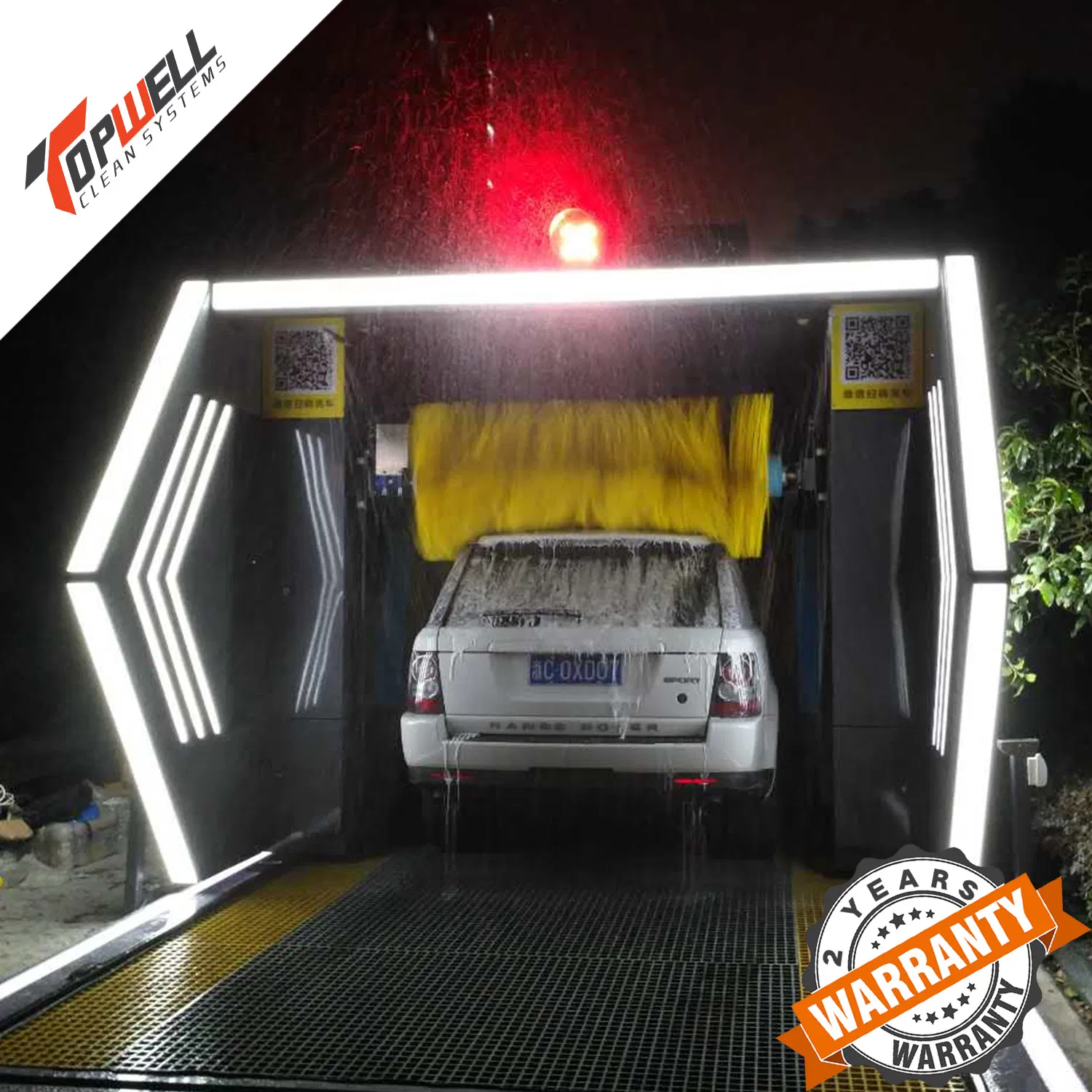

Commercial Use Automatic Vehicle Cleaning System

Customization: Available
After-sales Service: Life Time Online Support
Warranty: 2 Years

Product Description

⚙️

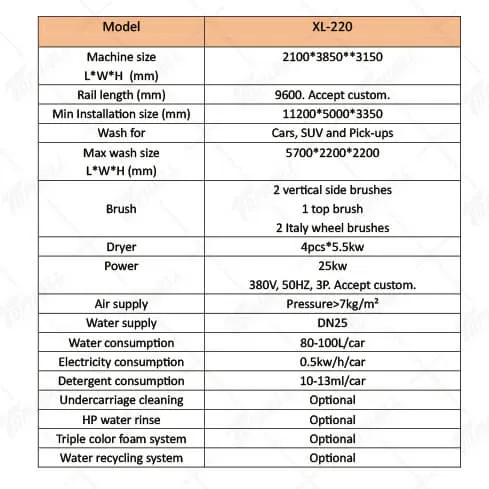

Technical Specifications

Model NO.
XL-220
Type
Reciprocating
Application
Automotive Beauty Shop
Fuel
Electric
Cleaning Process
Cold Water Cleaning
Certification
CE
Material
Galvanized Steel
Dryer Quantity
4
Brush Quantity
5
Car Wash Capacity
15-20 Cars Per Hour
Package Gross Weight
3000.000kg
Specification
2250(W)x5350(L)x2100(H) mm
📘

Product Description

The 7th-generation rollover car washing machine is equipped with 5 brushes and 4 dryers, including two EVA foam material side brushes, one EVA top brush and two high-quality tire brushes. The top four 5.5KW fixed Q-type dryers reduce the failure rate compared with old contouring dryers and greatly reduce maintenance frequency.
Two independent dosing pump systems control the functions of foam and wax water, allowing accurate control of detergent usage. Washing one car consumes only around 10ml of detergent.
The rollover type is designed to save space, requiring only 11 meters in length and 5 meters in width for installation, making it ideal for locations with limited space.
Automatic Vehicle Cleaning System
🚿

Standardized Wash Programs

Program A (Quick Wash): Foam and brushes wash (with wheel brush) - brushes wash and wax - drying

Program B (Regular Wash): Foam and brushes wash - brushes wash - clean water rinse - wax - drying

Program C (Standard Wash): HP water - foam - brushes wash - brushes wash and wax - drying

Program D (Superior Wash): Rinse - foam - brushes wash - brushes wash - clean water rinse - wax - drying

🌟

Key Features

Robust Construction: The whole machine is galvanized with a baking paint process, ensuring corrosion resistance and durability.
EVA Foam Brushes: High cleanliness and anti-aging ability; smooth surface prevents sand sticking to protect car paint.
Smart Interface: High-definition 10" touch screen for real-time operation status and vehicle detection.
Emergency Function: One-key shielding of fault points allows emergency washing even if one component requires attention.
Data Tracking: Built-in car wash counting function for daily, monthly, and yearly statistics.
📐

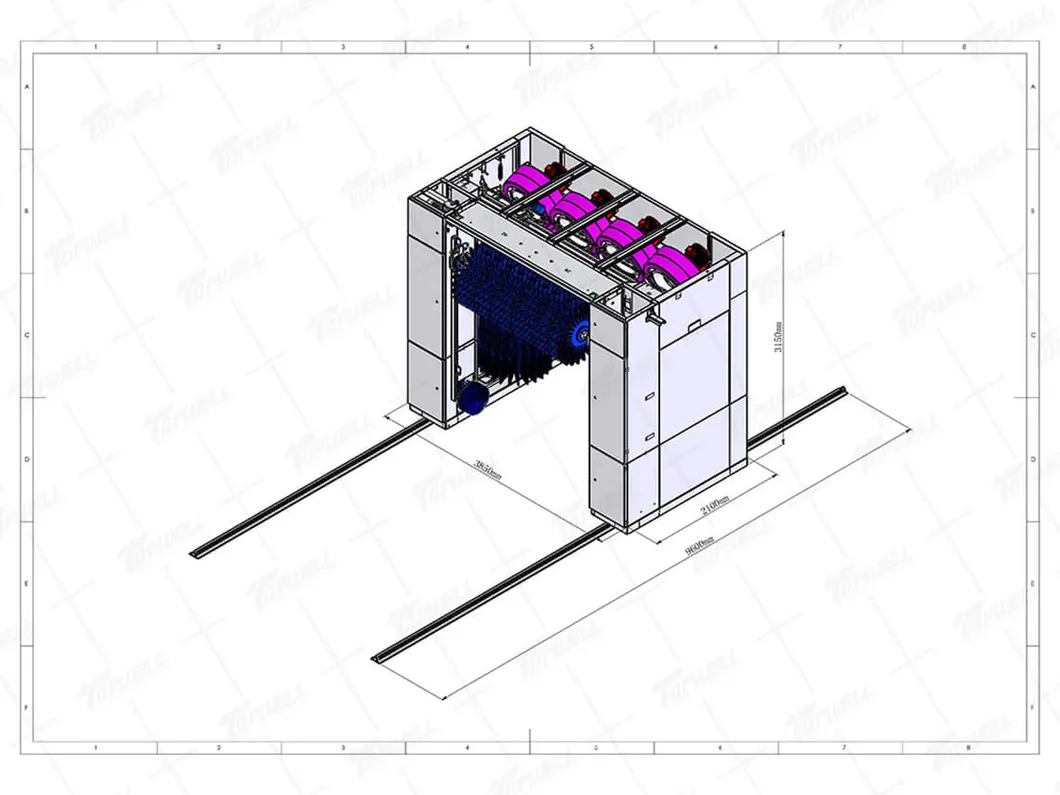

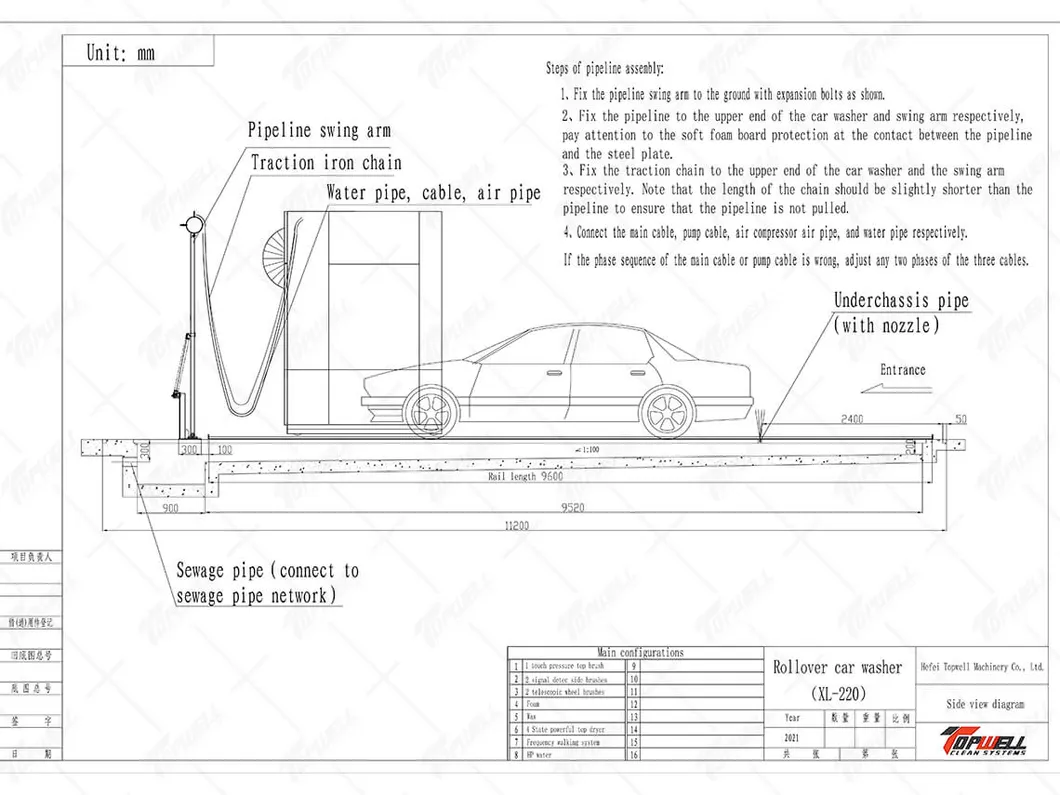

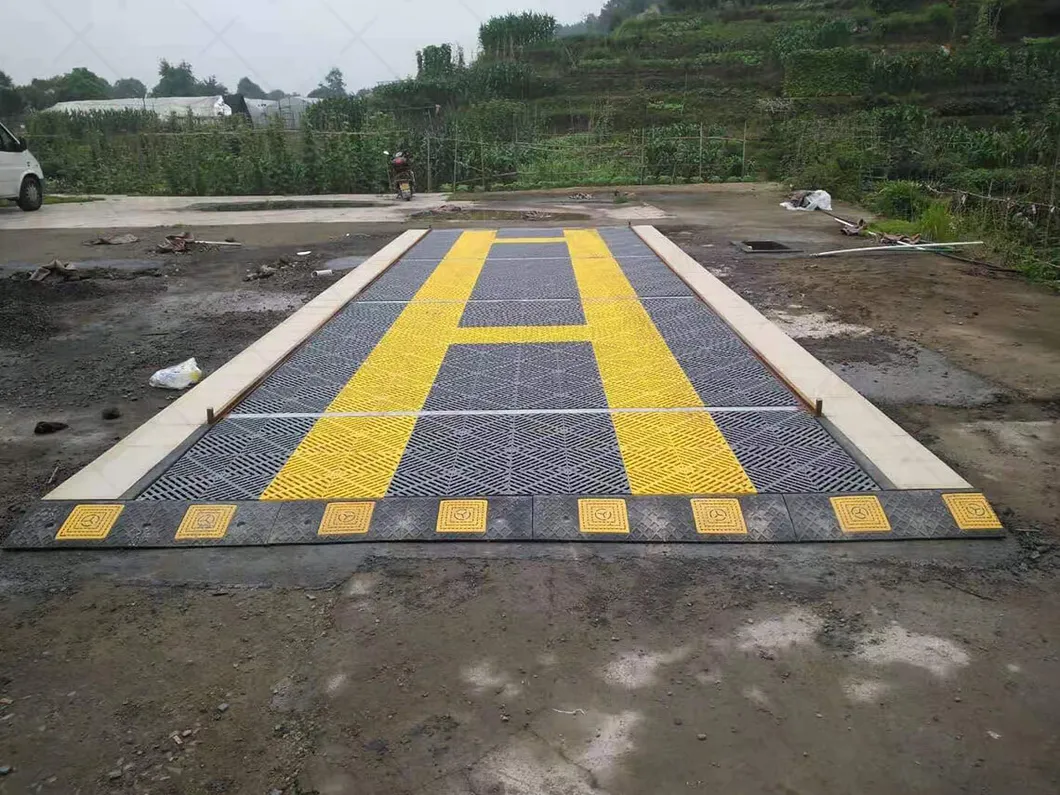

Machine Framework & Foundation

🔍

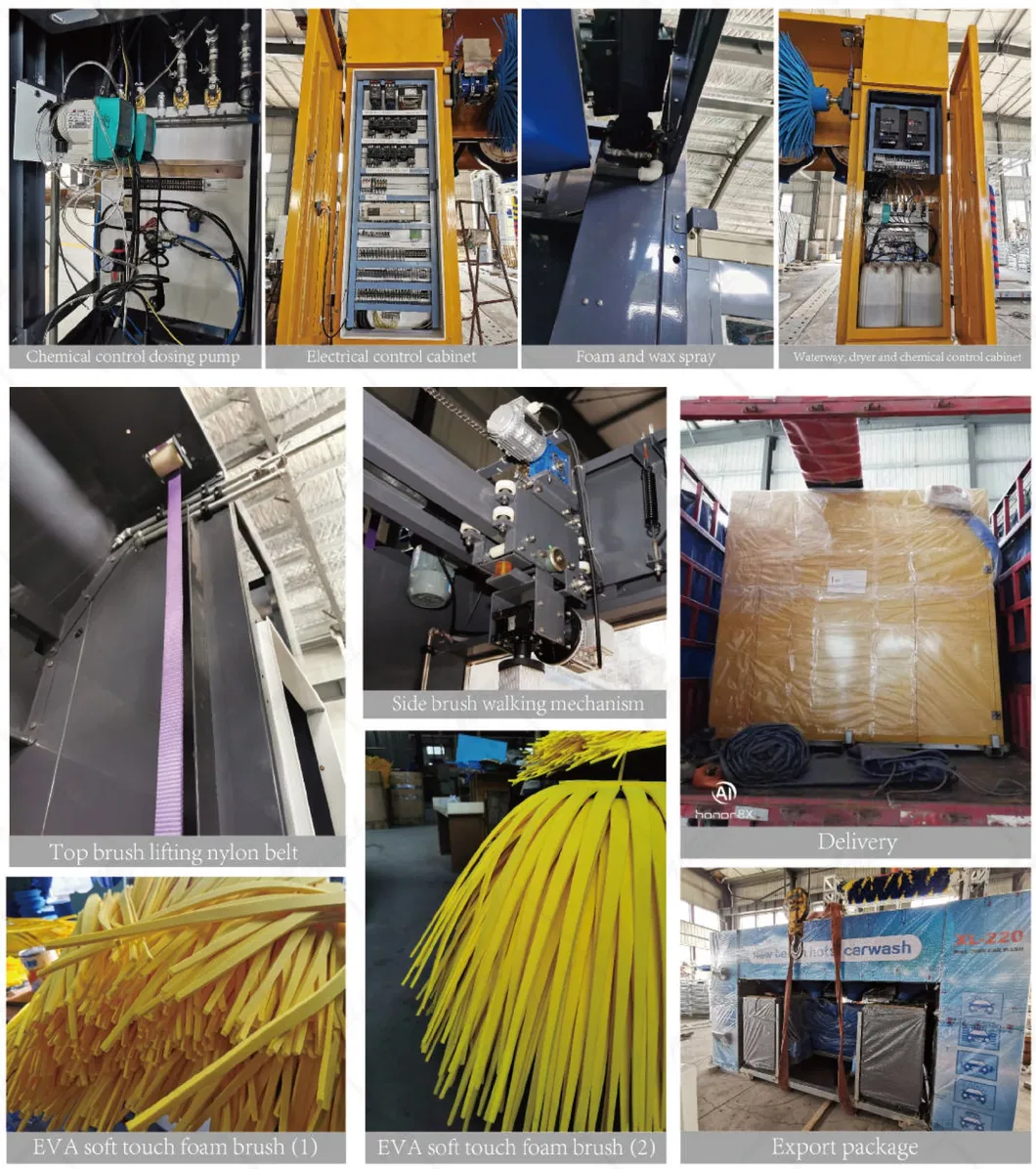

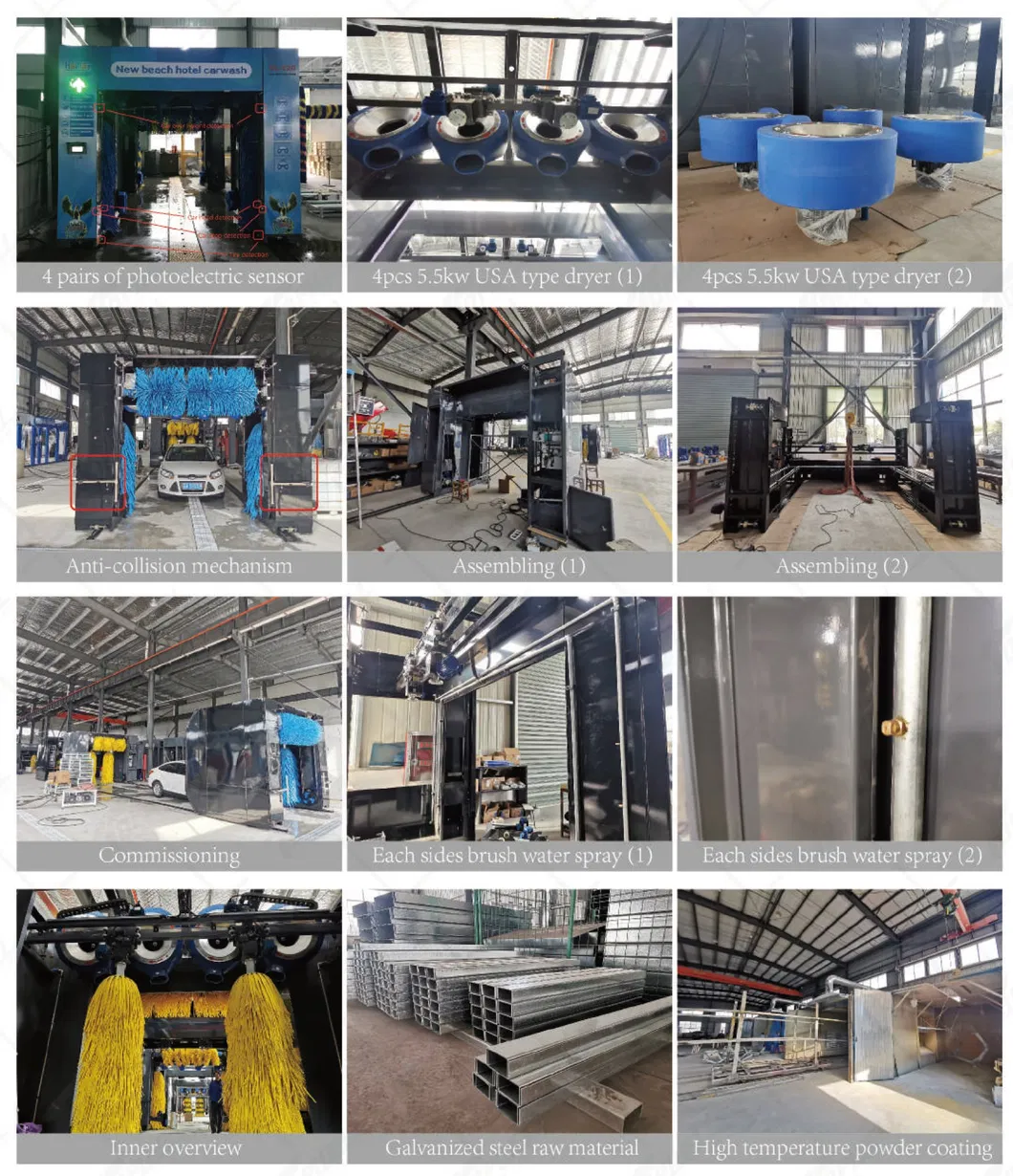

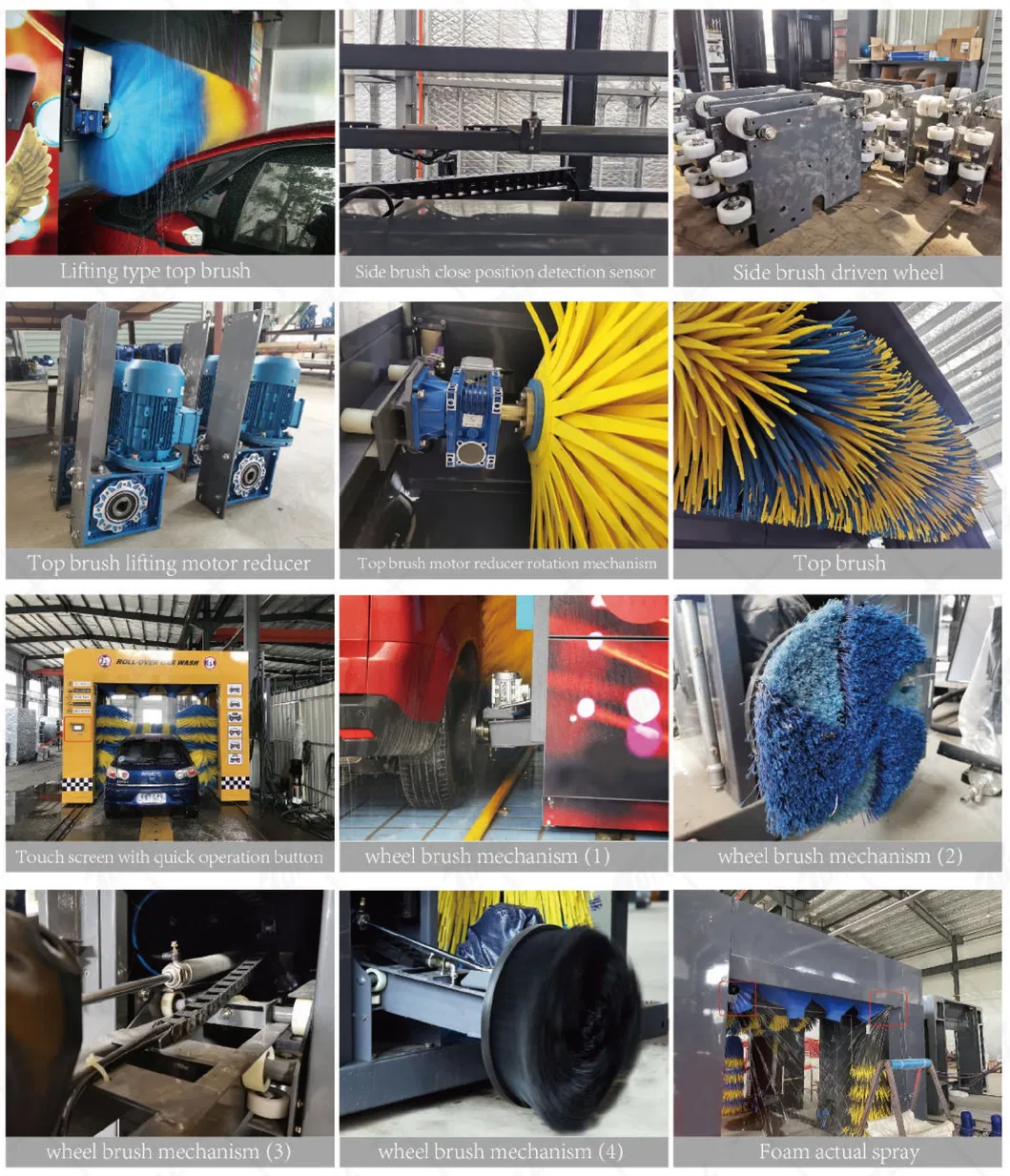

Quality Details

🌍

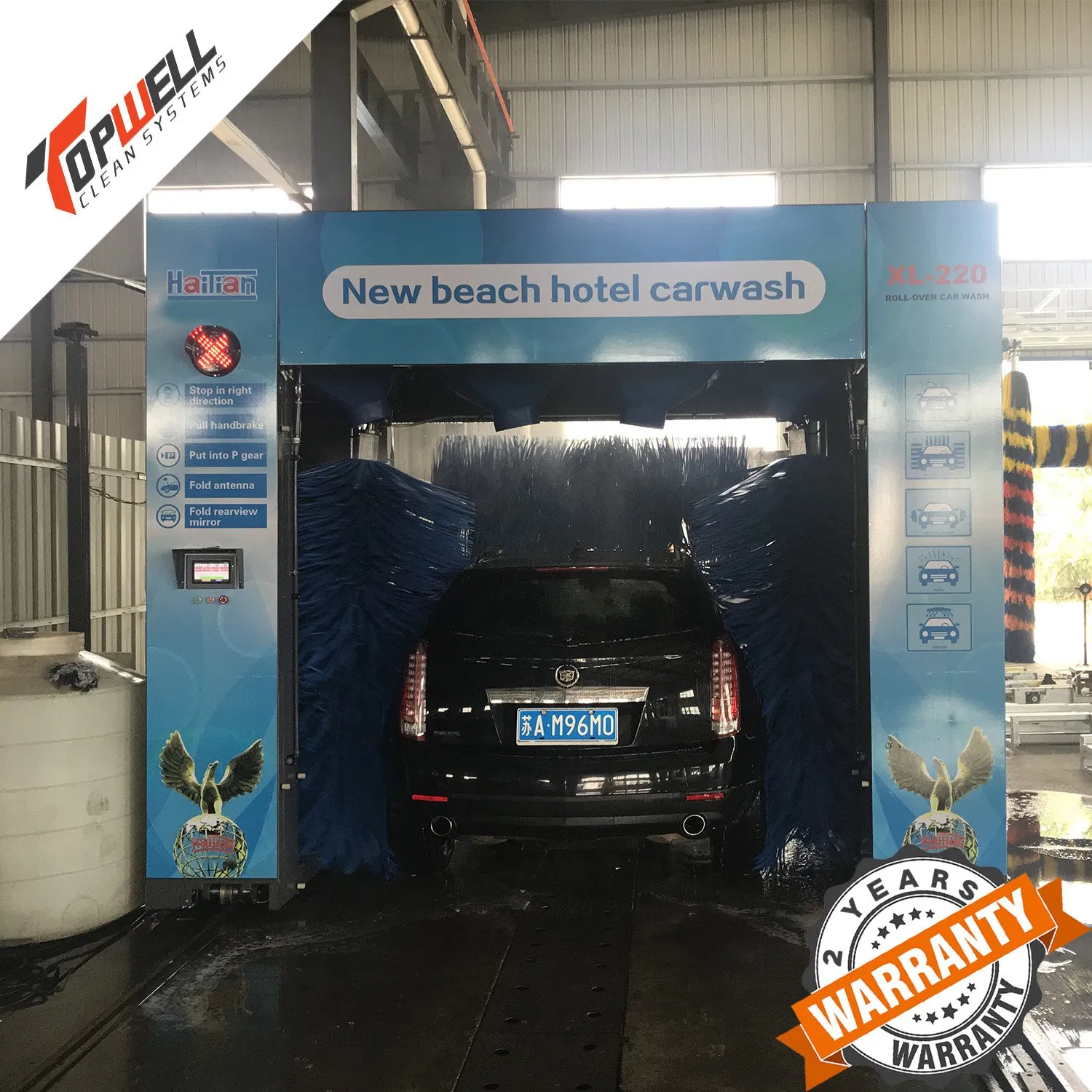

Client Case

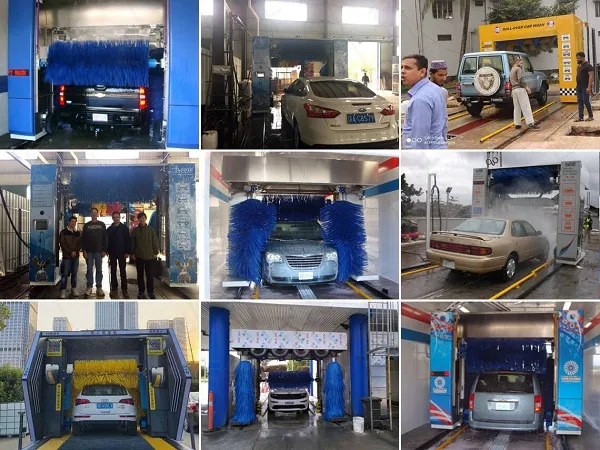

Installation Case

Frequently Asked Questions

1. How is the equipment installation handled?
Under normal circumstances, technicians are sent to the site for installation and debugging (approx. 10 days). Detailed installation drawings and online guidance are provided for remote support, which has been successfully utilized by customers globally.
2. What is the machine warranty period?
For car washes with brushes, the equipment is guaranteed for 2 years after delivery. During this period, the cost of accessories is covered, while the customer handles international freight.
3. How long is the standard lead time?
Rollover types (standard 380V, 50HZ) typically take 20 working days. Non-standard voltage requirements may add 10-15 working days for component customization.
4. Can the system be connected to unmanned payment stations?
Yes, the equipment can be integrated with third-party payment systems (coins, banknotes, or credit cards). Signal wires can be prepared in advance for seamless connection.
5. How simple is the maintenance for non-professional staff?
Maintenance is straightforward: regular oiling of chains, daily compressor drainage, and sensor cleaning. The touch screen provides alarm records and troubleshooting guidance for easy problem-solving.
6. Will one broken part affect the entire machine?
No. You can manually disable a specific function on the touch screen during peak times to keep the rest of the machine running normally. Replacements can be done during off-hours.
