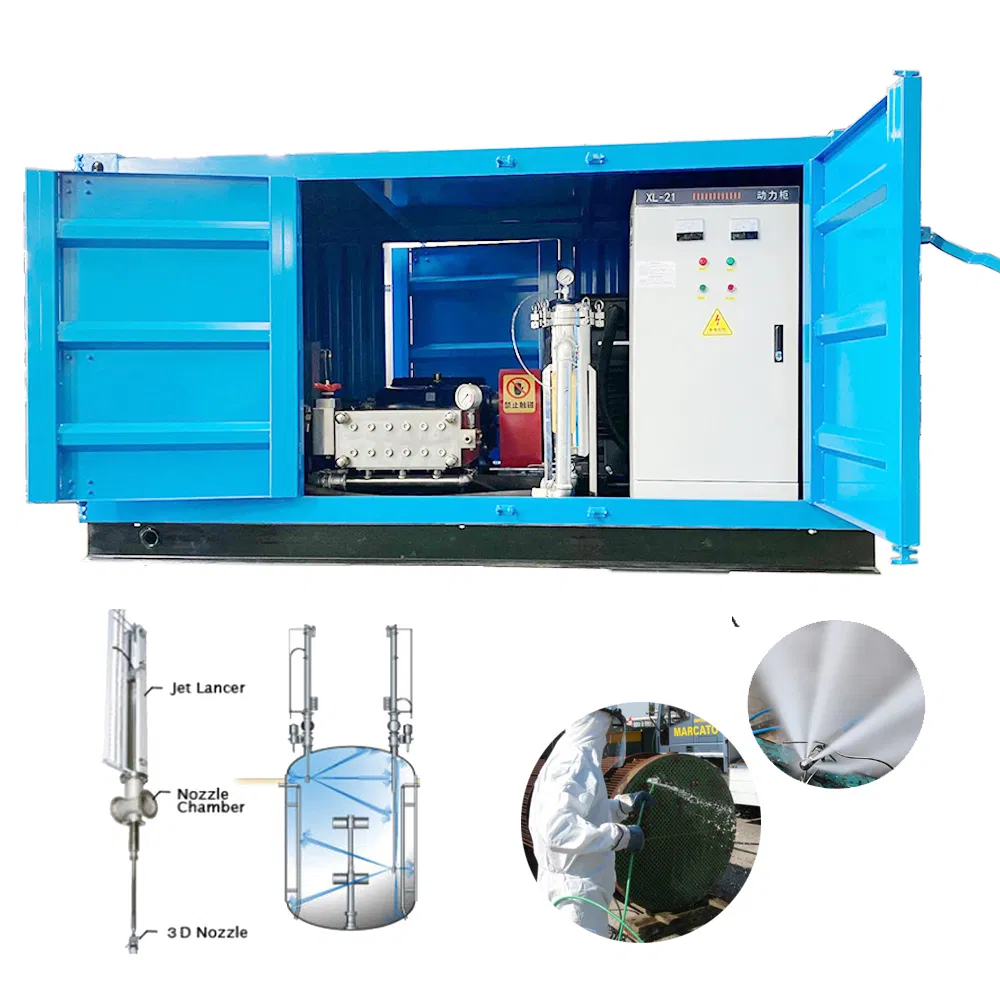

Automatic High Pressure Water Jet System for Industrial Reactor Tank Internal Cleaning

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
XY80100
Type
Cold Water High Pressure Cleaner
Operation Type
Fixed
Drive
Motor
Nozzle Type
3D Rotary Nozzle
Application
Industrial
Certification
CE
Flow Rate
50-110 L/Min
Function
Oil Tank /Reactor Cleaning
Specification
1000bar
Packaging & Delivery
Package Size
300.00cm * 160.00cm * 190.00cm
Gross Weight
2600.000kg
Product Overview

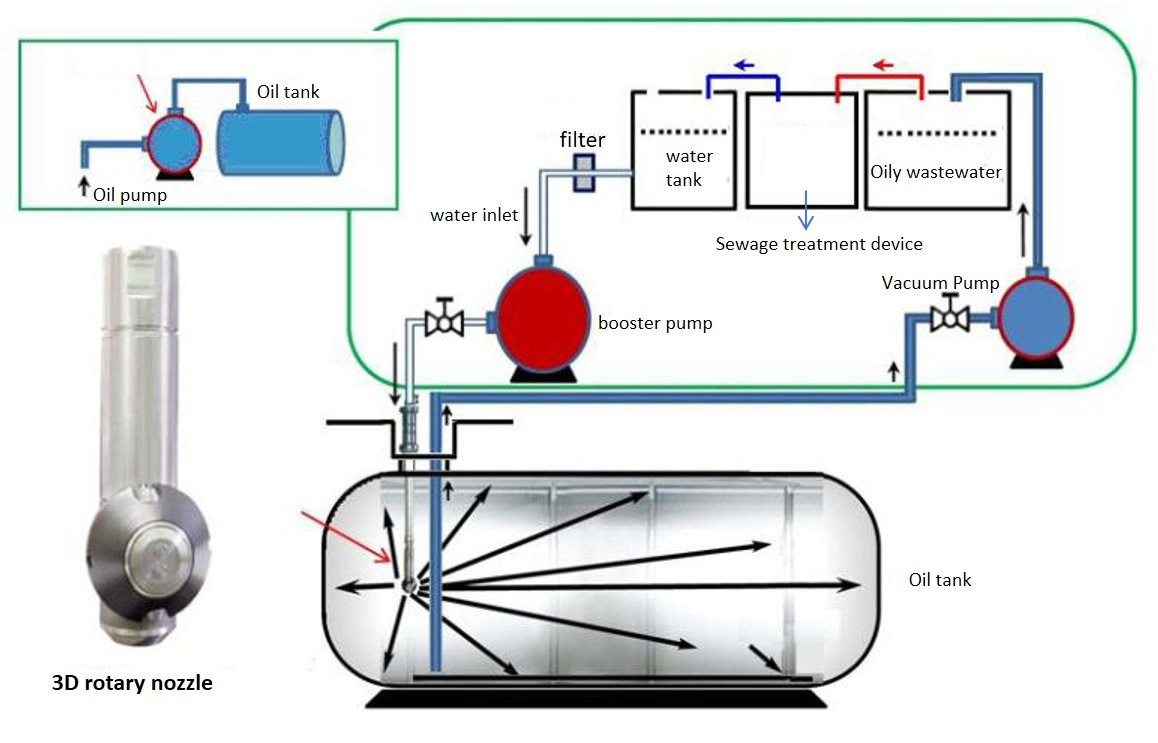

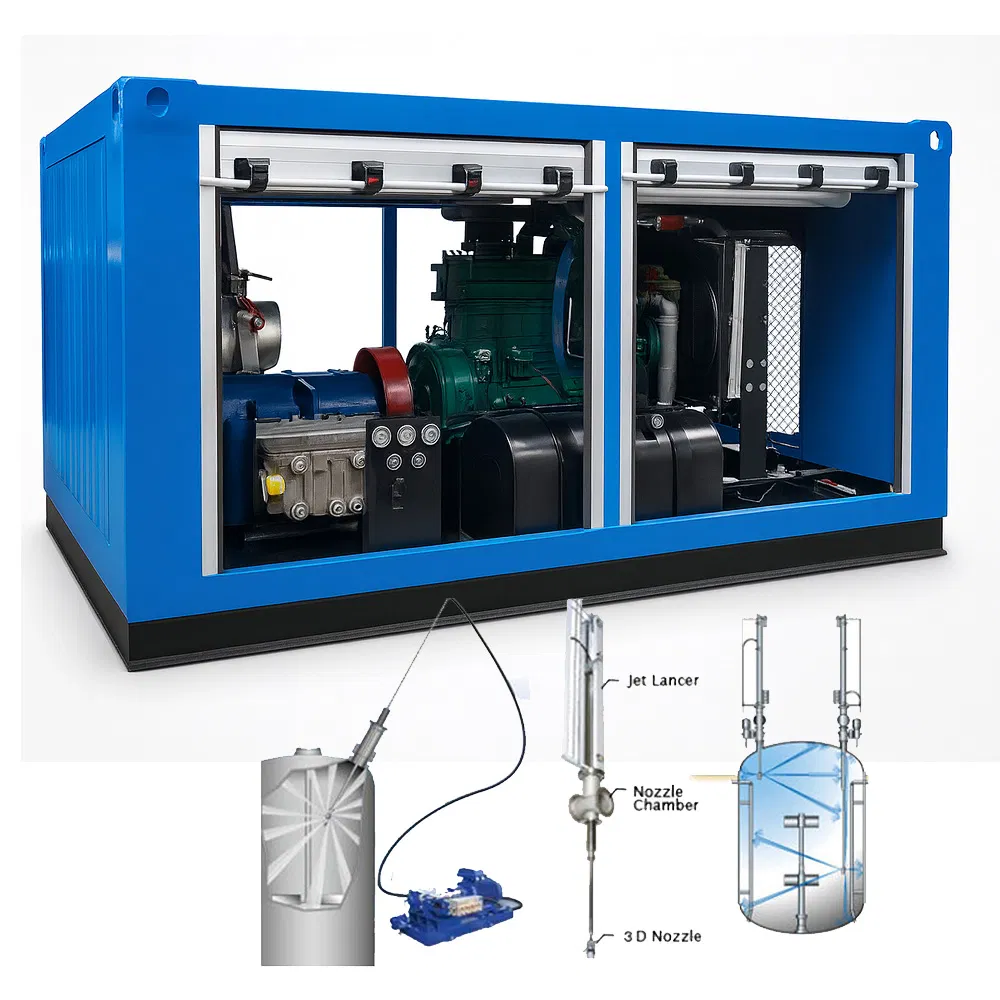

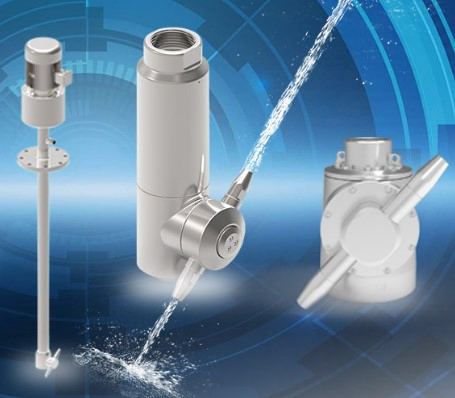

3D rotating nozzle high pressure water jet tank cleaner machine
  • Reduced downtimes thanks to faster cleaning
  • No evacuation of the container necessary
  • Process-integrated operation via the process control system
  • Cold, hot-cleaning with or without cleaning additives
  • More occupational safety without personnel in the container
  • Can also be used up to Ex Zone 0 and 20

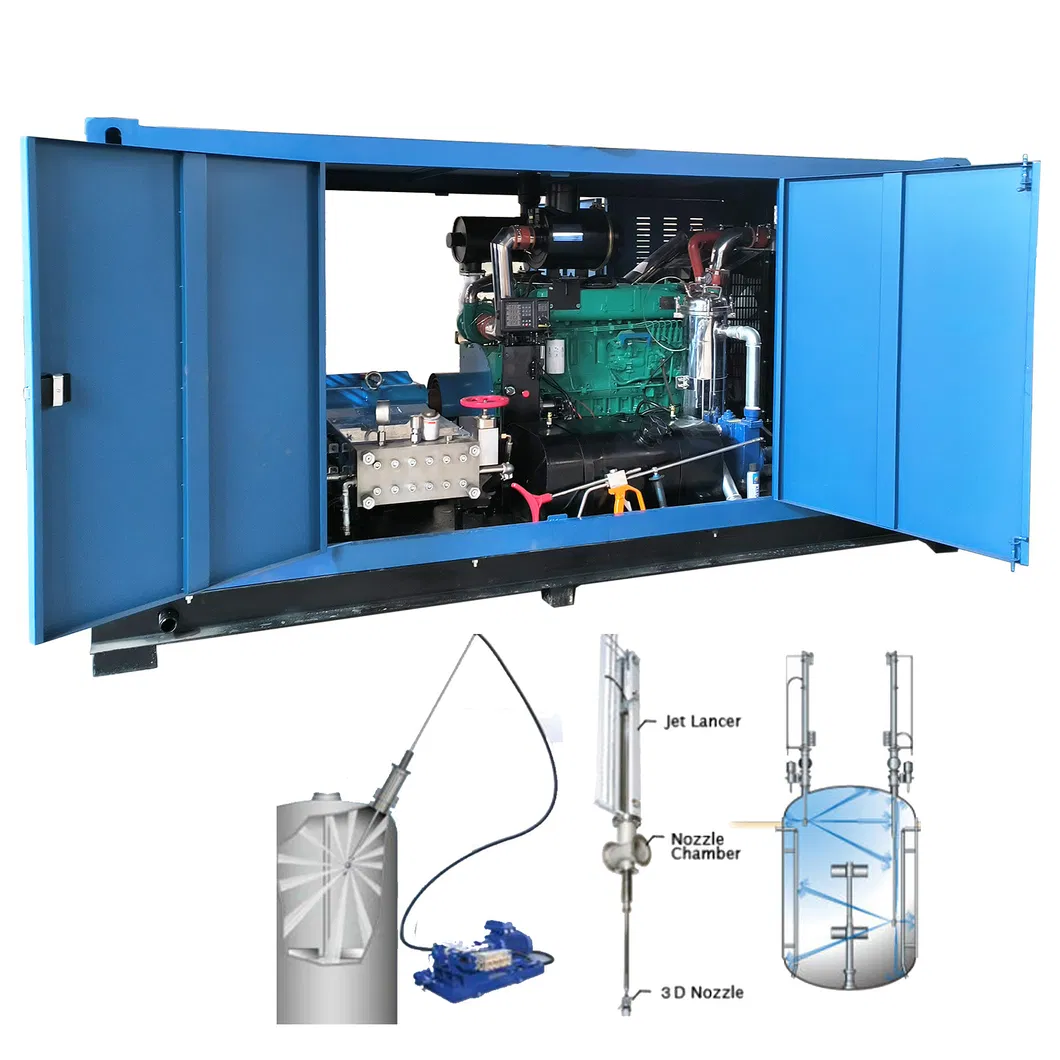

High Pressure Water Jet System

Regular high pressure cleaning of reactor containers not only ensures a clean process, it also supports production times and stabilizes sensitive processes. Complex and hard-to-reach geometries can also be cleaned of all accumulated deposits with the high pressure cleaning. Areas of use for cleaning the interior of tanks are extremely varied. The cleaning system used always depends on the type of dirt being removed. The thorough cleaning of boilers, autoclaves, IBC containers, all kinds of tanks or even silos and spray towers is no problem.

Product Specifications
Rate pressure Water flow Electric motor drive Diesel engine drive
100Mpa/1000bar 100 L/min 200kw 317kw
100Mpa/1000bar 80 L/min 160kw 225kw
150Mpa/1500bar 85 L/min 200kw 264kw
70Mpa/700bar 70 L/min 90kw 120kw
Industrial Cleaning Specs
Product Application
Category Details
Cleaning Industrial pipe/heat exchanger/condenser pipe cleaning, tube/tank cleaning, boiler cleaning, evaporation tank cleaning, concrete surface cleaning, cement cleaning; aluminum formwork cleaning, ship/hull cleaning.
Removing Marine hull rust removal, paint removal, cement removal, scale oxide removal, dephosphorization removal on steel plant, phosphorous removal; road mark removal, rubber removal from airport ground; pile corrosion removal, deburring, etc.
Pressure Testing Valve pressure testing, pipe cleaning testing, etc.

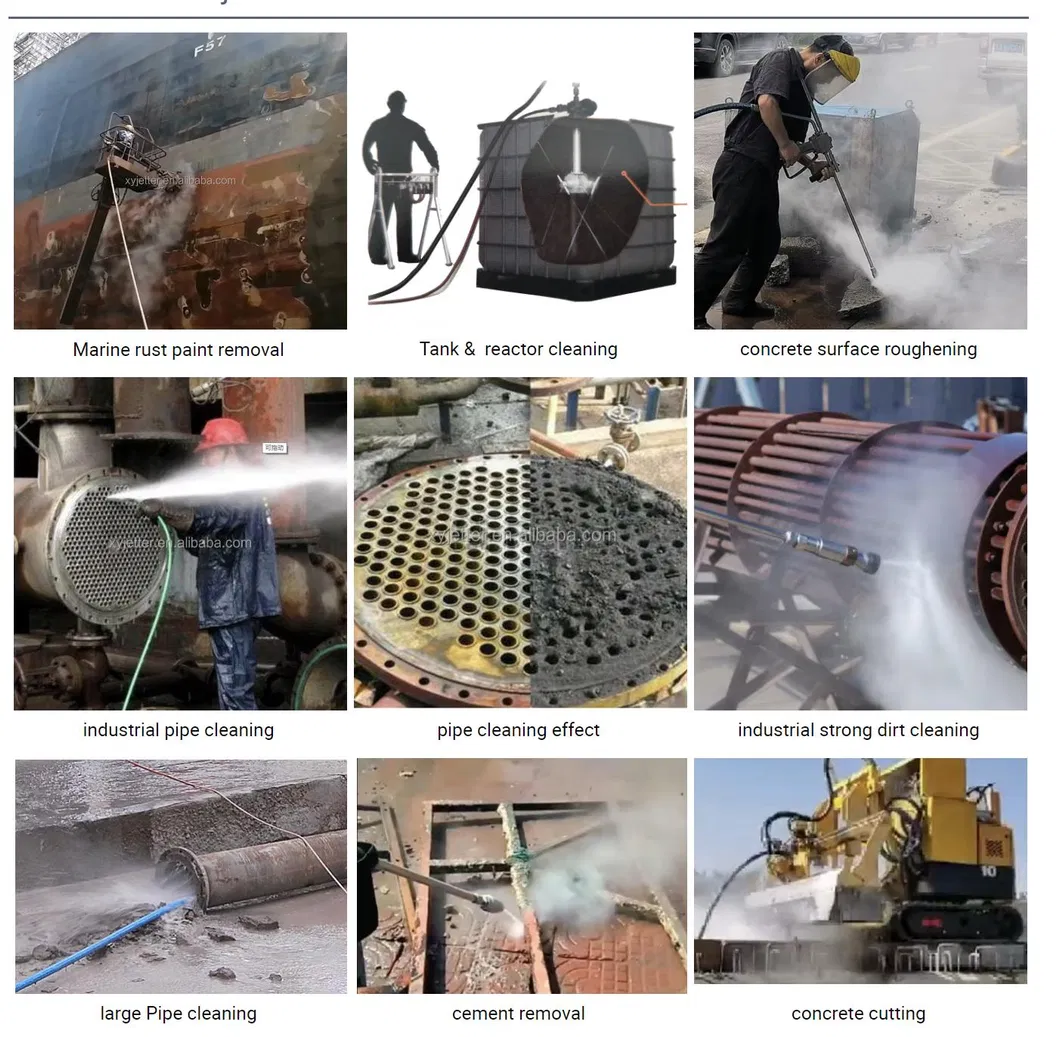

Application Display
High pressure water jet units

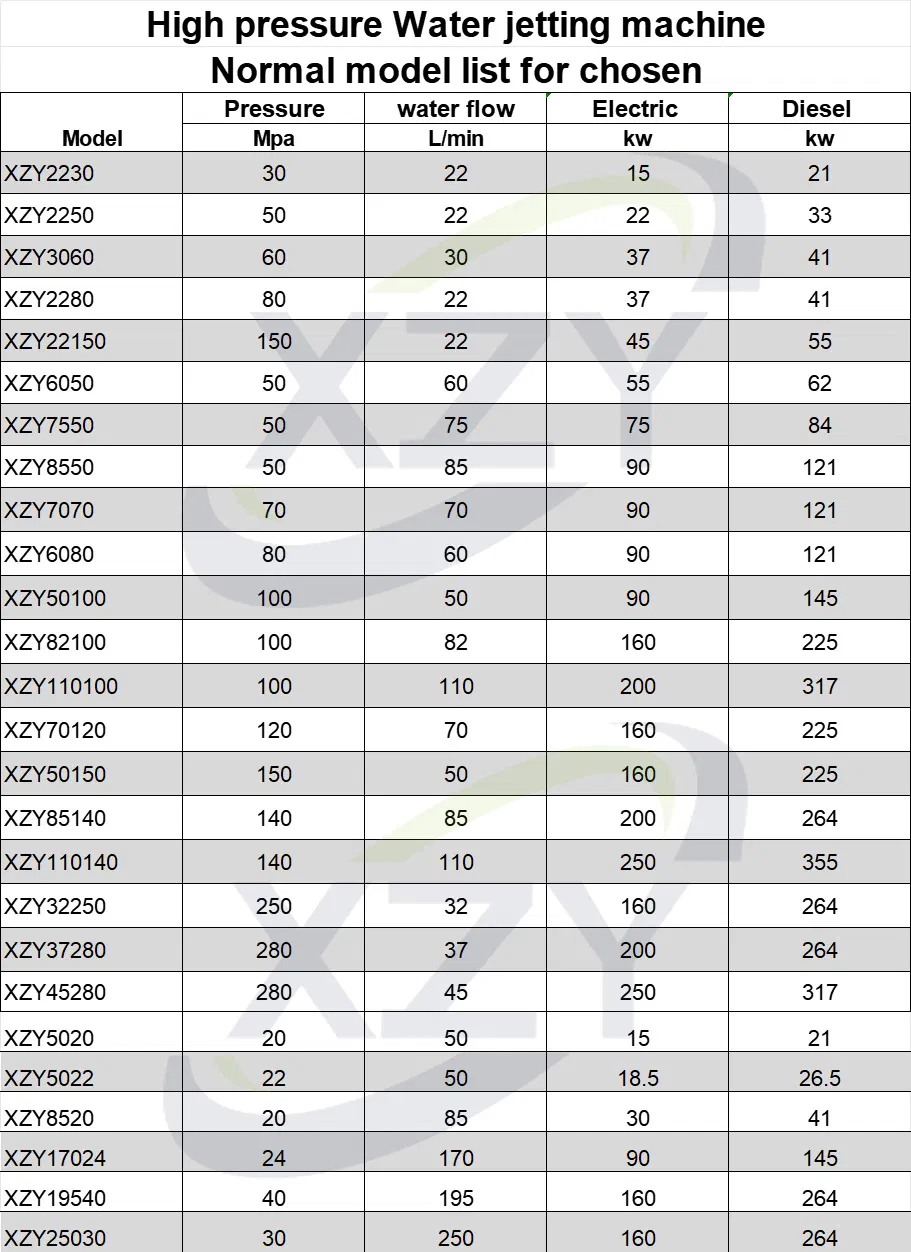

Unit Type 1

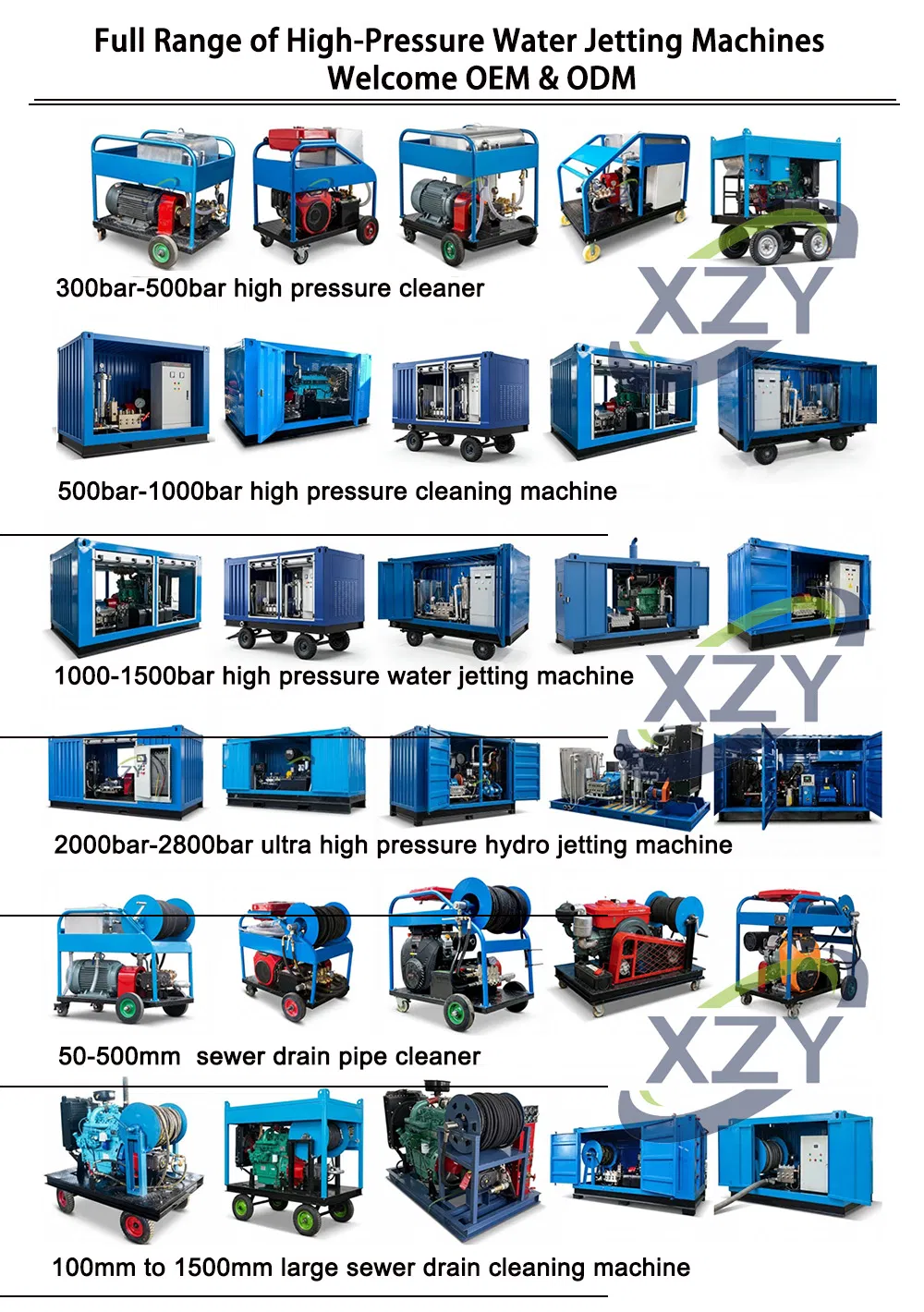

Unit Type 2
Factory Display

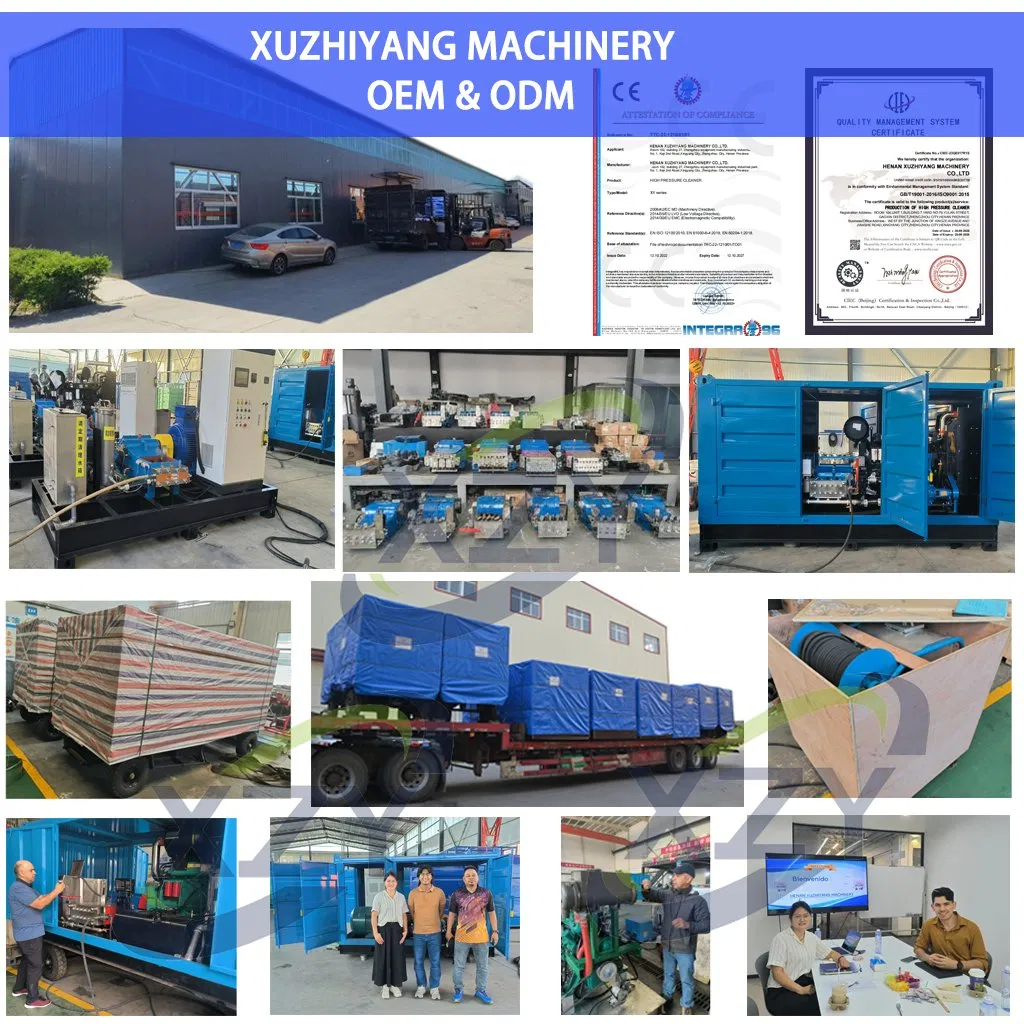

Factory Picture
Frequently Asked Questions
Q1: What pressures and flow rates are available in these machines? A1: Pressure ranges from 3,000 PSI to 40,000 PSI (200 to 2800 bar) or more. Flow rates typically range from 15 to 600 L/min.
Q2: Are you trading company or manufacturer? A2: We are manufacturer for over 10 years, can provide customized solutions according to specific requests.
Q3: How do I choose the right nozzle for my application? A3: Fan Nozzles for surface cleaning; Rotary Nozzles for deep descaling; Piercing Nozzles for cutting; Pipe cleaning nozzles for industrial drains; Turbo nozzles for strong dirt.
Q4: What type of water should be used in these machines? A4: Clear water is recommended. Avoid using water with high mineral content or contaminants to prevent damage to the machine.
Q5: What are the power options for high-pressure water jetting machines? A5: Electric (indoor/quiet), Diesel (outdoor/high power), and Gasoline (portable/remote locations).
Q6: How long is your delivery time? A6: Normal delivery is 3-10 days; customized orders need to be confirmed based on requirements.
