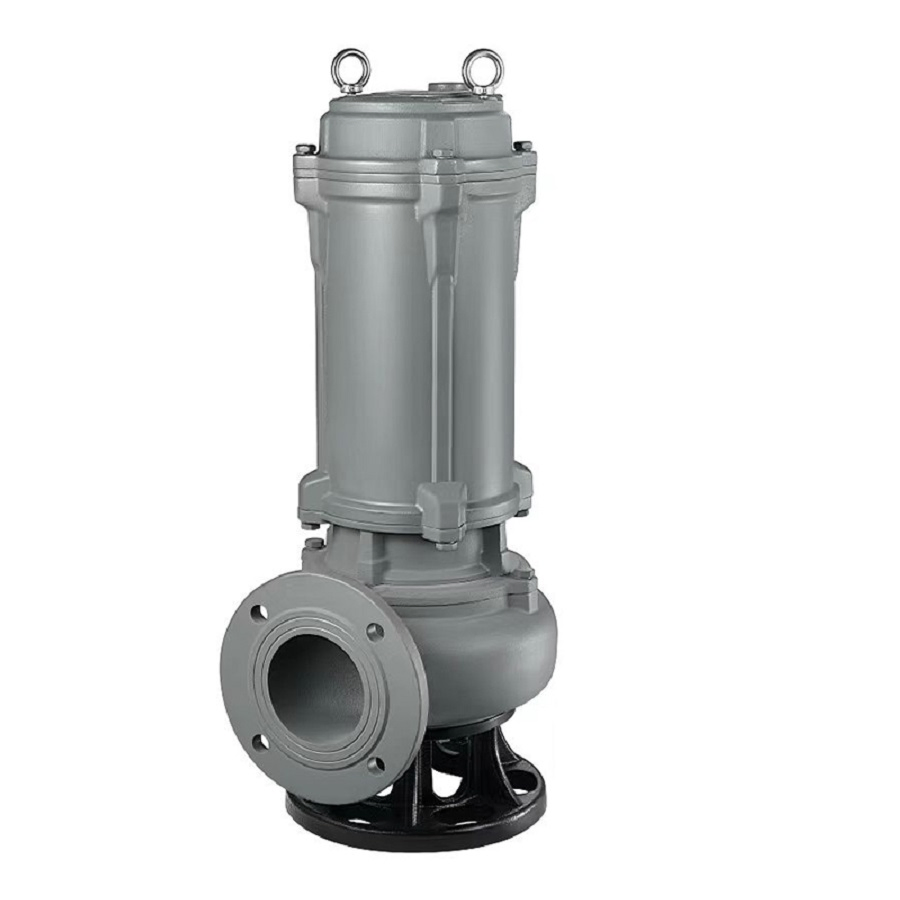

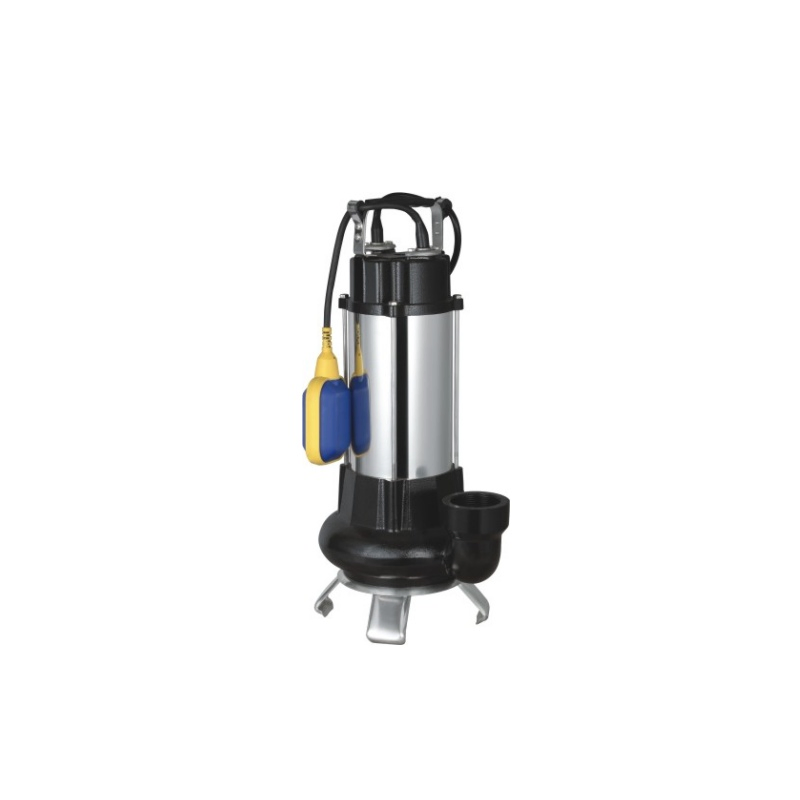

Cast Iron Single Three Phase Suction Silent High Pressure Cutting System High Efficiency Domestic Dirty Sewage Submersible Pump for Deep Well Water Application

Customization:	Available
Max.Head:	10-30m
Max.Capacity:	200-300 L/min

Basic Information

Model NO.

50WQD15-15-1.5

Driving Type

Motor

Material

Cast Iron

Structure

Single-stage Pump

Assembly

Electric Water Pump

Power

Electric

Start Up

Electric Pump

Type

Blade Pump

Application

Submersible Pump, Sewage Pump

Media

Submersible Pump

Performance

Automatic Pump

Voltage

220 V

Frequency

50Hz / 60Hz

Outlet

2"

Impeller

Iron

Origin

China

Product Description

Applications

For water supply from wells or reservoirs
For domestic use, civil and industrial applications
For garden use and irrigation

Product Introduction

These submersible pumps consist of a water pump, seals, and a single-phase or three-phase asynchronous submersible motor. The pump offers advantages such as small size, light weight, easy removal, convenient installation, high efficiency, and energy-saving reliability.

Component Construction

Pump body: Cast iron
Motor housing: Cast iron
Impeller: Cast iron
Motor shaft: Carbon steel (304SS upon request)
Mechanical seal: Ceramic / Graphite
Cable: 8m cable with plug

Operating Conditions

Liquid Temperature up to 60 ºC
Ambient Temperature up to 40 ºC
5m maximum immersion depth

Motor Specifications

Single Phase 220V/50Hz (110V/60Hz upon request)
Insulation Class B
Protection: IP68
With Thermal Protector
Continuous Work S1

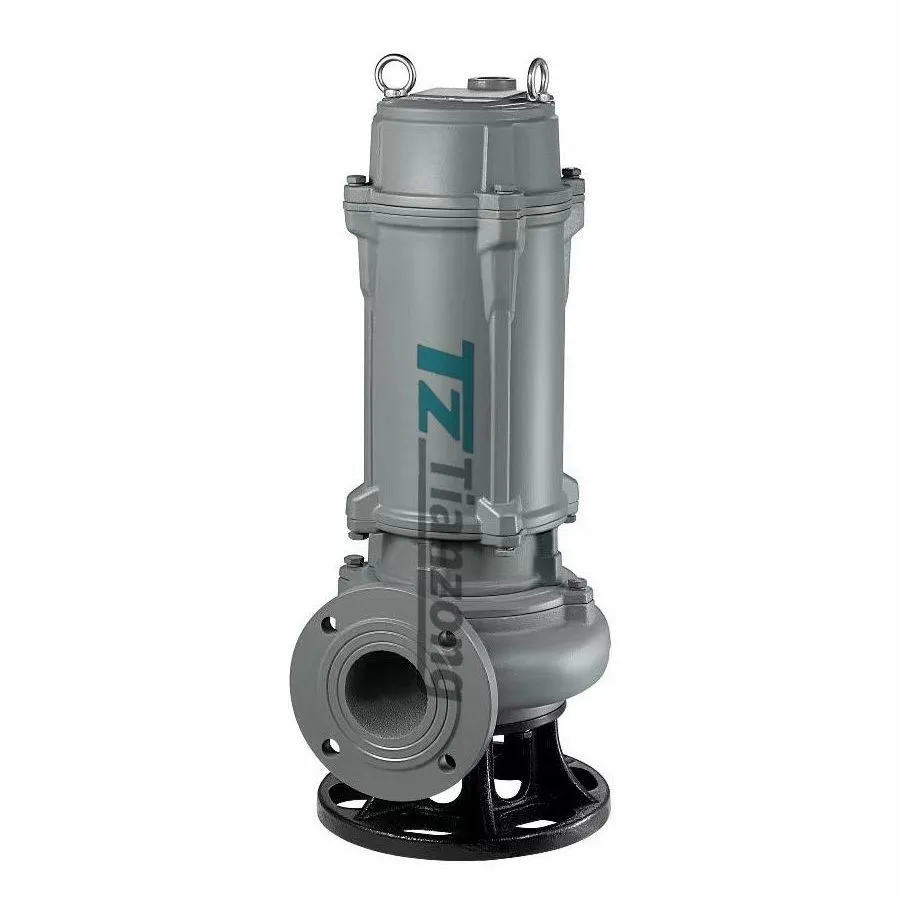

Detailed Photos

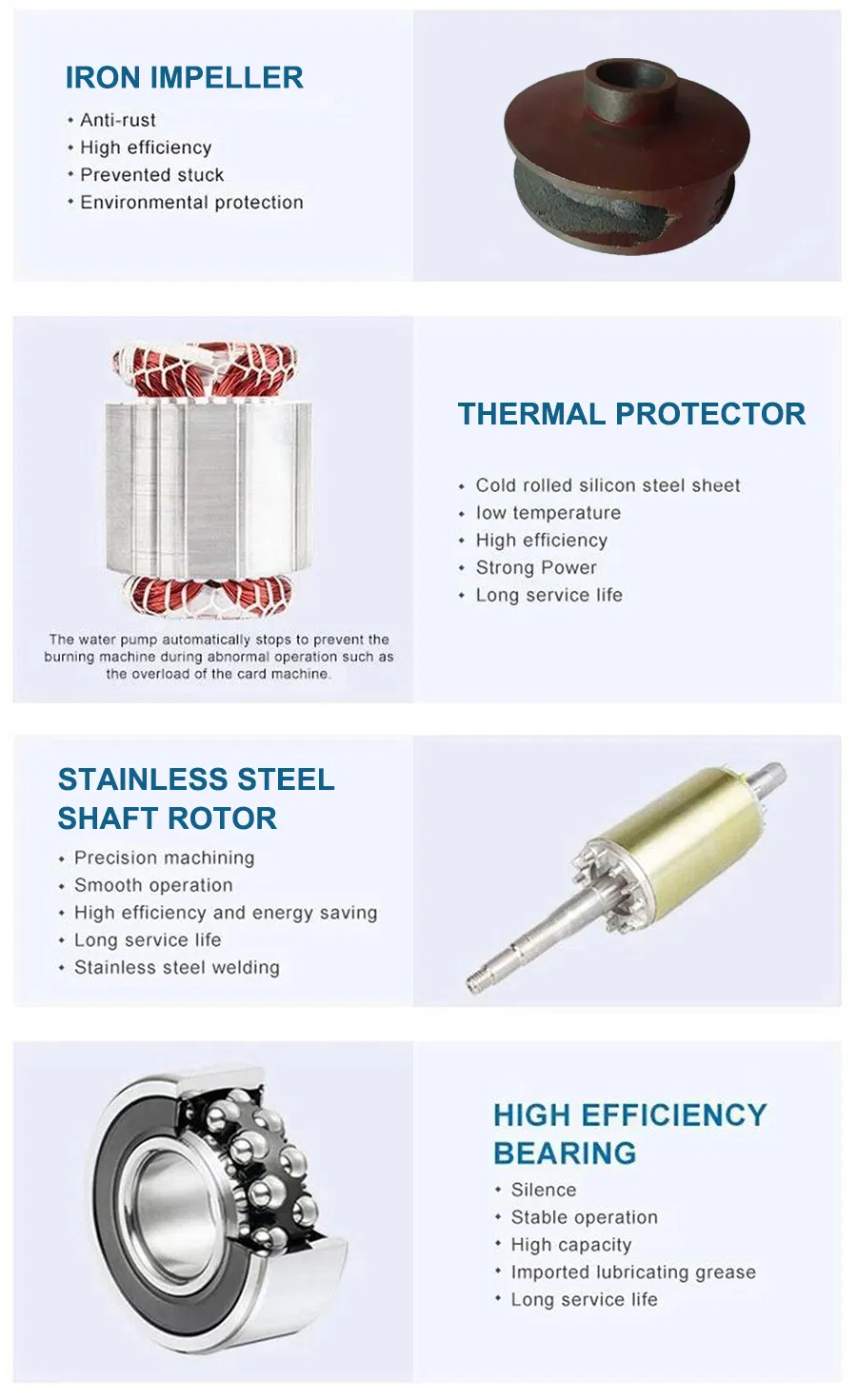

Spare Parts

Product Parameters

NO.	Model	Power		Outlet	Max. Flow	Max. Head
NO.	Model	Kw	Hp	Inch	m³/h	m
1	WQD6-12-0.55F	0.55	0.75	2"	16	14
2	WQD6-16-0.75F	0.75	1.0	2"	22	17
3	WQD10-10-0.75F	0.75	1.0	2"	16	16
4	WQD7-15-1.1F	1.1	1.5	2"	22	18
5	WQD15-9-1.1F	1.1	1.5	2"	24	14

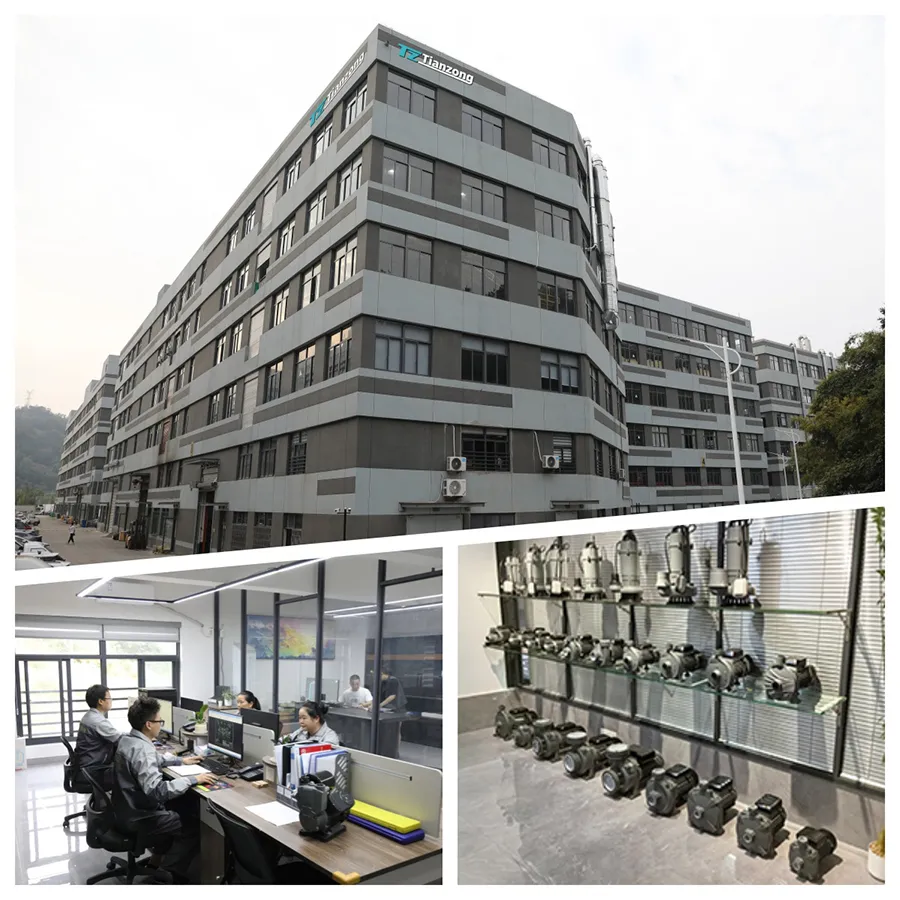

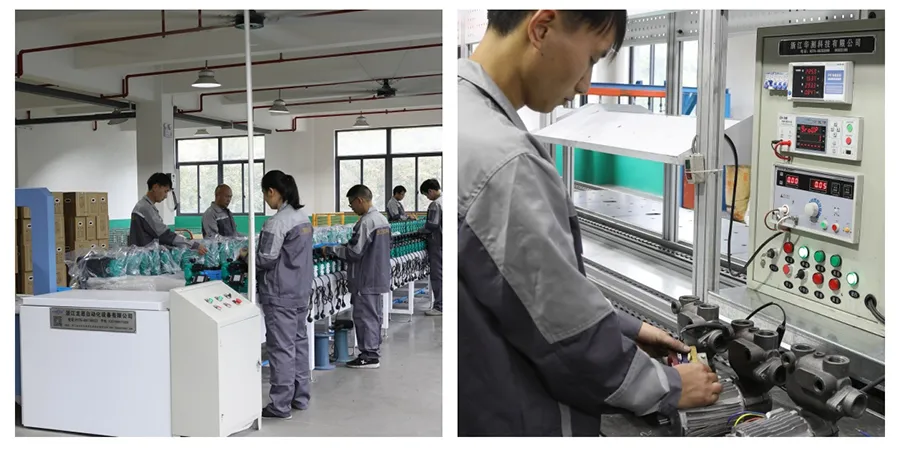

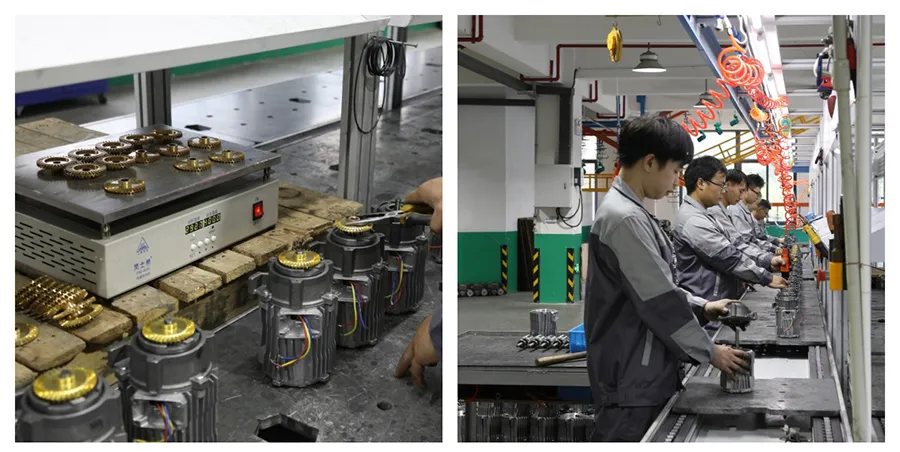

Company Profile & Advantages

Packaging & Shipping

Frequently Asked Questions

Are you a factory?

Yes. Our company is a professional manufacturer.

Is OEM and ODM service available?

Of course. We have many years of experience in providing OEM & ODM services.

How about your warranty?

We offer a 1-year product life guarantee and a generous 1-year warranty on all purchases starting from the bill of lading.

Do you offer competitive pricing compared to other suppliers?

We always strive to provide the best service and competitive prices. We would be happy to personalize a competitive quote for you upon request.

What's the minimum order quantity (MOQ) for this product?

Our minimum order quantity is one full 20ft container. For first-time cooperation, customers can place a trial order to check the quality.

What materials are used in the pump construction?

The pump body, motor housing, and impeller are primarily made of high-quality cast iron for durability.
