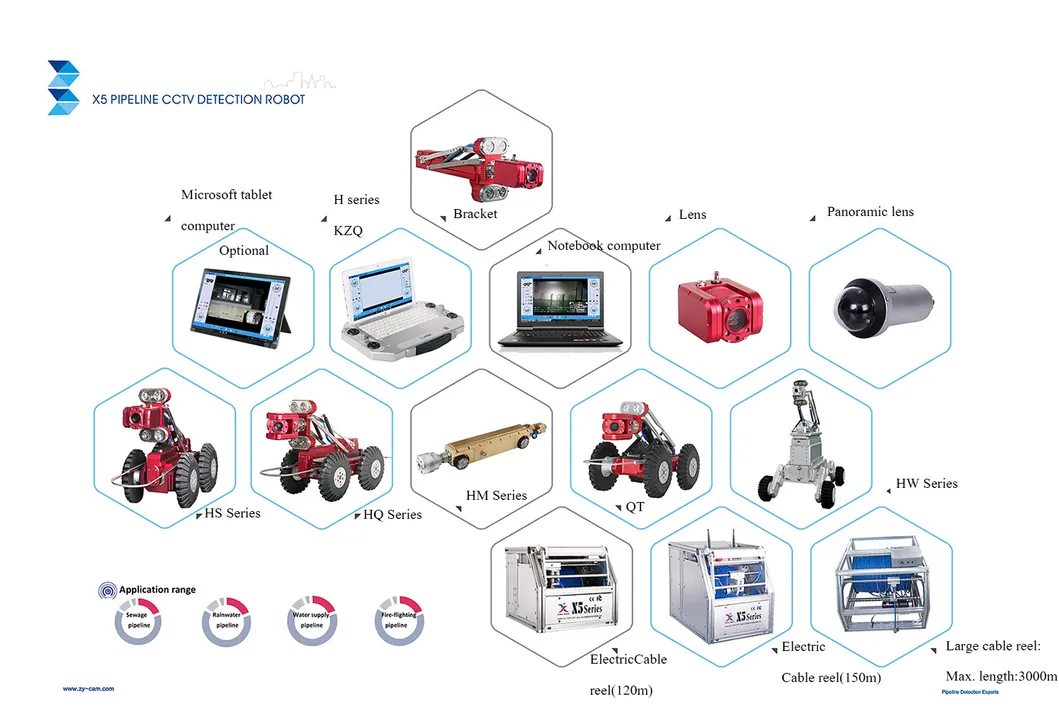

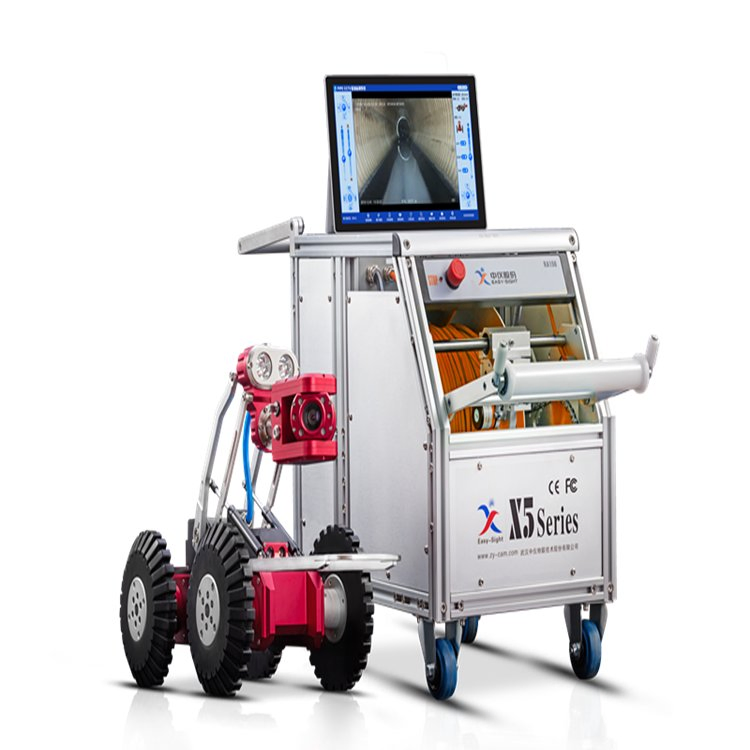

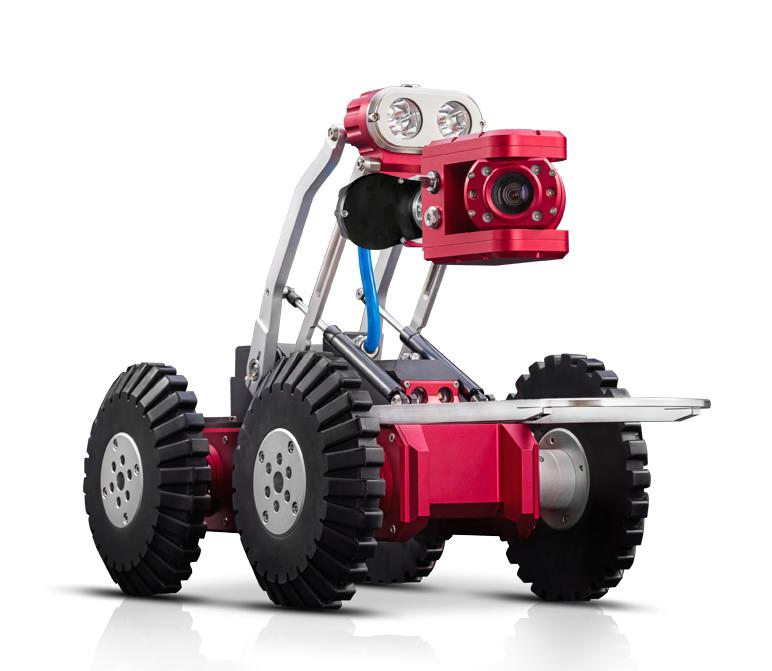

The X5-HT pipeline CCTV Inspection robot is a professional-grade solution designed on an industrial personal computer (IPC) system. By utilizing a laptop instead of traditional controllers, it offers a streamlined workflow where defect pictures are acquired in real-time and testing reports can be generated immediately.
Equipped with a fish-eye lens and panorama testing video analysis software, the system generates full images of the inner pipeline walls, allowing for precise measurement of pipe diameter and crack width.

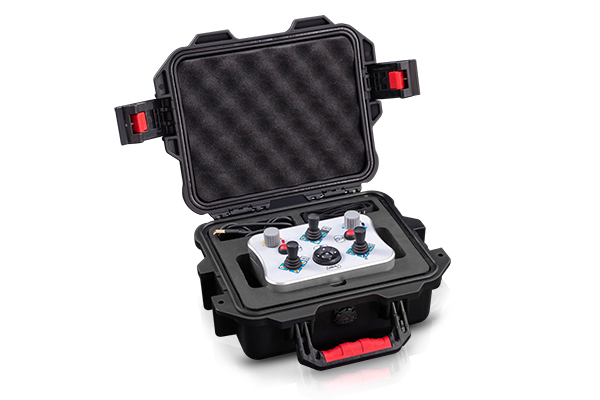

| Main Controller | Available in notebook computer system; Wireless control; Real-time display of date, time, distance, and crawling attitude. |
| Electric Cable Reel | Standard cable length 120M; Two-core cable to reduce joint failure; Automatic retractable cord. |

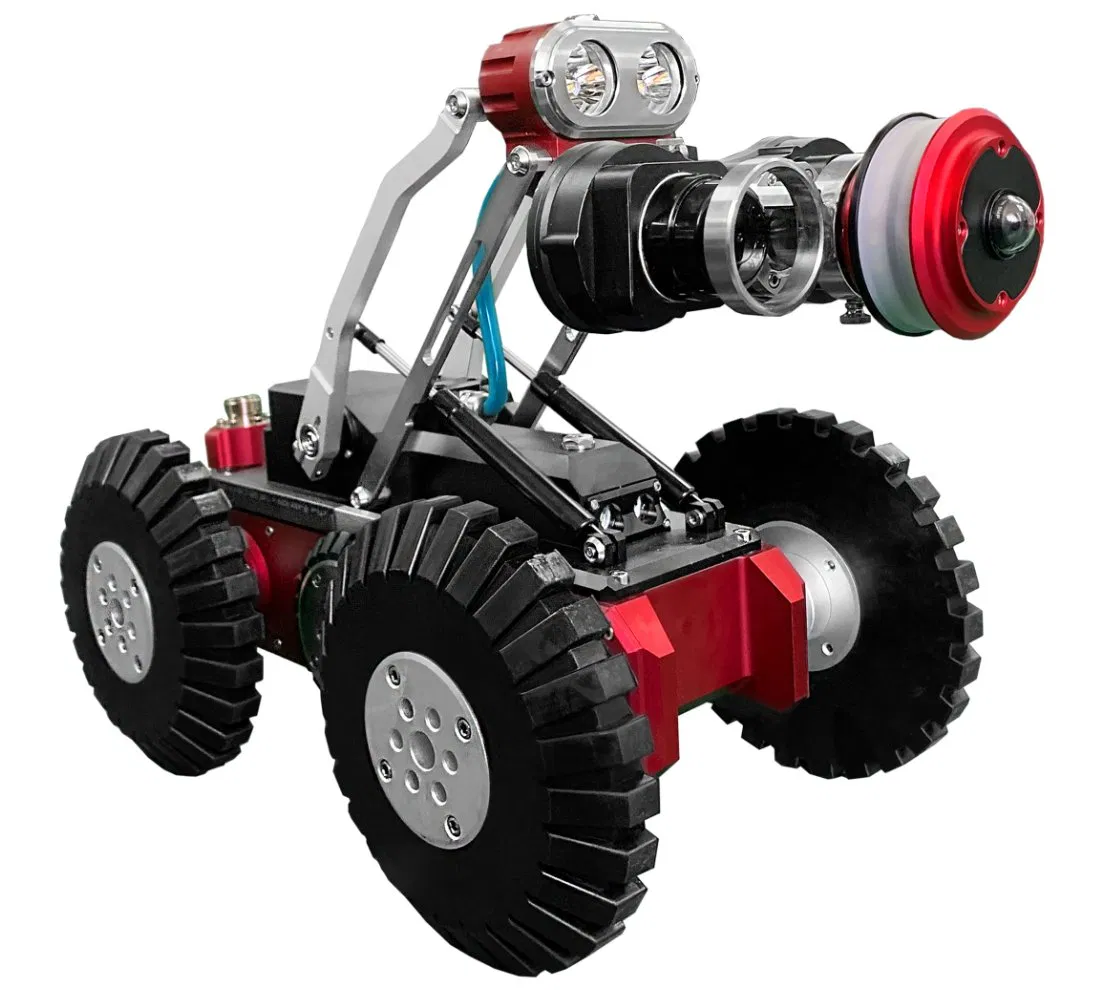

| Crawler | IP68 rating (10m depth); Diameter for DN250mm-DN650mm; Brass/Stainless steel/Aluminum alloy construction; Electric lift frame. |
| Camera | Resolution 2592*1520; 360° radial limitless rotation; One-click reset; Sensitivity 0.1Lux. |
Our products are widely applied to infrastructure development including geophysical prospecting, urban development, municipal construction, national defense, water conservancy and hydro power.
We provide a 12-month warranty from the date of arrival. Our services include lifelong maintenance, professional technical help, and detailed operational manuals with training videos in English. OEM orders are welcomed with free logo printing.
