Manufacturing machine cement pipe-making machine concrete pipe machine with factory price

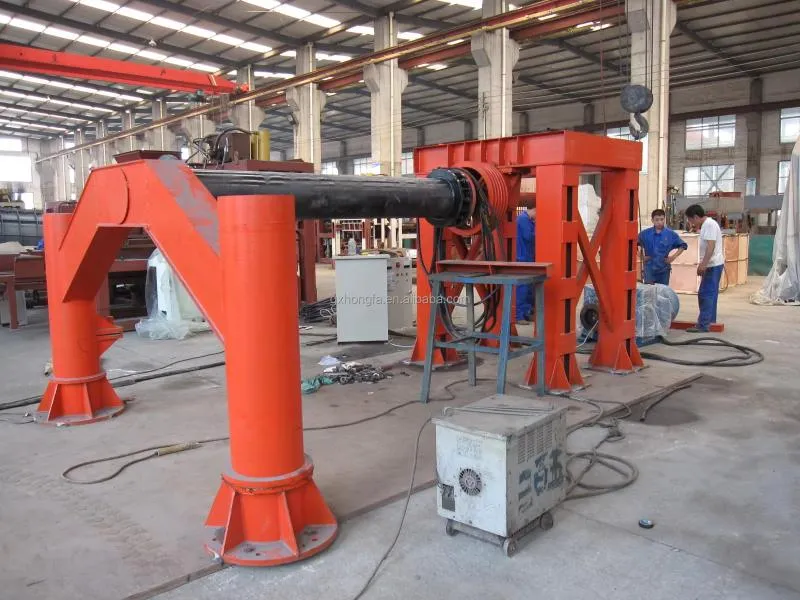

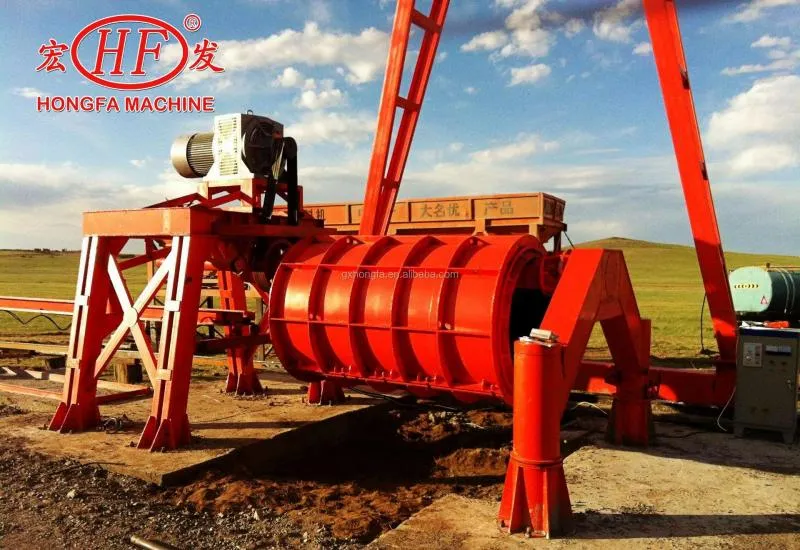

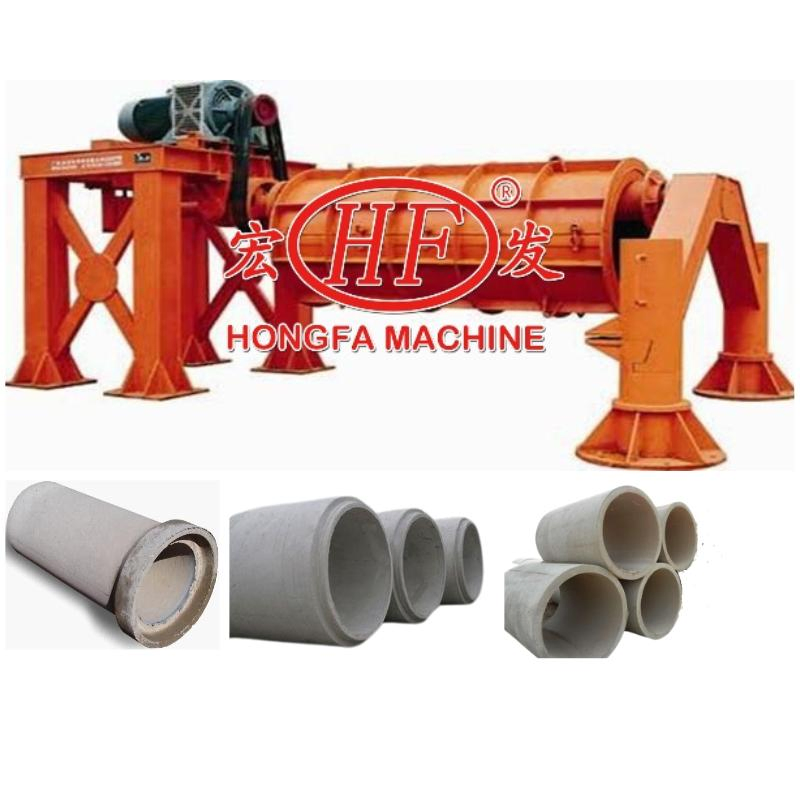

The Suspension Roller Cement Pipe Machine is the ideal equipment to manufacture cement pipe, uses a suspension roller to drive the mold mounted on it. The centrifugal force generated by the mold's rotation evenly distributes the concrete mixture onto the mold's inner wall. As the feed increases, the concrete pipe wall thickens. When it exceeds the mold's mouth, the mold separates from the roller. The concrete inside the pipe directly contacts the rotating roller. The mold continues to rotate due to the friction between the roller and the concrete. The roller repeatedly presses the pipe wall, enabling the concrete to achieve the required compaction and a smooth surface in a short time.

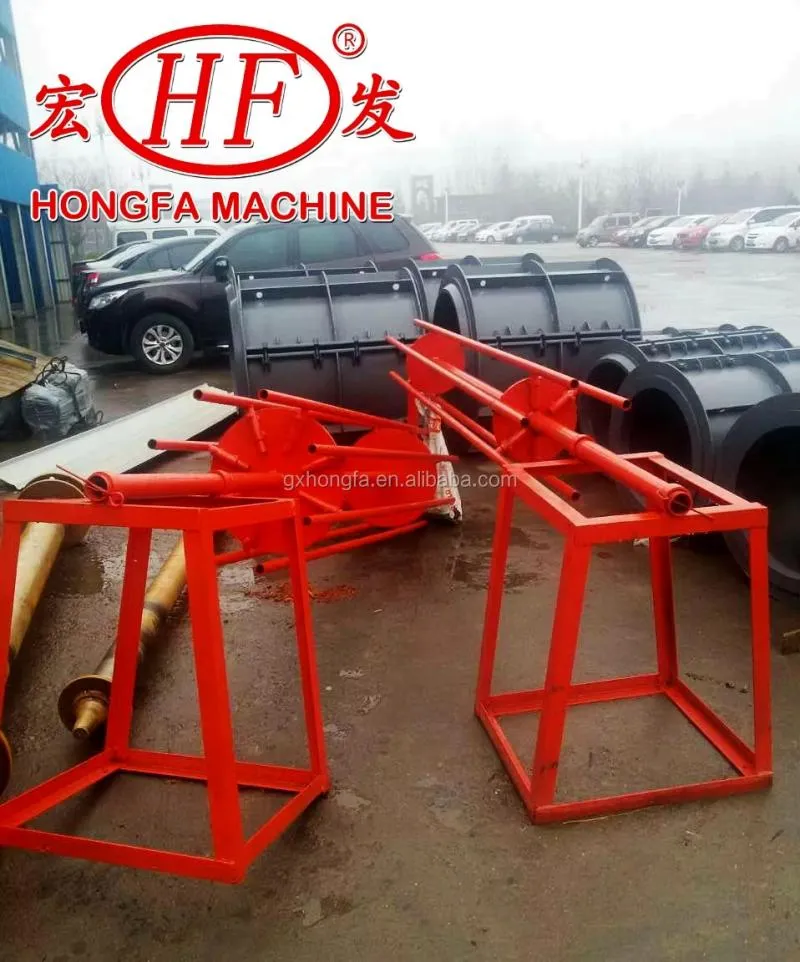

The Suspension Roller Cement Pipe Machine consists of a frame, transmission speed change mechanism, suspension roller, gantry, hopper, and feeder.

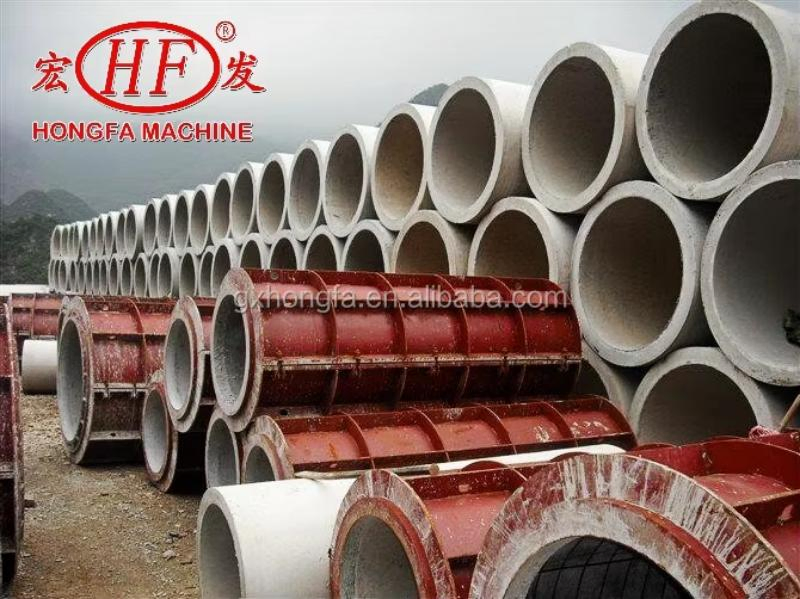

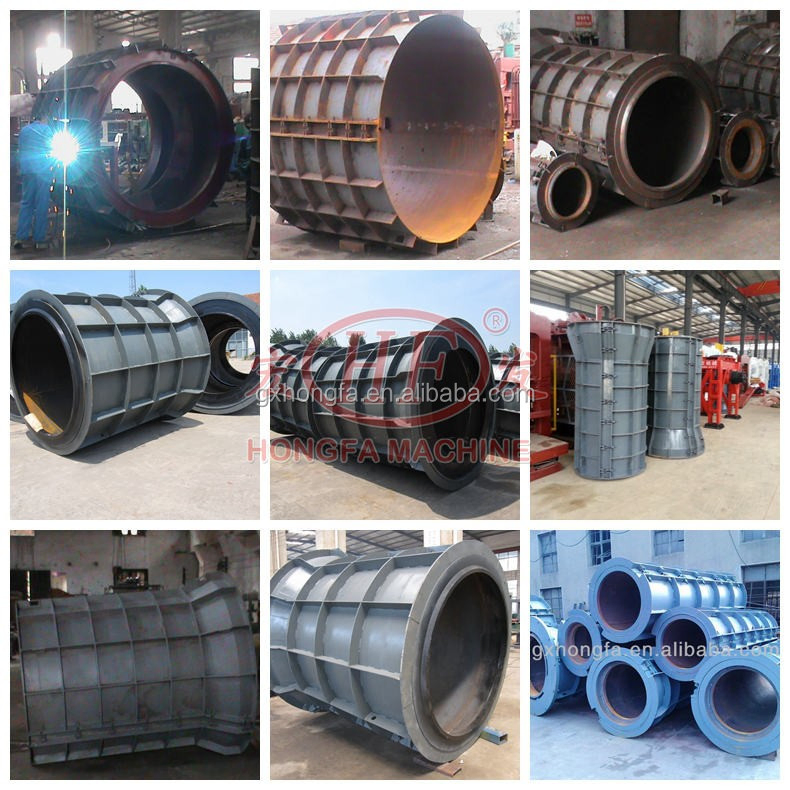

The mold is made up of two semi-circular mold skins connected by a bolt. Retaining rings are fitted at both ends of the mold skin and fixed with a tightening screw to form the assembly. In addition to being made of cast steel, the retaining ring can also be manufactured by welding thick steel plates.

Our concrete pipe making machine series includes various models: HF800x2000, HF1200x2000, HF1600x2000, and XG2000x2000. We also provide Vertical Extruding Pipe-Making Machines for concrete pipes with diameters from 200mm to 2,500mm and lengths from 1,000mm to 5,000mm.

A complete pipe making machine production line includes: feeder, main machine, mold, seam welding machine, and crane.

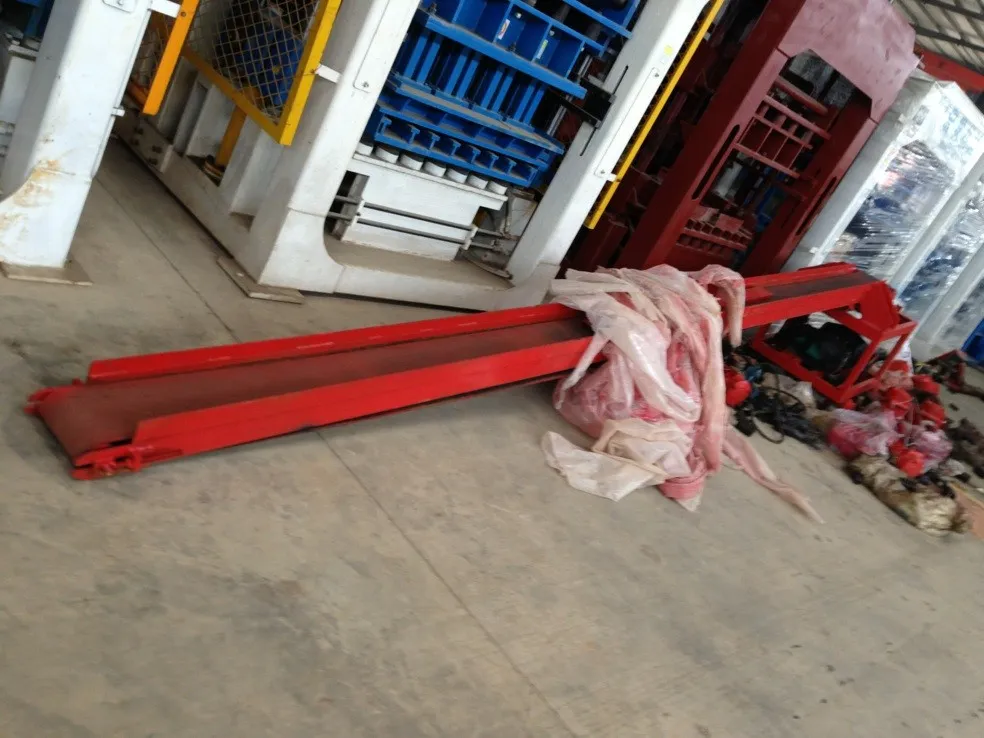

Feeding Machine: Specifically designed according to the pipe forming machine requirements to ensure consistent material supply.

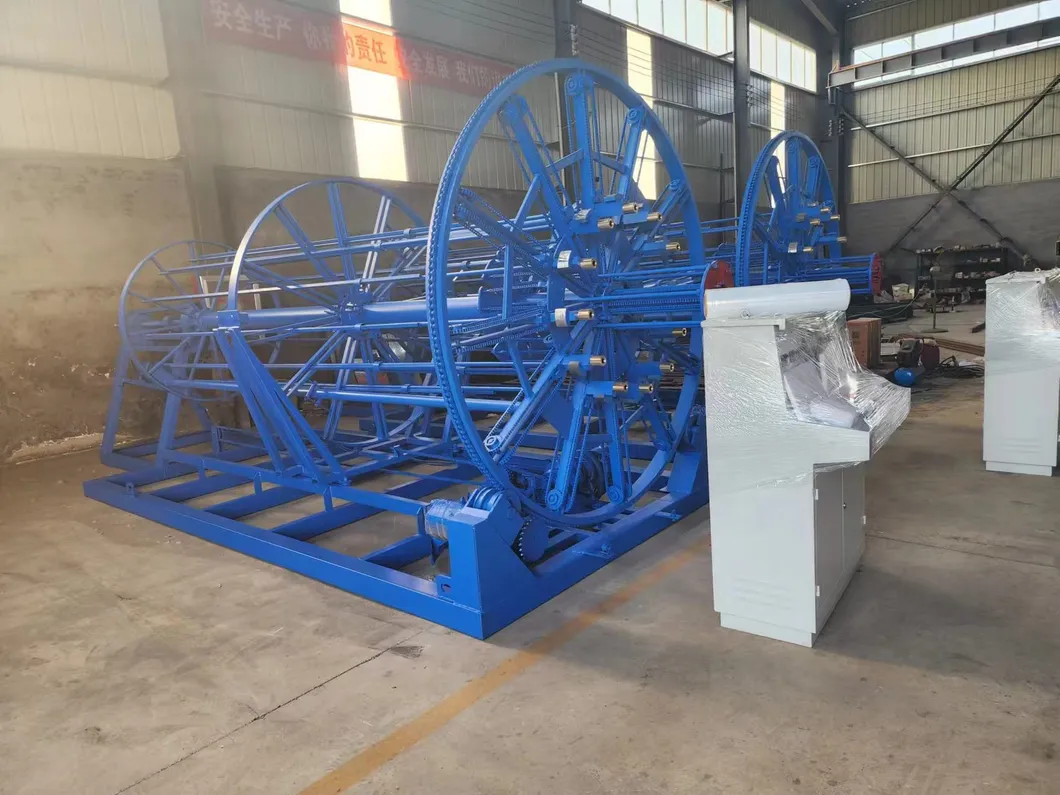

Seam Welding Machine: Equipped with a PLC controller. For diameters larger than 1000mm, we suggest using steel reinforcement; this machine facilitates suitable steel welding.

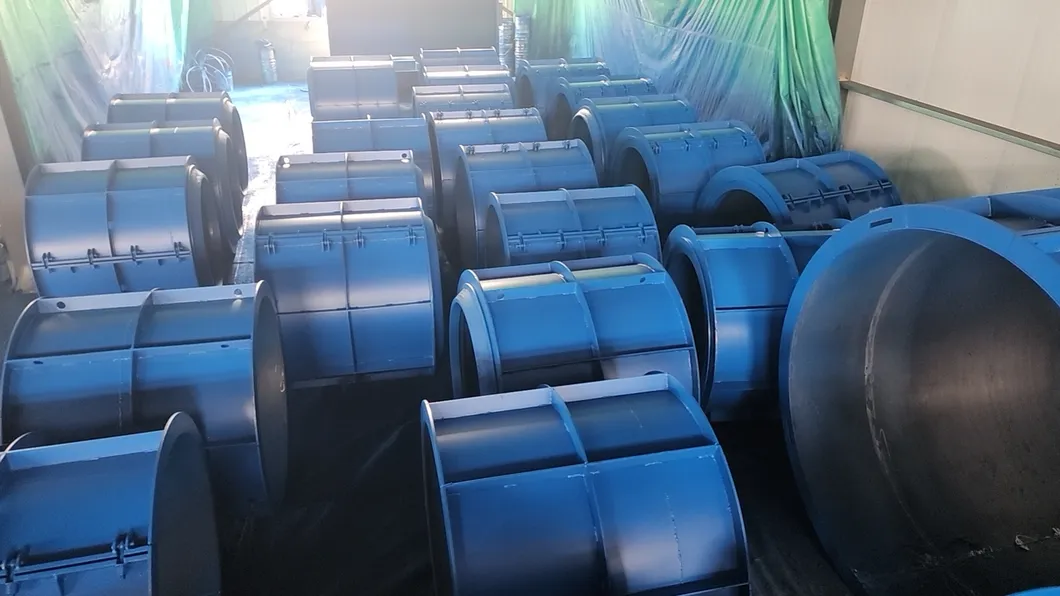

Molds: A necessary part of the production line. Available in three types based on joints: Flush joint, Rabbet joint, and Socket joint.

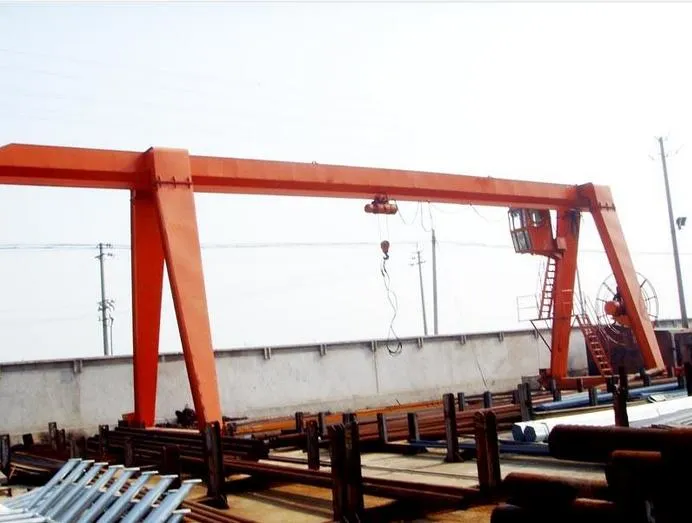

Crane: Used for carrying the finished pipes and moving the heavy molds throughout the production area.

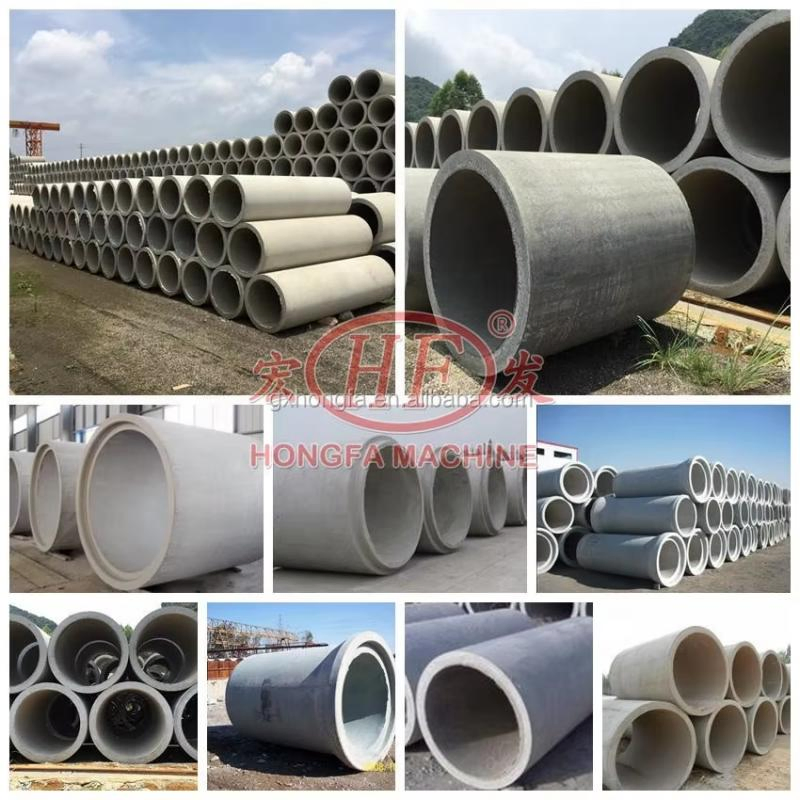

Average wall thickness, smooth inner and outer walls, excellent impermeability, high compressive strength, low production cost, firm and reliable tie-ins, convenient construction, and high efficiency with immediate mold release for maintenance.

Sand, gravel, stone chips, fly ash, and slag mixed with appropriate amounts of cement.

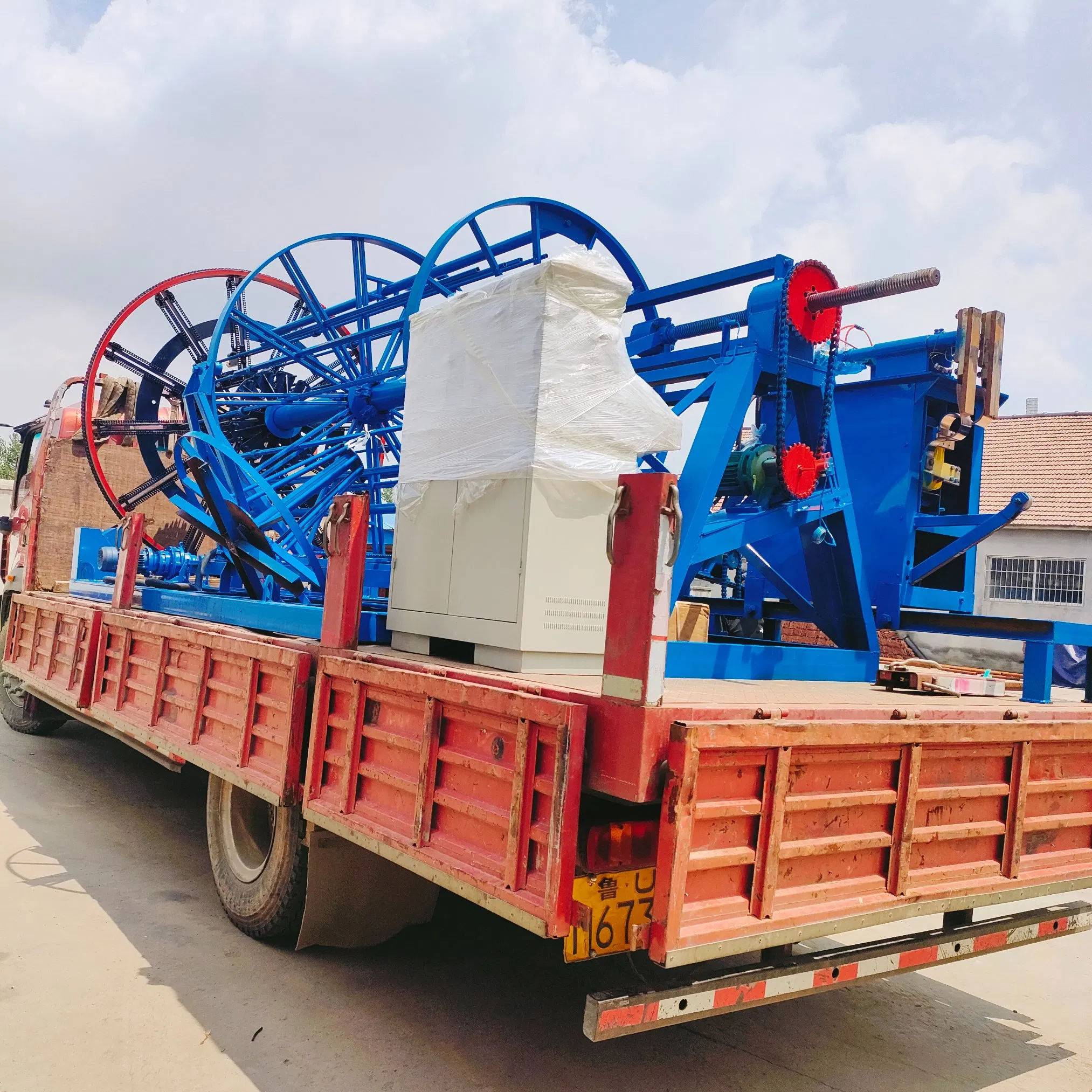

Packing: Naked packing, stretch film packing, or according to specific requirements.

Delivery Time: Within 30 days after receipt of deposit and mold confirmation.

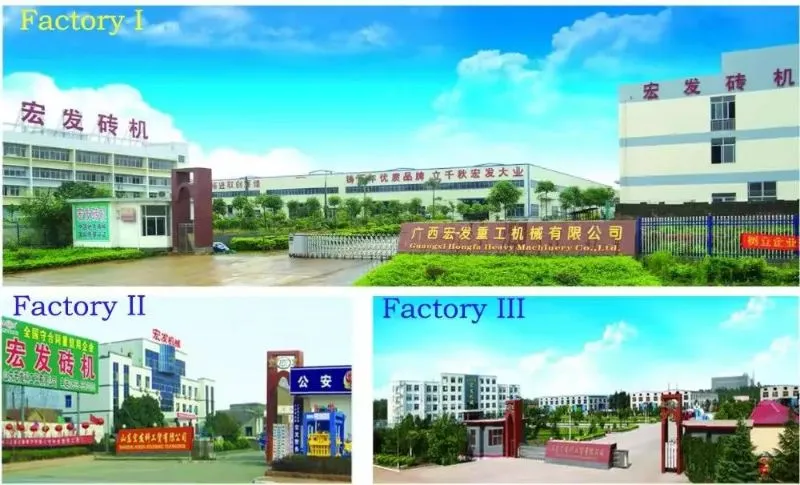

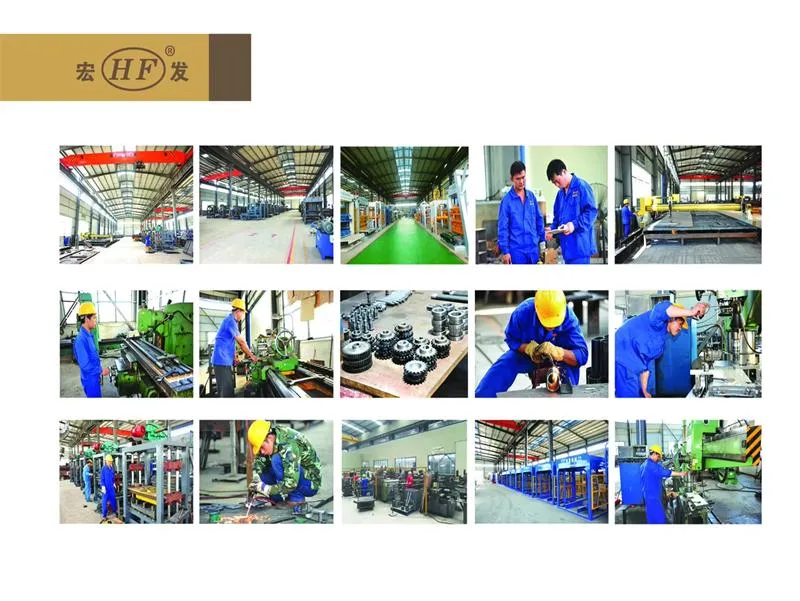

Founded in 1990, our group is one of the largest manufacturers in the building material machinery industry, holding ISO9001-2000 certification. We offer a one-stop service for raw material making machines.
