China High Pressure Multi Point Drb Ddb Electric Thick Oil Centralized Grease Greasing Lubricating Lubrication Pump for Lubrication System for Steel Industry

Basic Information

Power Supply

Electric

Lubricating Method

Grease Lubrication

Max Pressure

40MPa

Working Temp

-20°C to +80°C

Media

Grease or Oil

MOQ

1 Set

Production Capacity

500,000 / Year

HS Code

8413602190

Package Size

15.00cm * 15.00cm * 15.00cm

Gross Weight

1.000kg

Product Description

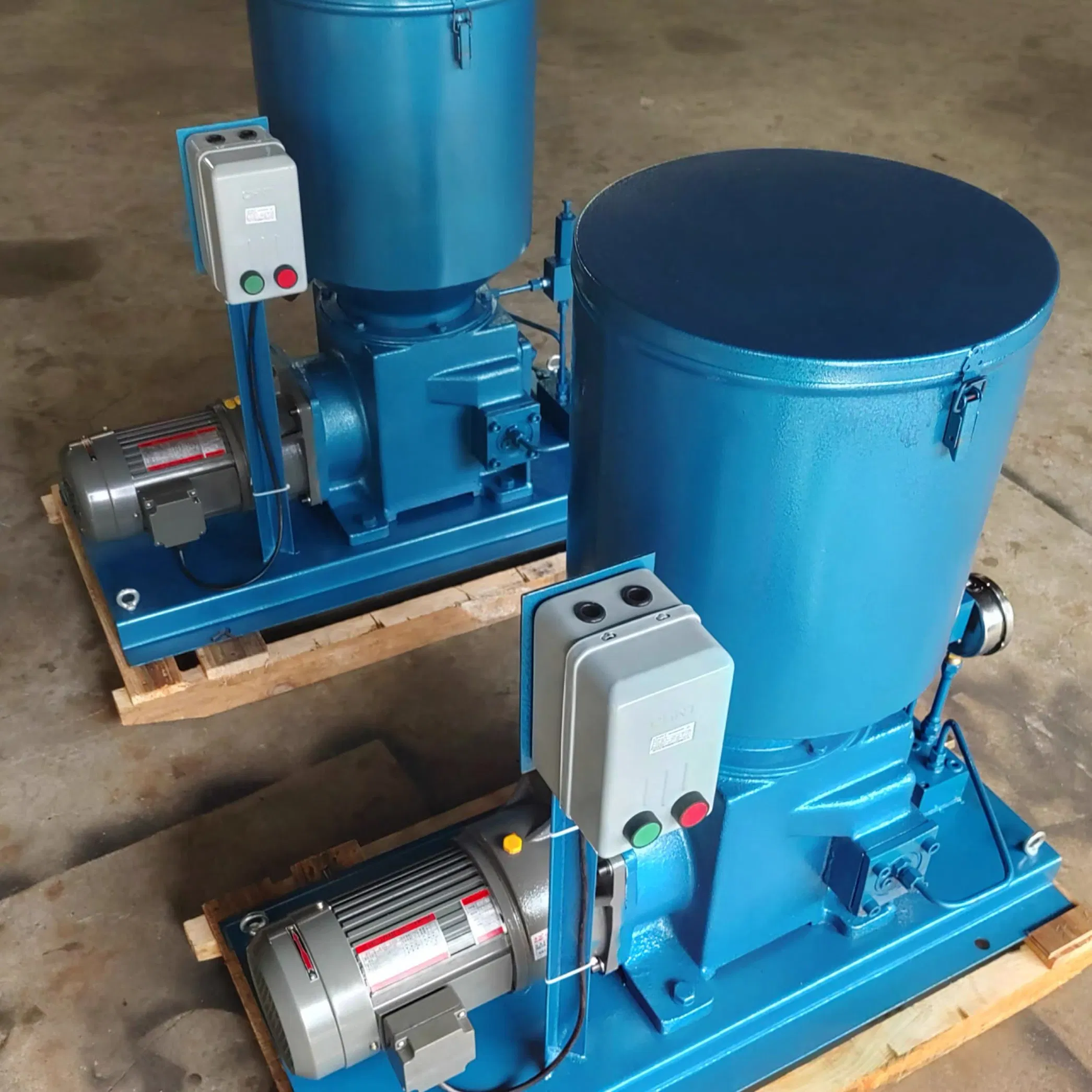

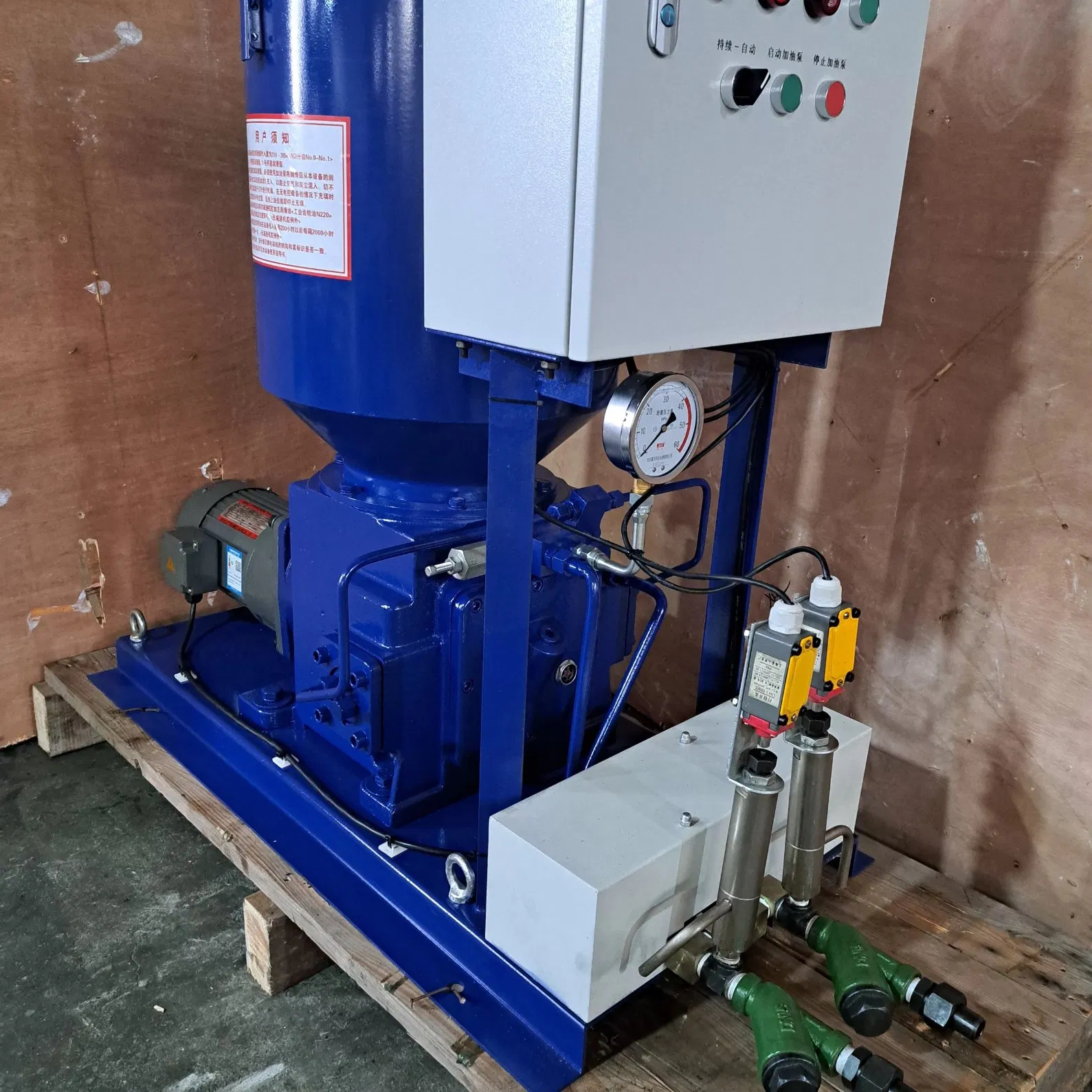

High Pressure DRB DDB Electric Centralized Grease Lubrication Pump

The electrically-driven DRB-P lubricating system operates by utilizing electric motors to drive pressurizing elements equipped with dual pistons. This reciprocating motion allows the system to precisely meter and dispense lubricants, such as grease or oil, through multiple individual outlet ports.

Designed specifically for single-line or dual-line centralized lubrication systems, these pumps operate at nominal pressures up to 40 MPa. Their modular design provides exceptional versatility, allowing for various configurations to meet the specific functional requirements of a wide range of industrial applications, including the steel industry.

Technical Specifications

Model	Normal Pressure (MPa)	Rated Output	Tank Capacity (L)	Power (KW)	Voltage (V)	Working Temp (°C)	Weight (kg)
DRB1-P120Z	40	120	30	0.37	380	0~80	56
DRB2-P120Z	40	120	30	0.75	380	-20~80	64
DRB3-P120Z	40	120	60	0.37	380	0~80	60
DRB4-P120Z	40	120	60	0.75	380	-20~80	68
DRB5-P235Z	40	235	30	1.5	380	0~80	70
DRB6-P235Z	40	235	60	1.5	380	0~80	74
DRB7-P235Z	40	235	100	1.5	380	0~80	82
DRB8-P365Z	40	365	60	1.5	380	0~80	74
DRB9-P365Z	40	365	100	1.5	380	0~80	82
* Suitable medium: lubrication grease (NLGI 0# - 3#) with penetration of min. 220 (25°C 150g) 1/100

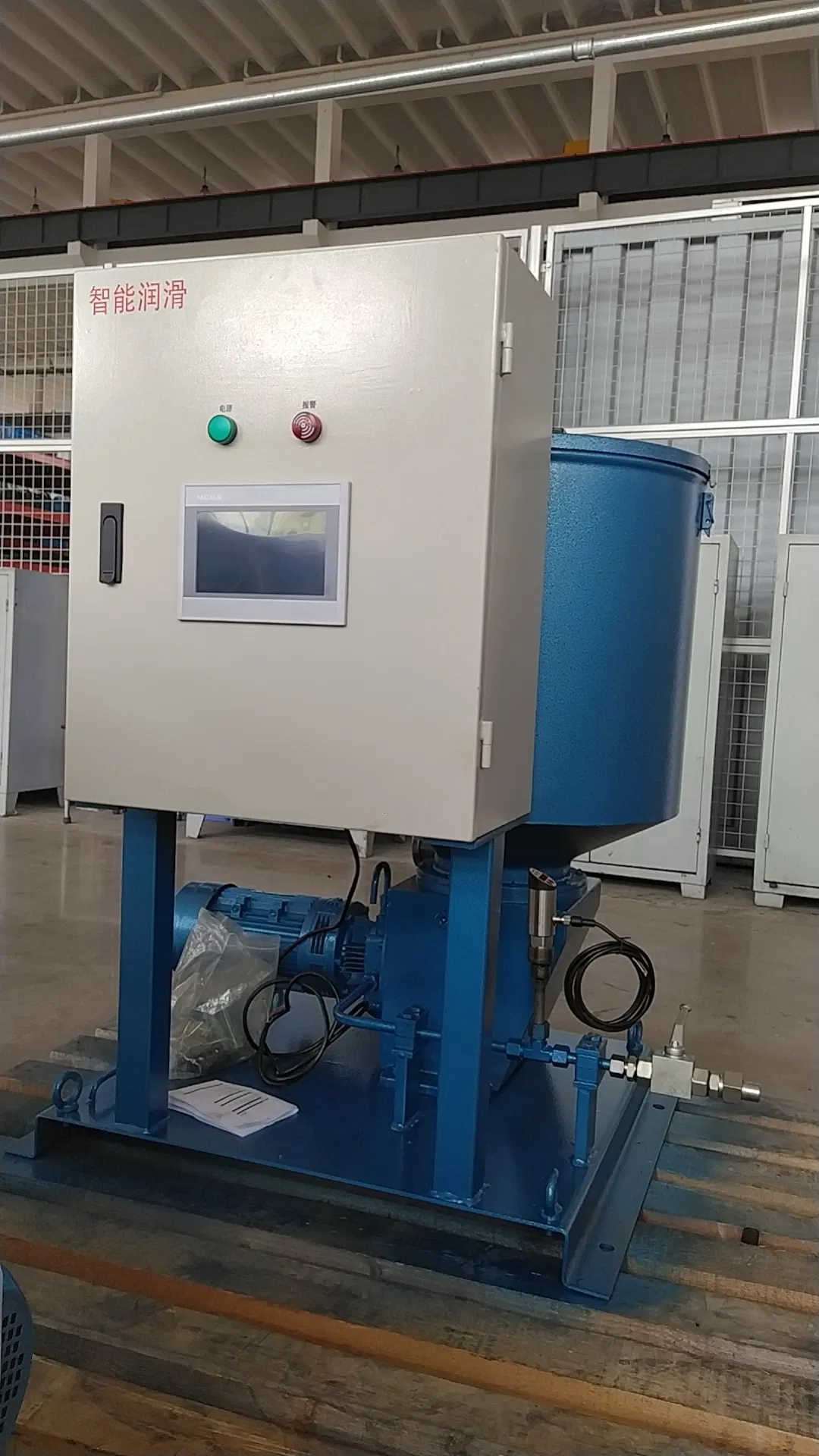

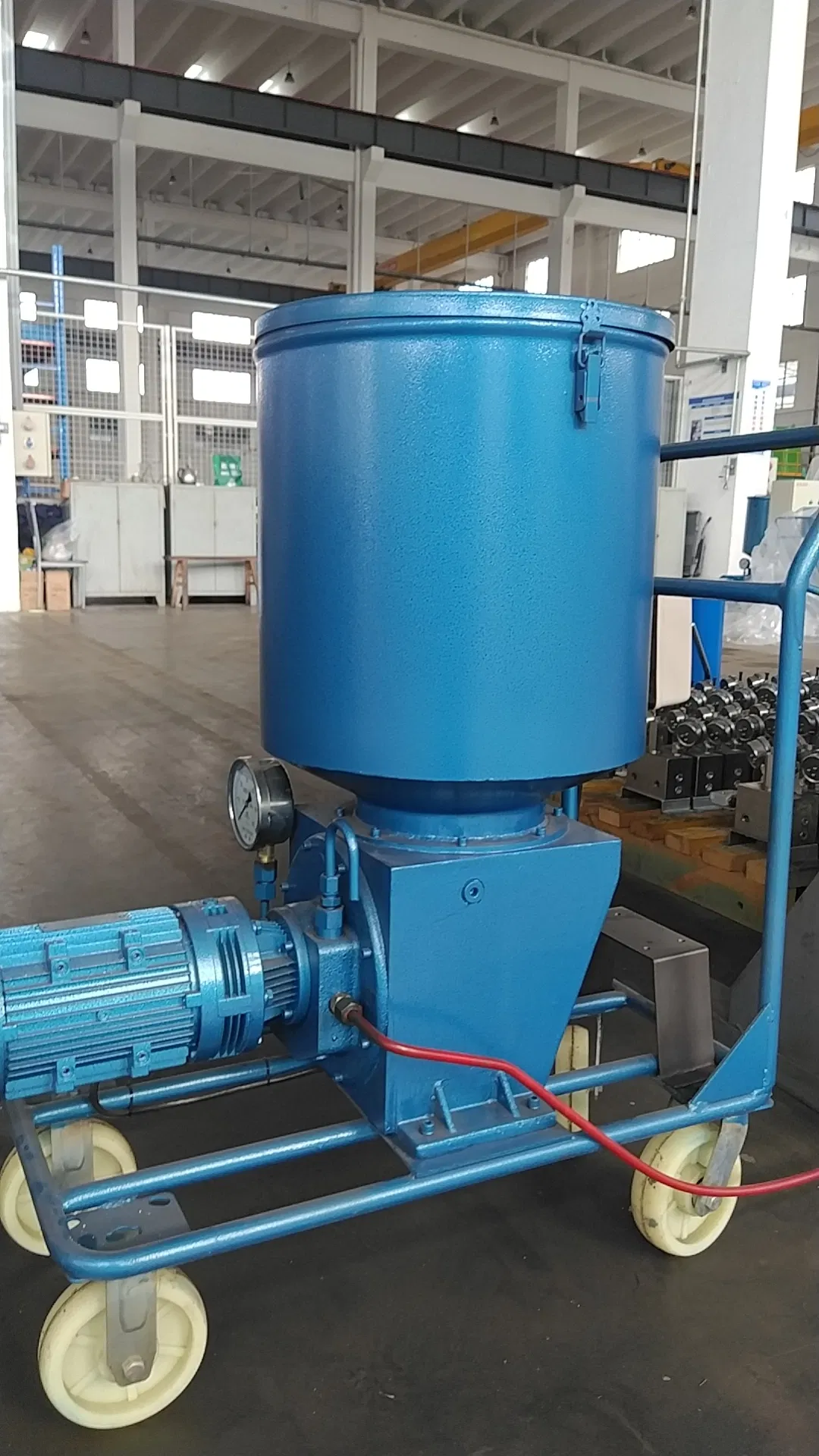

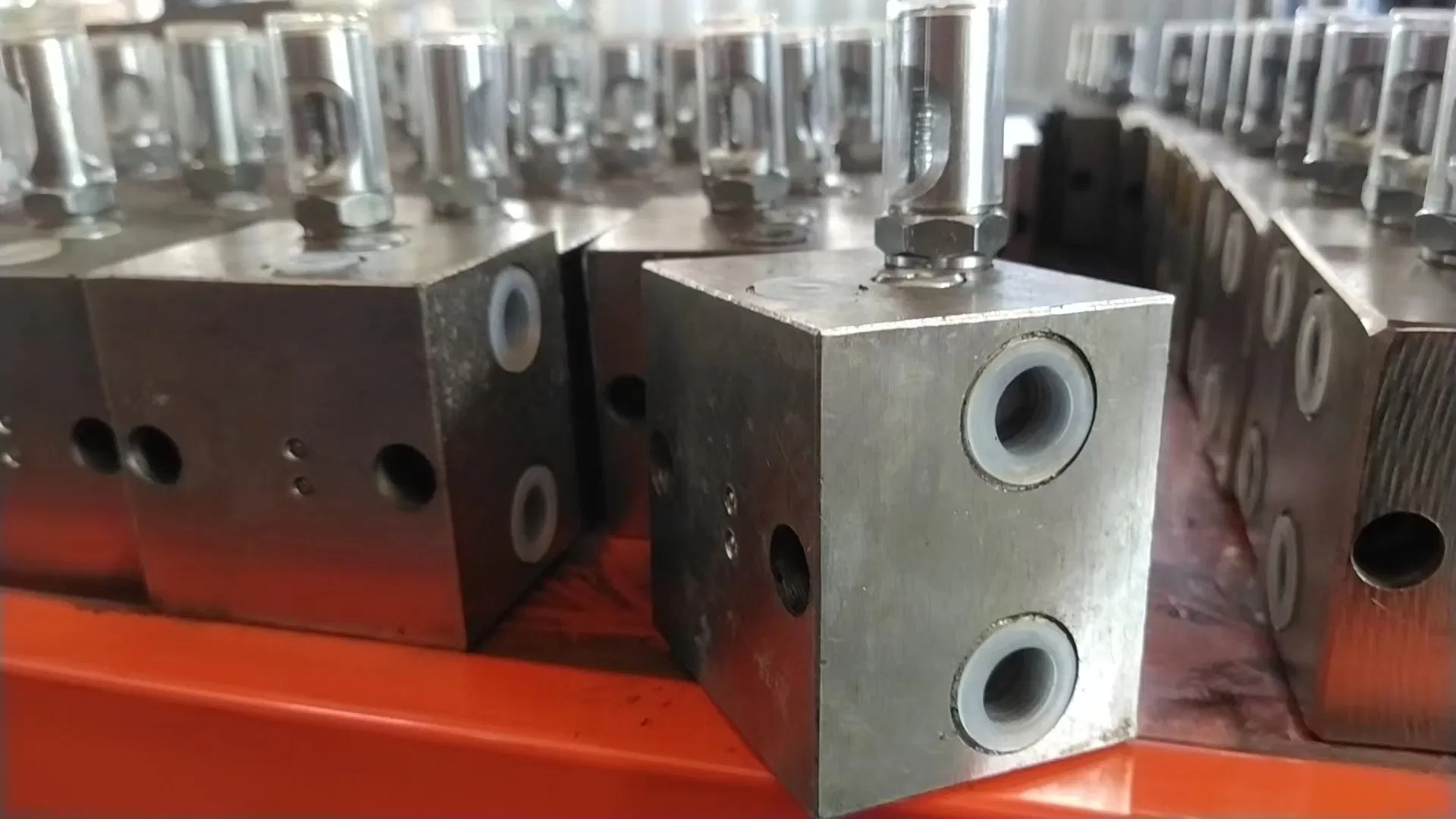

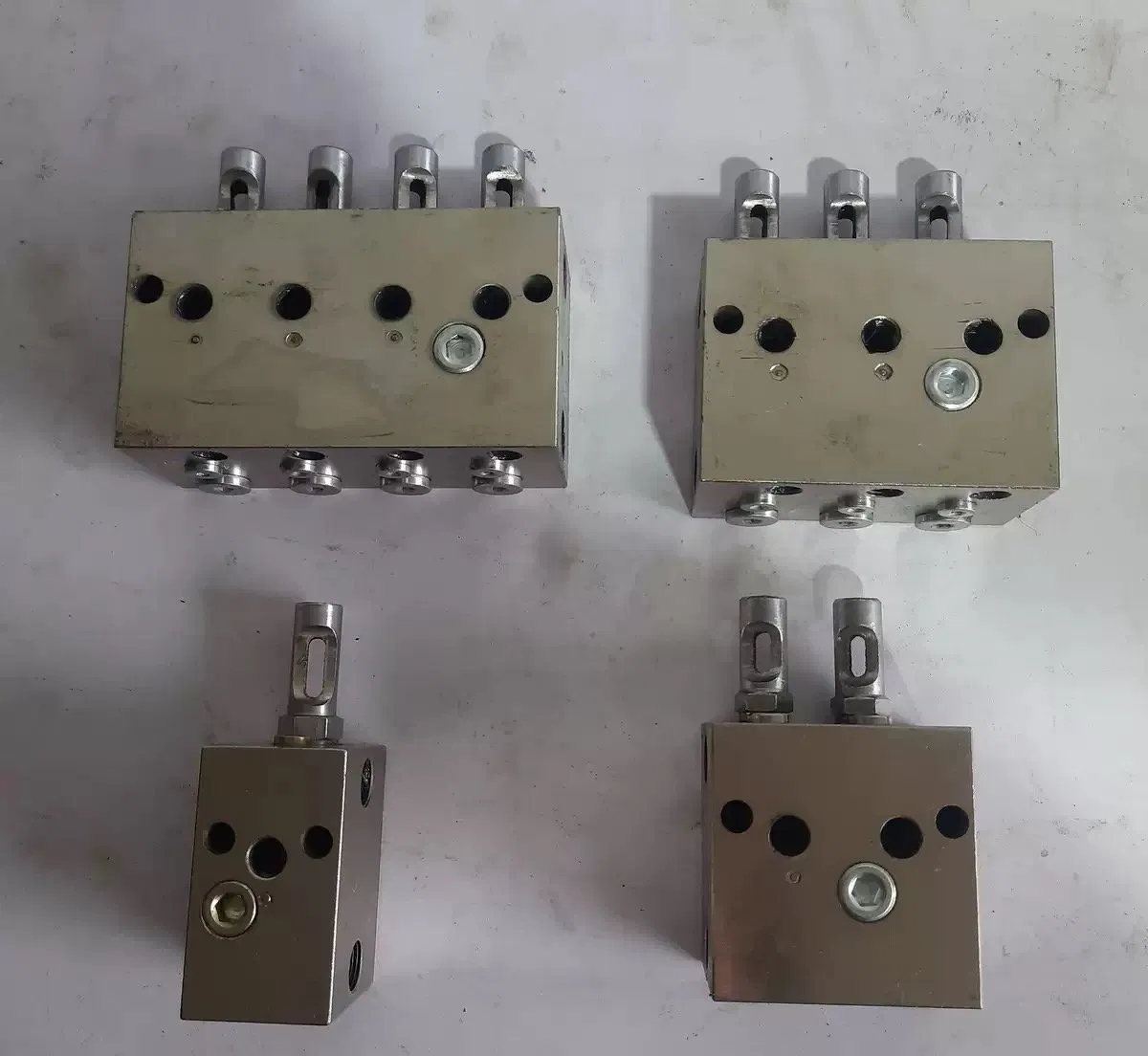

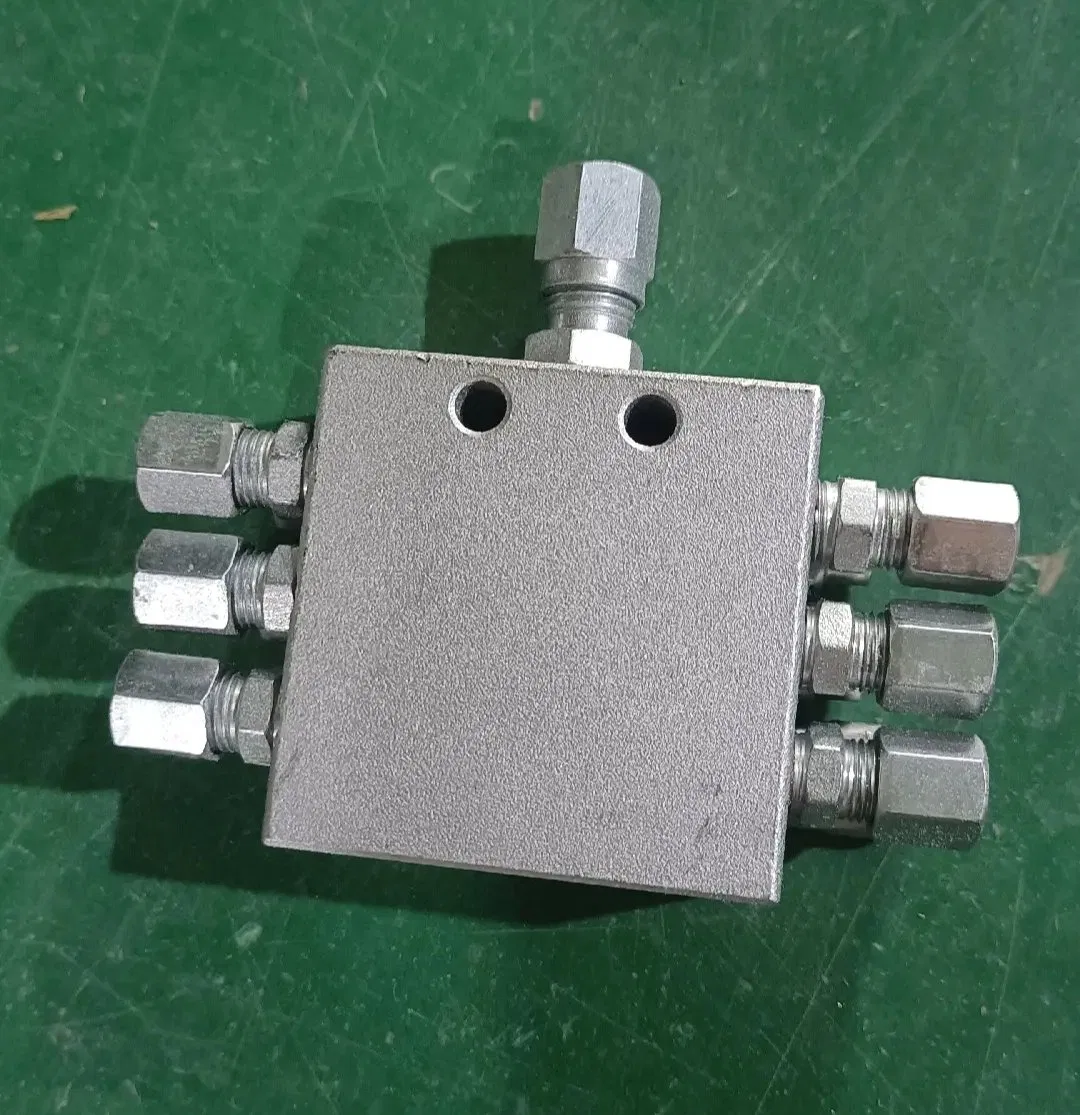

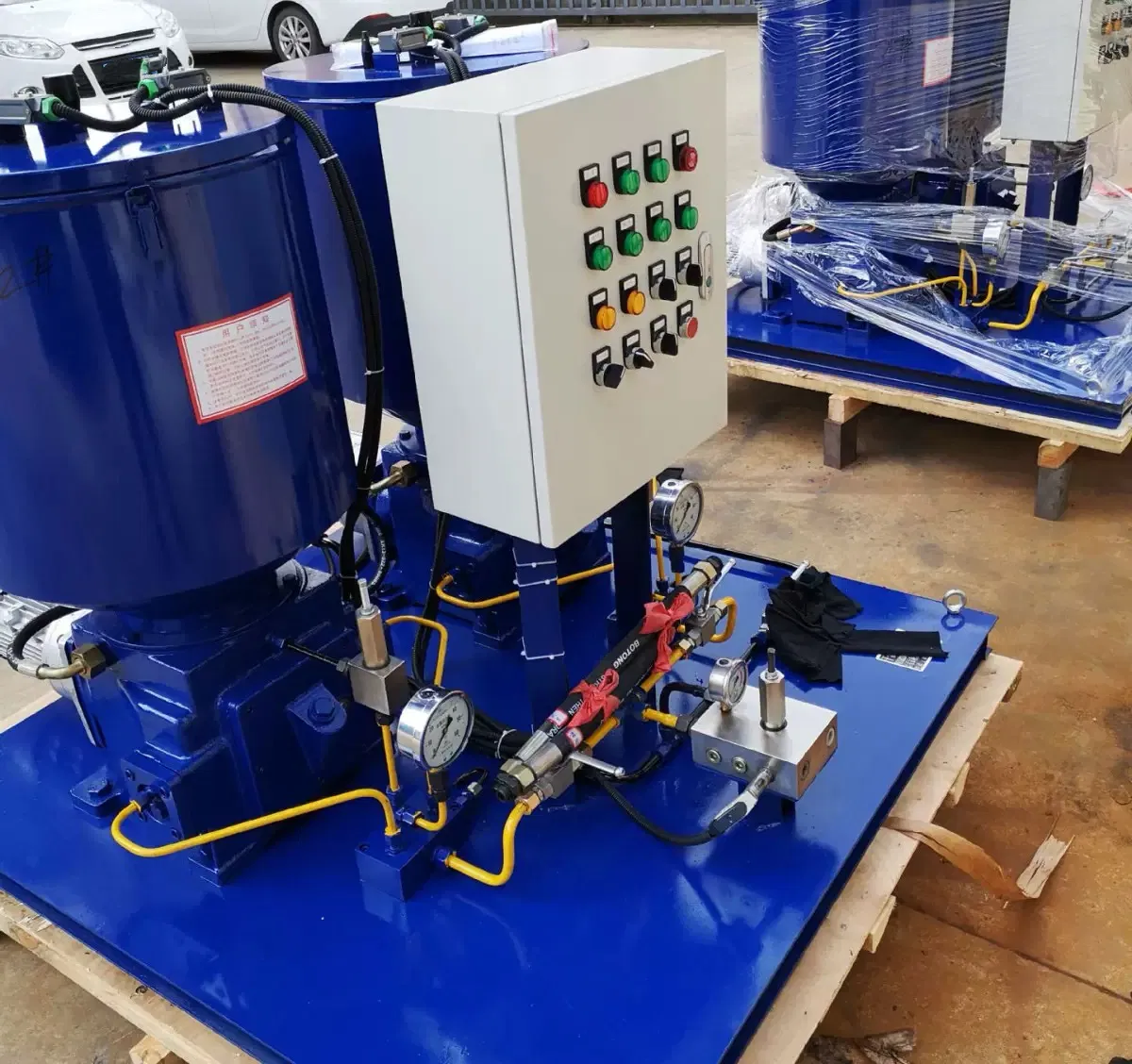

Product Showcase

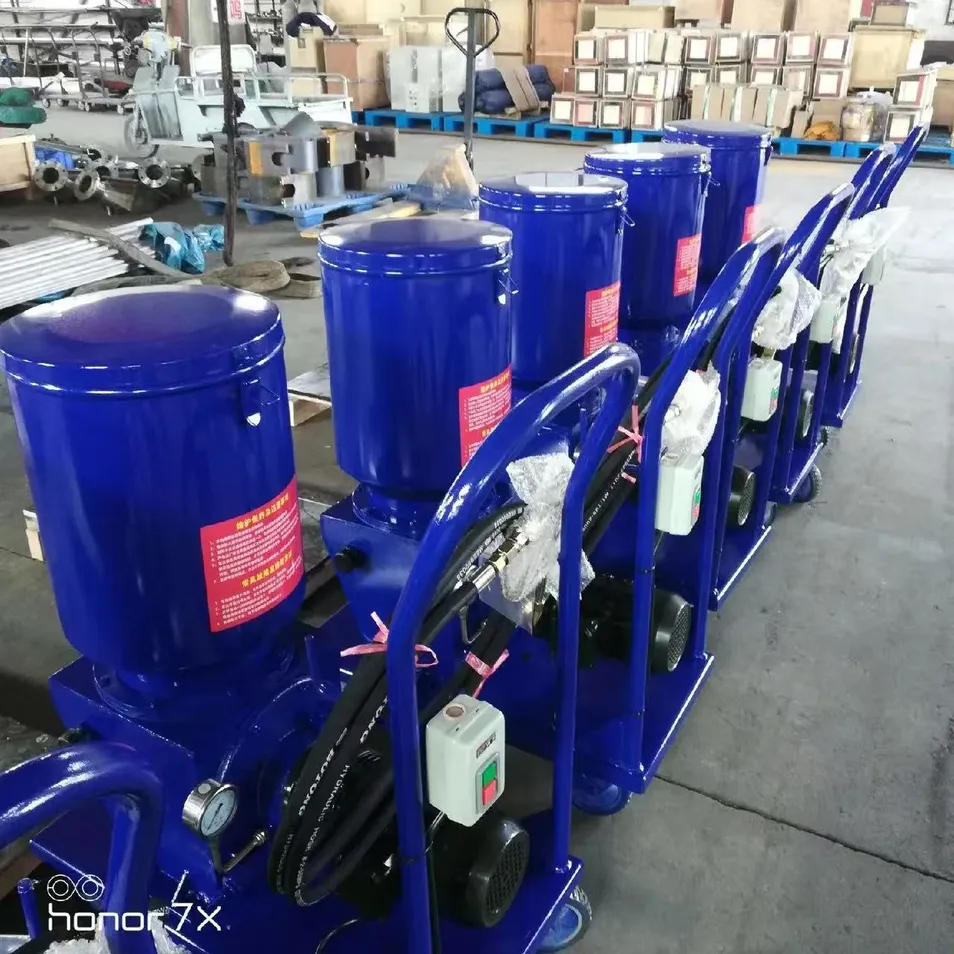

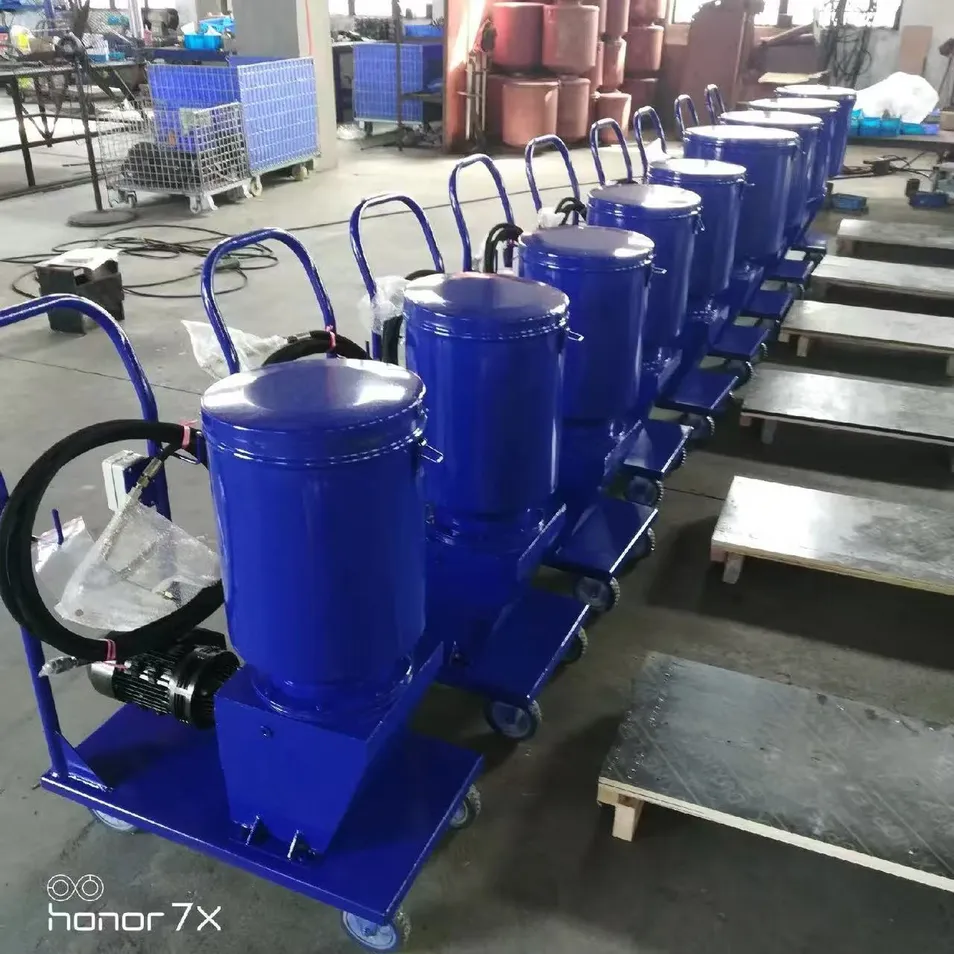

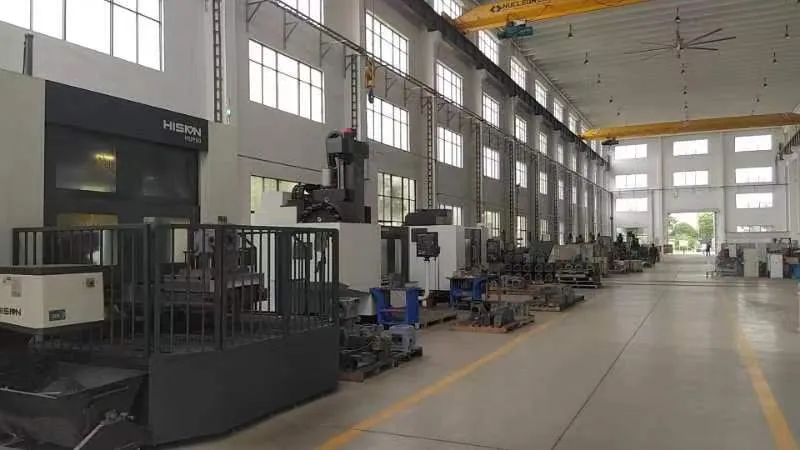

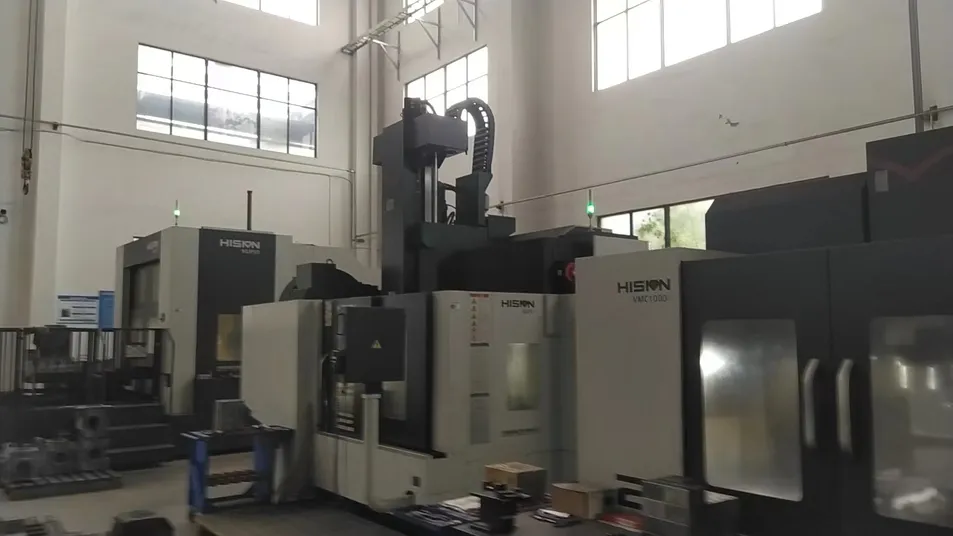

Production Environment

Frequently Asked Questions (FAQ)

What is the maximum pressure for the DRB-P series pumps?

The DRB-P electric lubrication pumps are designed to operate at a nominal pressure of up to 40 MPa.

What types of lubrication media can be used?

These pumps are compatible with both grease and oil. Specifically, they work well with lubrication grease NLGI 0# to 3# with a minimum penetration of 220.

What is the working temperature range for this system?

The system supports a wide operational temperature range from -20°C to +80°C, making it suitable for harsh industrial environments.

Can this pump be used for dual-line lubrication systems?

Yes, the DRB-P pumps are specifically engineered to function as primary supply units in both single-line and dual-line centralized lubrication systems.

Is the pump design customizable?

The pump features a modular design that allows for various configurations and combined pump units to meet specific application functionalities.

What is the standard power supply requirement?

The standard reduction motor operates on a 380V voltage supply, typically used in industrial settings.
