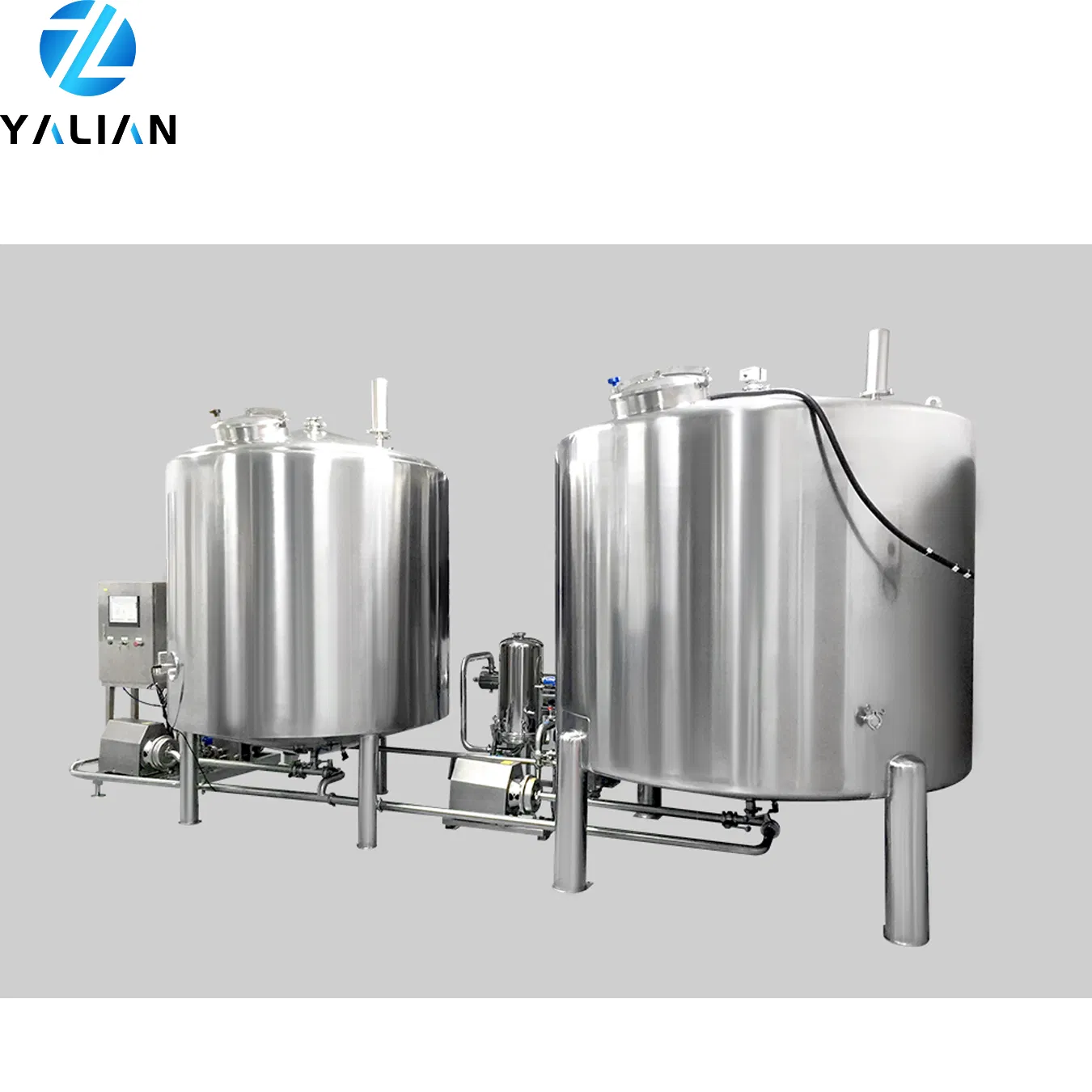

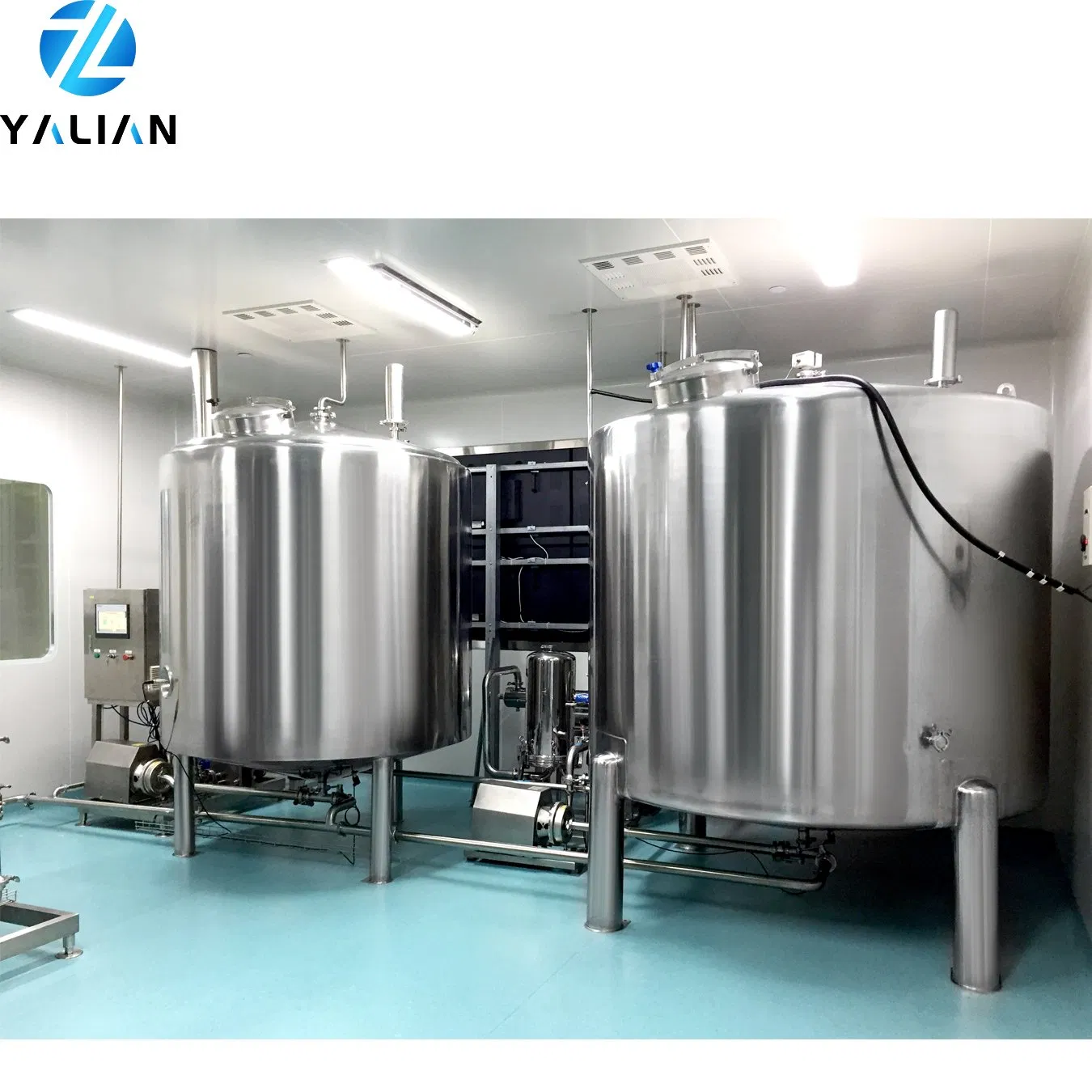

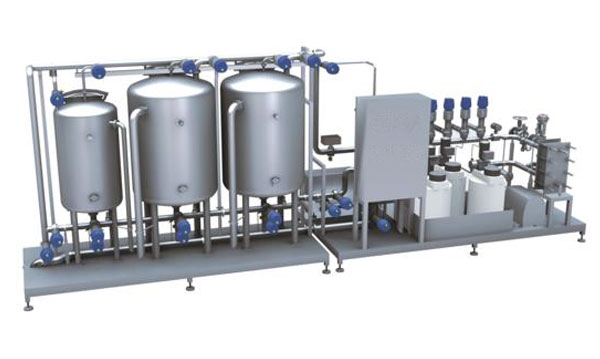

Clean-In-Place (CIP) Systems CIP Automatic Mobile System tailored for FOOD, DAIRY, AND BEVERAGE industries.
316L stainless steel clean storage tank with variable speed CIP conveying system.
Single automation design, capable of integration with existing control systems.
User-friendly HMI man-machine interface for easy parameter setting.
Built-in insulation system to minimize energy loss during production.
High-quality modules designed for high efficiency and continuous operation.
Unique process design significantly reduces foam production during the CIP process.
Integrated water return and extracorporeal circulation systems to reduce water and energy consumption.
Advanced automatic control for detection, liquid addition, discharge, and adjustment.

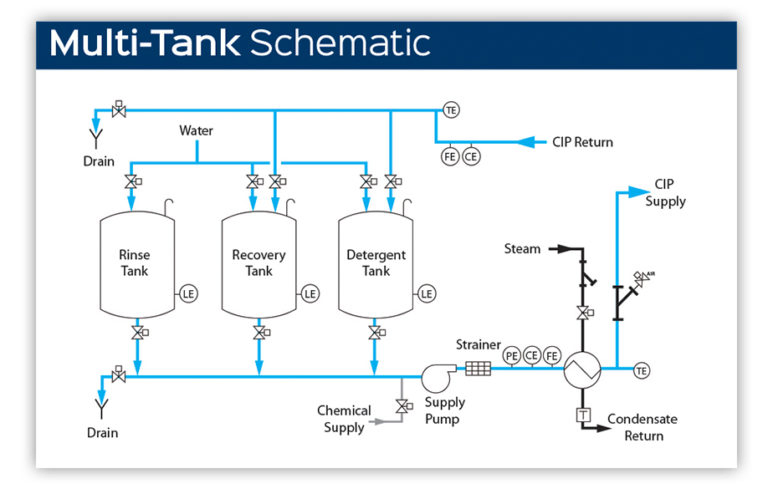

The process piping design combines traditional manual operation fluid adapter plate technology with fully automatic multi-channel valve array technology. This creates a hard-connected, closed-loop CIP/SIP system that ensures aseptic disinfection and cleaning of the entire line.
Core functionalities include:
Automatic temperature rise to set working levels.
Automated addition and adjustment of tank liquids based on concentration requirements.
Internal and external self-cleaning with hot and cold water.
Filtration and recovery of cleaned liquids according to media requirements.
Significant reduction in detergent usage and extended equipment service life.

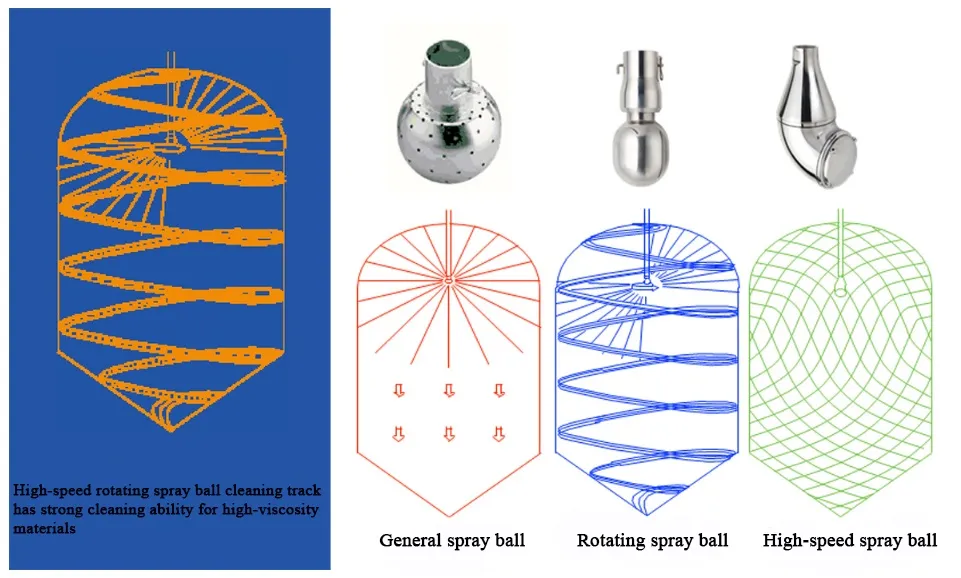

The tank cleaning head provides versatile solutions customized to material characteristics and production needs:
Effective cleaning for stubborn viscous materials.
360-degree cleaning coverage, regardless of complex tank structures.
Superior energy consumption and cleaning efficiency.

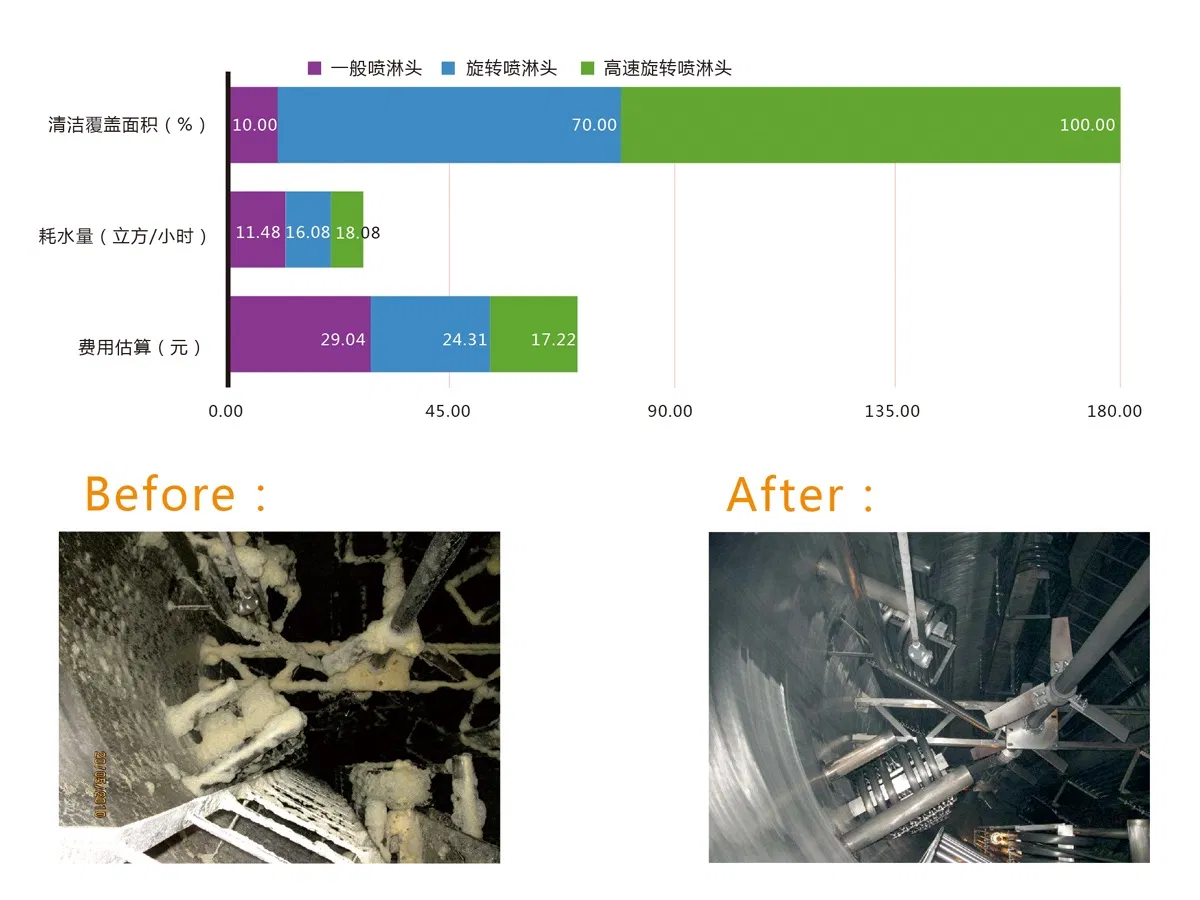

Up to 99% cleaning coverage.
Water consumption reduced by nearly 60% compared to ordinary spray balls.
Serves as a public service system for hot water pipeline requirements.
Shared utility for online cleaning and online disinfection (SIP).
Compliant with GMP requirements for microbiological control and rapid cleaning.
Supports continuous system cleaning and single machine cleaning.
Frequently Asked Questions
What materials are used in the CIP system construction?
The system primarily uses high-grade Stainless Steel 316L for clean storage tanks and contact parts, with Stainless Steel 304 options available to meet GMP and food safety standards.
Can this system be integrated into an existing production line?
Yes, the system features a single automation design that can be seamlessly integrated with your current control systems via a friendly HMI interface.
How does the high-speed spray ball save water?
The high-speed spray ball is engineered for maximum efficiency, providing 99% coverage while reducing water consumption by nearly 60% compared to traditional spray balls.
Is the CIP system suitable for viscous materials?
Absolutely. Our specialized washing head modules are designed to clean even the most stubborn viscous materials and complex tank geometries without leaving dead angles.
What are the heating options for the cleaning liquid?
The system supports both electronic heating and steam heating methods, allowing for automatic temperature adjustment to reach set working parameters.
Does the system help in reducing detergent waste?
Yes, the automated sensing and recovery systems filter and reuse cleaning liquids when possible, significantly reducing the total amount of detergent required.
