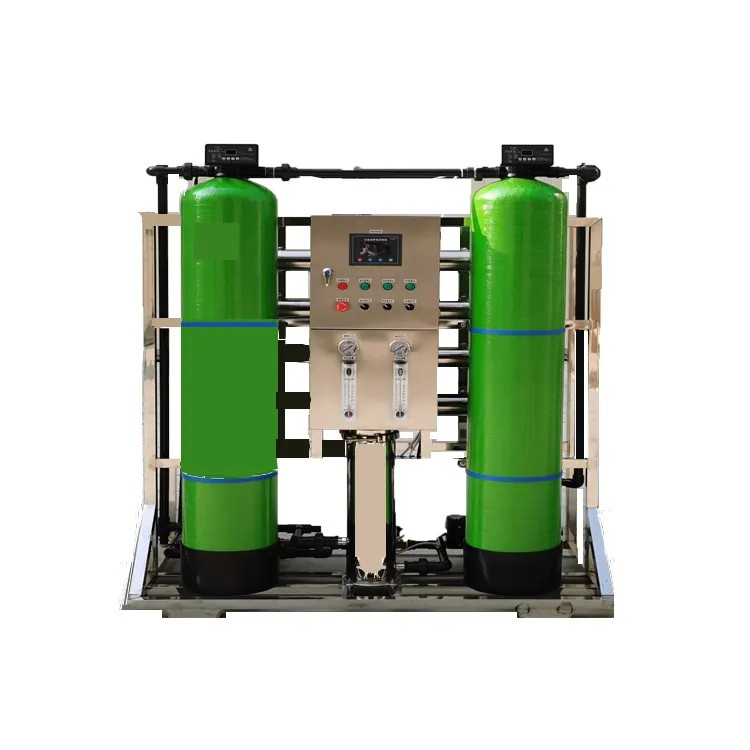

Commercial Reverse Osmosis Water Treatment Equipment, Industrial Direct Drinking Water Purifier, Descaling and Softening Water
Commercial Reverse Osmosis Water Treatment Equipment, Industrial Direct Drinking Water Purifier, Descaling and Softening Water
Commercial Reverse Osmosis Water Treatment Equipment, Industrial Direct Drinking Water Purifier, Descaling and Softening Water
Commercial Reverse Osmosis Water Treatment Equipment, Industrial Direct Drinking Water Purifier, Descaling and Softening Water
Commercial Reverse Osmosis Water Treatment Equipment, Industrial Direct Drinking Water Purifier, Descaling and Softening Water
1 / 5
Commercial Reverse Osmosis Water Treatment Equipment, Industrial Direct Drinking Water Purifier, Descaling and Softening Water
Commercial Reverse Osmosis Water Treatment Equipment, Industrial Direct Drinking Water Purifier, Descaling and Softening Water
Commercial Reverse Osmosis Water Treatment Equipment, Industrial Direct Drinking Water Purifier, Descaling and Softening Water
Commercial Reverse Osmosis Water Treatment Equipment, Industrial Direct Drinking Water Purifier, Descaling and Softening Water
Commercial Reverse Osmosis Water Treatment Equipment, Industrial Direct Drinking Water Purifier, Descaling and Softening Water

Commercial Reverse Osmosis Water Treatment Equipment, Industrial Direct Drinking Water Purifier, Descaling and Softening Water

Customization: Available
Certification: ISO9001, CE
Salt Rejection Rate: 99.0%
Send Inquiry

Product Description

Basic Info.

Model NO.500L/H 1000L/H
ApplicationIndustry
Capacity500lph
Voltage220V50Hz/60Hz or 380V50Hz
Power1.5kw
Volume1.2cbm
WeightAbout 120kg
MaterialFRP
ControlAutomatic
Water Temp5-35℃
Transport PackageWooden Box
HS Code8421219990
Production Capacity1000L/H

Product Description

Reverse Osmosis (RO) System

Reverse Osmosis (RO) is a water treatment process that removes contaminants from water by using pressure to force water molecules through a semipermeable membrane. During this process, the contaminants are filtered out and flushed away, leaving clean, delicious drinking water.

Pretreatment Raw water pump, Quartz sand filter, activated carbon filter, resin water softener system, or dosing device
Water Treatment Host Stainless steel high-pressure pump, RO membrane, Membrane Vessel SS, Relay control, Optional UV sterilizer & Ozone
System Functions Auto flush, Low pressure protection, High pressure protection, Back wash and Regeneration control, Online water quality testing

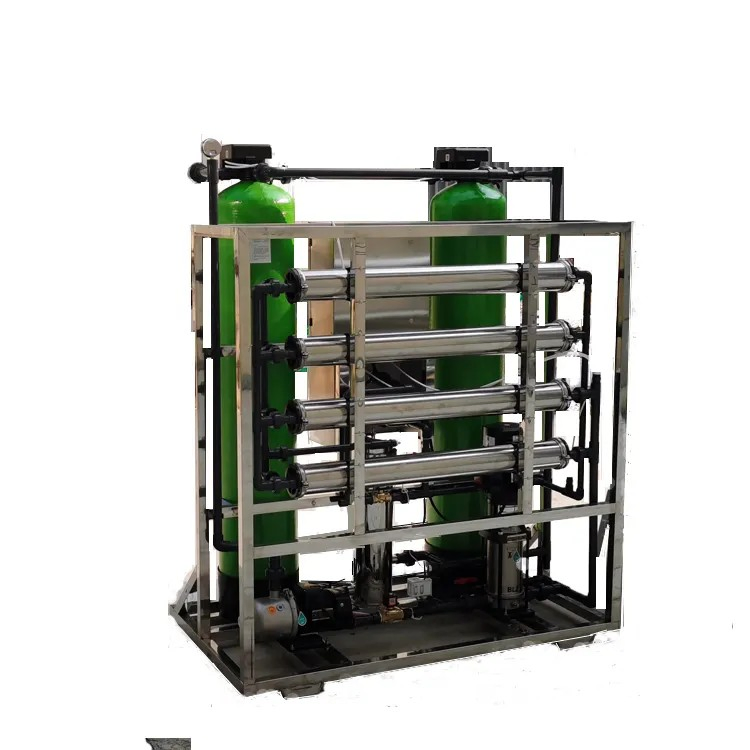

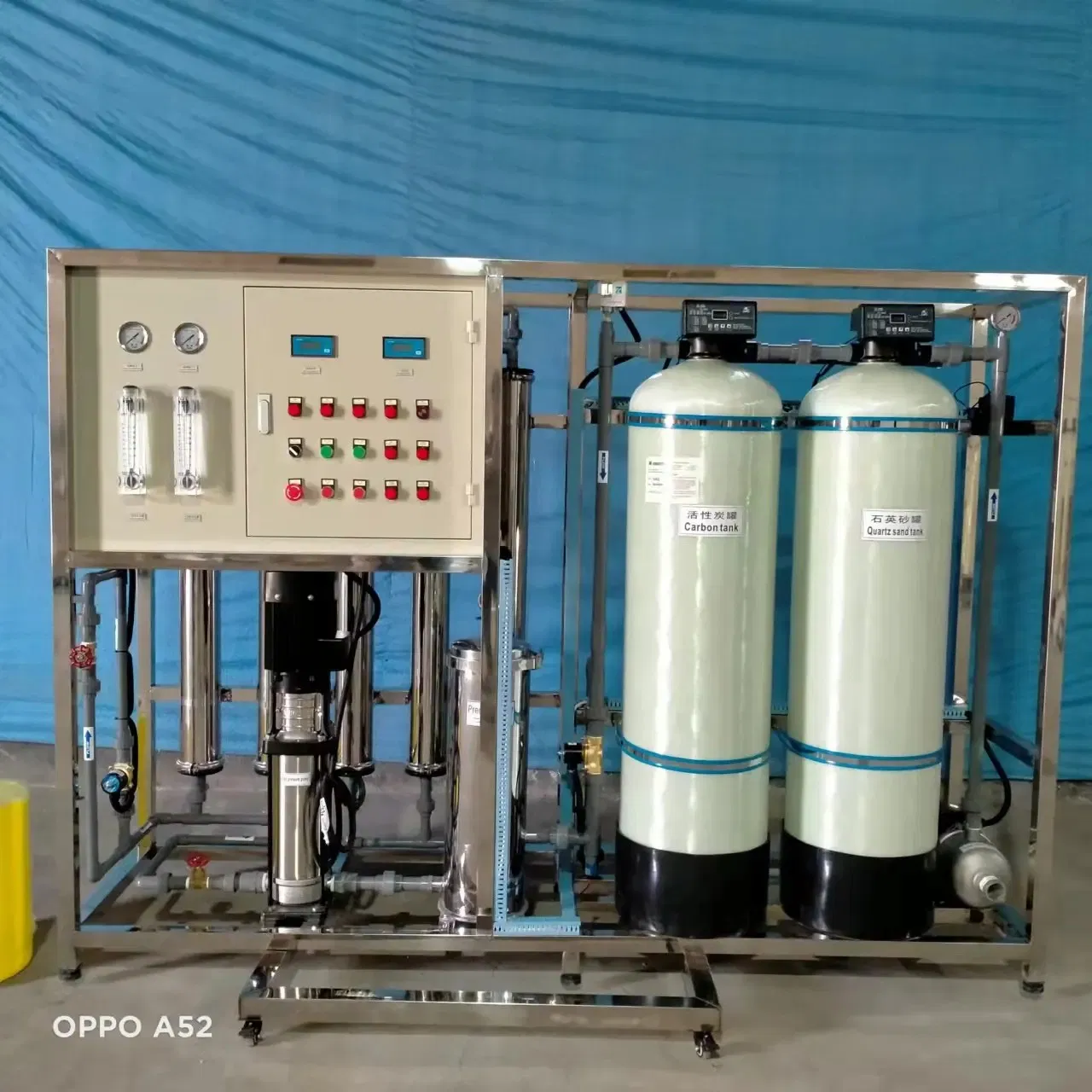

Automatic 500LPH Reverse osmosis water filtration system, including Quartz sand filter, activated carbon filter, resin water softener system, PP filters, reverse osmosis water filters, Raw water pump and high-pressure pump + UV sterilizer.

Reverse Osmosis Equipment 1

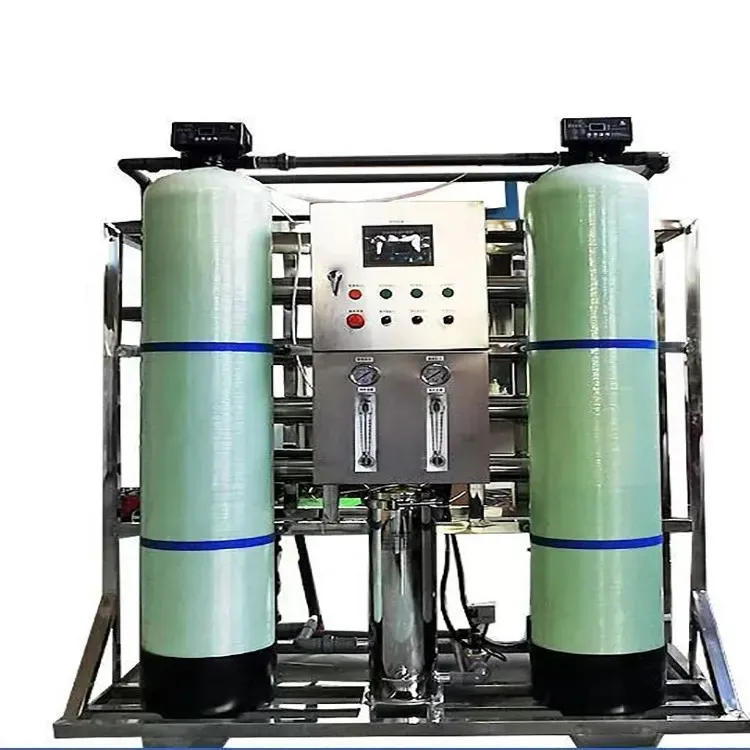

Reverse Osmosis Equipment 2

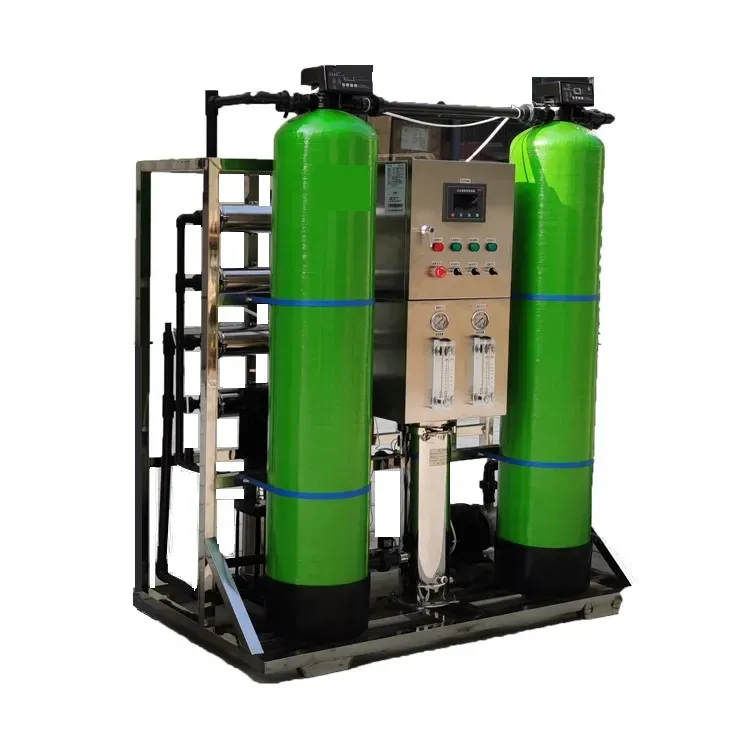

Reverse Osmosis Equipment 3

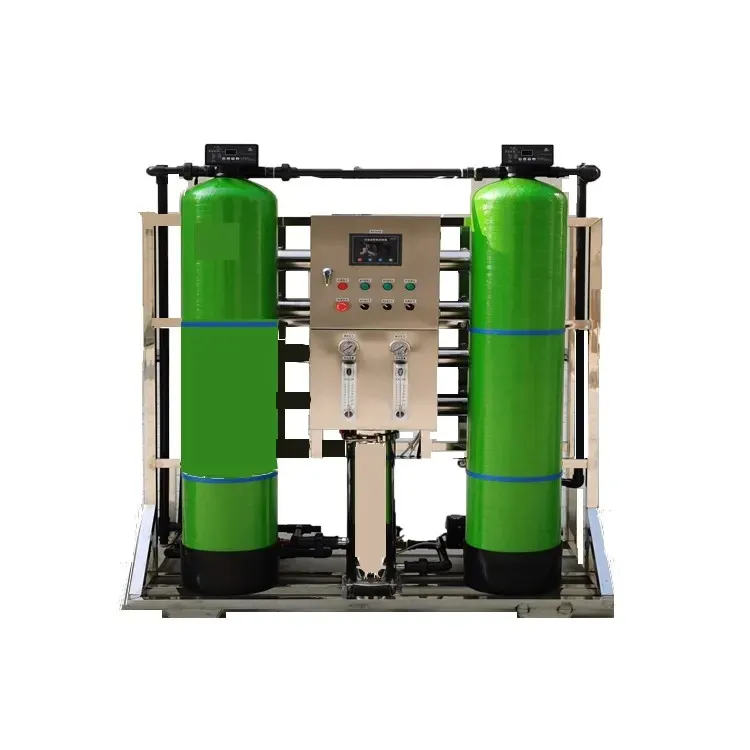

Reverse Osmosis Equipment 4

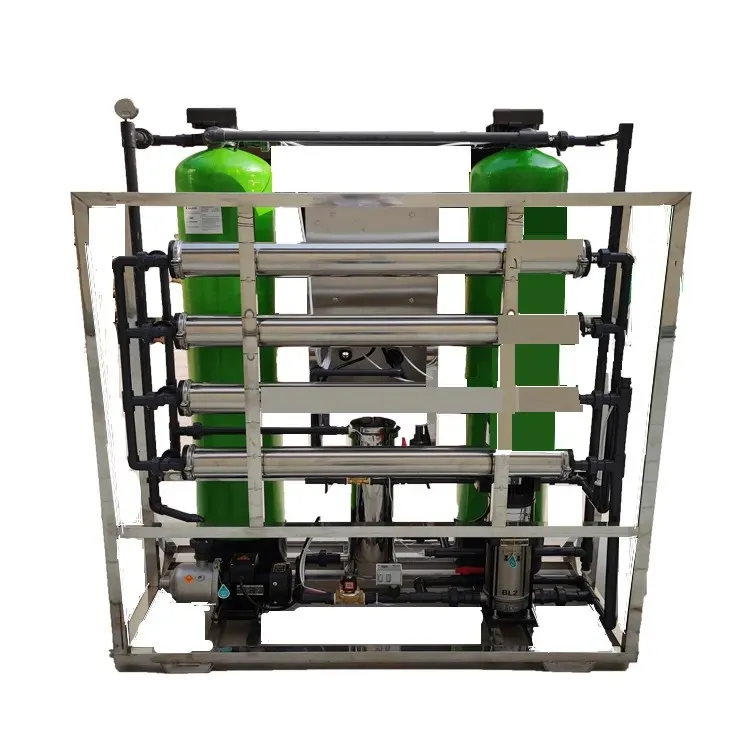

Reverse Osmosis Equipment 5
Reverse Osmosis Equipment 6
Process Detail 1
Process Detail 2
Process Detail 3
System Diagram
Application View
Final Product

Advantages & Features

  • Non-phase-change physical method: Used to desalinate and purify saline water under normal temperatures.
  • High Efficiency: Desalting rate of single membrane element is 99% and removes colloids, organics, bacteria, viruses, and heavy metals.
  • Energy Saving: Uses water pressure as the driving force; energy consumption is the lowest among treatment methods.
  • Automatic Protection: High automation program with automatic stop in case of failure.
  • Stable Quality: Simple system, easy to operate, and consistently stable water quality.
  • Compact Design: Equipment covers a small area with a compact structure and reliable operation.

Frequently Asked Questions

Q: What is the desalting efficiency of this RO system?
A: The system features a high desalting rate of 99% for single membrane elements, effectively removing almost all dissolved salts and heavy metals.
Q: Is the water treatment process automatic?
A: Yes, the system is fully automatic. It includes features like auto-flush, low/high-pressure protection, and backwash controls.
Q: What types of contaminants does the system remove?
A: It removes a wide range of contaminants, including colloids, organic matter, bacteria, viruses, and various heavy metals.
Q: What are the main components of the pretreatment stage?
A: The pretreatment includes a raw water pump, quartz sand filter, activated carbon filter, and a resin water softener system.
Q: Can this system handle different power voltages?
A: Yes, it is compatible with 220V (50Hz/60Hz) or 380V (50Hz) power supplies to suit different industrial requirements.
Q: What is the benefit of the physical desalting method used?
A: It is a non-phase-change process that works at normal temperatures, which is highly energy-efficient and keeps the system structure compact.
