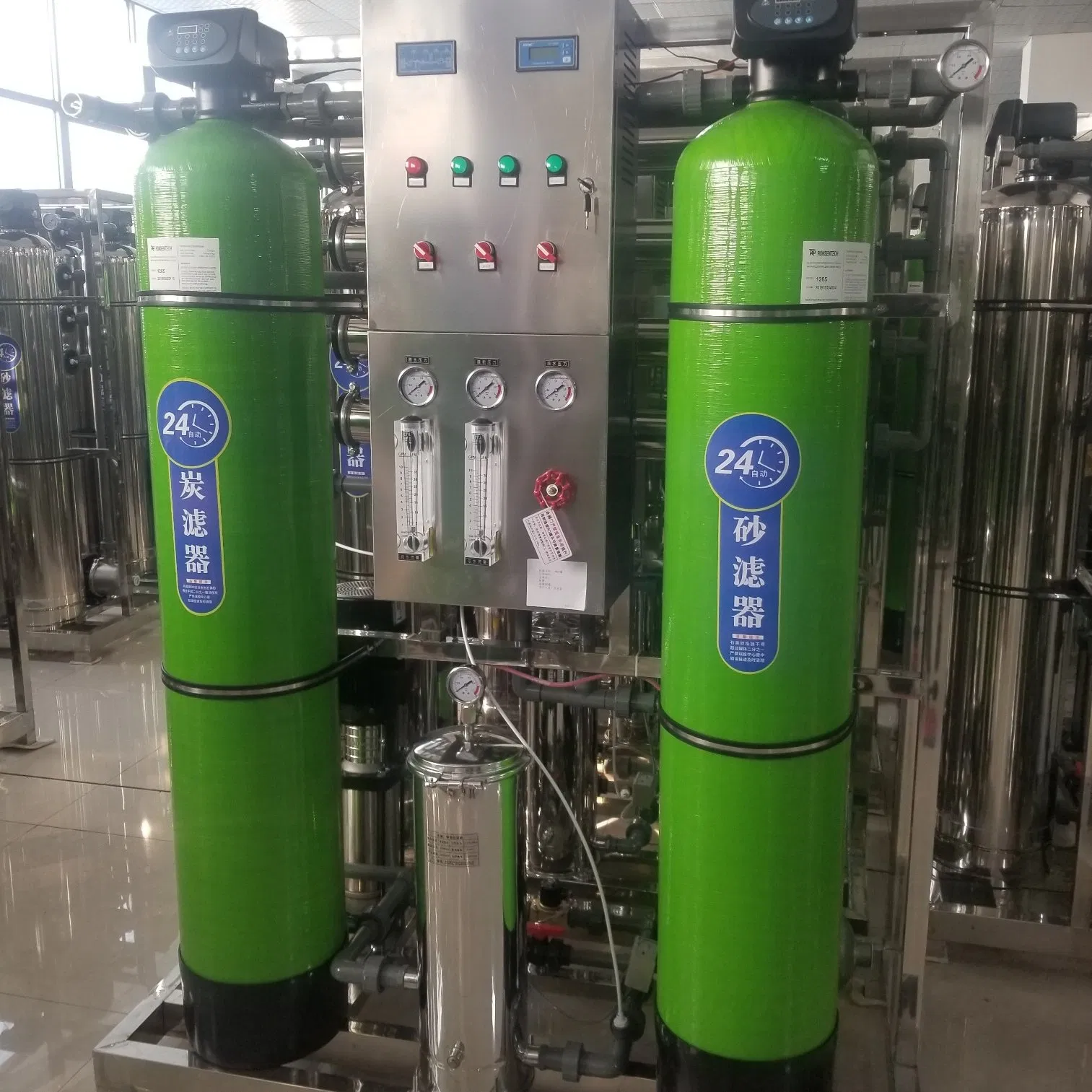

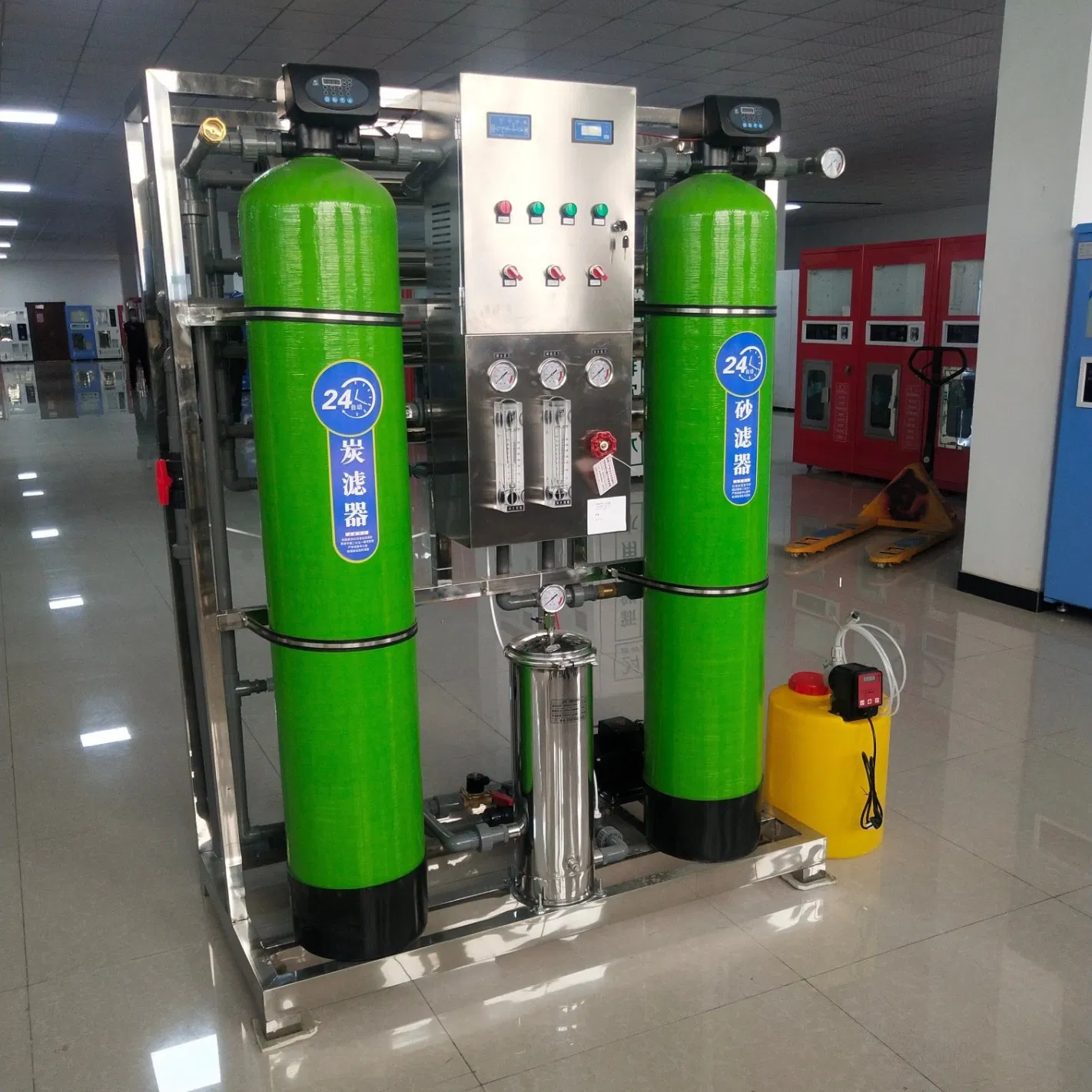

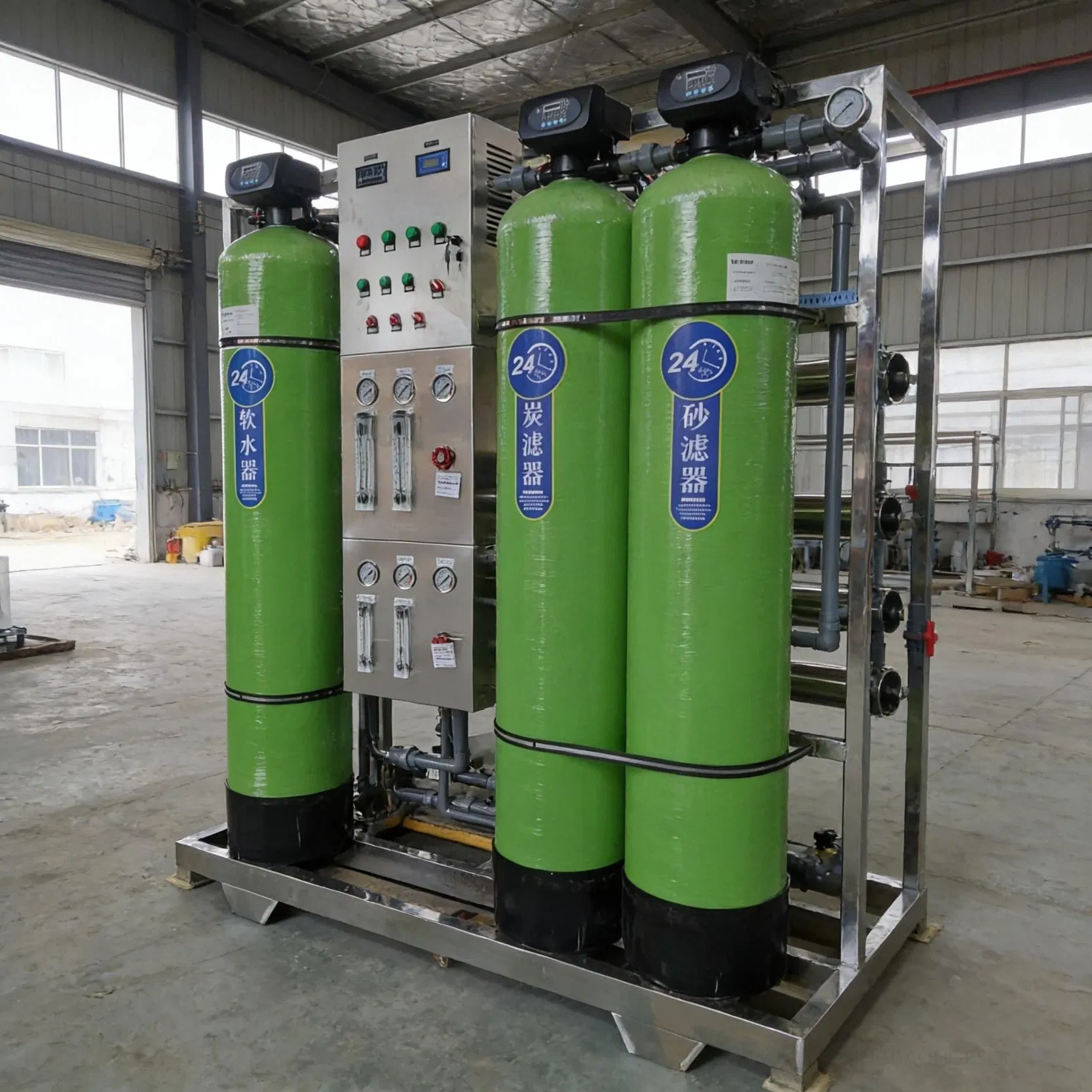

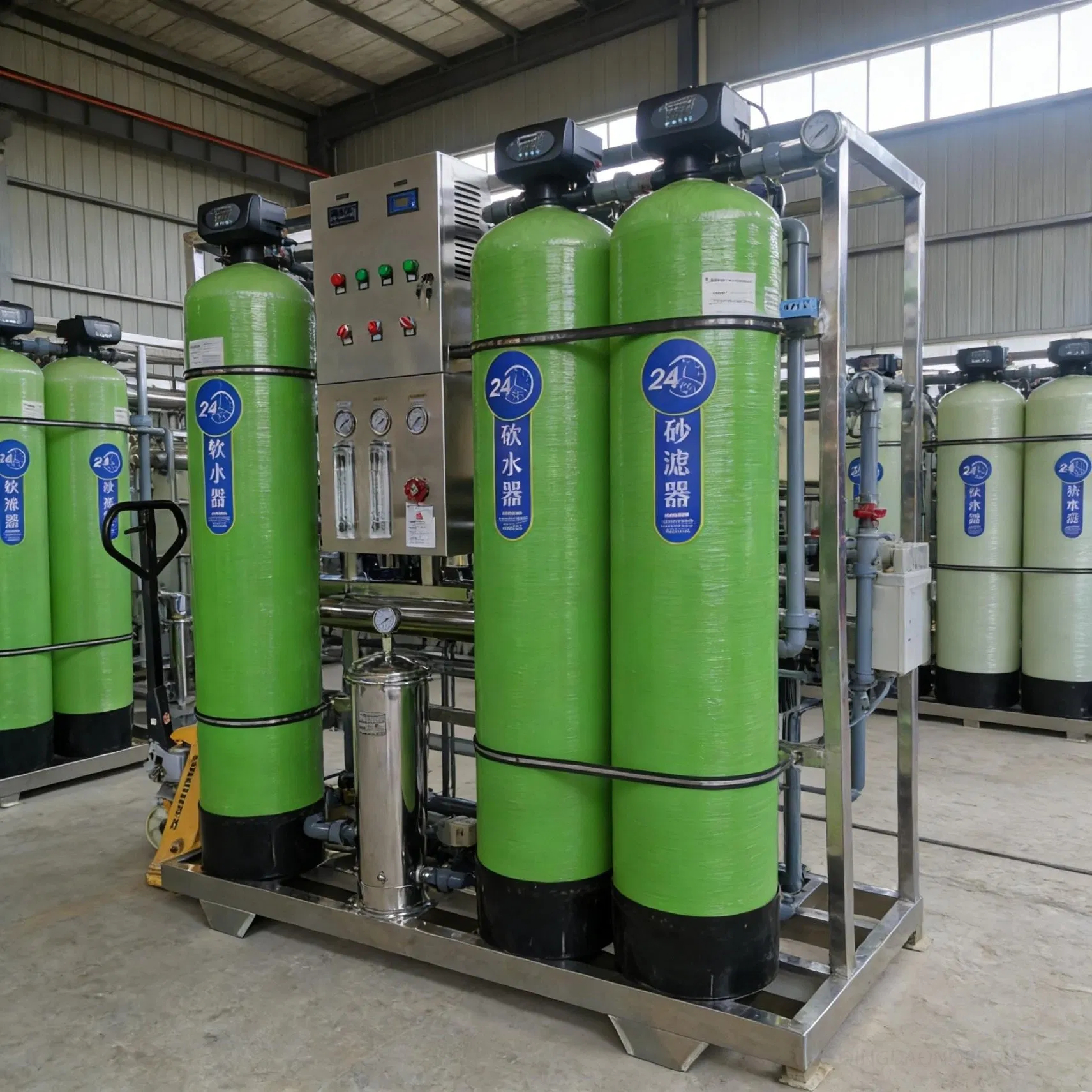

Reverse osmosis (RO) water purification system is an advanced membrane separation technology widely used for producing high-quality purified water. It works by applying pressure to raw water and forcing it through a semi-permeable membrane, which effectively removes dissolved salts, organic substances, bacteria, viruses, and other impurities. The result is clean, safe, and stable water that meets various industrial and domestic standards.
The system is designed with a modular structure, allowing flexible configuration based on different water quality and capacity requirements. It can be customized for small-scale, medium-scale, or large-scale water treatment projects.
| Parameter | Specifications |
|---|---|
| System Type | Reverse osmosis, Ultrafiltration, EDI ultrapure, Seawater desalination |
| Capacity | 250LPH to 5TPH and above (Customizable) |
| Voltage | 220V/380V, 50/60Hz (Customizable) |
| Raw Water TDS | ≤ 40000 PPM |
| Working Temp | 5 — 45°C |
| Product Water Quality | Conductivity < 10μs/cm, TOC ≤ 0.5mg/L |
| Recovery Rate | 50% - 70% |
| Control Mode | Automatic PLC or Manual Control |

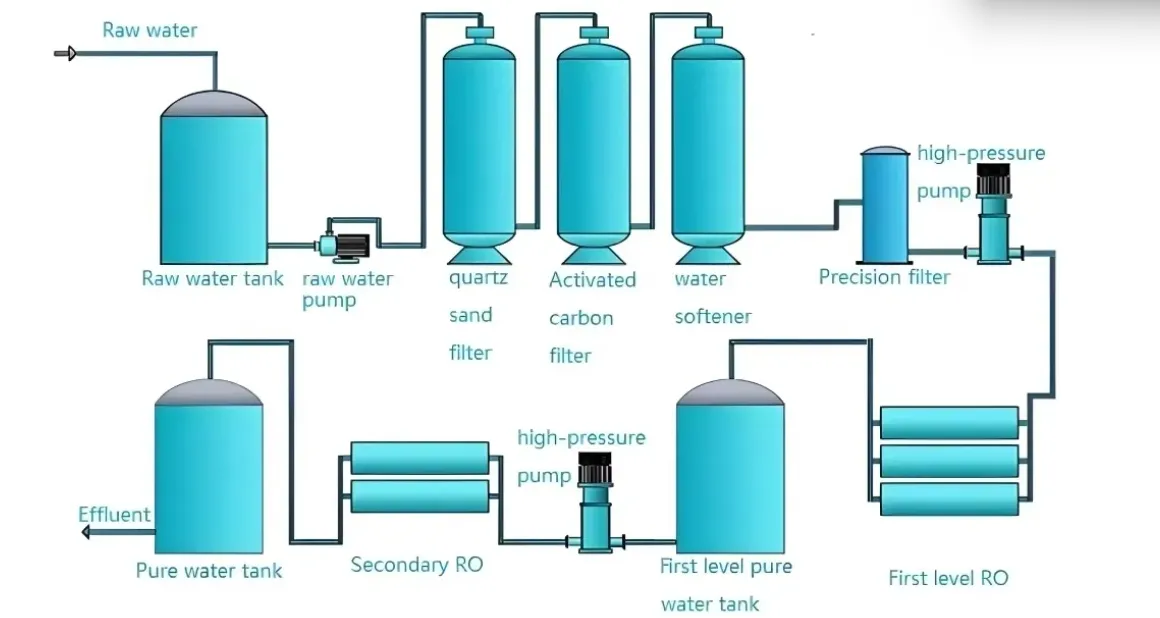

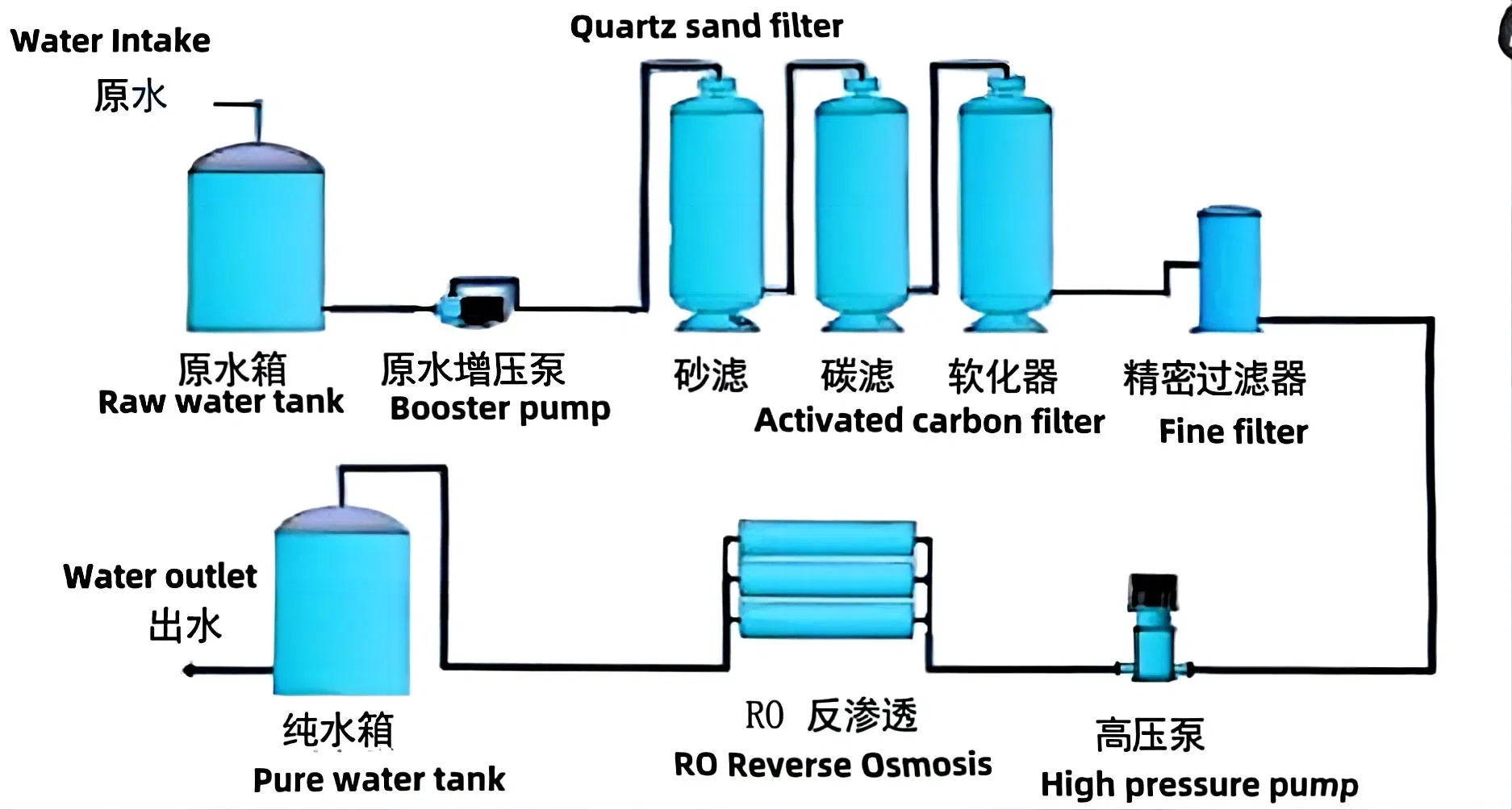

Standard Process Flow:

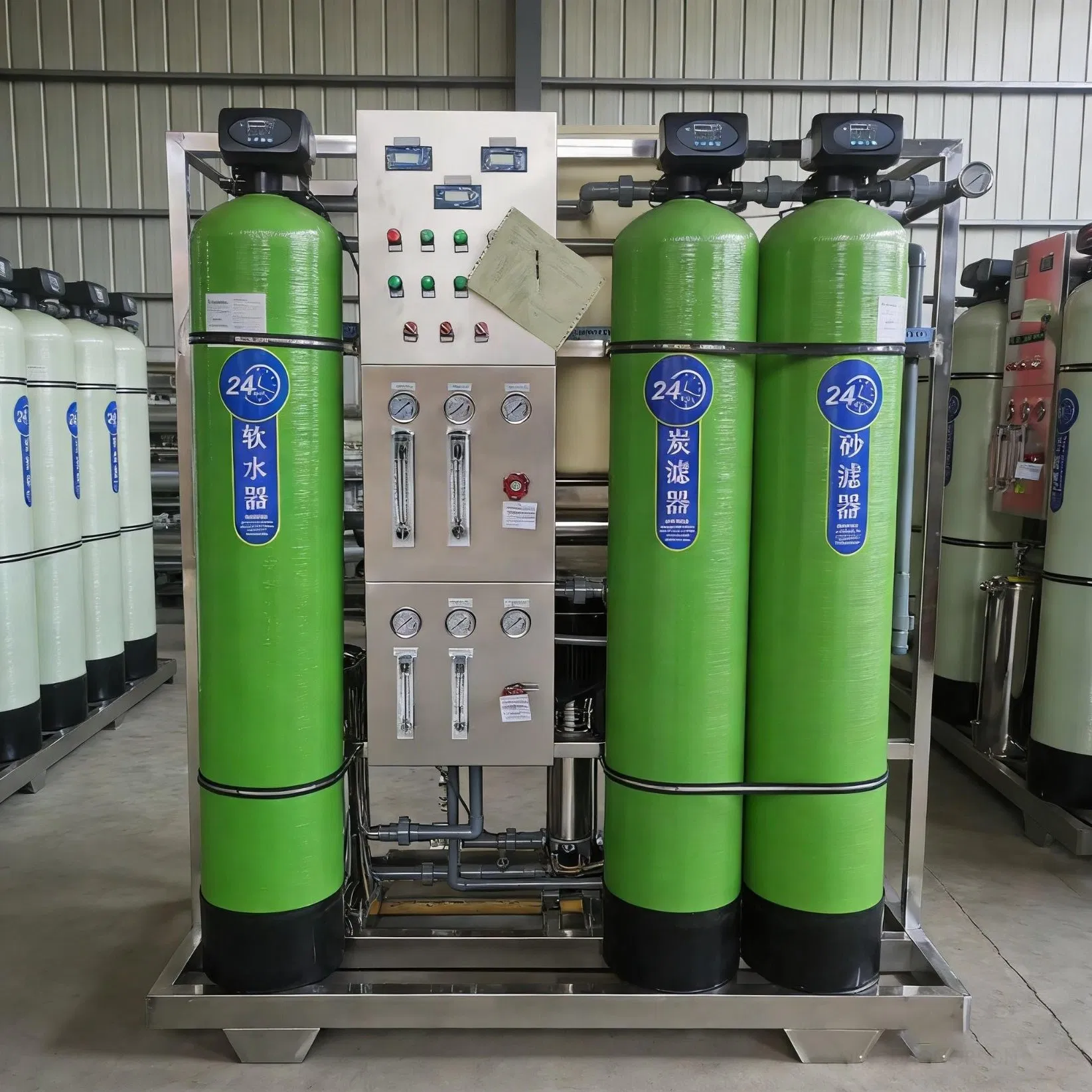

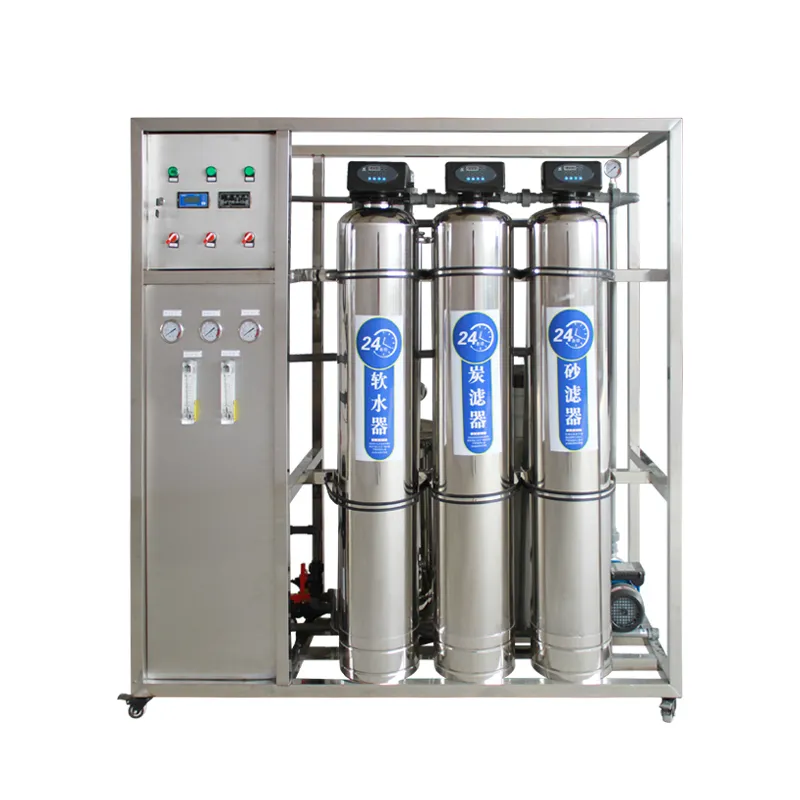

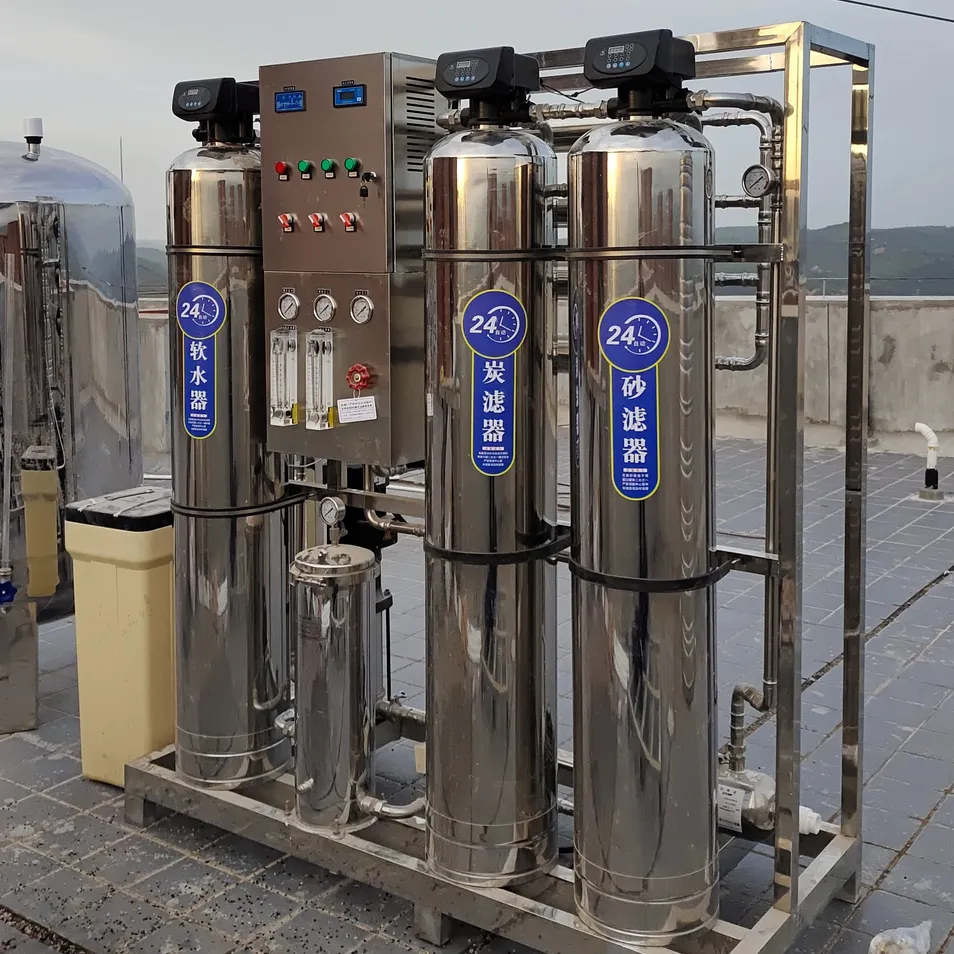

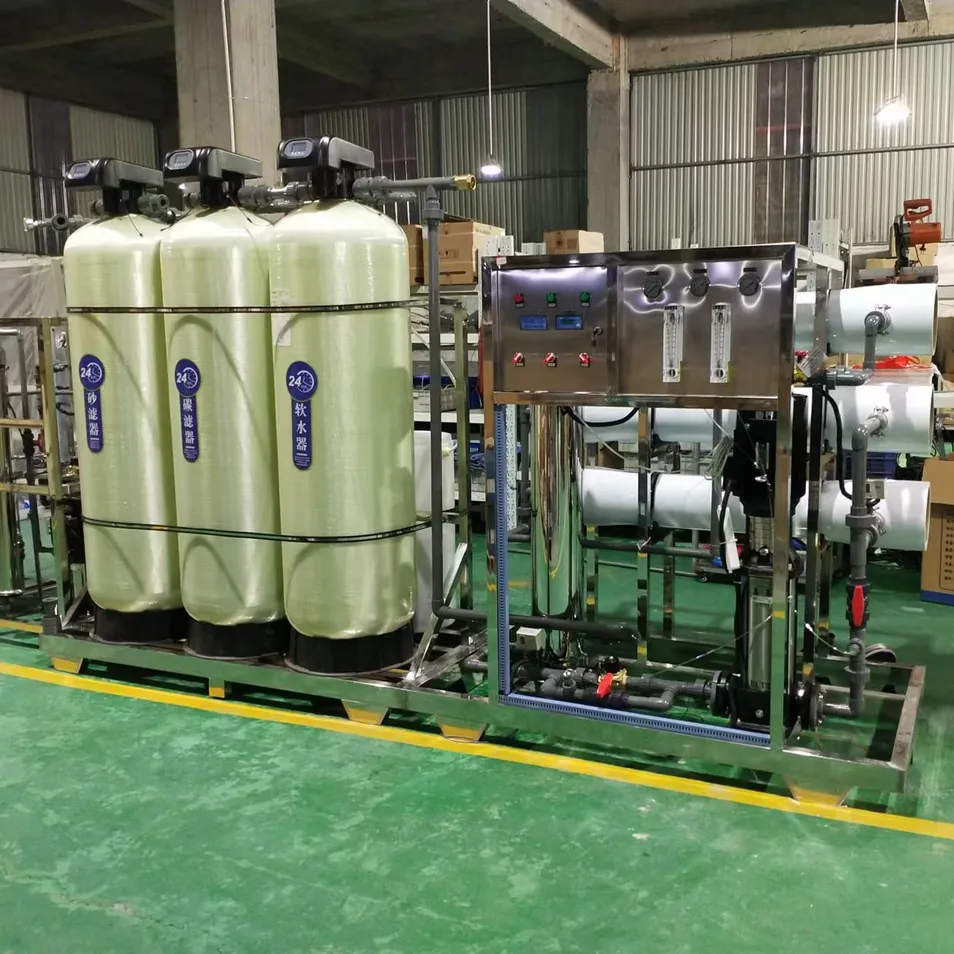

Quartz sand filter → Activated carbon filter → Water softener → High pressure pump → RO system → UV/Ozone disinfection.
Raw water first enters the quartz sand filter to remove suspended particles. The activated carbon filter then removes residual chlorine and organic matter. A softening system reduces calcium and magnesium to prevent scaling. Finally, the high-pressure pump forces water through the RO membrane to achieve high-purity output.
We are a professional manufacturer specializing in environmental protection equipment and water treatment systems. Our focus is on providing comprehensive solutions for wastewater treatment, water purification, and solid waste management. With a modern production facility and an experienced engineering team, we provide customized equipment for municipal, industrial, and agricultural sectors worldwide.
