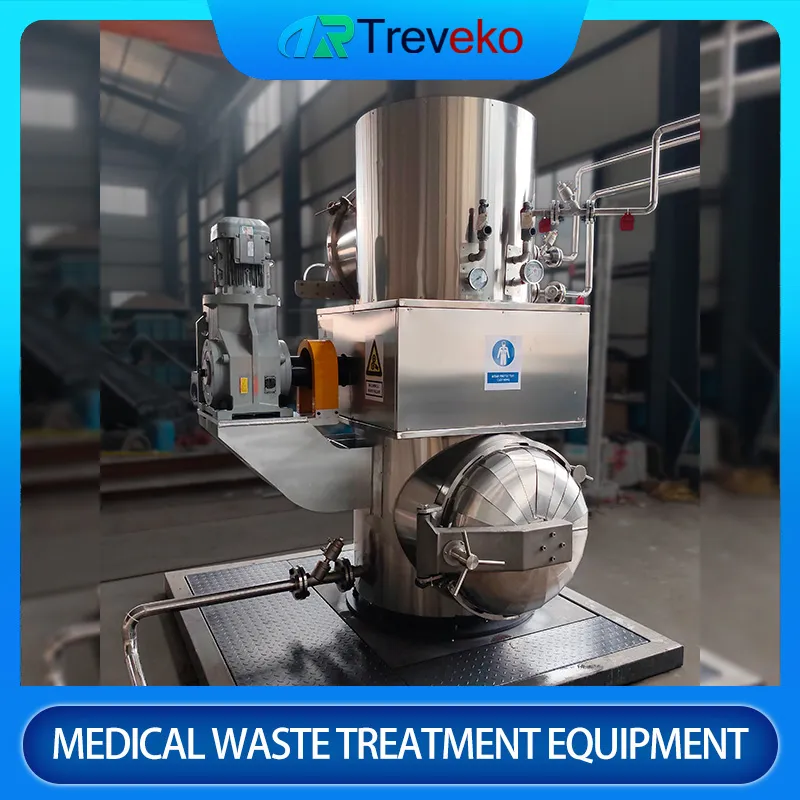

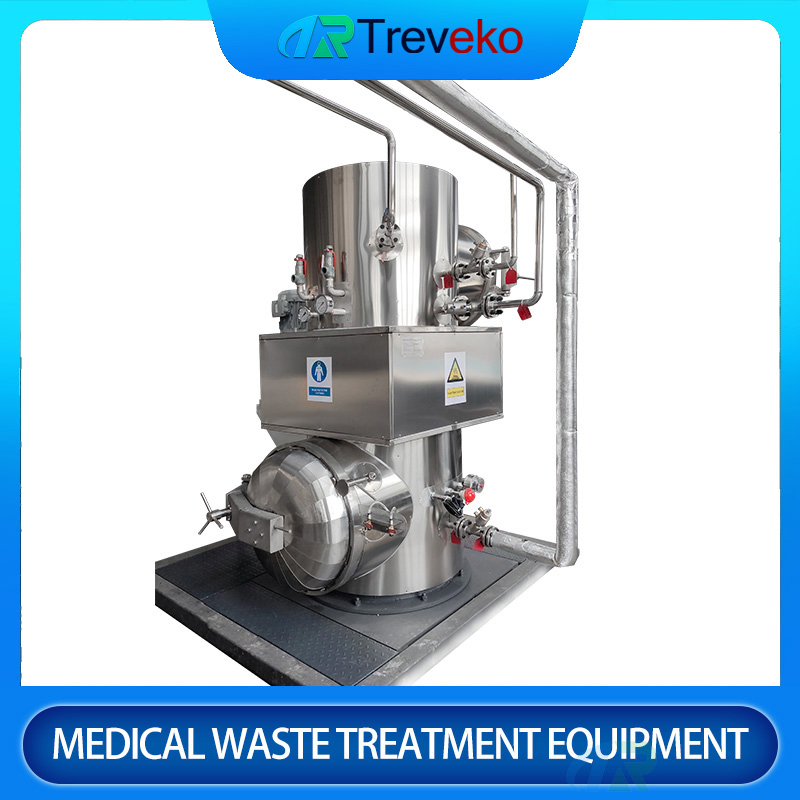

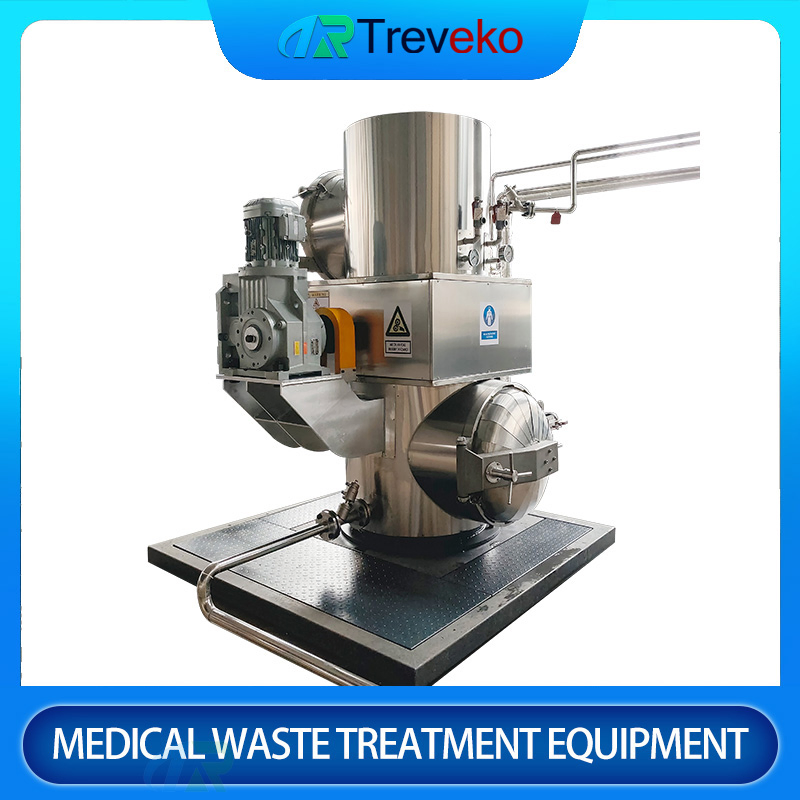

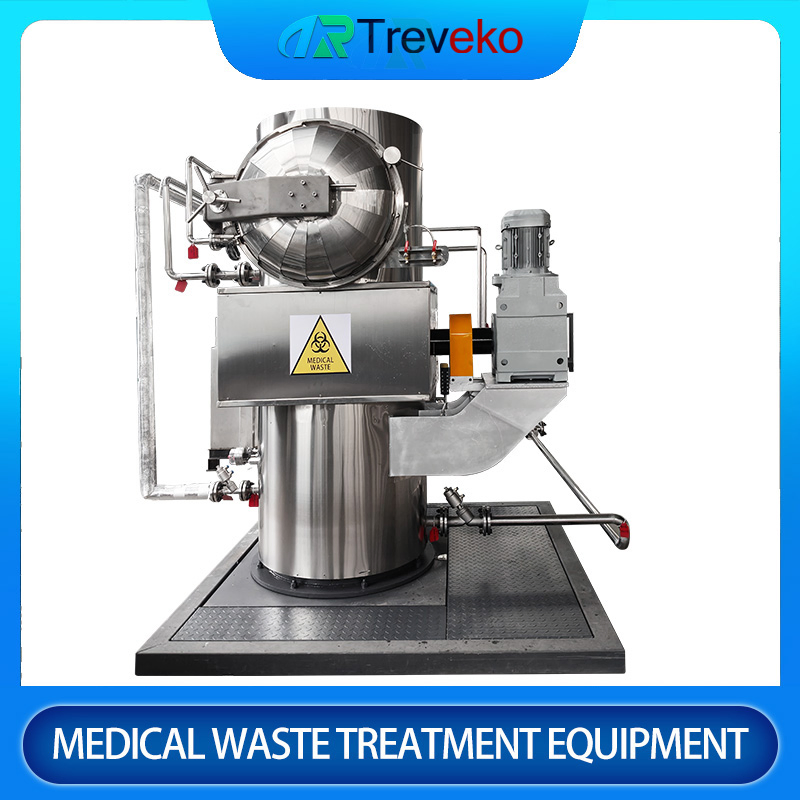

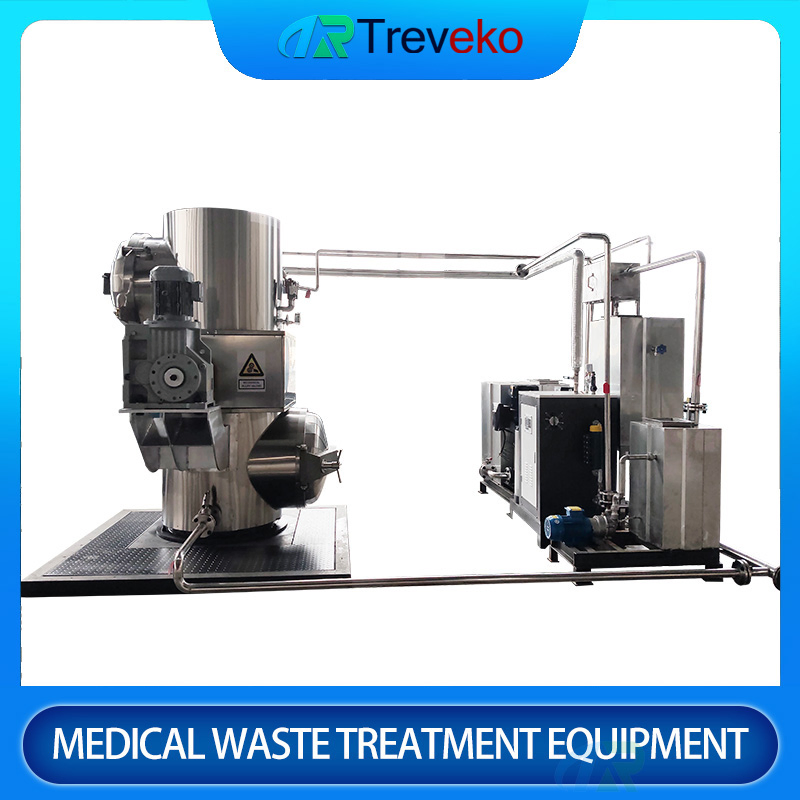

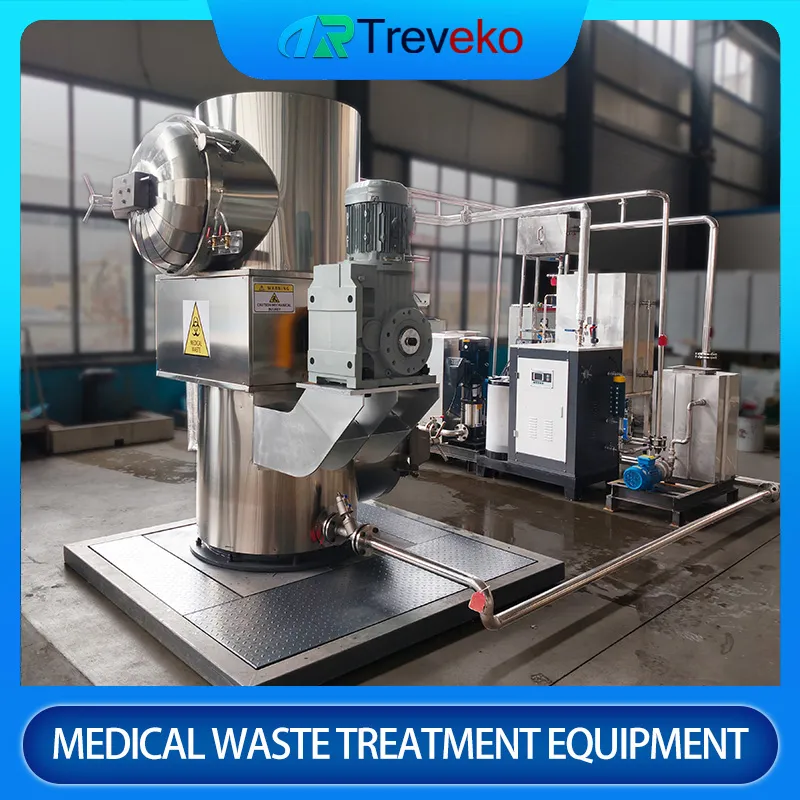

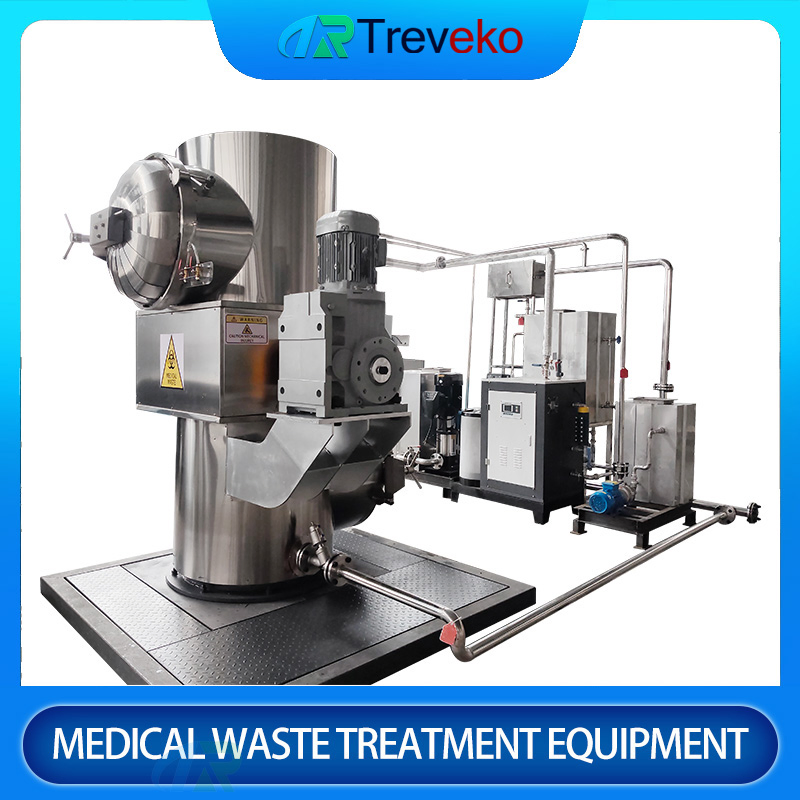

Compact Footprint Vertical Steam Sterilization Equipment for Small Clinics

1 / 5

Compact Footprint Vertical Steam Sterilization Equipment for Small Clinics

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

TR-VWT-60

Condition

New

Certification

ISO, CE

Automation

Automatic

Sterilization Method

High-Temperature Steam

Processing Capacity

60kg/H

Working Temp

134℃

Work Pressure

0.3MPa

Volume Reduction

≥ 85%

Motor Power

7.5 Kw

Power Supply

AC 380V, 3-Phase, 50 Hz

Dimensions

2000*1500*2300

Product Description

🛡️

Effective Sterilization: Utilizes high-temperature, high-pressure saturated steam to penetrate and eliminate pathogenic microorganisms, transforming medical waste into ordinary municipal solid waste.

📋

Regulatory Compliance: Strictly meets WHO standards and technical specifications for high-temperature steam disinfection, ensuring reliable centralized or on-site treatment.

⚙️

Integrated Automated Process: PLC-controlled cycle integrates feeding, shredding, sterilization, cooling, and drying with real-time monitoring via touchscreen.

📉

Volume & Weight Reduction: Robust shredding system reduces waste volume by ≥85% and weight by ≥15%, lowering transportation and disposal costs.

Core Features

User-Friendly Smart Management: Intuitive HMI for mode selection, data tracking, and cycle report generation via integrated printer.

Compact Skid-Mounted Design: Pre-assembled modular frame requires only site connection to power and water, simplifying deployment.

Safety & Reliability: Includes mandatory safety interlocks, waste gas HEPA filtration, and efficient insulation.

Technical Specifications

System Unit	Item	Technical Parameters	Notes
Processor Parameters	Batch Capacity	25 - 30 kg	Per cycle
	Sterilization Method	High-Temperature Steam	134℃
	Inactivation Level	8 Log10	Spore microorganisms
	Volume Reduction	≥85%	High efficiency
Crushing System	Power	7.5kw	Robust motor
	Blade Material	D550 imported alloy steel	High strength
	Action	Automatic reverse rotation	Prevent clogging
Control System	PLC & HMI	Touch screen interface	Remote monitoring enabled

Process Flow

🔄

Step 1: Waste is fed into the sterilizer; the shredding system breaks material into particles. Pre-vacuum removes air.

🔥

Step 2: Saturated steam is introduced for high-pressure sterilization. Final vacuum cycles dry the waste before removal as sterile municipal waste.

Application & Facility

Frequently Asked Questions

Q1: What types of medical waste can this equipment treat?

The system is specifically engineered for infectious and sharp waste. It is not intended for pharmaceutical, chemical, or pathological waste.

Q2: What is the volume and weight reduction rate?

The integrated shredding system effectively reduces waste volume by ≥85% and weight by ≥15% through sterilization and drying processes.

Q3: Is the operation fully automatic?

Yes, the system features a fully automated PLC-controlled cycle that manages shredding, sterilization, cooling, and drying with minimal manual intervention.

Q4: Can the equipment be customized?

Yes, we support customization of core parameters such as processing capacity, dimensions, and control system configurations to meet specific site requirements.

Q5: What are the installation requirements?

The equipment uses a skid-mounted design, meaning it is pre-assembled. You only need to provide connections for power, water, and drainage on-site.

Q6: How is the sterilization efficacy verified?

The equipment achieves a spore microorganism inactivation level of 8 Log10 using high-temperature steam at 134°C, compliant with WHO and national standards.
