Basic Information
Max.Capacity
100-200 L/min
Structure
Single-stage Pump
Application
Centrifugal Pump / Irrigation

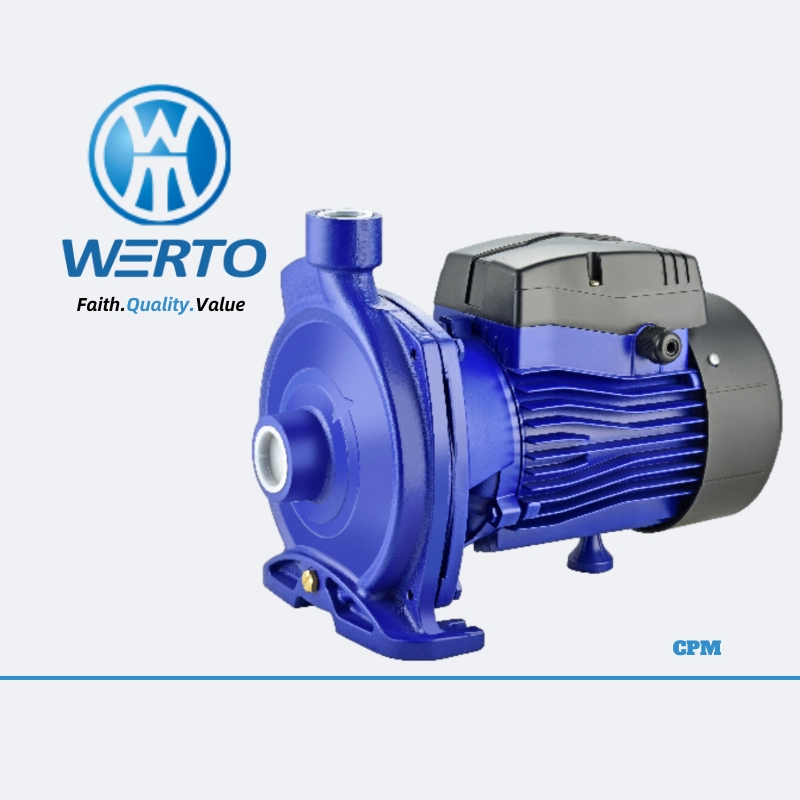

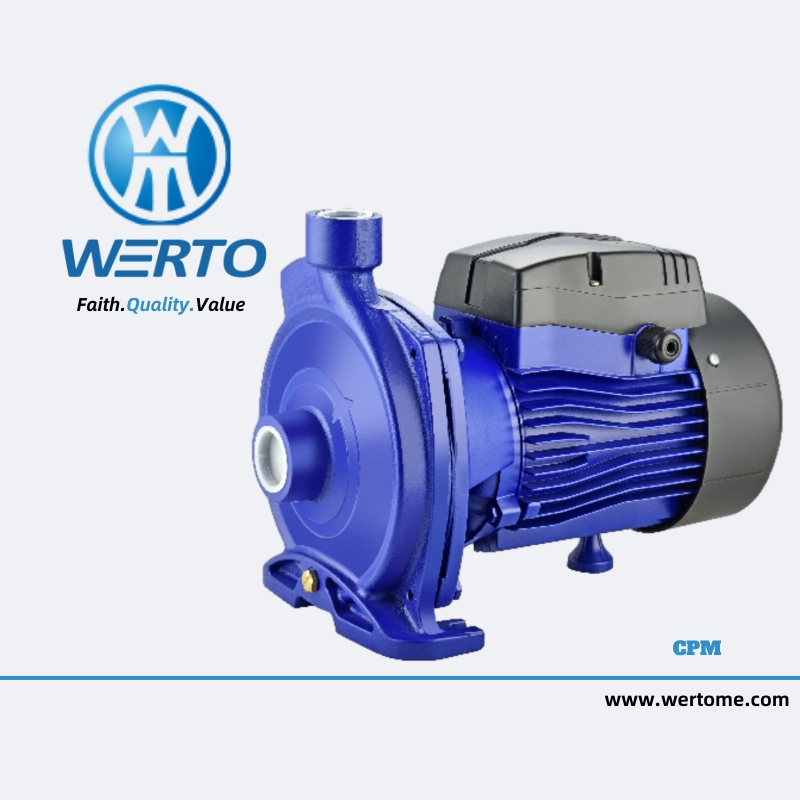

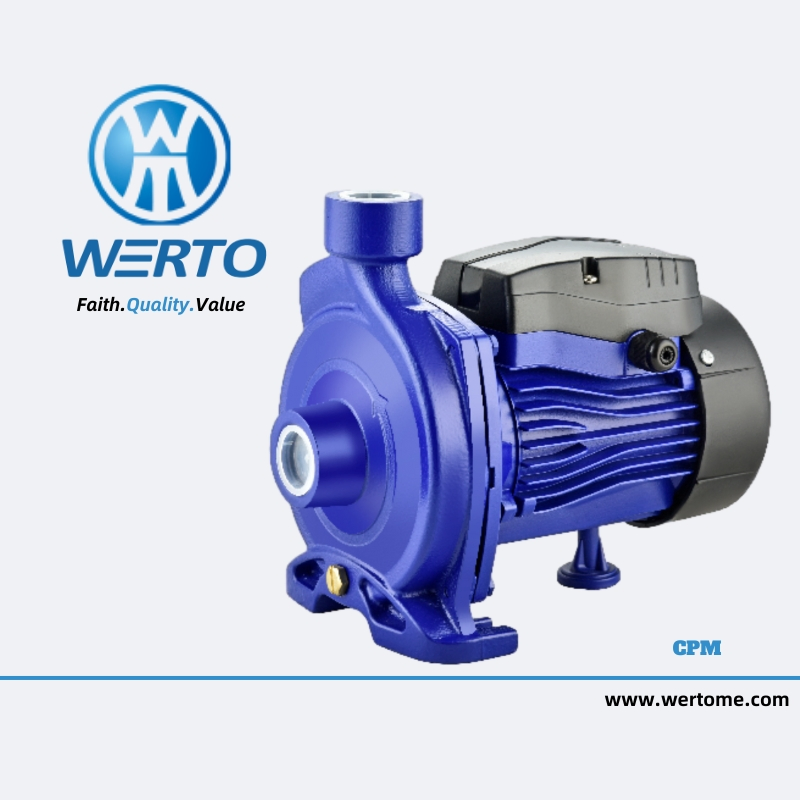

Product Description
💧
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. They are reliable and easy to use, widely used in domestic and civil applications such as water distribution with pressure tanks, liquid transfer, and irrigation for gardens and orchards.

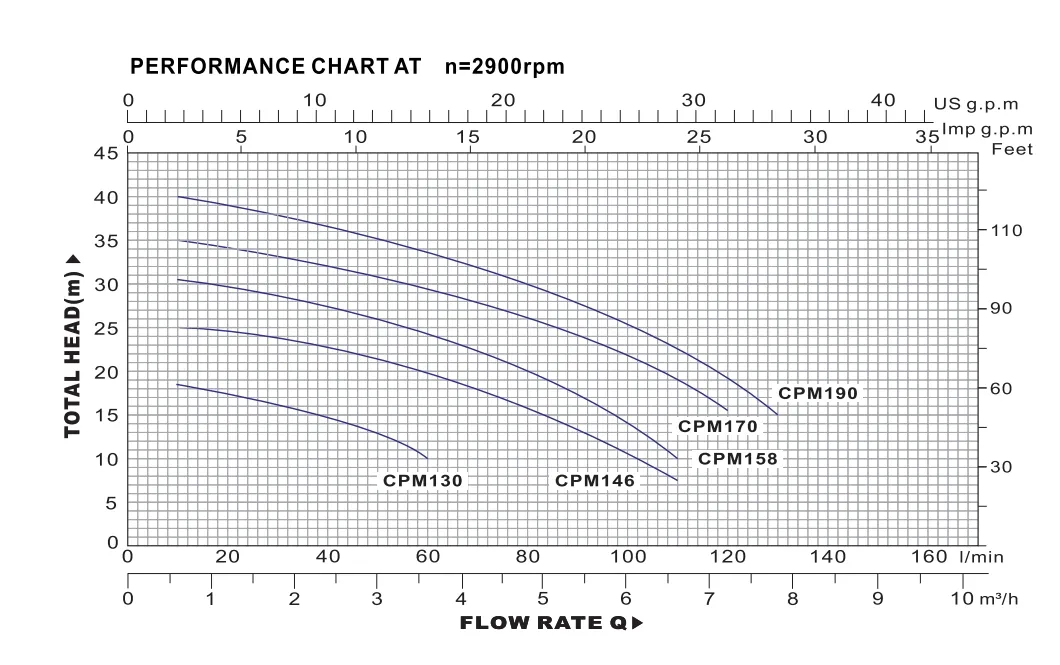

| MODEL |
INLET/OUTLET |
KW |
HP |
Max H (m) |
Max Q (l/min) |
| CPM130 | 1''×1'' | 0.37 | 0.5 | 20 | 60 |
| CPM146 | 1''×1'' | 0.55 | 0.75 | 26 | 110 |
| CPM158 | 1''×1'' | 0.75 | 1 | 32 | 110 |
| CPM170 | 1.25''×1'' | 1.1 | 1.5 | 36 | 120 |
| CPM190 | 1.25''×1'' | 1.5 | 2 | 41 | 130 |
Motor Features & Conditions
- Insulation: Class B
- Protection: IP44
- Service: Continuous S1
- Motor Type: Two-pole induction motor
- Suction Lift: Up to 8m
- Liquid Temperature: Up to 60ºC
- Ambient Temperature: Up to 40ºC

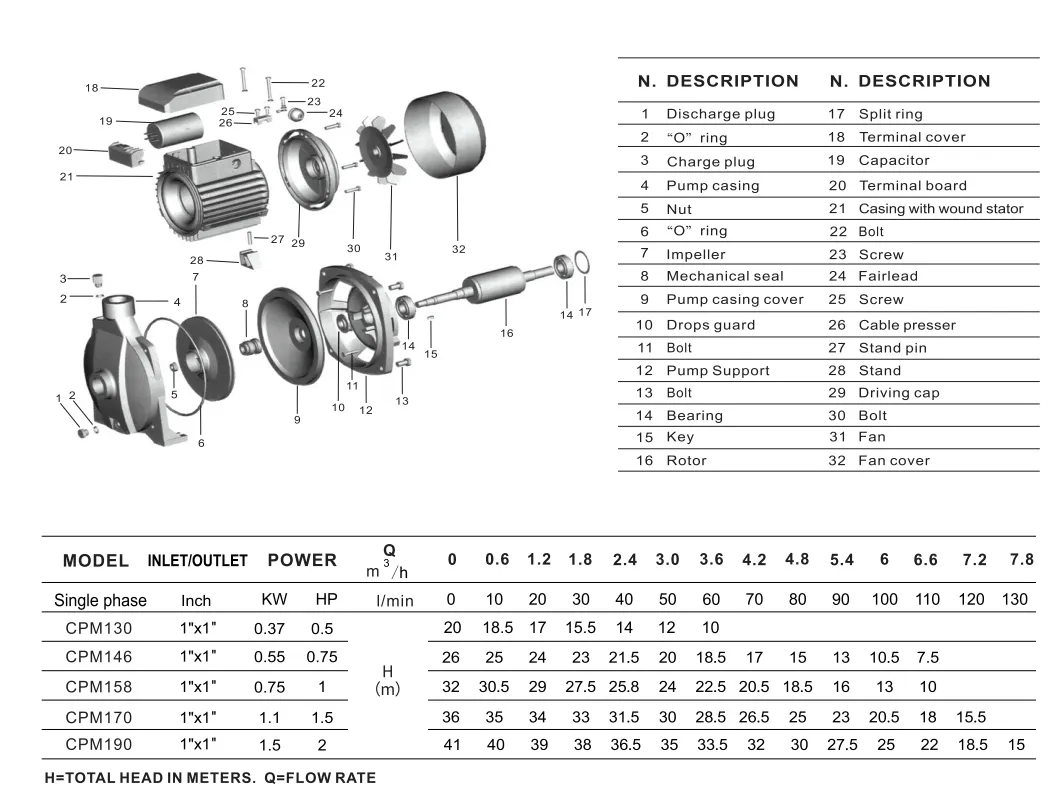

Technical Construction
| Component |
Material Characteristics |
| Pump Body | Cast Iron |
| Pump Support | Aluminum |
| Motor Housing | Aluminum |
| Impeller | Brass (AISI304 SS on demand) |
| Shaft | Carbon Steel (AISI304 SS on request) |
| Mechanical Seal | Ceramic / Graphite |

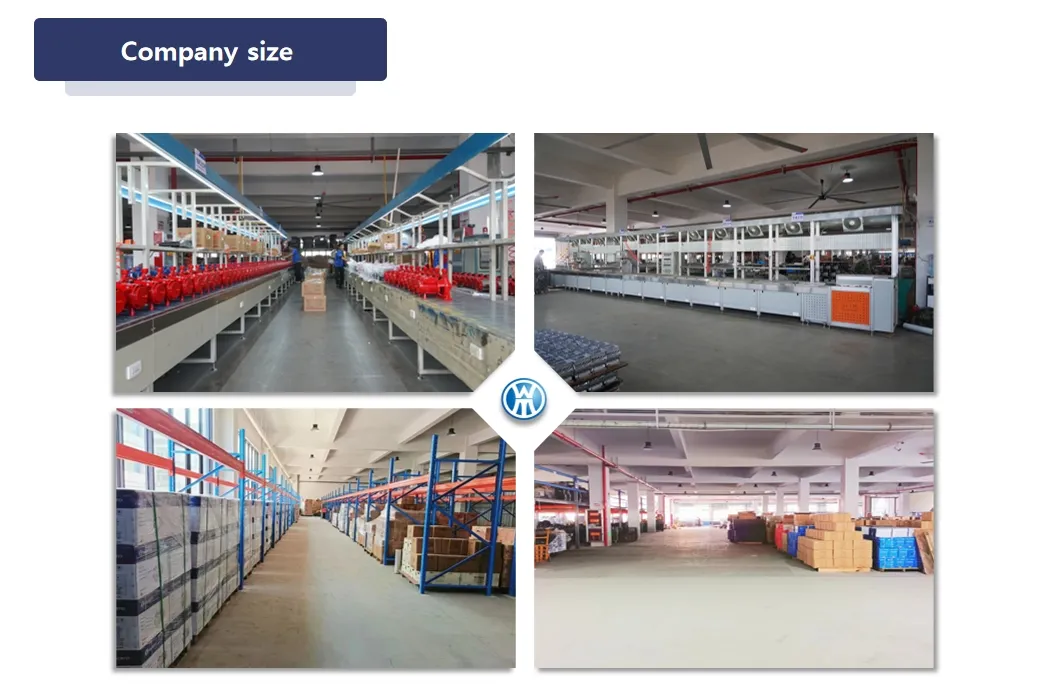

Manufacturing Excellence
Frequently Asked Questions
1. What is the lead time for orders?
Delivery usually takes 25-30 days after receiving the deposit.
2. What are the payment terms?
We accept T/T, L/C, D/A, D/P and other standard international payment methods.
3. What kind of warranty is provided?
We offer a one-year warranty for surface pumps and deep well pumps, and a two-year warranty for circulating pumps.
4. Do you support OEM brands?
Yes, we welcome OEM cooperation to help you build your own brand.
5. What certifications do these pumps have?
Our products are certified with GS, TUV, CE, ROHS, and ISO9001 standards.
6. What is the MOQ (Minimum Order Quantity)?
Trial sample orders are accepted to help you test the quality of our pumps.
