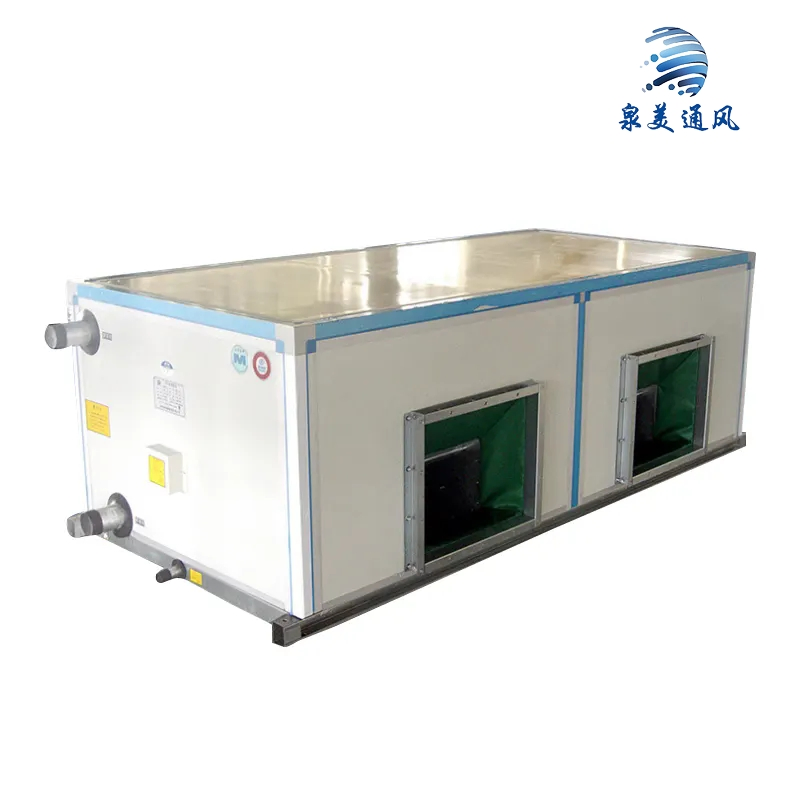

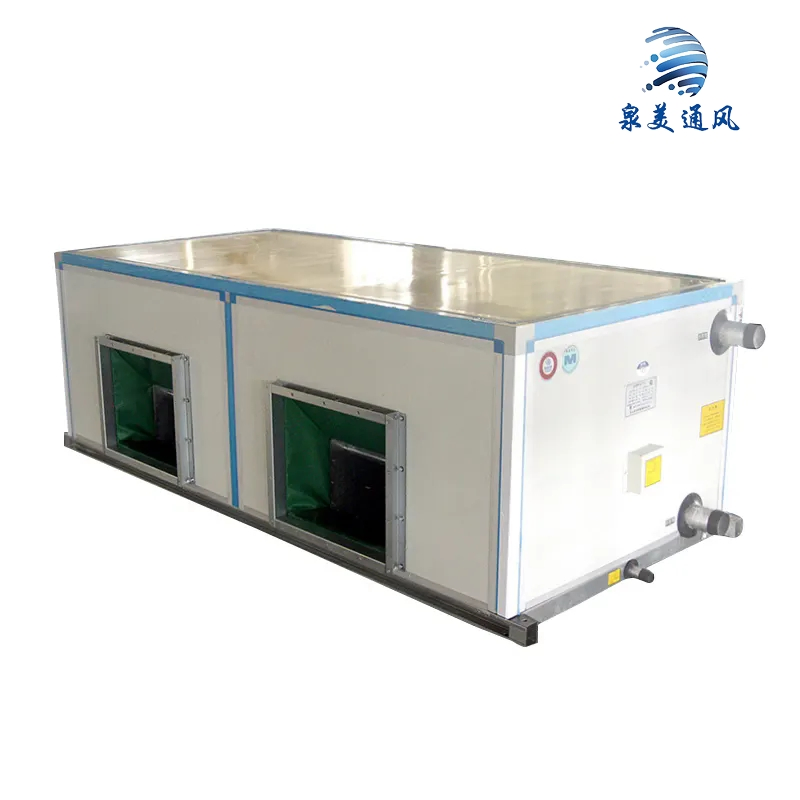

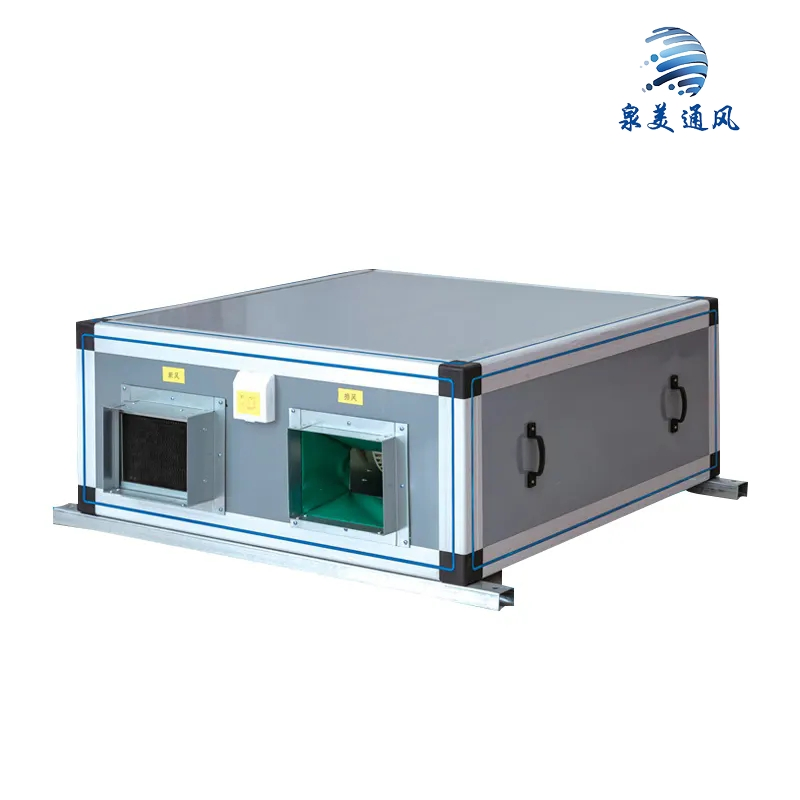

Customization Industrial Air Conditioner Ventilation System Ceiling Mount Ahu Air Handler Units

Customization: Available
After-sales Service: Online Service
Warranty: 1year

Product Description

Basic Information
Type
Air Handling Unit
Air Tube Material
Galvanized Sheet
Operating Voltage
380/400 VAC
Application Fields
Aerospace
Mounting
Floor Standing
Lifetime
10~15 years
Certification
ISO, CE
Water Flowing
8.3m3/H
Function
Cooling Heating
Cooling Capacity
1.8-12.6kw
Rated Cooling Capacity
47.52kw
HS Code
8421391000
Product Description

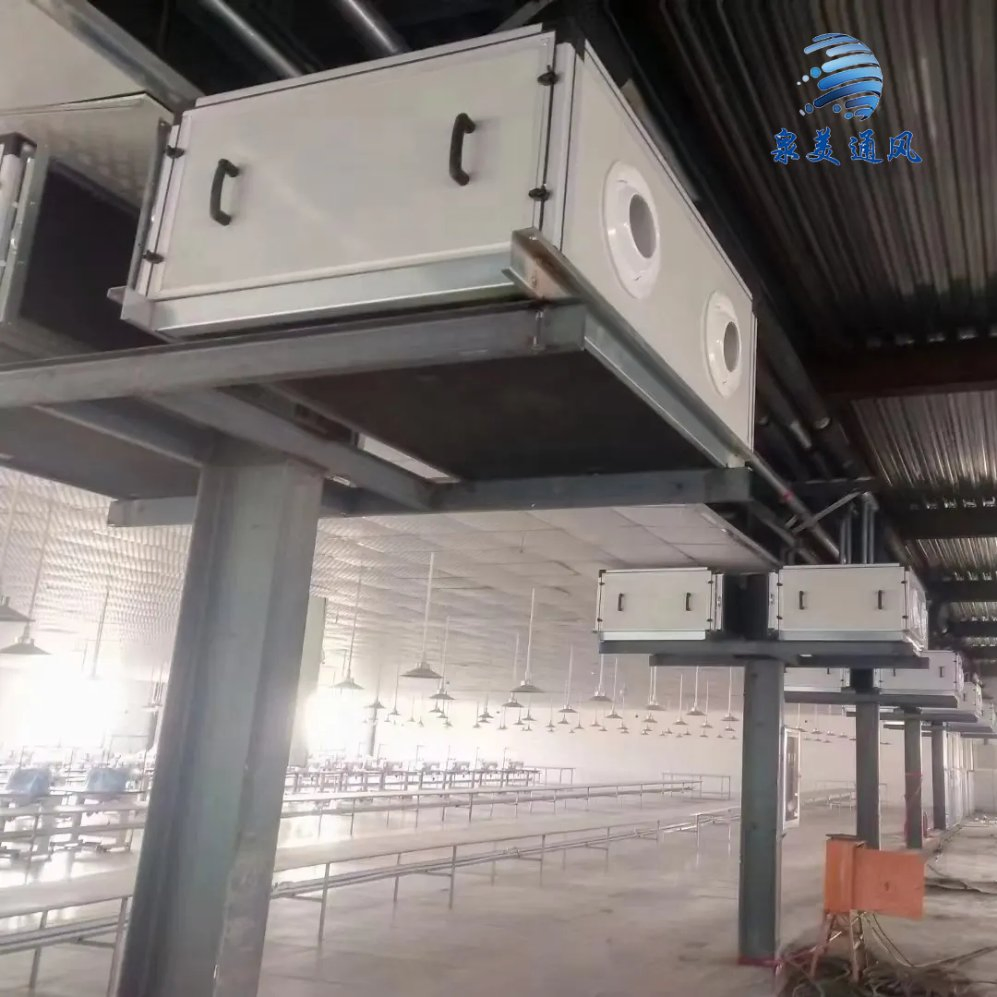

Industrial Air Conditioner Ventilation System
Ceiling Mount Ahu Units
Quality Assurance 1 Year
Operation Language Customizable
Product Features
Low-noise motor
Low-speed and large-volume fan
Maintenance-free fan motor
Air conditioning outdoor unit

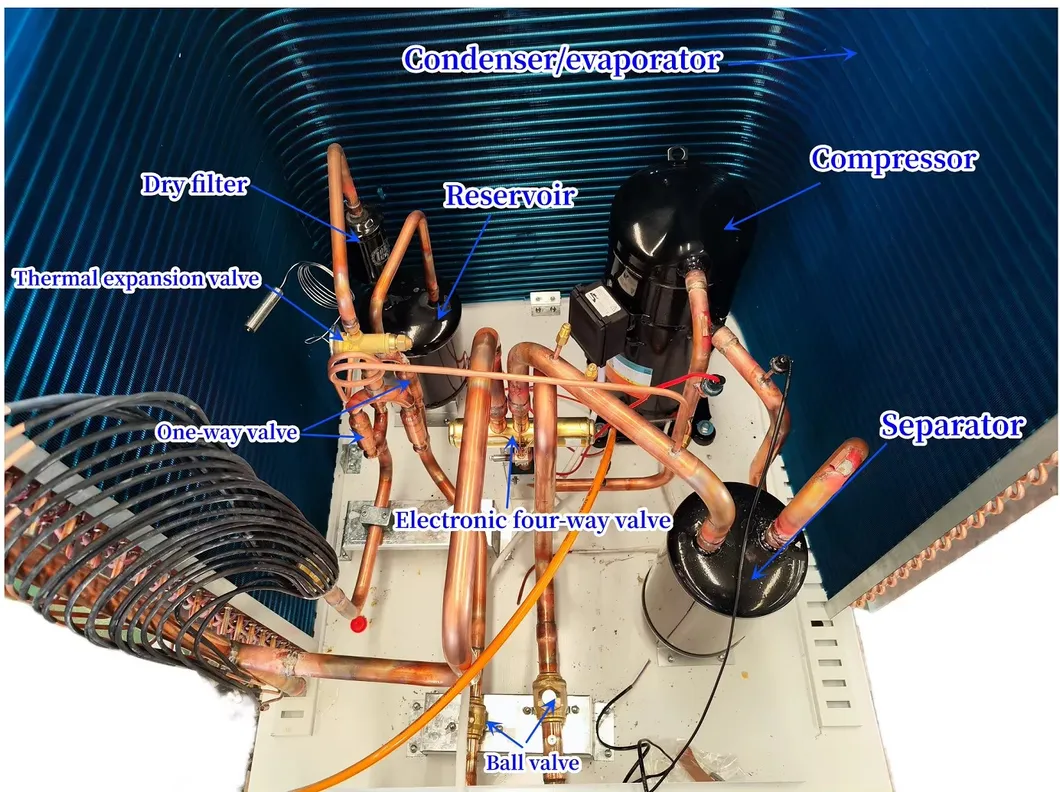

Air Conditioning Outdoor Unit

1. Internationally renowned brand compressor (Copeland/Panasonic).
2. Ultra-low temperature host available for extremely cold climates.
3. Provides reliable cold and heat sources; supports existing central air conditioning systems.

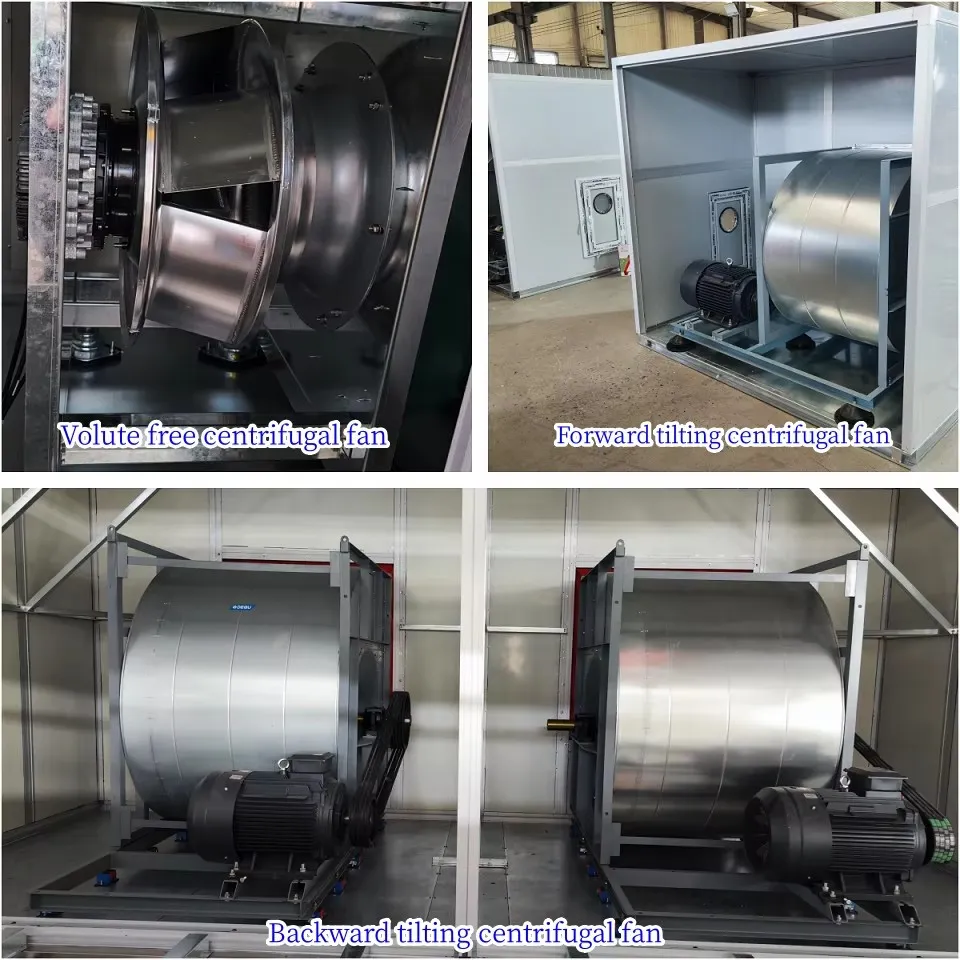

Fan Section

1. Variety of air volume, pressure, and power options.
2. Configurable with EC brushless, variable frequency explosion-proof, forward or backward tilt specs.
3. Customized production according to specific user requirements.

Fan section
Constant temperature and humidity

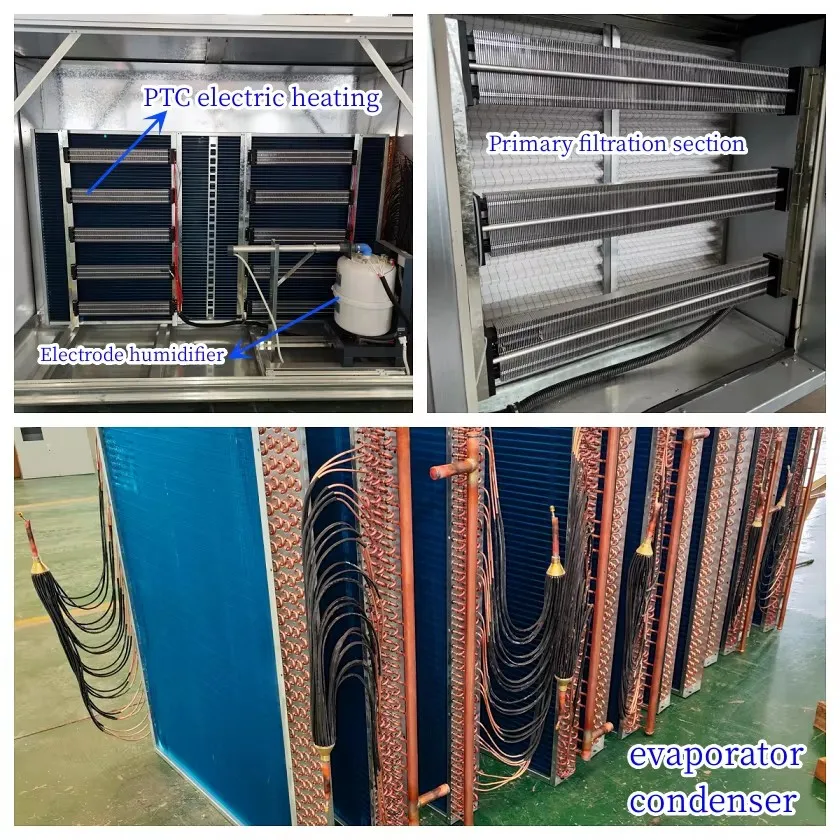

Constant Temp & Humidity Section

1. Optimized condensers and evaporators for precise cooling capacity.
2. Heating: PTC electric, hot water, steam, or natural gas options.
3. Humidification: Electrode, wet film, high-pressure micro mist, or ultrasonic options.

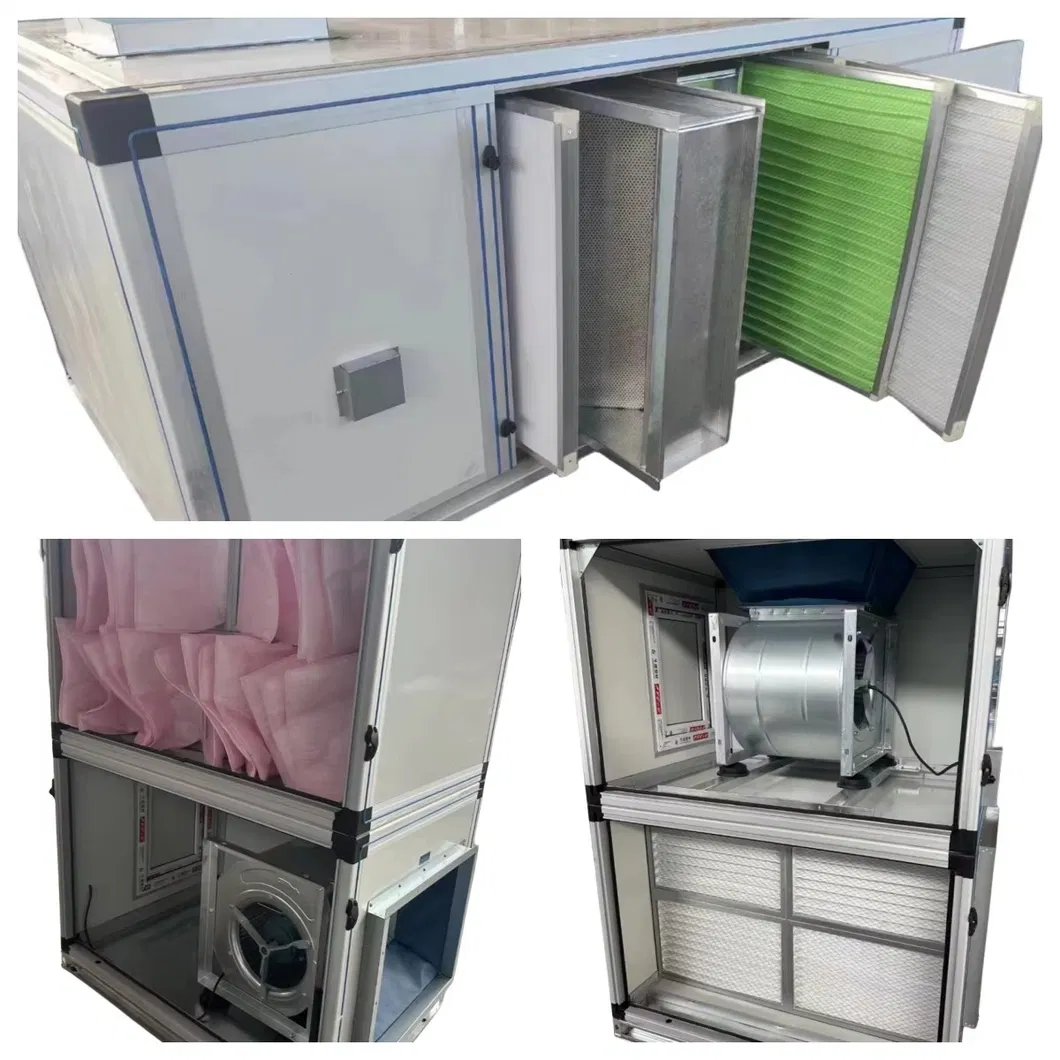

Purification Function Section

1. Multi-stage filtration: Initial G4 + Medium F8 + High-efficiency H13.
2. Specialized options: Electrostatic precipitator, activated carbon, UV sterilization, and ozone sterilization.

Purification section

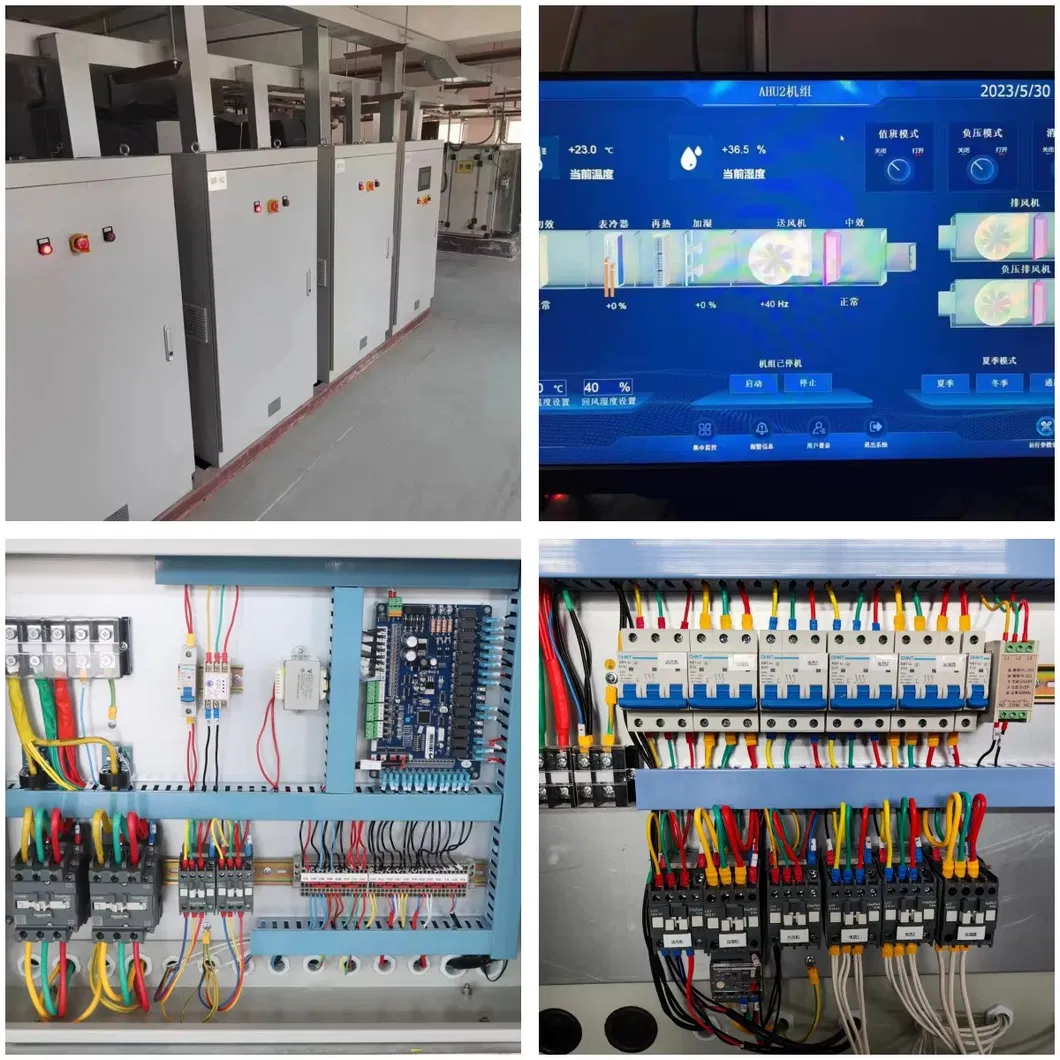

Control system

Intelligent Electronic Control

1. PLC and Single-chip microcomputer control systems.
2. Comprehensive protection: Motor overload, windless power outage, and leakage protection.
3. Modbus protocol & 485 interface for integrated automated control.

Product detail 1
Product detail 2
Product detail 3
Product detail 4

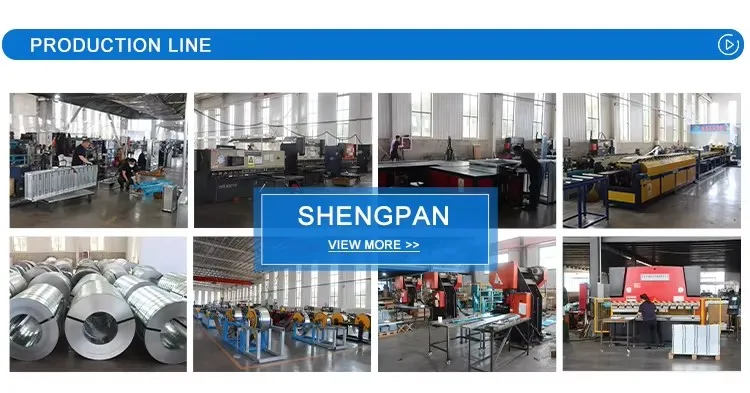

Product detail 5
Product detail 6
Frequently Asked Questions
What is the use of the assistant tank in the system?
A special quality assistant tank is designed to control the mixing of hot and cold water. It increases system efficiency and eliminates the need for additional air vents, reducing plumbing costs.
How does the auxiliary tank work?
The Assistant Tank works mechanically without manual operation, avoiding water overflow during refilling. It ensures the water heater is always full and ready for use.
What kind of maintenance is required?
The systems require minimal maintenance. Regular cleaning of the collector and tank is recommended, along with an annual professional check-up to ensure maximum efficiency.
How are the products packaged for shipping?
FCL (Full Container Loading) uses inner poly bags with outer export cartons. LCL (Less than Container Loading) utilizes plywood cases and carton packing for extra protection.
Can the system be customized for different roof types?
Yes, all units are designed according to market requirements. Engineers can design the specific system needed to match different architectural and roof configurations.
What is your inspection procedure?
We perform a 100% self-inspection on all units before packing to ensure quality and performance standards are met.
