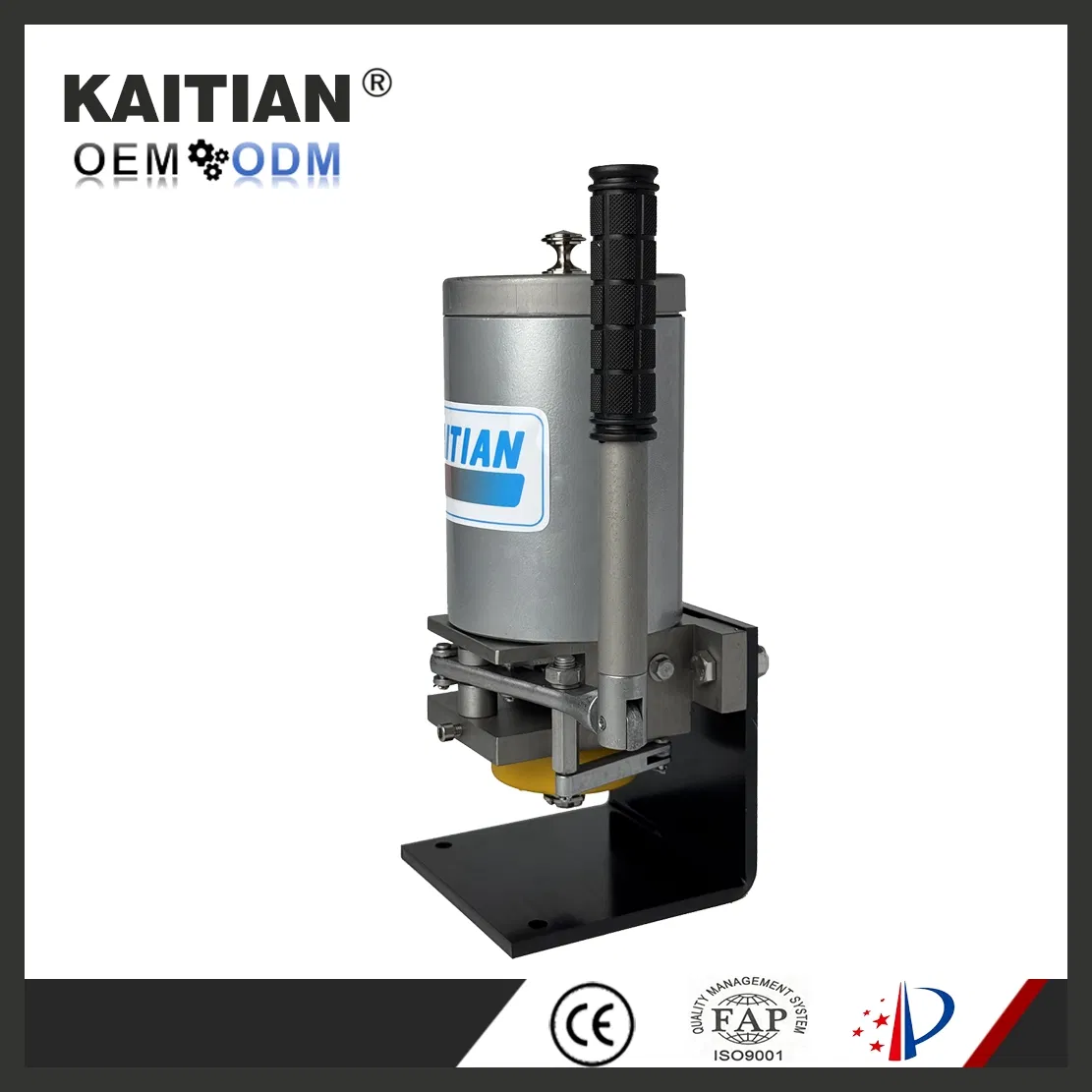

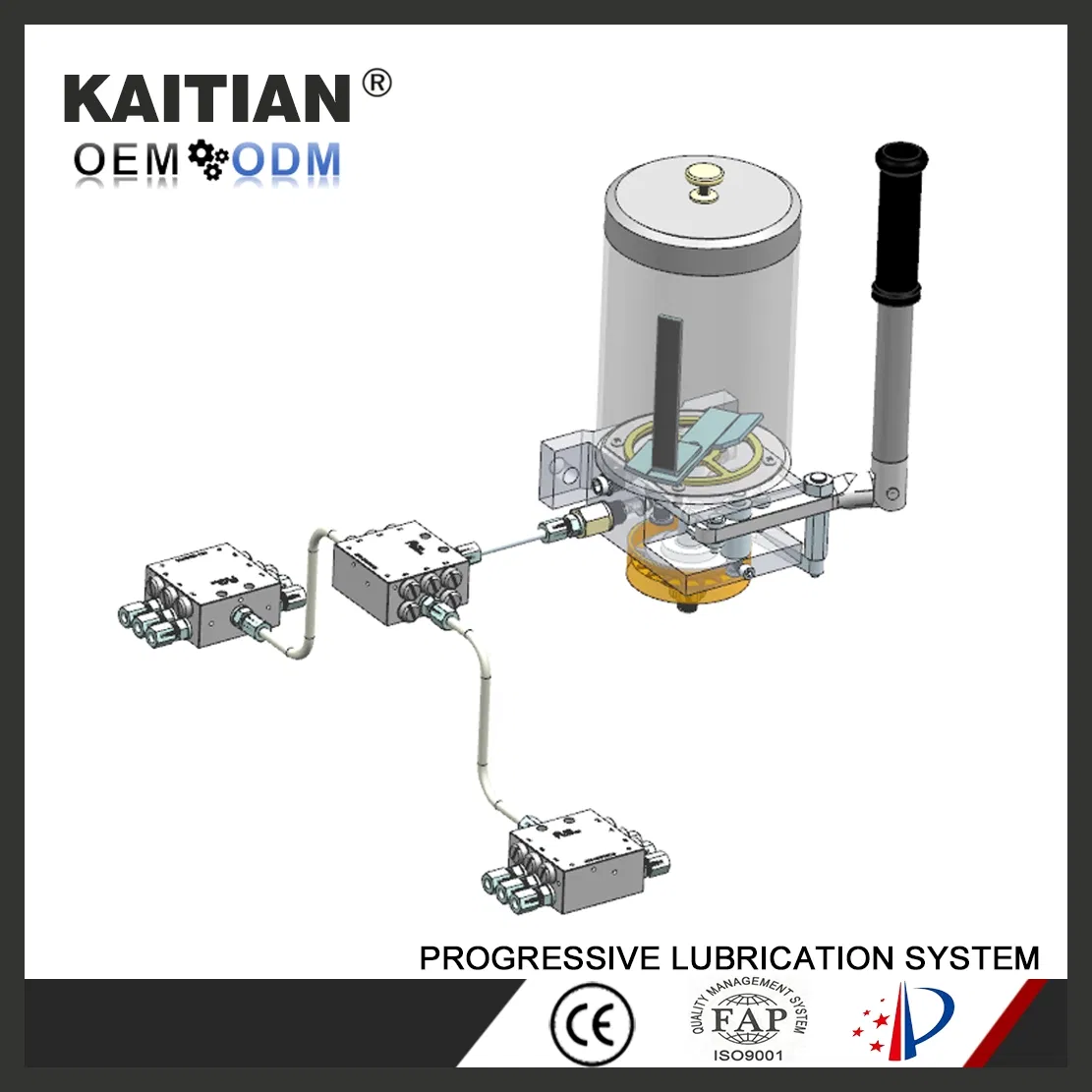

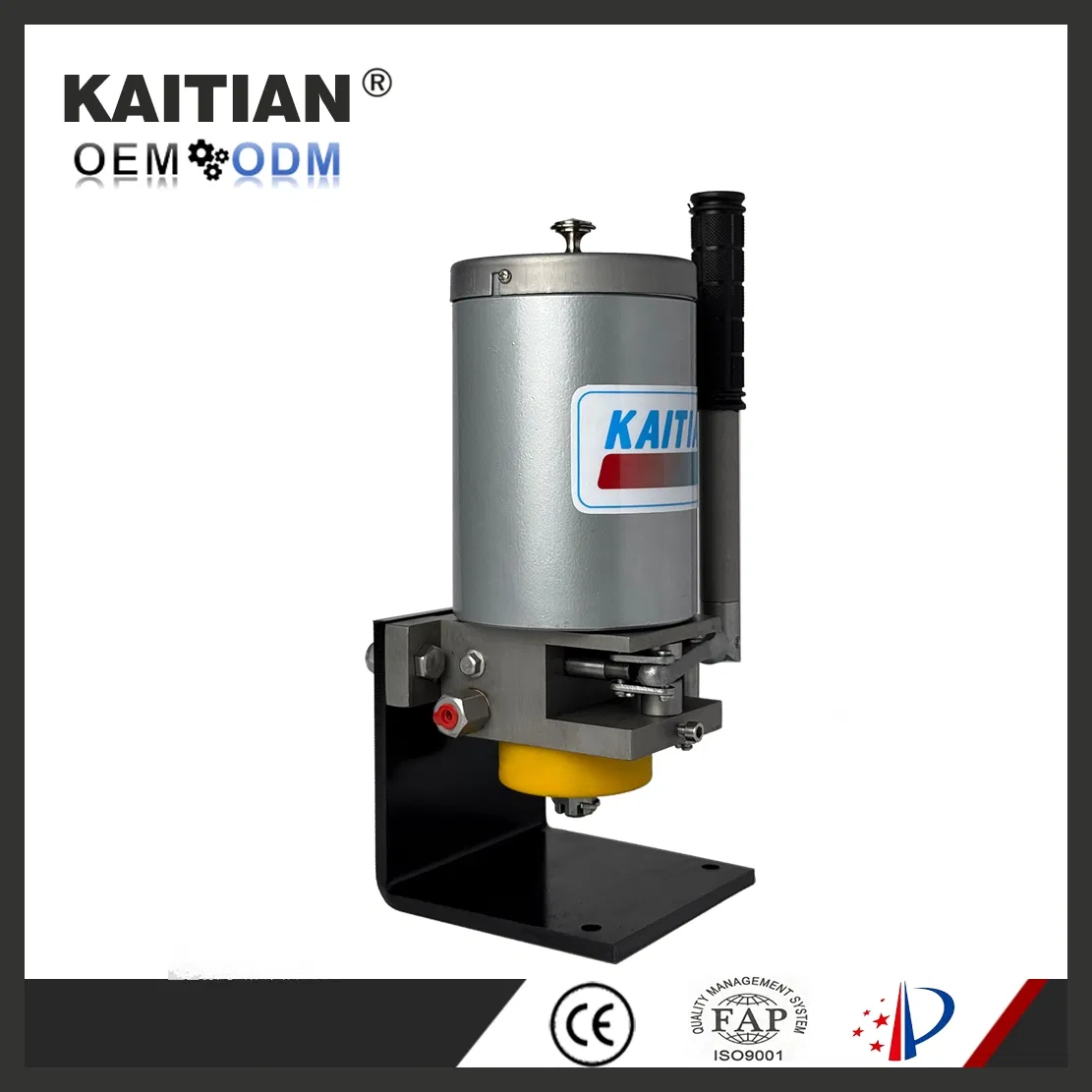

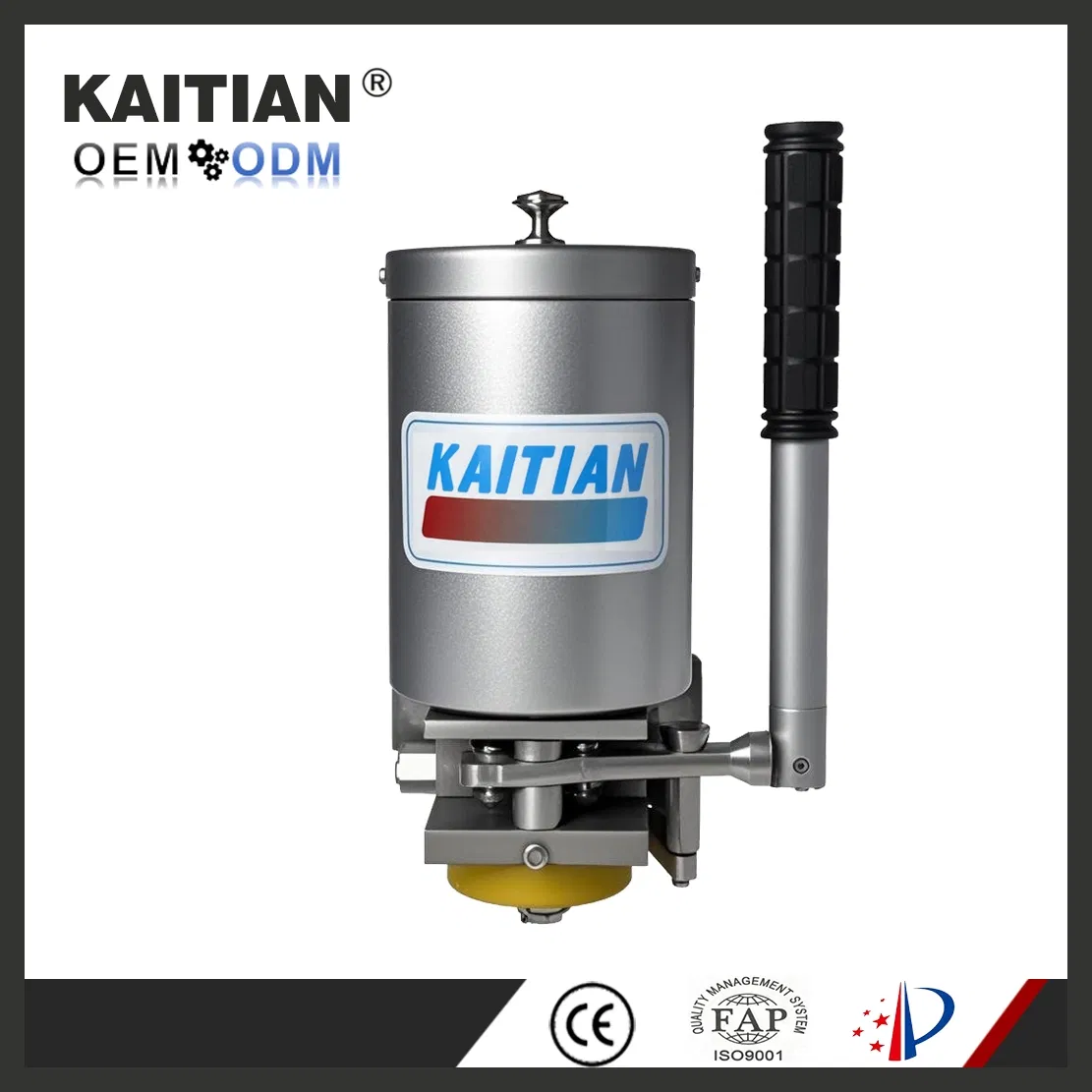

Customized Manual Pump High Pressure Progressive Lubrication System Grease Lubrication Pump Used on Coal Mine Machinery Innovative Hydraulic Pump
Customized Manual Pump High Pressure Progressive Lubrication System Grease Lubrication Pump Used on Coal Mine Machinery Innovative Hydraulic Pump
Customized Manual Pump High Pressure Progressive Lubrication System Grease Lubrication Pump Used on Coal Mine Machinery Innovative Hydraulic Pump
Customized Manual Pump High Pressure Progressive Lubrication System Grease Lubrication Pump Used on Coal Mine Machinery Innovative Hydraulic Pump
Customized Manual Pump High Pressure Progressive Lubrication System Grease Lubrication Pump Used on Coal Mine Machinery Innovative Hydraulic Pump
1 / 5
Customized Manual Pump High Pressure Progressive Lubrication System Grease Lubrication Pump Used on Coal Mine Machinery Innovative Hydraulic Pump
Customized Manual Pump High Pressure Progressive Lubrication System Grease Lubrication Pump Used on Coal Mine Machinery Innovative Hydraulic Pump
Customized Manual Pump High Pressure Progressive Lubrication System Grease Lubrication Pump Used on Coal Mine Machinery Innovative Hydraulic Pump
Customized Manual Pump High Pressure Progressive Lubrication System Grease Lubrication Pump Used on Coal Mine Machinery Innovative Hydraulic Pump
Customized Manual Pump High Pressure Progressive Lubrication System Grease Lubrication Pump Used on Coal Mine Machinery Innovative Hydraulic Pump

Customized Manual Pump High Pressure Progressive Lubrication System Grease Lubrication Pump Used on Coal Mine Machinery Innovative Hydraulic Pump

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
SDB
Flow Rate
2.0ml/Cy
Type
Oil Pump
Drive
Hand Movement
Performance
High Pressure
Oil Outlet
1-2
Design
Double Plunger Lever
Weight
Light Duty
Package Size
350.00cm * 225.00cm * 190.00cm
Gross Weight
8.000kg
P

Product Description

Manual Pump High Pressure System
✔
Easy to operate and convenient to use: With a handle, lubricating oil can be delivered by simple manual reciprocating operation without complex electrical control or expertise.
Manual Pump Detail 1
Manual Pump Detail 2
✔
Simple structure, durable and long-lasting: The structure is relatively simple, there are no complex electronic components, reducing maintenance costs and troubleshooting difficulty.
✔
Factory quality and high performance: This lubrication pump has cumulative sales volume of over 10,000 units, offering excellent market feedback and cost-effectiveness.
C

Key Characteristics

  • 1. Double plunger, lever design for high reliability.
  • 2. Compact appearance, easy to install in various settings.
  • 3. Full steel pump body structure, ideal for harsh environmental conditions.
  • 4. Equipped with a scraper plate oil pressure device.
  • 5. Each grease outlet can connect to a lubrication point or a progressive distributor.
  • 6. Compatible with lubricating oil ≥ N68 and grease NLGI 000-2.
T

Technical Parameters

Parameter Item Specifications (SDB)
Nominal Displacement2 ml/cy
Nominal Pressure35 MPa
Oil Drum Capacity2.5L (Customizable)
Number of Outlets1 or 2
Oil Outlet DiameterΦ 6-8-10 mm

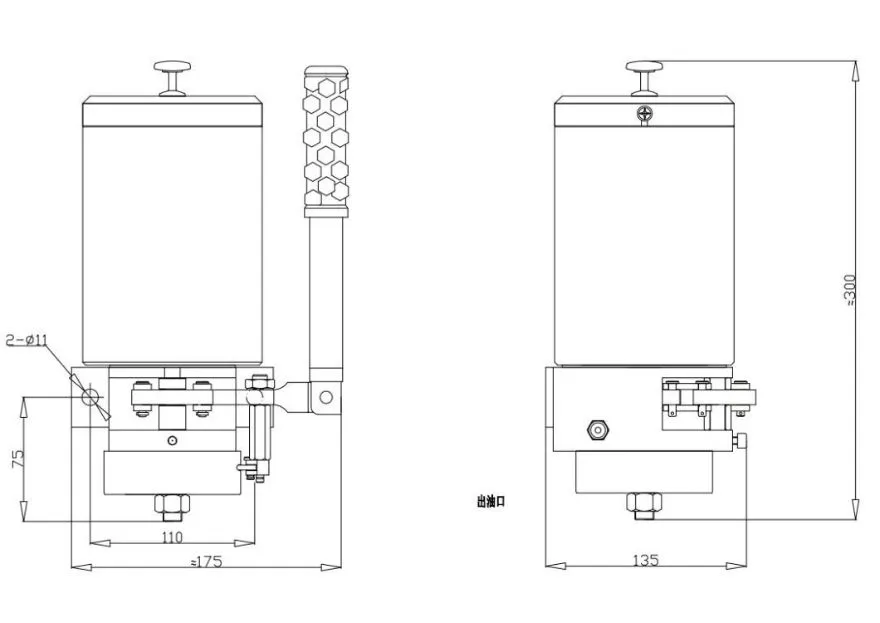

Installation Size Diagram
M

Main Product Display

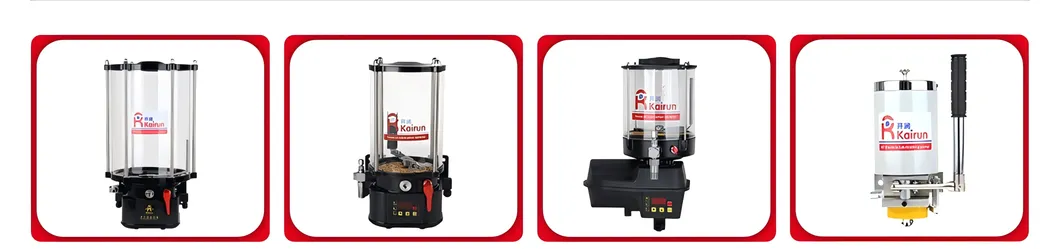

Product Range 1

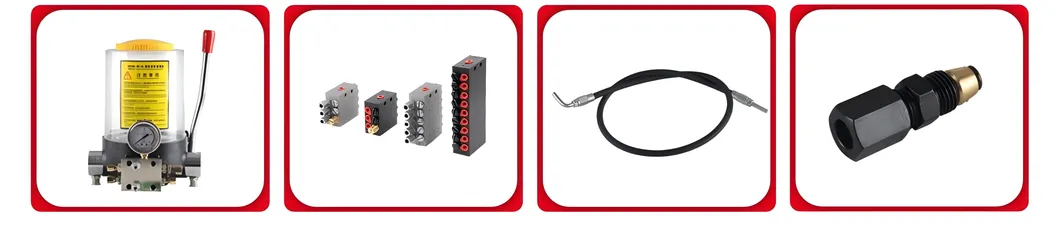

Product Range 2
Q

Quality & Certification

Certifications
S

Service Cases & Packaging

Packaging

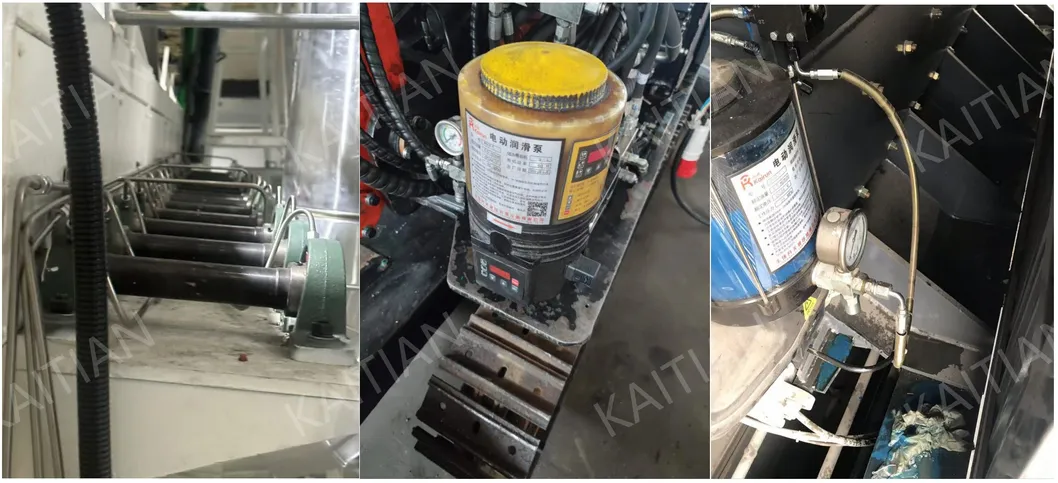

Case 1

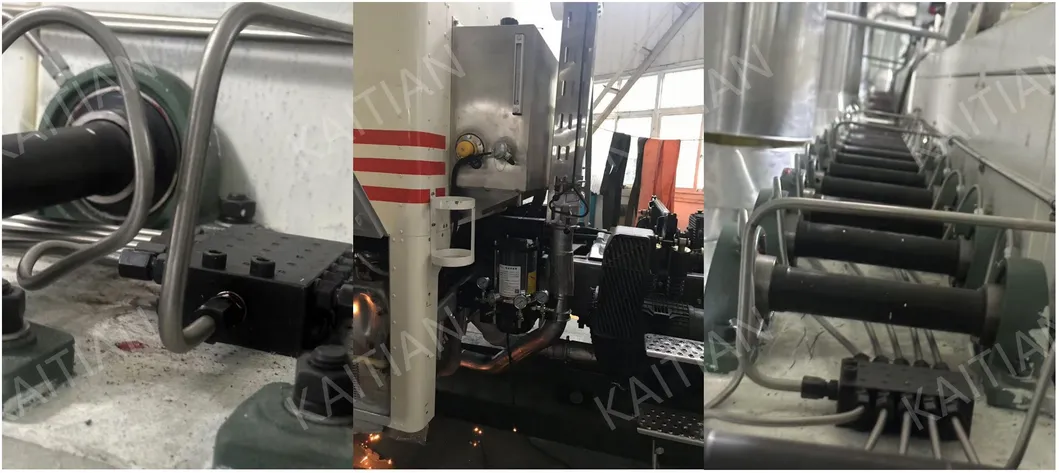

Case 2

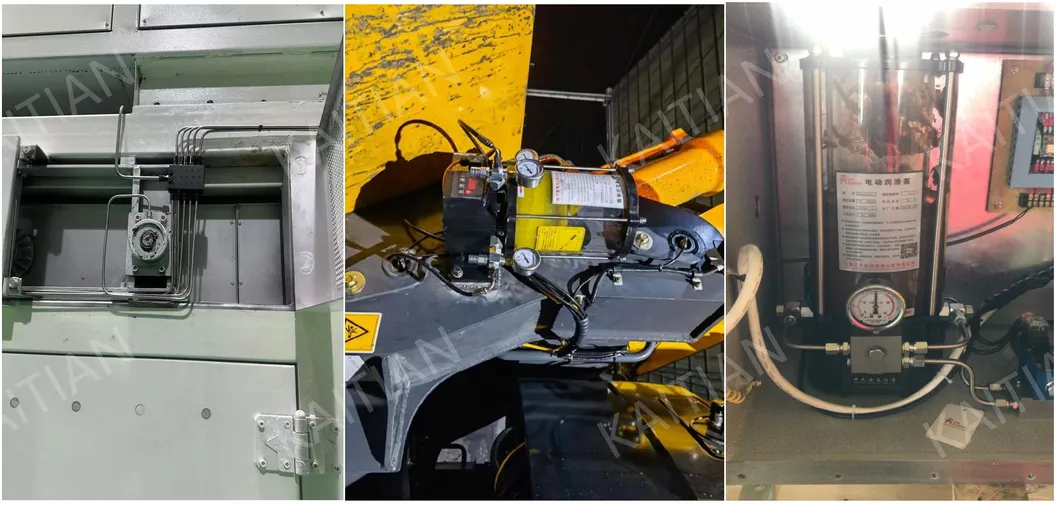

Case 3

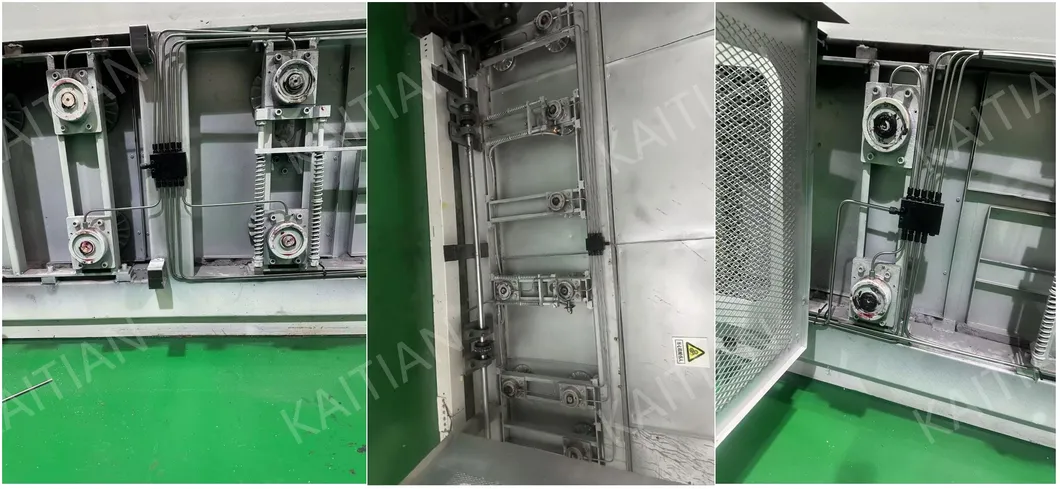

Case 4

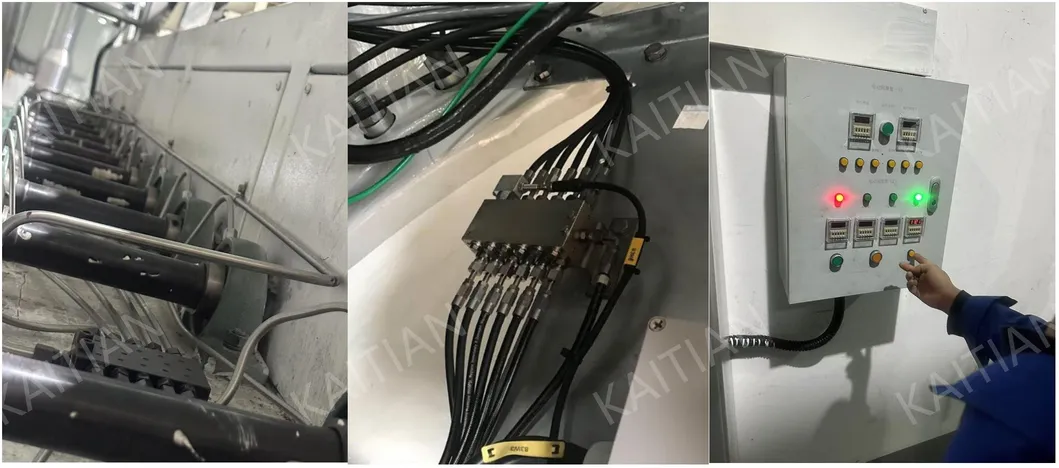

Case 5
?

Frequently Asked Questions

How does the SDB manual pump operate?
It uses a simple manual reciprocating handle operation to deliver lubricating oil, requiring no electrical power or complex control systems.
What are the compatible lubricant ranges for this pump?
The pump is suitable for lubricating oil ≥ N68 and lubricating grease within the NLGI 000-2 range at standard temperatures.
Can the oil drum capacity be customized?
Yes, while the standard capacity is 2.5L, it can be customized based on specific operational requirements.
Is this pump suitable for coal mine machinery?
Absolutely. The full steel pump body structure is specifically designed to withstand harsh environmental conditions common in mining and heavy industrial sites.
How do I prevent air from entering the lubrication system?
We recommend using a fuel gun or specialized dispenser to add grease to the storage tank to avoid introducing impurities and air pockets.
What is the nominal pressure of the SDB model?
The SDB manual lubrication pump provides a high nominal pressure of up to 35 MPa.
