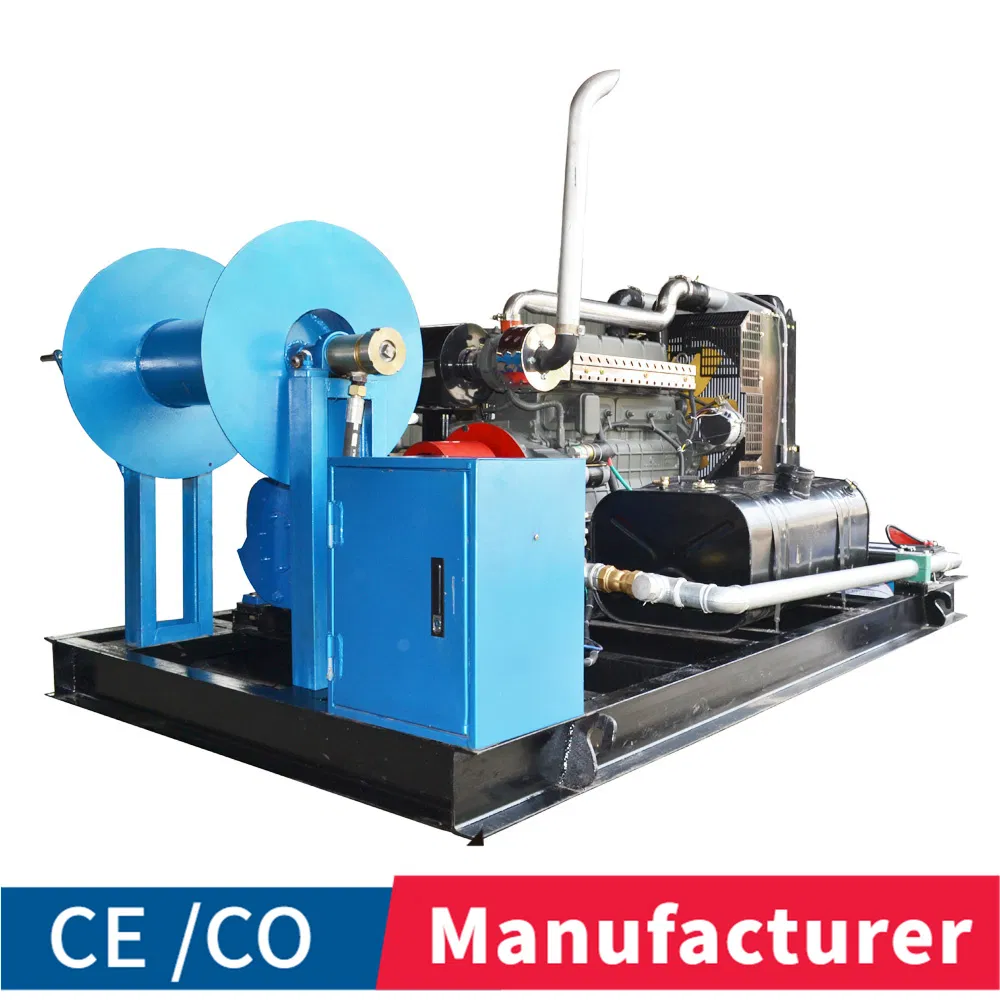

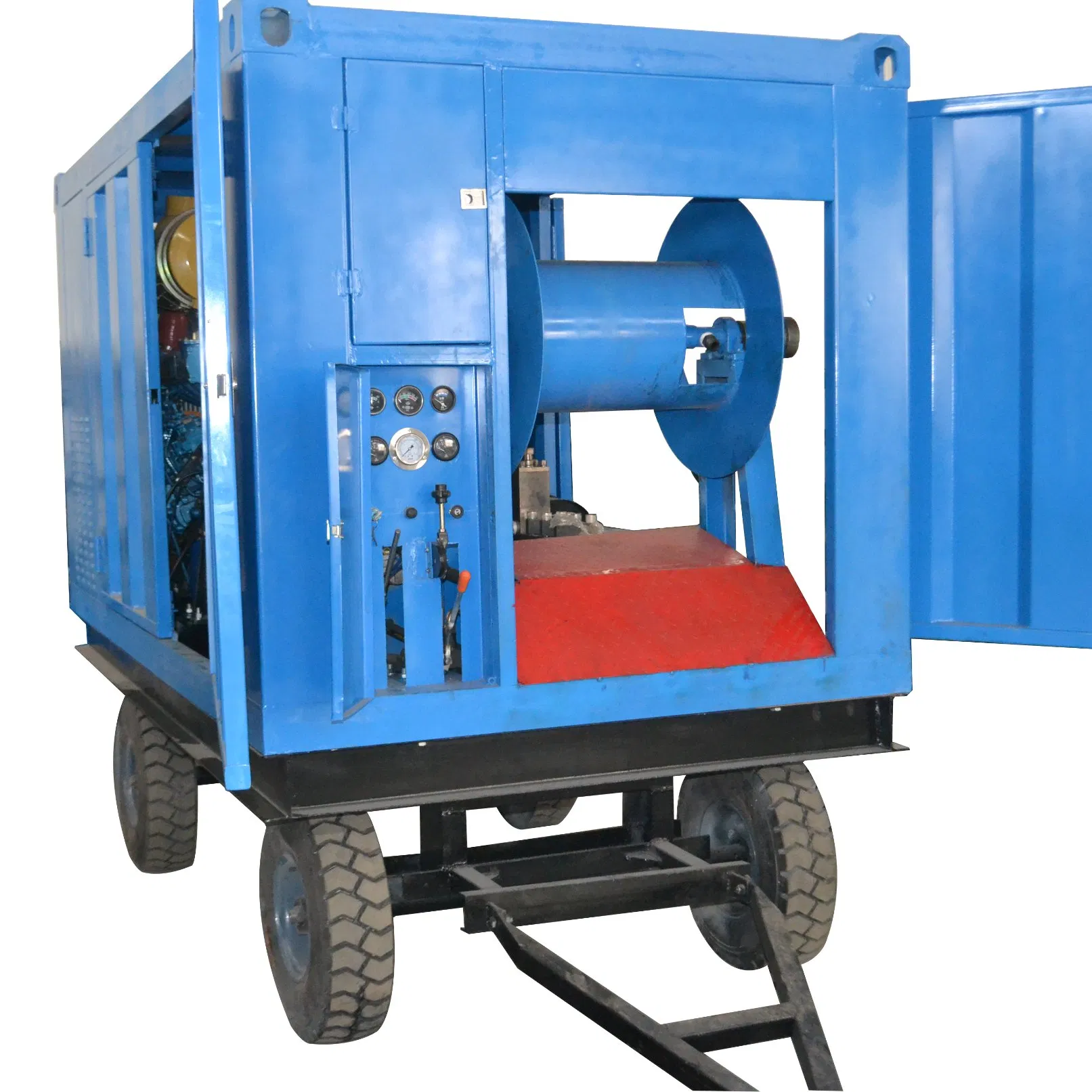

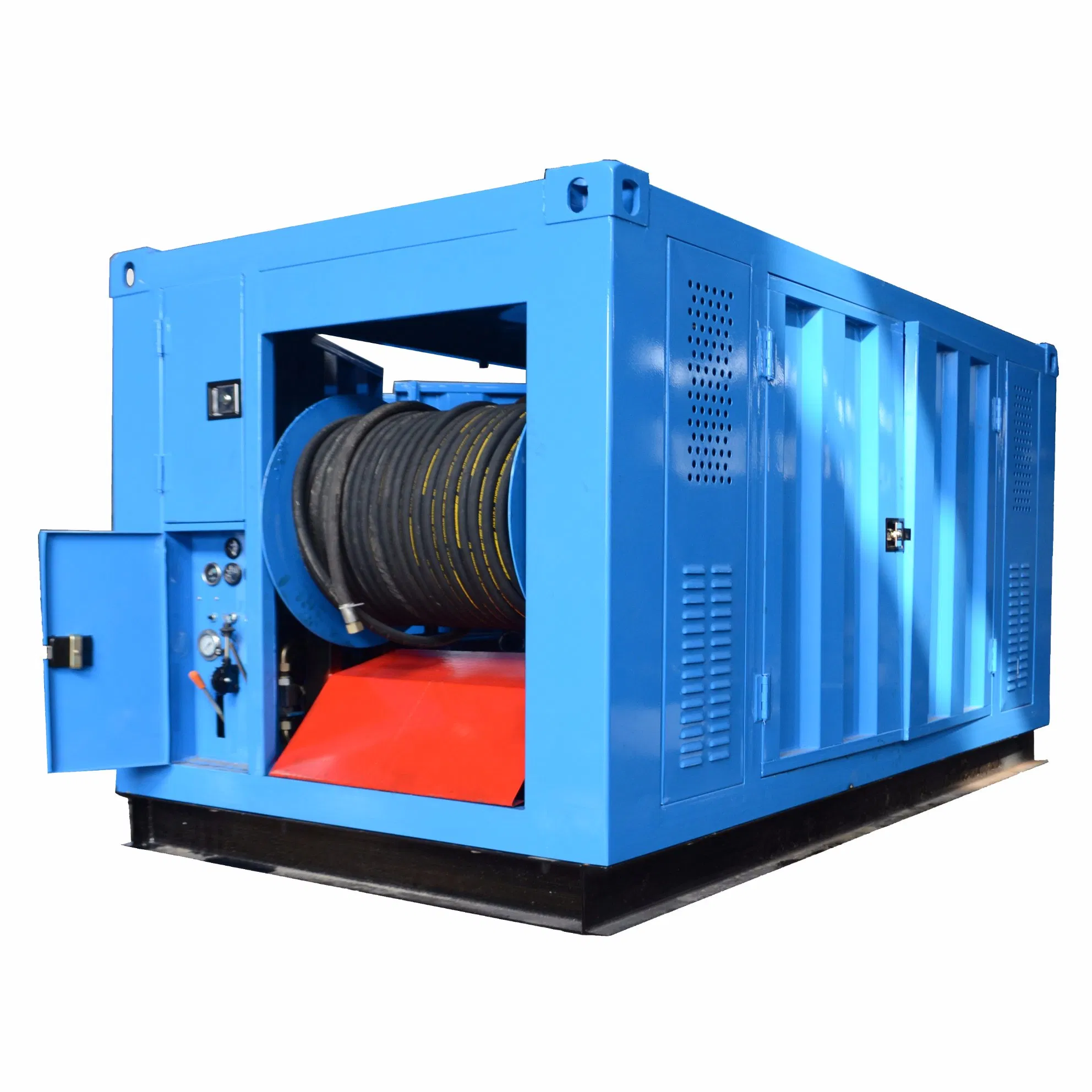

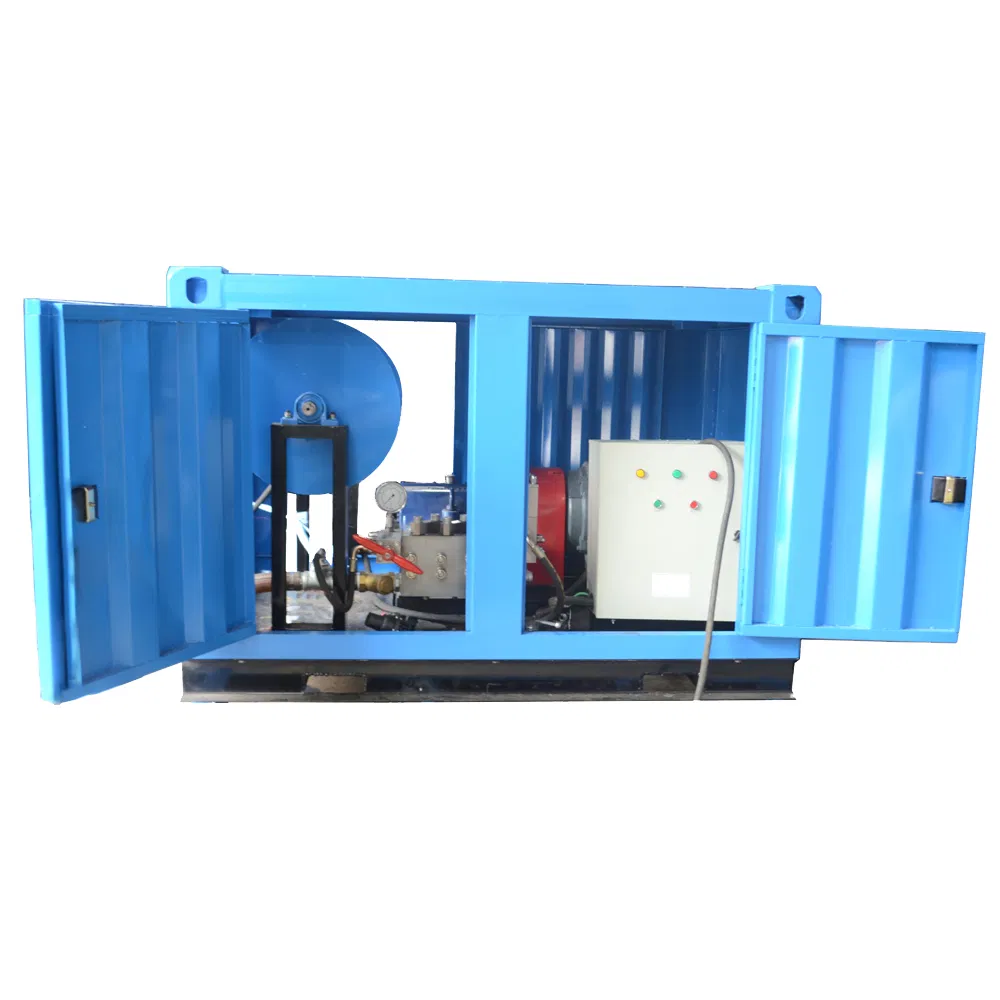

24MPa 145kw Diesel Engine Bigger Sewer Drain Tube Pipe Cleaning Equipment
24MPa 145kw Diesel Engine Bigger Sewer Drain Tube Pipe Cleaning Equipment
24MPa 145kw Diesel Engine Bigger Sewer Drain Tube Pipe Cleaning Equipment
24MPa 145kw Diesel Engine Bigger Sewer Drain Tube Pipe Cleaning Equipment
24MPa 145kw Diesel Engine Bigger Sewer Drain Tube Pipe Cleaning Equipment
1 / 5
24MPa 145kw Diesel Engine Bigger Sewer Drain Tube Pipe Cleaning Equipment
24MPa 145kw Diesel Engine Bigger Sewer Drain Tube Pipe Cleaning Equipment
24MPa 145kw Diesel Engine Bigger Sewer Drain Tube Pipe Cleaning Equipment
24MPa 145kw Diesel Engine Bigger Sewer Drain Tube Pipe Cleaning Equipment
24MPa 145kw Diesel Engine Bigger Sewer Drain Tube Pipe Cleaning Equipment

24MPa 145kw Diesel Engine Bigger Sewer Drain Tube Pipe Cleaning Equipment

Customization: Available
After-sales Service: Online Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Info & Technical Specifications
Type
Cold Water High Pressure Cleaner
Operation Type
Fixed
Drive
Gasoline / Diesel
Working Pressure
240bar / 24MPa
Water Flow
170L/Min
Application
Commercial Sewer Cleaning
Nozzle Type
Fan-Shaped Nozzle
Engine Details
145kw, 6-Cylinder Diesel
Hose Length
100 Meters
Pipe Cleaning Range
100mm to 1500mm
Certification
CE
Weight
2200kgs
Packaging & Delivery
Package Size
260.00cm * 155.00cm * 165.00cm
Gross Weight
1800.000kg
Packing Type
Sea Shipped Wooden Case
Product Description

Water jet cleaning machine | Pipe and Drain Cleaning Machines high pressure cleaner

Note: For sewer pipe cleaning machine applications, please consider model GY-50/180.

Model Rate Pressure Water Flow Engine Type
GY-170/240 240bar/24Mpa 170 L/min Electric 90kw 380v/50Hz
GY-170/240 240bar/24Mpa 170 L/min Diesel engine 145kw, 6-cylinder
Diesel Engine Sewer Drain Tube Pipe Cleaning Equipment
Main Features
Lead Time: Available in stock (3-15 days depending on model)
Warranty: One Year quality assurance

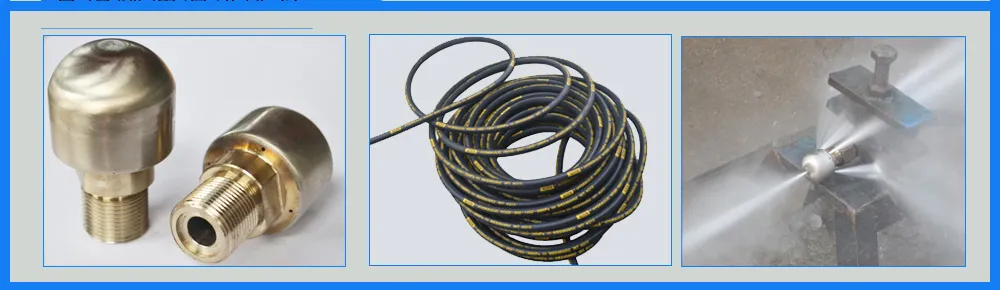

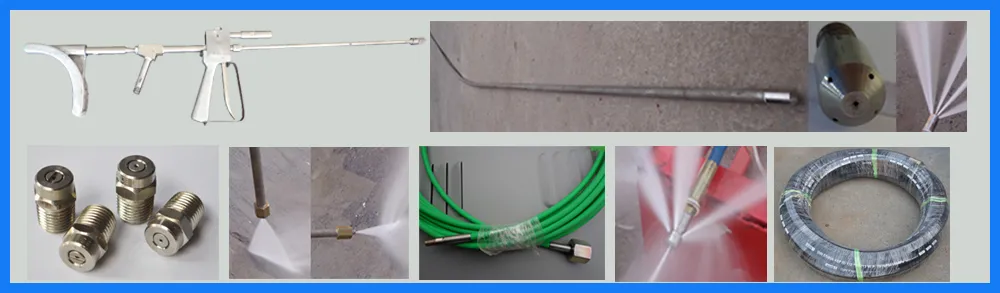

Standard Accessories: High pressure hose (50-100m) + 5pcs cleaning nozzles
Nozzle Dia: 20mm~80mm customized to cleaning purpose

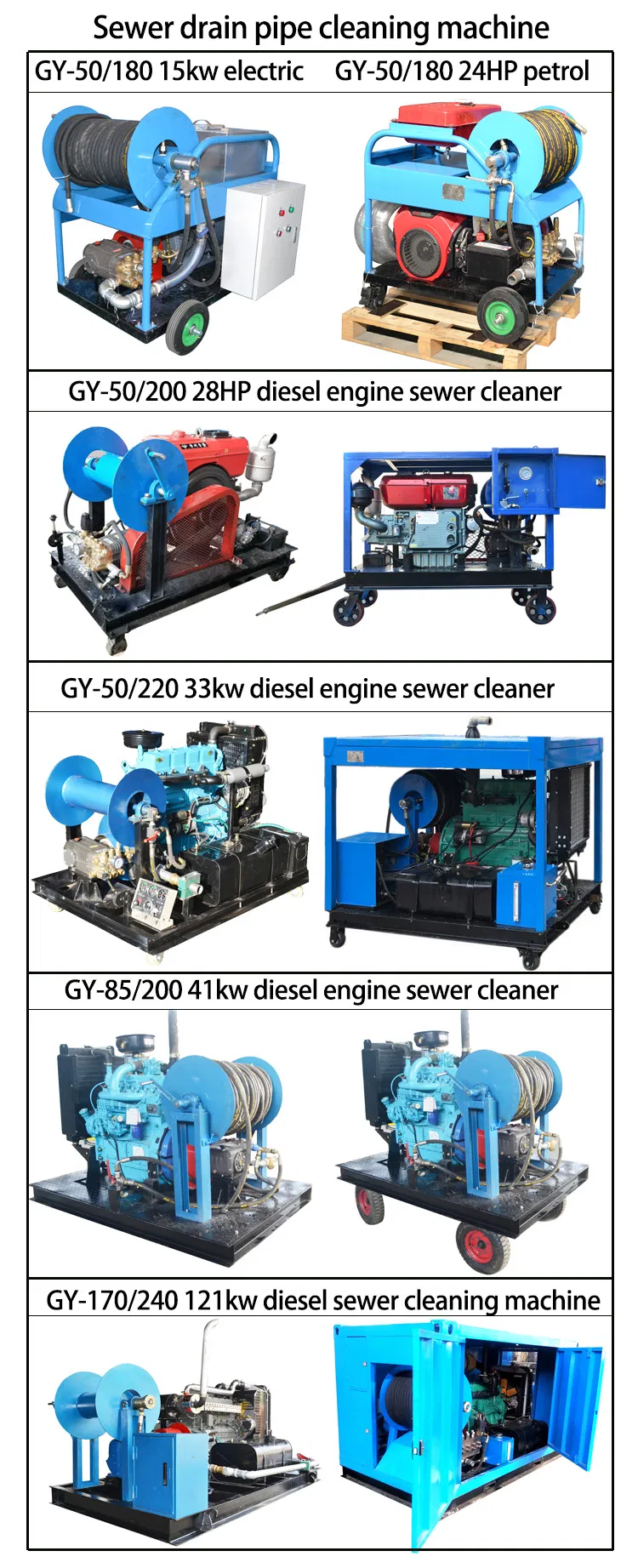

Model Rate Pressure Water Flow Engine Cleaning Dia.
GY-50/180E180 bar50 L/minElec. 15kw50mm~400mm
GY-50/180G180 bar50 L/minGasoline 24Hp50mm~400mm
GY-85/200E200 bar85 L/minElec. 22kw50mm~800mm
GY-170/240D240 bar170 L/minDiesel 145kw50~1500mm
GY-170/280D280 bar170 L/minDiesel 121kw50~1000mm
Equipment Visuals
High Pressure Cleaner Details
Industrial Cleaning Machine
Water Jet Machine View
Sewer Pipe Cleaning Unit

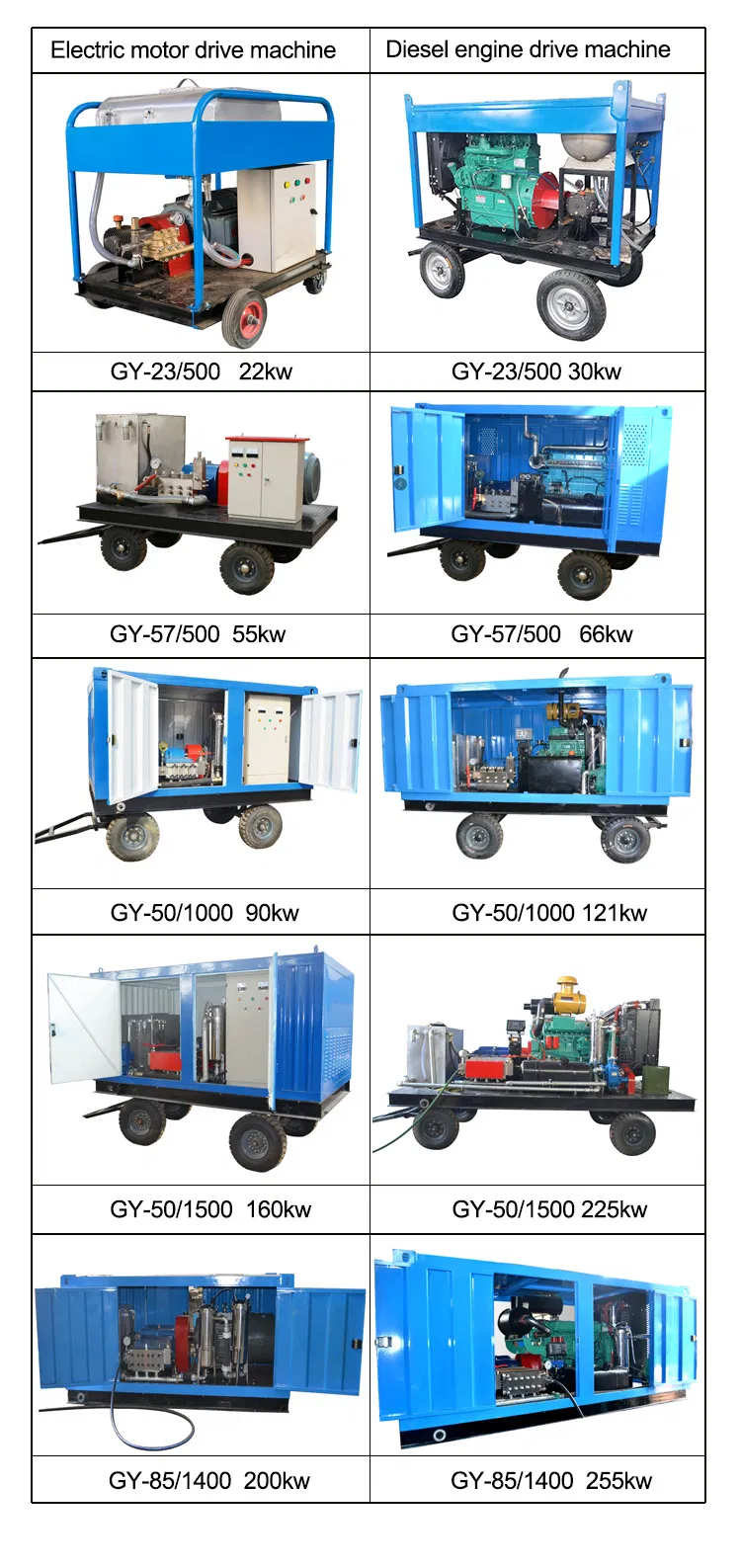

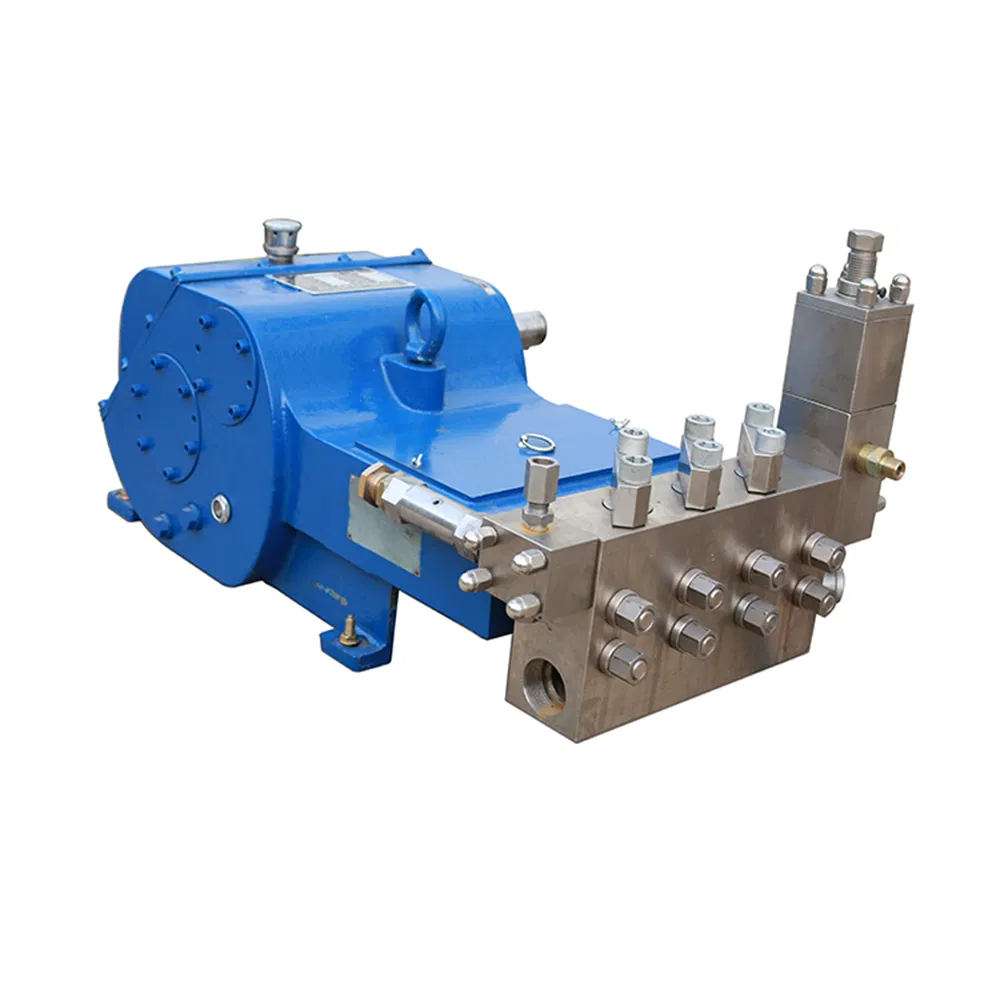

High Pressure Pump System
Mobile Cleaning Equipment
Heavy Duty Pipe Cleaner
Sewer Tube Cleaning Machine

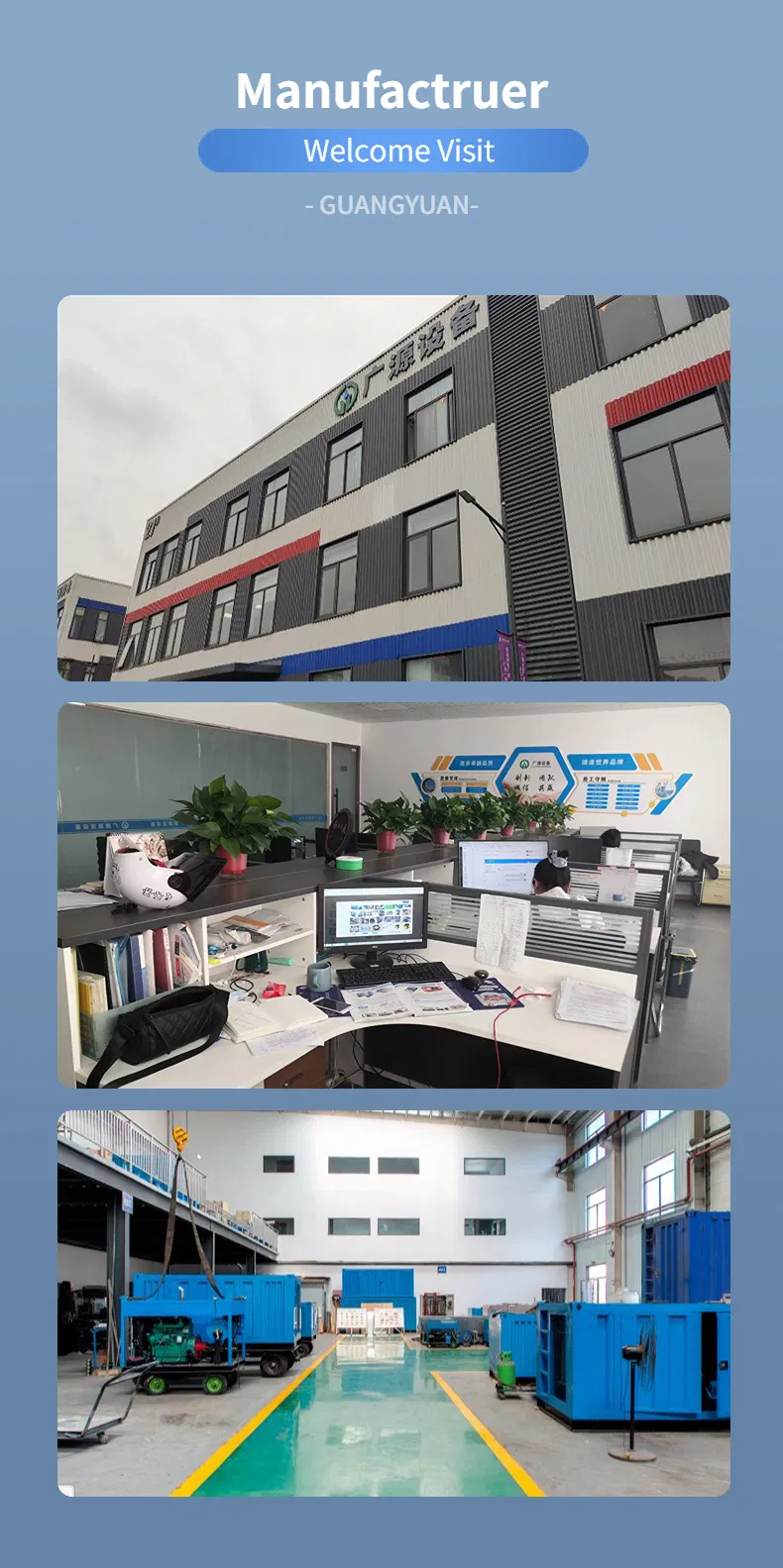

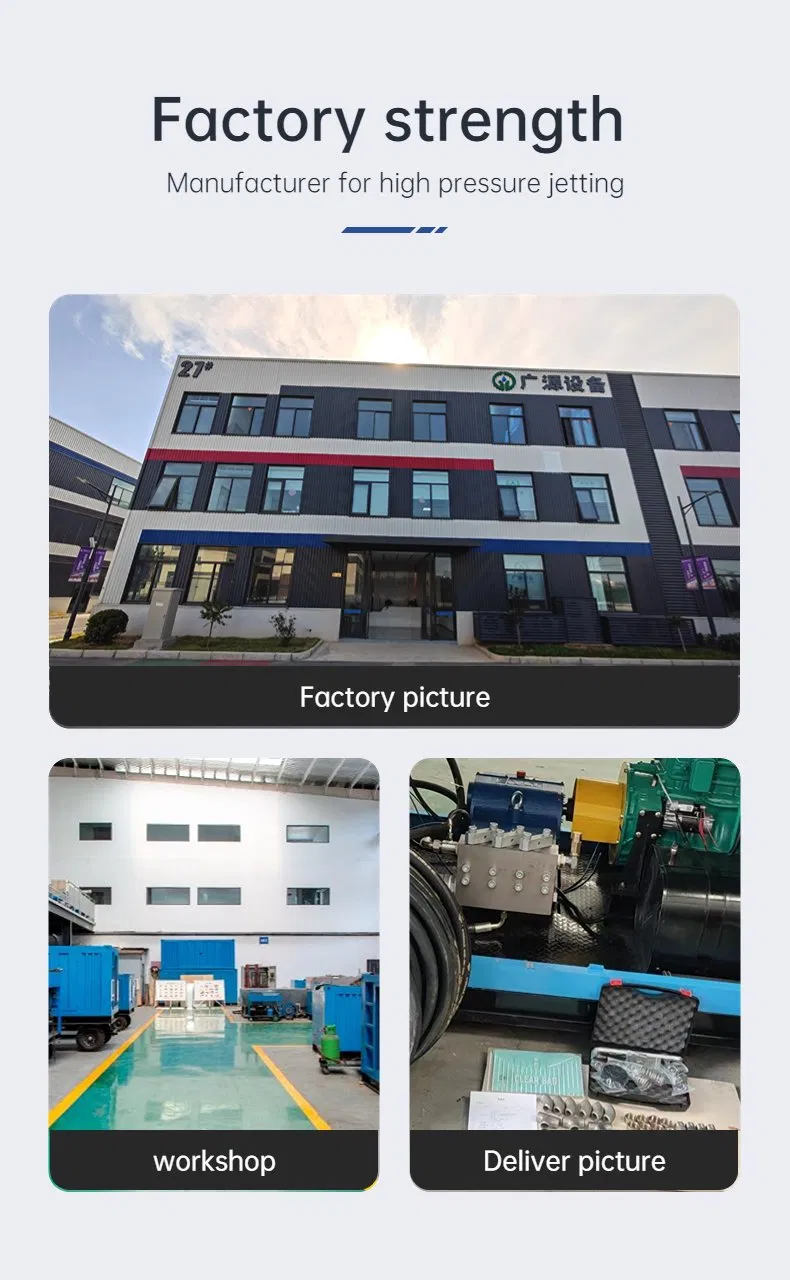

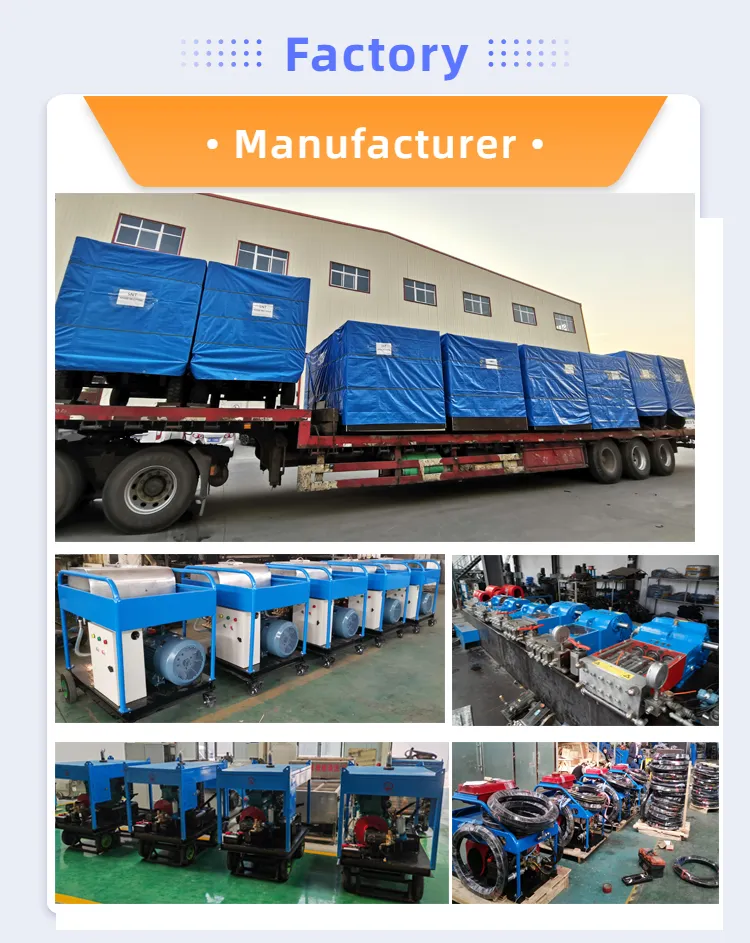

About the Manufacturer

Founded in 2003, we are a dedicated manufacturer for high-pressure water jetting machines. With over fifteen years of expertise, we have developed a comprehensive range of high-pressure cleaning solutions. Our facility focuses on self-accumulation and continuous development to lead the industry in quality and innovation.

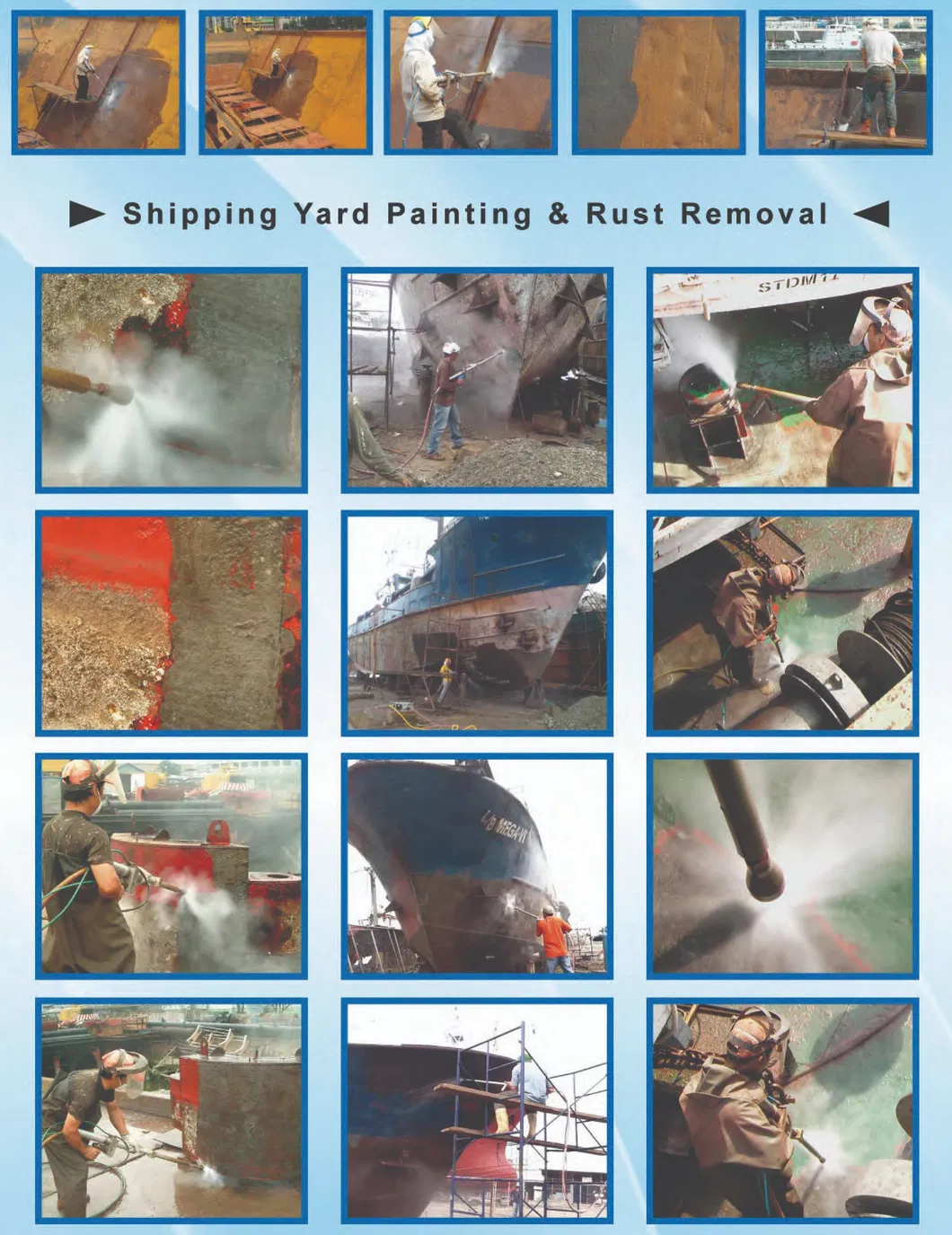

Our product line includes high-pressure cleaning machines, sewer tube cleaners, industrial pipe cleaning systems, shipyard rust removal machines, and wet sandblasting systems. These units are widely applied in power plants, starch factories, and shipyards for pipe cleaning, pressure testing, and surface preparation. Pressure ranges extend from 150bar to 3000bar, powered by electric motors, gasoline engines, or diesel engines.

Certifications
Product Certifications
Frequently Asked Questions
What is the maximum pressure and water flow of these machines?
The equipment can reach a working pressure of up to 240bar (24MPa) with a high-volume water flow of 170L/Min, specifically designed for large-scale sewer cleaning.
What pipe diameters can be cleaned with this equipment?
Depending on the model, our machines are capable of cleaning sewer pipes ranging from 50mm up to 1500mm in diameter.
What power options are available for the drive system?
We offer multiple drive configurations, including Electric motors (380v/50Hz), Gasoline engines (Honda brand), and heavy-duty 6-cylinder Diesel engines.
What accessories are included in the standard package?
Standard packages usually include a 50 to 100-meter high-pressure hose and a set of 5 specialized sewer pipe cleaning nozzles.
Is there a warranty provided for the cleaning machines?
Yes, all our high-pressure cleaning machines come with a one-year warranty and are packed in sea-shippable wooden cases for safe transit.
Can the equipment be customized for specific industrial needs?
Absolutely. We support customization for pressure ratings, flow rates, and engine types to meet specific requirements for shipyard, power plant, or commercial cleaning tasks.
