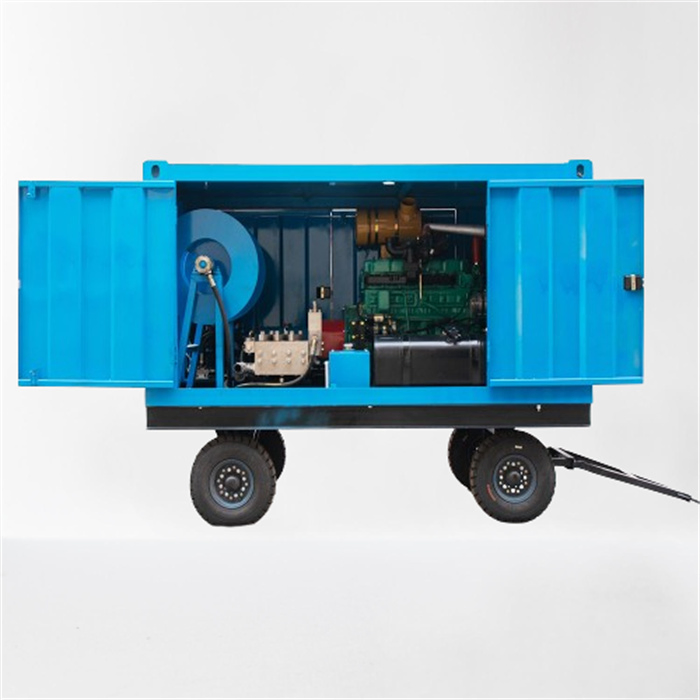

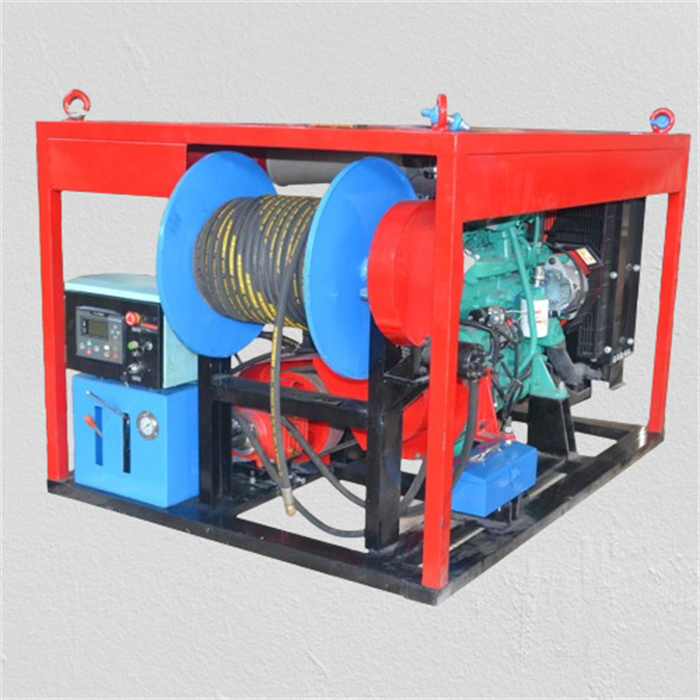

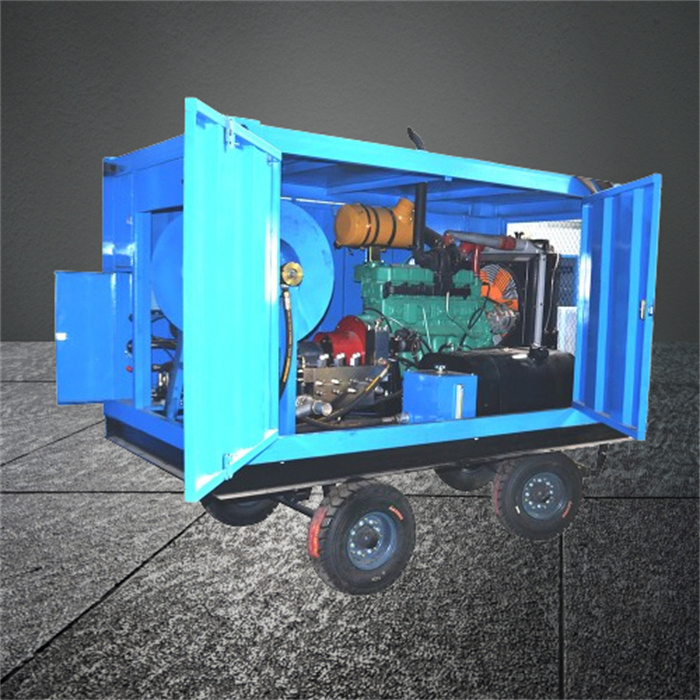

10 M3/H Water Flow Diesel High Pressure Water Blasting Machine Drain Unblocked Pipe Cleaning System

1 / 5

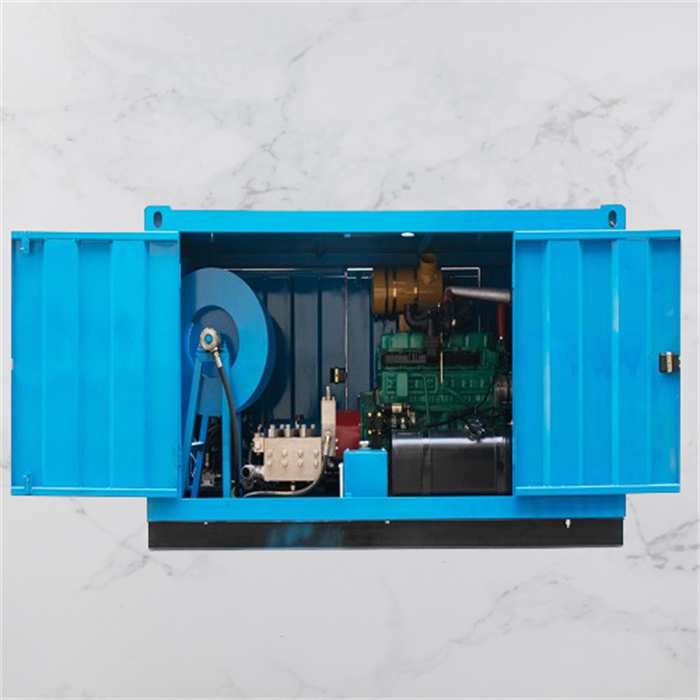

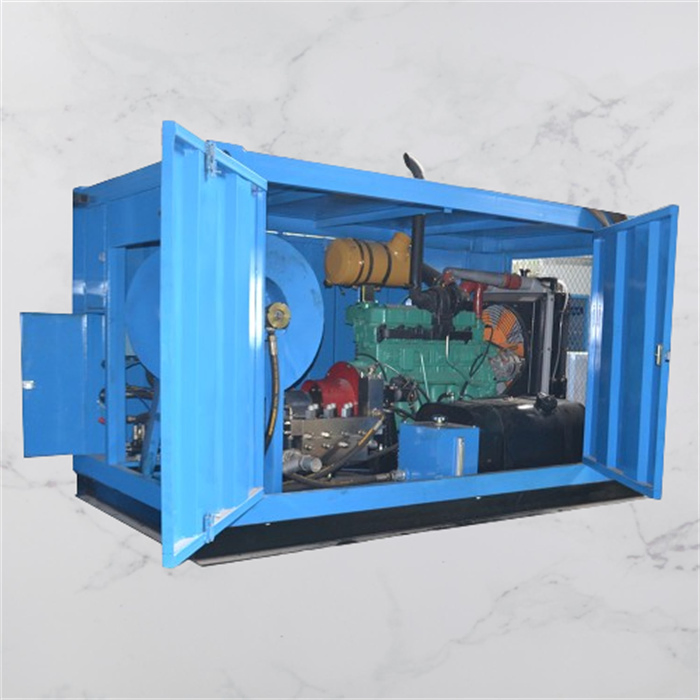

10 M3/H Water Flow Diesel High Pressure Water Blasting Machine Drain Unblocked Pipe Cleaning System

Customization:	Available
After-sales Service:	Online Service
Warranty:	1 Year

Send Inquiry

Product Description

◈ Basic Information

Model NO.	GYB-2
Type	Cold Water High Pressure Cleaner
Operation Type	Fixed
Drive	Diesel
Application	Sewer Drain Cleaning
Certification	CE
Rate Pressure	240bar/24MPa
Water Flow	170 L/Min
Diesel Engine	145kw, 6-Cylinder
for Pipe Dia.	100-1500mm
Size	260015501650mm
Production Capacity	200sets/Month

◈ Product Description

Model	Pressure	Water Flow	Diesel Engine	Cleaning Pipe Dia.
GYB-2	240bar/24Mpa	170L/min	145kw 6-cylinder	100-1200mm

High pressure pump: Triplex pump
Power: 145kw, 6-cylinder diesel engine
Electric start: Storage battery 24v/100Ah
Hose reel: Hydraulic automatic hose reel
High pressure hose: 80-100 meters
Nozzle: Stainless steel material, Multi-hole jetting
Working Range: Pipe diameter 100-1500mm

◈ Accessories

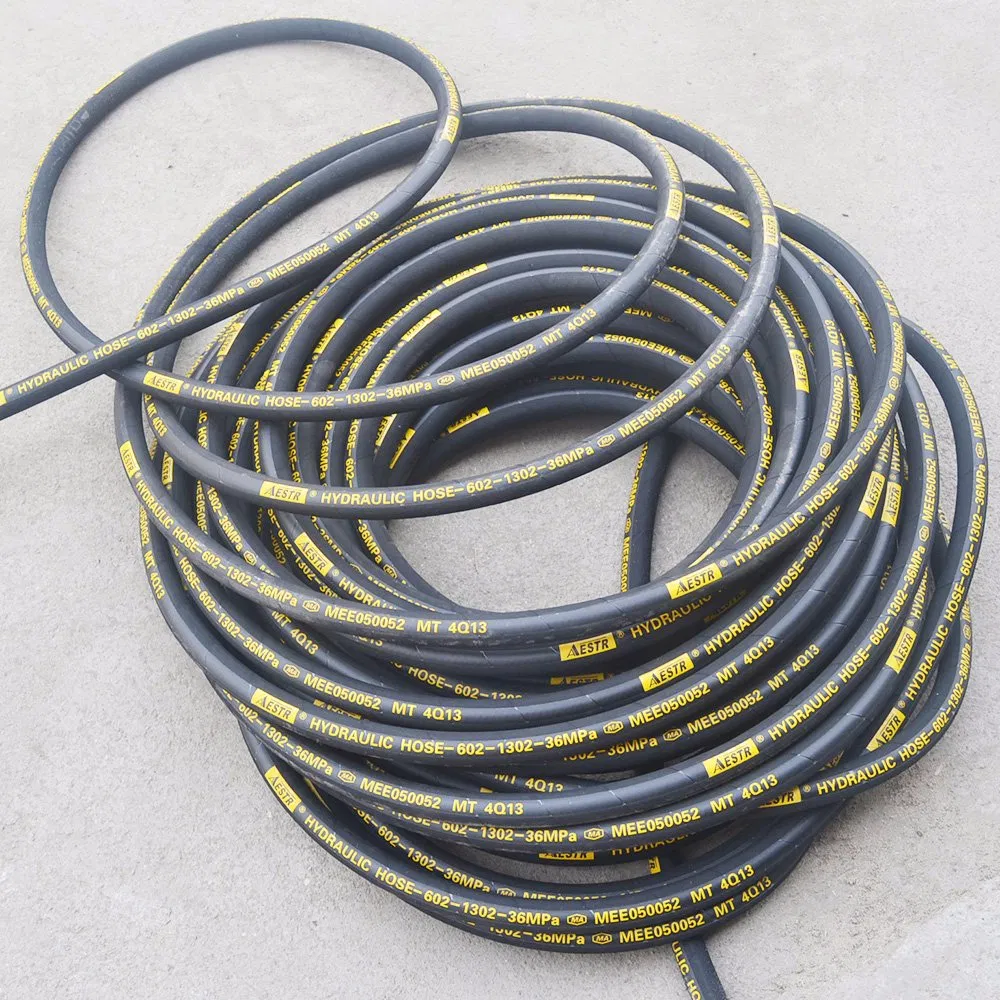

High Pressure Hose

Material: Rubber with wire winding
Bear pressure: 25Mpa
Inner diameter: 19mm
Length: 50 meters / role
Thread: Female M30*1.5

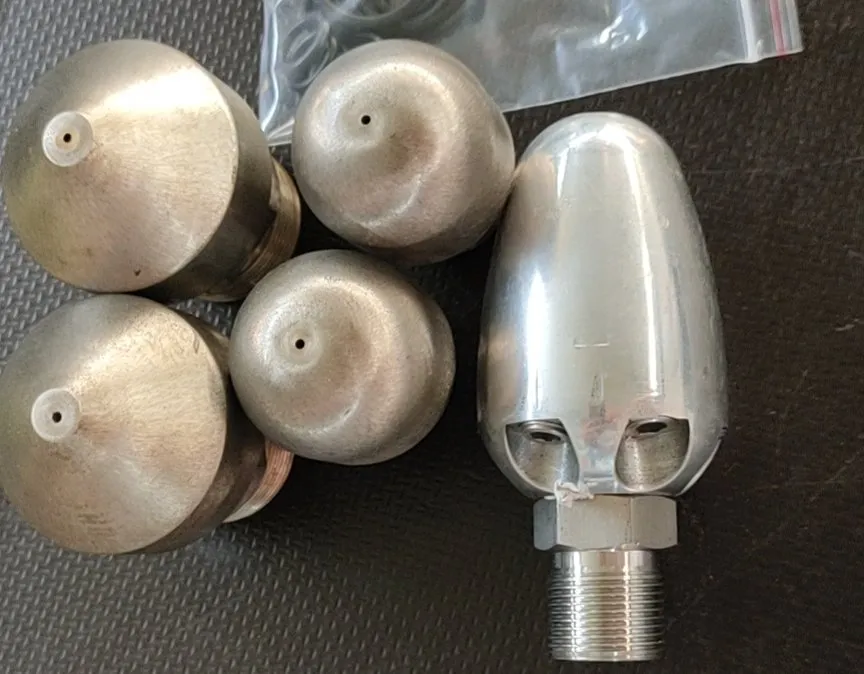

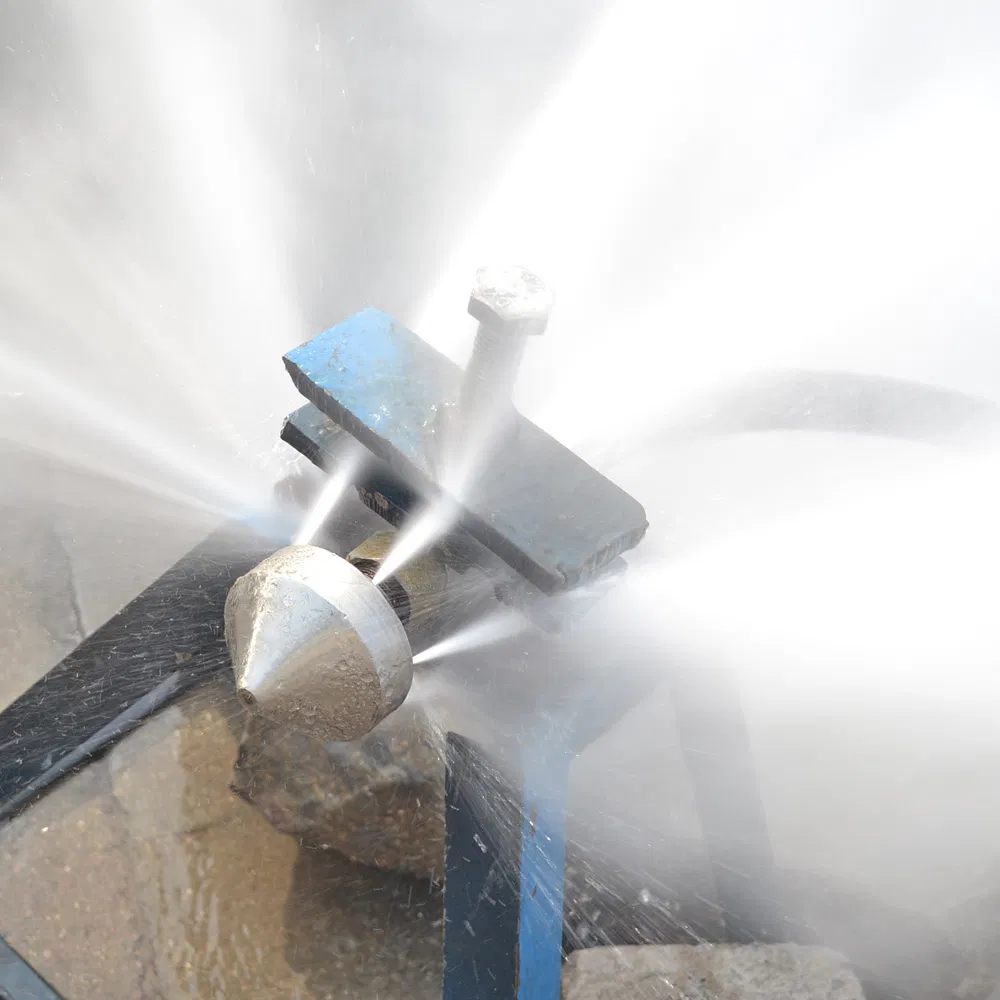

Sewer Cleaning Nozzles

Material: Stainless steel 304L or Aluminum
Bear pressure: Up to 500bar
Pipe diameter options: 20mm, 40mm, 50mm, 80mm, 100mm
Jetting: Front 1 jet, backside 4-7 jets

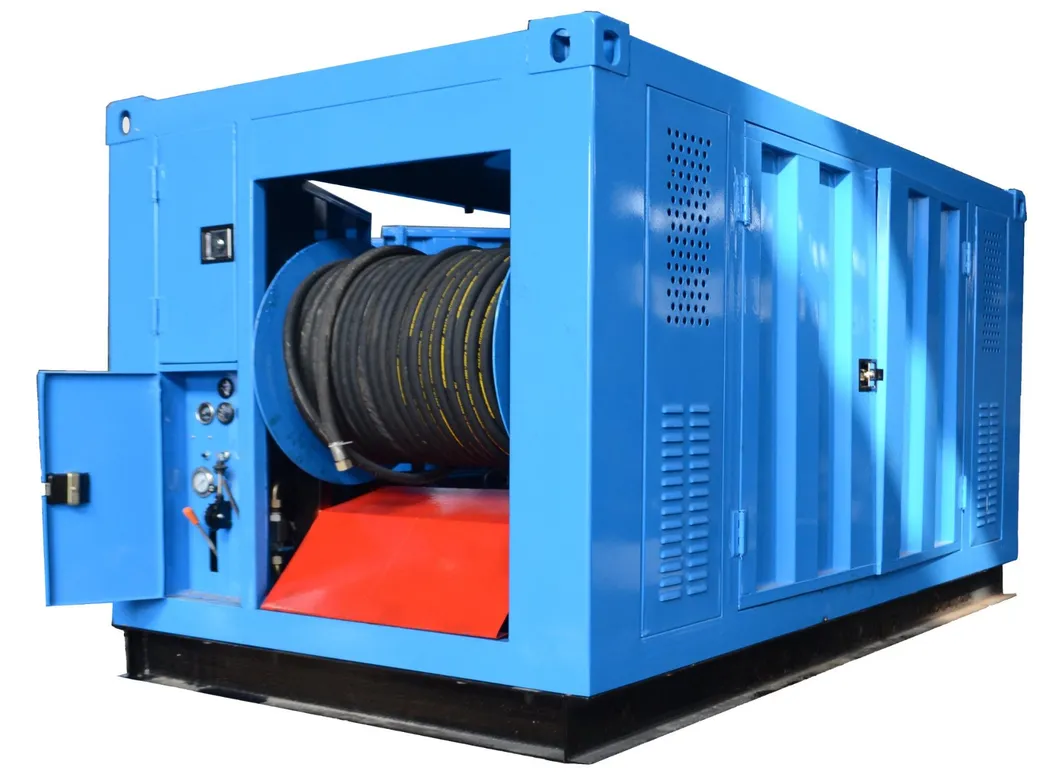

◈ Detailed Components

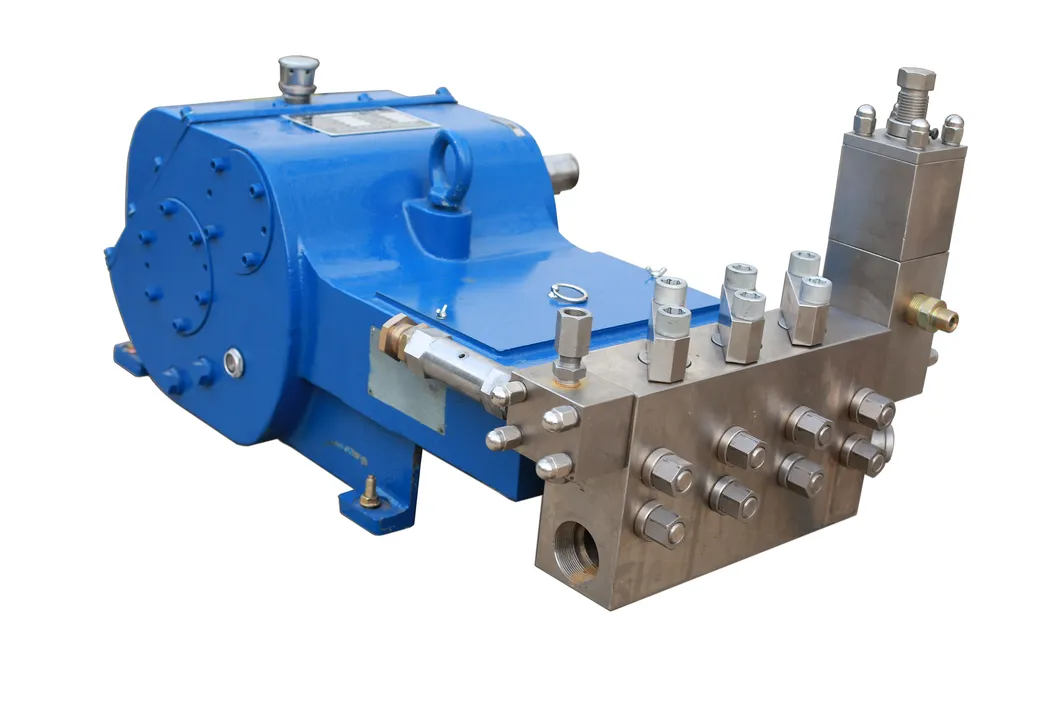

High Pressure Triplex Pump

Rate pressure: 240bar/24Mpa
Water flow: 170 L/min / 45 GPM
Pump speed: 405 rpm
Plunger diameter: 30mm
Material: Stainless steel pump head
Equipped with safety valve and pressure gauge

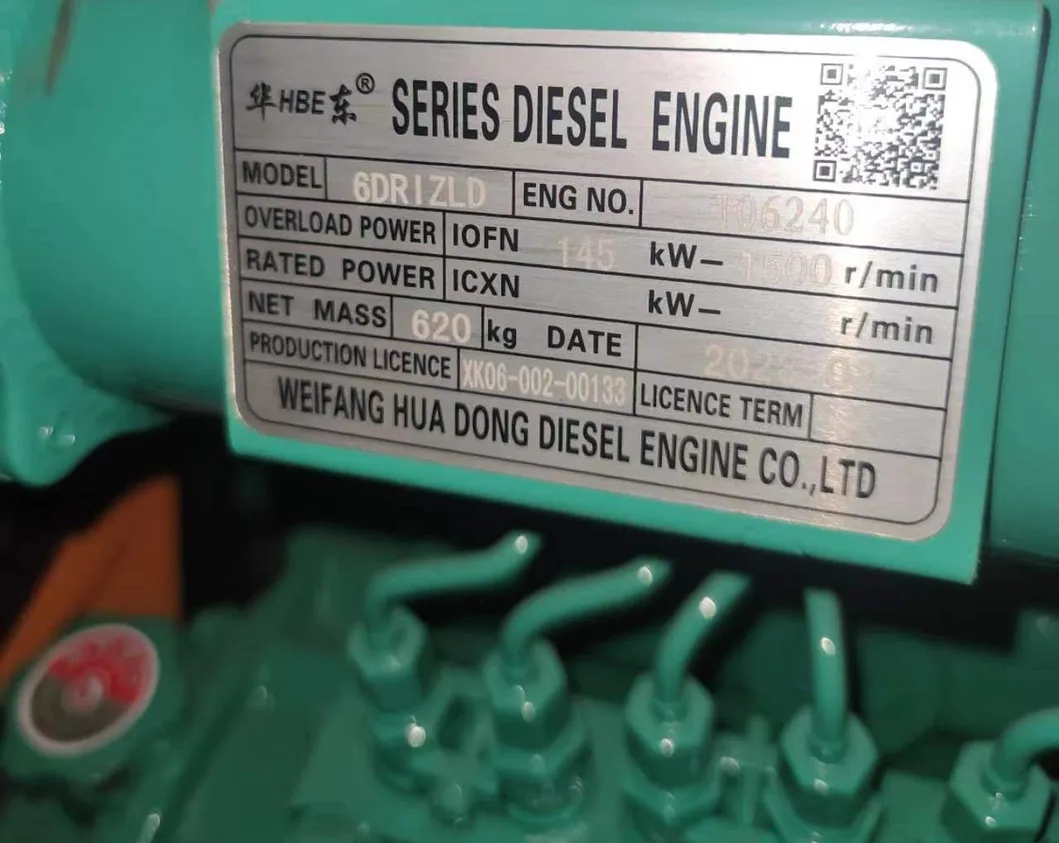

Diesel Engine Drive

Power: 145kw
Cylinder No.: 6-cylinder
Speed: 1500 rpm

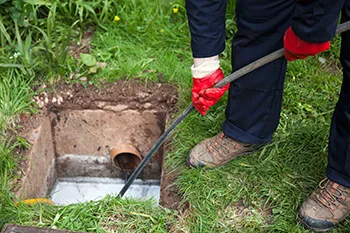

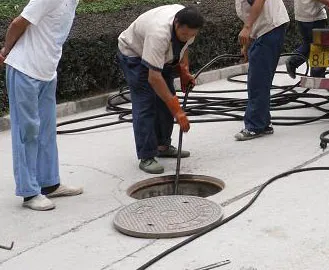

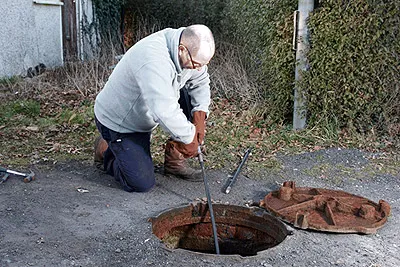

◈ Cleaning Applications

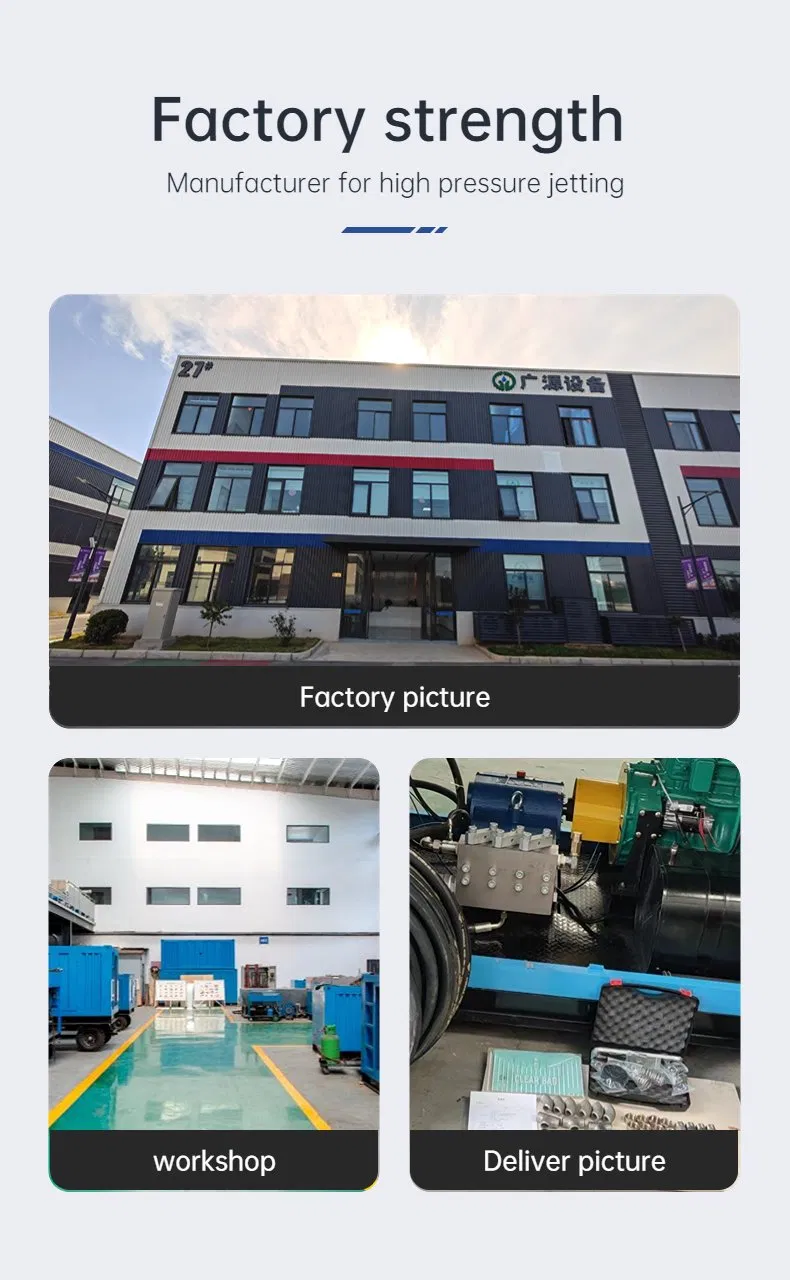

◈ Manufacturing Expertise

Specialized manufacturer for high pressure cleaners, sewer drain pipe cleaners, pressure testing pumps, and high pressure pumps. We provide solutions for surface heavy dirt cleaning, cement cleaning, sewer drain pipe cleaning, rust paint removal, and industrial tank tube cleaning. Customization is available.

◈ Certifications

◈ Our Advantages

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer with over 15 years of experience in producing commercial high pressure cleaners.

How to choose a suitable model?

You can confirm your working purpose request; we have rich experience in the water jetting field and a professional technical team to provide recommendations.

What kind of engines can we choose?

We offer electric motor drives, diesel engines, and petrol engines for your selection.

What is your warranty policy?

The warranty period for our machines is one year.

How long is the delivery time?

It depends on the model. If in stock, delivery is within 2 days; otherwise, it is within 15 days.

What are your payment terms?

We accept T/T, Western Union, Money Gram, and Paypal. For payments over USD 5000, we suggest 40% in advance and the balance before shipment.
