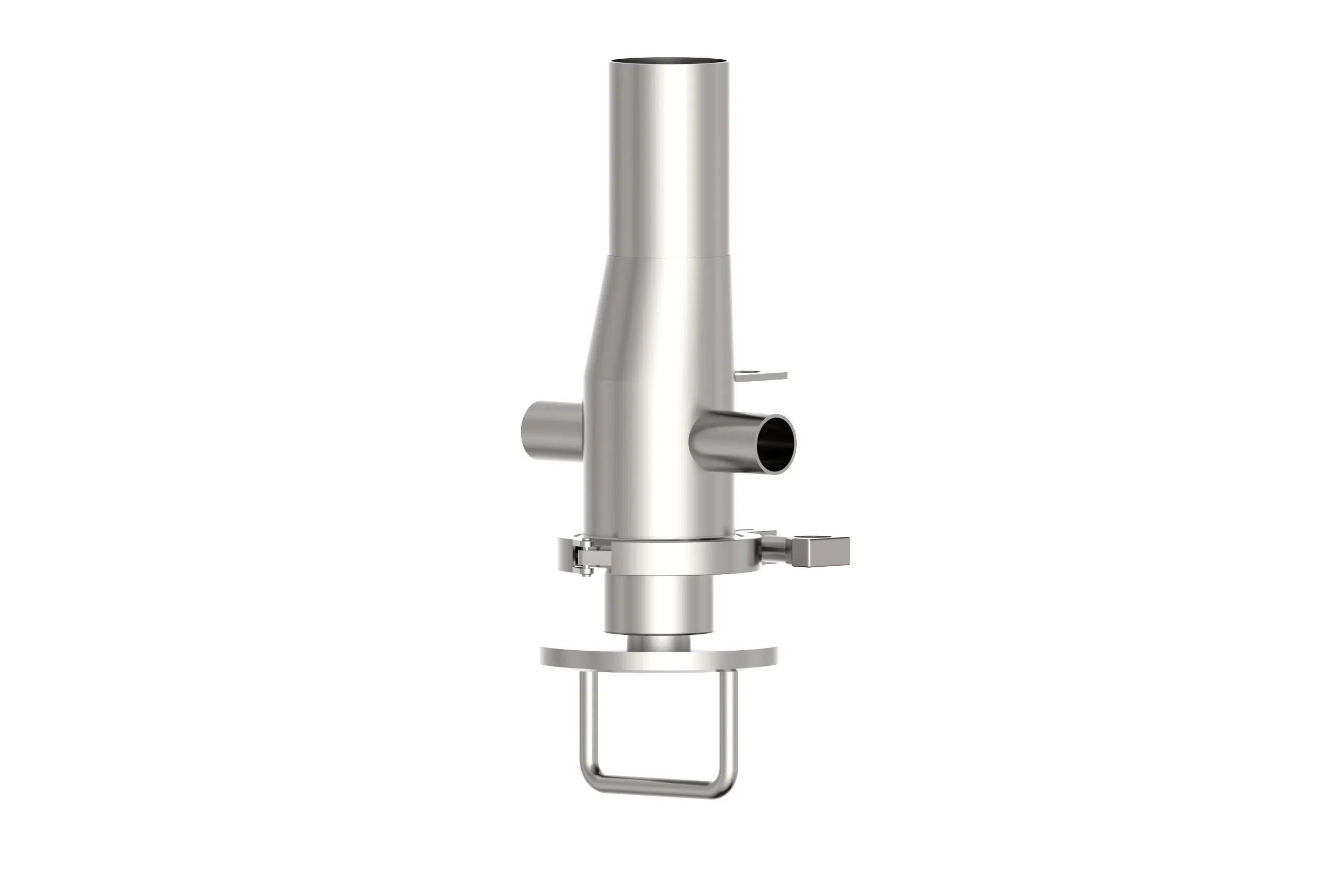

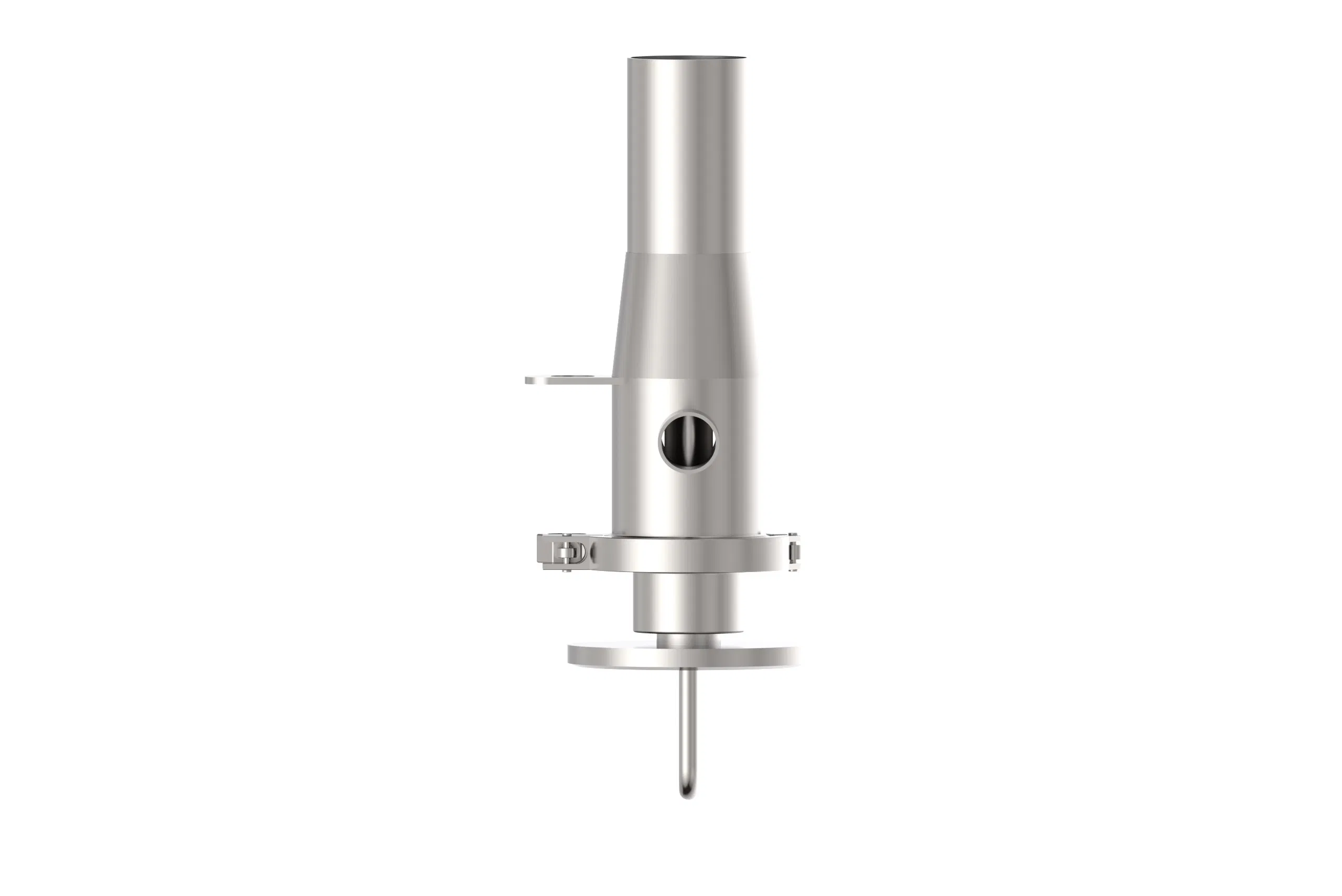

DN 65 Manual Pigging System Economical Hygienic Pipeline Cleaning Unit for Liquid Product Recovery

1 / 5

DN 65 Manual Pigging System Economical Hygienic Pipeline Cleaning Unit for Liquid Product Recovery

Customization:	Available
After-sales Service:	Pepair Kits
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.

DN 65

Application

Pet Food, Chocolate, Ice Cream, Beverage, Chemicals

Customized

Certification

ISO9001

Automatic Grade

Semi-Automatic

Medium

Liquid or Air

Temperature

Above 0-100℃

Pressure

0-10 Bar

ISO Standard

1"; 1.25"; 1.5"; 2"; 2.5"; 3"; 3.5"; 4"; 5"; 6"

DIN Standard

DN25; DN40, DN50, DN65, DN80, DN100, DN125, DN150

Transport Package

Wooden Case

Origin

China

Product Description

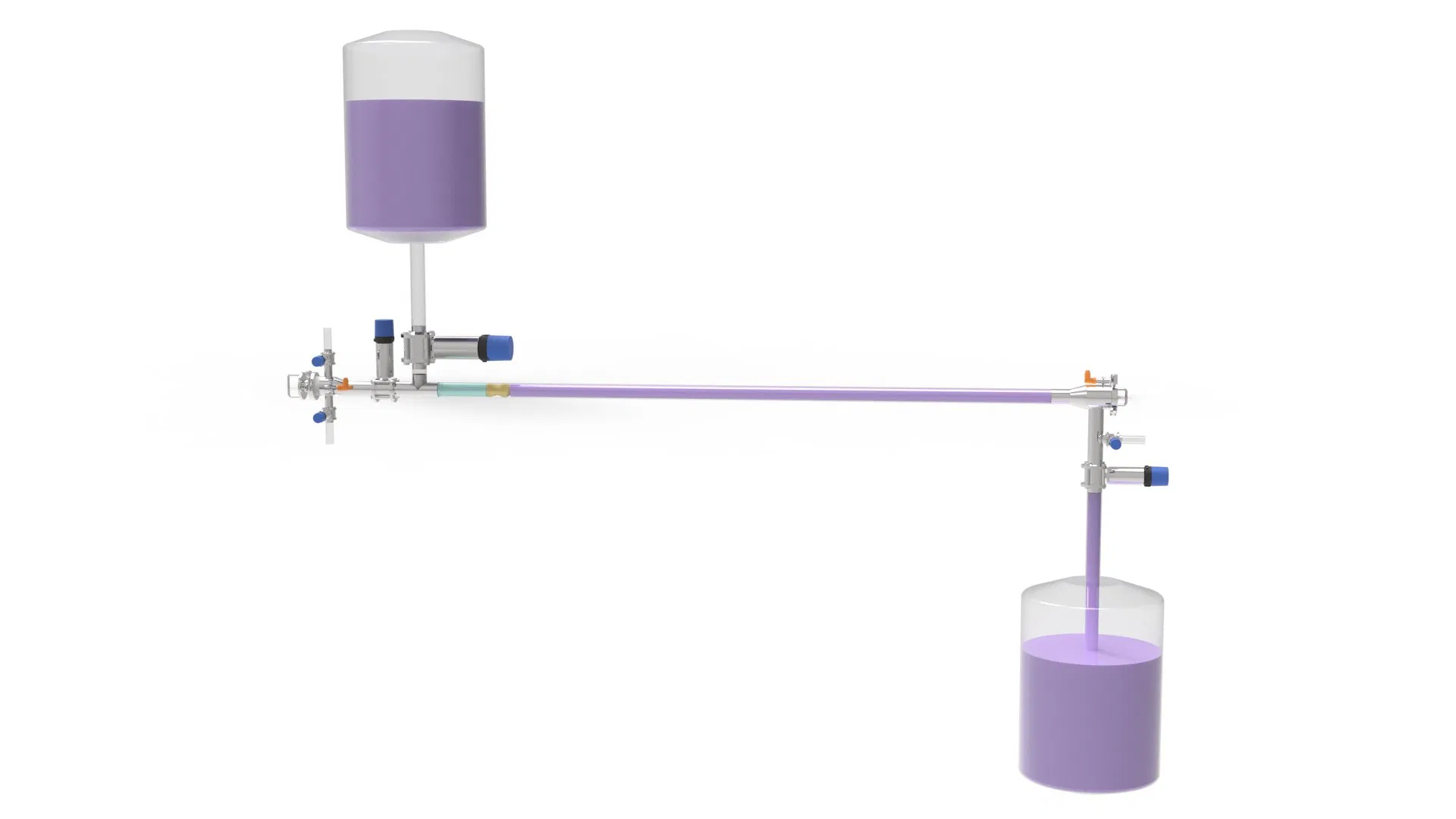

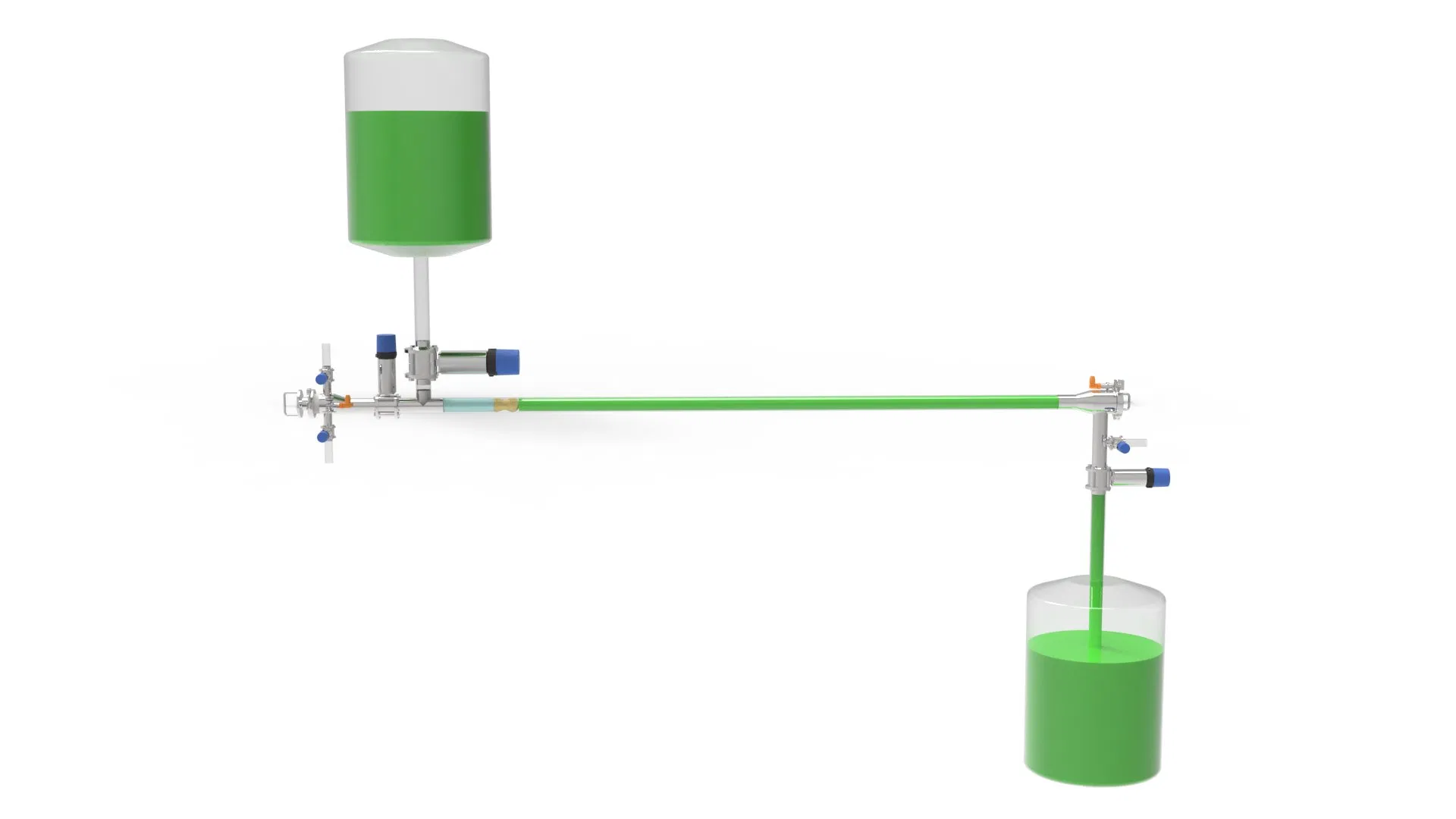

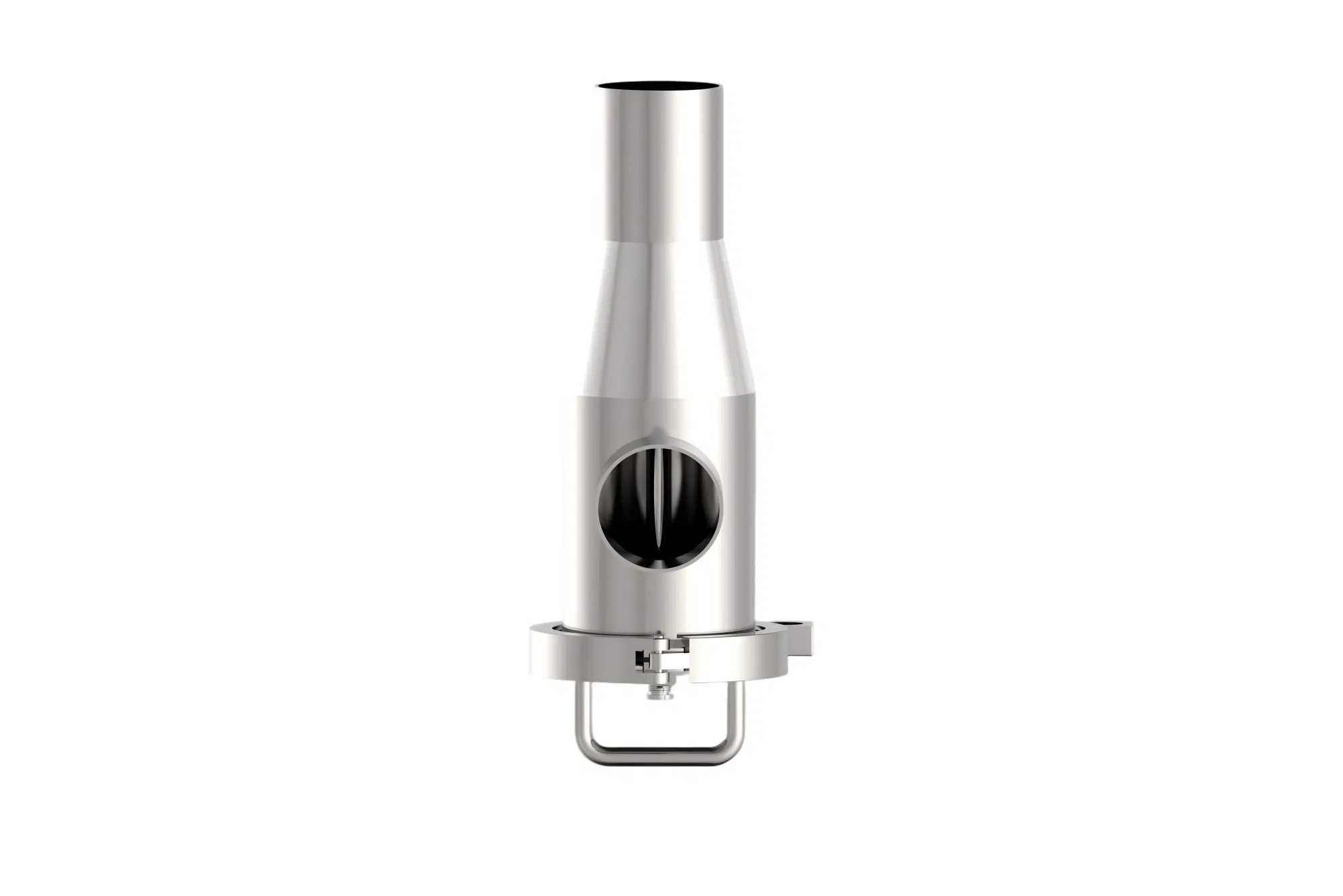

Economical (manual) pigging systems mainly consist of a launching station, a receiving station, and a pig. There are two types of manual pigging systems: in a standard manual system, the pig must be manually removed from the receiving station; in a semi-automatic system, the pig can be sent back to the launching station by driving force upon reaching the receiver.

💎 Key Advantages

Economical and highly cost-effective
Fast return on investment, typically within 3-6 months
Suitable for liquid food, pet food, detergents, chemicals, and lithium batteries
Significantly reduces material waste
Recovers 99.5% plus of residual product in pipelines

⚙ Core Features

Launching and receiving stations can be cleaned alongside the pipeline during CIP processes.
The pipeline pig is firmly fixed upon entering the station.
Automation components can be upgraded at any time.
Low maintenance and operational costs.
Modular design allows for easy integration into existing process pipelines.

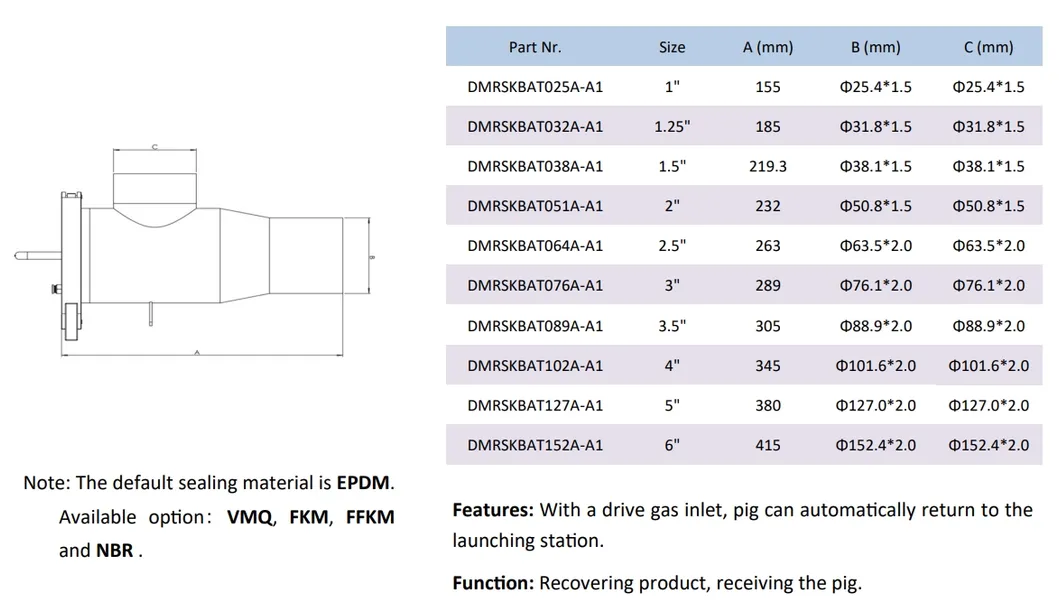

Product Parameters

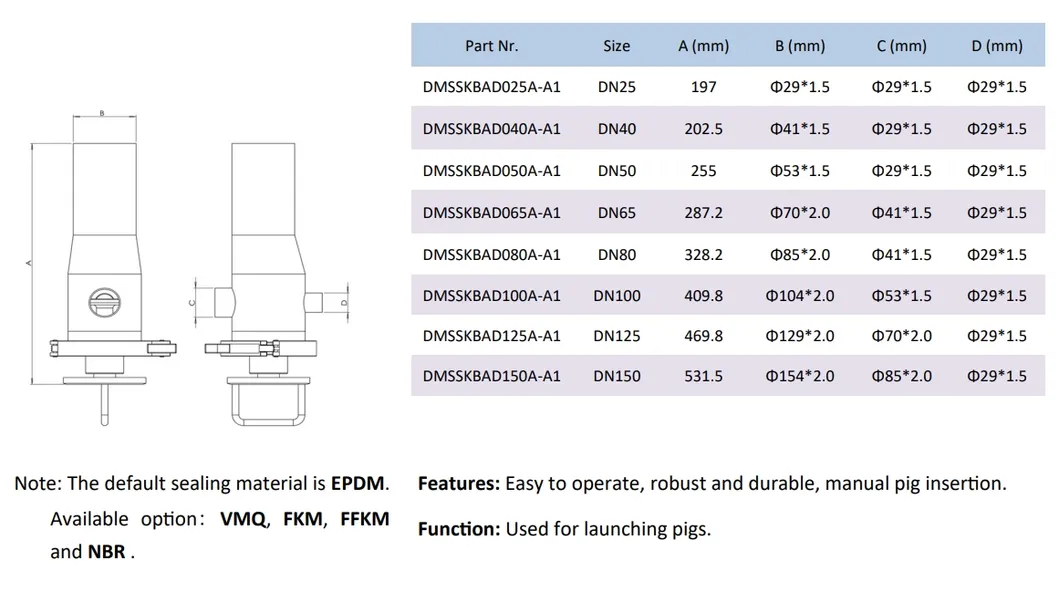

DIN 11850 Series II Standards: DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150

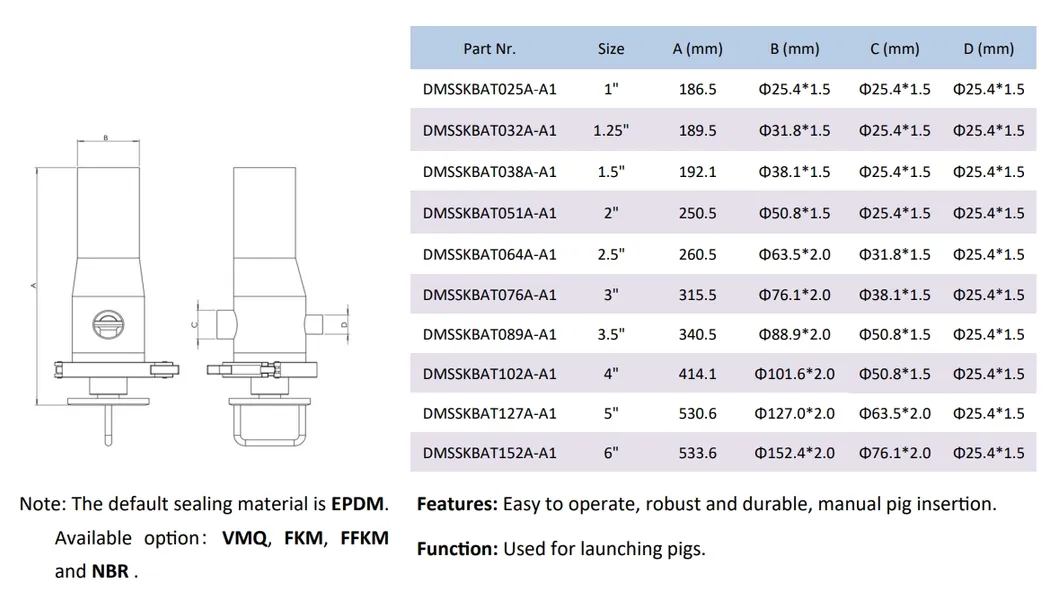

ISO Standards: 1", 1.25", 1.5", 2", 2.5", 3", 3.5", 4", 5", 6"

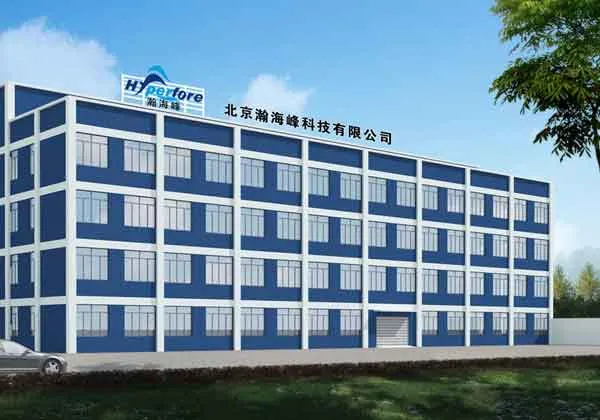

Professional Solutions

We are an experienced manufacturer of hygienic pigging systems, established in 2005. Our designed product recovery systems range from manual to automatic, and sanitary to aseptic. We provide specialized solutions for dairy, beverage, edible oil, pharmaceutical, cosmetics, lithium battery slurry, and various sauces.

Our focus is on high-quality recovery research and continuous updates to pigging technology, ensuring cost-effective results that meet specific customer requirements globally.

Our Advantages

Extensive experience in pigging system solutions with a professional technical team.
Advanced liquid product recovery systems customized for sanitary and hygienic applications.
Proven results in food, sauce, dairy, beverage, and chemical industries.
Comprehensive support including pipeline pigs, special valves, detection units, and automation control.
High-quality spare parts and technical service support.

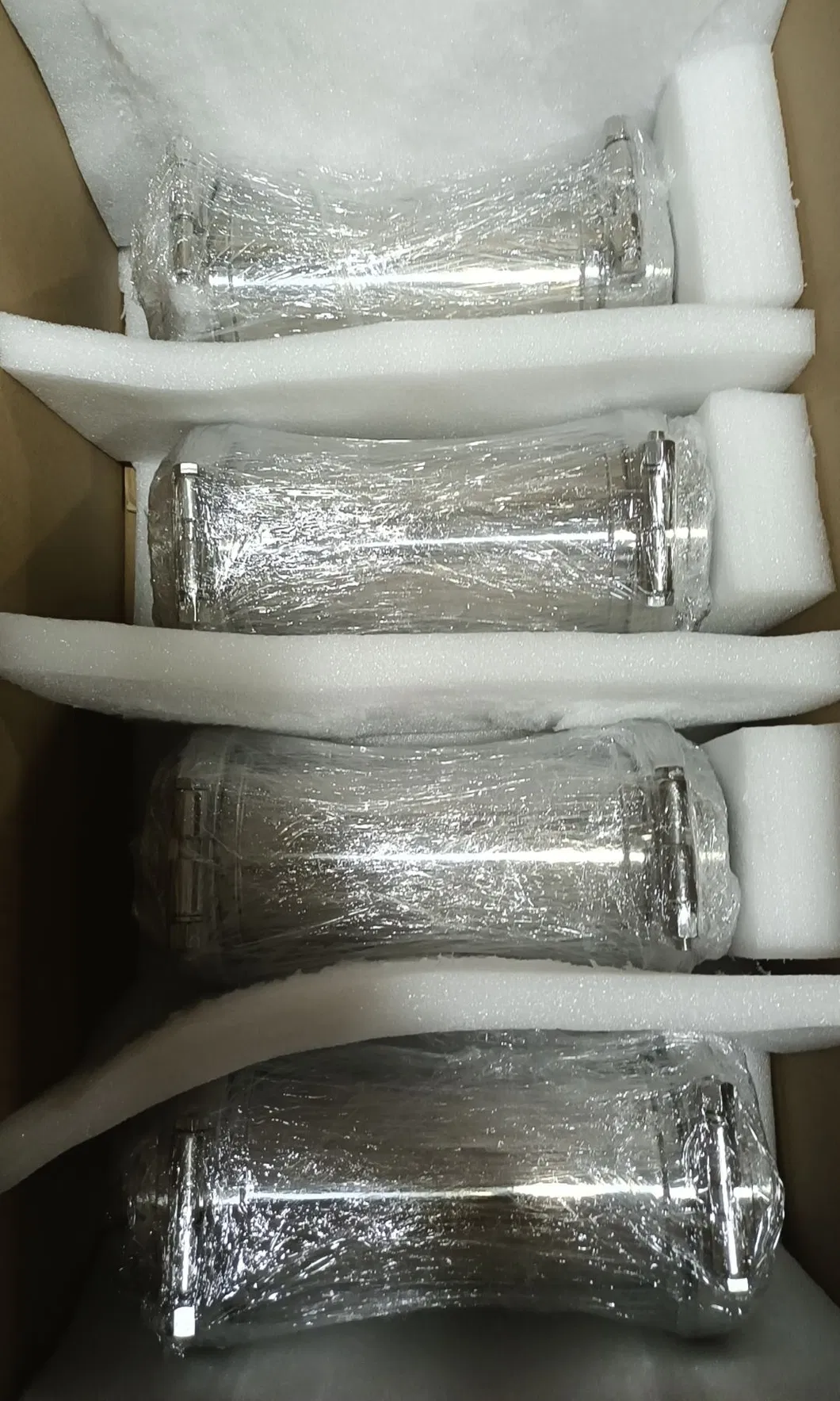

Packaging & Shipping

Frequently Asked Questions

What is a manual pigging system?

Manual pigging systems use manual control to launch and receive the pipeline pig. The pig can be manually removed from the receiving station or returned to the launcher for the next process.

How does a pigging system work?

It uses a specialized "pig" propelled by the product or a separate propellant to clean walls and recover residual product, improving efficiency and reducing waste.

What are the primary benefits of pigging?

Key benefits include enhanced product recovery (up to 99.5%), reduced waste, improved operational efficiency, and minimized downtime.

Is the system compatible with CIP (Clean-In-Place)?

Yes, both the launching and receiving stations are designed to be cleaned together with the pipeline during standard CIP cycles.

What industries can use this system?

It is widely used in food, beverage, dairy, cosmetics, pharmaceutical, chemical, and even lithium battery production.

Can the manual system be upgraded later?

Yes, the modular design allows for automation components to be further upgraded at any time as your process requirements evolve.
