| Model NO. | DN 40 |
| Control System | Fully Automatic |
| Customized | Available |
| Material | Stainless Steel |
| ISO Standard | 1; 1.25; 1.5; 2; 2.5; 3; 3.5; 4; 5; 6 |
| DIN Standard | DN25 to DN150 |
| Medium | Liquid and Air |
| Temperature Range | Above 0°C ~ 100°C |
| Pressure | Pn10 |
| HS Code | 8481202000 |
| Production Capacity | 50 set/Year |

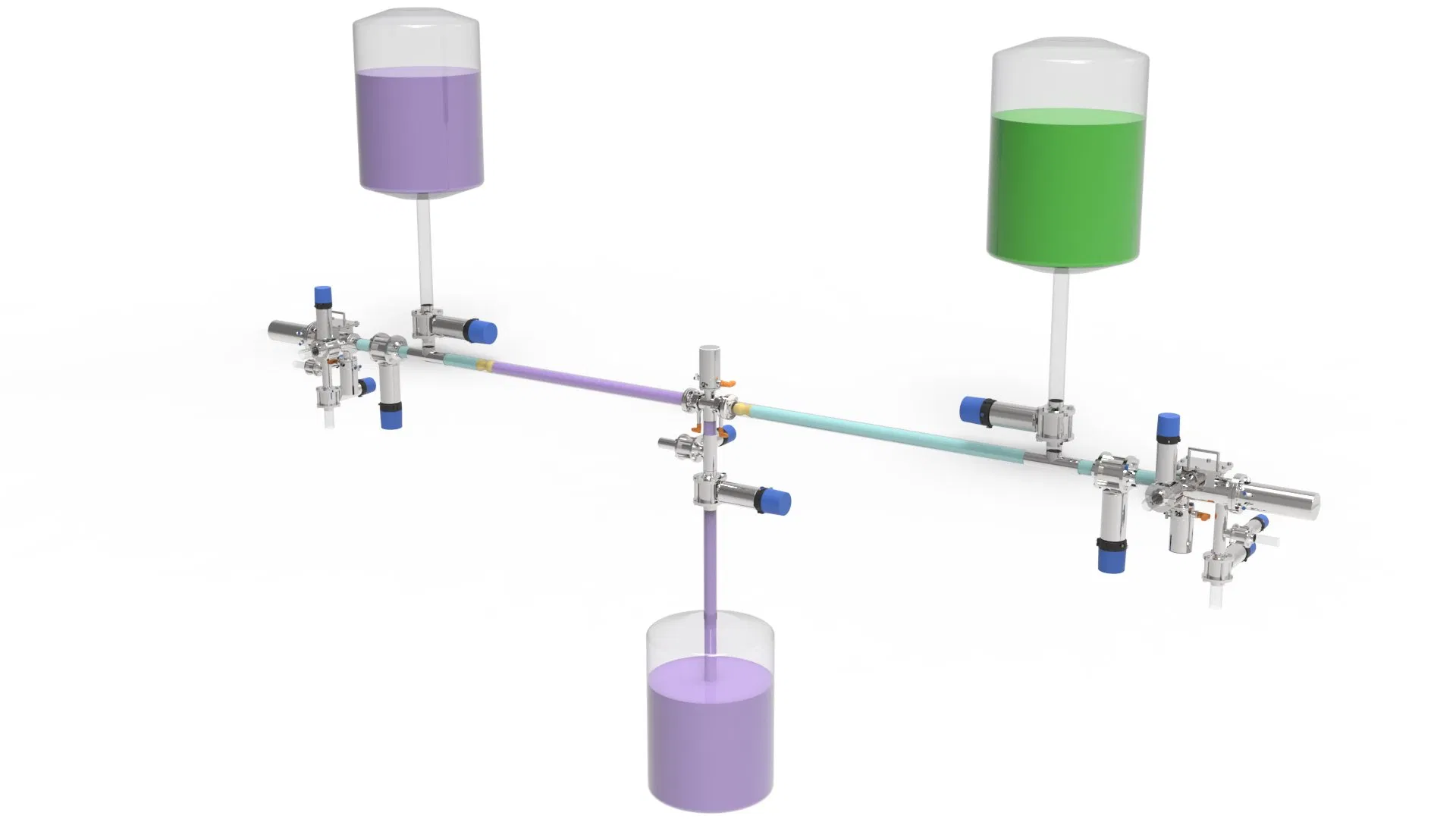

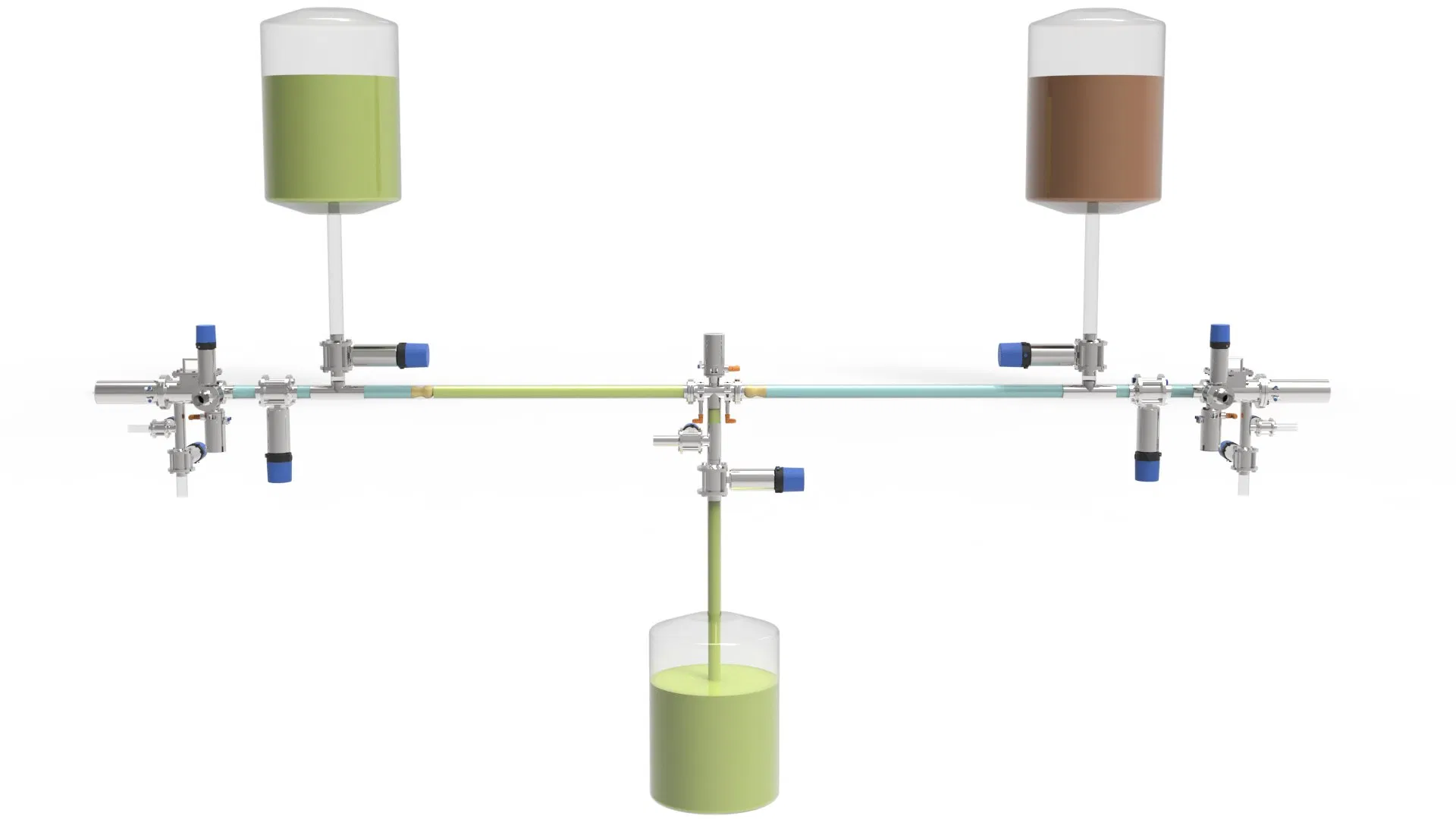

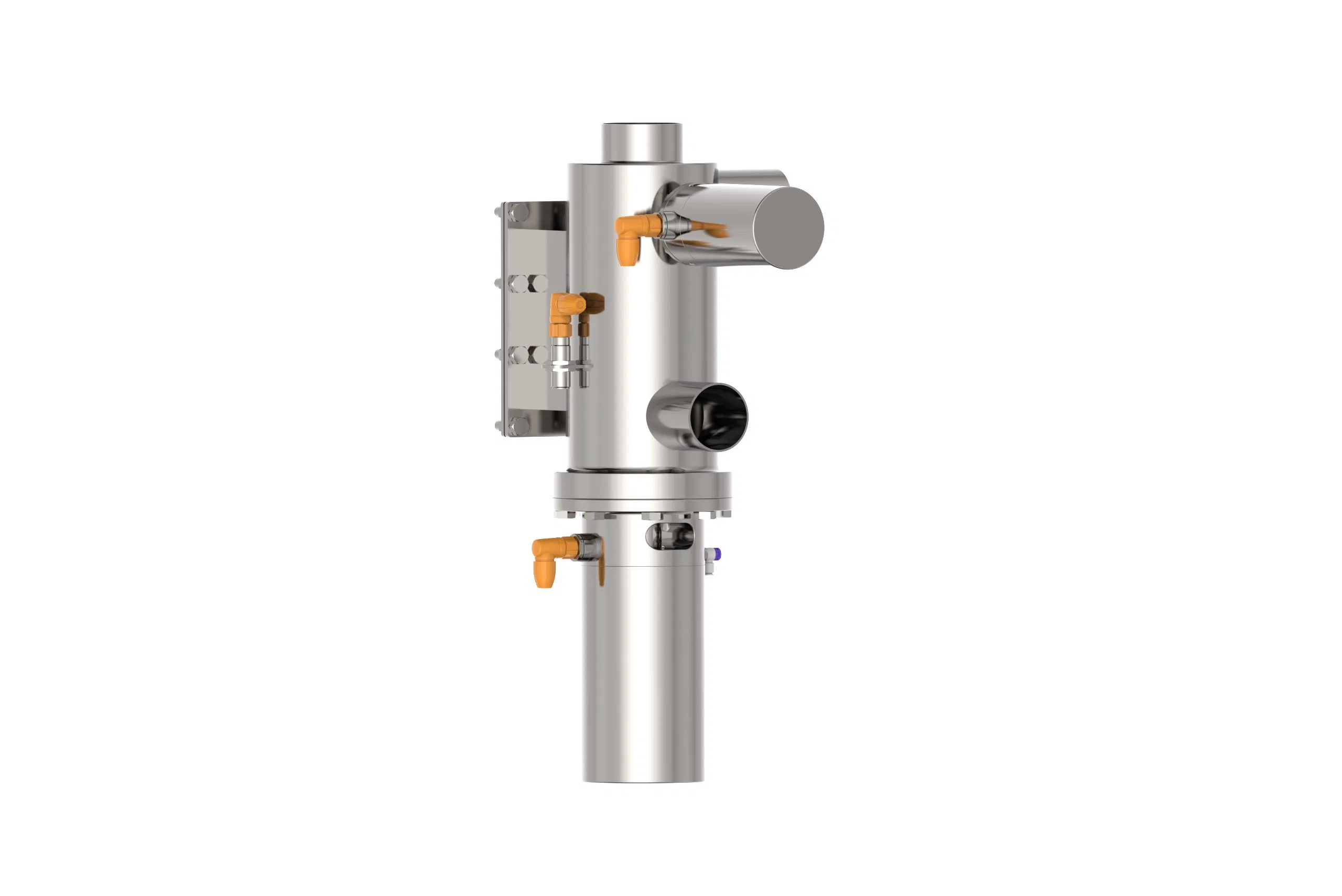

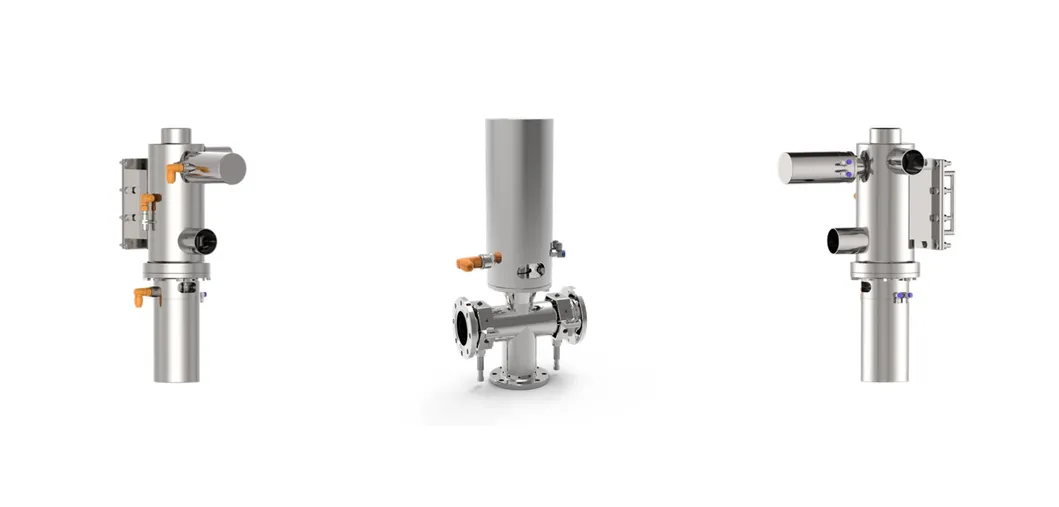

The Double-Launch Station Automatic Pigging System is designed to recover residual product from pipelines with minimal waste and maximum efficiency. It features a hygienic design suitable for food, beverage, pharmaceutical, and cosmetic industries.
Technical Data Specifications:
• Working pressure range: 0 ‐ 10 bar
• Temperature range: above 0°C ‐ 100°C
• Main body material: SS304, SS316L
• Sealing material: EPDM (default); Optional: VMQ, FKM, FFKM, NBR
• Surface roughness: Ra≤0.8μm (product contact surfaces)
Available Tube Diameters:
Din11850 Series II: DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150
ISO Standard: 1", 1.25", 1.5", 2", 2.5", 3", 3.5", 4", 5", 6"

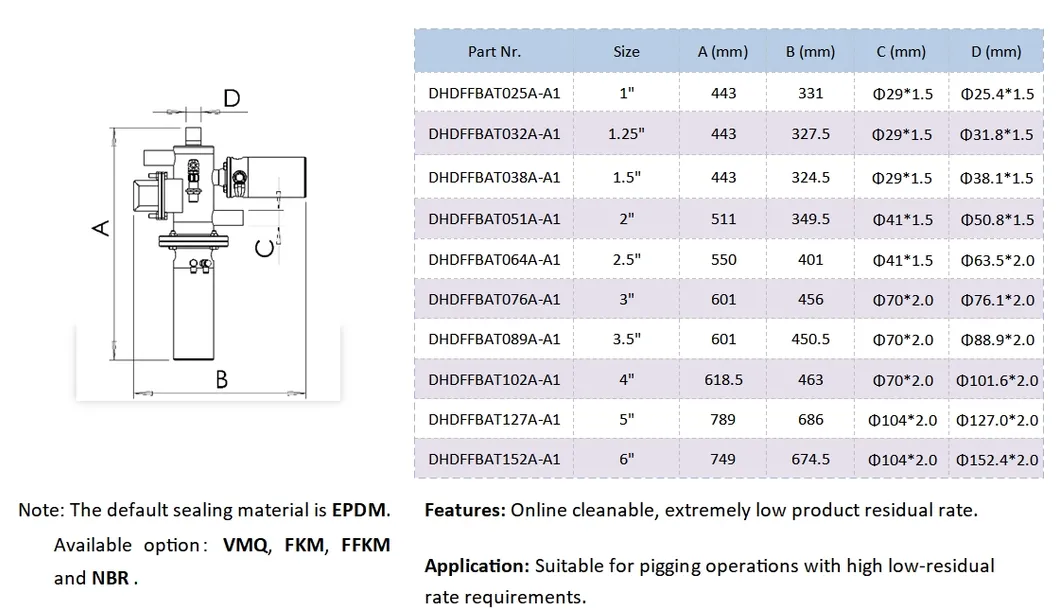

Micro-residue launcher (SUS316L) - ISO Series

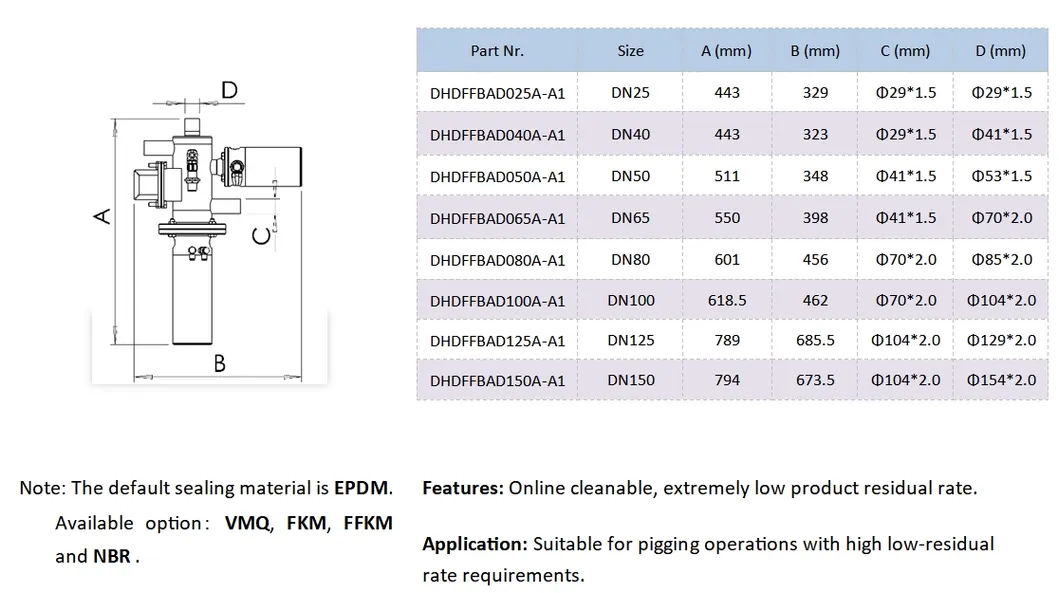

Micro-residue launcher (SUS316L) - DIN 11850

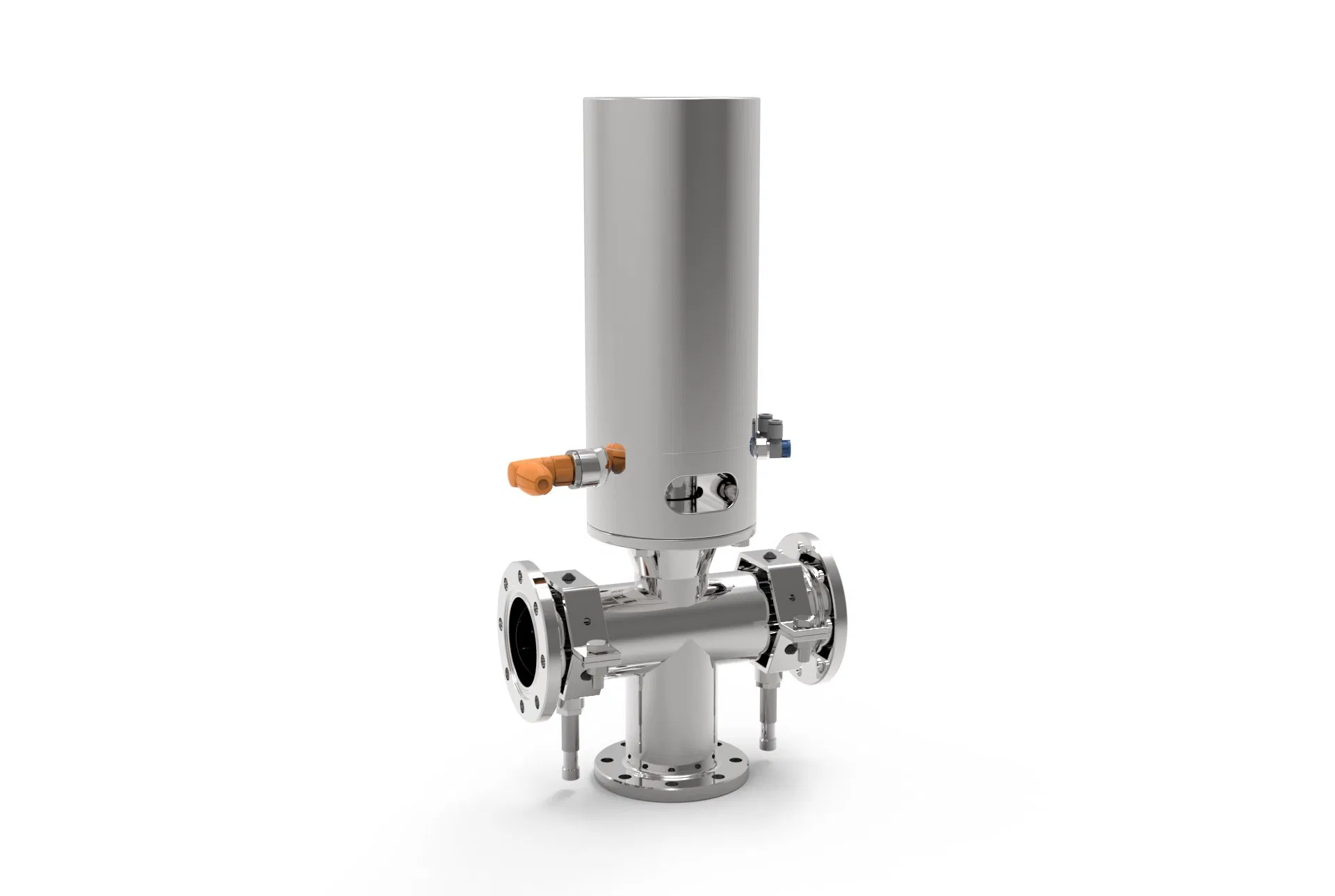

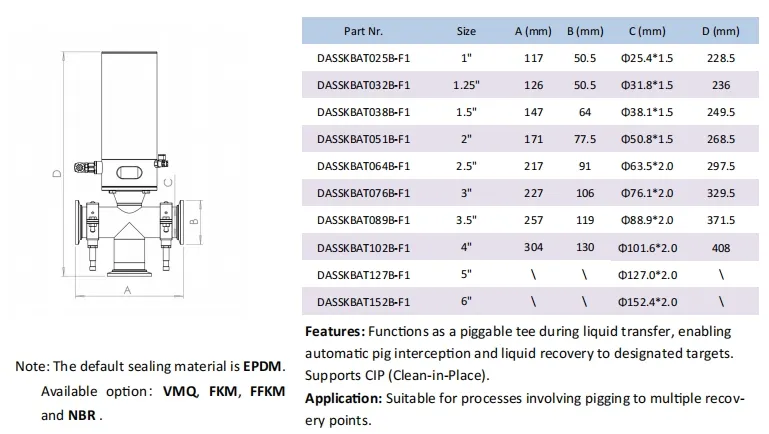

Piggable-tee intermediate stopper - Tri-clamp

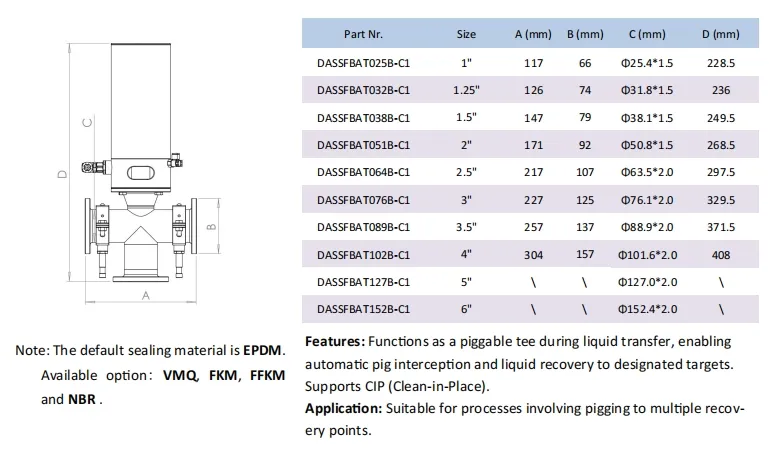

Piggable-tee intermediate stopper - Flange

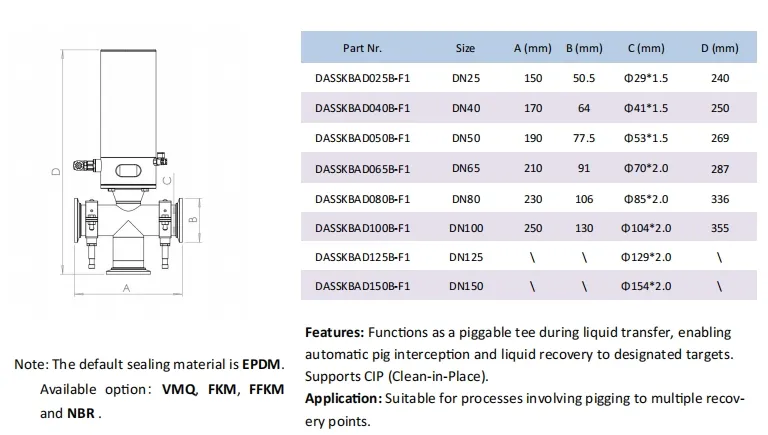

Piggable-tee intermediate stopper - DIN Series
We are an experienced manufacturer of hygienic pigging systems. Our designed and manufactured product recovery systems include manual, automatic, sanitary, and aseptic options. We provide hygienic pigging solutions for various industries including:
After Sales Support: Technical support, professional training, spare parts kits, on-site maintenance, and remote guidance.
