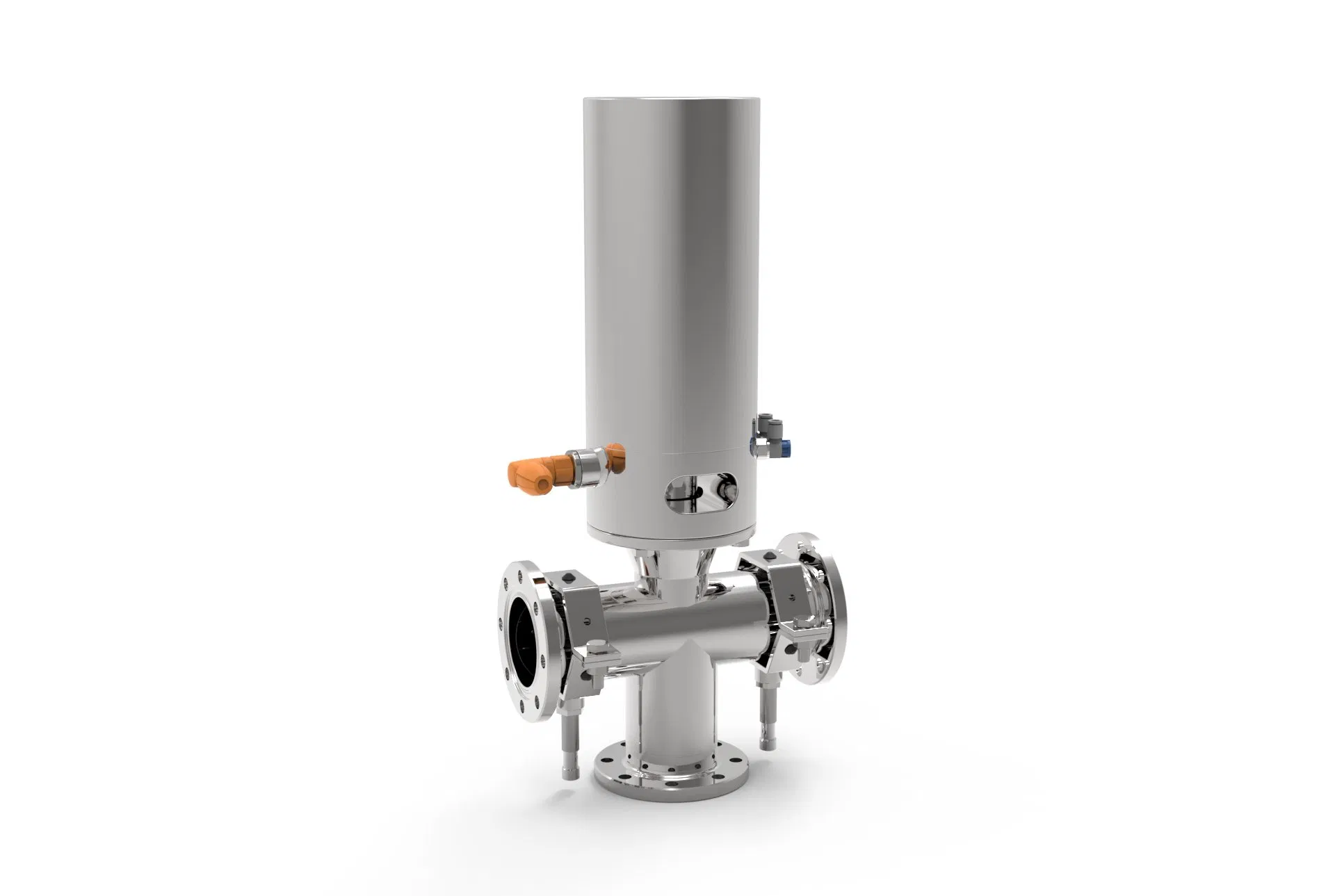

Double-Launch Station Automatic Pigging System ISO 3"/Pipeline Cleaning/Paints and Coatings

Customization:	Available
Application:	Cosmetic Industry, Food Industry, Pharmaceutical Industry
Certification:	ISO

📋 Basic Specifications

Model NO.

ISO 3"

Control System

Fully Automatic

Material

Stainless Steel

ISO Standard

1;1.25;1.5; 2; 2.5; 3; 3.5; 4; 5; 6

DIN Standard

DN25 - DN150

Medium

Liquid and Air

Temperature

Above 0°C ~ 100°C

Pressure

Pn10

HS Code

8481202000

🚀 Product Description

Key Features:

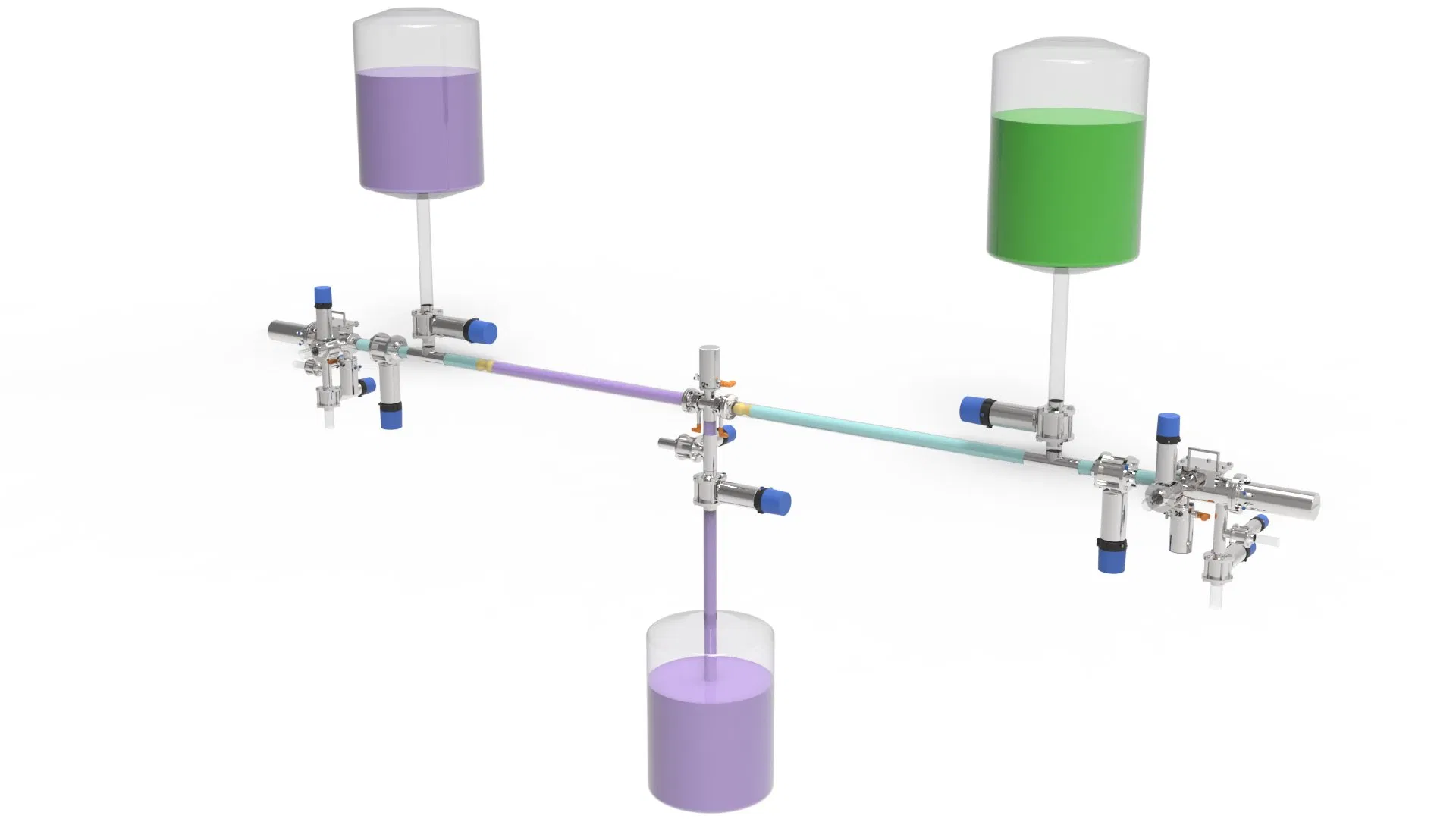

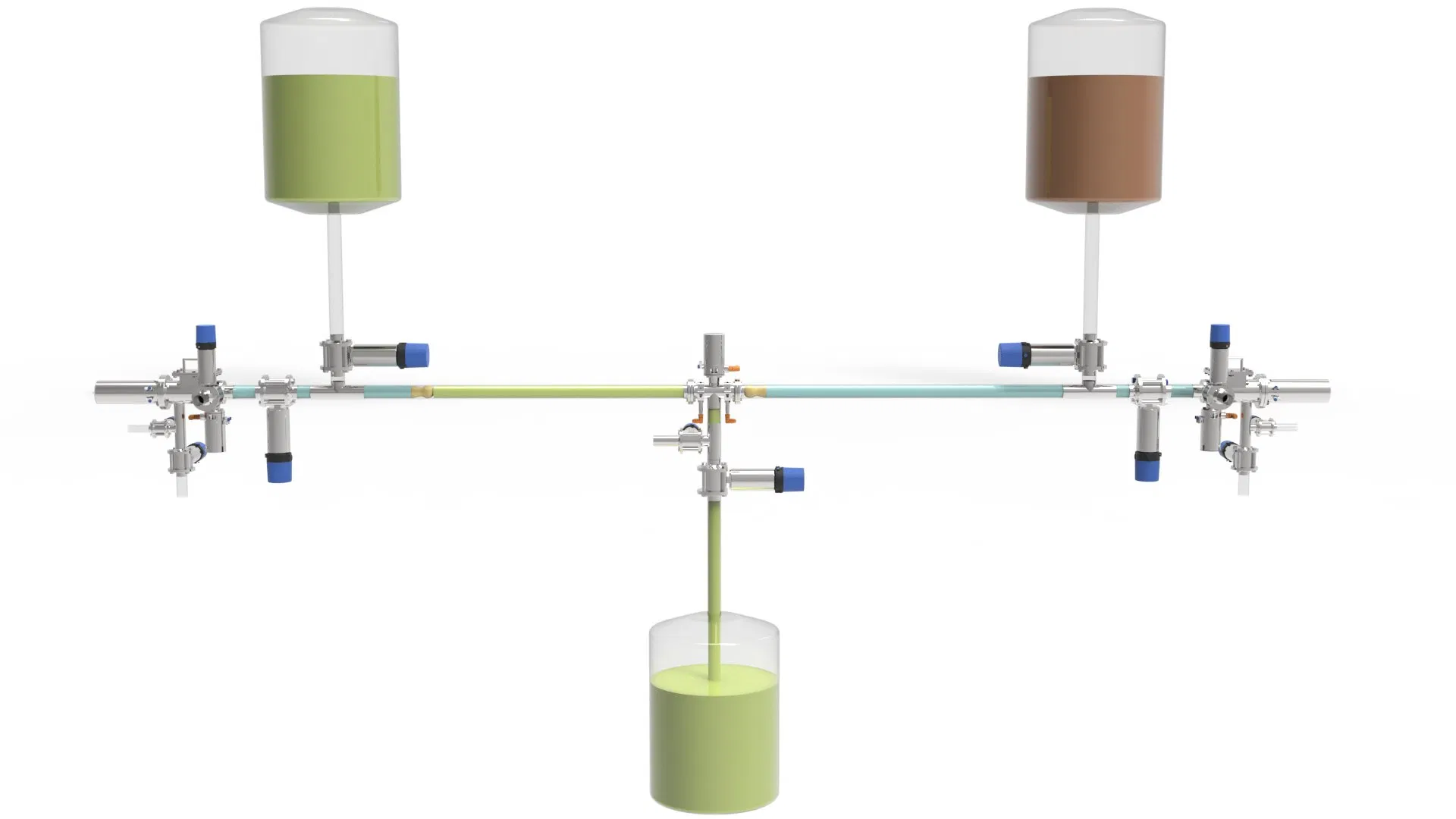

The Double-Launch Station Automatic Pigging System is designed to recover residual product from pipelines with minimal waste and maximum efficiency. It features a hygienic design suitable for food, beverage, pharmaceutical, and cosmetic industries. The system is fully automated with intelligent control systems and remote support capabilities.

Recover up to 99% of residual product
Reduce cleaning time and water usage
Fast ROI within 3 to 6 months
Easy integration with existing automation

Technical Data:

Working Pressure

0 ‐ 10 bar

Main Body

SS304, SS316L

Sealing

EPDM, VMQ, FKM, FFKM, NBR

Roughness

Ra≤0.8μm

📐 Product Parameters

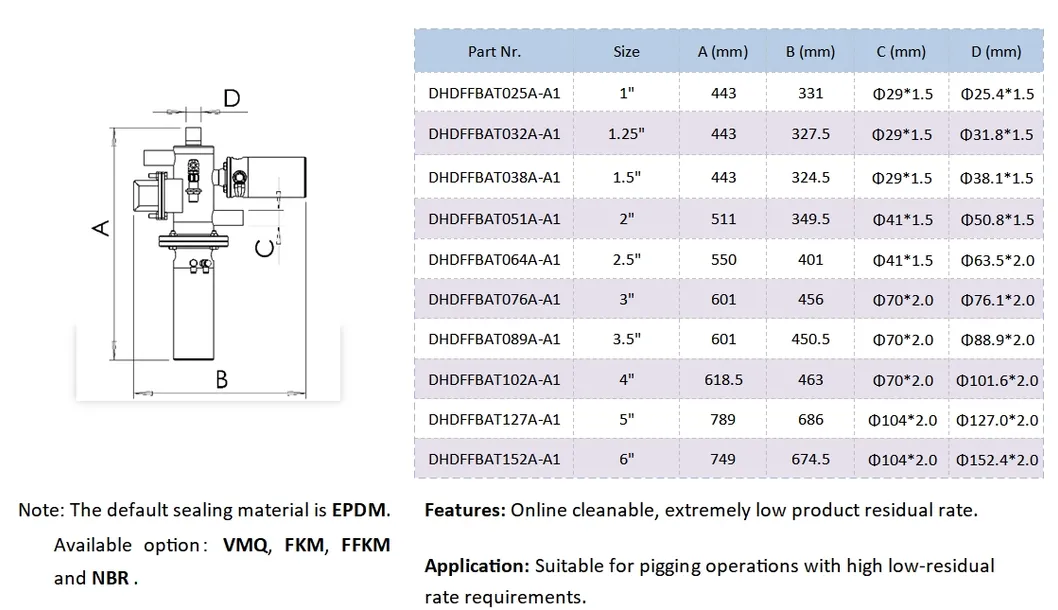

Micro-residue launcher (SUS316L) - ISO Series

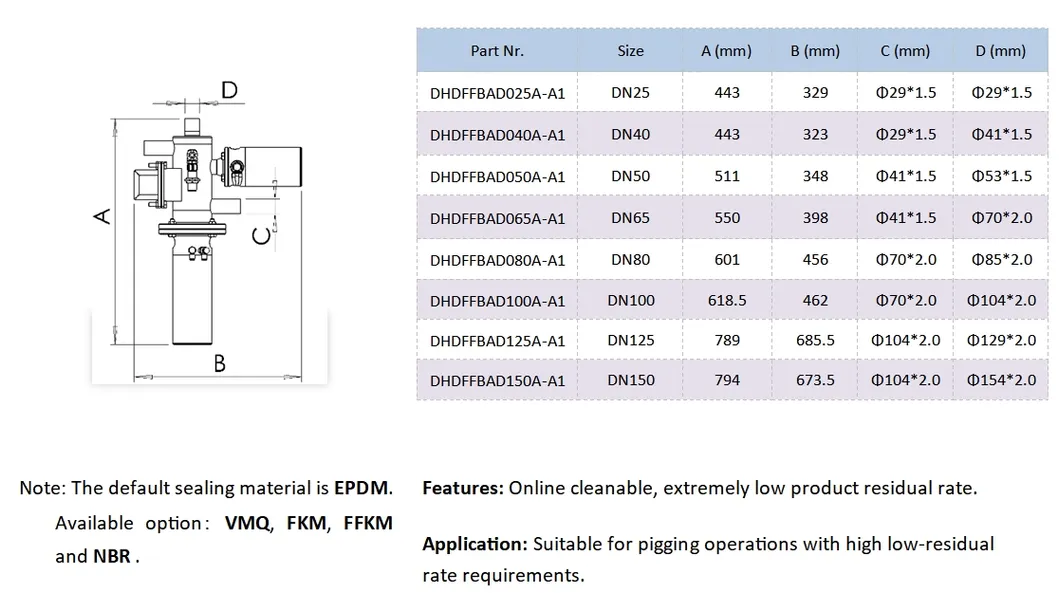

Micro-residue launcher (SUS316L) - DIN 11850

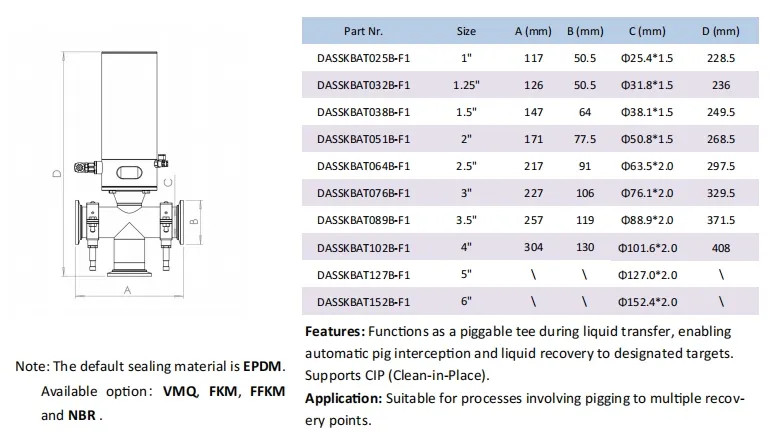

Piggable-tee (Tri-clamp - ISO)

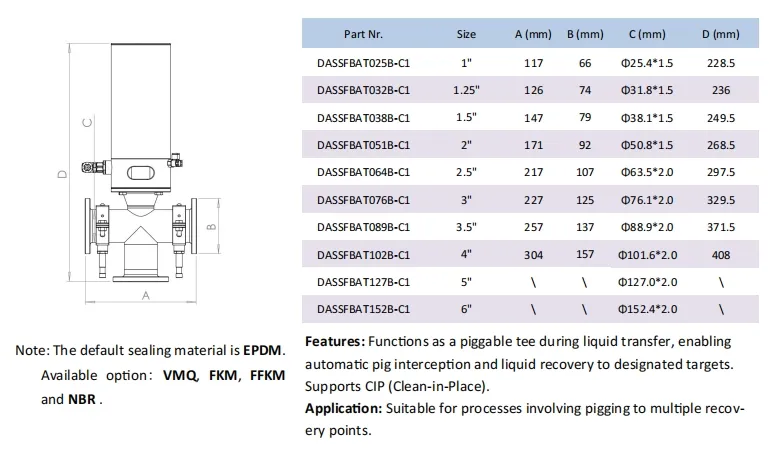

Piggable-tee (Flange - ISO)

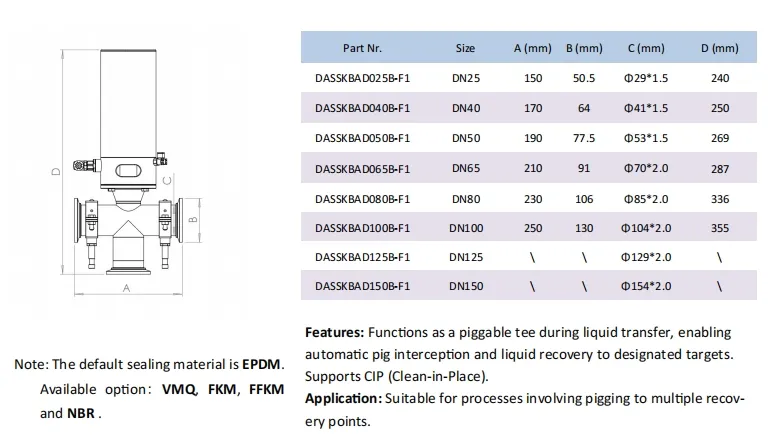

Piggable-tee (Tri-clamp - DIN)

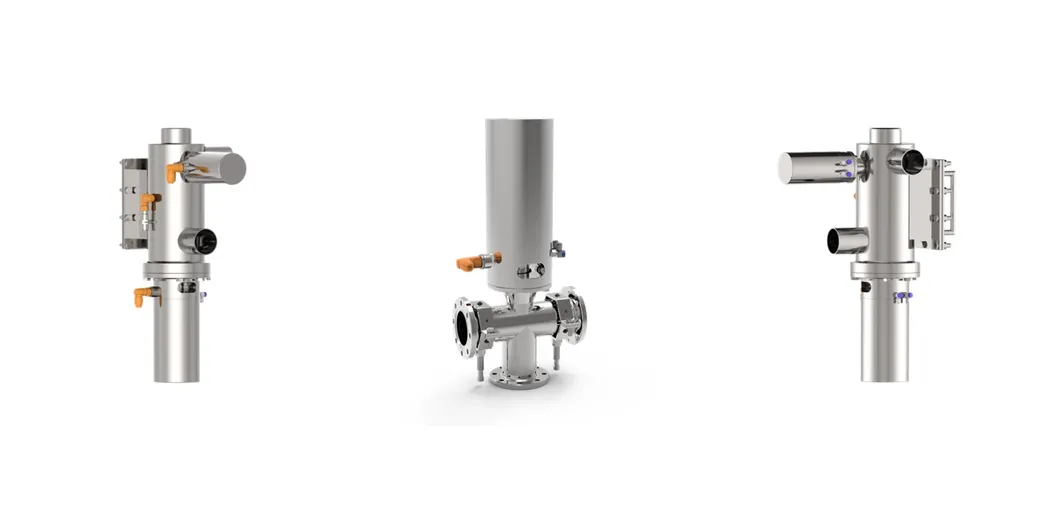

🔍 Detailed Photos

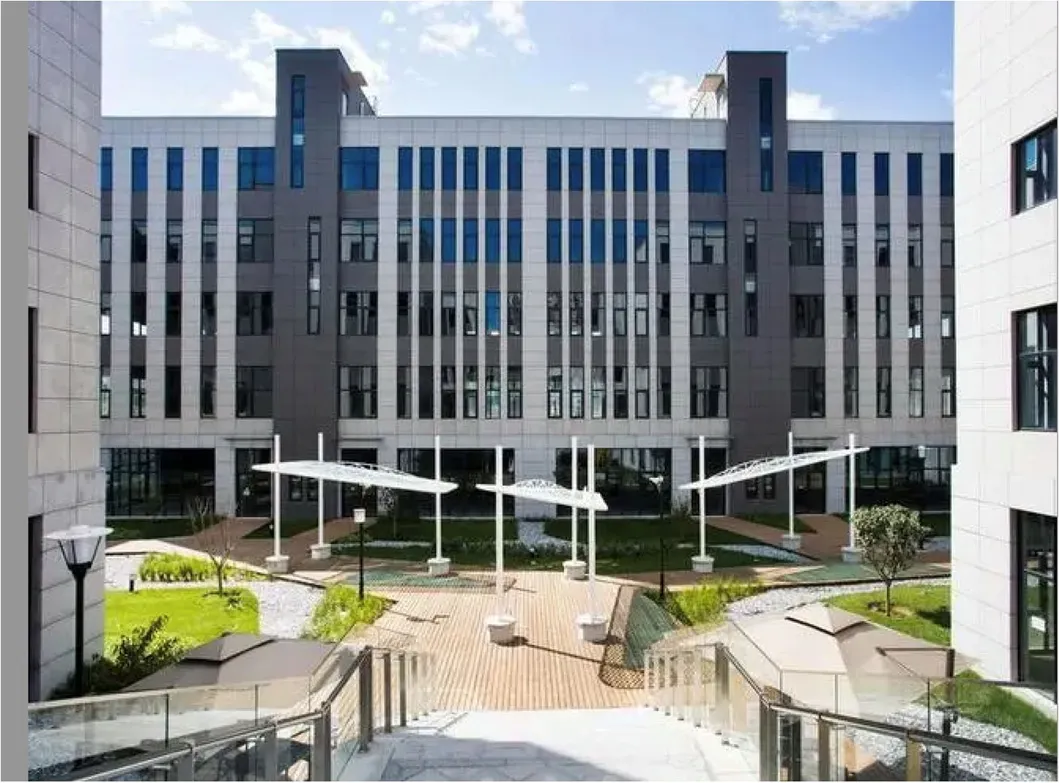

🏢 Professional Solutions

We are an experienced manufacturer of hygienic pigging systems, established in 2005. Our recovery systems are designed to be manual, automatic, sanitary, and aseptic, catering to a wide range of industries.

Our solutions are widely applied in: Dairy, Beverage, Edible Oil, Pharmaceutical, Cosmetics, Lithium Battery Slurry, Paints and Coatings, and any liquid product transferred via pipeline.

🛠 After Sales Service

Comprehensive Technical Support
Professional Operator Training
Spare Parts and Repair Kits
On-site Maintenance
Remote Technical Guidance

⭐ Our Advantages

Extensive experience in pigging solutions
Professional technical team and fast delivery
High-quality, customized hygienic systems
Proven success in food, chemical, and pharma sectors

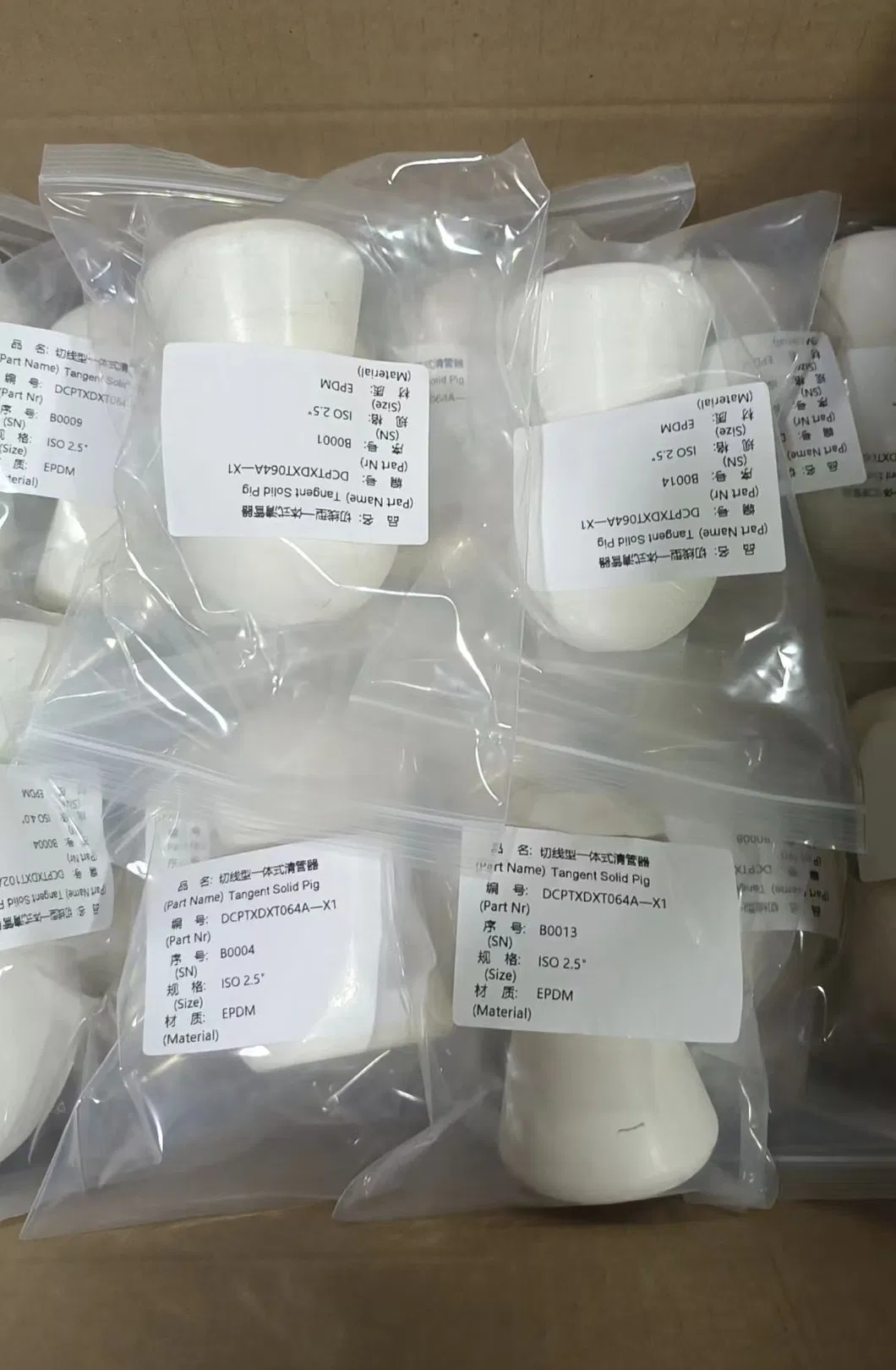

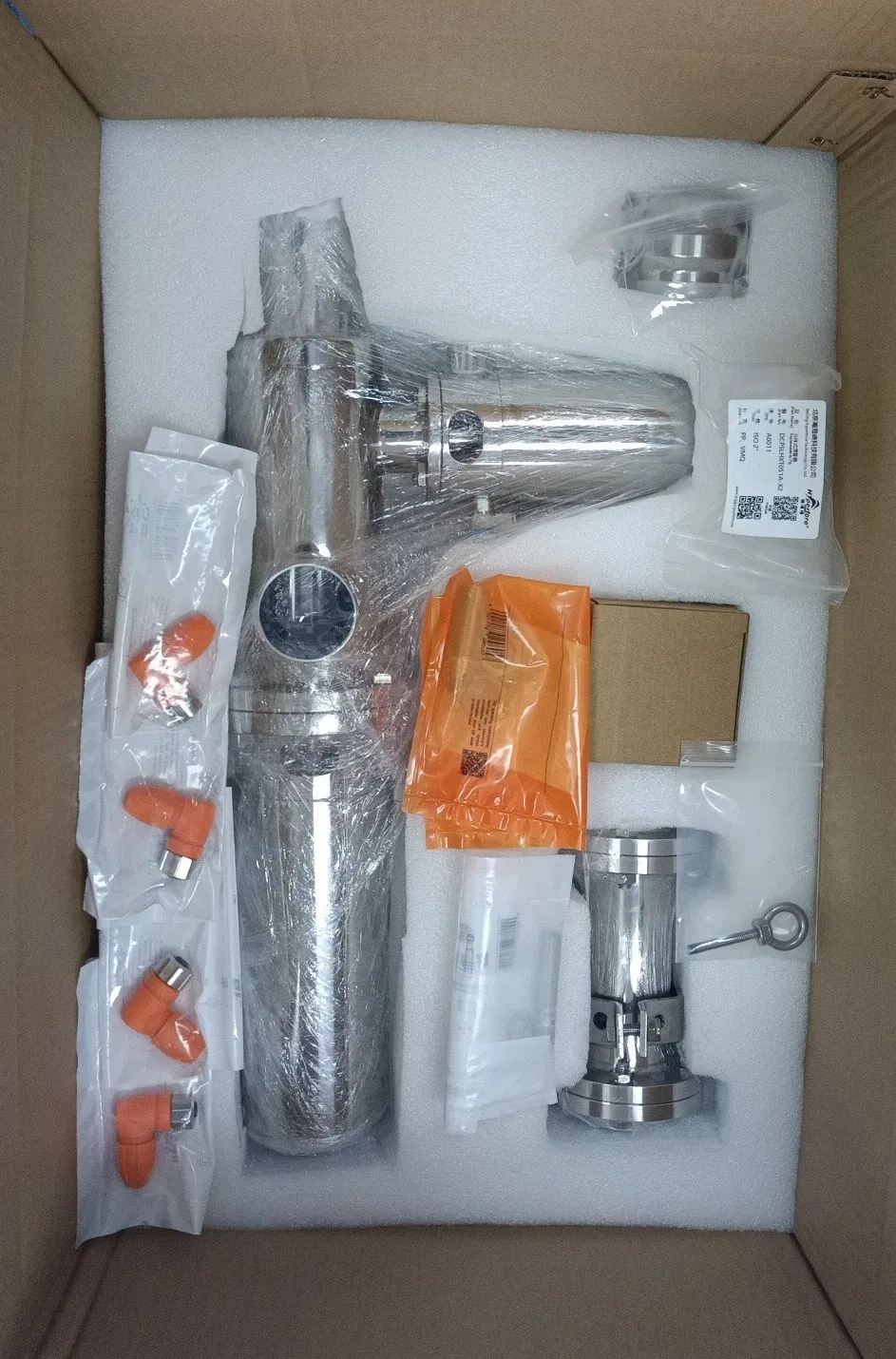

📦 Packaging & Shipping

❓ Frequently Asked Questions

1. What are the primary advantages of an automatic pigging system?

The system offers significant advantages including reduced product waste (up to 99% recovery), improved yield, faster cleaning cycles, and lower water usage, ensuring a rapid return on investment within 3-6 months.

2. Why is the process called "Pigging"?

While the origin is debated, it is often considered an acronym for "Pipeline Inspection Gadget," or named after the squealing sound cleaning pigs make while traveling through the pipes.

3. How do I choose the correct pipeline pig?

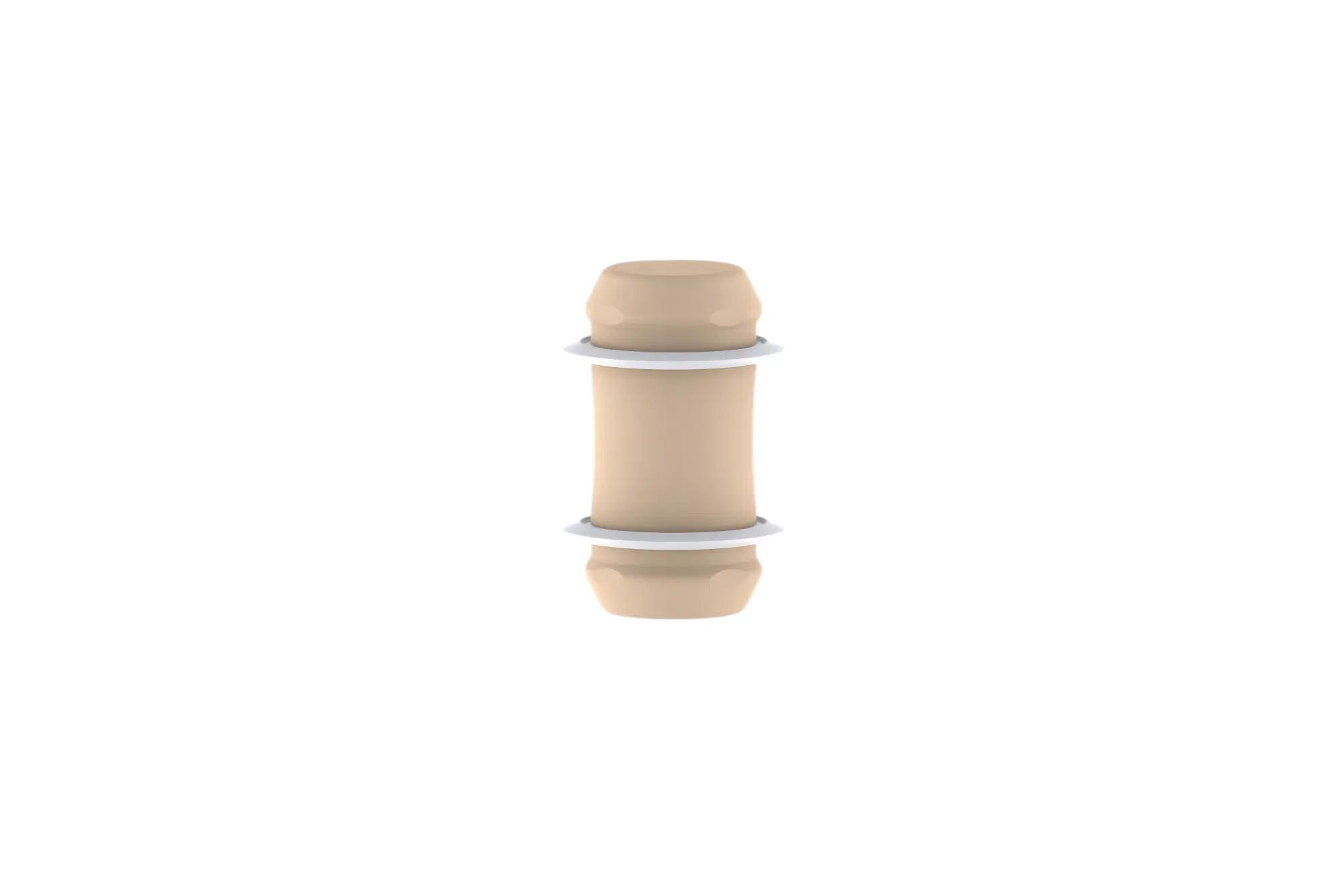

Selection depends on your production process. Options include replaceable lip pigs, lithium battery pigs, jet pigs, PTFE pigs, and double-sphere solid pigs designed for specific viscosity and chemical requirements.

4. What materials are used in the construction?

The main body is typically constructed from high-grade Stainless Steel (SS304 or SS316L) to meet hygienic standards, with various sealing options like EPDM, VMQ, or FKM.

5. Is the system compatible with food and pharmaceutical standards?

Yes, the system is designed with a surface roughness of Ra≤0.8μm for contact parts, making it fully compliant with sanitary and aseptic requirements for food, beverage, and medical industries.

6. Can the system handle high-temperature liquids?

Yes, the standard system supports a temperature range from above 0°C up to 100°C, suitable for most liquid transfer applications.

Product Detail

Double-Launch Station Automatic Pigging System ISO 3"/Pipeline Cleaning/Paints and Coatings

Product Description

Related Products

Product Detail

Double-Launch Station Automatic Pigging System ISO 3"/Pipeline Cleaning/Paints and Coatings

Product Description

Related Products

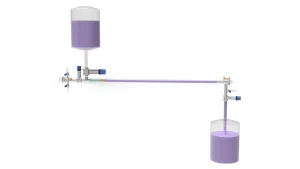

ISO 2.5&quot; Manual Pigging System Economical Hygienic Pipeline Cleaning Unit for Liquid Product Recovery

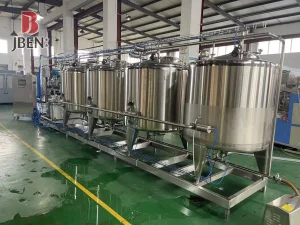

Fully Automatic CIP System for Food Plant Pipeline Cleaning in Place

Mobile Compact Laser Cleaning System 300W 200W for Chemical Plant Pipeline Maintenance

DN 65 Manual Pigging System Economical Hygienic Pipeline Cleaning Unit for Liquid Product Recovery

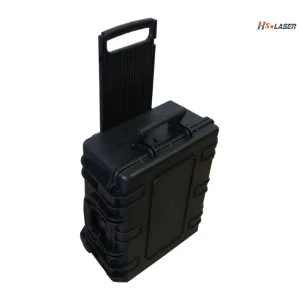

Compact Movable Laser Rust Removal System 300W 200W for Oil Pipeline Surface Cleaning

Double-Launch Station Automatic Pigging System DN100/Pipeline Cleaning/Paints and Coatings

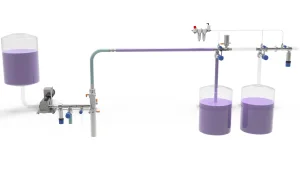

Double-Pig Automatic Pigging System ISO 3.5&quot;/Pipeline Cleaning/Paints and Coatings
