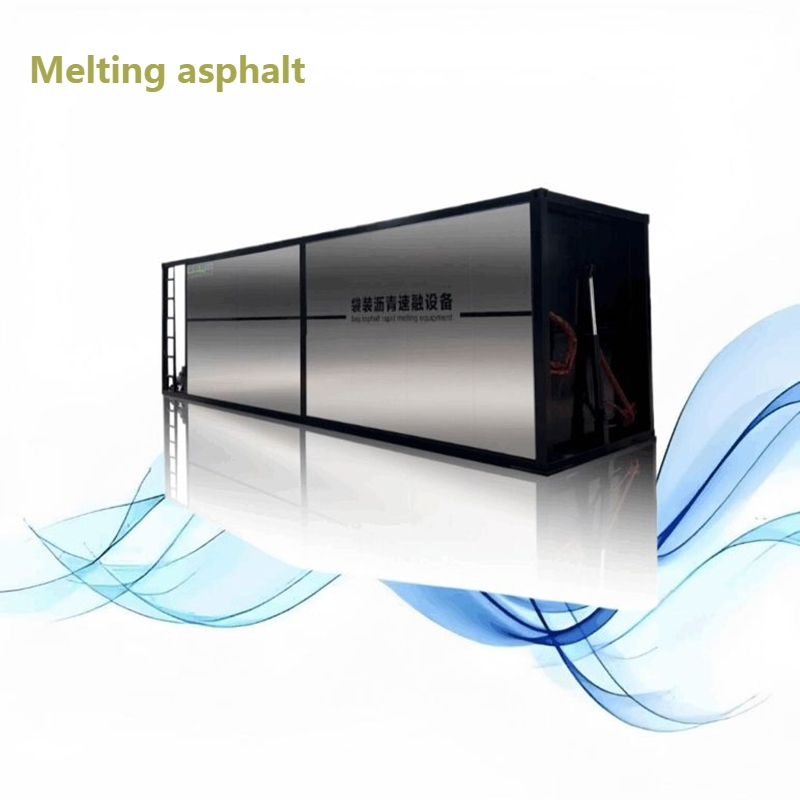

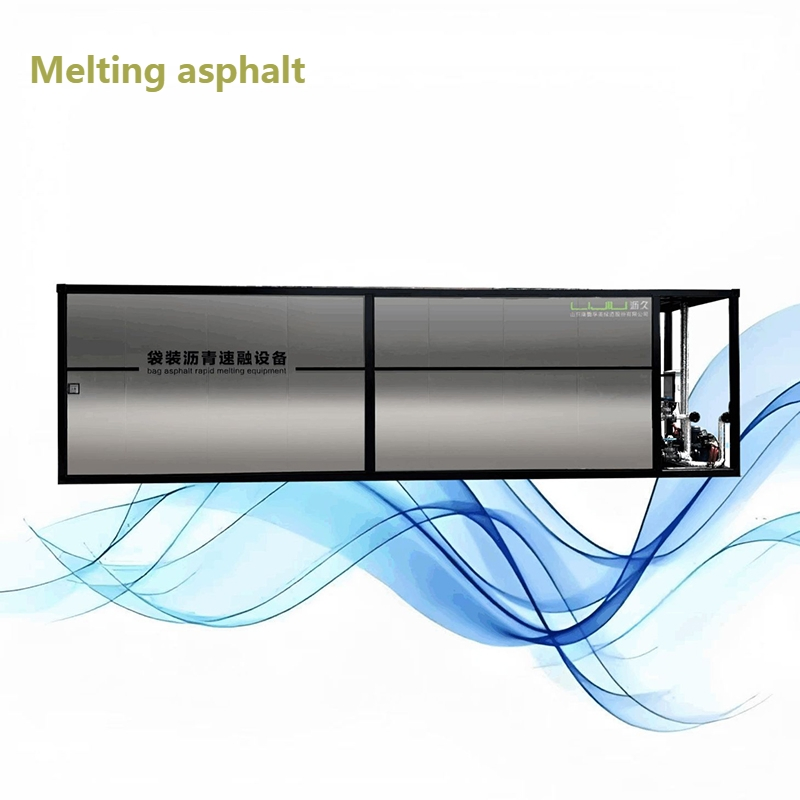

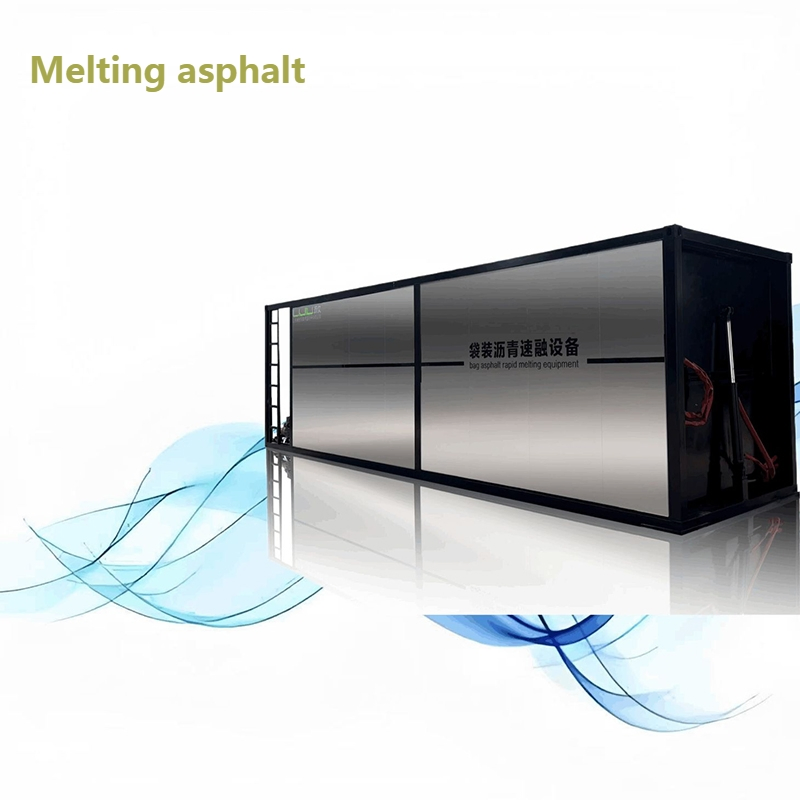

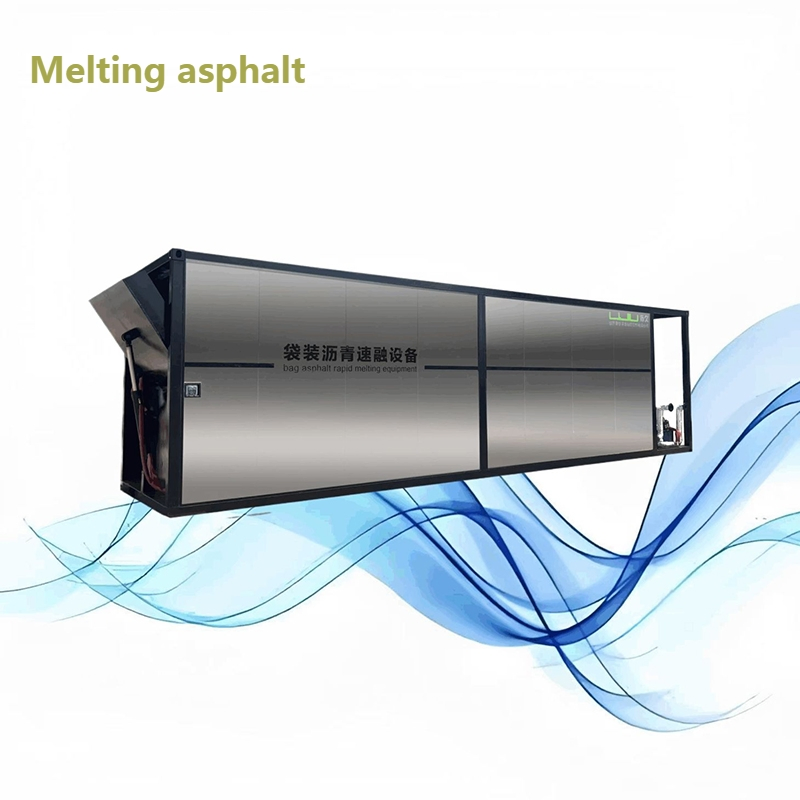

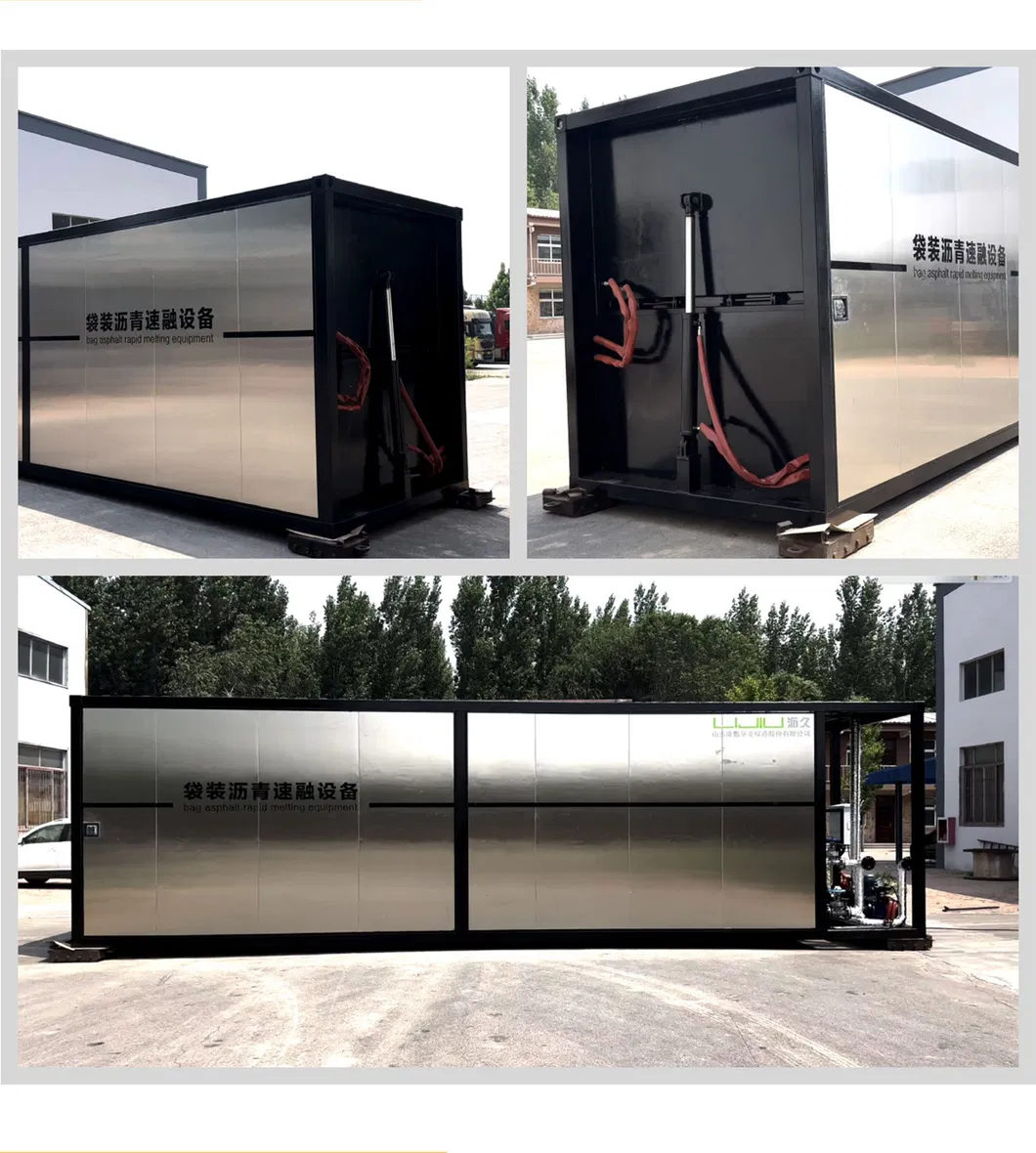

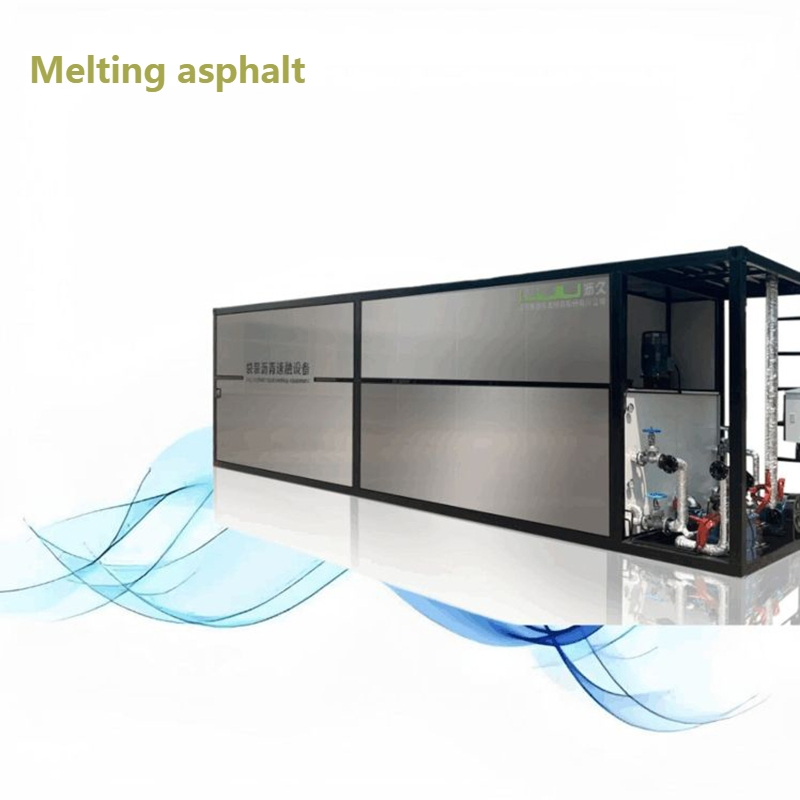

Heavy Duty and Durable Asphalt Melting Equipment for Road Cleaning Purposes

Customization:	Available
After-sales Service:	Video Technical Support/Online Support
Warranty:	1year

📋

Basic Information

Weight (Kg)8000

Selling PointContinuous Production

AdvantageLabor Saving

Melting TypeContinuous

Productivity10-15t/H

Package40FT Container

Specification11500*2300*2400

OriginChina

HS Code8474390000

Capacity50 units/Year

🛠️

Product Description

This product is designed for the rapid melting of massive and bagged asphalt. It effectively solves problems such as uneven heating aging, slow melting rates, and wasted energy consumption commonly found in traditional oil tank processes.

Rapid Heating Up System

Provides 900,000 calories per hour with over 90% heat conversion. The main system uses direct heat heating (600,000 kcal/h) while the secondary auxiliary system uses heat conduction medium (300,000 kcal/h). This dual approach ensures efficient heating regardless of the asphalt level.

Solid Asphalt Constant Temperature Thermal Cutting System

An adjustable thermostatic heat carrier circulation system that quickly divides large volumes of solid asphalt into 5-10 cm pieces. This increases the heating area and initiates the preheating process to flow shape.

Horizontal Mixing System

Equipped with 11 kw frequency conversion control. It allows for low-speed mixing when viscosity is high to prevent local overheating, and high-speed mixing once the asphalt is fully melted.

Hydraulic Flap Feeding System

Features a heating plate working at 120ºC, allowing ton bags of asphalt to smoothly enter the cutting system. The closed turning plate creates a confined space to reduce heat loss and maximize melting speed.

📊

Product Parameters

Applicable products	Ton package Bitumen
Productivity	10-15 t/h
Feeding method	Hydraulic Flap
Bitumen heating temperature	130 ℃
Bitumen storage capacity	12t
Hydraulic system pressure	Adjustable
Max jacking force	6 t
Heat transfer oil temperature	200-250 ℃
Bitumen pump flow	25 m³/h
Fuel consumption per ton	4-6 kg
Gross power	20 kw
Overall dimension (LWH)	1150023002400

❓

FAQ

1. What is the primary use of this asphalt melting equipment? It is specifically designed for the rapid melting of massive and bagged (ton package) asphalt, solving common issues like uneven heating and energy waste.

2. What is the production capacity of the machine? The equipment features a high productivity rate of 10 to 15 tons per hour (t/h).

3. How does the heating system ensure efficiency? It uses a dual heating system providing 900,000 calories per hour with over 90% conversion rate, including a direct heat main system and a secondary auxiliary conduction system.

4. Can it handle different sizes of solid asphalt? Yes, the constant temperature thermal cutting system automatically divides large solid asphalt into small 5-10 cm pieces for faster melting.

5. Does the equipment prevent asphalt aging from overheating? Yes, the horizontal frequency-controlled mixing system ensures materials move continuously, avoiding local high temperatures and maintaining consistent quality.

6. Is the feeding process automated? The equipment uses a hydraulic flap feeding system with a heated board (120ºC) to ensure smooth entry of ton bags and minimize heat loss through a confined space.
