Product Description

📋Basic Information
Model NO.
FY-0.75T
Application
Household and Industry
Capacity
400 Gallon
Pre Filter
PP+GAC+PP
Working Pressure
100psi-160psi
Frame
SUS 304
RO Membranes
Lp-4040
Recovery Rate
50%-75%
Voltage
220V/380V
Driving Model
1-5kw
Control Mode
Manual/Auto
Filtering Accuracy
0.0001micron
Water Output
0.25ton, 0.5ton, 0.75ton, 1ton
Filtration Level
8 Stage
💧Product Description

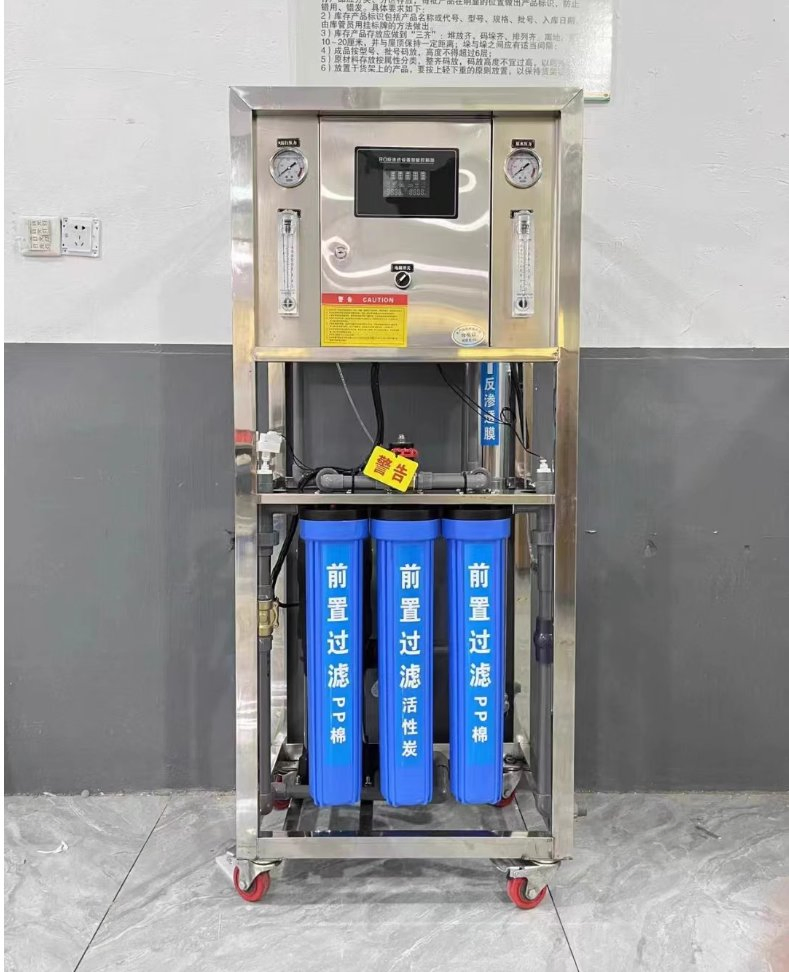

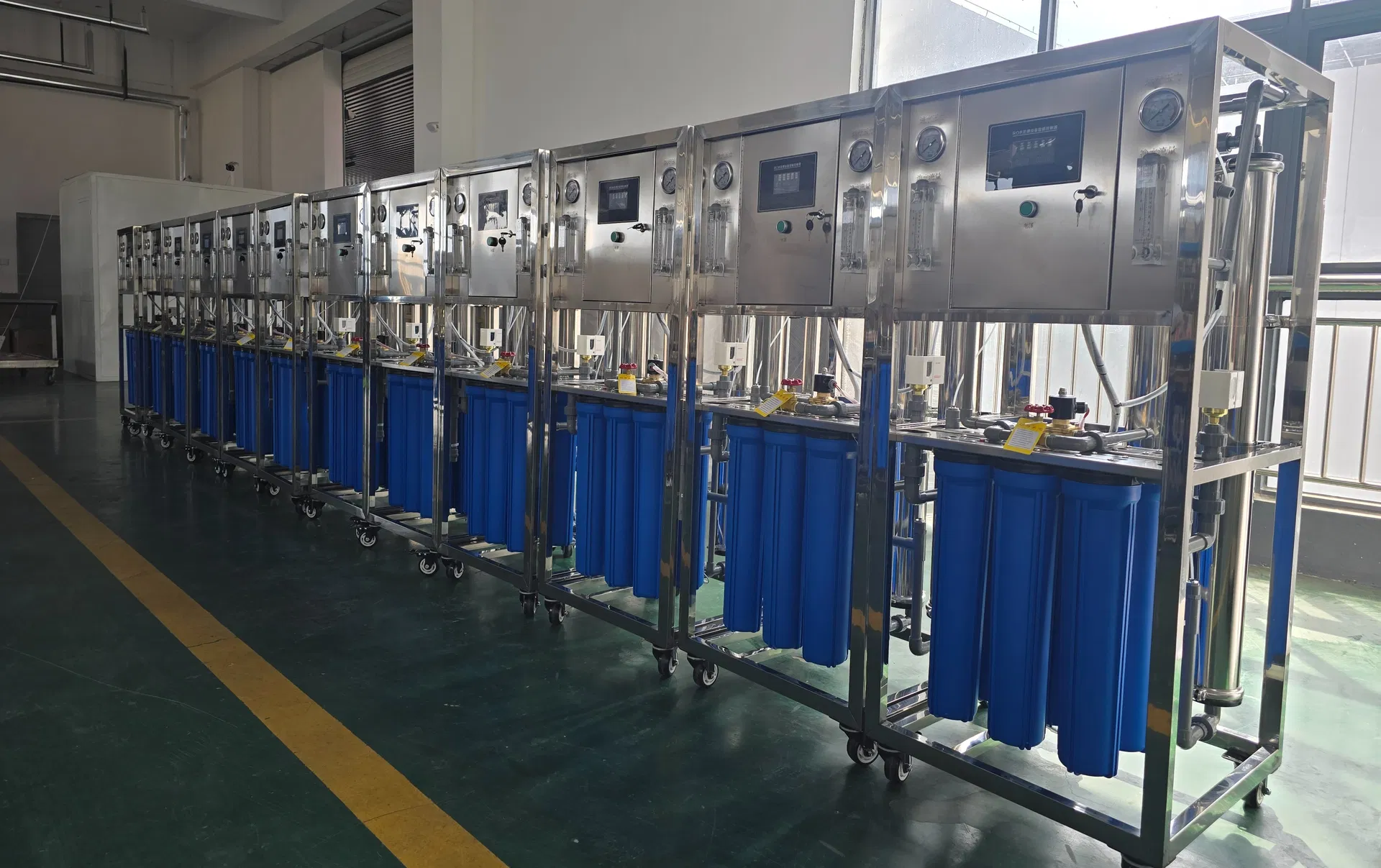

RO Water System

Reverse Osmosis (RO) is a water purification technology that utilizes a semipermeable membrane to remove ions, molecules, and larger particles from water. By applying external pressure to overcome natural osmotic pressure, water is forced through the membrane, leaving contaminants (e.g., salts, bacteria, heavy metals) behind in the concentrated waste stream.

RO Water System

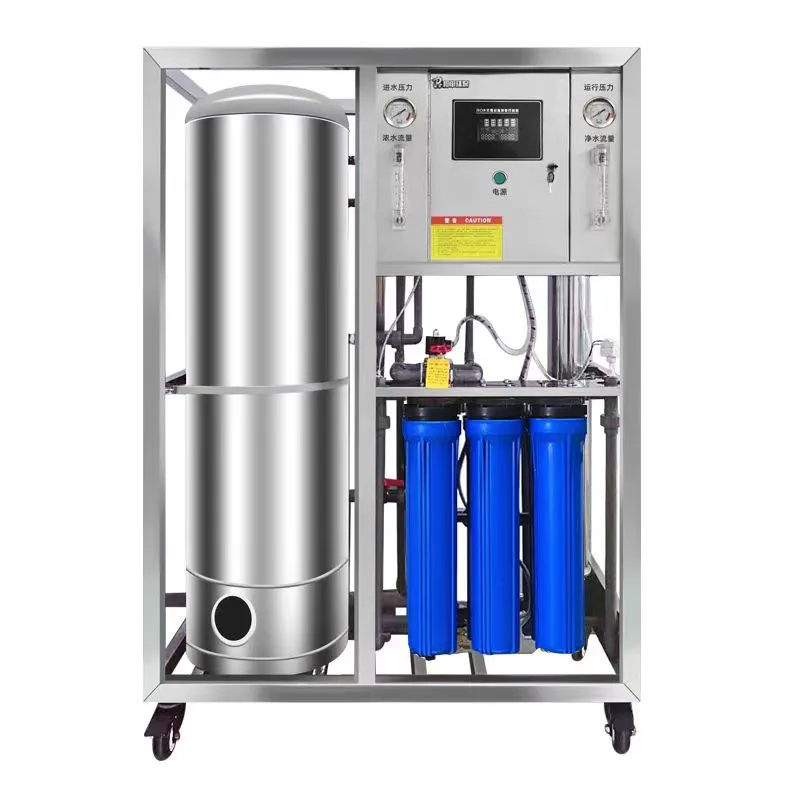

Durable Reverse Osmosis System
⚙️Specifications
Regarding product configuration, we offer customized services for flow rates and filtration levels to precisely meet the requirements of different scenarios. Only 250L/H are shown as examples.
ModelFY-0.25TWater inlet standardTap or well water for GB5749-2006
Flow Rate250-300L/hourWater outlet standardGB19298-2014 Standard
Measurement1050*450*1410mmInlet Pressure0.2-0.4MPa
Power1.1KW / 220VWorking pressure0.8-1.0MPa
Recovery Rate35-50%Rejection Rate≥97%
Filtration Process2-stage PP + 2-stage Activated Carbon + 2-stage PP + High-pressure pump + RO membrane

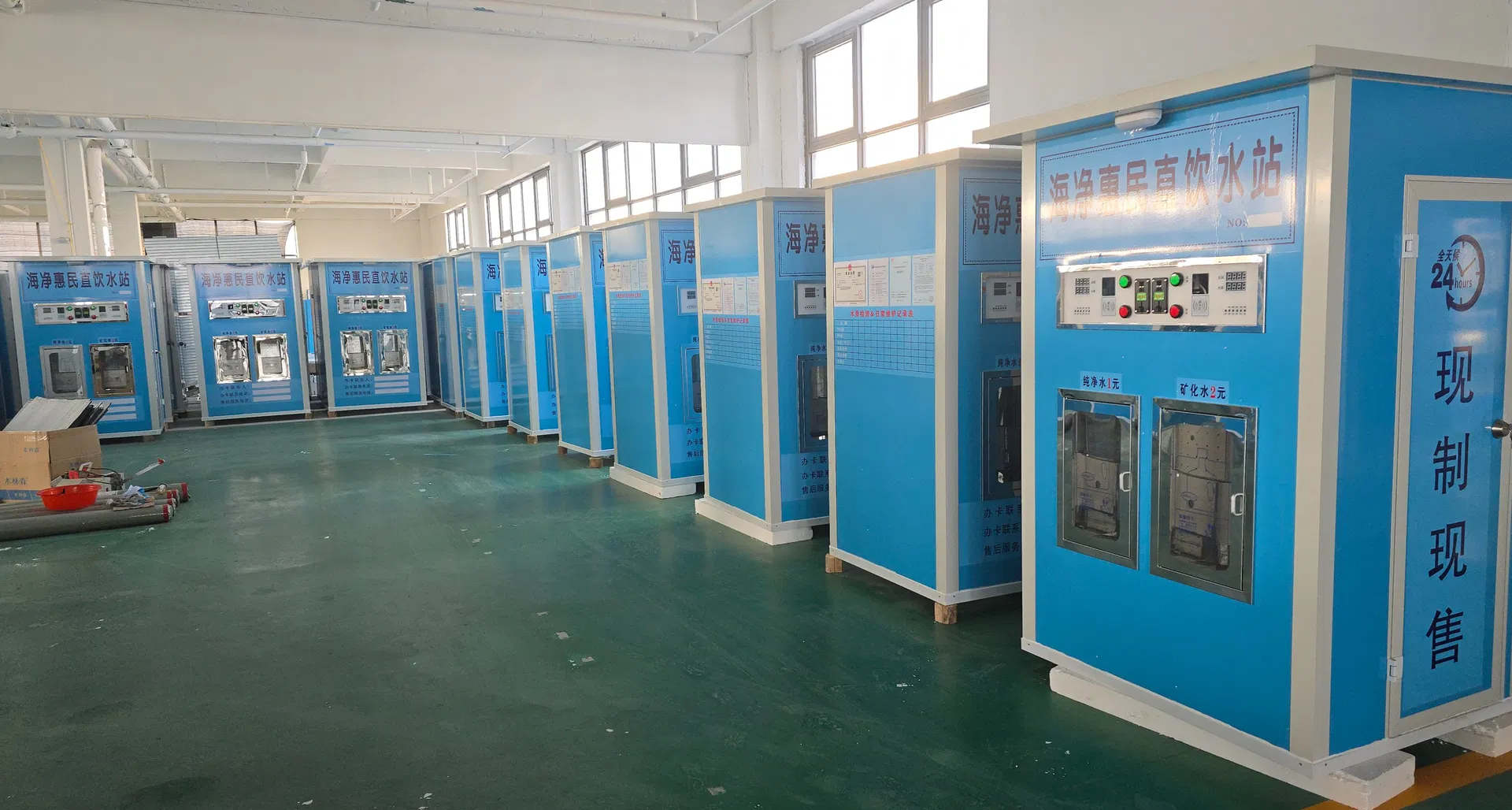

System Component

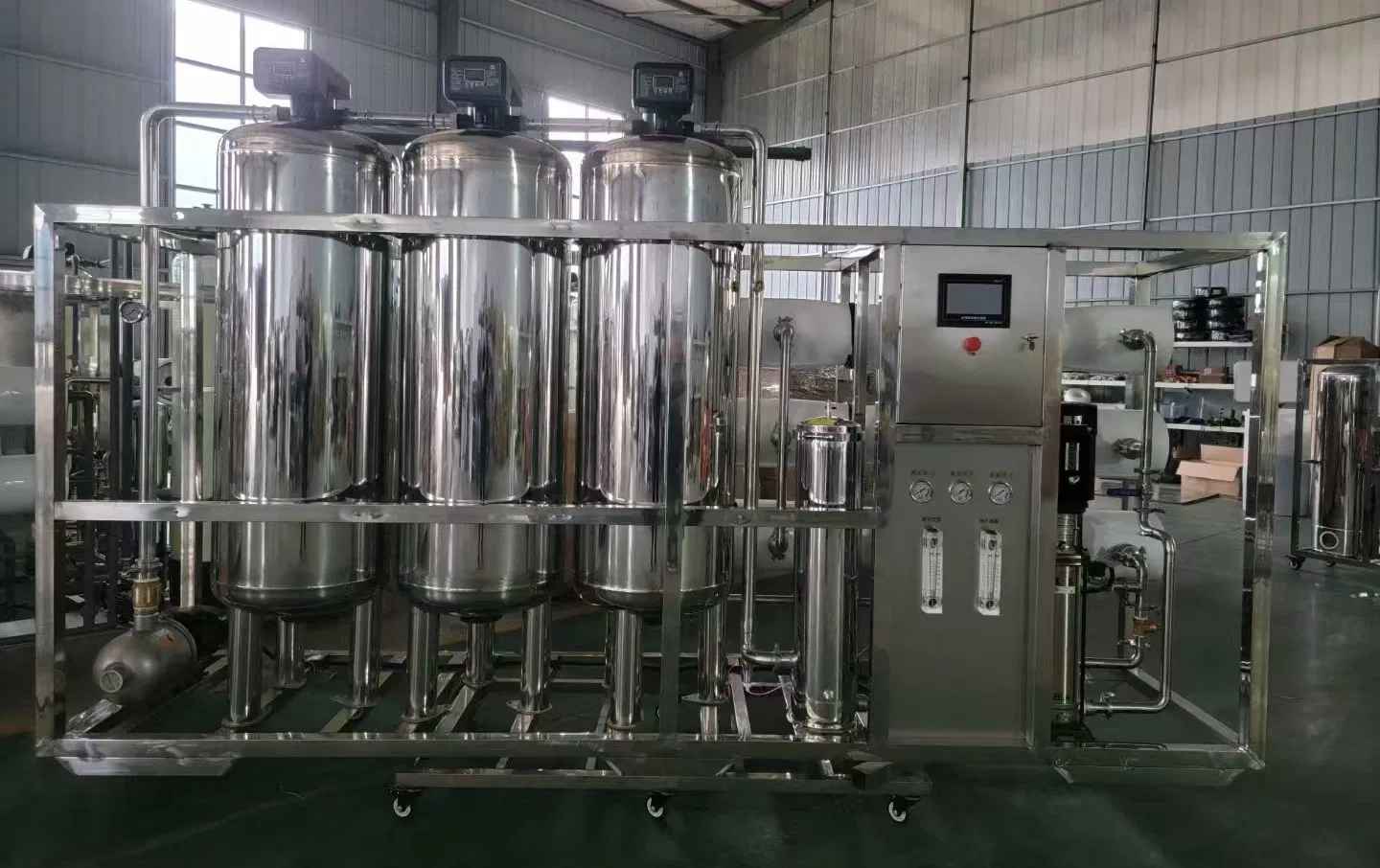

System Box Design
ModelFY-0.25T-C (Advanced)Power2.55KW
Measurement1400*630*1750mmVoltage220V/380V
Filtration ProcessBooster pump + Quartz sand filter + Activated carbon filter + Precision filter + High-pressure pump + RO membrane
📦Packing & Delivery
Package Size
120.00cm * 120.00cm * 160.00cm
Gross Weight
120.000kg
Package Type
Wooden Case
Packing details
🏢Company Profile

Focused on "quality first, customer-centric", one-stop solutions from sourcing to delivery are offered, excelling in quality control, customization, and competitive pricing. Expanding into sustainable energy products, global supply-demand is bridged ethically, complying with international norms.

With a 50+ professional team and partnerships with 200+ manufacturers, sales networks are served across Europe, SE Asia, and North America.

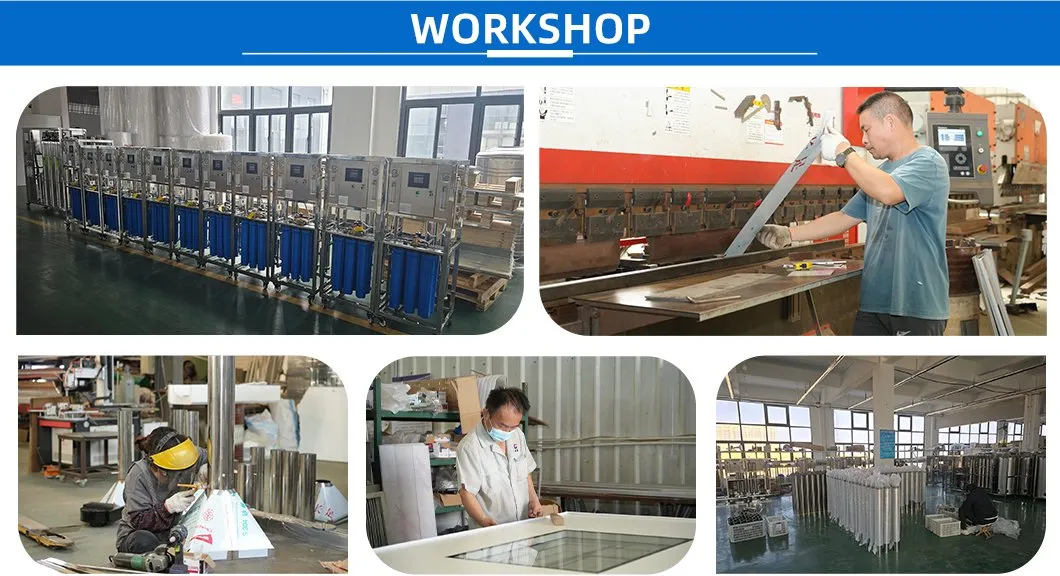

Workshop
Quality Control
Frequently Asked Questions
What contaminants does the RO system remove?
The system effectively removes ions, molecules, bacteria, heavy metals, and larger particles, providing high-purity drinking water.
Can the water output be customized?
Yes, we provide customization for various flow rates, including 0.25ton, 0.5ton, 0.75ton, and 1ton per hour to suit your needs.
What is the filtration accuracy of this system?
The filtration accuracy reaches 0.0001 micron, ensuring the removal of almost all dissolved solids.
Is the frame durable for industrial use?
Yes, the system features a SUS 304 stainless steel frame, which is highly resistant to corrosion and suitable for both household and industrial environments.
How is the product protected during shipping?
All units are packed in sturdy wooden cases to ensure safety and prevent damage during international transport.
What are the power requirements for the FY series?
The standard voltage is 220V or 380V, with a driving model power range of 1kW to 5kW depending on the specific configuration.
