Eco-Friendly Laser Cleaning System for Efficient Surface Treatment

Customization:	Available
Power:	500w
Control Type:	Handheld

Send Inquiry

Product Description

Product Overview

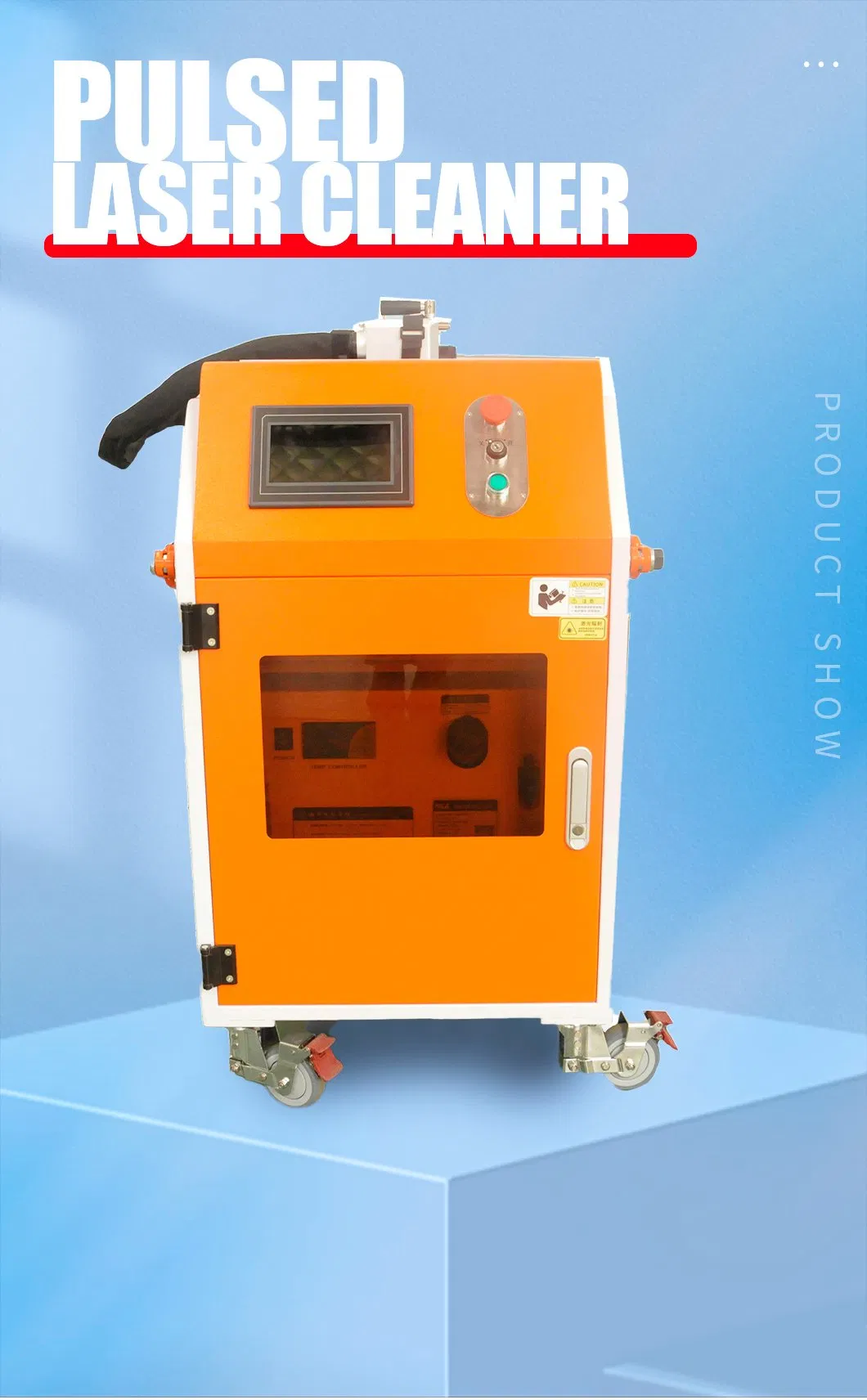

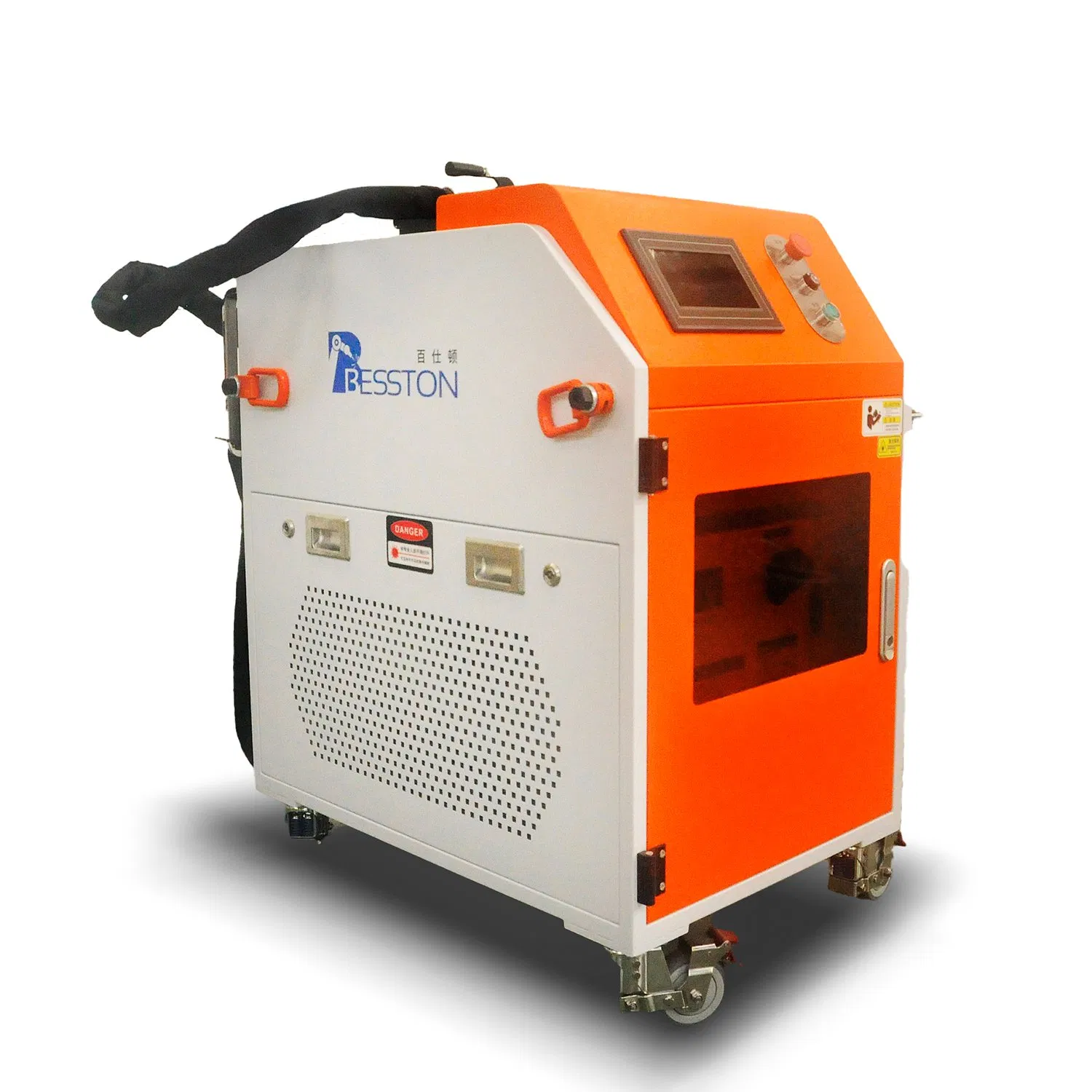

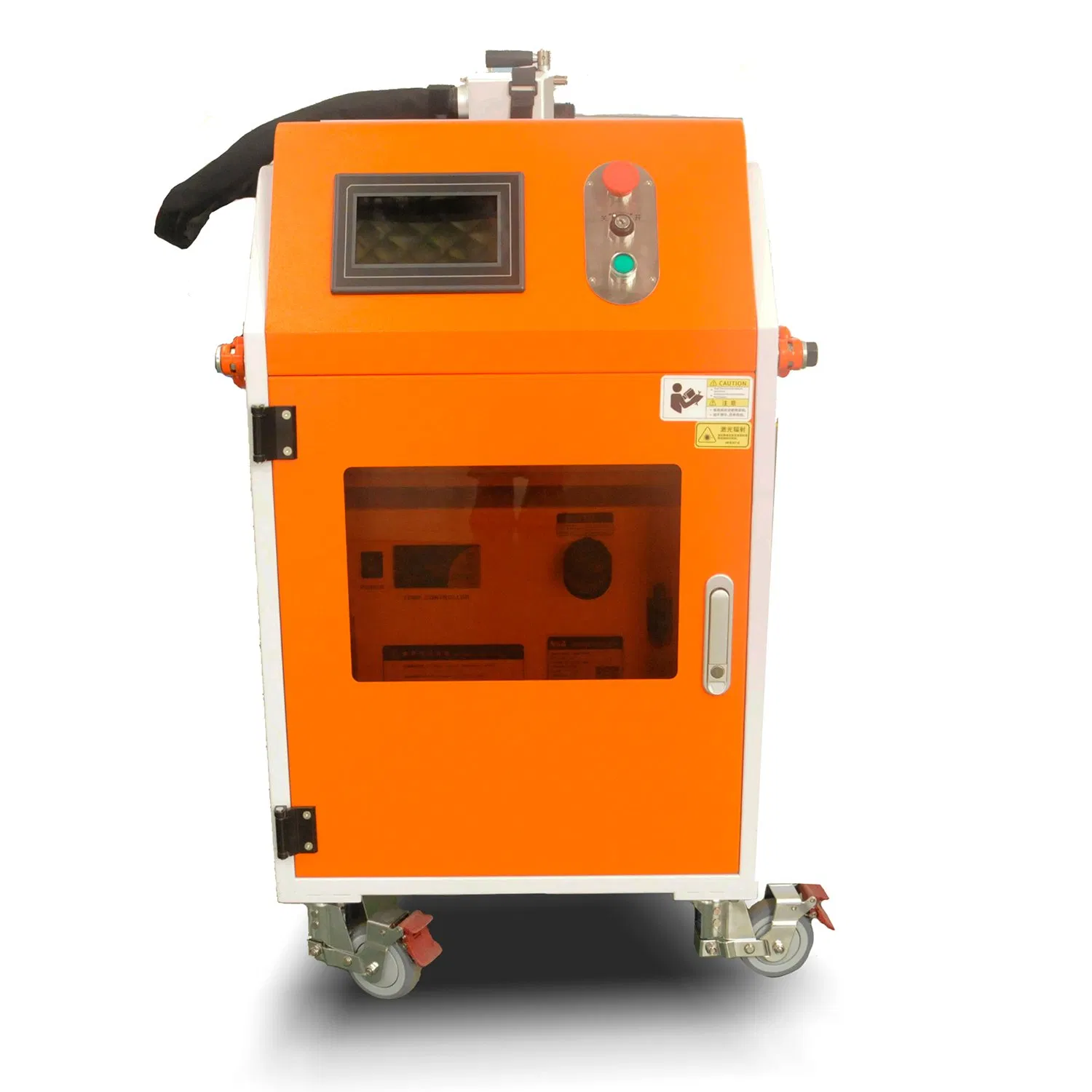

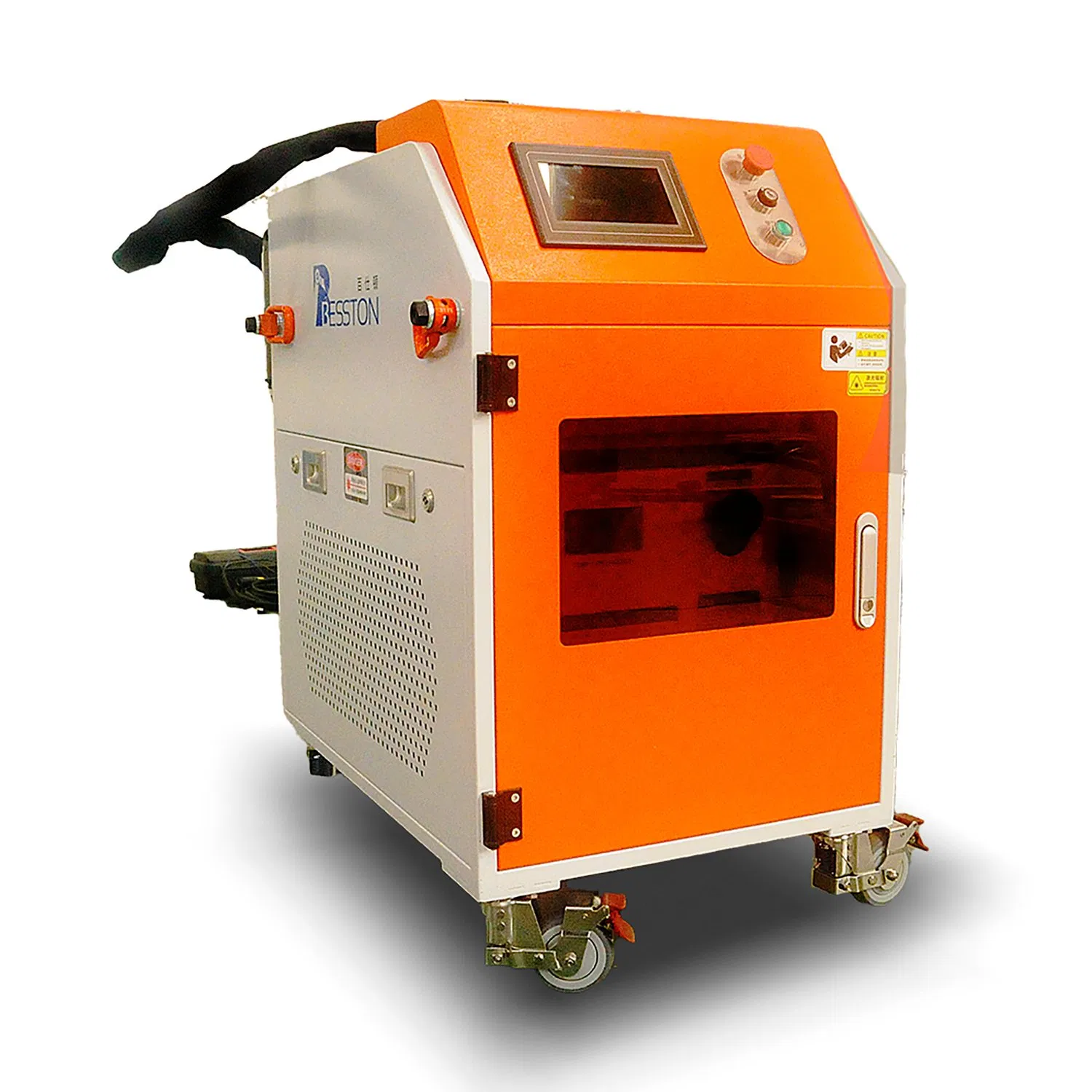

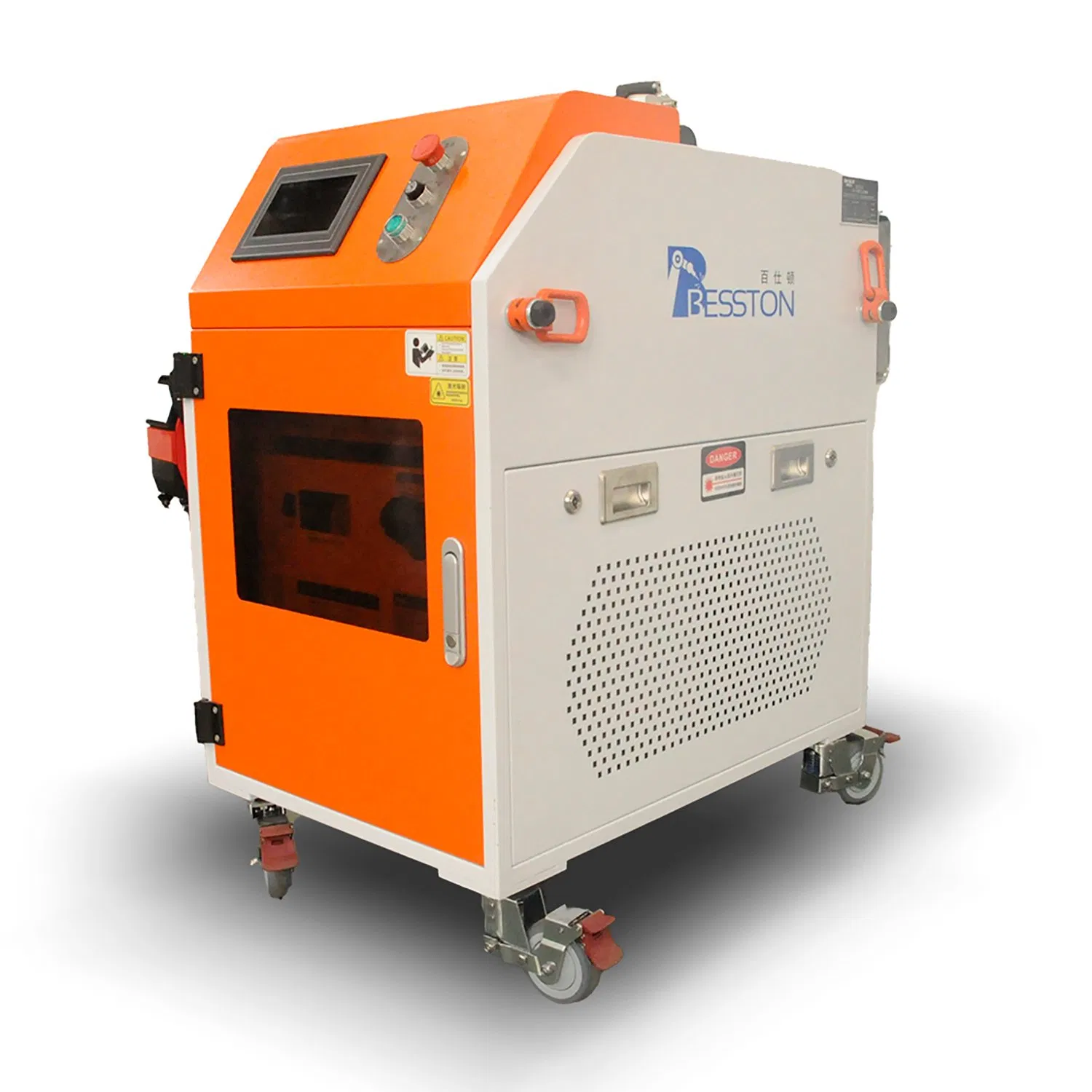

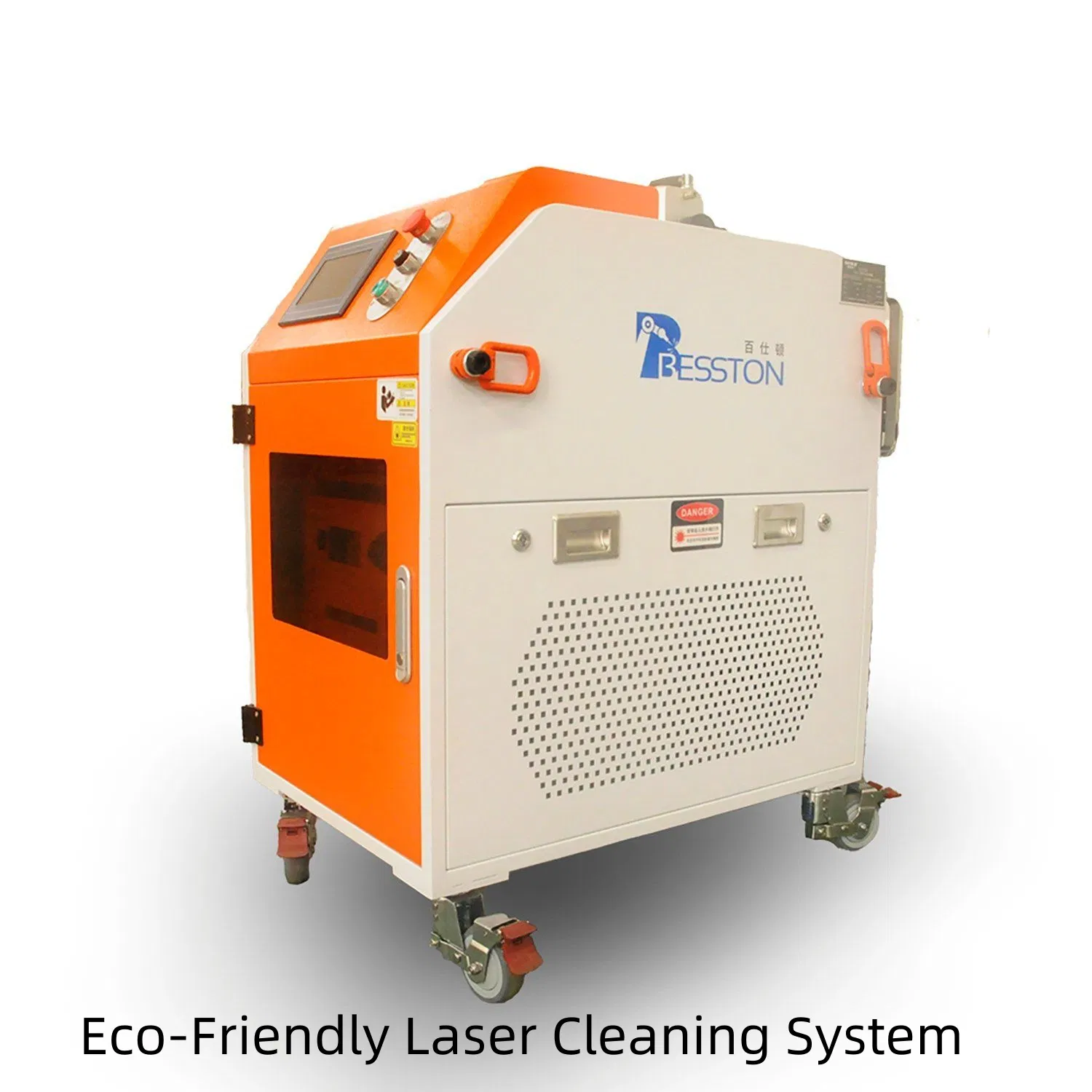

500W Pulse Laser Cleaning Machine

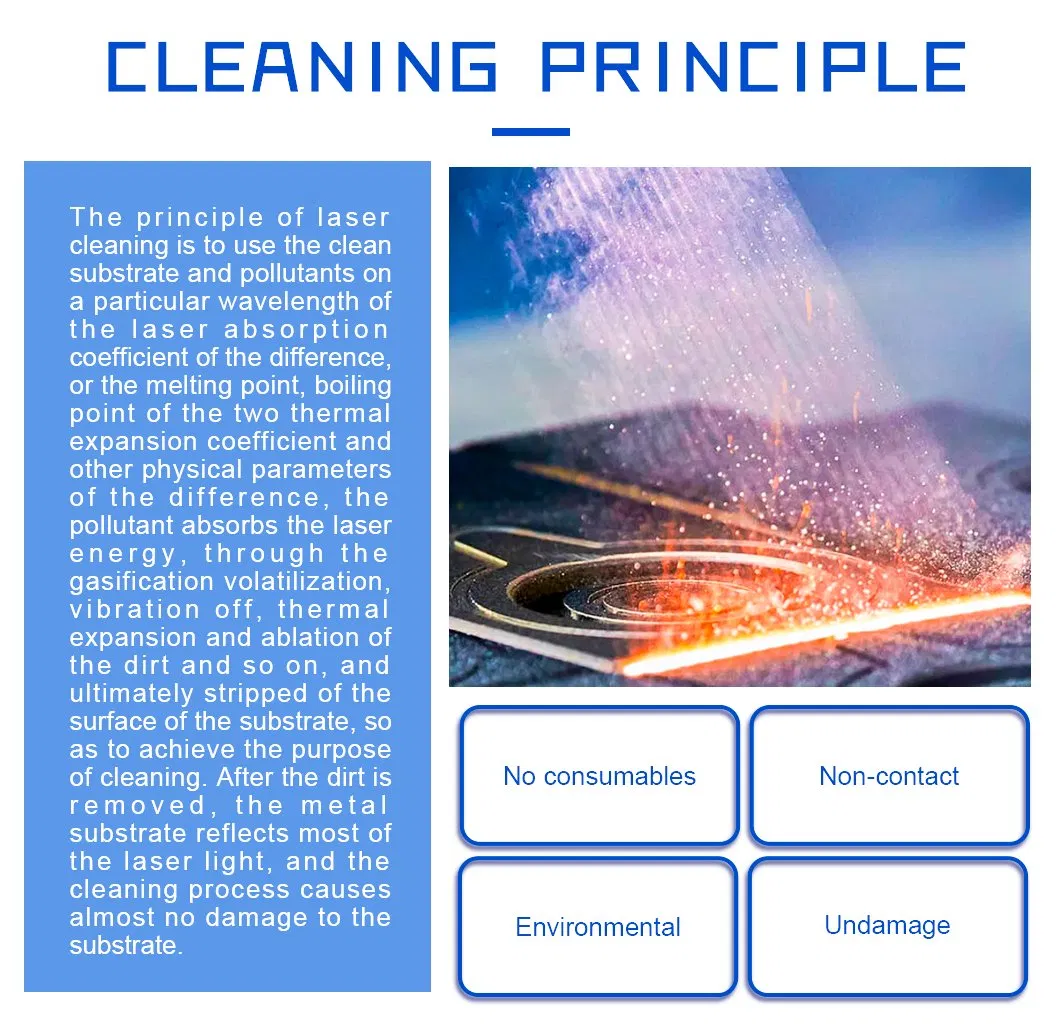

Laser cleaning is an emerging method in industrial cleaning. The LCP-500 equipment adopts high peak power pulse lasers, imported high-speed scanning systems, and high-precision control systems. The whole machine is stable, reliable, and provides high efficiency with ultra-portability.

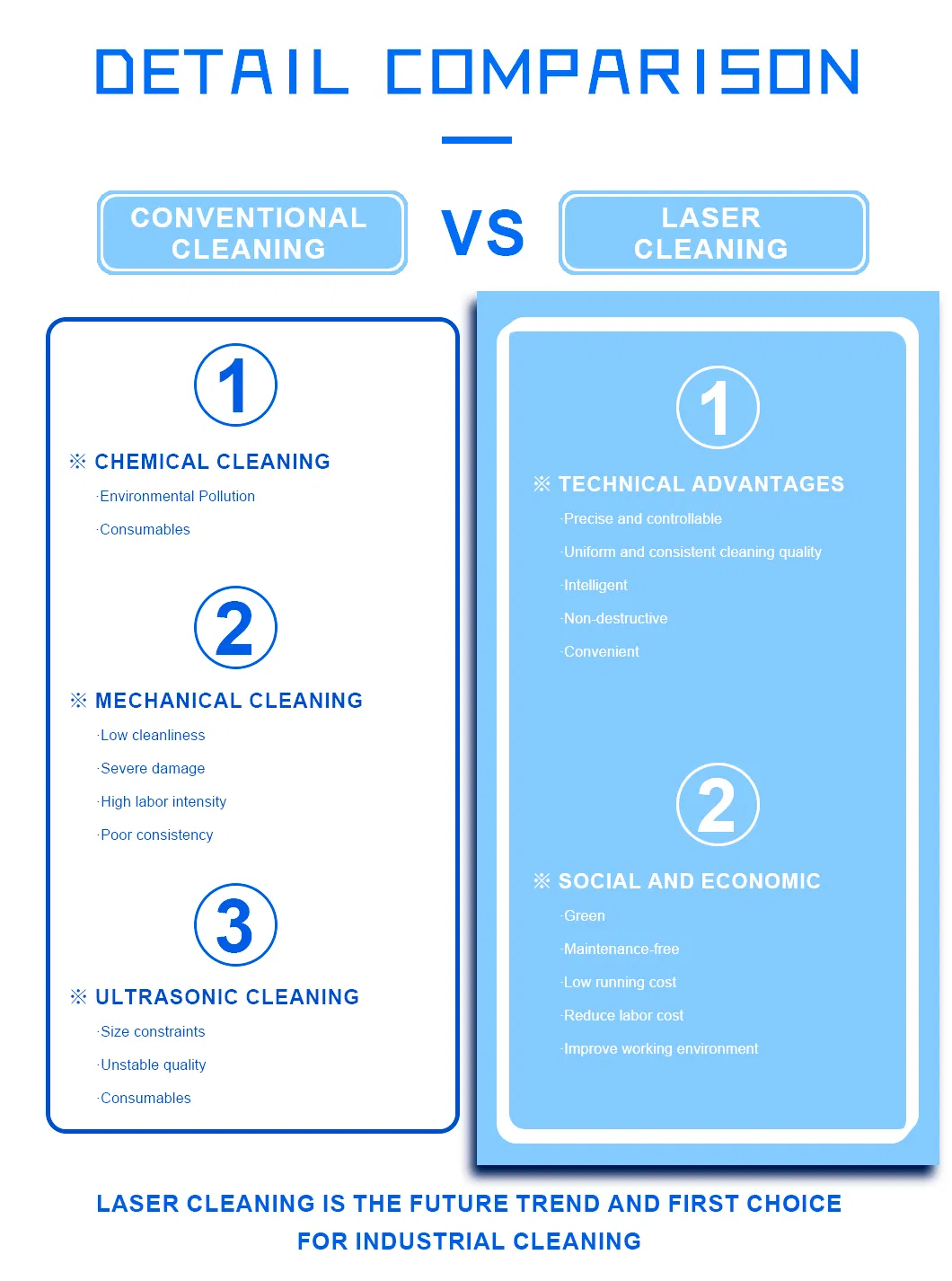

Core Advantages

✓ Safe, non-contact, and substrate remains undamaged.
✓ Environmental protection: No secondary pollution; removed substances are recyclable.
✓ Precise and controllable: Optional zone cleaning and micrometer-level precision.
✓ High cost-effectiveness: Uses no consumables and only consumes electricity.
✓ Strong maneuverability: Handheld or integrable into automation systems.

Technical Parameters

Parameter	Specification
Product Model	LCP-500
Average Laser Power	500W
Laser Center Wavelength	1064 nm
Maximum Single Pulse Energy	15mJ
Beam Quality Factor (M²)	<12
Fiber Length	5m
Power Regulation Range	10% to 100%
Laser Pulse Frequency	5kHz to 200kHz
Cooling Method	Water-cooling
Supply Voltage	AC 220±10%V
Power Consumption	<4000W

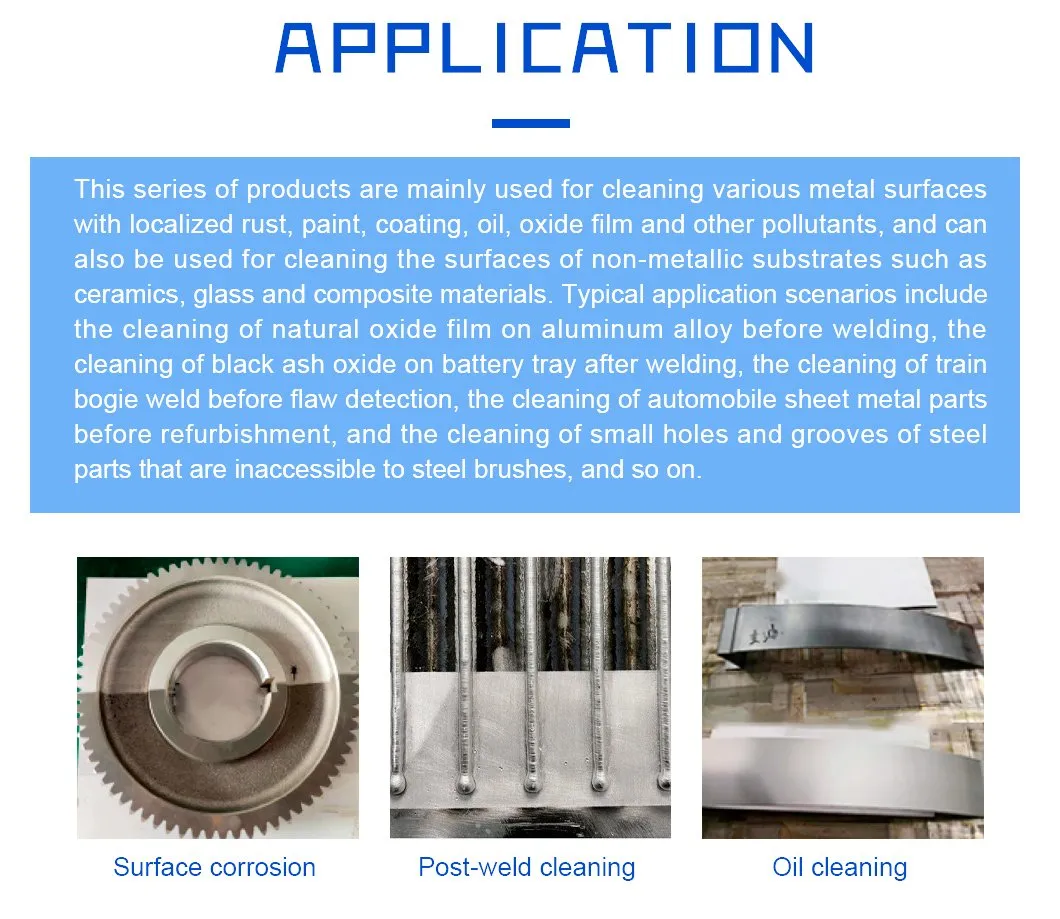

Application Scope

Suitable for aerospace, rail transportation, automobile manufacturing, marine vessels, food processing, and mold processing. Typical scenarios include:

It efficiently removes rust, paint, coatings, oil stains, and oxide films from metal, ceramic, glass, and composite surfaces.

Product Features & Details

Frequently Asked Questions

What are the primary benefits of using the LCP-500 laser cleaning machine?

The LCP-500 offers a safe, non-contact cleaning method that does not damage the substrate. It is environmentally friendly, generates no secondary pollution, and is highly cost-effective as it requires no consumables—only electricity.

What types of pollutants can be removed with this equipment?

It is designed to clean localized rust, paint, various coatings, oil stains, oxide films, and other common industrial pollutants from both metallic and non-metallic surfaces.

Is the machine easy to transport and operate?

Yes. The machine is equipped with universal wheels for easy movement. The handheld cleaning head weighs only about 2kg and includes a shoulder strap to reduce the burden on operators during use.

On which materials can the laser cleaning system be used?

It can be used on various metal surfaces, as well as non-metallic substrates such as ceramics, glass, and composite materials.

What is the warranty period for the LCP-500W?

The equipment comes with a 2-year warranty, ensuring long-term reliability and performance for your industrial cleaning needs.

How does the cooling system work?

The system utilizes a water-cooling method to maintain optimal operating temperatures for the 500W pulse laser, ensuring stability during continuous operation.
