Efficient Backpack Pulse laser Cleaner Laser Cleaning System Ventus 200W

Customization:	Available
After-sales Service:	Online Support and Overseas Support Available
Power:	100w

Send Inquiry

Product Description

Basic Specifications

Model NO.

DV-LCB

Control Type

Automatic

Warranty

2 Years

Laser Type

Pulse Laser

Cooling Mode

Air Cooling

Power Supply

220V, 50Hz/60Hz

Machine Type

Handheld / Backpack

Weight

12kg

Package Size

35cm * 20cm * 40cm

Gross Weight

30.00kg

Product Description

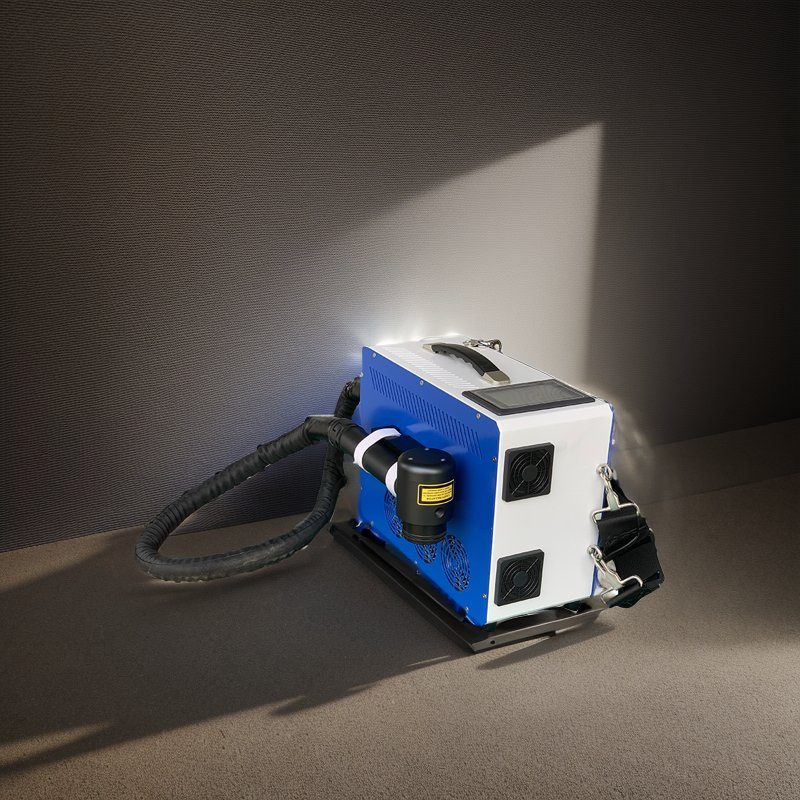

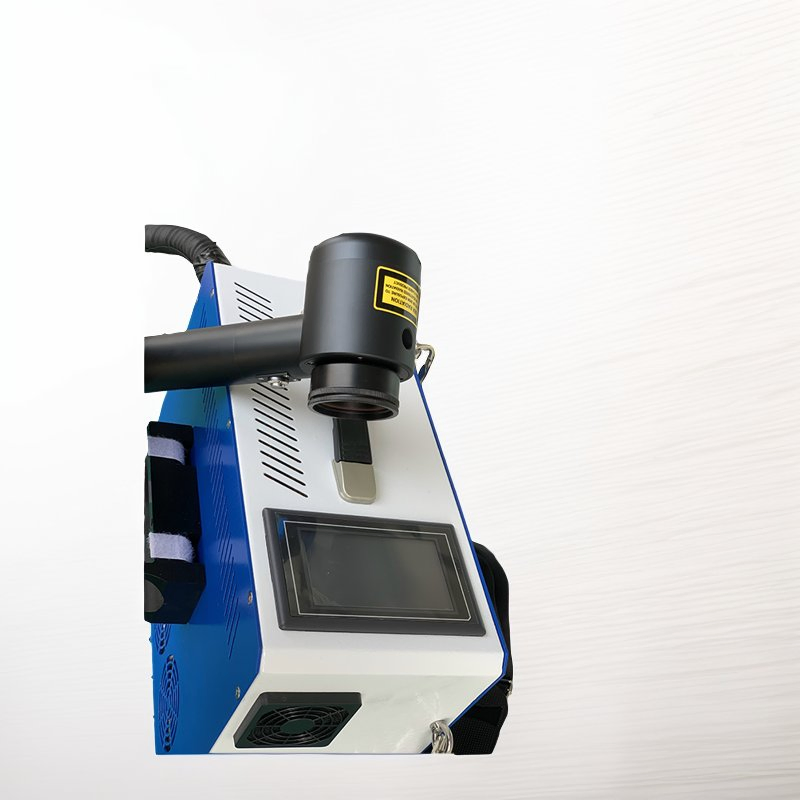

Efficient Backpack Pulse Laser Cleaning System 200W

This portable backpack laser cleaner offers industrial-grade rust removal and surface cleaning capabilities. It is designed for high efficiency and precision in various environmental conditions.

Core Features

Non-contact cleaning without damaging the matrix of the parts.
Accurate cleaning, achieving precise position and selective size cleaning.
No chemical cleaning liquid or consumables required, ensuring safety and environmental protection.
Simple operation and ergonomics design for portable use.
High cleaning efficiency, significantly reducing time costs.
Stable system performance with minimal maintenance requirements.

Technical Parameters

Repeat Frequency

Operating Environment & Optical Parameters
Model	DV-LCB
Supply Voltage	Standard AC220V±10% or Optional Battery (80-90min)
Power Consumption	≤300W
Average Laser Power	≥100W
Laser Working Mode	Pulse
Pulse Width	150-190ns
Maximum Monopulse Energy	1.7mJ
20-200kHz (Adjustable)
Cooling Mode	Air Cooling
Scan Range	0mm - 100mm (8 scanning modes)
Scanning Frequency	10Hz - 300Hz
Cleaning Head Weight	<0.8kg

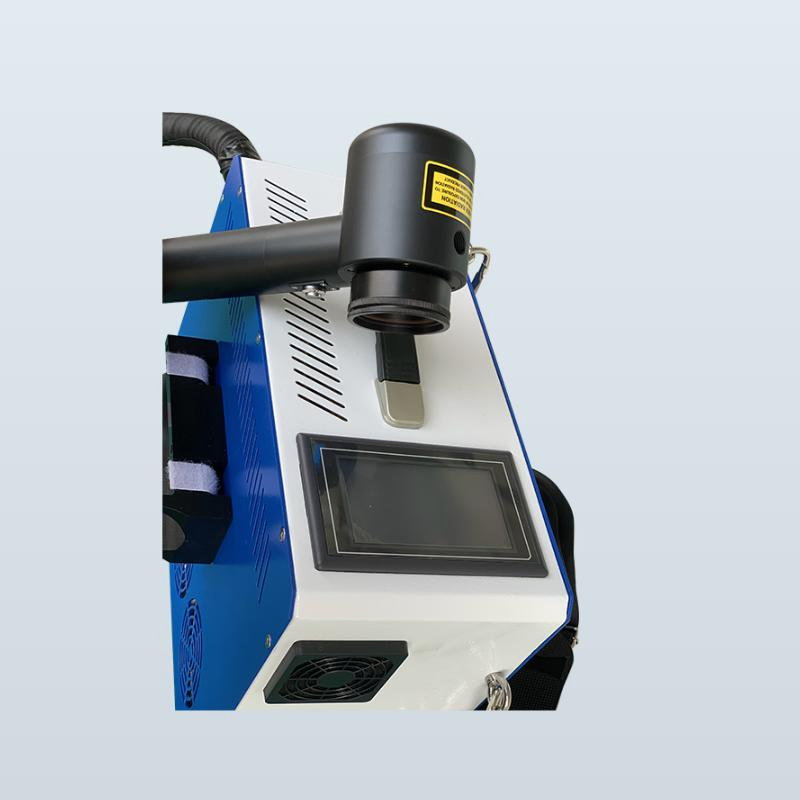

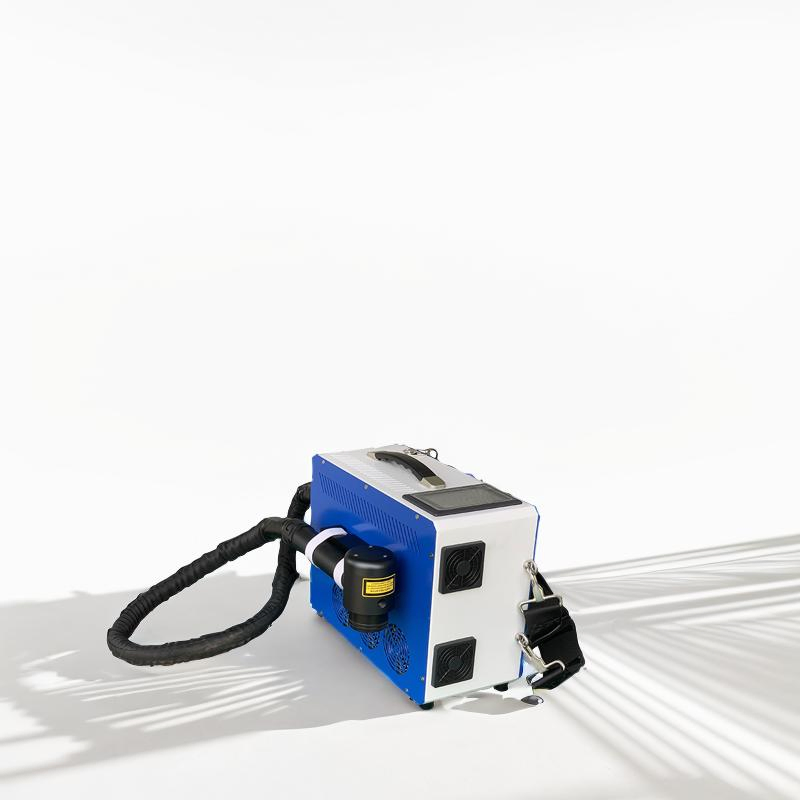

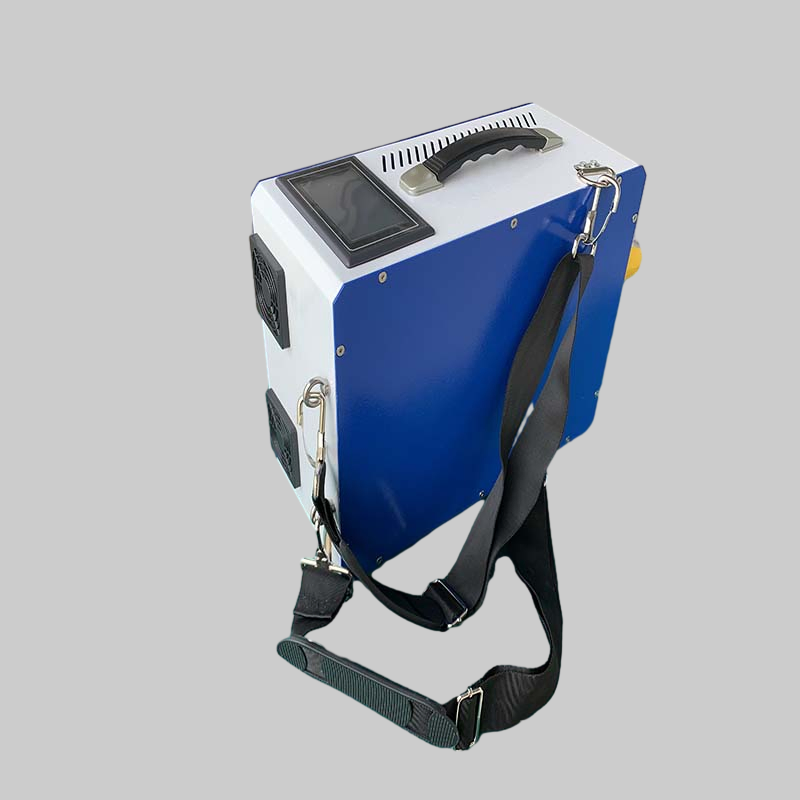

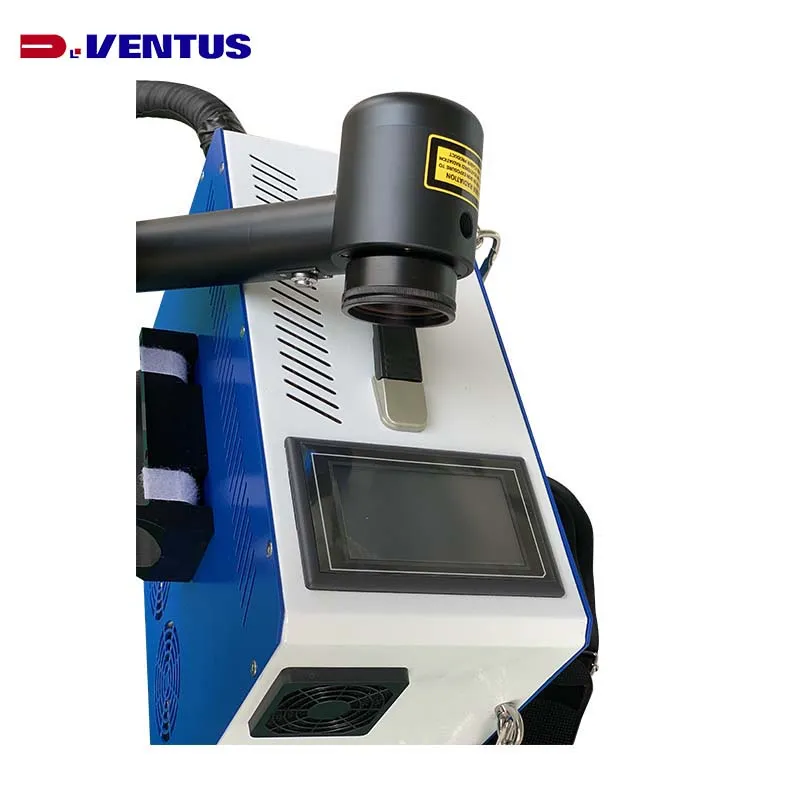

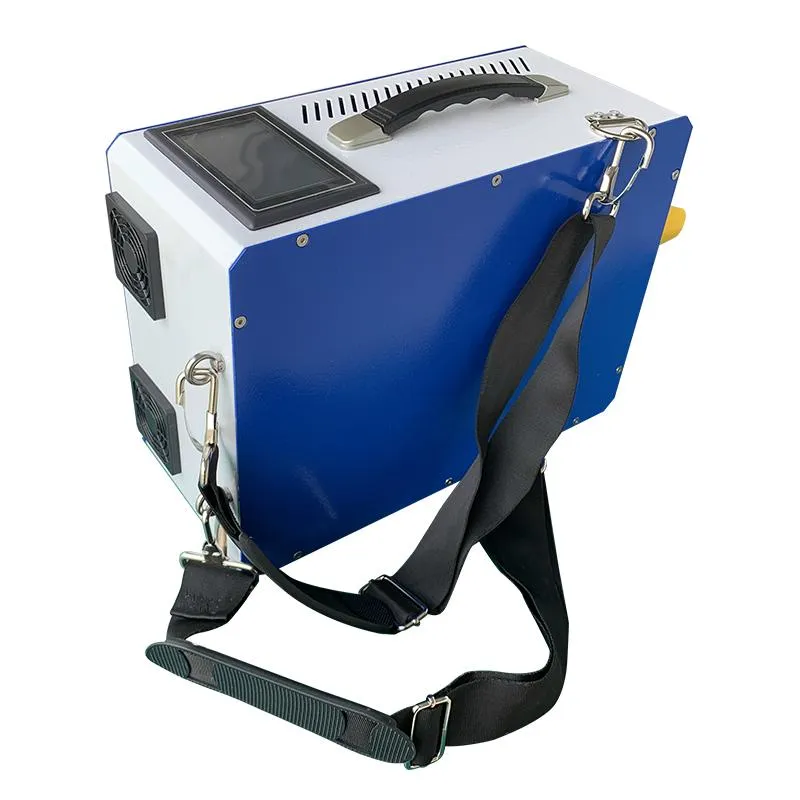

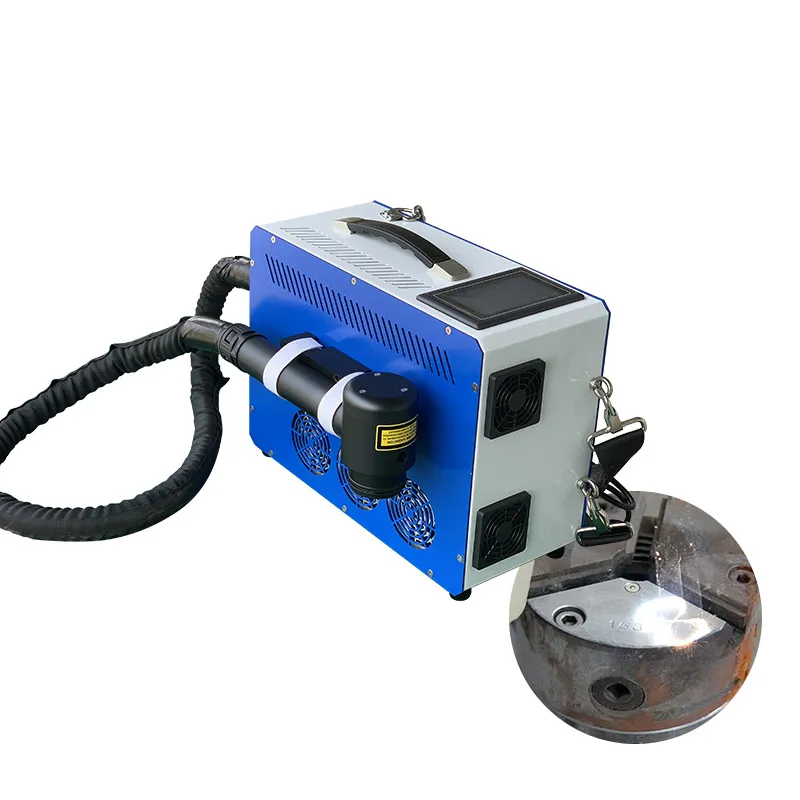

Product Gallery

Key Advantages

High cleanliness and precise positioning for delicate tasks.
Zero maintenance cost and environmentally friendly (no noise/chemicals).
Capable of clearing pollution particles at the nanometer level.
Fiber optic transmission allows access to hard-to-reach areas.
Versatile application across a wide range of materials.

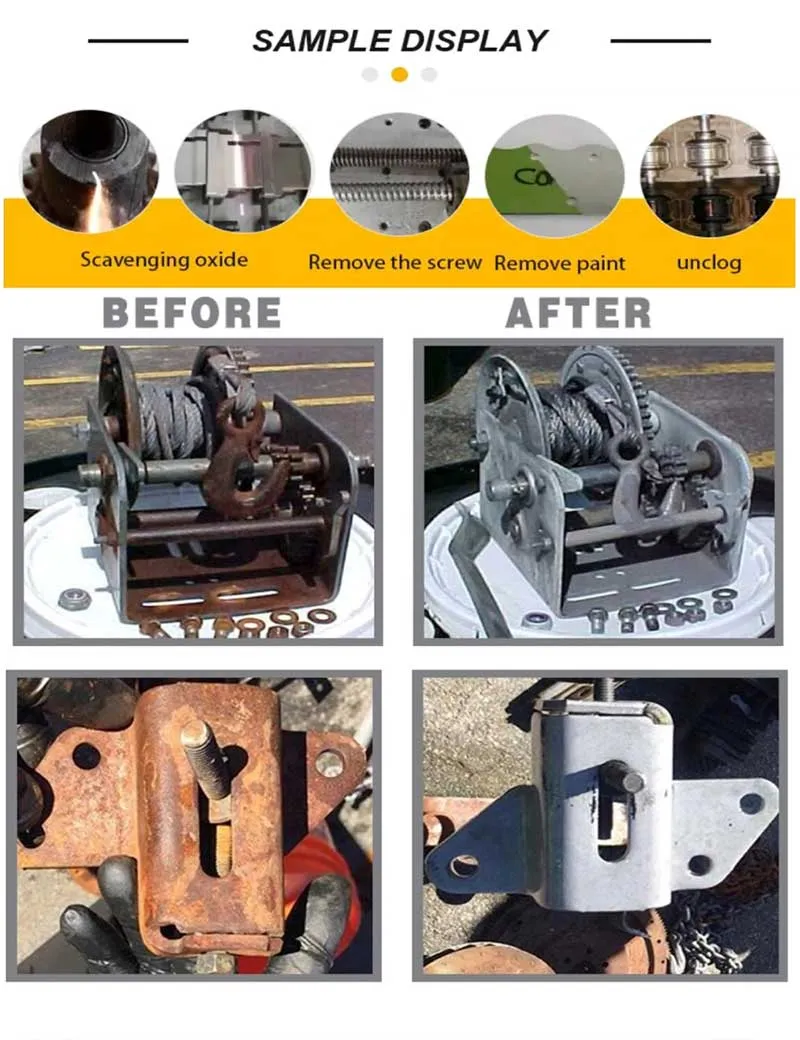

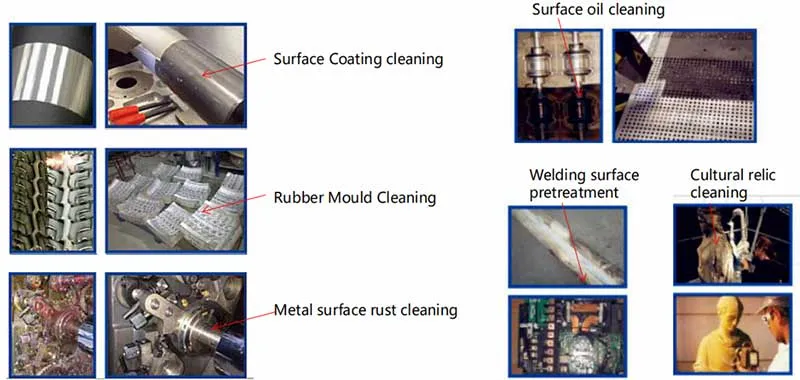

Typical Applications

Metal surface derusting and paint removal.
Surface coating and oxide layer removal.
Oil stain and contaminant cleaning.
Welding and spray surface pretreatment.
Stone figure dust and attachment cleaning.
Rubber, plastic, and metal mold residue cleaning.

Professional Support

Fully assembled, tested, and checked before shipment.
Pre-sales technical advisory and operational training provided.
Free repair for main spare parts within the warranty period.
Lifetime maintenance with preferential pricing for parts beyond warranty.
Software system upgrades and maintenance included.

Frequently Asked Questions

Q1: What materials can be cleaned with this laser system?

A1: It is highly effective for cleaning rust, paint, oxide layers, tar, oil, and contaminants from metal surfaces, as well as cleaning wood and stone surfaces.

Q2: Does the backpack laser cleaner damage the base material?

A2: No. It uses non-contact cleaning technology, which ensures no damage to the matrix or the surface of the parts being cleaned.

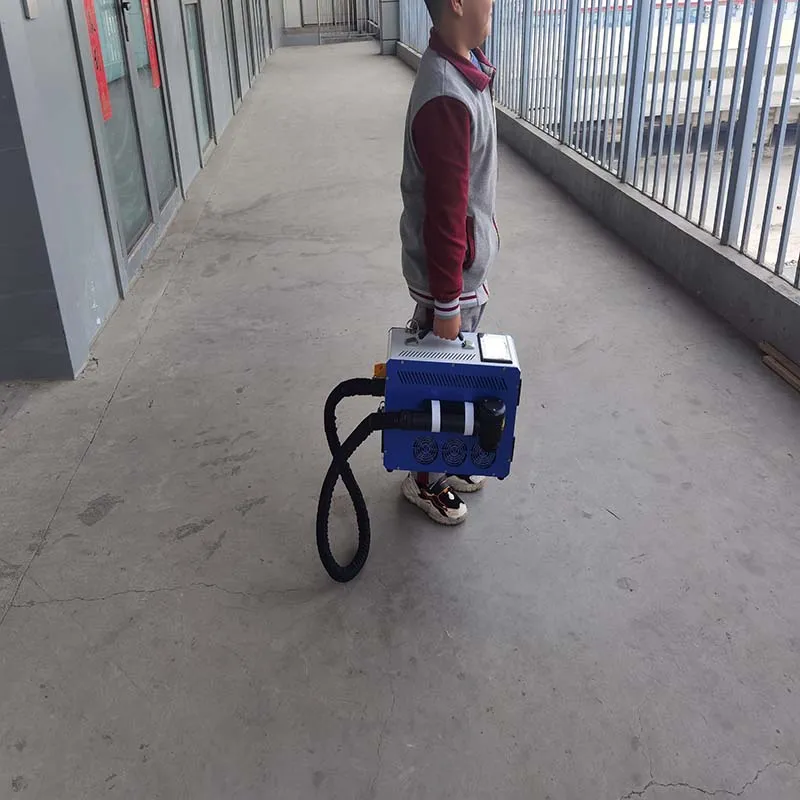

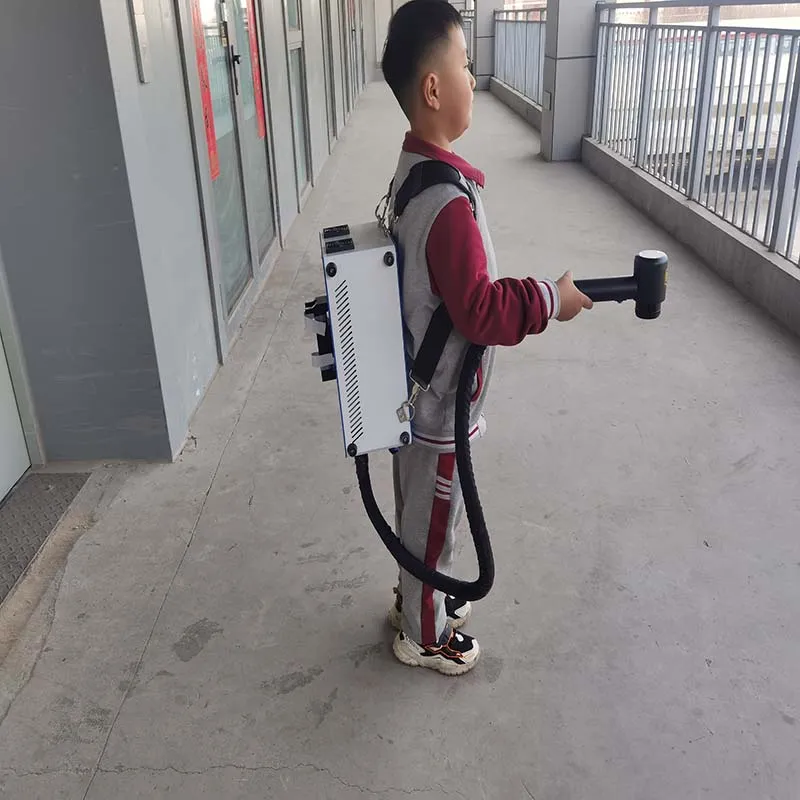

Q3: How portable is the system for field work?

A3: The system is designed as a backpack type weighing only 12kg. It also offers an optional battery for 80-90 minutes of continuous wireless operation.

Q4: What is the warranty and maintenance policy?

A4: The machine comes with a 2-year warranty. We provide free repairs for main spare parts within this period and lifetime maintenance support at preferential pricing.

Q5: Is it easy to operate for a new user?

A5: Yes, the machine features a simple operation design and ergonomic handheld head. We also provide operational training to ensure users can handle the equipment safely and efficiently.

Q6: Are there any consumables required?

A6: No, the laser cleaning system does not require any chemical liquids or consumables, making it an eco-friendly and cost-effective solution.
