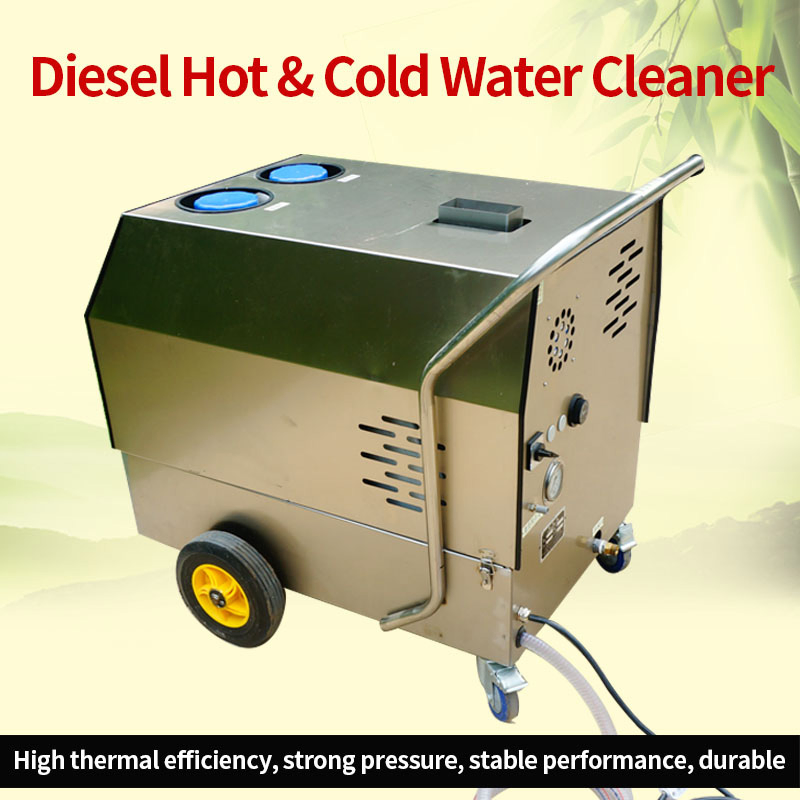

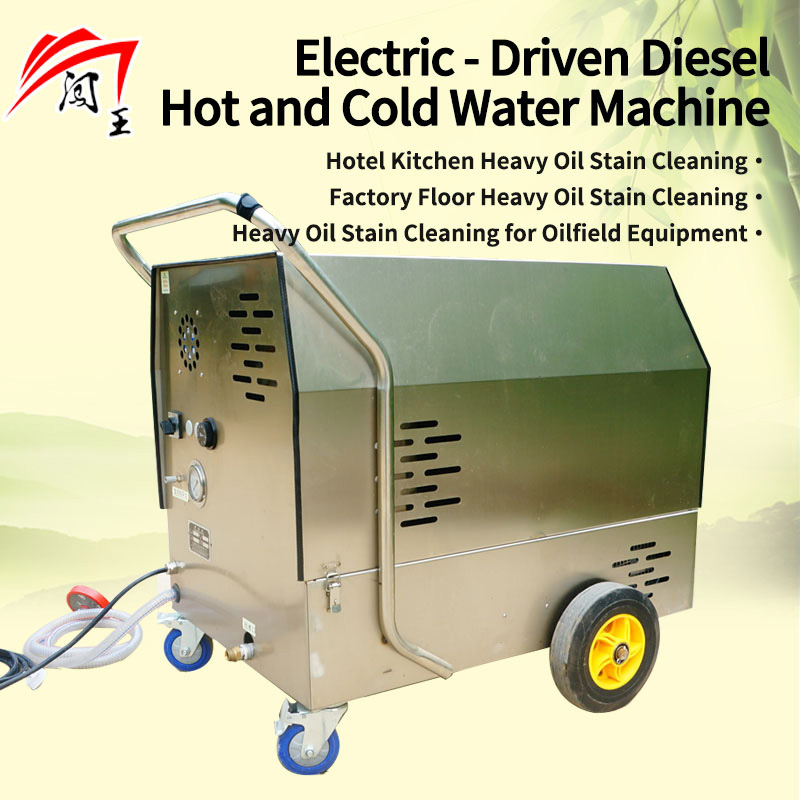

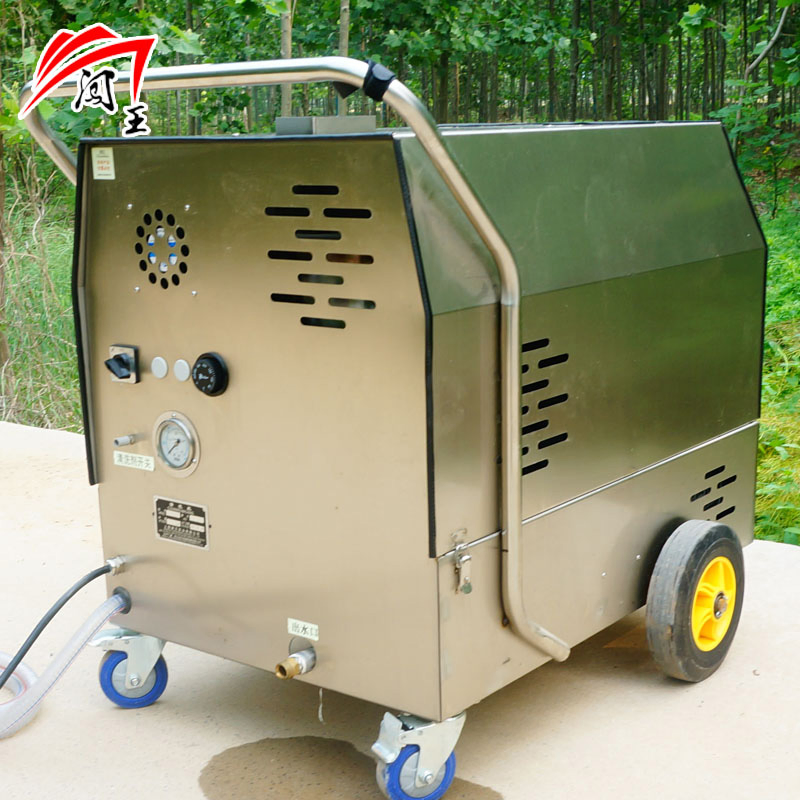

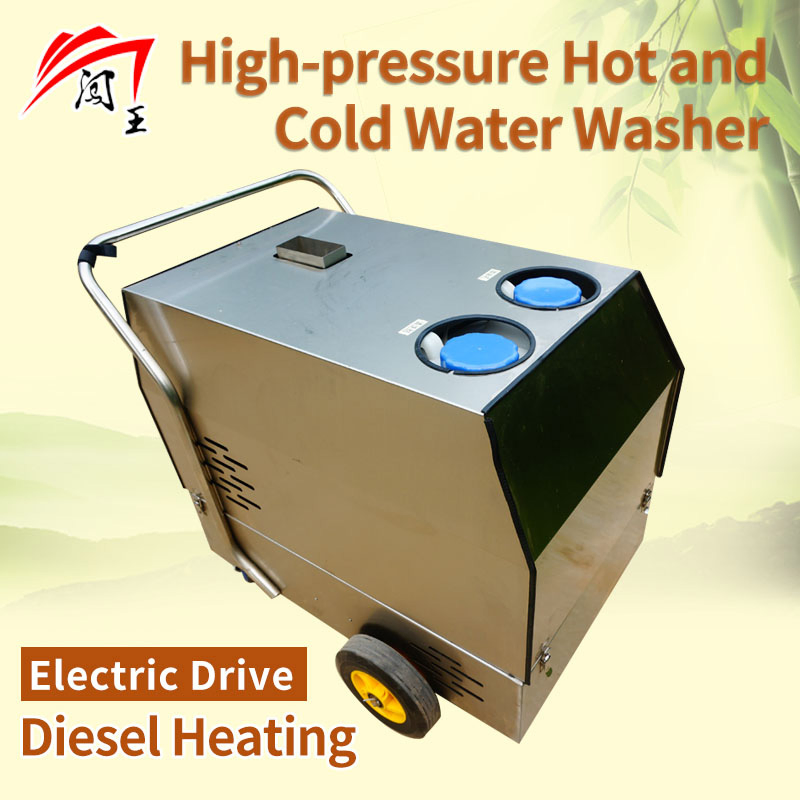

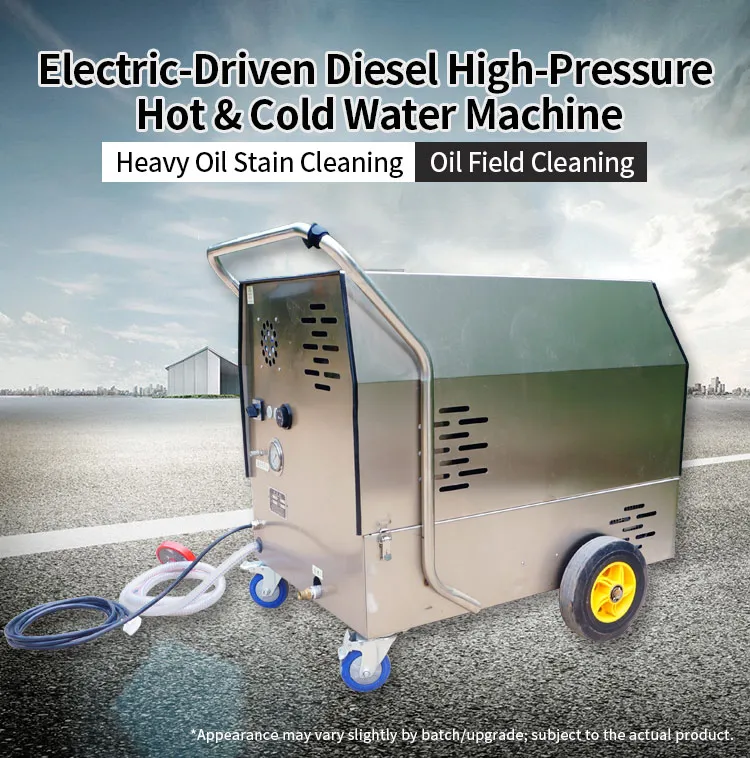

Electrically Driven Diesel-Heated Cold Hot Water High-Pressure Cleaning Equipment

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Specifications
Model NO.
CWCD-3
Type
Hot/Cold High-Pressure Cleaner
Drive
Electric Drive
Pressure
150 Bar
Flow Rate
11 L/Min
Water Temp.
80 °C
Weight
125 Kg
Operation
Movable
High-Pressure Cleaning Equipment
💡 Product Introduction

The 3kw high-pressure cold and hot water cleaner is an efficient cleaning device specifically designed for harsh conditions. It features an anti-freeze function that ensures normal operation under low-temperature conditions. The equipment can switch between high-pressure hot water and cold water at will, making it suitable for cleaning vehicles and removing heavy oil stains in factories. It uses boilerless instant heating technology, with no pressure vessels in the entire machine. The cold machine can start in just 10 seconds, ensuring safety and reliability.

The equipment is also equipped with automatic pressure sensing, automatic water temperature adjustment, low water shutdown alarm, and other functions. It adopts a foolproof industrial control system with modular design, featuring multiple safety measures such as automatic water supply, overpressure protection, overtemperature protection, and air switch leakage protection.

⚙ Technical Specification
ModelCWCD-3
Voltage220V
Water Pump Power3kw
Max Pressure150 BAR
Oil Consumption4L/H
Hot Water Temperature80ºC
Water Consumption10L/Min
Heating Time10 Seconds
Diesel Tank23L
Cleaning Agent Tank15L
Dimensions100*58.5*90 cm
Weight125kg
⭐ Core Features

Boiler-Free Heating

Advanced architecture with zero pressure vessels for intrinsic safety. Instant hot water in 10 seconds.

EMF Combustion

Electromagnetic Induction system ensures rapid ignition and saves 30% fuel vs competitors.

Plunger Pump

Brass-headed industrial pump with robust construction for 24/7 operation.

Intelligent Control

Auto Start/Stop via spray gun trigger and digital temperature maintenance.

Feature 1

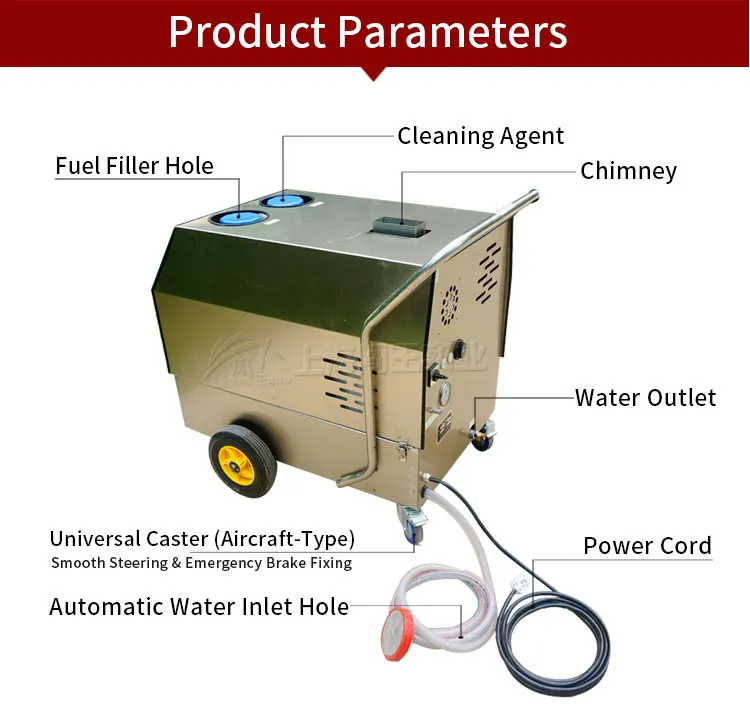

Feature 2

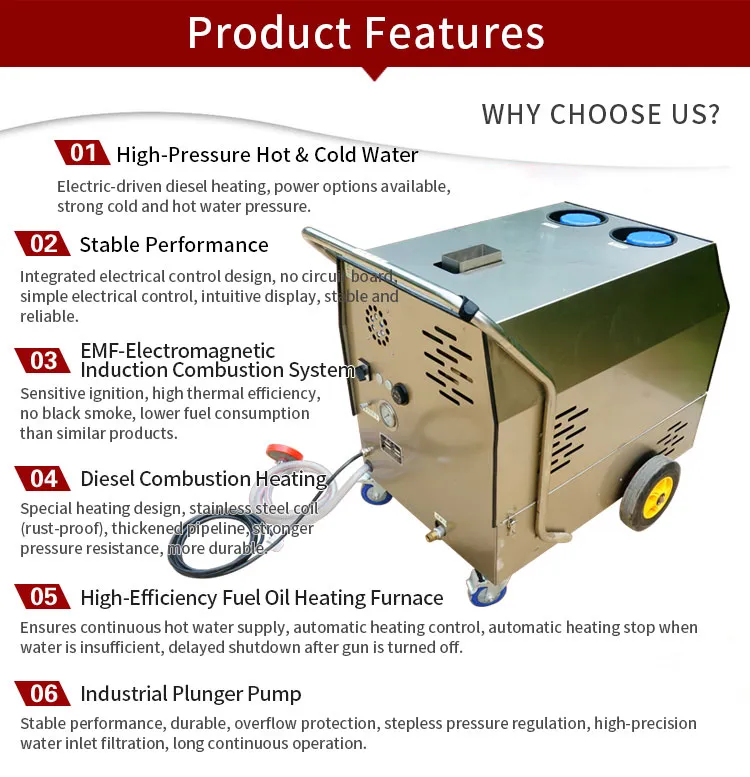

Feature 3

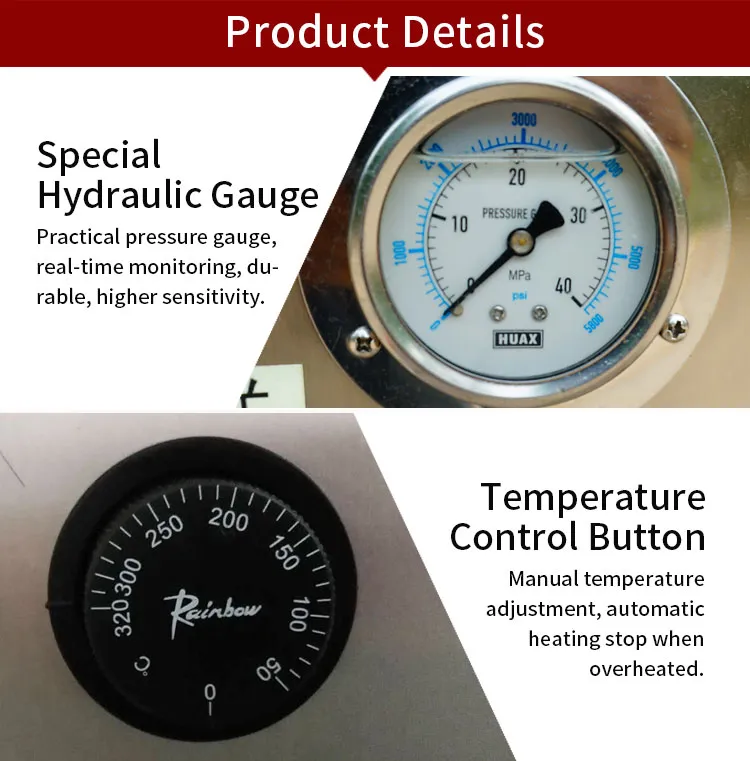

Feature 4

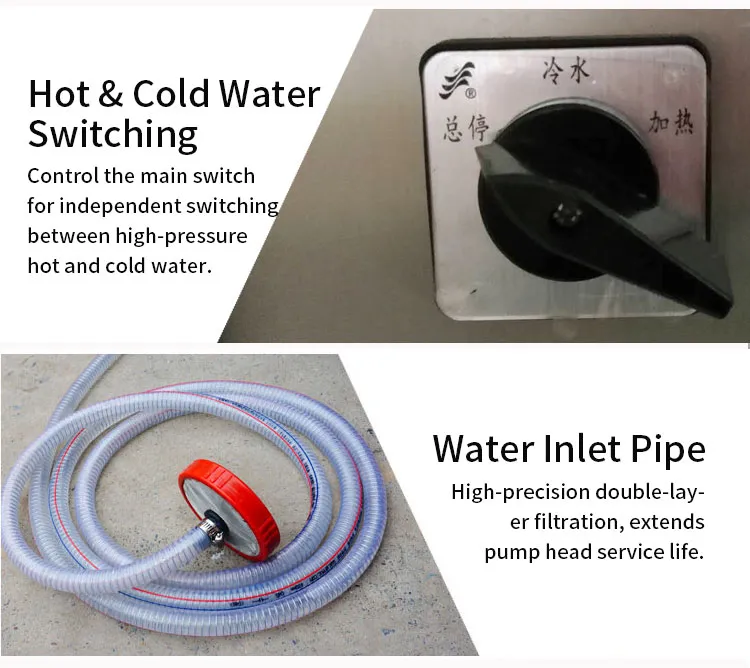

Feature 5

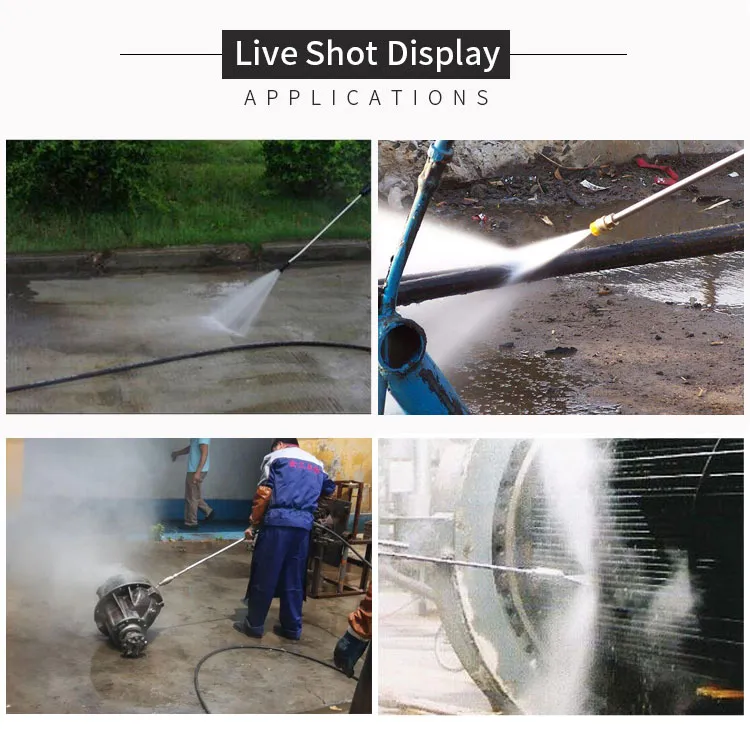

Feature 6

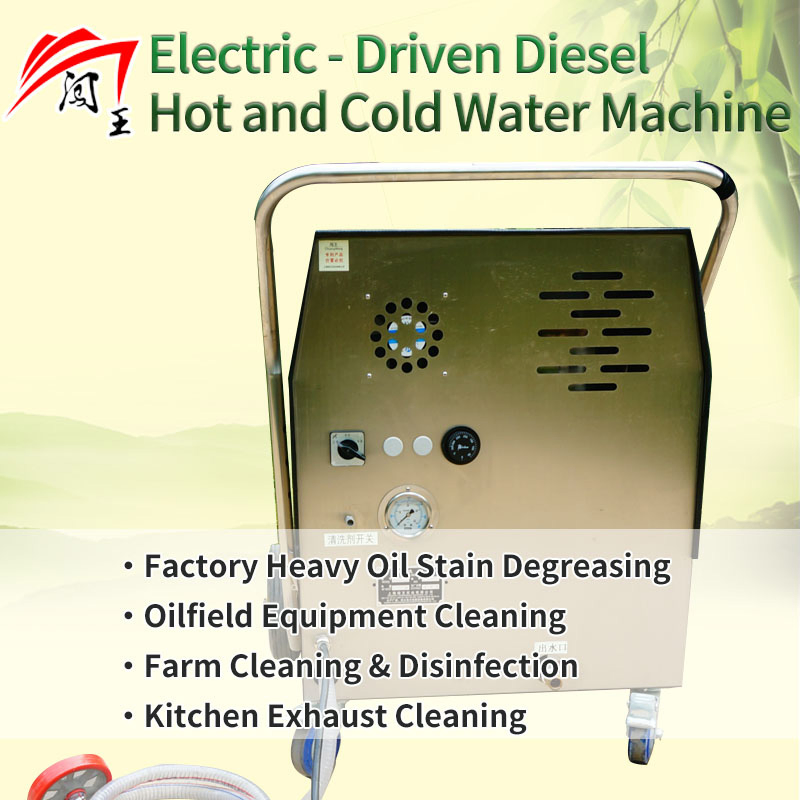

🚂 Versatile Applications
  • Hotel Kitchens: Range hoods and stove heavy grease cleaning.
  • Farms: Environmental cleaning and disinfection.
  • Industrial: Factory floor and equipment oil cleaning.
  • Automotive: Efficient car washing in cold winter regions.
  • Food Processing: High-temperature equipment sterilization.

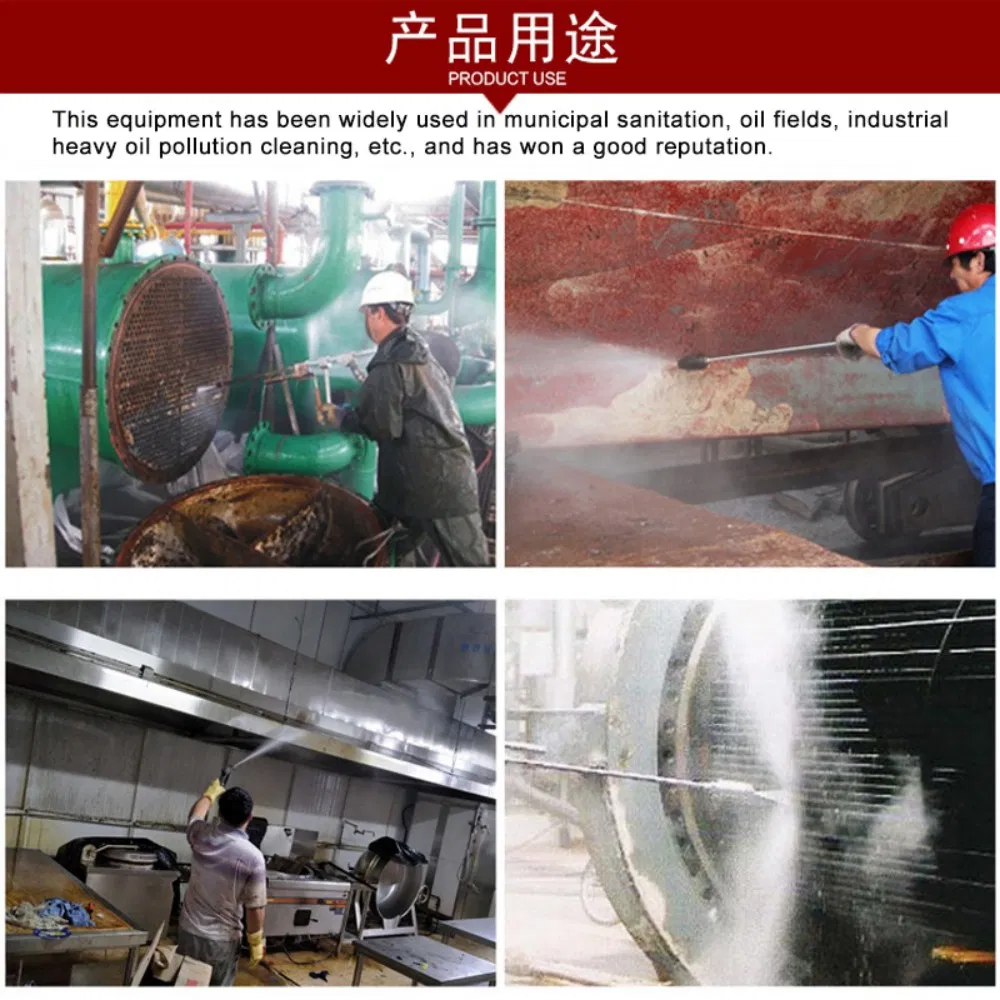

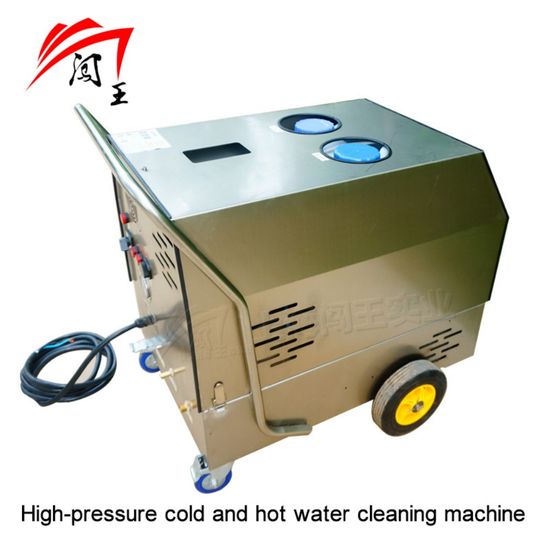

Product View
📹 Operation Demo
📦 Packing & Delivery

Packing: Export-grade fumigation-free plywood crates, wrapped with thickened moisture-proof film.

Dimensions: Approx. 80cm × 103cm × 105cm; Gross Weight: 186kg/unit.

Lead Time: 7-15 working days for in-stock items; 20-30 days for custom orders.

Logistics
❓ Frequently Asked Questions
Q1: How fast does the water heat up?
Featuring a specialized diesel heating coil design, the unit produces hot water in approximately 10 seconds after a cold start.
Q2: Is the equipment energy-efficient?
Yes. The EMF induction combustion technology saves approximately 30% in fuel consumption compared to traditional boiler systems.
Q3: Does the unit support steam functionality?
Yes, the steam function is optional. Steam pressure is typically 50 bar, ideal for stubborn grease and disinfection.
Q4: What is the mobility of the equipment?

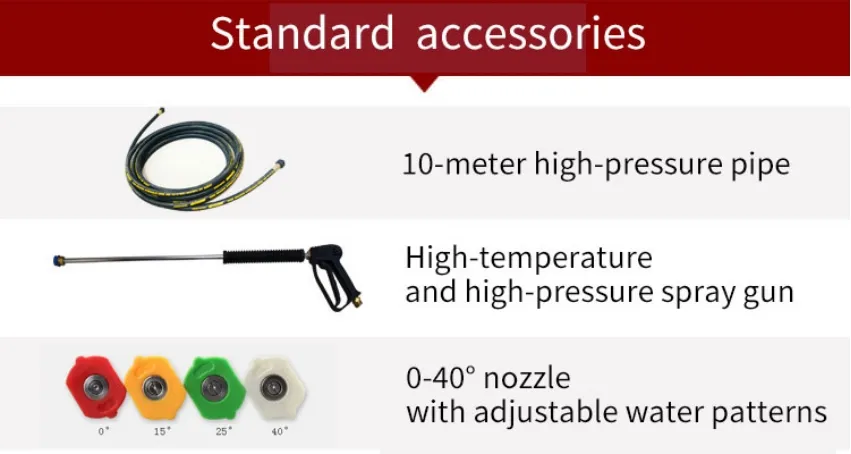

The unit features a wheel-mounted towed design with a standard 10-meter high-pressure hose for flexible movement during cleaning tasks.
Q5: What safety features are included?
It includes automatic water supply, low water alarms, overpressure protection, overtemperature protection, and air switch leakage protection.
Q6: What is the warranty policy?
We provide a one-year warranty on the main machine and core components (PLC, motors, pumps) with lifetime technical support.
