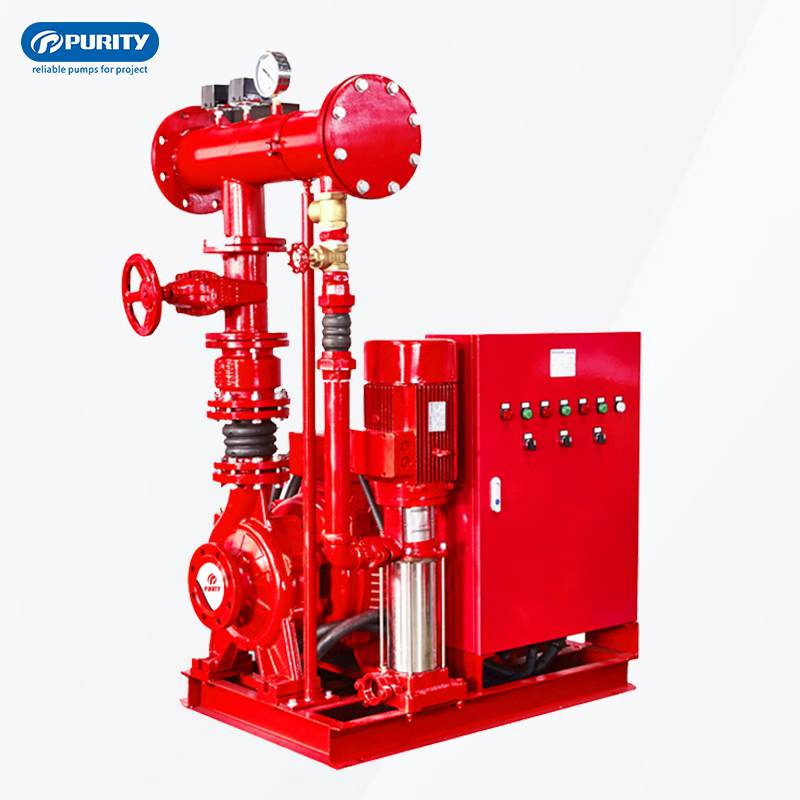

250 Gpm Electric High Pressure Fire Fighting Pump System

Customization: Available
After-sales Service: One Year
Warranty: One Year

Product Description

Basic Information

Model NO.
PEJ
Max.Head
>150m
Max.Capacity
>400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
High/Middle/Low Pressure Pump
Influent Type
Single Suction Pump
Pump Shaft Position
Horizontal Pump
Mounting Height
Suction Centrifugal
Frequency
50Hz or 60Hz
Color
Red
Package
Wooden Packing

Packaging & Delivery

Package Size
179.00cm * 130.00cm * 117.00cm
Gross Weight
430.000kg

Product Video

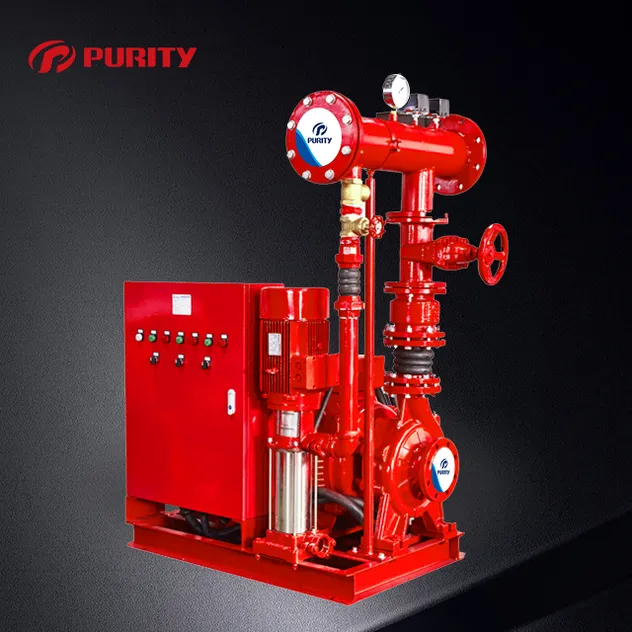

Fire Fighting Pump

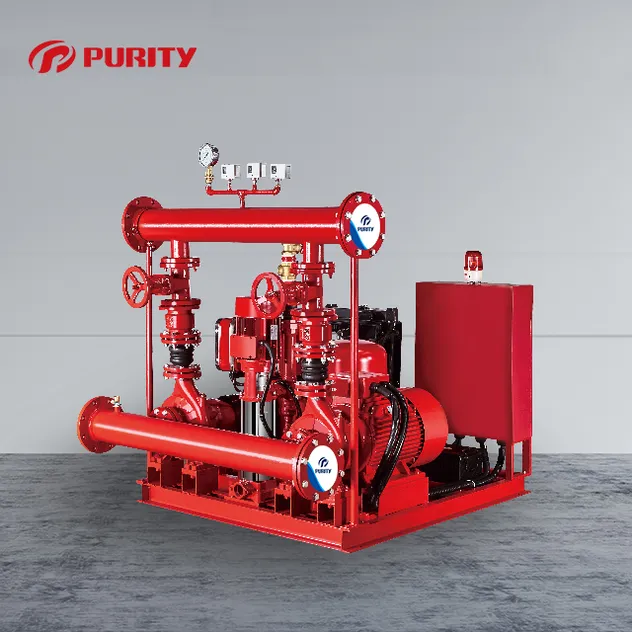

Fire Water Pump

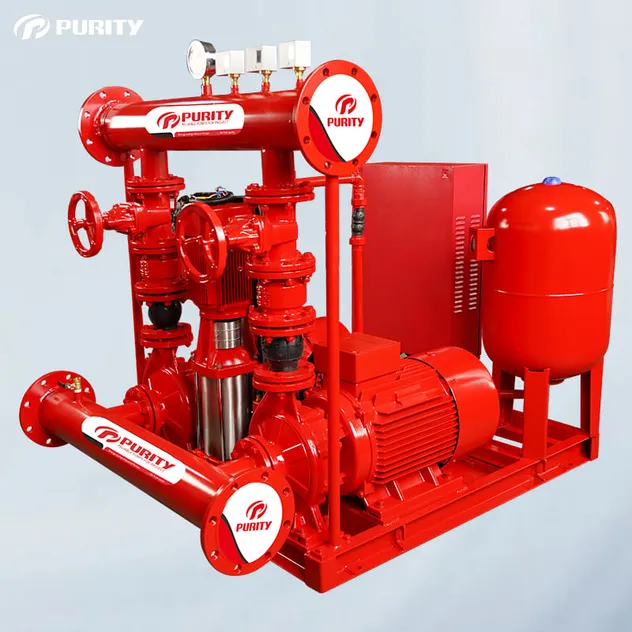

Diesel Drive Fire Pump

Company Profile

The company is committed to the research, development, and production of reliable engineering pumps. With more than 350 employees and a factory area of 60,000 square meters, the facility produces six major series of products including fire pump systems, centrifugal pumps, pipeline pumps, sewage pumps, self-priming pumps, and water supply systems. Products are exported to more than 120 countries and regions worldwide and hold international certifications such as UL, CE, ISO system, and SASO.

Factory Overview

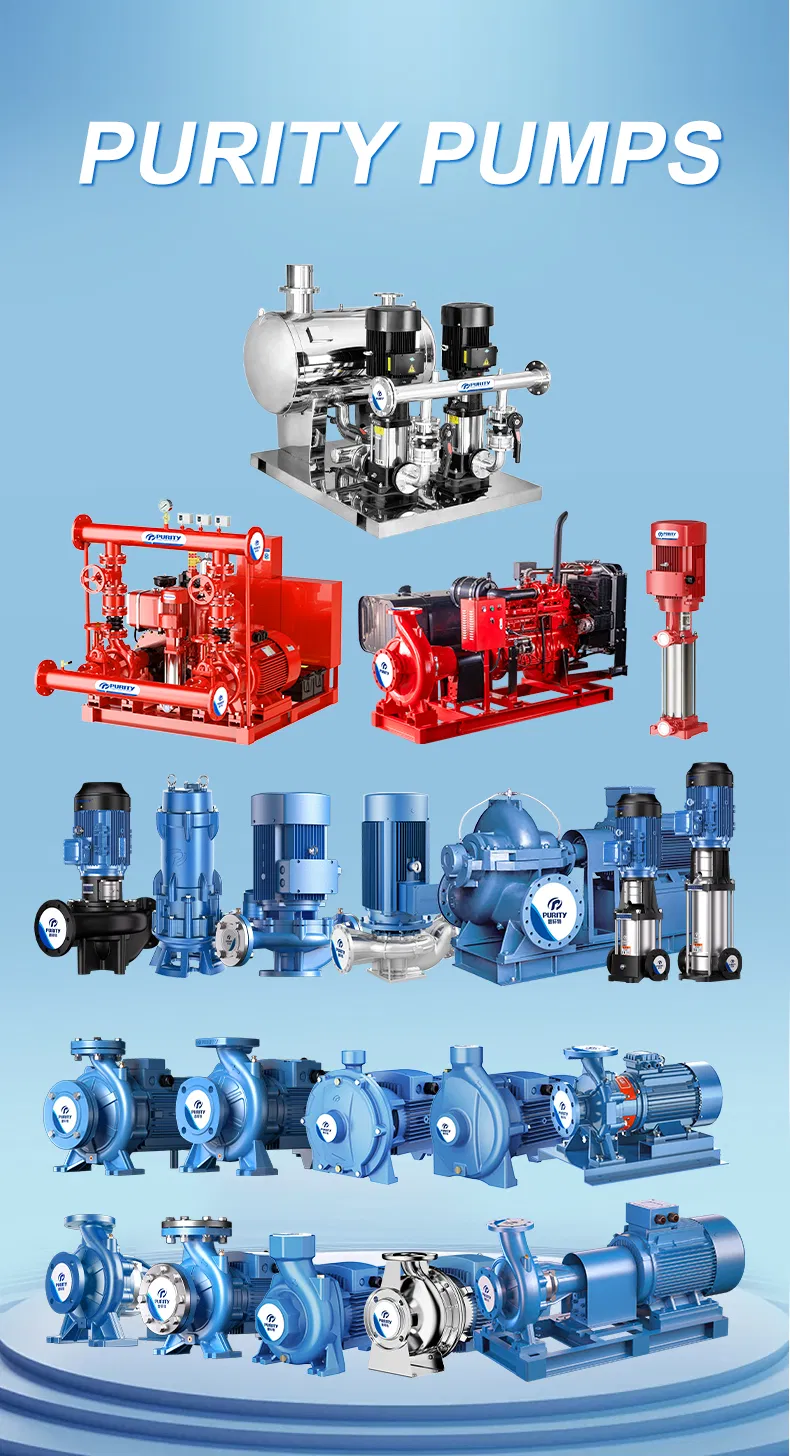

Production Line

Product Description

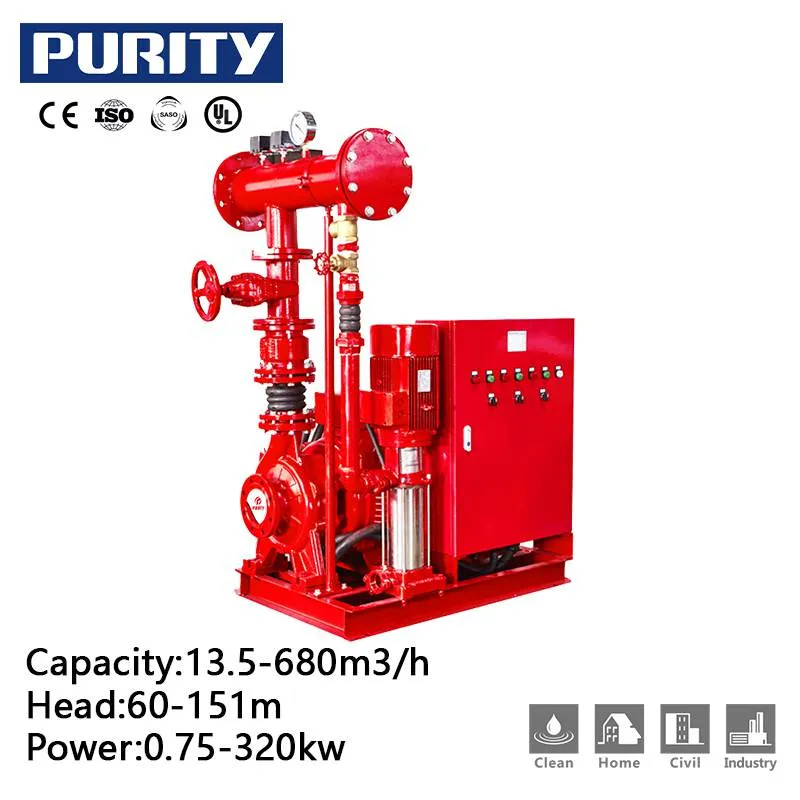

Pump System Structure
Working Principle:
When pressure drops below the set value, the jockey starts running with the signal from the pressure switch and continues running for 10 minutes until the system pressure reaches the set value. If the pressure continues to drop, first the main pump starts to run. If the system pressure cannot supply and pressure continues to drop, the standby pump starts to run.
Key Features:
  • Fire pumps are designed for the whole operational life; maximum reliability is the first priority.
  • Components are affixed onto a stable steel framing structure.
  • Each controller has its own individual pressure sensing line.
  • The suction line should never include a strainer.
  • Includes check valve and butterfly valve in the discharge line.
  • Compliant with standards regarding suction levels for end suction and split case pumps.
Support customizedOEM ODM
Equipment StandardsHigh Reliability / NFPA Compatible

Product Parameters

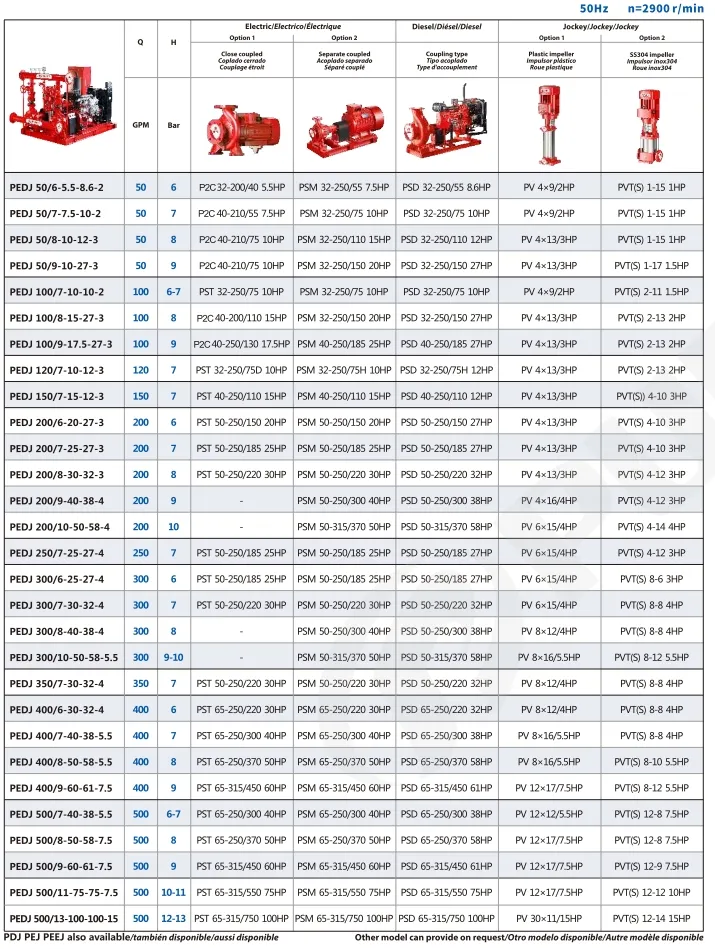

Specifications 1

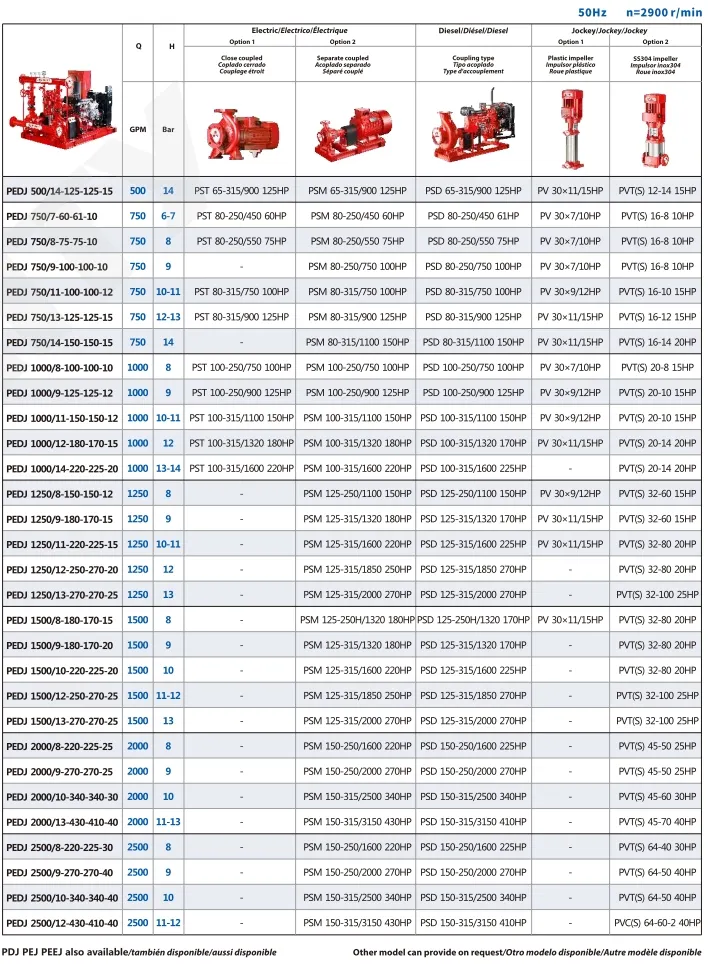

Specifications 2

Factory Strength & Exhibition

Factory Workshop
Exhibition Booth

Certificates

Industry Certificates

Frequently Asked Questions

What are your payment terms?
We accept 30% T/T, L/C, West Union, and Ali-pay etc.
What is the MOQ for sample orders?
Our MOQ is 1 PC or any required quantity. Generally, the larger the quantity ordered, the more competitive the price you will receive.
Are you a manufacturer or a trader?
We are a professional manufacturer. You are welcome to visit our factory to establish a long-term business partnership.
What is the lead time for standard pump sets?
Standard production time typically ranges from 25 to 35 days depending on the current production schedule and order volume.
Do your products come with a warranty?
Yes, we provide a standard warranty on our fire pump systems. Please consult our technical team for specific warranty durations per model.
Can you provide customized solutions for fire fighting systems?
Absolutely. We offer OEM and ODM services to customize pump capacity, head, material, and control systems based on your project requirements.
