Technical Specifications
Materials
Stainless Steel 316/304
CIP System Process
1, 2, 3, 4, 5, ...Tank
Heating Way
Electronic/Steam Heating
Core Components
PLC, Engine, Pump
Technology Advantage
PU Insulation, Dimple Jacket, Cooling System
Surface Finish
Interior 3A Finish, Exterior 2B Finish
Finished Dosage Form
Liquid
Control System
Computerized / PLC Control
Production Capacity
20-30PCS/Month
Product Overview

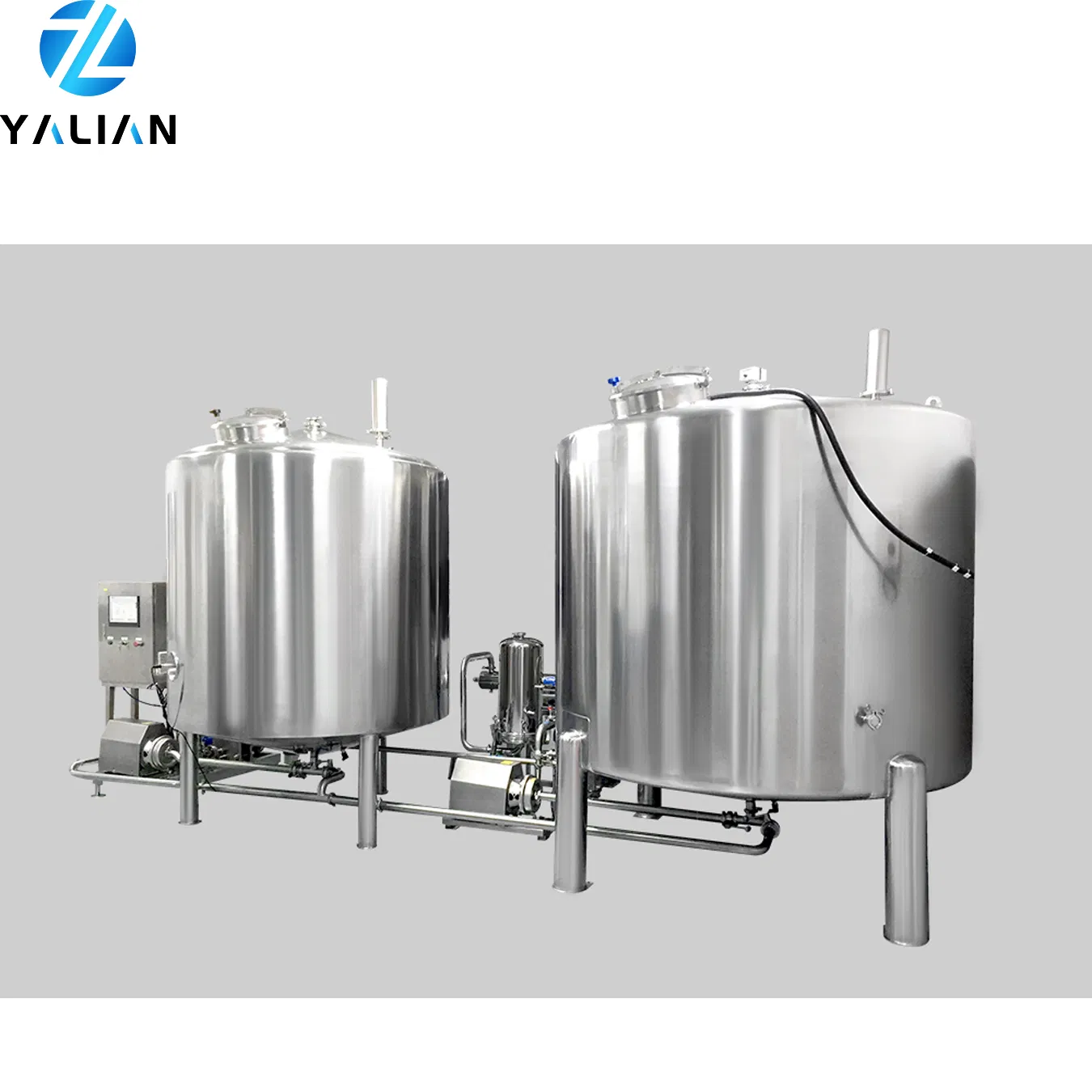

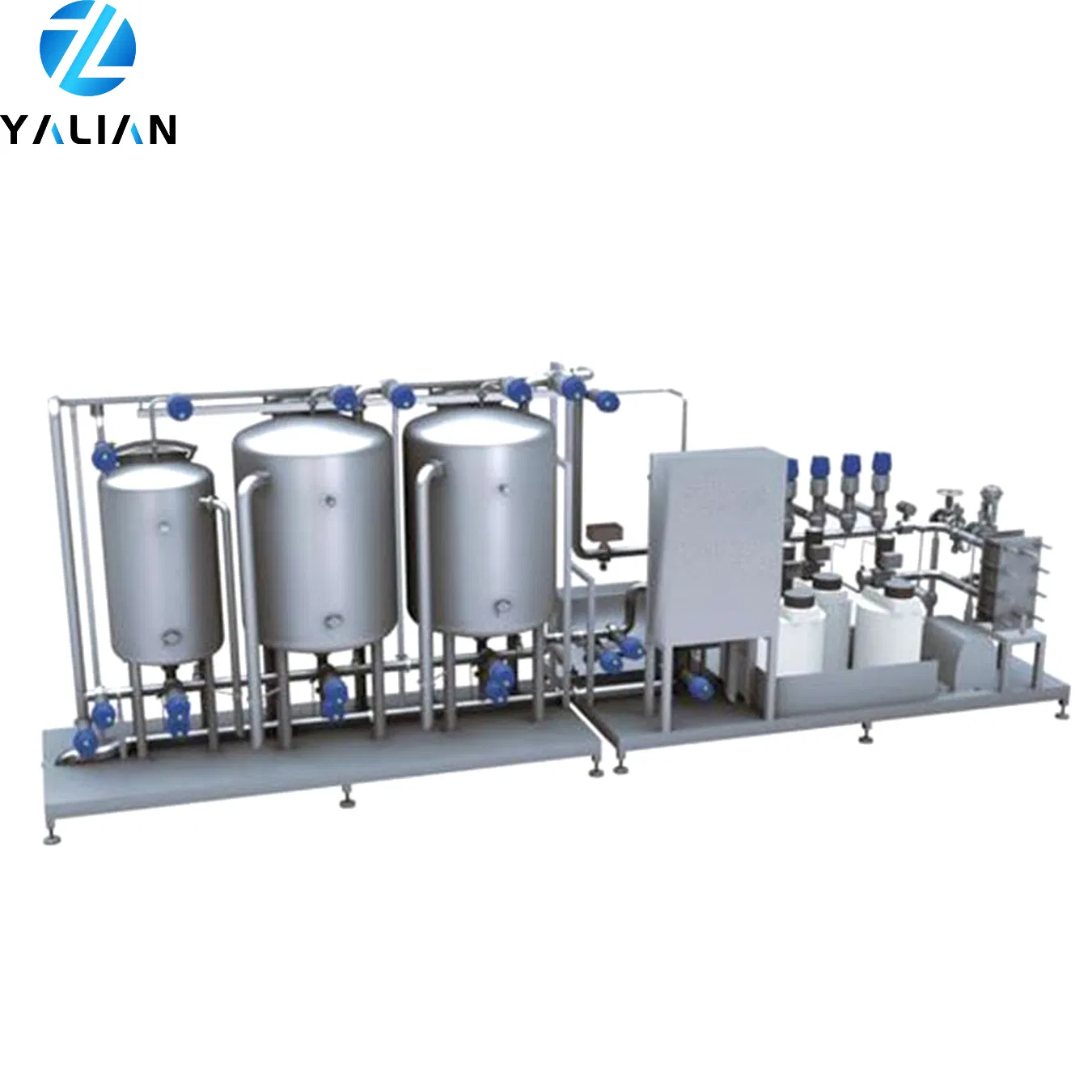

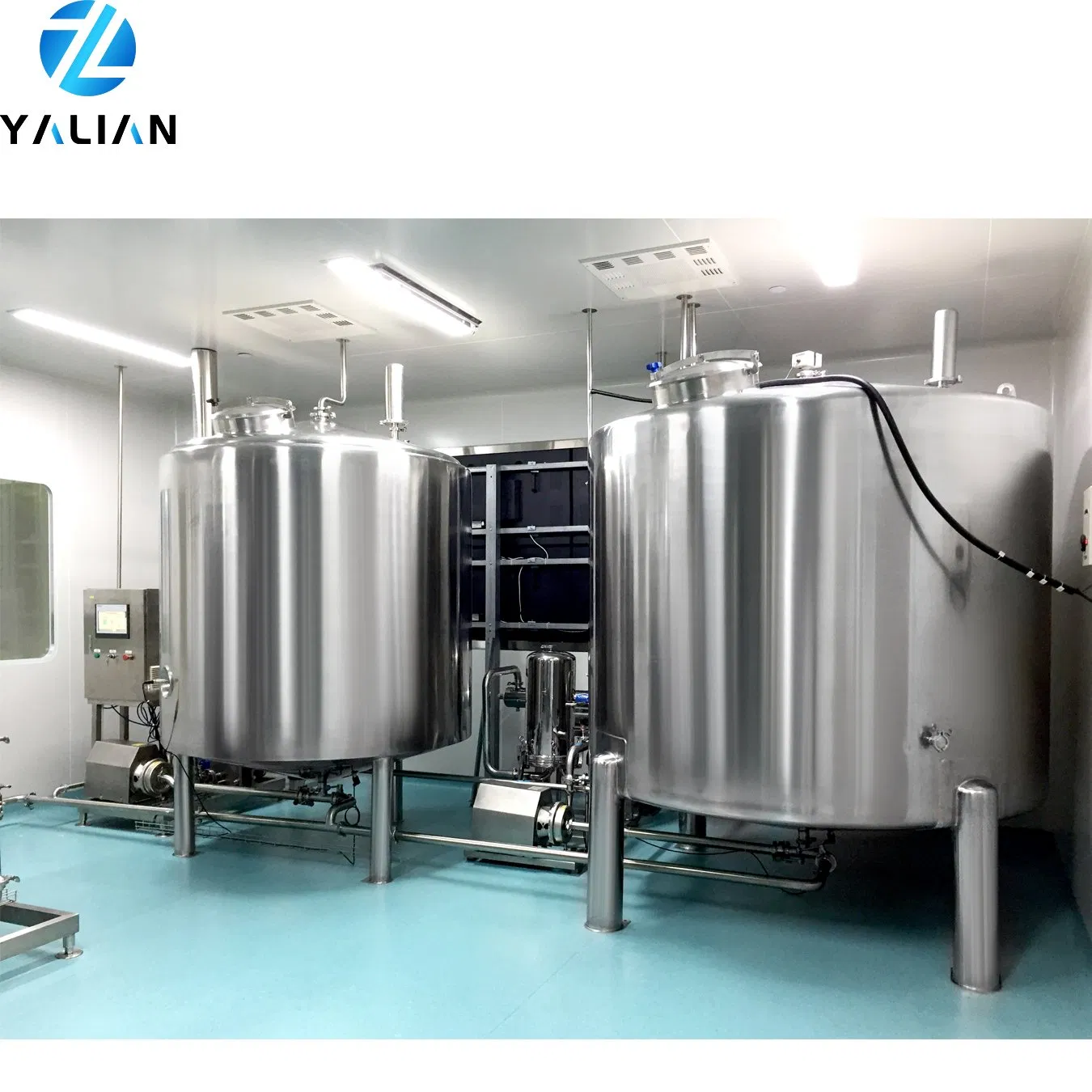

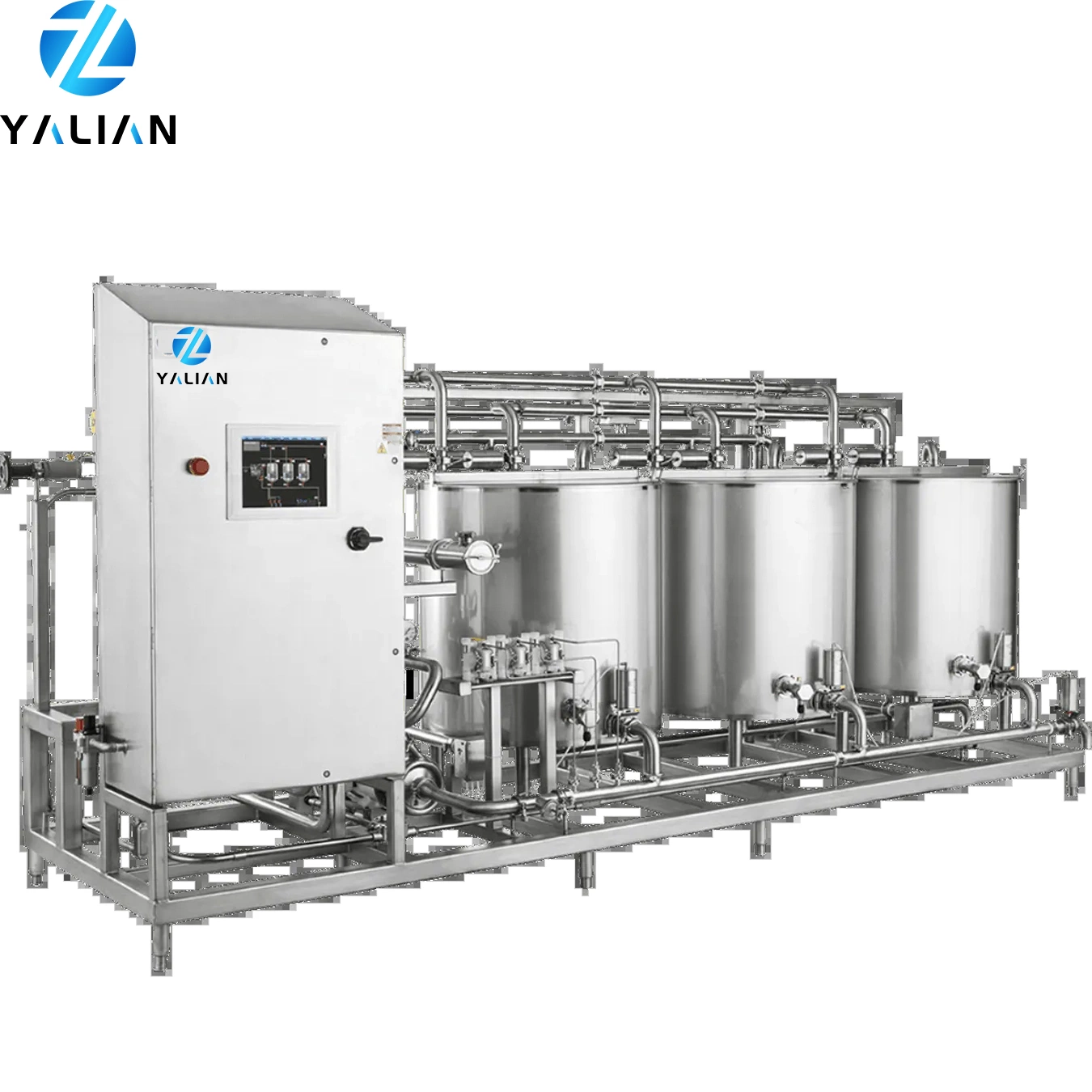

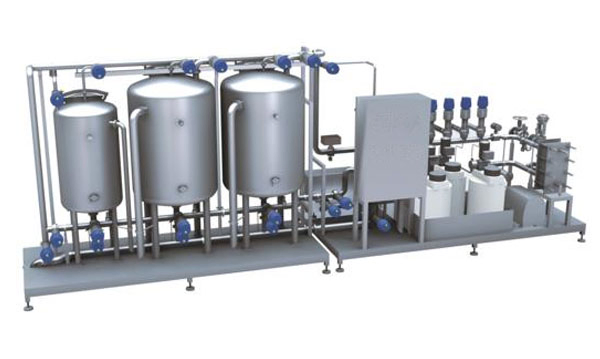

Mobile CIP System for FOOD, DAIRY, AND BEVERAGE Industries
- 316L stainless steel clean storage tank
- Variable speed CIP conveying system
- Friendly HMI man-machine interface for easy parameter setting
- Built-in insulation system to reduce energy loss
- Unique process design significantly reduces foam
- Advanced water return and extracorporeal circulation
- Automatic detection, liquid addition, and discharge
- High-efficiency performance without failure
Advanced Piping & Control Design
Our process piping design combines traditional manual operation with fully automatic multi-channel valve array technology. This creates a closed-loop system that meets both process water requirements and aseptic disinfection needs.
- Automatic rise to set working temperature
- Automatic adjustment of liquid concentration
- Inside and outside self-cleaning with hot/cold water
- Media-specific filtration and liquid recovery
- Significant reduction in detergent usage
- Extended production equipment service life

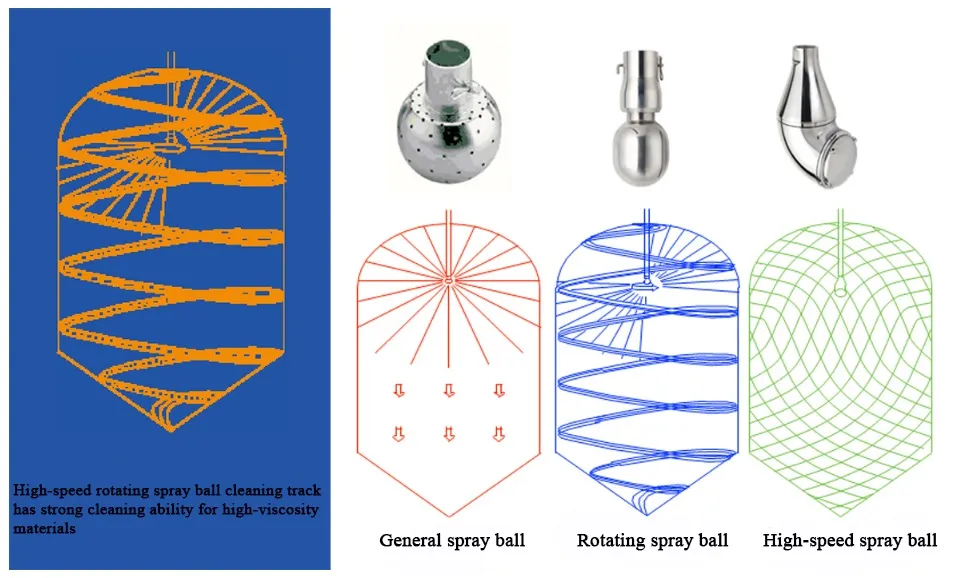

Washing Head Module & Spray Solutions
Customized Cleaning Solutions:
- Effective cleaning for stubborn viscous materials
- 360-degree cleaning coverage for complex tank structures

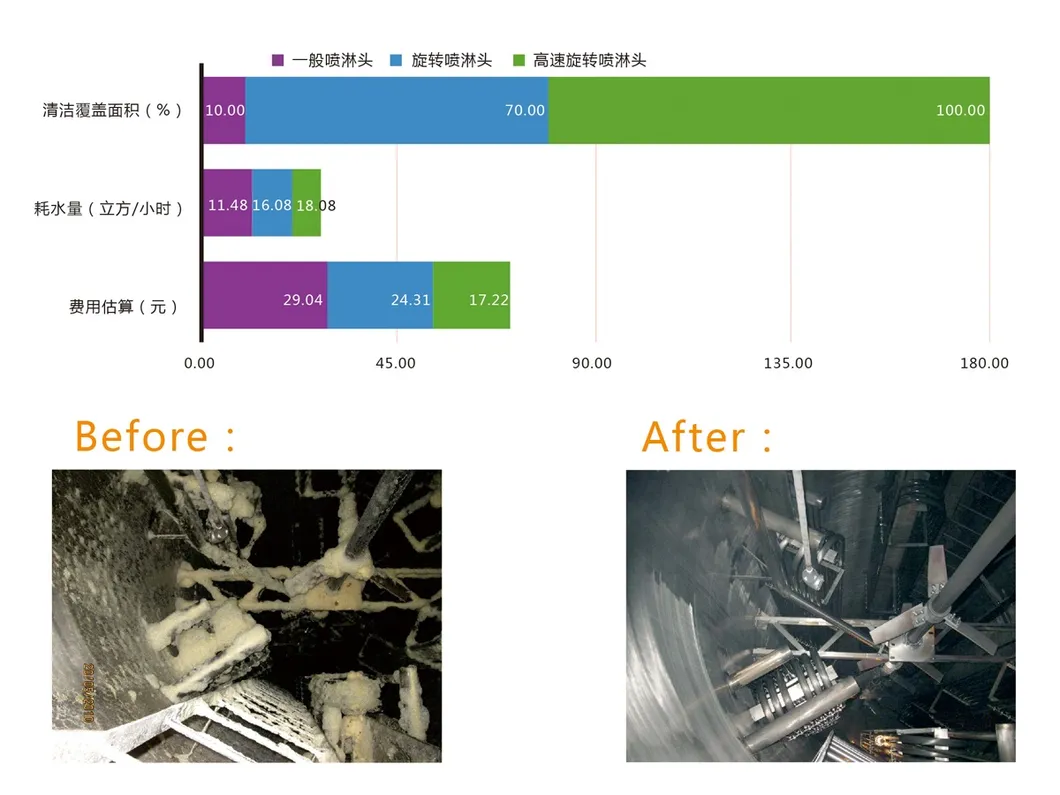

- High-speed spray ball technology
- Water consumption reduced by nearly 60%
- Up to 99% cleaning coverage
System Compliance & Efficiency
- Compliance with GMP requirements for microbiological control
- Effective temperature control and rapid online cleaning
- Continuous system cleaning capabilities
- Suitable for standalone machine or public service system use
Frequently Asked Questions
What materials are used in the construction of the CIP system?
The system utilizes high-quality Stainless Steel 316L for storage tanks and contact parts, with Stainless Steel 304 options available to ensure hygiene and durability.
What capacity range do you offer for these systems?
We provide a wide range of specifications from 50 liters up to 5000 liters, accommodating various production scales.
Which industries can benefit from this mobile CIP system?
It is specifically designed for the Food, Dairy, and Beverage industries where aseptic cleaning and disinfection are critical.
How does the system help in saving resources?
The built-in water return and extracorporeal circulation systems, combined with high-efficiency spray balls, can reduce water consumption by nearly 60% and lower detergent usage.
Is the system fully automated?
Yes, the system features a PLC control with a friendly HMI (man-machine interface), allowing for automatic temperature adjustment, liquid addition, and discharge.
Can it handle stubborn materials?
Yes, our personalized customized washing head modules are designed to clean even stubborn viscous materials without leaving any dead angles.
