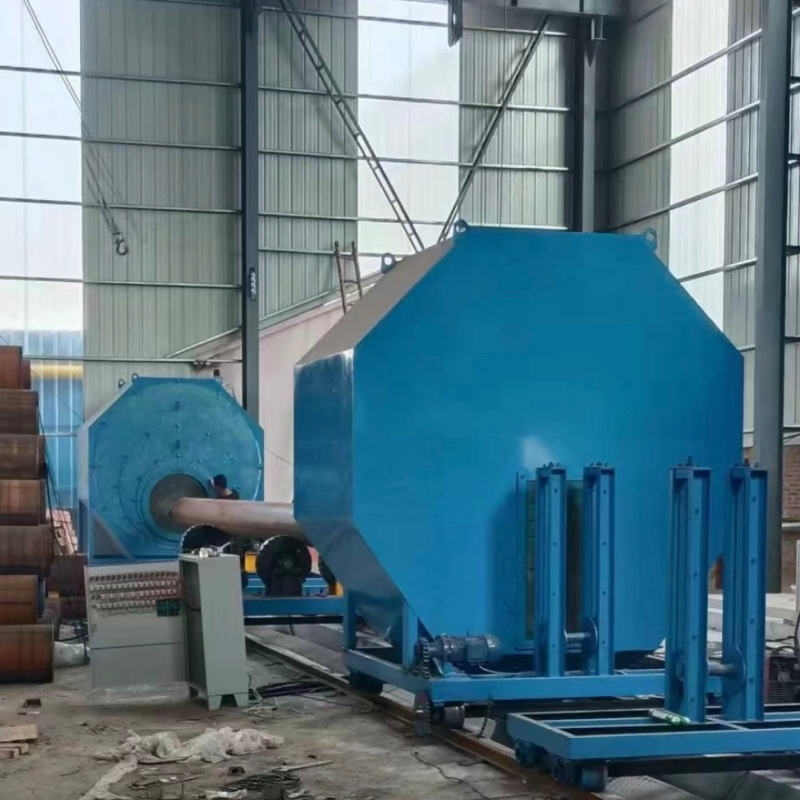

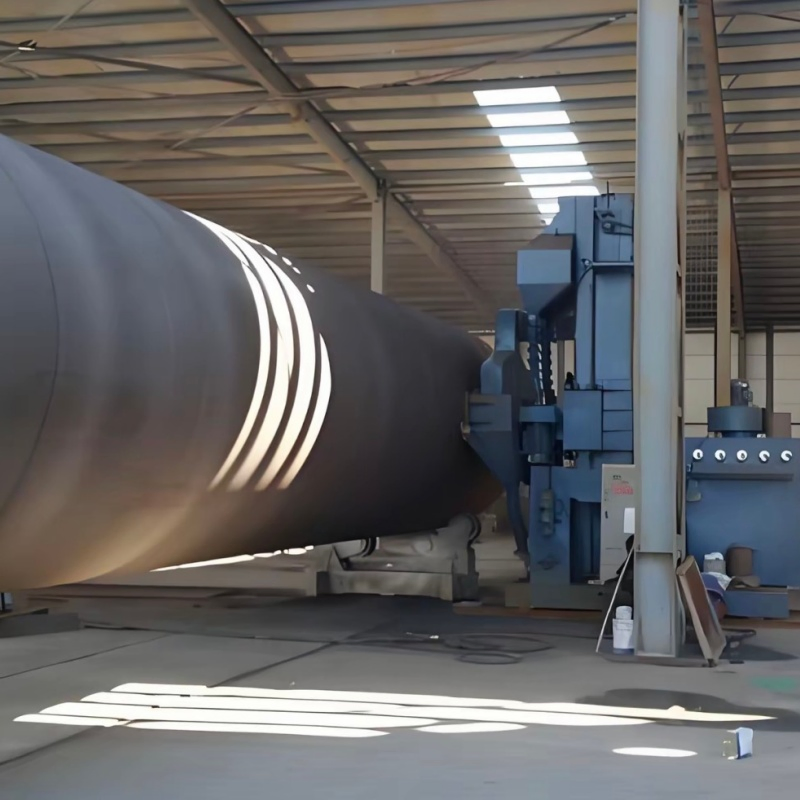

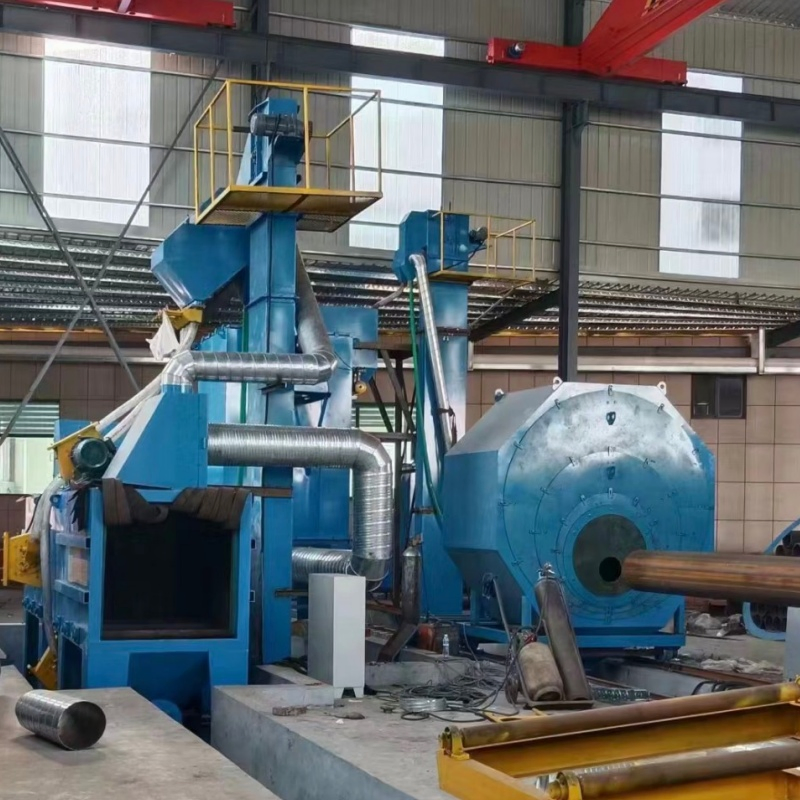

Gw Type Pipeline External Wall High-Power Shot Blasting Cleaning Equipment
Gw Type Pipeline External Wall High-Power Shot Blasting Cleaning Equipment
Gw Type Pipeline External Wall High-Power Shot Blasting Cleaning Equipment
Gw Type Pipeline External Wall High-Power Shot Blasting Cleaning Equipment
Gw Type Pipeline External Wall High-Power Shot Blasting Cleaning Equipment
1 / 5
Gw Type Pipeline External Wall High-Power Shot Blasting Cleaning Equipment
Gw Type Pipeline External Wall High-Power Shot Blasting Cleaning Equipment
Gw Type Pipeline External Wall High-Power Shot Blasting Cleaning Equipment
Gw Type Pipeline External Wall High-Power Shot Blasting Cleaning Equipment
Gw Type Pipeline External Wall High-Power Shot Blasting Cleaning Equipment

Gw Type Pipeline External Wall High-Power Shot Blasting Cleaning Equipment

Customization: Available
After-sales Service: One Year
Warranty: One Year
Send Inquiry

Product Description

Basic Information
Model NO.
QGW100 QGW720 QGW1200 QGW1500 QGW2800
Application
Electronic Industry
Fuel
Electric
Type
Shot Blasting
Cleanliness
High Cleanliness
Automation
Automatic
Certification
CE, CB, ETL, RoHS, UR, ISO9001
Feature
Rust / Corrosion Proof
Condition
New
Use
Descaling/Peeling
HS Code
842430
Production Capacity
50000/Year
Product Description
Shot Blasting Cleaning Equipment
Through-type Shot Blasting Machine
This series of steel pipe external wall shot blasting machines is suitable for the pre-treatment of steel pipe anti-corrosion in water supply, natural gas, mining, oilfield and other fields, as well as the shot blasting of gas transmission pipelines in seabed and desert areas, improving the appearance quality and surface process state of product parts.

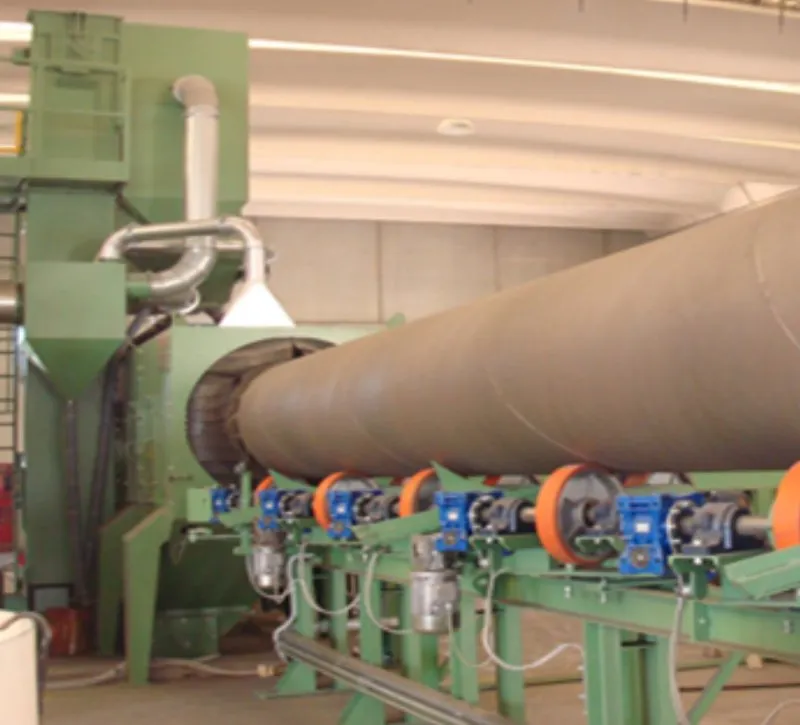

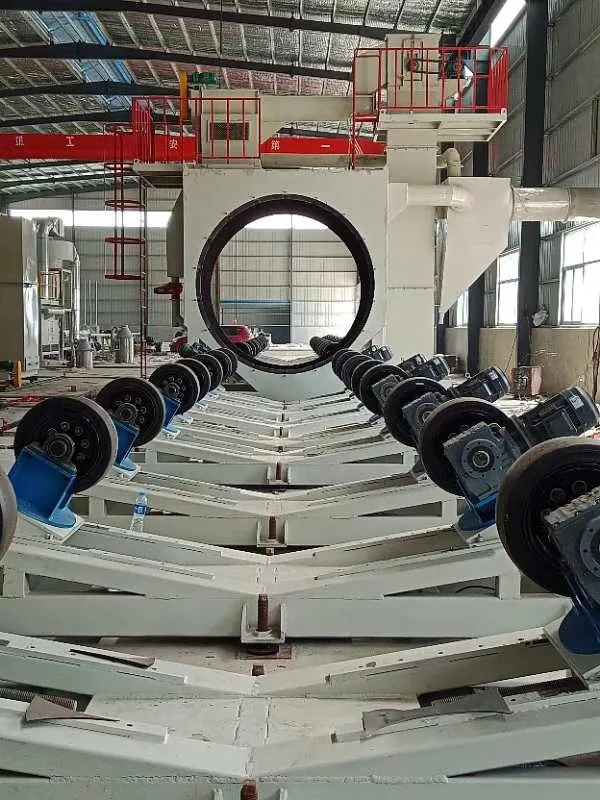

Equipment Detail 1 Equipment Detail 2

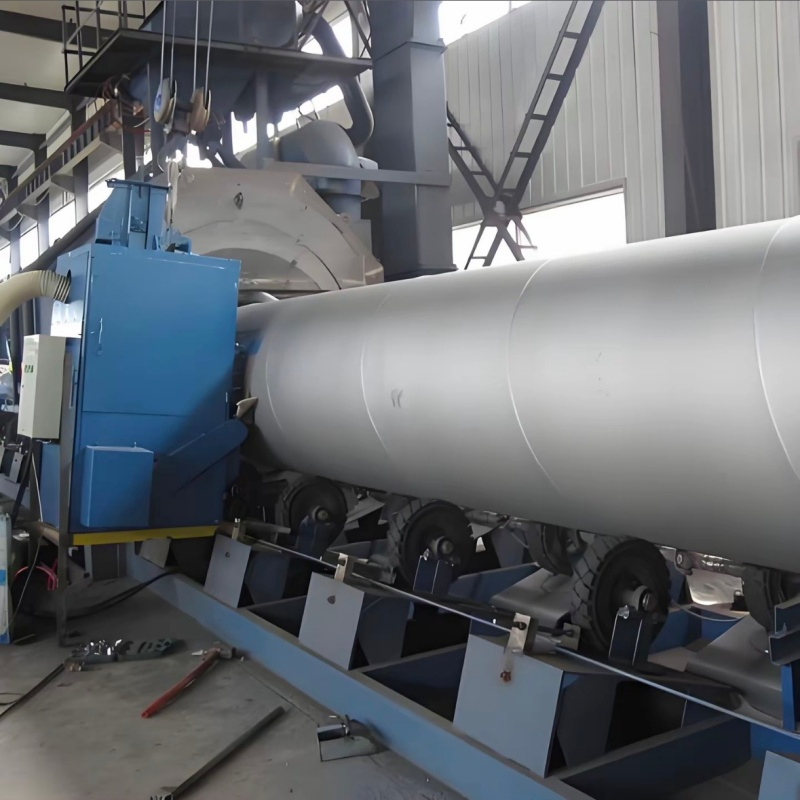

For steel pipes with a diameter of φ22-φ600mm, the equipment adopts "V"-shaped roller conveying at a certain angle to the center line of the steel pipe. For steel pipes with a diameter of φ159-φ3600mm, the equipment adopts supporting wheel transmission with adjustable wheel spacing. The shot recycling and purification system is equipped with an overflow induction type controllable full-curtain multi-stage air separation separator and a special polyester core elevator conveyor belt.
Steel Pipe External Shot Blasting Machine Specifications
ITEM Clean up workpiece size (mm) Cleaning speed (m/min)
QGW100Φ50-3002-10
QGW720Φ159-7202-6
QGW1200Φ219-10161-6
QGW1500Φ325-16001-6
QGW2800Φ1016-28001-2

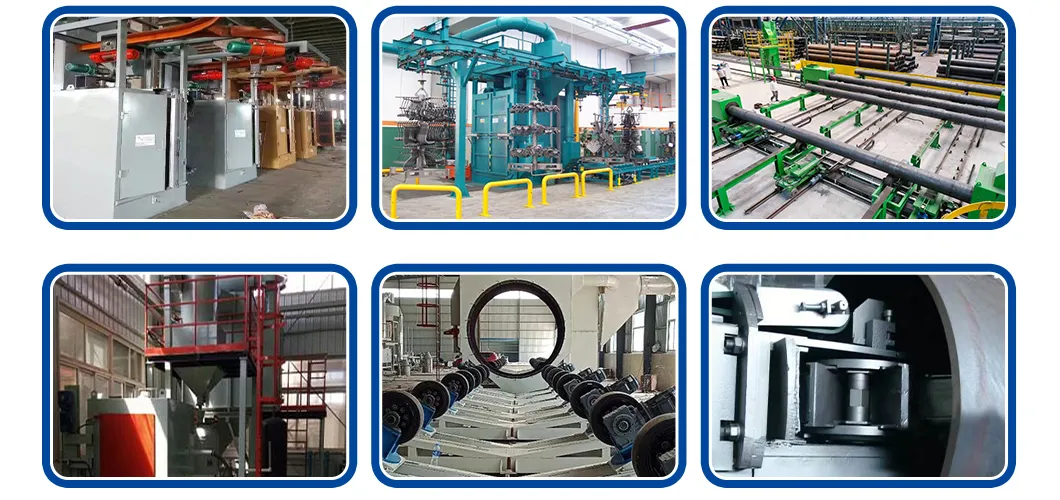

Main Product Display
Main Product
Professional Expertise
We are a leading manufacturer specializing in automated shot blasting machines and surface treatment equipment for steel pipes. With over 20 years of experience, we provide complete solutions for surface cleaning, rust removal, and coating preparation. Our operations are certified under ISO 9001:2015 and our products comply with EU Machinery Directive 2006/42/EC (CE certification).
Manufacturing Facility
Certifications & Global Presence
Certificates Customer Group
Exhibition Packaging & Shipping
Frequently Asked Questions
What kind of workpieces can your shot blasting machine handle?
It handles steel plates, profile steel, castings, structural parts, hardware, aluminum profiles, and supports customized models for special shapes and oversized workpieces.
What are the differences between different types of shot blasting machines?
Crawler type suits small parts in batches; hook type for large/heavy parts; through type for assembly line operation. Selection is recommended based on size, output, and process needs.
How long is the service life of the machine and what are the consumables?
The design life is 8-10 years. Consumables include blaster blades, sleeves, and plates, made of durable high-chromium alloy with low replacement costs.
Do you support customized non-standard shot blasting machines?
Yes, the production plan is fully customizable based on workpiece size, capacity needs, site conditions, and automation requirements.
Does the machine meet environmental protection standards?
Yes, it is equipped with a pulse cloth bag dust collector. Dust emission is below national standards, and both noise and dust levels meet strict environmental requirements.
What is the typical cleaning speed for steel pipes?
Depending on the model, cleaning speeds range from 1m/min for large diameters up to 10m/min for smaller pipes, ensuring high efficiency.
