HDPE Culvert Pipe Production Equipment DN1600 DN2000

Warranty:	1year
Product Type:	HDPE/PP Profiled Wall Wastewater Pipes
Screw No.:	Single-screw

Send Inquiry

Product Description

Basic Specifications

Model NO.SMSG800, SMSG1200, SMSG1600, SMSG2000, SMSG3000

AutomationAutomatic

ComputerizedComputerized

CertificationCE, ISO9001:2008, TUV

ConditionNew, Under The Order

HDPE Pipe TypesDouble Wall, Hollow Wall, Square Profile, Drainage

Electrical AppliancesABB, Siemens, Omron, Schneider, RKC

HDPE Pipe Line Output200-1500kg/H

Pipe Diameters200-800, 600-1600, 800-2400, 1600-3600mm

Control SystemSiemens PLC Touch Screen

HS Code8477209000

Production Capacity15 Sets Per Year

Product Description

Large diameter HDPE Hollowness wall winding pipe extrusion making machine.

Our production lines are designed for manufacturing high-quality HDPE structured-wall corrugated plastic pipes, solid wall spiral winding pipes, ribbed pipes, and steel-reinforced HDPE pipe extrusion lines.

Available Parameters:

Diameters: 200mm - 4000mm

Ring stiffness: SN2, SN4, SN8, SN12.5, SN16

Main Applications:

Sewage and drainage pipes

Storm water and rain water sewage pipes

Cable protection and civil construction

Chemical and liquid storage tanks

Plastic septic tanks and manhole wellbores

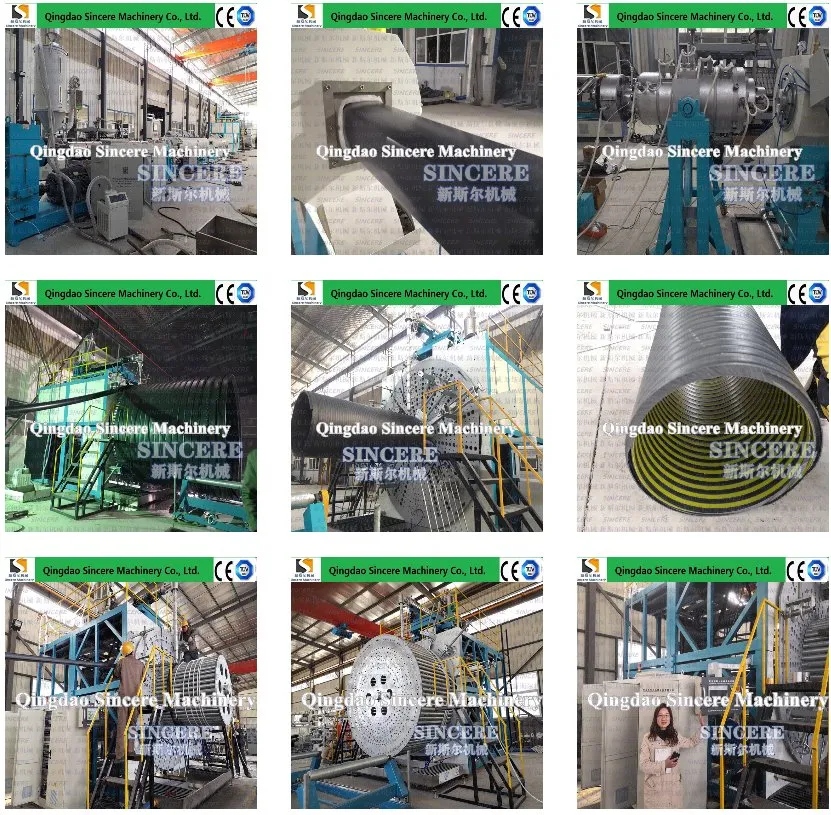

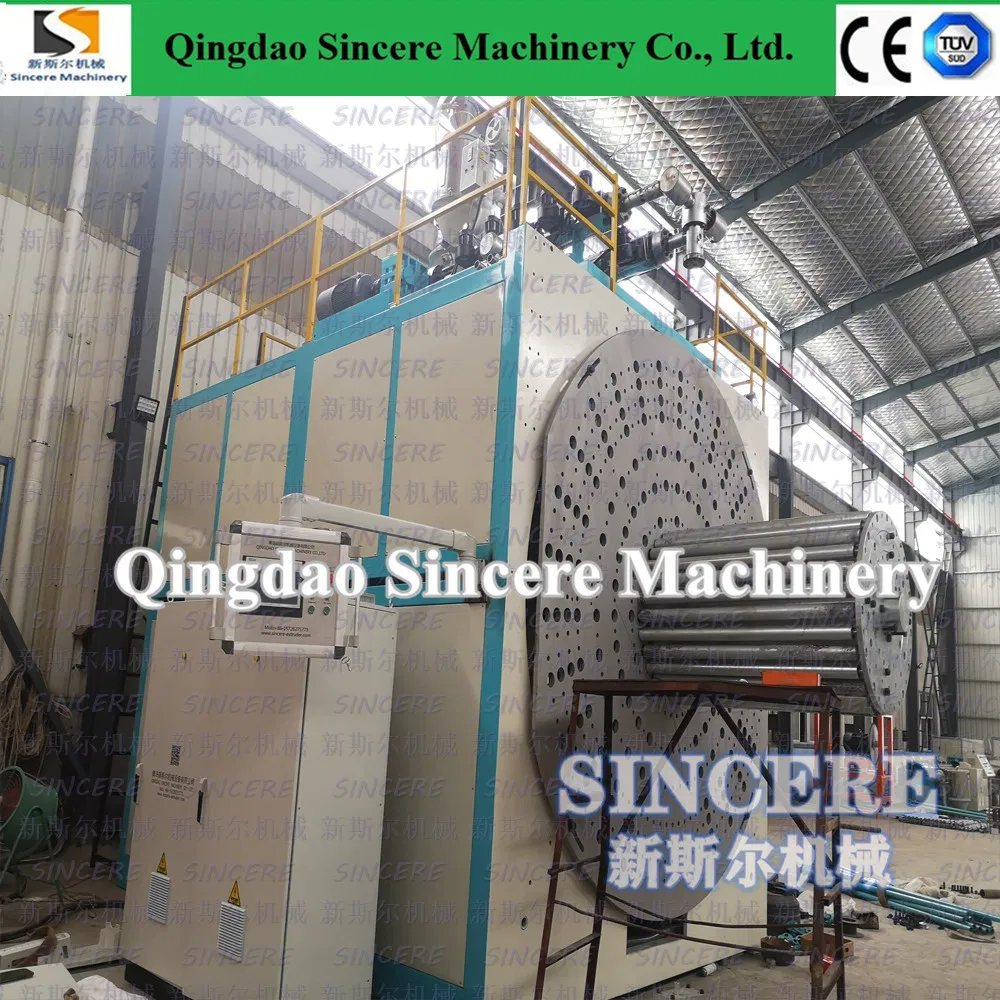

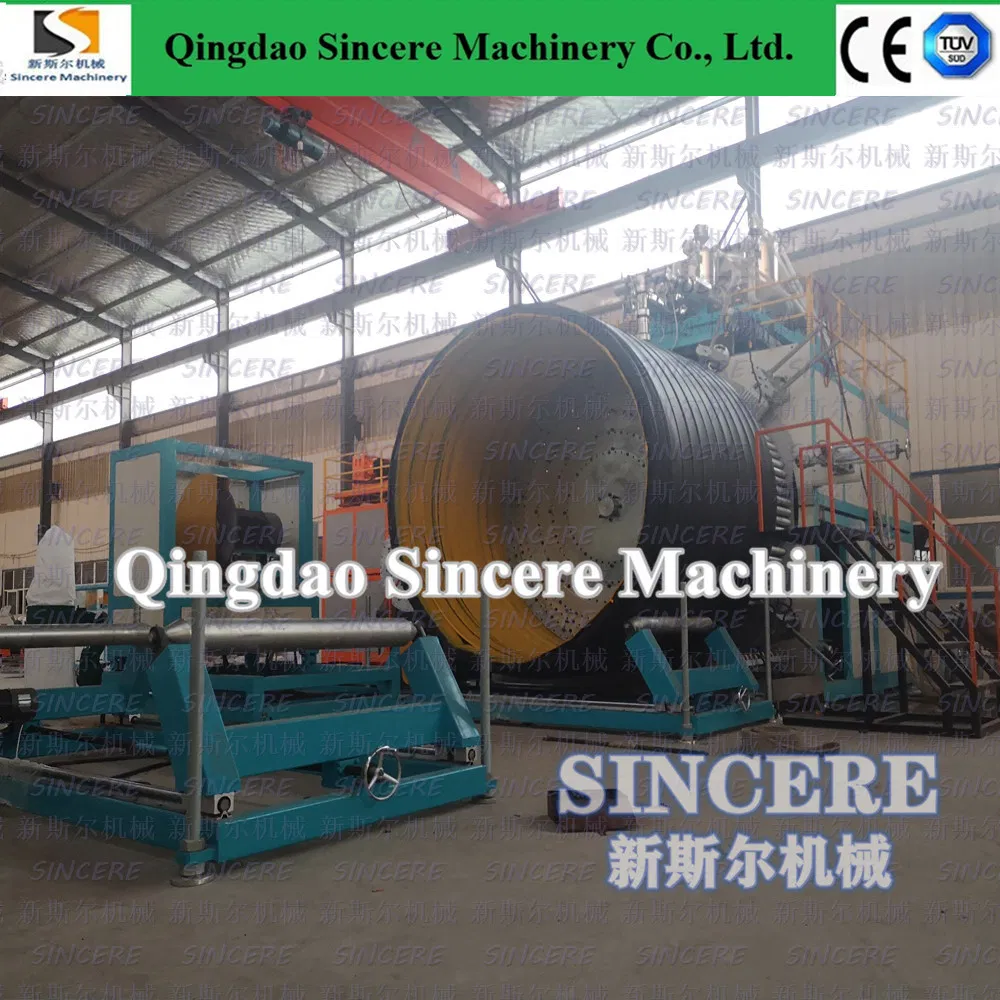

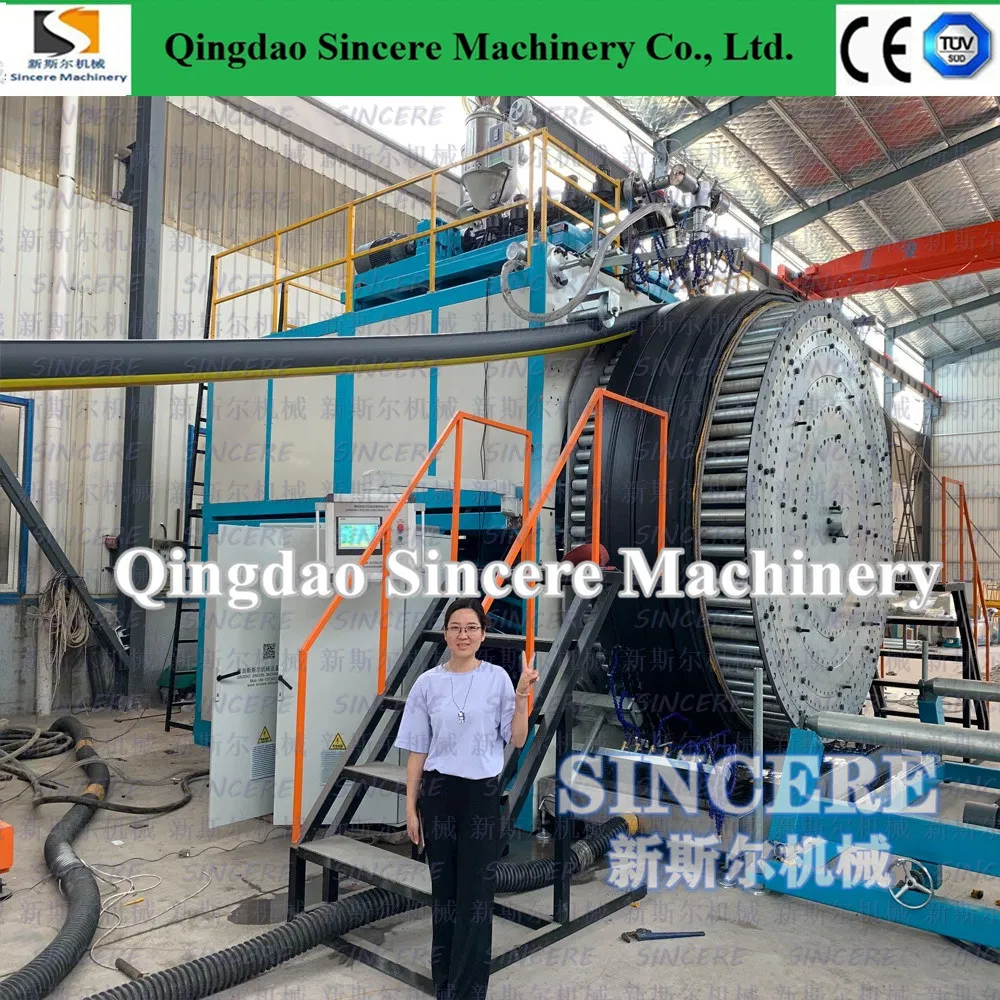

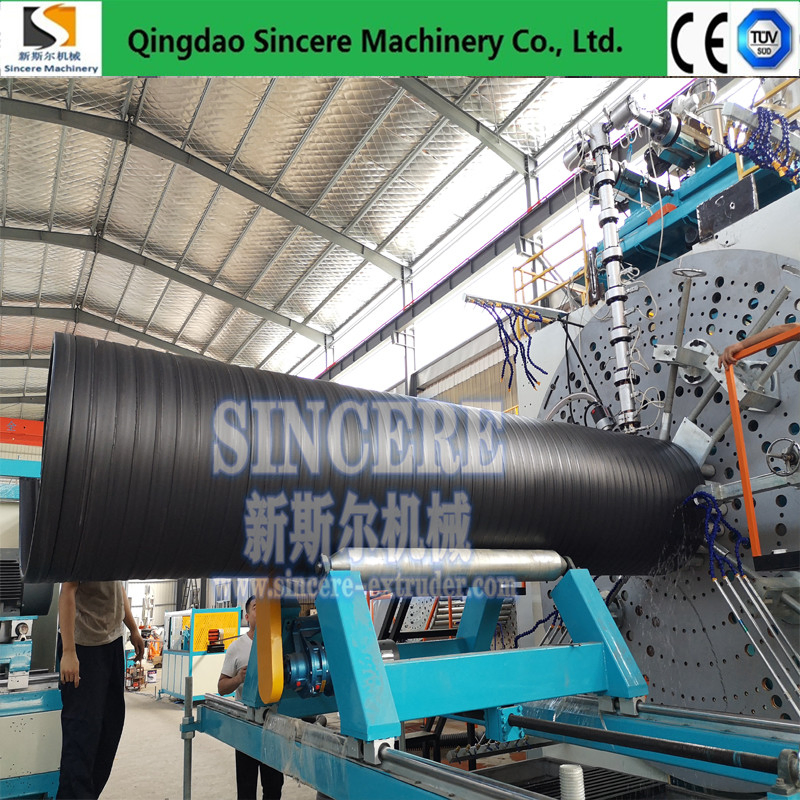

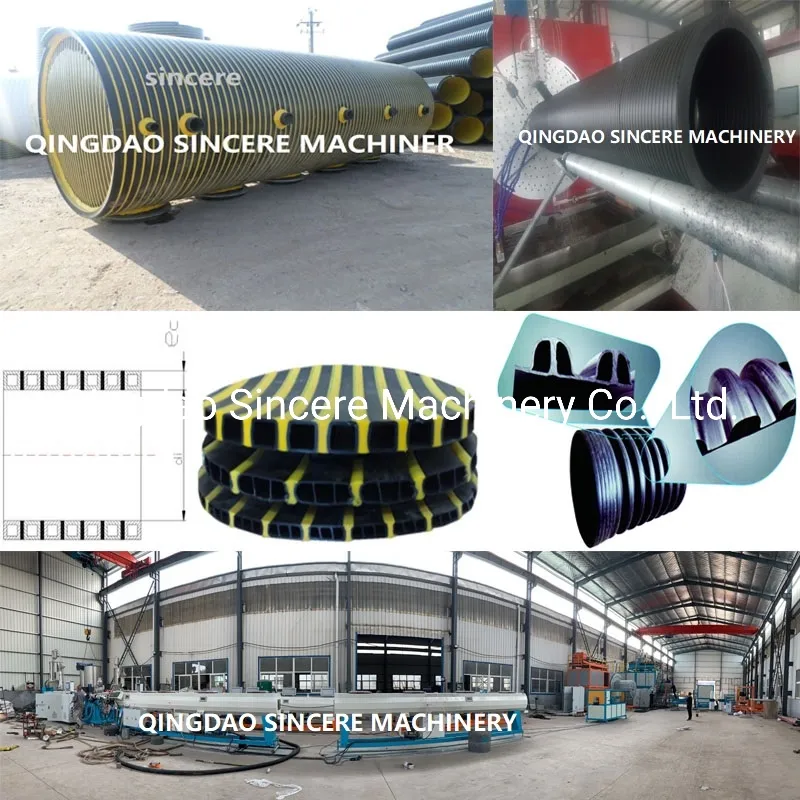

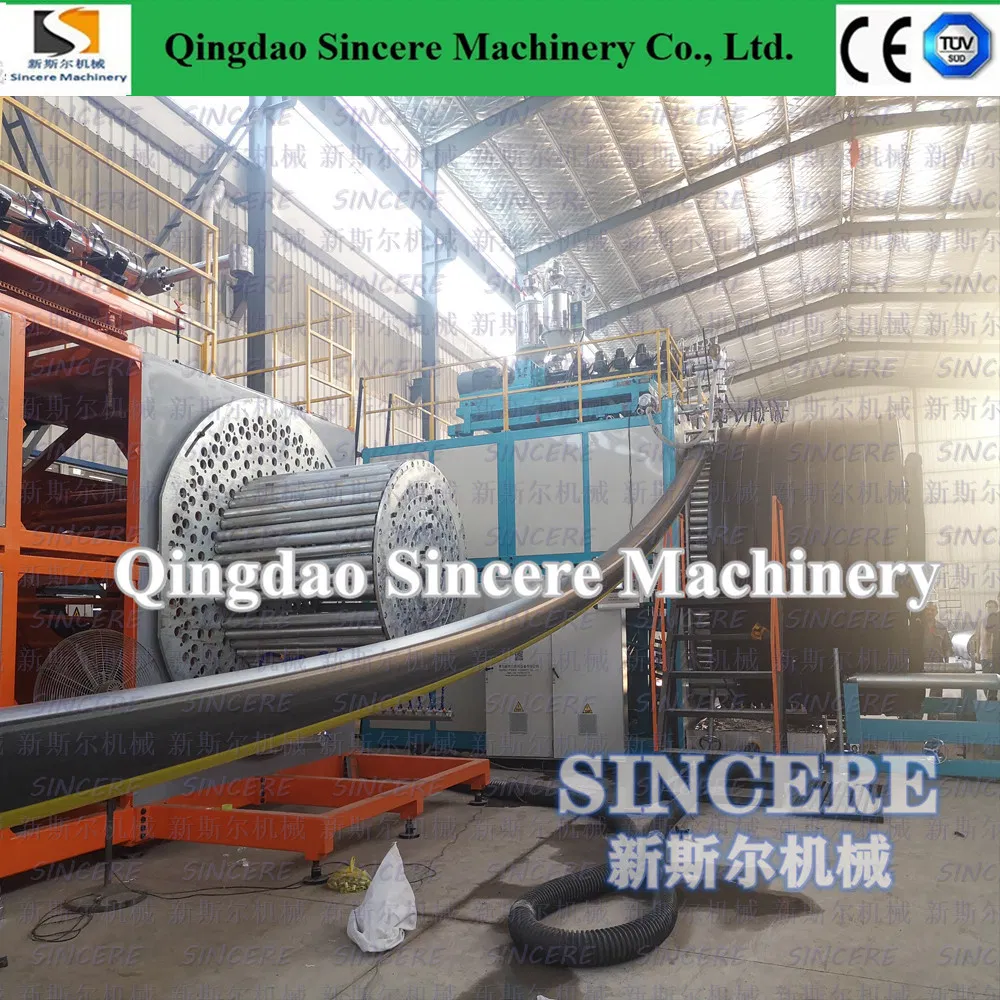

Part 1: HDPE Large Diameter Hollow Wall Winding Pipe Production Line

HDPE Large diameter winding pipes (200mm-4000mm) feature high ring stiffness and brunt intensity with an "H" structure. With a service life of approximately 50 years, these pipes are cost-effective, corrosion-resistant (acid, alkali, salt), and serve as an ideal replacement for cement and cast iron pipes in sewage and drainage systems.

Model	Extruder	Output Capacity	Pipe Diameter	Production Speed	Installed Power
SMSG-800	SJ-65 / SJ-55	150 / 60 kg/h	200-800 mm	2-16 m/h	180 kw
SMSG-1200	SJ-90 / SJ-65	300 / 120 kg/h	400-1200 mm	2-12 m/h	250 kw
SMSG-1600	SJ-100 / SJ-65	400 / 150 kg/h	800-1600 mm	1-6 m/h	300 kw
SMSG-2400	SJ-120 / SJ-90	400 / 200 kg/h	1200-2400 mm	0.5-5 m/h	400 kw
SMSG-3000	SJ-120 / SJ-90	600 / 300 kg/h	2000-3000 mm	0.3-3 m/h	500 kw
SMSG-4000	SJ-150 / SJ-90	800 / 400 kg/h	2400-4000 mm	0.1-2 m/h	600 kw

Part 2: HDPE Rib Reinforced Corrugated Type Spiral Pipe Production Line

This new generation production line is designed for large diameter buried drain pipes. Key advantages include:

Low investment with high-automation control systems.
Electric-magnetic heating system saving 40% to 60% power.
High-quality components from Siemens and Omron.
Production speeds up to 20m/min and sizes up to 4000mm.
Features: Light weight, tight cementation, high strength, and anti-frozen properties.

Part 3: Solid Wall Winding Pipe Extrusion Line

Producing solid wall welded HDPE pipes from 200mm to 4000mm with adjustable wall thickness. Ideal for electric melting fusion pipe fittings, cable conduits, and thermal pipe shells.

Part 4: Steel Reinforced Hollowness Wall HDPE Winding Pipe Line

Equipped with steel belt straightening and heating devices, these pipes combine the rigidity of steel with the anti-corrosion properties of plastic.

Frequently Asked Questions

Q1: What are the main applications of these HDPE pipes? A: They are primarily used for municipal sewage and drainage, storm water management, cable protection conduits, civil construction projects, and large-scale liquid storage tanks.

Q2: What diameter ranges can the machines handle? A: Our equipment covers a wide range of pipe diameters from 200mm up to 4000mm, catering to various project scales.

Q3: How long is the service life of the pipes produced? A: Due to the high-density polyethylene material and structural design, the pipes have an approximate service life of 50 years under normal conditions.

Q4: Is the production line energy-efficient? A: Yes, by adopting an electric-magnetic heating system, our machines can save between 40% and 60% of electrical power consumption compared to traditional heating methods.

Q5: What control systems are used in the machinery? A: We use high-end electrical control systems, including Siemens PLC touch screens and components from Omron, ABB, and Schneider for maximum reliability.

Q6: What ring stiffness levels can be achieved? A: The production line can manufacture pipes with ring stiffness levels of SN2, SN4, SN8, SN12.5, and SN16 KN/m².
