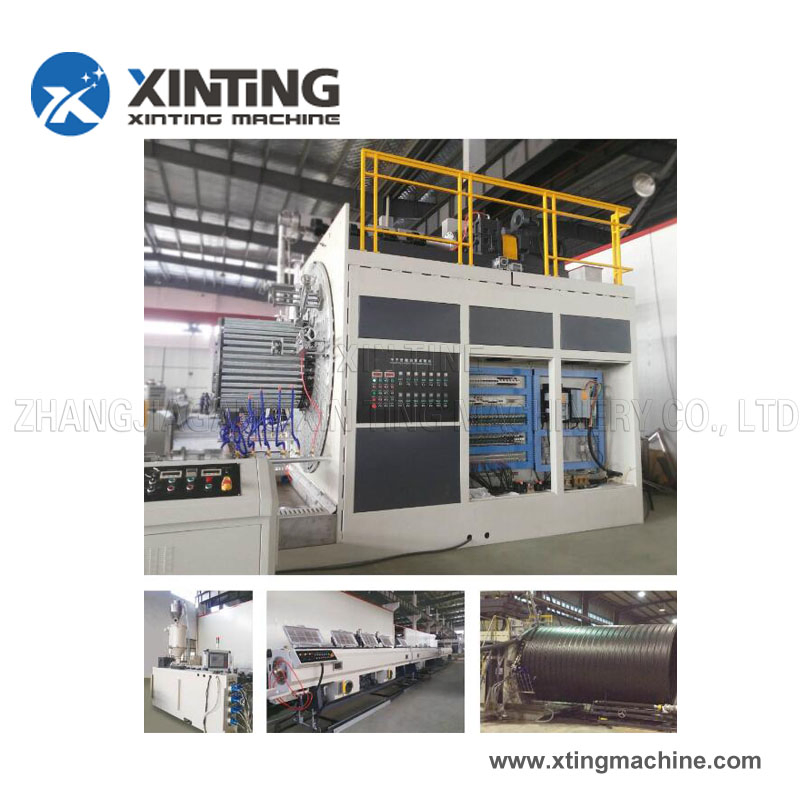

HDPE Large Diameter Hollow Wall Winding HDPE Pipe Production Line / HDPE Plastic Pipe Machine
HDPE Large Diameter Hollow Wall Winding HDPE Pipe Production Line / HDPE Plastic Pipe Machine
HDPE Large Diameter Hollow Wall Winding HDPE Pipe Production Line / HDPE Plastic Pipe Machine
HDPE Large Diameter Hollow Wall Winding HDPE Pipe Production Line / HDPE Plastic Pipe Machine
HDPE Large Diameter Hollow Wall Winding HDPE Pipe Production Line / HDPE Plastic Pipe Machine
1 / 5
HDPE Large Diameter Hollow Wall Winding HDPE Pipe Production Line / HDPE Plastic Pipe Machine
HDPE Large Diameter Hollow Wall Winding HDPE Pipe Production Line / HDPE Plastic Pipe Machine
HDPE Large Diameter Hollow Wall Winding HDPE Pipe Production Line / HDPE Plastic Pipe Machine
HDPE Large Diameter Hollow Wall Winding HDPE Pipe Production Line / HDPE Plastic Pipe Machine
HDPE Large Diameter Hollow Wall Winding HDPE Pipe Production Line / HDPE Plastic Pipe Machine

HDPE Large Diameter Hollow Wall Winding HDPE Pipe Production Line / HDPE Plastic Pipe Machine

Customization: Available
Product Type: PE Water-supply Pipes
Screw No.: Single-screw
Send Inquiry

Product Description

Basic Specifications
Model NO.
xt3200
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS
Customized
Customized
Condition
New
Temperature Controller
Omron or Rkc
Raw Material
PE Granules
Pipe Application
Water Supply and Drainage, Gas
DC Speed Controller
Eurothem
Main Electrics
Siemens or Schneider
Pipe Diameter
20-90mm
Screw Design
Single-Screw
Invertor
ABB Siemens
HS Code
84772090
Production Capacity
10 Lines Per Year
Product Description

The Large Diameter HDPE Pipe Production Line incorporates the latest developed technology for specially designing high-performance winding pipes. This line is capable of producing large diameter pipes ranging from 300mm to 3000mm, primarily used for urban drainage systems.

As a modern alternative to steel and cement pipes, these HDPE hollow wall pipes offer superior durability and efficiency. The production system utilizes an advanced PLC control system, ensuring high production efficiency, stability, and ease of maintenance.

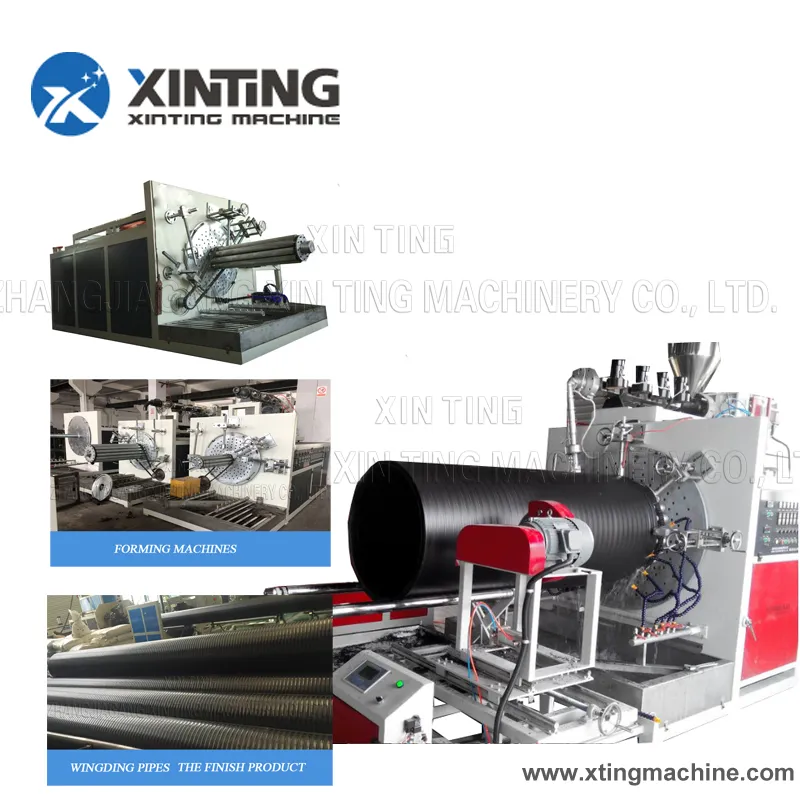

HDPE Pipe Production Line
HDPE Machine Operation
Winding Process
Core Features & Advantages
  • High Speed Extrusion: Adopts two sets of single-screw extruders to ensure speed and quality.
  • Composite Die-head: Unique design and spiral rotation forming ensure high efficiency.
  • Advanced Control: PLC Control system with touch screens for synchronous automation.
  • Optimized Plastication: Low-temperature plastication theory compliant with material characteristics.
  • Flexible Production: Tailor-made solutions according to specific customer requirements.
Model Specifications
Model Pipe Range (mm) Extruder Model Power Max. Capacity
XTSJ-800200-800SJ60*34 / SJ55*34210kw400kg/h
XTSJ-1200300-1200SJ80*34 / SJ65*34320kw550kg/h
XTSJ-1600800-1600SJ100*34 / SJ65*34400kw650kg/h
XTSJ-22001200-2200SJ100*34 / SJ65*34420kw700kg/h
XTSJ-26001400-2600SJ120*34 / SJ80*34490kw850kg/h
XTSJ-30001800-3000SJ120*34 / SJ80*34540kw900kg/h
Frequently Asked Questions
What is the range of pipe diameters this machine can produce?
The production line is highly versatile, capable of producing HDPE pipes with diameters ranging from 200mm up to 3000mm depending on the specific model selected.
What kind of control system is integrated into the line?
It uses an advanced PLC control system with touch screens, allowing for synchronous control of pipe extrusion, adhesive extrusion, winding, and cutting processes.
What are the primary applications for these HDPE pipes?
These large diameter hollow wall winding pipes are primarily used for urban drainage, sewage systems, water supply, and gas transportation.
How does the extrusion quality compare to standard machines?
The line utilizes a unique screw design and low-temperature plastication theory, ensuring high-quality output and high extrusion capacity even for materials with heavy molecular weight.
Is the equipment compatible with international electrical standards?
Yes, the production line is equipped with high-quality components from brands like Siemens, Schneider, ABB, and Omron to ensure global compatibility and reliability.
Can the production line be customized?
Yes, while there are standard models available, the production lines can be tailor-made to meet specific customer requirements and technical solutions.
