Basic Information
Application
Construction Sites, etc
Cleaning Process
Cold Water Cleaning
Wash Capacity
60-80 Vehicles Per Hour
Power Supply
380V, 50Hz, 3p
Product Description

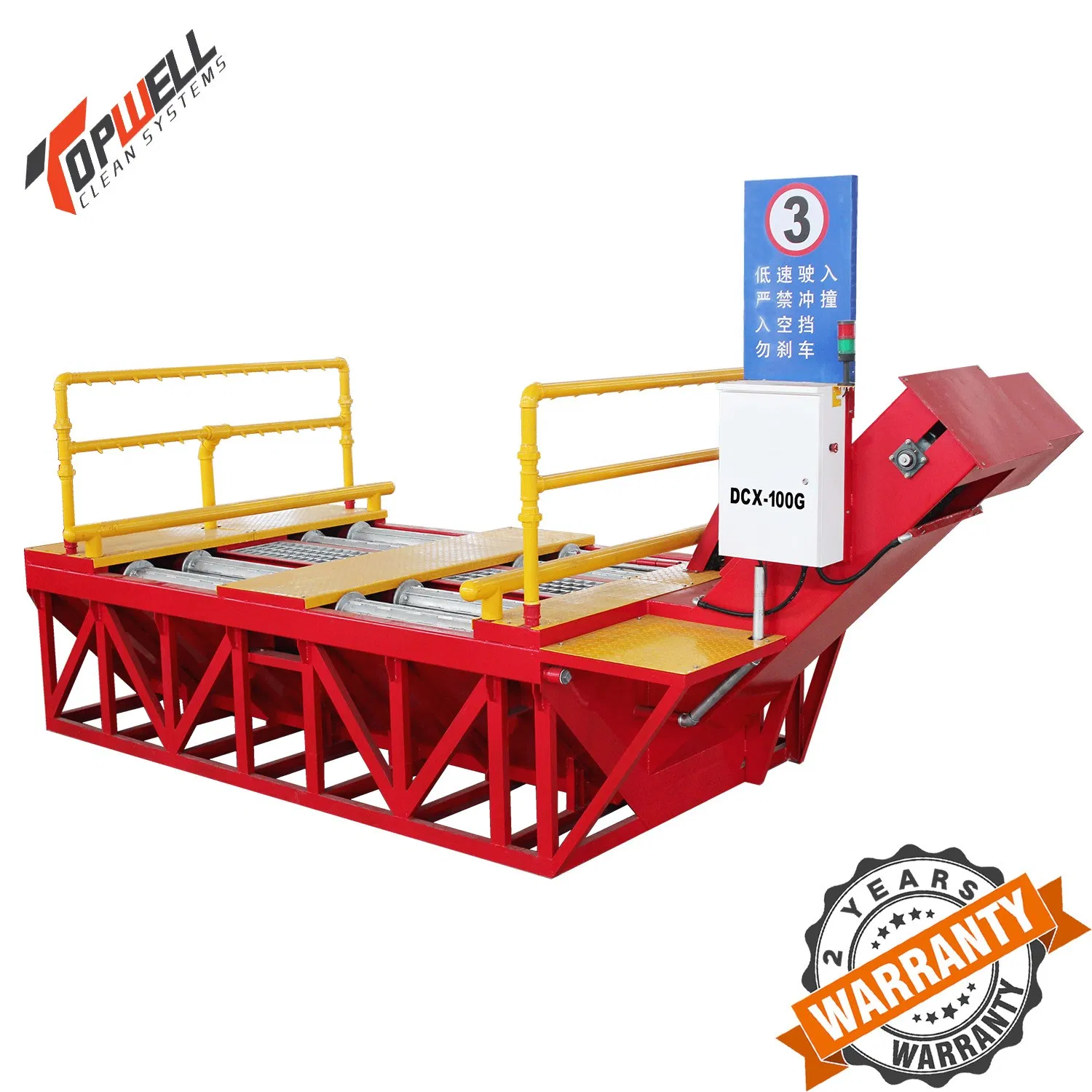

The DCX series foundation pit type wheel washing machine is specially designed for cleaning various heavy load construction vehicles, effectively solving the pollution of construction vehicles to the road.
This equipment features fast cleaning speeds and easy installation, making it suitable for landfills, construction sites, concrete plants, mines, industrial manufacturing, and crusher plants. The average washing capacity is 60 to 80 vehicles per hour.
Sewage returns to the foundation pit and is reused after the mud is automatically discharged, saving significant water resources. The equipment can be easily relocated using a crane if needed.
Technical Parameters
| Item |
Parameter Details |
| Model | DCX-100G |
| Equipment Size (mm) | 2250(W)×5350(L)×2100(H) |
| Max truck width (mm) | 2800 |
| Wash way | Roller drive wheels rolling and rinse |
| Wash pressure | 3kg/cm² |
| Wash time | 60-80sec/ vehicle |
| Water used | 10L/vehicle |
| Machine total power | 20KW |
| Material | Galvanizing framework with hot-dip galvanizing roller |
| Sewage System | Remove mud automatically |
Main Features
- ✓ Roller automatic drive for thorough flushing in all directions.
- ✓ Automatic mud discharge and efficient water recycling system.
- ✓ Highly adaptable for mining, quarries, landfills, and construction sites.
- ✓ Built with high-quality electrical components for safety and reliability.
- ✓ Galvanized framework with hot-dip rollers, ensuring a lifetime of 8-10 years.

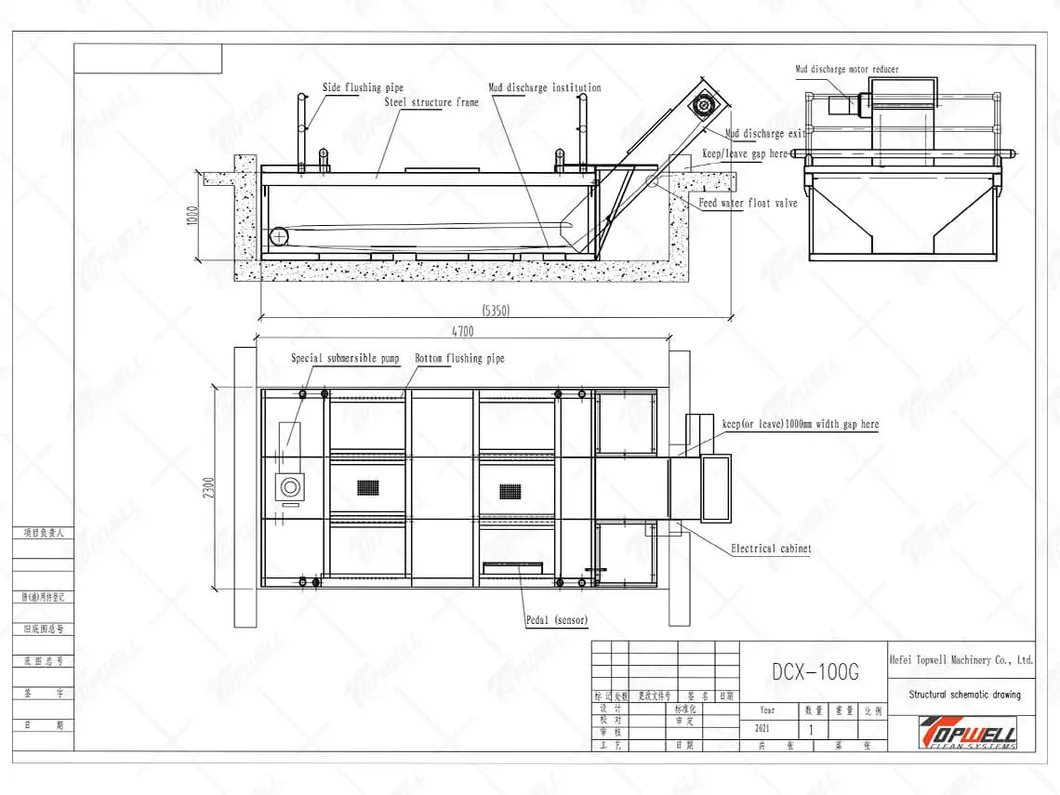

Machine Framework Drawing

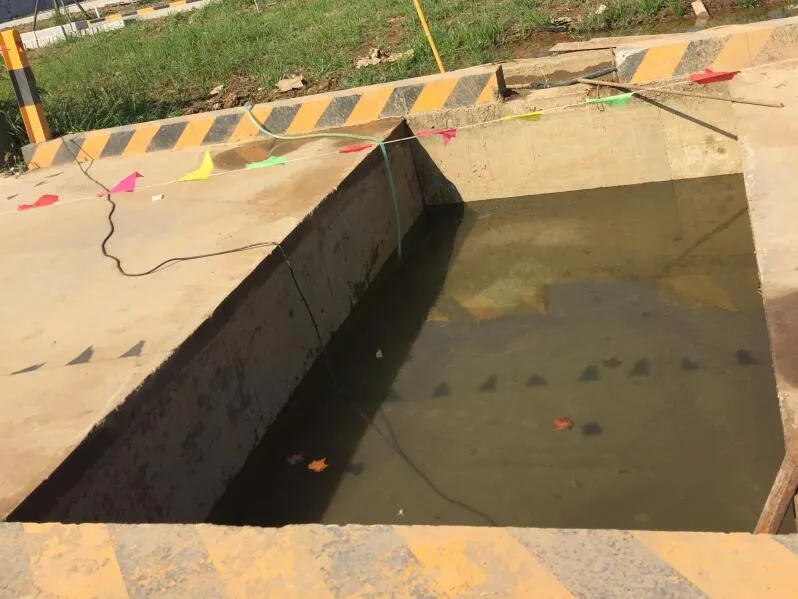

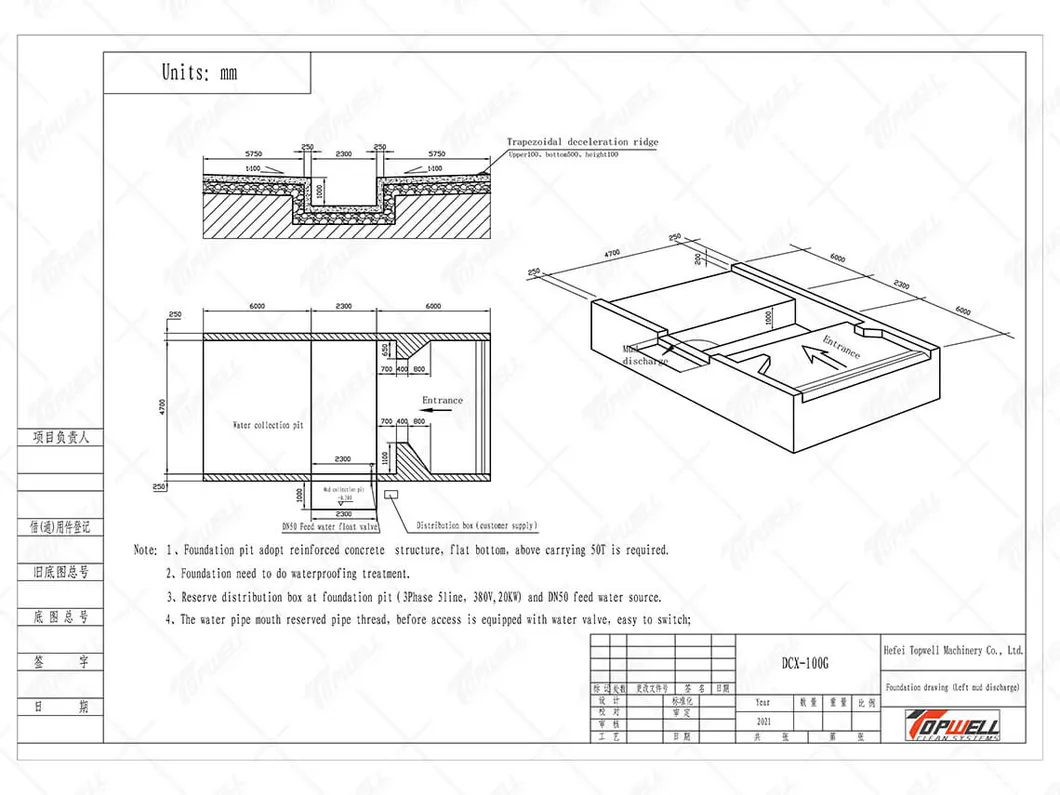

Foundation For Reference

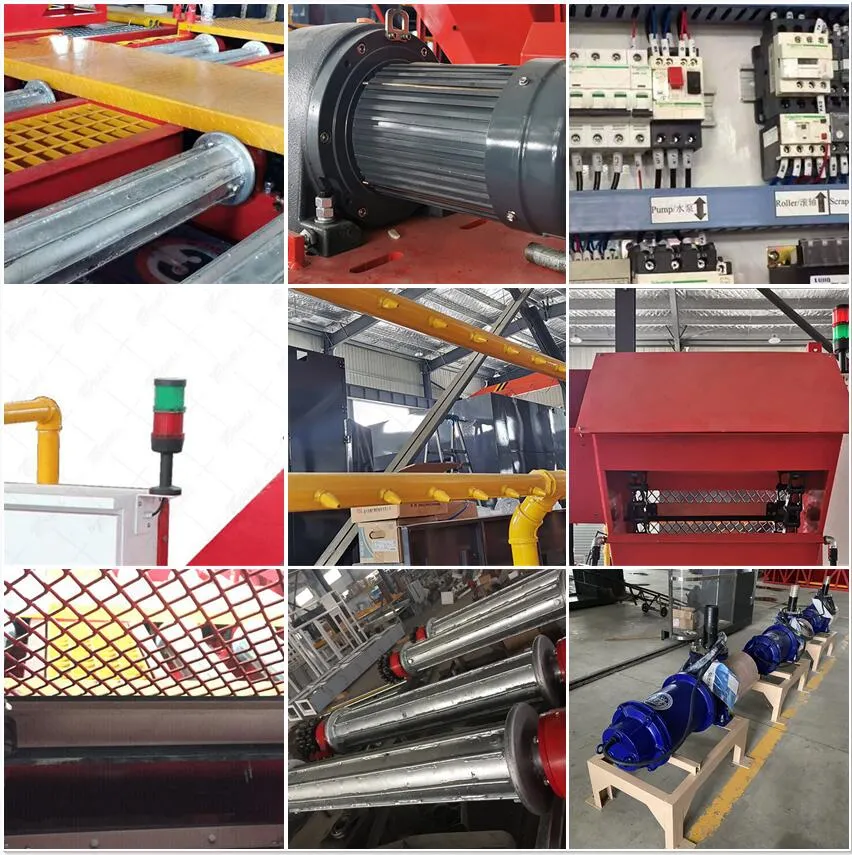

Details & Components

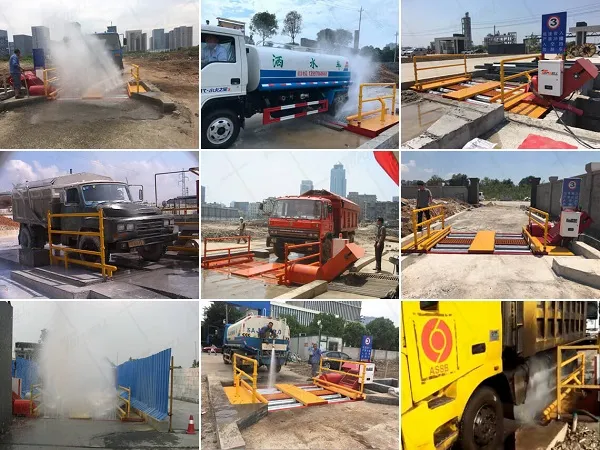

Client Installation Case
Frequently Asked Questions
1. How to handle the installation process?
We provide detailed installation drawings and online guidance. Engineers can be dispatched to sites for setup and debugging under normal circumstances. Equipment is pre-debugged in the factory and components are marked to correspond with installation drawings.
2. What is the machine warranty period?
The wheel washing machines and standard car wash systems are guaranteed for 2 to 3 years depending on the specific model. During this period, the cost of accessories is covered for any manufacturing issues.
3. How long is the standard lead time?
Standard 380V/50HZ wheel washing machines take approximately 5 working days. Custom voltage or non-standard configurations may require an additional 10-15 working days.
4. What happens if a part is broken?
Our equipment allows you to manually disable specific functions on the touch screen so the rest of the system can continue operating. Damaged accessories can then be replaced during off-peak hours.
5. Is professional knowledge required for maintenance?
Maintenance is straightforward. The operation manual provides clear instructions, such as regular oiling of chains and cleaning sensors. In case of failure, the touch screen provides alarm records for easy troubleshooting with our technical support.
6. Can the system be integrated with payment stations?
Yes, we can provide signal wires in advance to connect with local payment systems supporting coins, banknotes, or credit cards for unmanned management.
