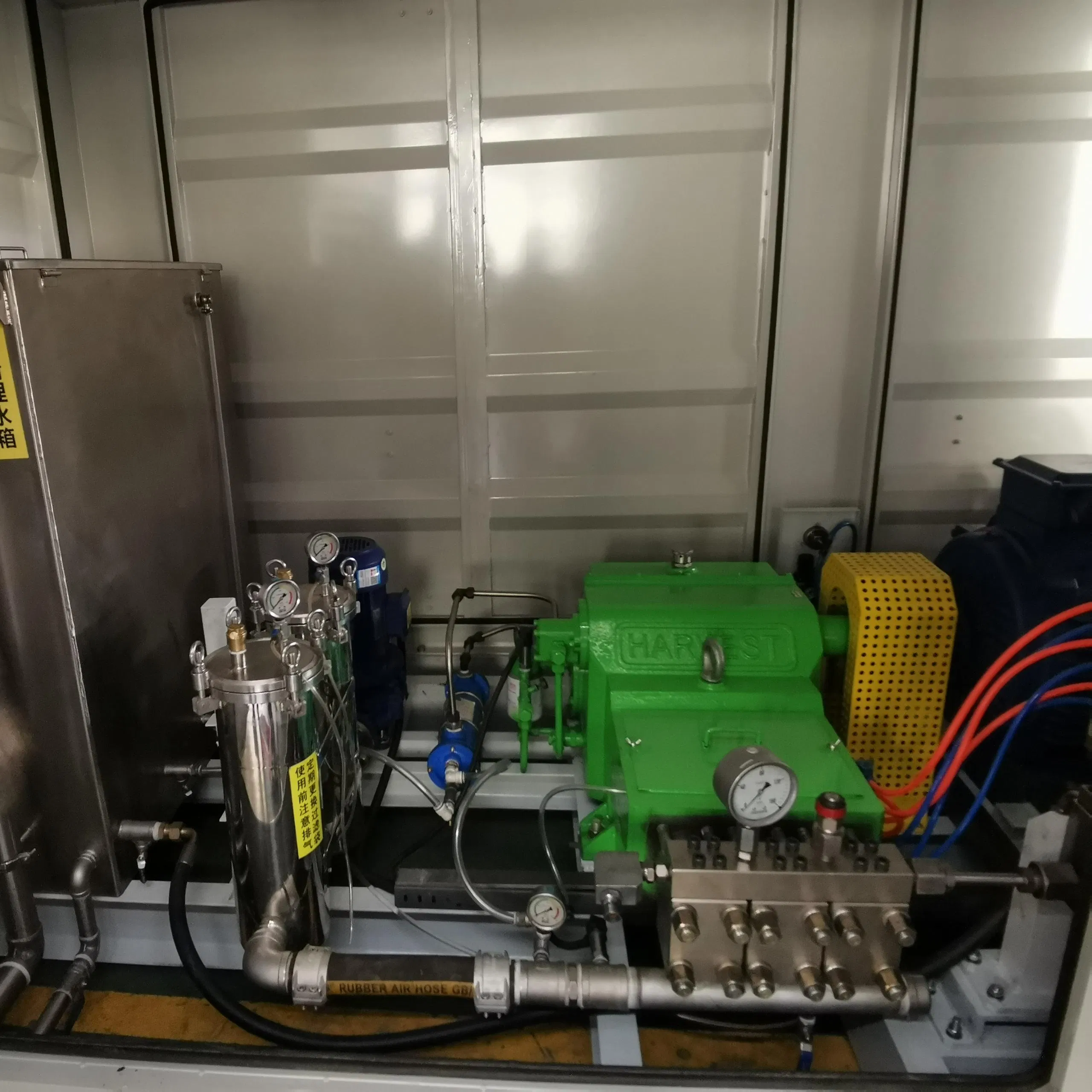

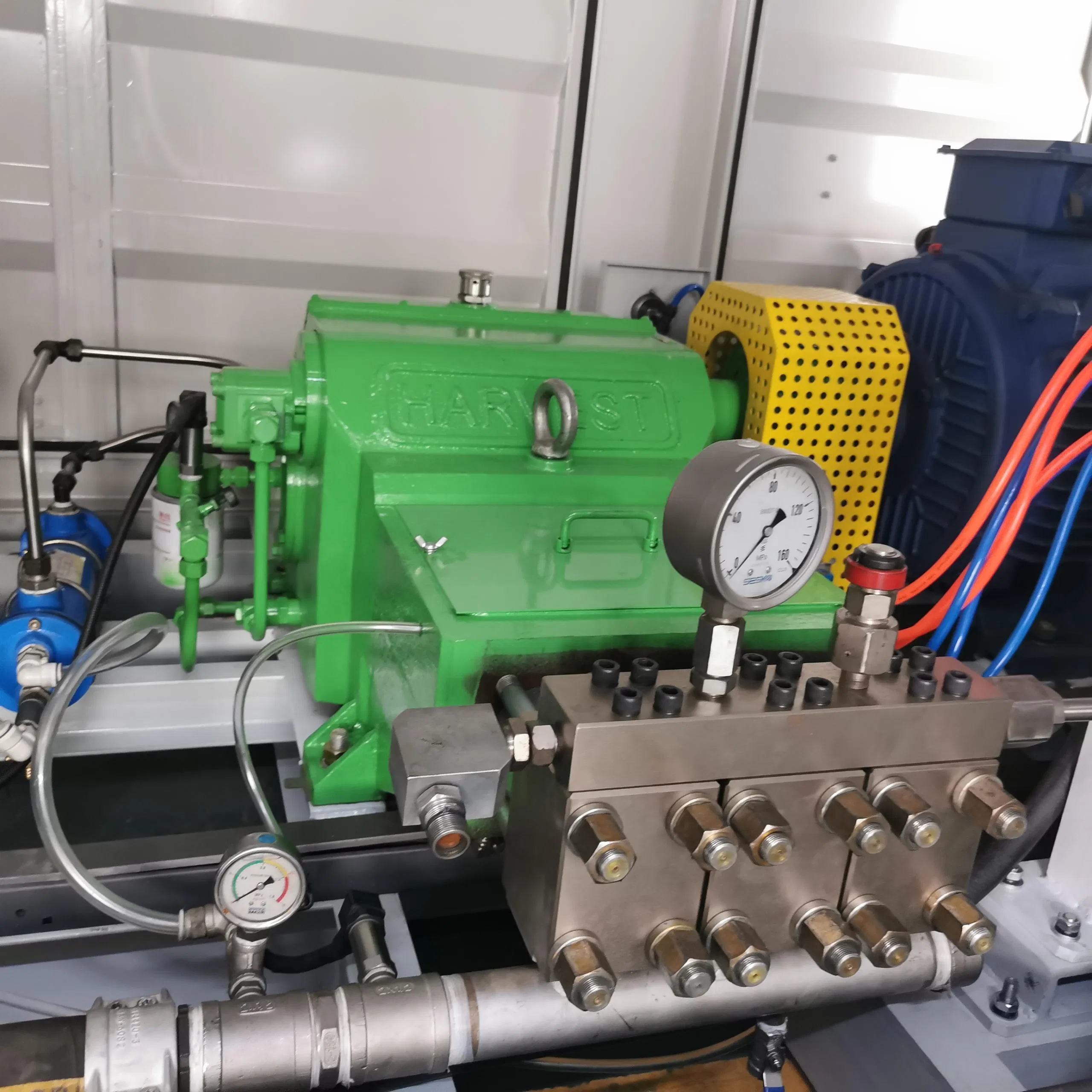

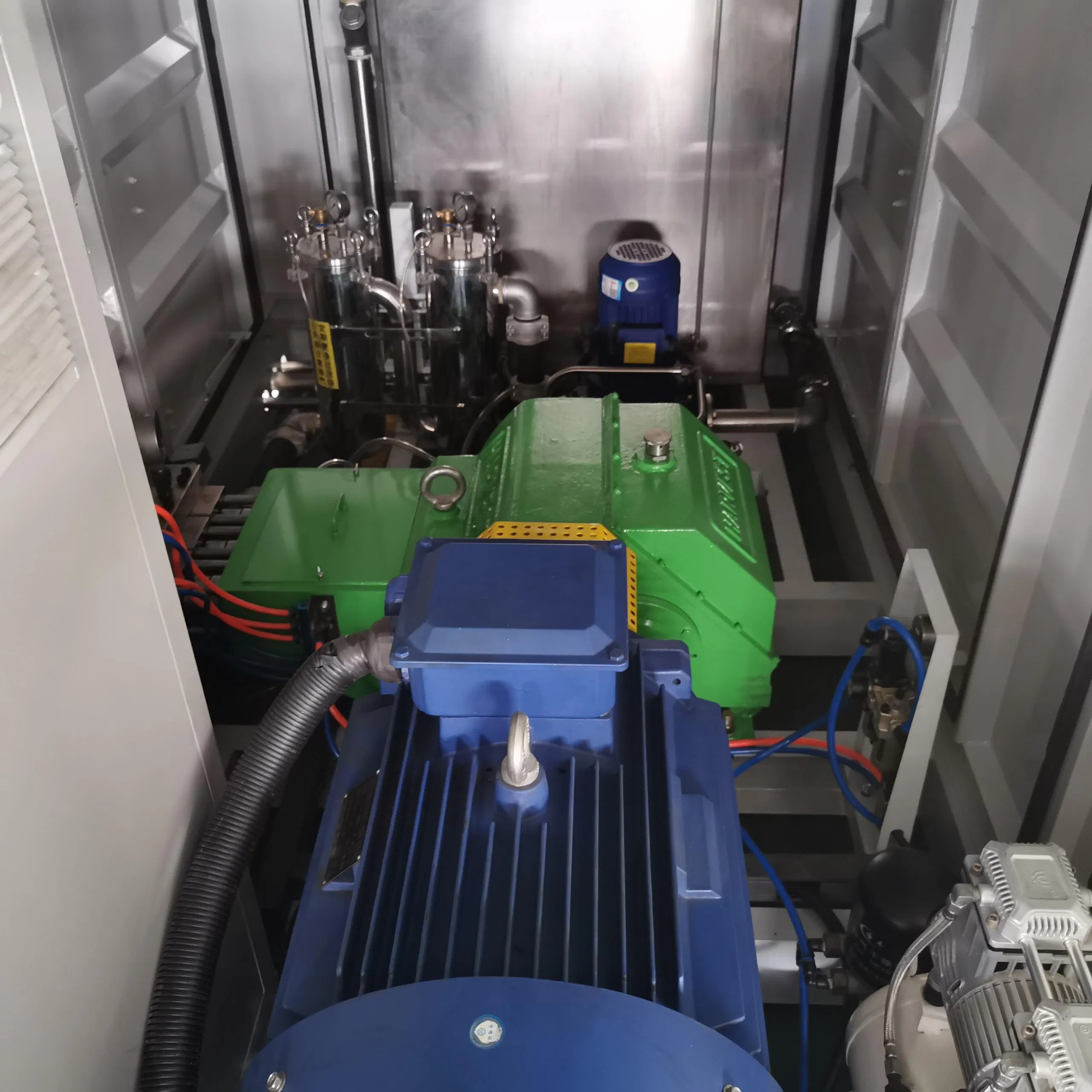

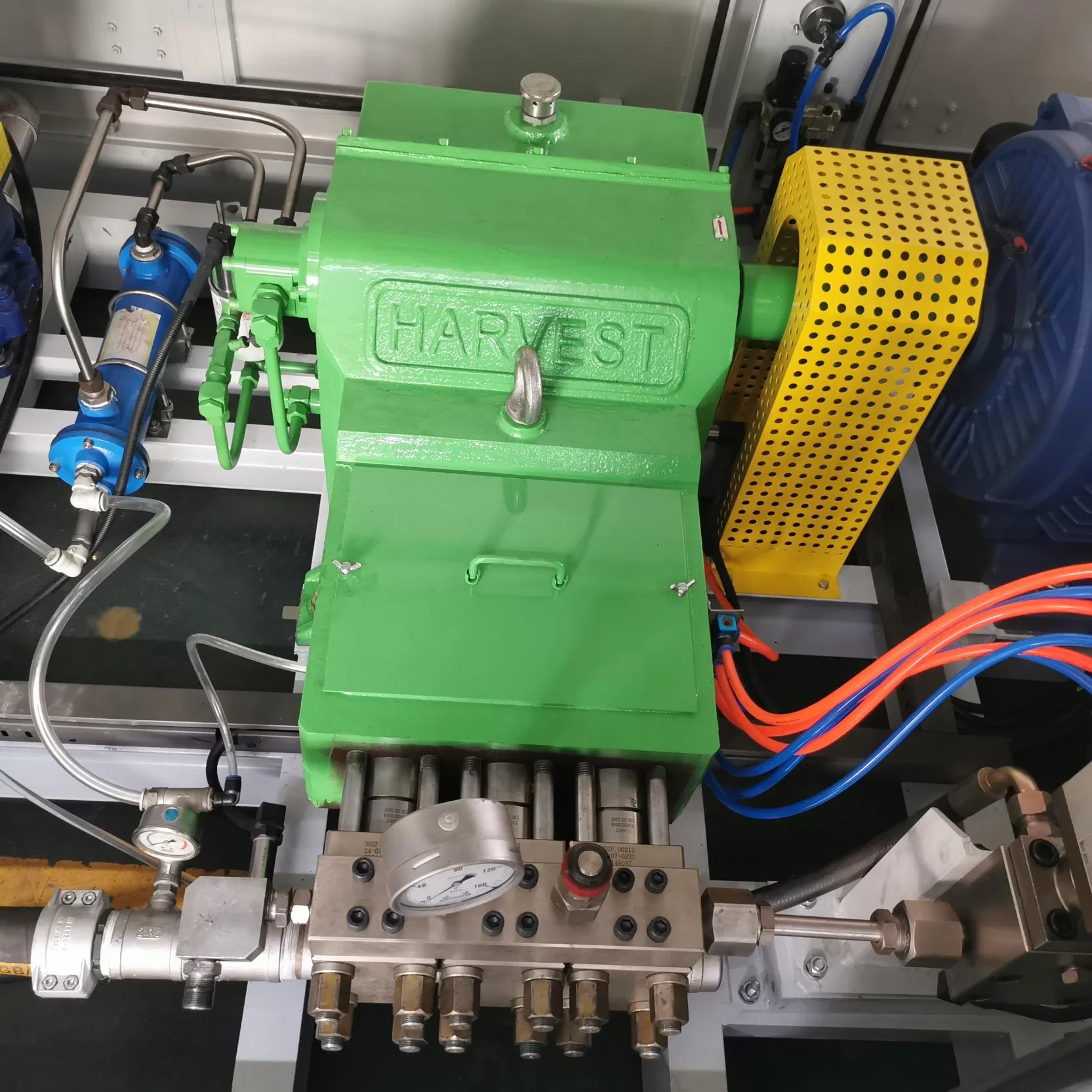

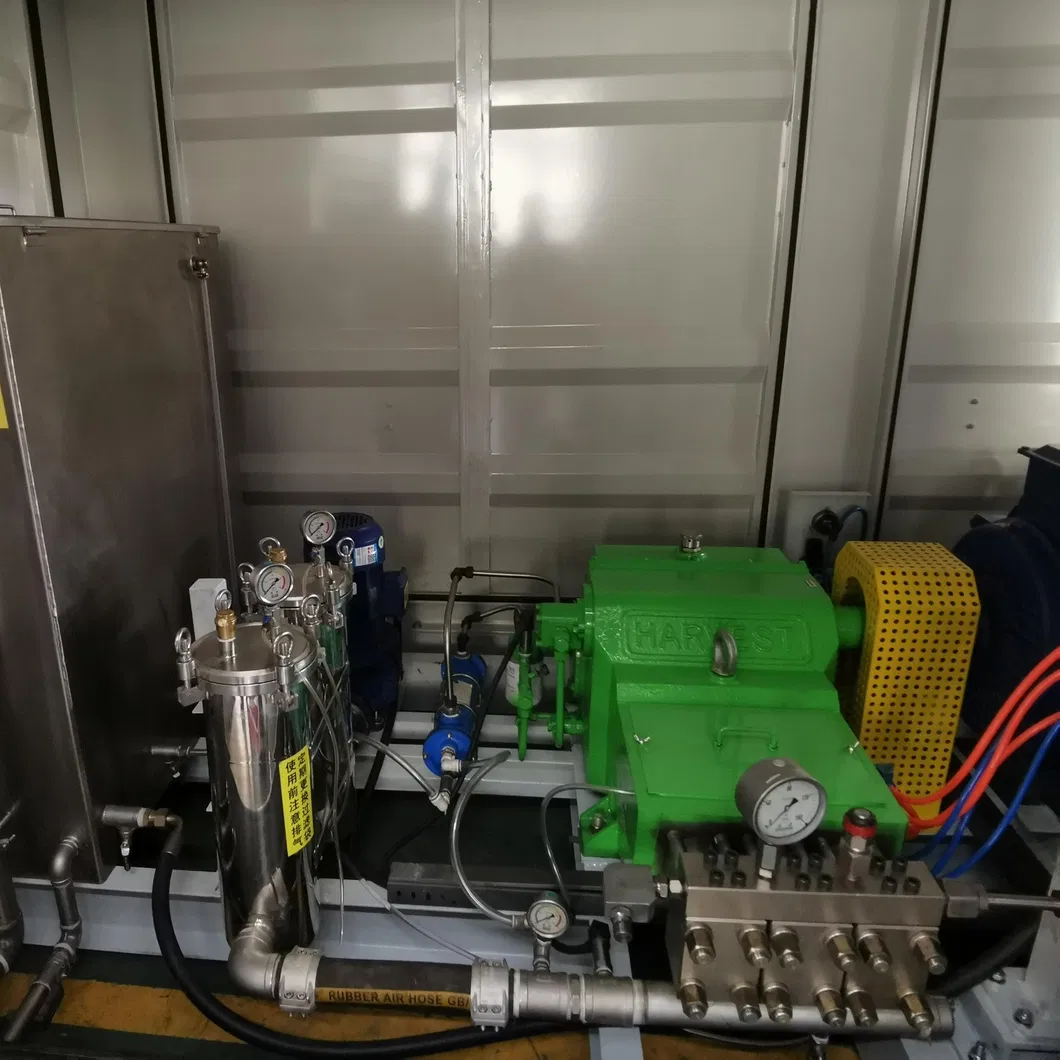

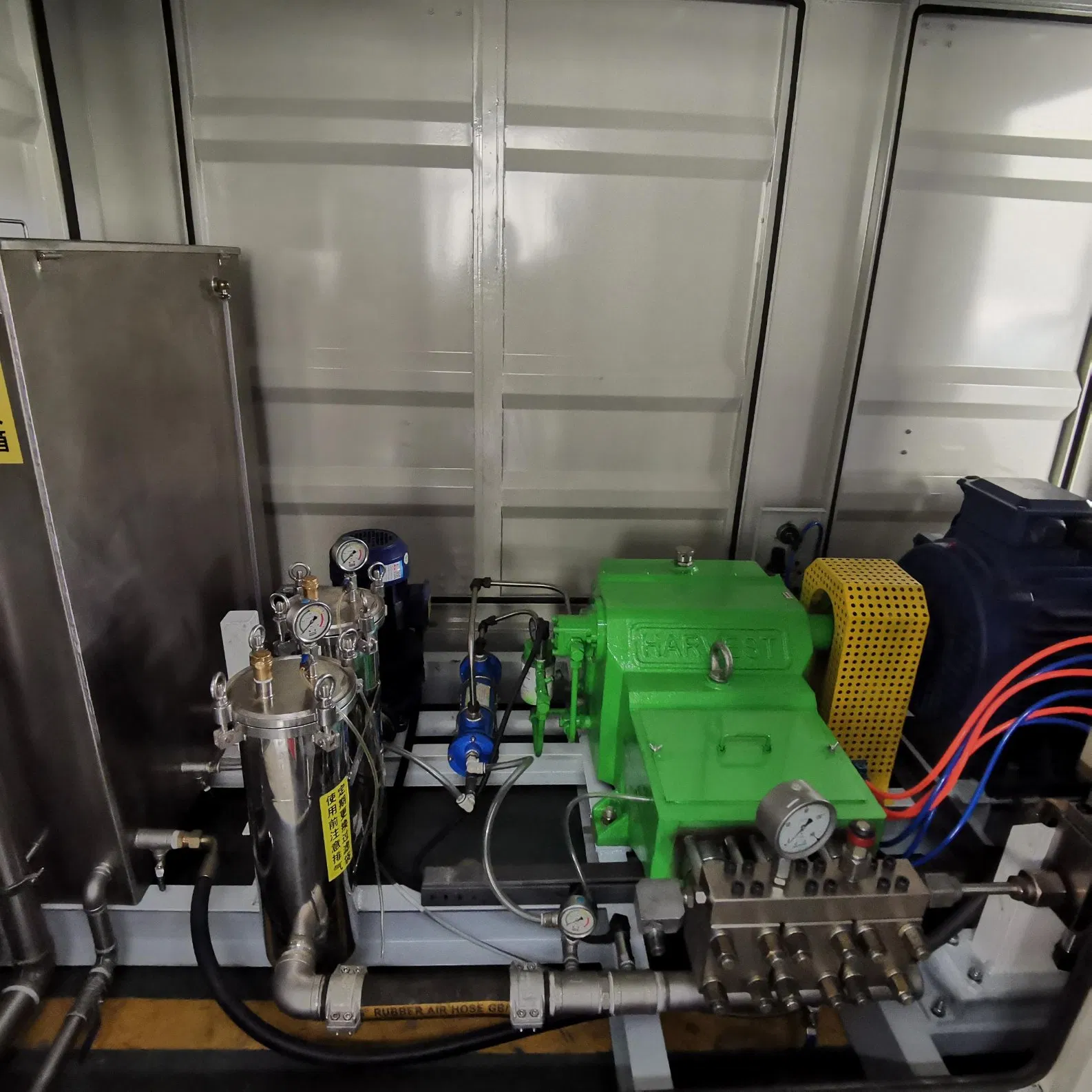

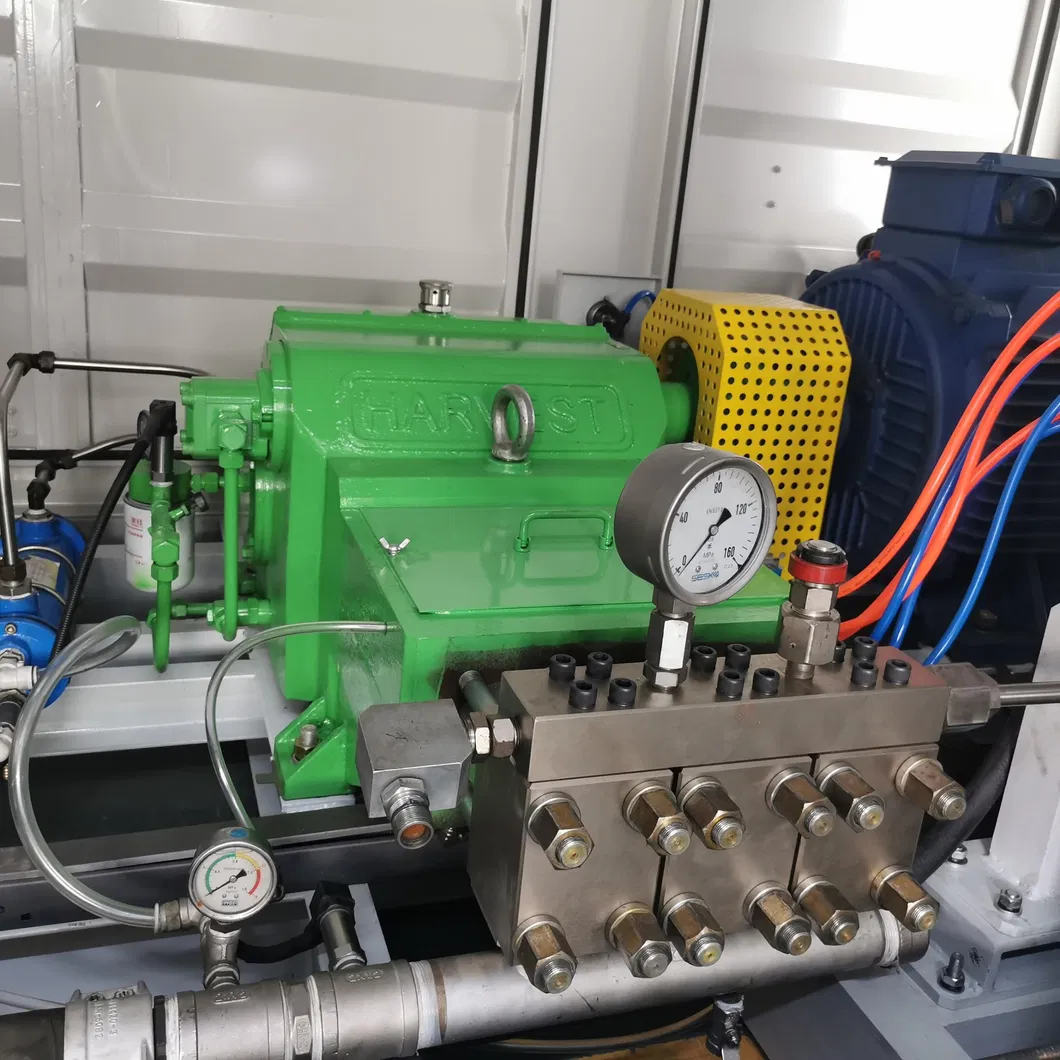

The 3D2F-S pump is a patented product featuring a maximum working pressure of 150MPa and a maximum matching power of 110kW at the power end.
The liquid end incorporates a split structure, an innovative plunger cooling circulation device, and a modular liquid inlet/outlet valve group, ensuring ease of use and maintenance.
| RPM (r/min) | 1480 | Plunger Stroke (mm) | 100 | ||
| Gear Reduction Ratio | 4.45 | Pump Speed (r/min) | 332 | ||
| Power (kW) | 75 | 90 | 110 | Plunger Dia (mm) | |
| m³/h | L/min | Pressure (MPa) | |||
| 1.5 | 25 | 150 | - | - | 18 |
| 1.8 | 30 | 130 | 150 | - | 20 |
| 2.2 | 37 | 100 | 130 | 150 | 22 |
| 2.7 | 45 | 85 | 100 | 125 | 24 |
| Weight: Pump 542kg | Base 140kg | |||||

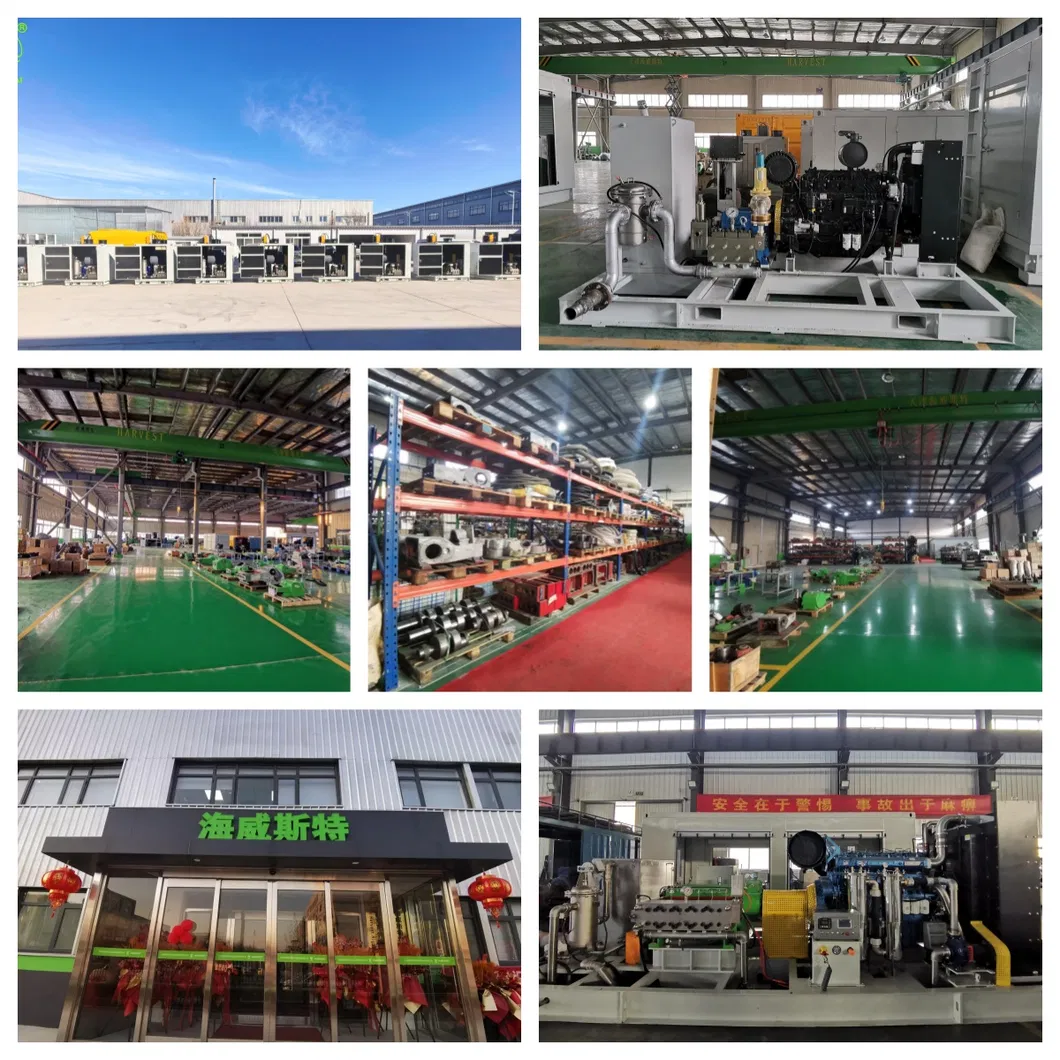

A specialized manufacturer focused on the R&D, production, and sales of high-pressure plunger pumps. Our products are widely utilized across various industrial sectors:
