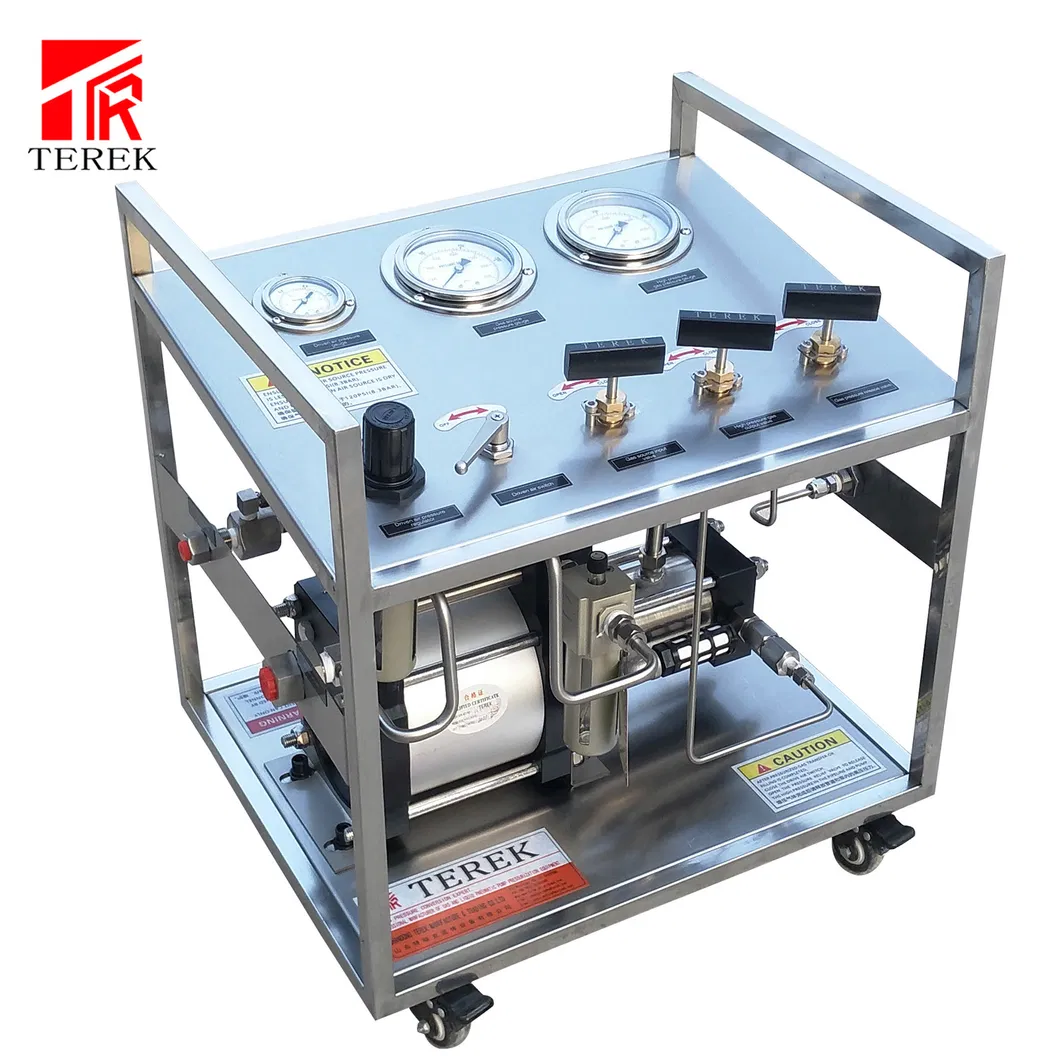

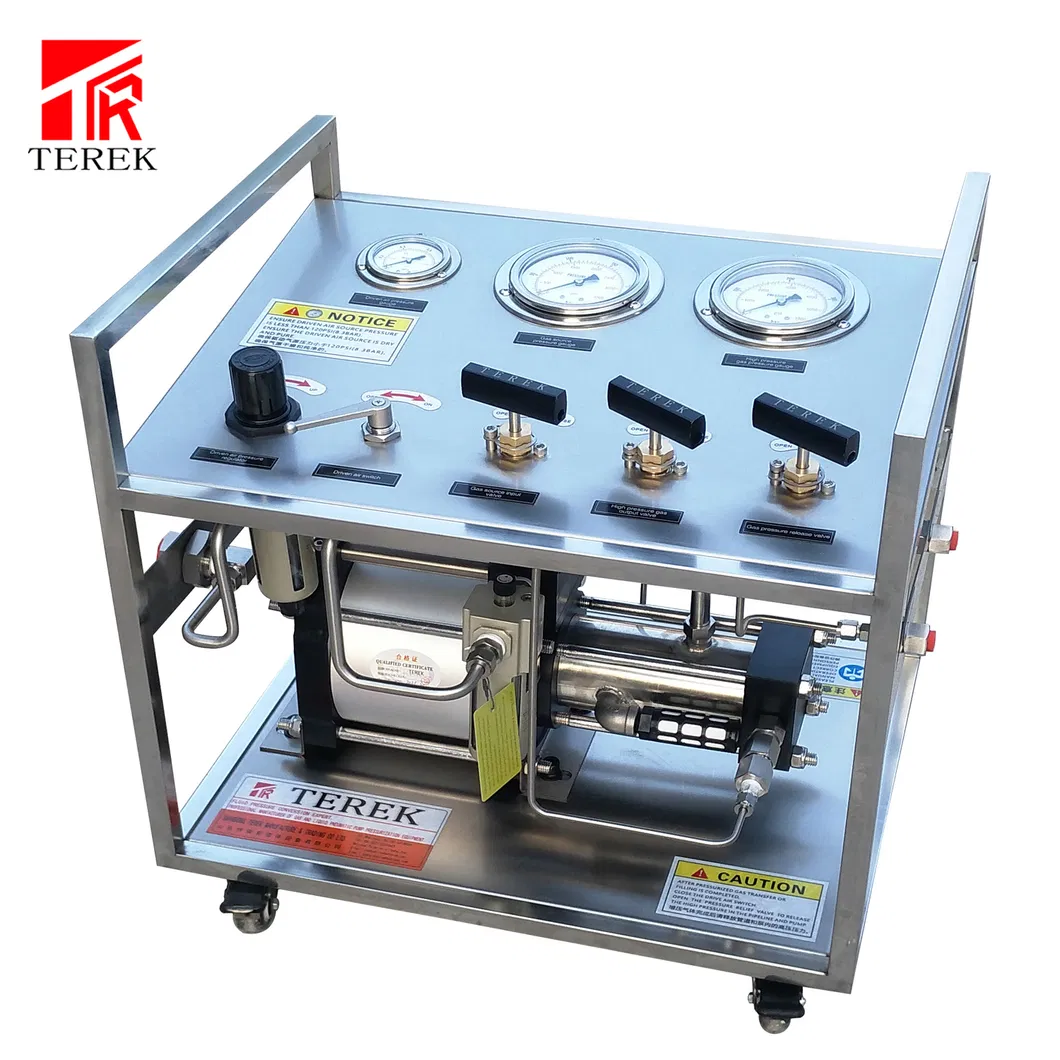

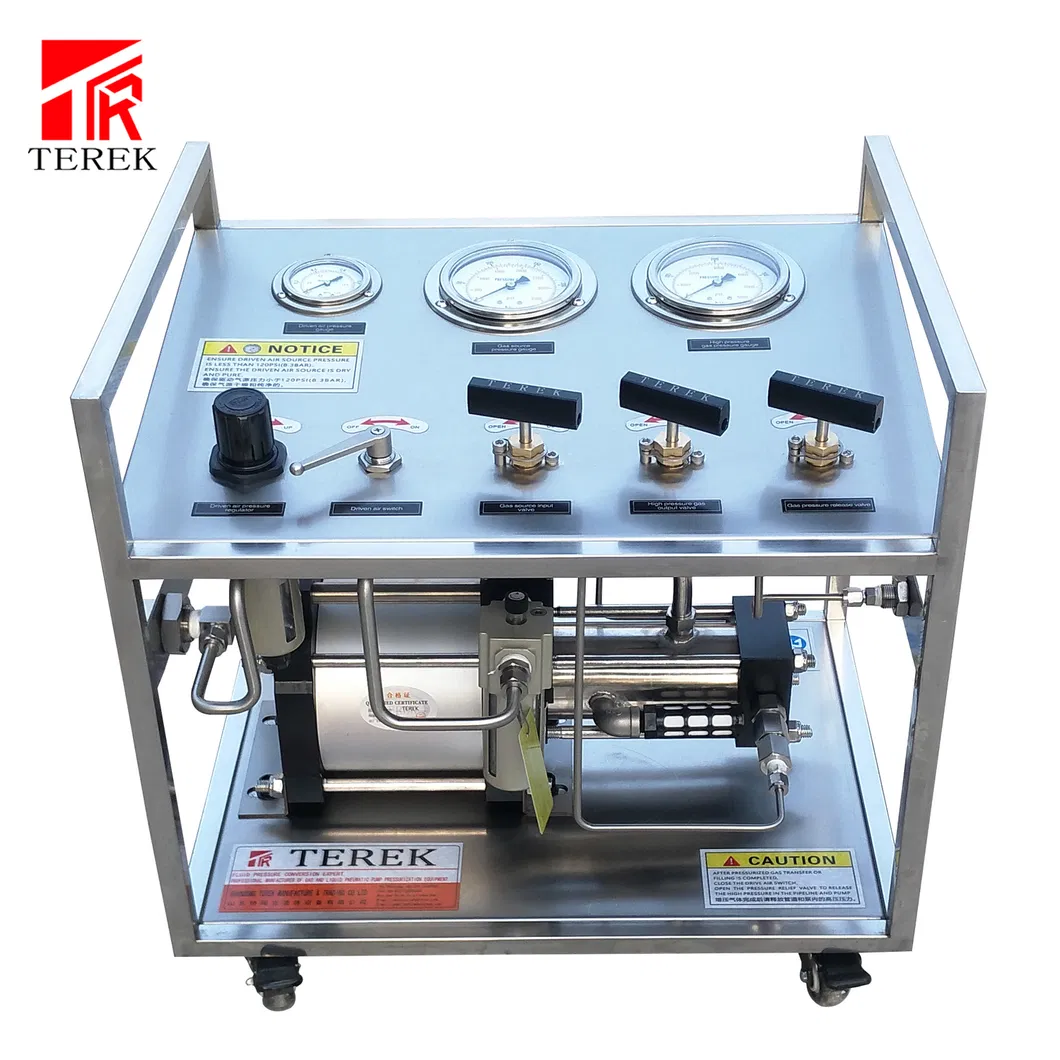

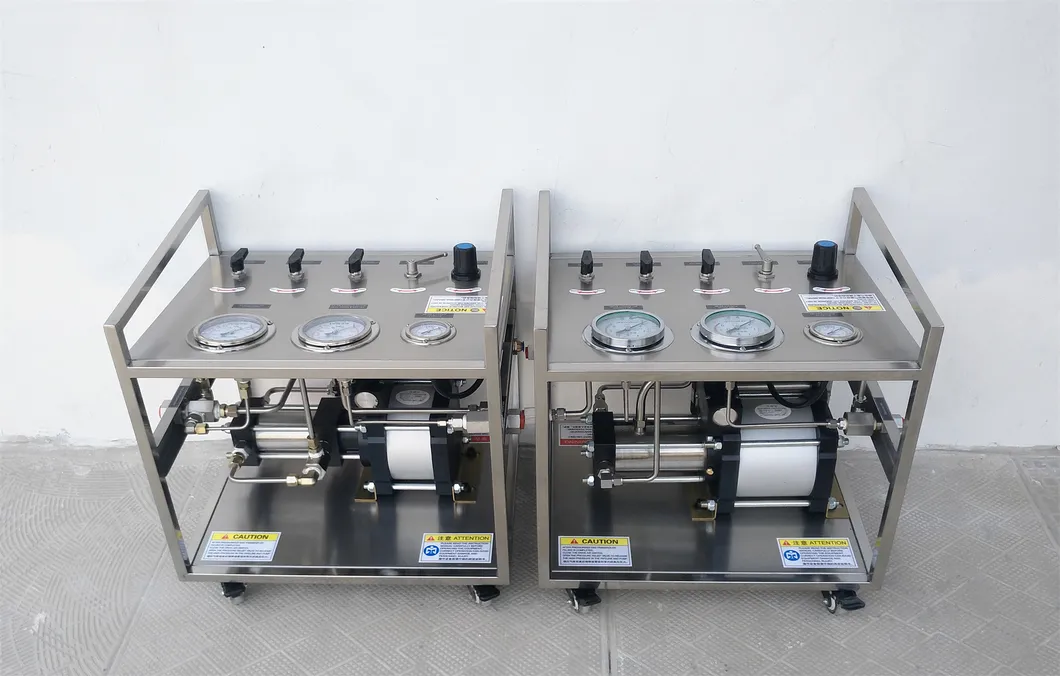

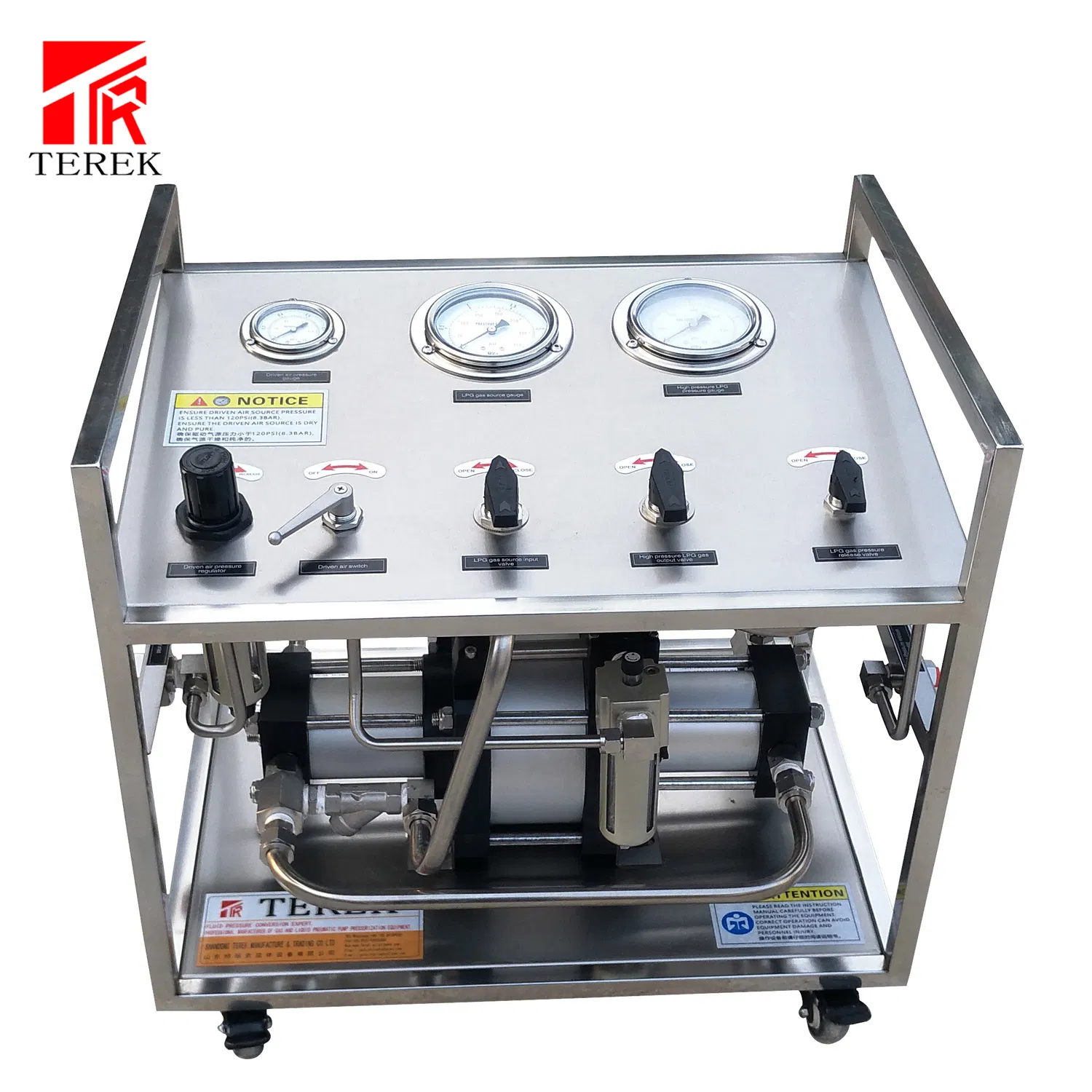

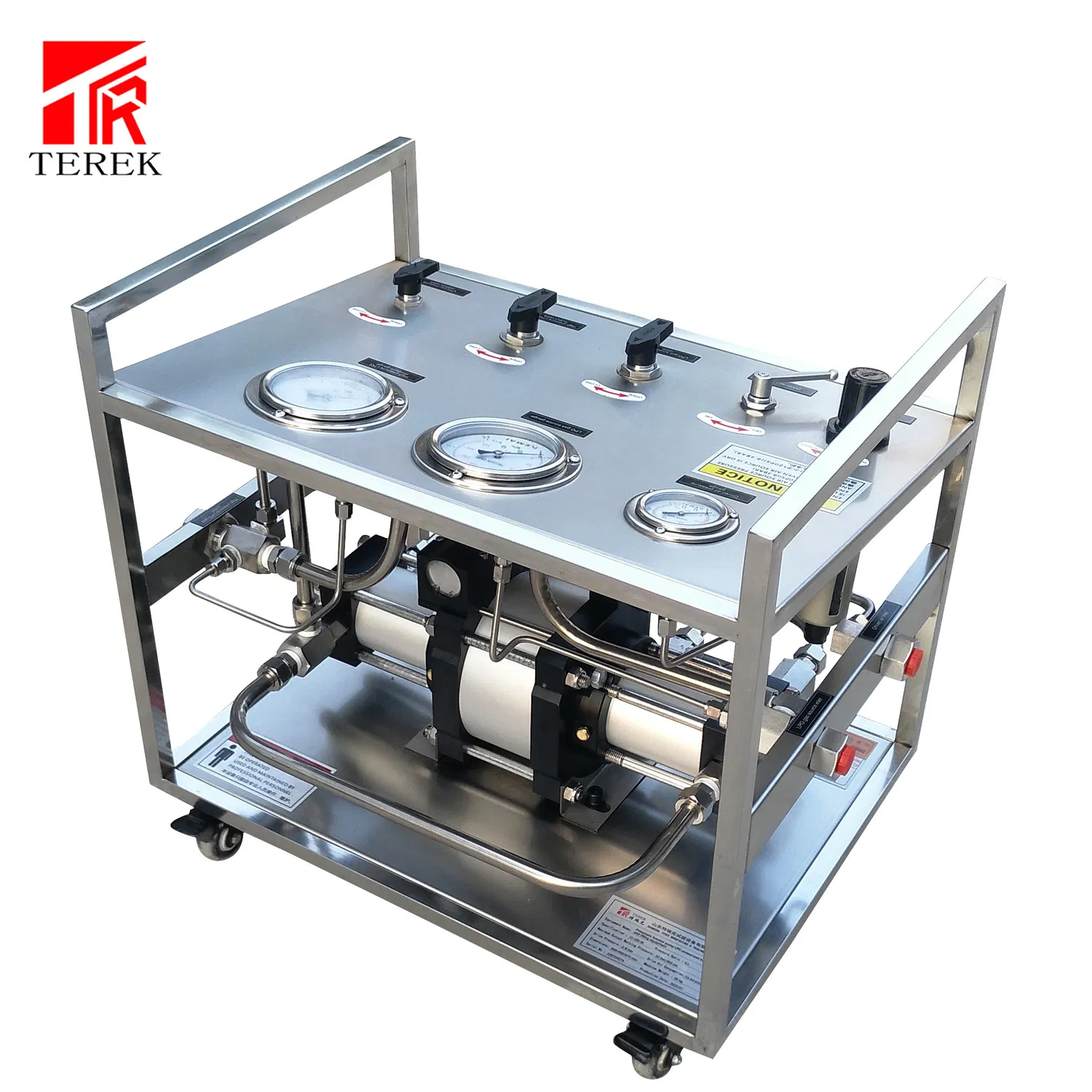

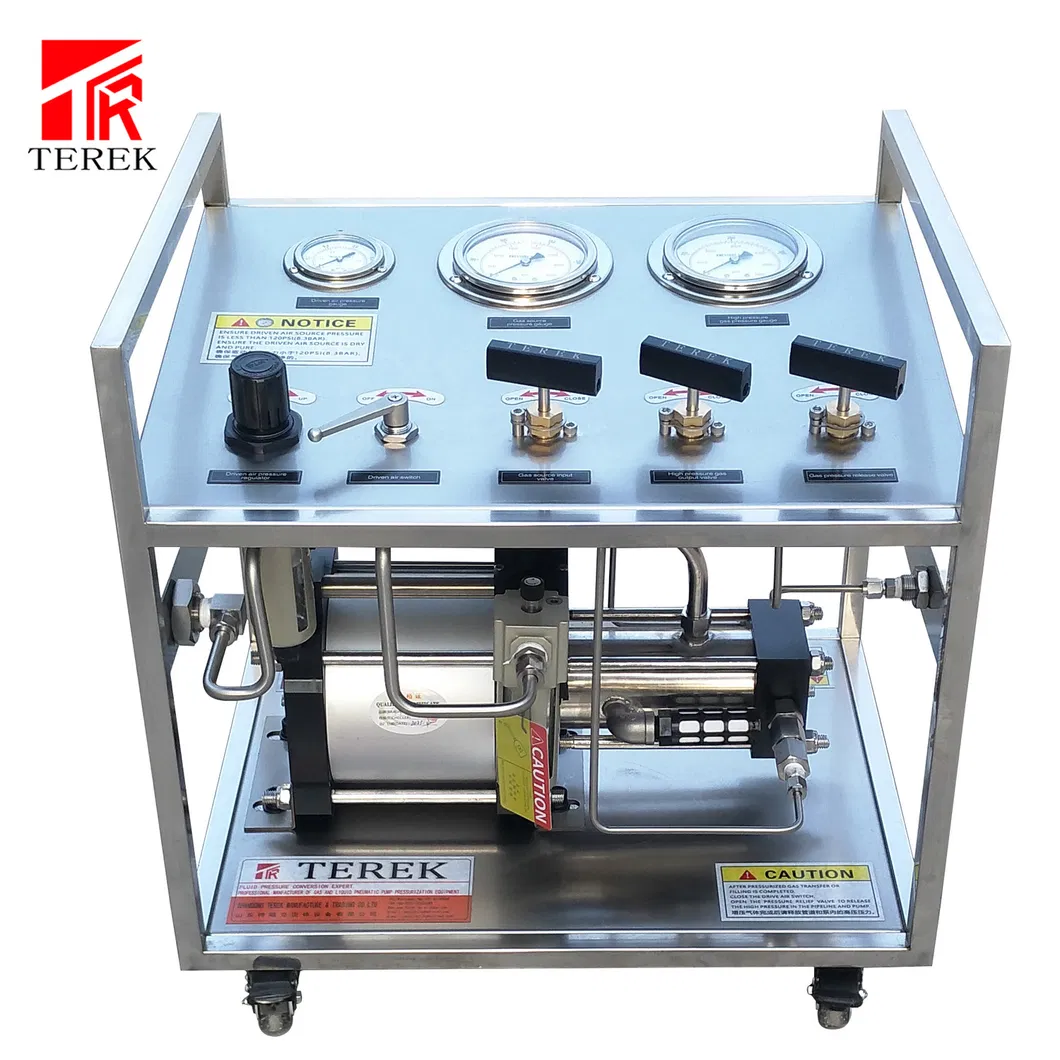

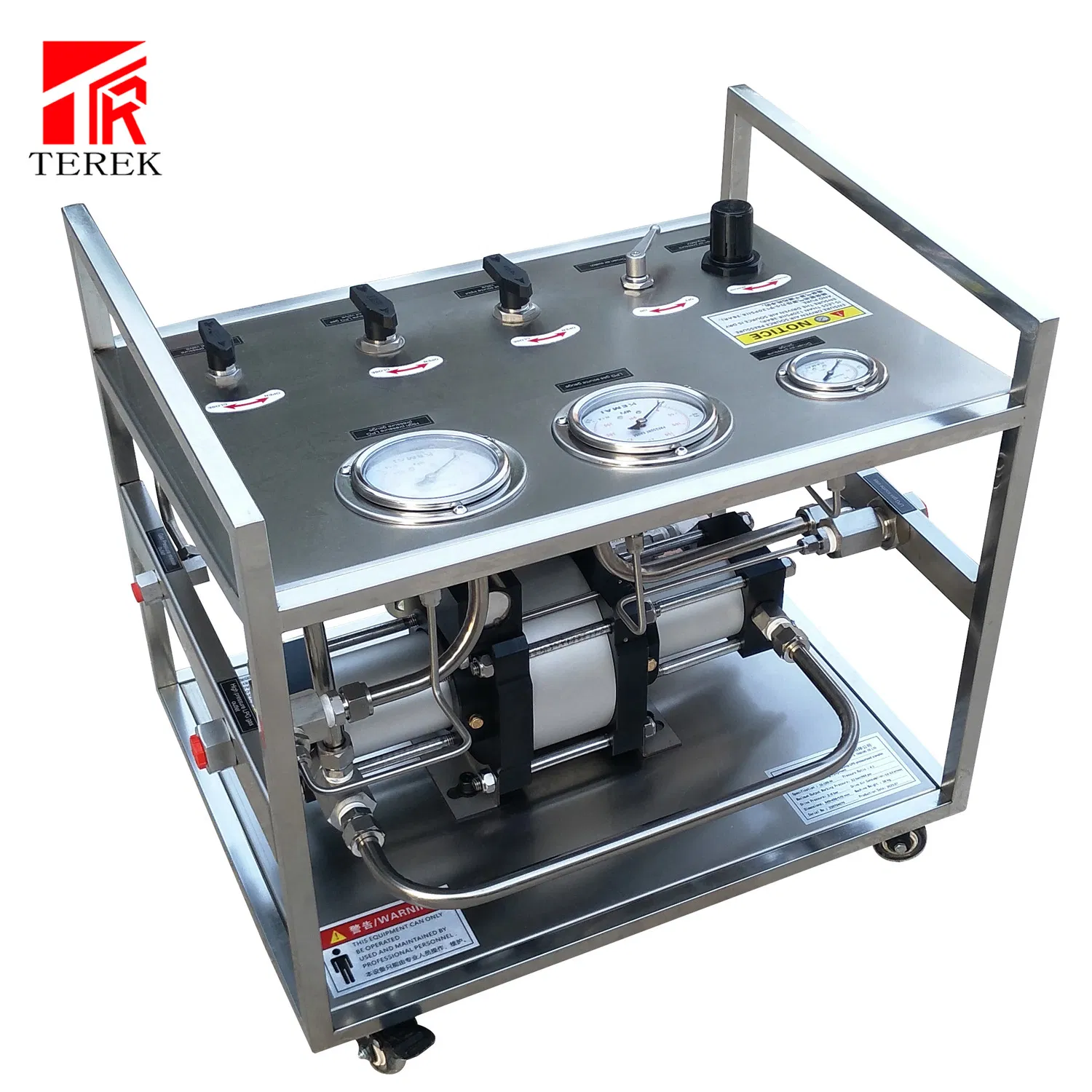

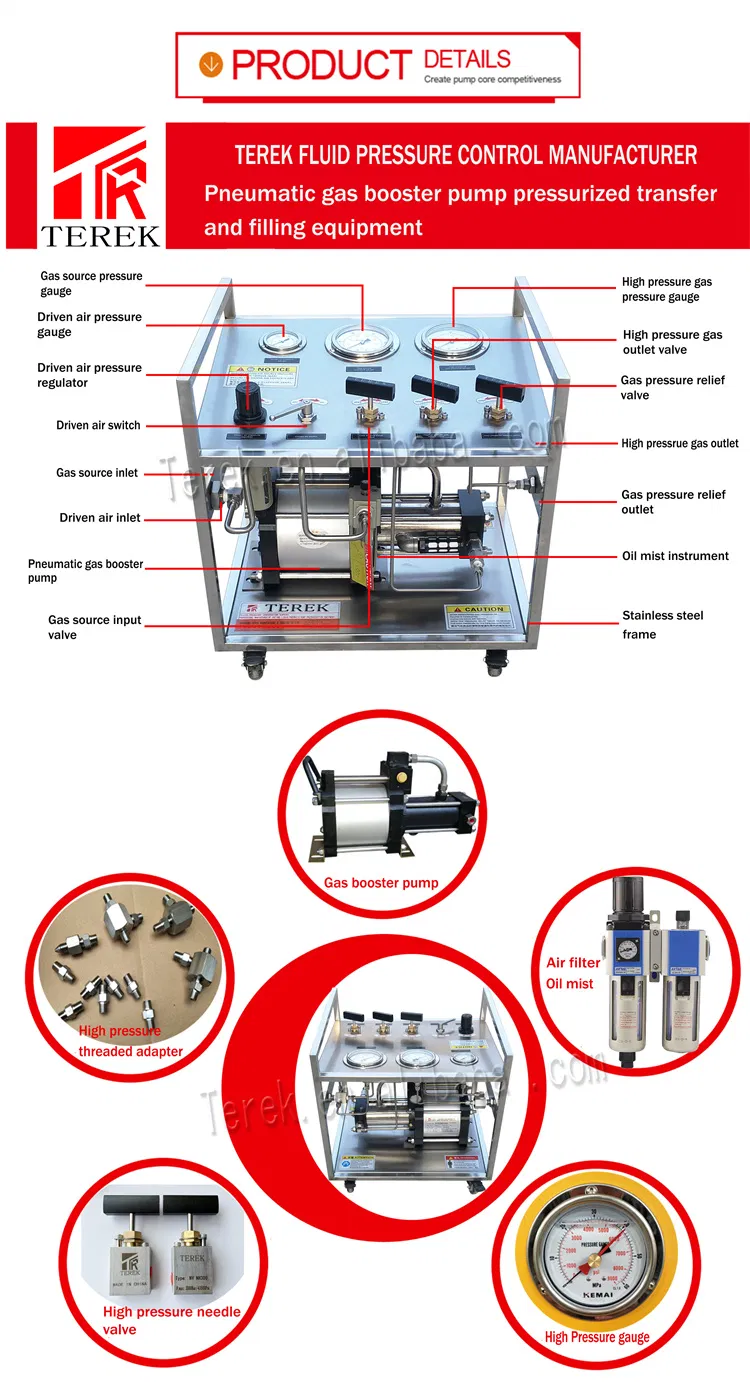

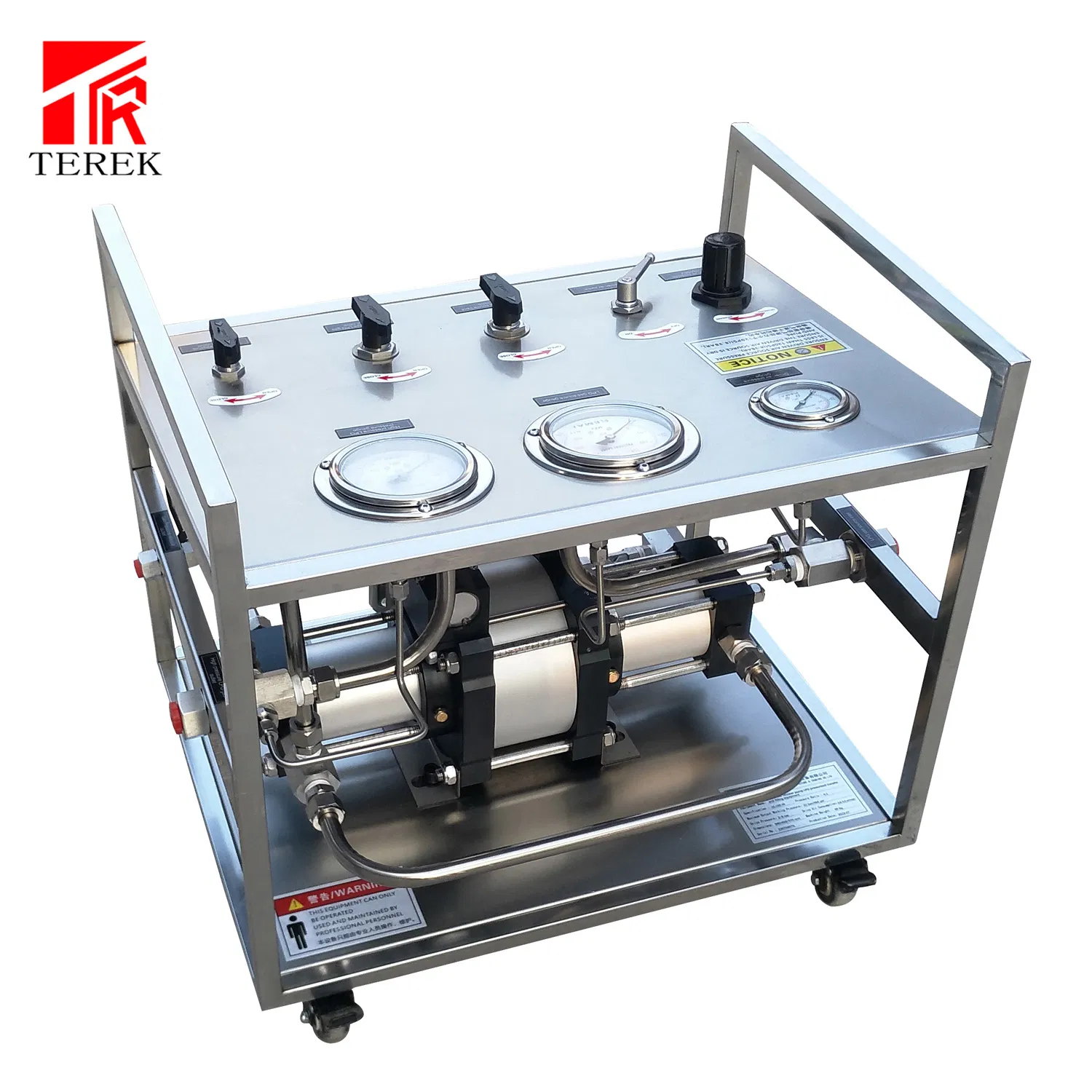

The gas booster equipment uses pure compressed air as the driving power source, and uses gas booster pump as the pressure source. Hydrogen, nitrogen, oxygen, helium, N2O, Argon, CO2 and other gases can be used as the pressurized medium. The output pressure is proportional to the driving gas pressure.
By adjusting the pressure of the driving gas source, the corresponding pressure of the pressurized gas can be obtained. When the pressure of the driving gas source is balanced with that of the pressurized gas, the pneumatic booster pump will automatically stop and the output gas pressure is stabilized at the preset pressure. It features explosion-proof operation, energy saving, environmental protection, and adjustable output pressure.

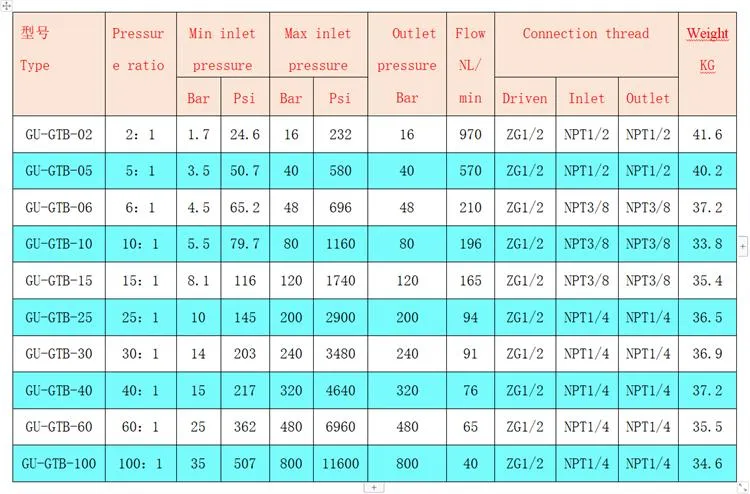

| Model | GU-GTB-40 |
| Pressure Ratio | 40:1 |
| Drive Air Pressure | 3-8 bar |
| Max. Outlet Pressure | 320 bar (46400 psi) |
| Min. Gas Inlet Pressure | 15 bar |
| Max. Gas Inlet Pressure | 320 bar |
| Pressure Accuracy | < 1% F.S |
| Weight | 38 KG / 45 KG (Export case) |
| Equipment Dimension | 580*450*570 mm |
