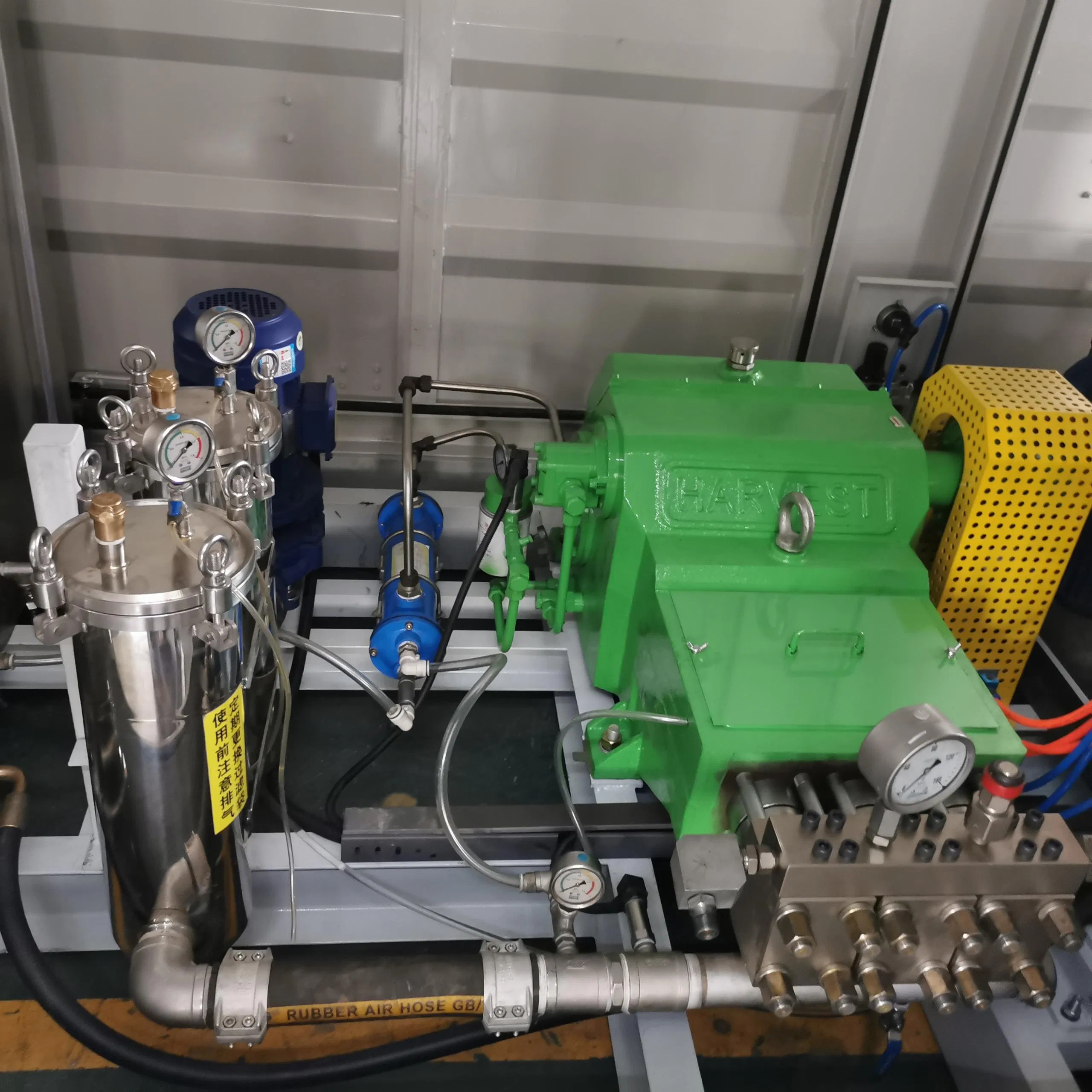

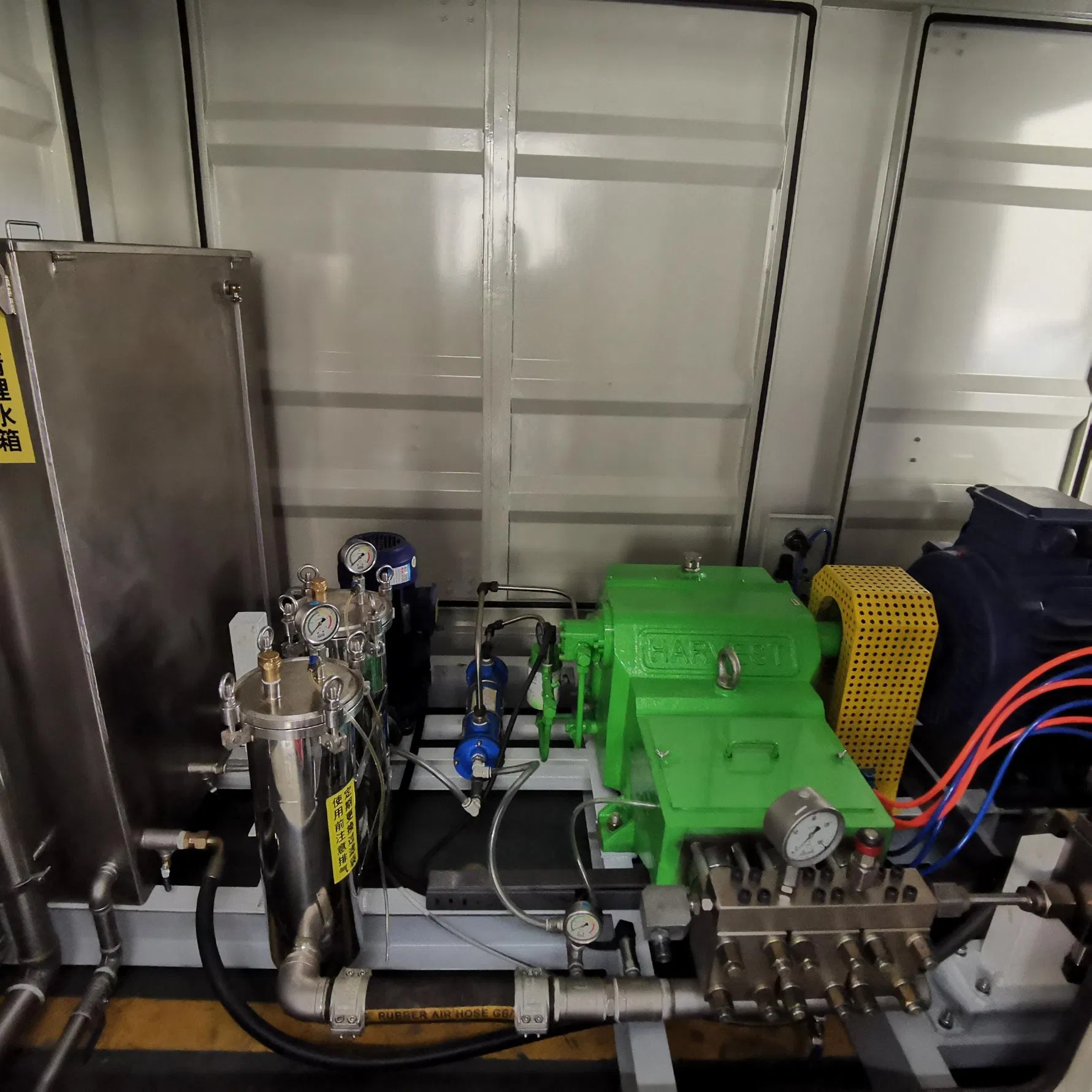

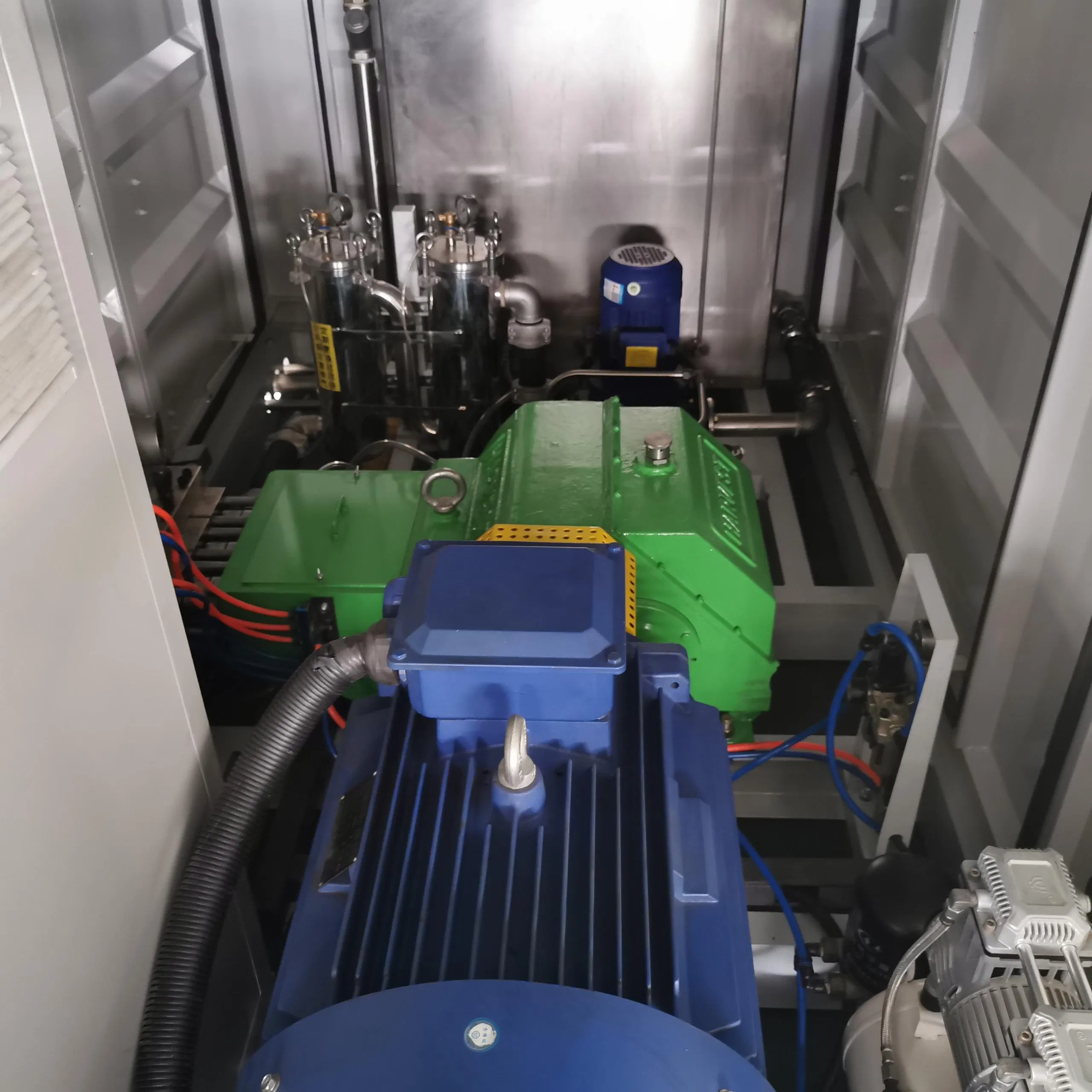

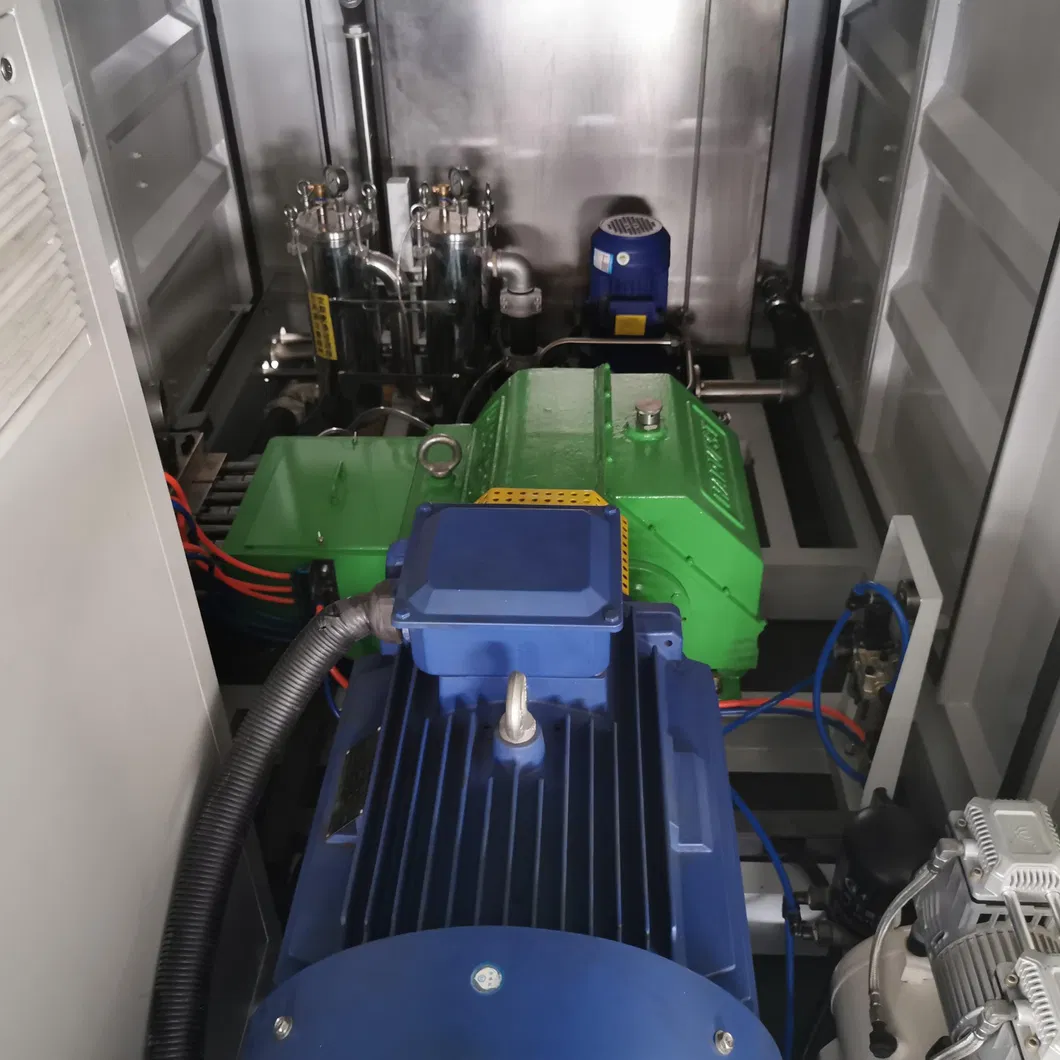

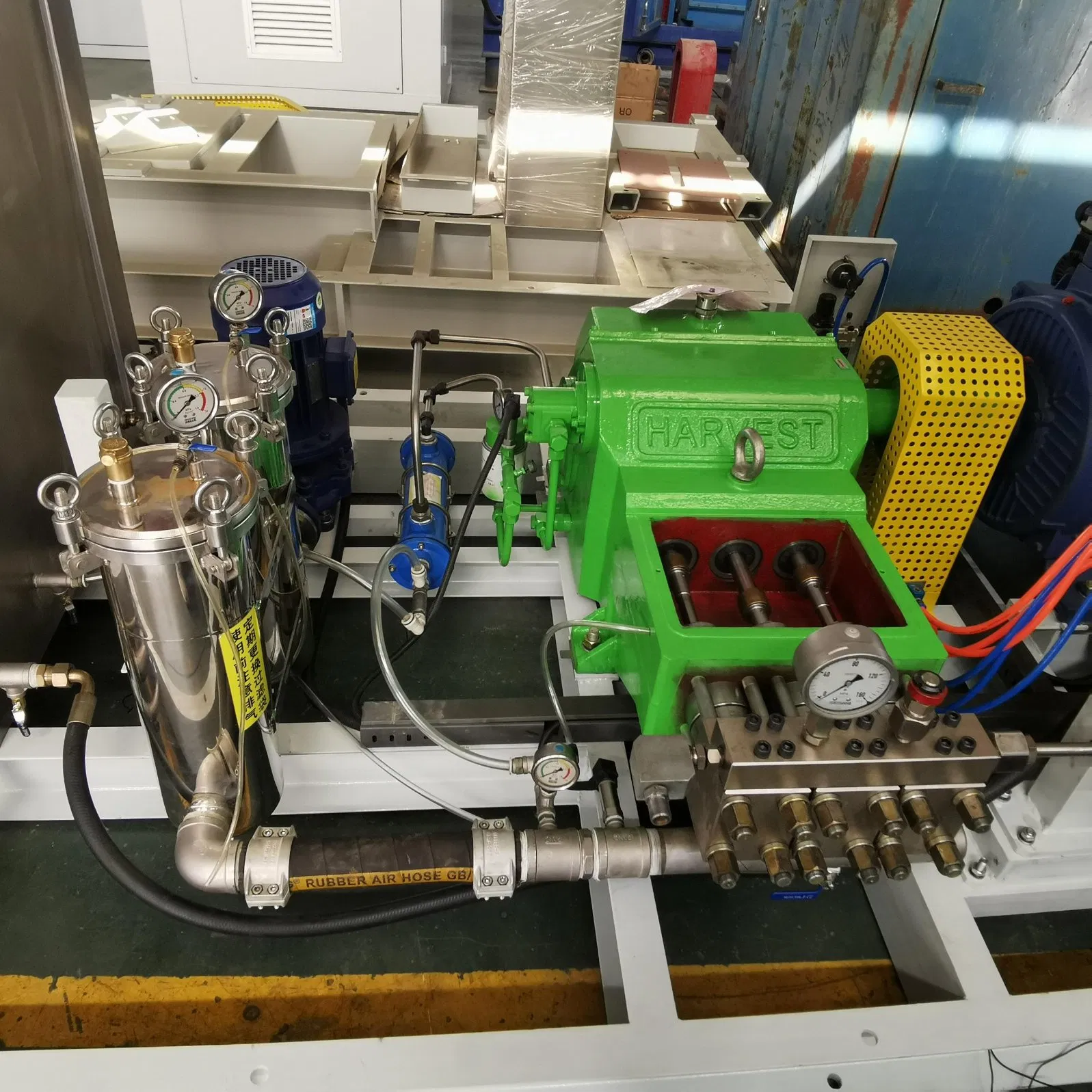

The 3D2F-S pump is a cutting-edge patented product designed for heavy-duty industrial cleaning, capable of a maximum working pressure of 150MPa and matching power up to 110kW.

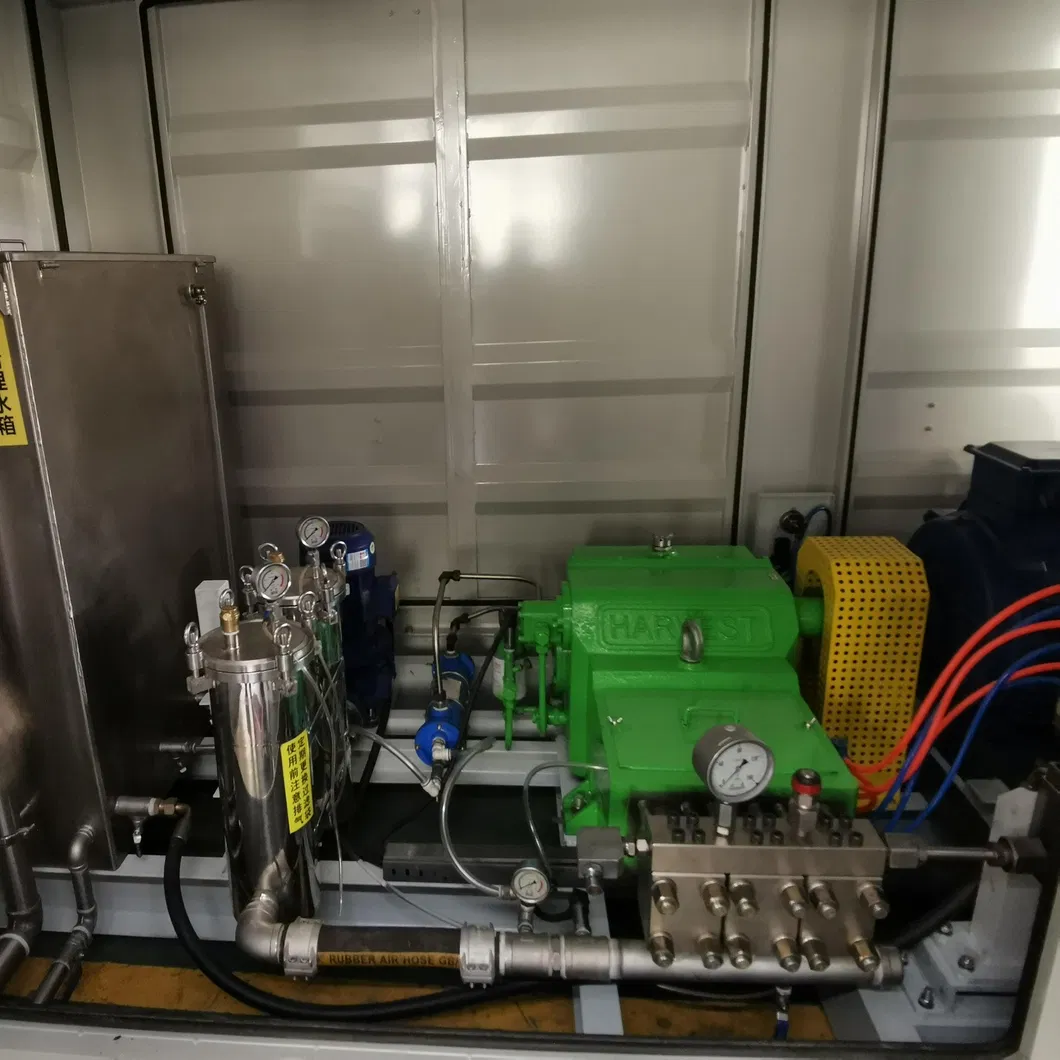

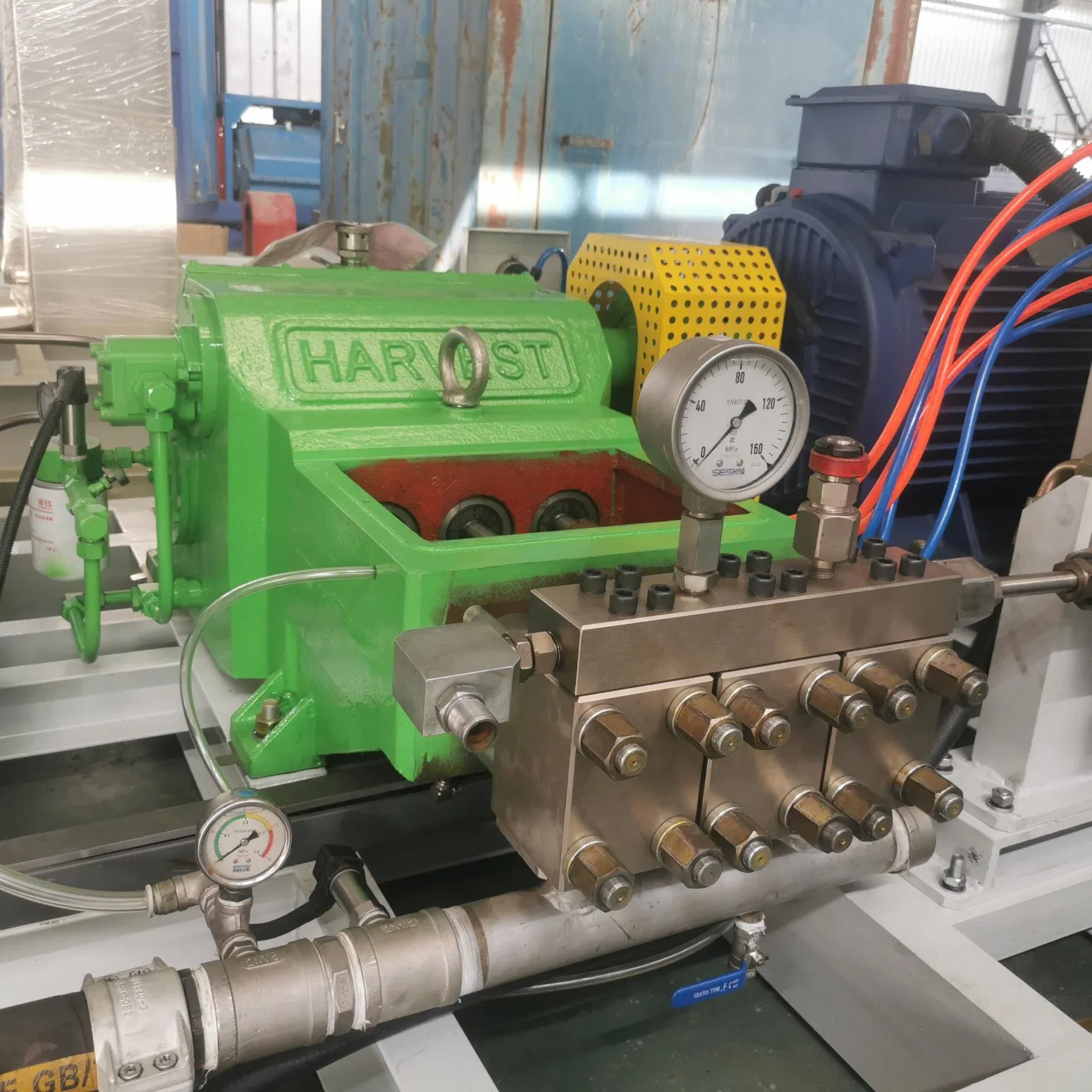

The liquid end features a split structure, incorporating a specialized plunger cooling circulation device and a modular liquid inlet/outlet valve group, ensuring the system is easy to operate and maintain. It is engineered to transport clean water, emulsions, and other high-pressure liquids with similar chemical properties.
| RPM (r/min) | 1480 | Plunger Stroke (mm) | 100 |
| Gear Ratio | 4.45 | Pump Speed (r/min) | 332 |
| Power (kW) | 75 / 90 / 110 | Plunger Diameter (mm) | 18 / 20 / 22 / 24 / 25 |
Performance Matrix (Flow & Pressure):
| m³/h | L/min | 75kW (MPa) | 90kW (MPa) | 110kW (MPa) | Plunger (mm) |
|---|---|---|---|---|---|
| 1.5 | 25 | 150 | - | - | 18 |
| 1.8 | 30 | 130 | 150 | - | 20 |
| 2.2 | 37 | 100 | 130 | 150 | 22 |
| 2.7 | 45 | 85 | 100 | 125 | 24 |
| 2.9 | 48 | 80 | 90 | - | 25 |
Weight: Pump 542kg | Base 140kg
Our high-pressure solutions are extensively utilized across various industrial sectors:

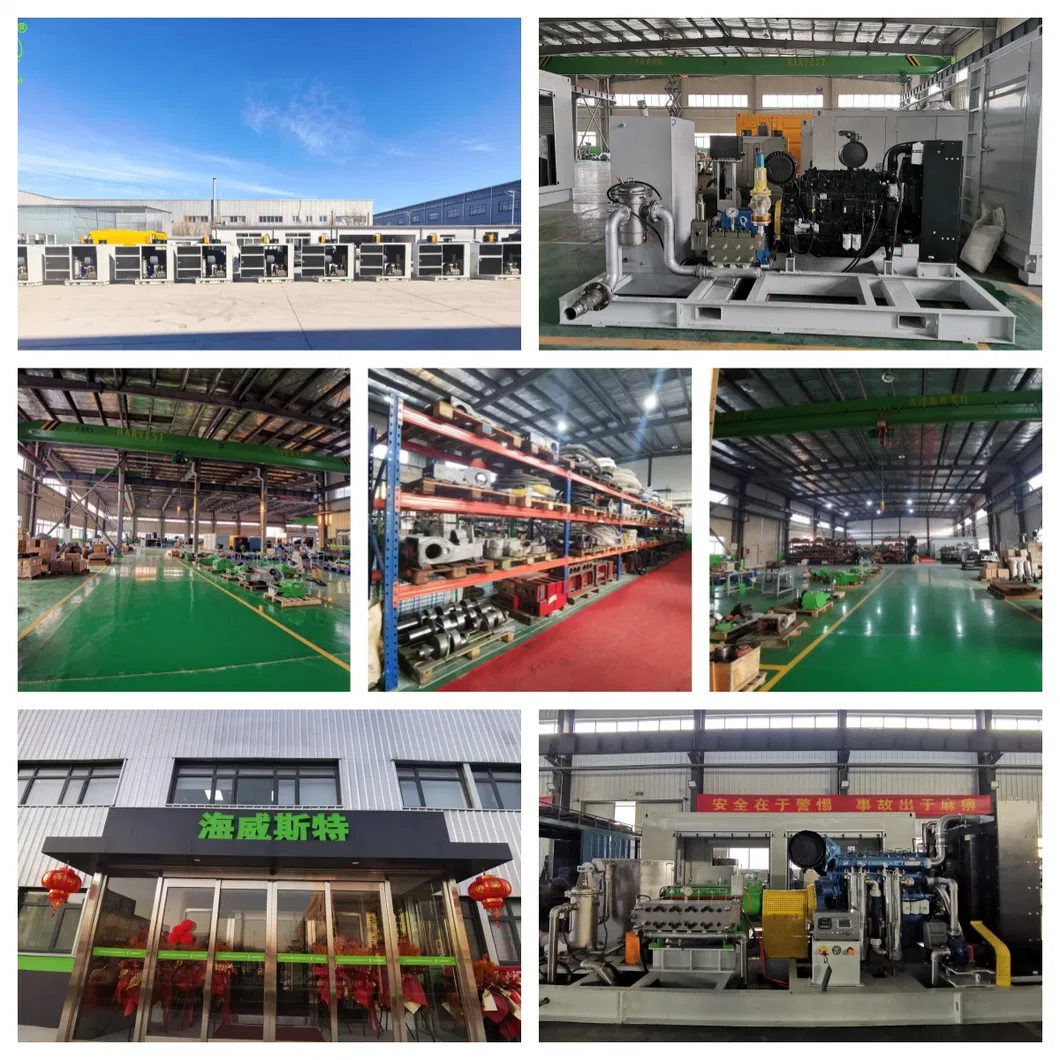

We are a professional manufacturer committed to technological innovation. Our facility has passed ISO9001:2015 quality management system certification and high-tech enterprise certification. We hold dozens of utility model patents, ensuring our products meet global safety and efficiency standards.
