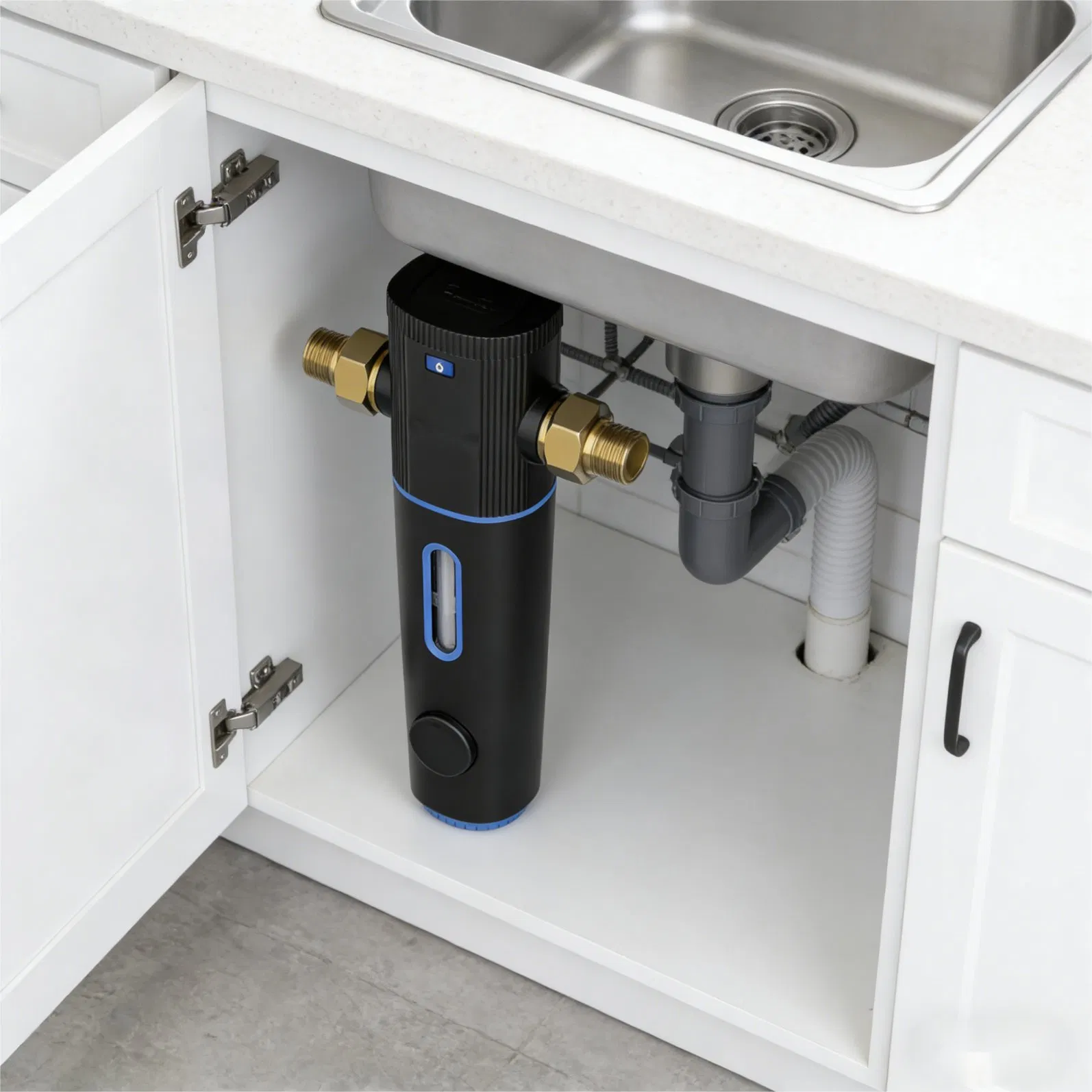

Home Water Filtration System with Manual Flushing Capability

1 / 5

Home Water Filtration System with Manual Flushing Capability

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

NR-P01-A200-06

Purification Efficacy

Not Straight Drink

Water Temperature

Warm & Hot

Pipe Design Rate

Primary Filter

Model Name

Household Water Prefilter

Dimension

18X9X30cm

Weight

2.55kgs

Flow Rate

4T/H

Inner Filter

316L High Efficiency Stainless Steel

Connect Size

3/4 Inch

Installation

Easy One Step

Clean Method

Manual Washing

💧 Product Description

Sediment Water Pre-Filter Prefilter Whole House

Safeguard your home's entire water supply with this premium pre-filter—designed to remove impurities, protect plumbing/appliances, and ensure long-lasting, low-maintenance performance. It's an essential upgrade for residential water systems, blending durability, efficiency, and user-friendliness.

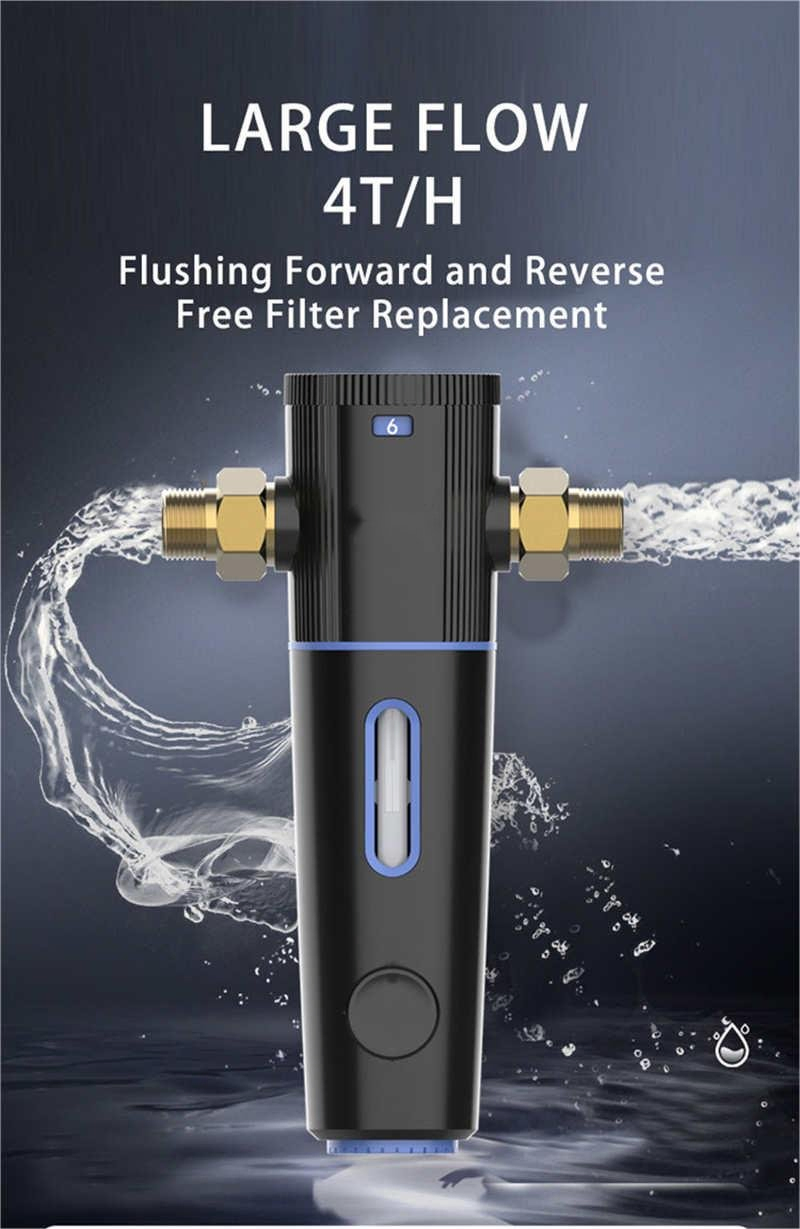

4T/H High-Efficiency Filtration

🛡️ Core Features

⚙️ Filtration Performance

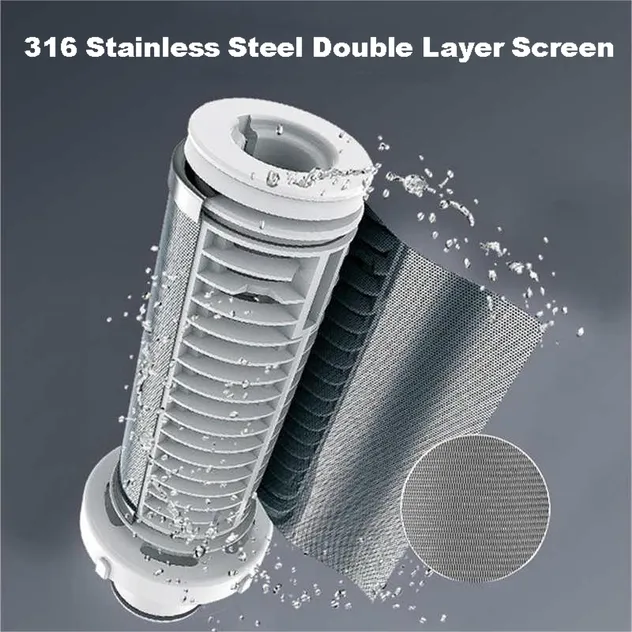

1. Filter Screen: 316L high-efficiency stainless steel strainer (corrosion-resistant).
2. Fineness: 40um (captures sediment, rust, sand, and particulate matter).
3. Water Type: Municipal tap water.

🏗️ Materials & Safety

1. Body Material: Copper + food-grade ABS (non-toxic, safe for water contact).
2. Durability: 316L stainless steel – resists wear and maintains efficiency over time.

🔧 Maintenance

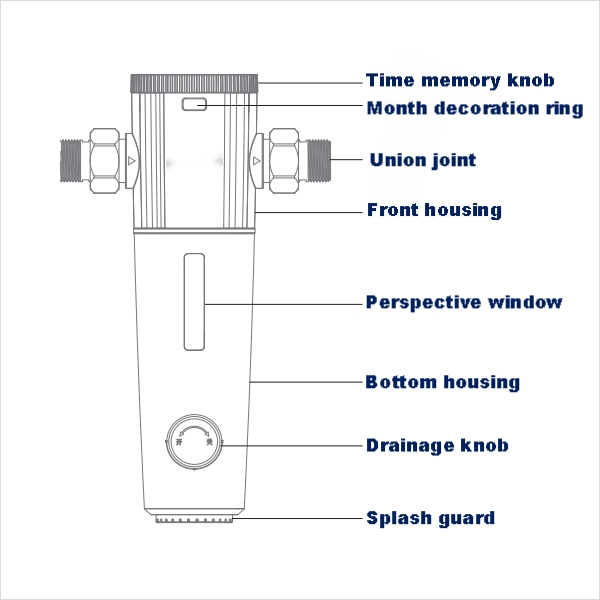

Equipped with: Cooper Spout, Time Reminder, Water Gauge, Stainless Steel Filter, Backwash Knob, and Discharge Valve.

🛠️ Operating Conditions

✅ Professional installation required; check all components first.
✅ PPR pipeline installation needs special welding equipment.
✅ Metal hard pipe installation: add additional pipeline as needed.
⚠️ Not for outdoor use; avoid ultraviolet rays and heat sources.
⚠️ Avoid contact with fuel oil and chemicals.
✅ After installation, inspect all joints for water leakage.

📊 Technical Specifications

No.	Item	Parameters
1	Model No.	NR-P01
2	Applicable water	Municipal tap water
3	Pressure range	0.15MPa ~ 1MPa
4	Filter Fineness	40um
5	Model Size	18x9x30cm
6	Flow rate	4T/H
7	Inlet/outlet	3/4''

❓ Frequently Asked Questions

Q: What is the filtration precision of this pre-filter?

A: The system uses a 316L stainless steel mesh with a filtration fineness of 40um, effectively capturing sediment, rust, sand, and other particulate matter from municipal tap water.

Q: Does the filter element need frequent replacement?

A: No, the 316L high-efficiency stainless steel filter is designed for long-term use. It features a manual backwash function and discharge valve to clean the filter without replacing the core.

Q: Is this system suitable for high-flow households?

A: Yes, it supports a flow rate of up to 4T/H (4 tons per hour), which is sufficient for most residential whole-house water needs.

Q: Can I install this filter outdoors?

A: It is recommended for indoor installation only. You should avoid exposure to ultraviolet rays, direct heat sources, fuel oil, and harsh chemicals to ensure the longevity of the housing.

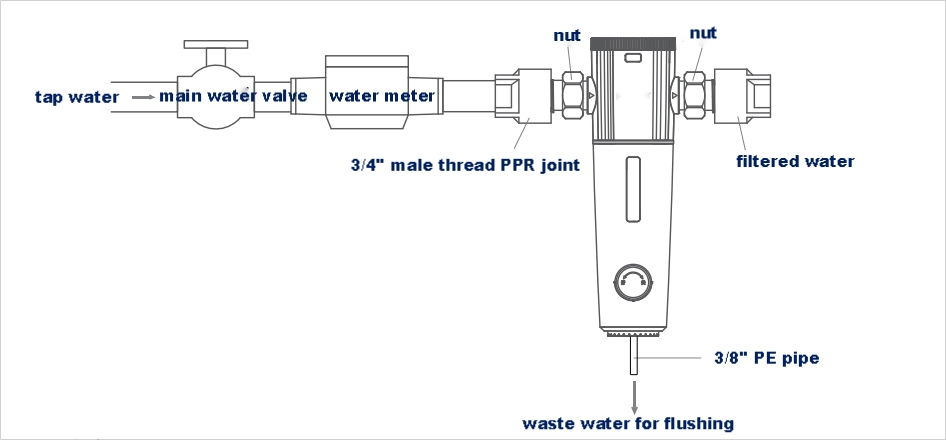

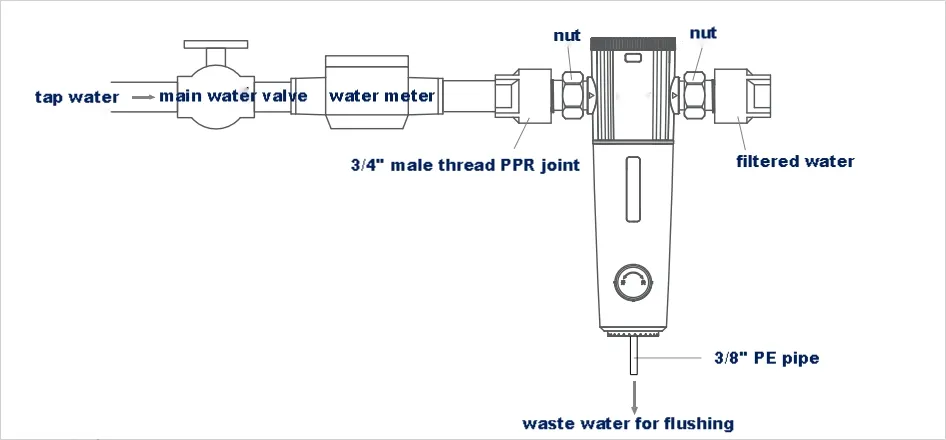

Q: What are the requirements for pipe connection?

A: The unit features a standard 3/4 inch inlet and outlet. It is compatible with PPR pipelines (requires welding) and metal hard pipes. Professional installation is highly recommended.

Q: How do I know when to perform a backwash?

A: The device includes a built-in water pressure gauge and a time reminder dial on the top to help you monitor performance and maintain a regular cleaning schedule.
