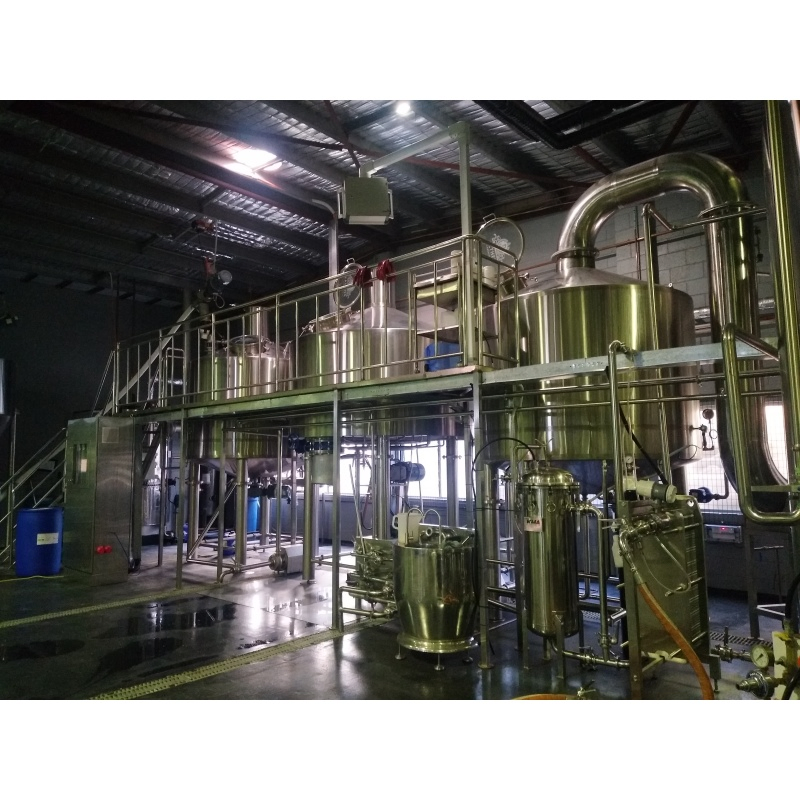

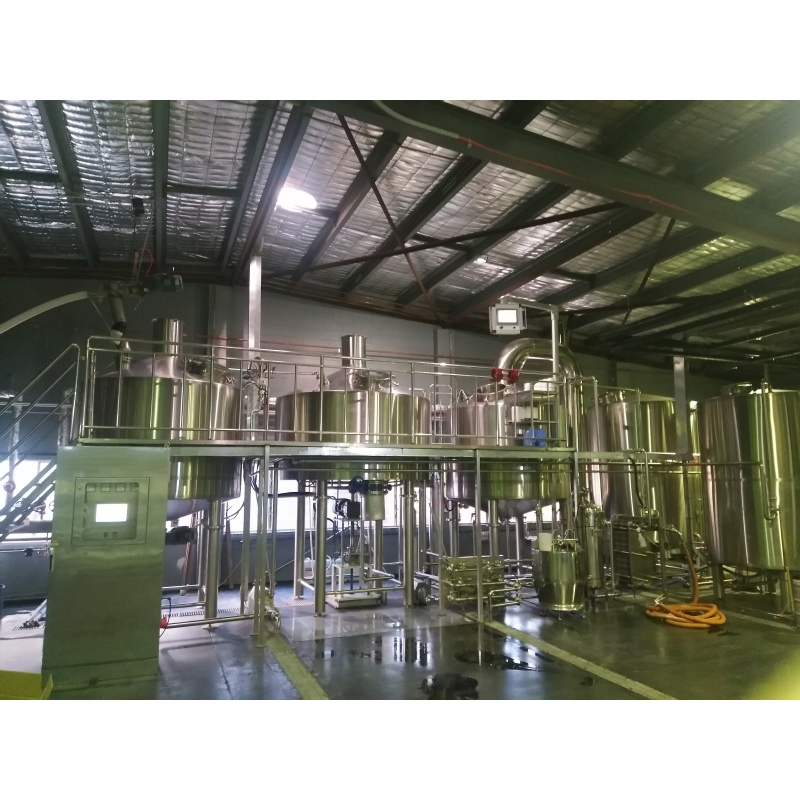

2000L 3000L Industrial Micro Brewery System for Home and Small Business Brewing

1 / 5

2000L 3000L Industrial Micro Brewery System for Home and Small Business Brewing

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	1year

Send Inquiry

Product Description

📋

Basic Information

Model NO.ZY-2000l

ConditionNew

CompositionStainless Steel 304

ProcessingBeer Ferment / Brewing

Voltage220V, 380V, 400V

CertificateCE/ISO/UL

ControlSemi-Automatic

Tank Thickness3mm Outer, 2mm Inner

Insulation80-100mm Polyurethane

Specification1000L-2000L

🍺

Product Description

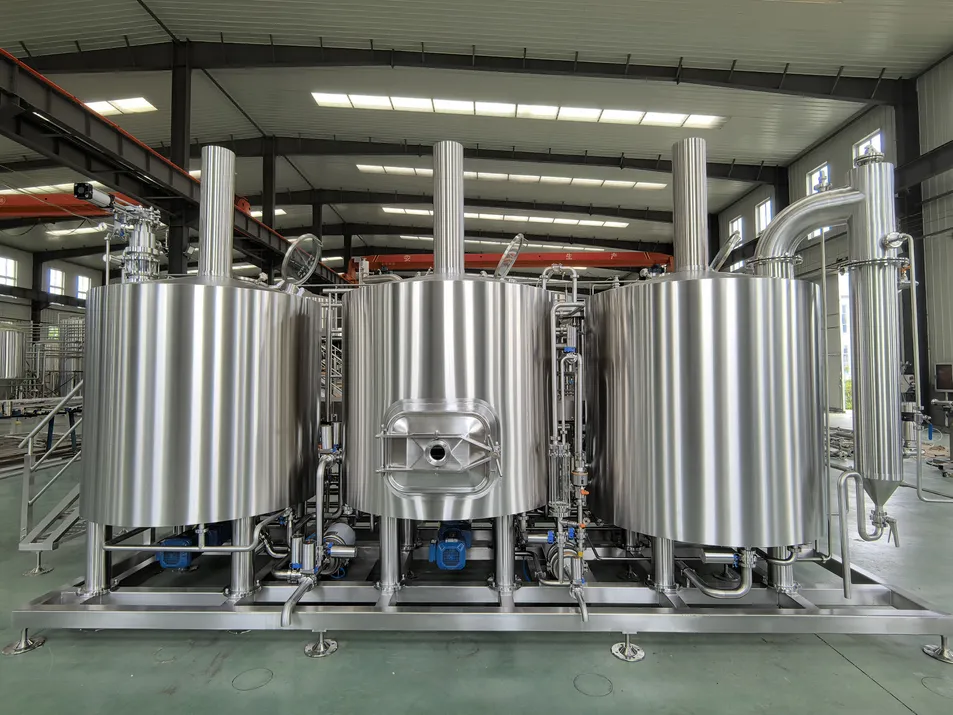

The 3-vessel brewhouse is a brewing system commonly used in commercial breweries, including craft breweries and medium-sized brewing operations. It offers more flexibility and control over the brewing process compared to a 2-vessel brewhouse, as it divides the brewing process into three primary vessels: mash tun, lauter tun, and boil kettle/whirlpool. This configuration is preferred by breweries requiring high production capacities and precise manipulation of parameters for various beer styles.

⚙️

Technical Advantages

✔ Precision: Precise control of mashing, boiling, and swirling for consistent quality.
✔ Versatility: Compatible with modern techniques like decoction and step mashing.
✔ Flexibility: Easy manipulation of temperature and time for specific flavor profiles.
✔ Innovation: Built to stay ahead of industry trends with adaptable vessel combinations.

📊

System Specifications

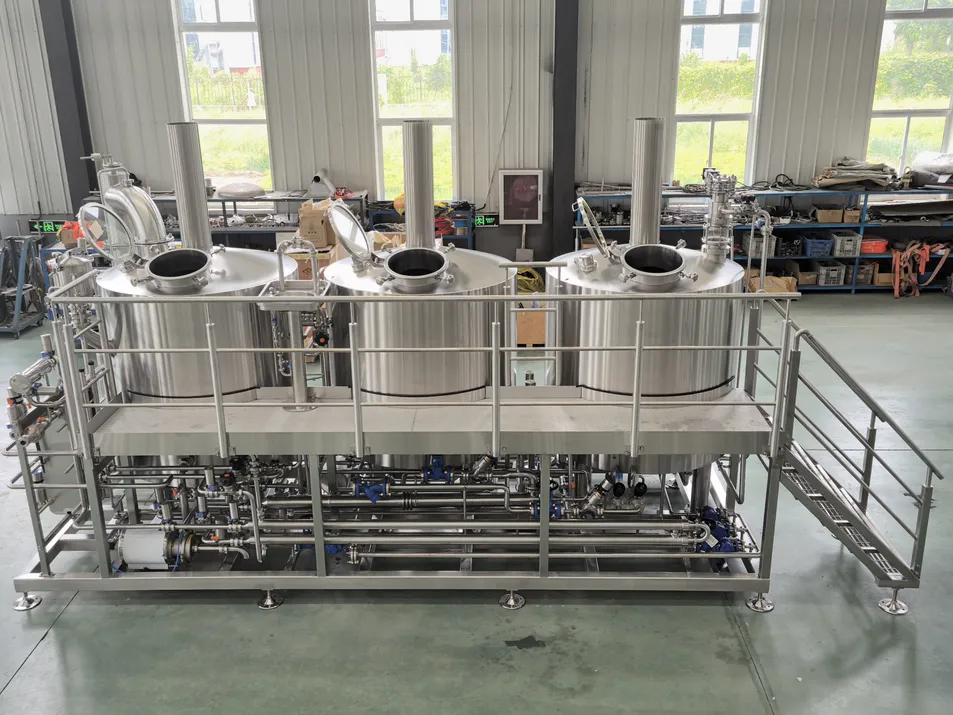

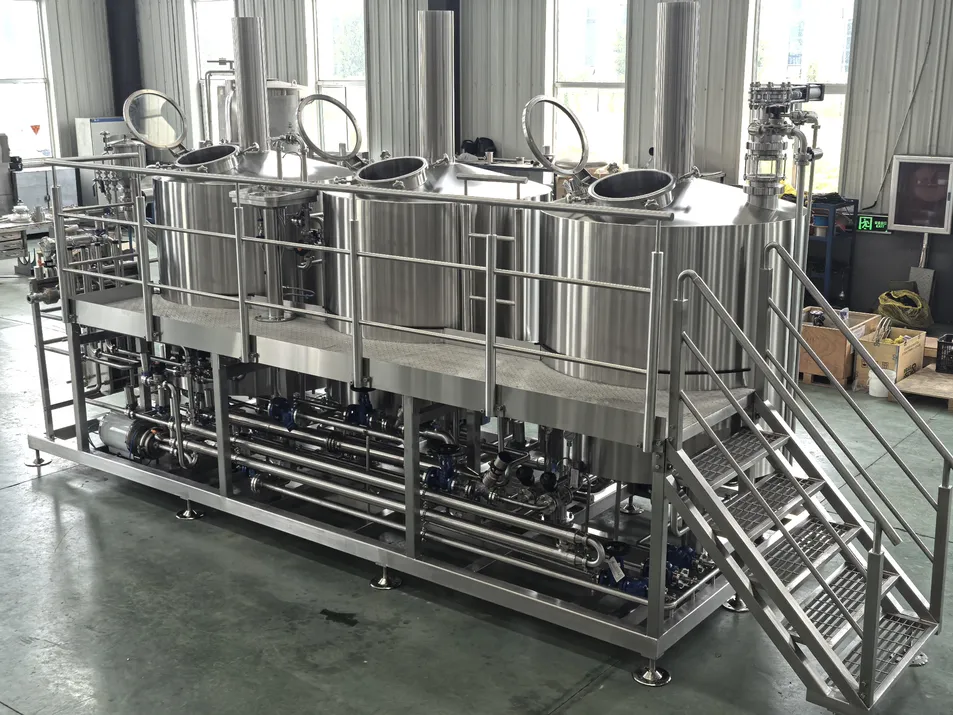

10HL Three-Vessel Automatic Brewhouse System
Malt Mill	500kg/h	2 rollers, SS material, Explosion proof motor
Malt Conveyor	1000-1500kg/h	Chain disc type, closed circulation
Mash Tun	10HL	Steam jacketed, VFD control, bottom stir
Lauter Tun	10HL	Automatic grain out paddle, removable filter plate
Kettle/Whirlpool	10HL	Separate jacket control, 8-10% evaporation rate

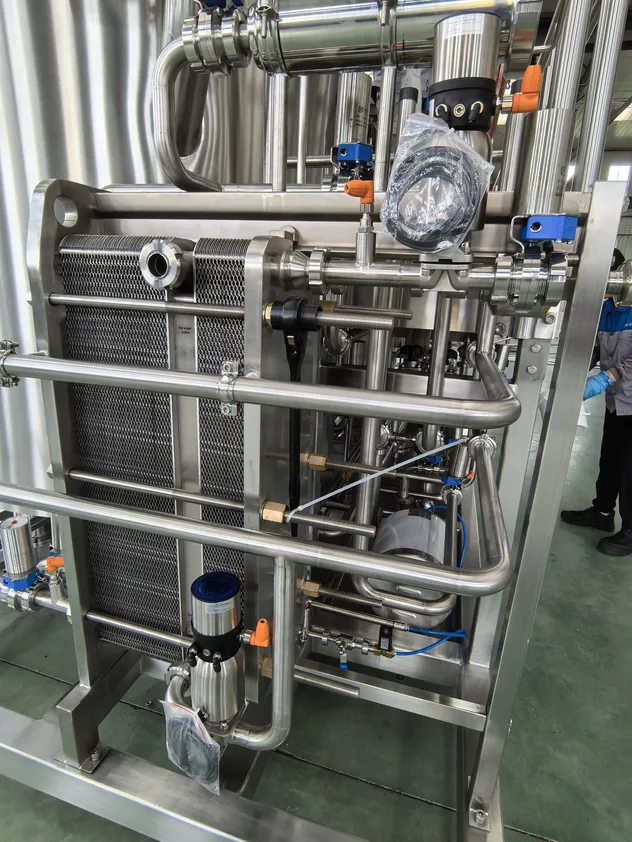

Heat Exchanger	20HL/H	Double stage, aeration unit, SS316 plates
Hot Water Tank	20HL/30HL	Insulated & jacketed for 2-3 batches supply
Control System	Siemens/Schneider	PLC with HMI, remote control, IP55 rating

🏭

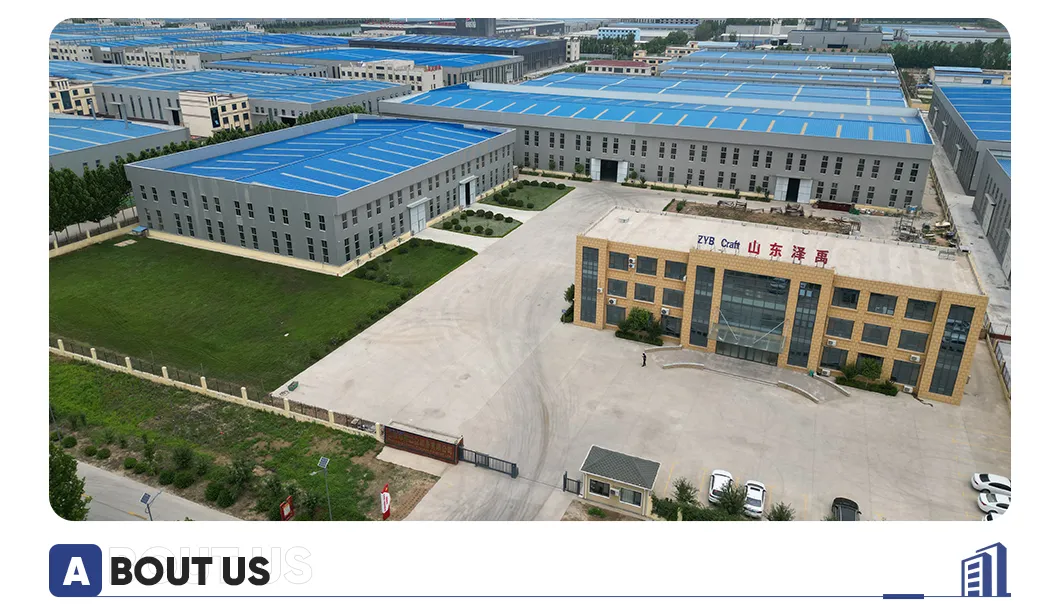

Factory & Quality Process

We provide customized solutions to meet a wide variety of production capacities and special process requests. Our facilities support the fabrication of systems ranging from 5HL to 100HL brewhouses and 10HL to 600HL cellar tanks. We adhere to stringent quality control standards comparable to top European manufacturers, ensuring every unit delivers excellent value.

🚢

Packaging & Shipping

🛠️

After Sales Service

Service Content	Warranty & Remarks
Main Vessel Parts	3 years guarantee; no leaking/scratches; material thickness strictly follows agreement.
Auxiliary Equipment	2 years for pumps, motors, mills, and chillers; includes free maintenance/replacement.
Electrical Components	2 years for control panels, sensors, and flow meters.
Life Long Service	Online/On-site technical support, regular maintenance, and expansion design support.
