Industrial Tank Rotary Cleaning Machine - Heavy Duty Tank Cleaning Equipment

1 / 5

Industrial Tank Rotary Cleaning Machine - Heavy Duty Tank Cleaning Equipment

After-sales Service:	Available
Warranty:	1 Year for Main Machine Part
Type:	Cold Water or Hot Water with Detergent

Send Inquiry

Product Description

Basic Info

Model NO.:CL-N11

Operation Type:Movable

Drive:Water

Nozzle Type:Cold/Hot Water with Detergent

Application:Industrial

Condition:New

Certification:CE

Working Pressure:50 - 220 Psi

Cleaning Radius:20 M

Max Temperature:95 C (Op) / 140 C (Amb)

Product Description

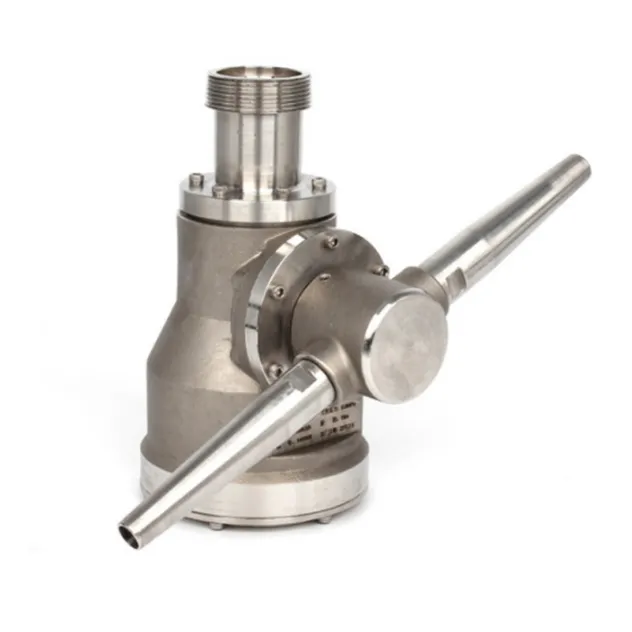

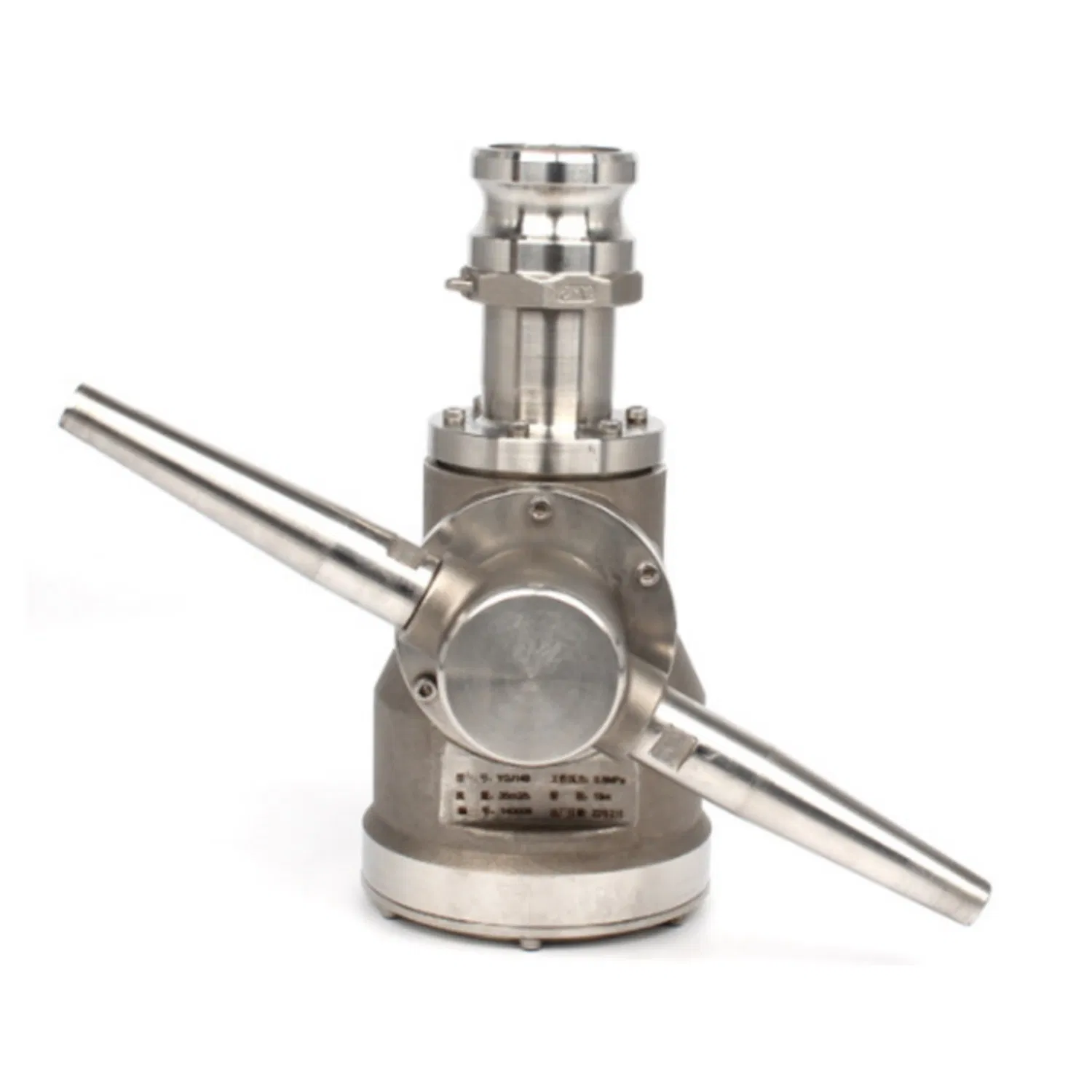

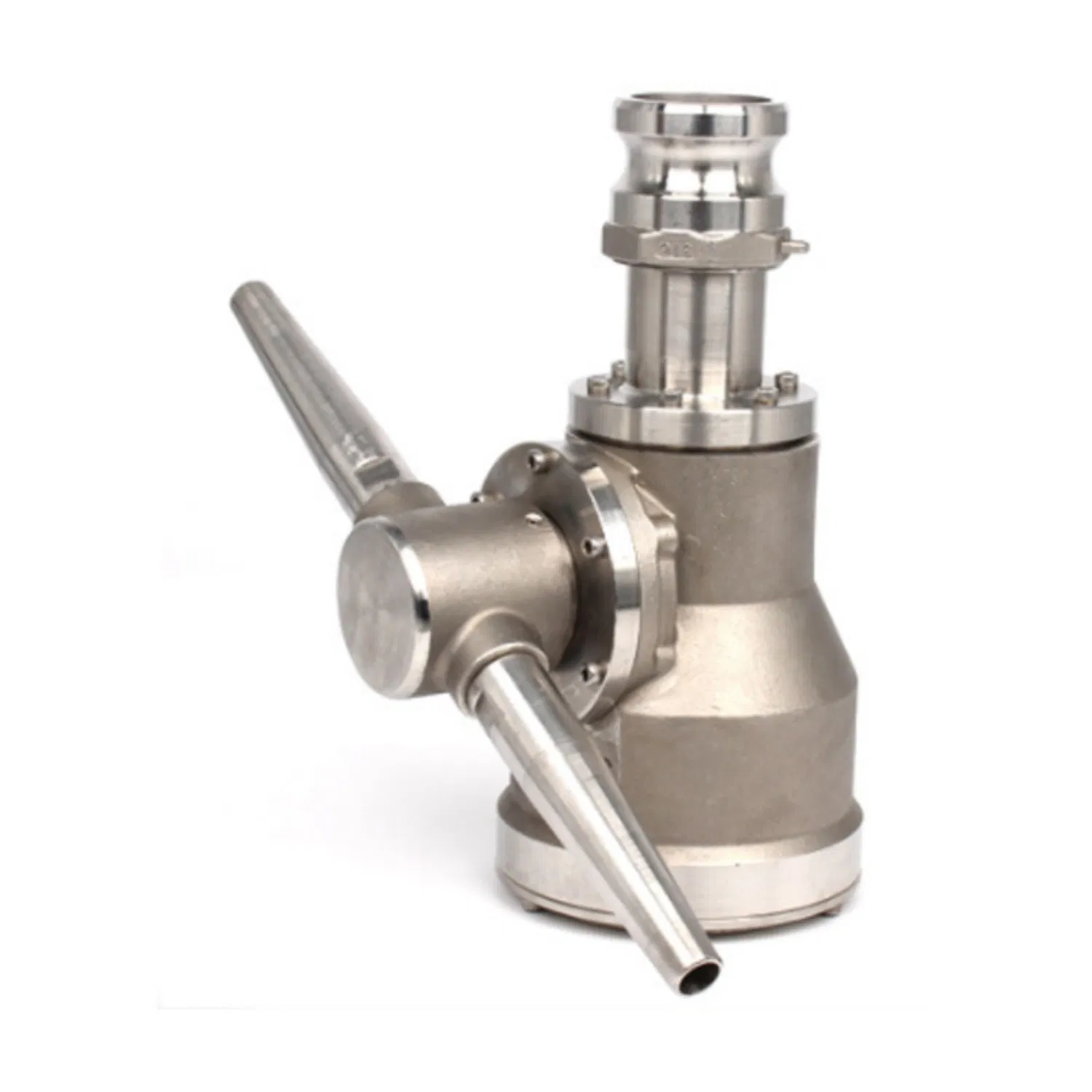

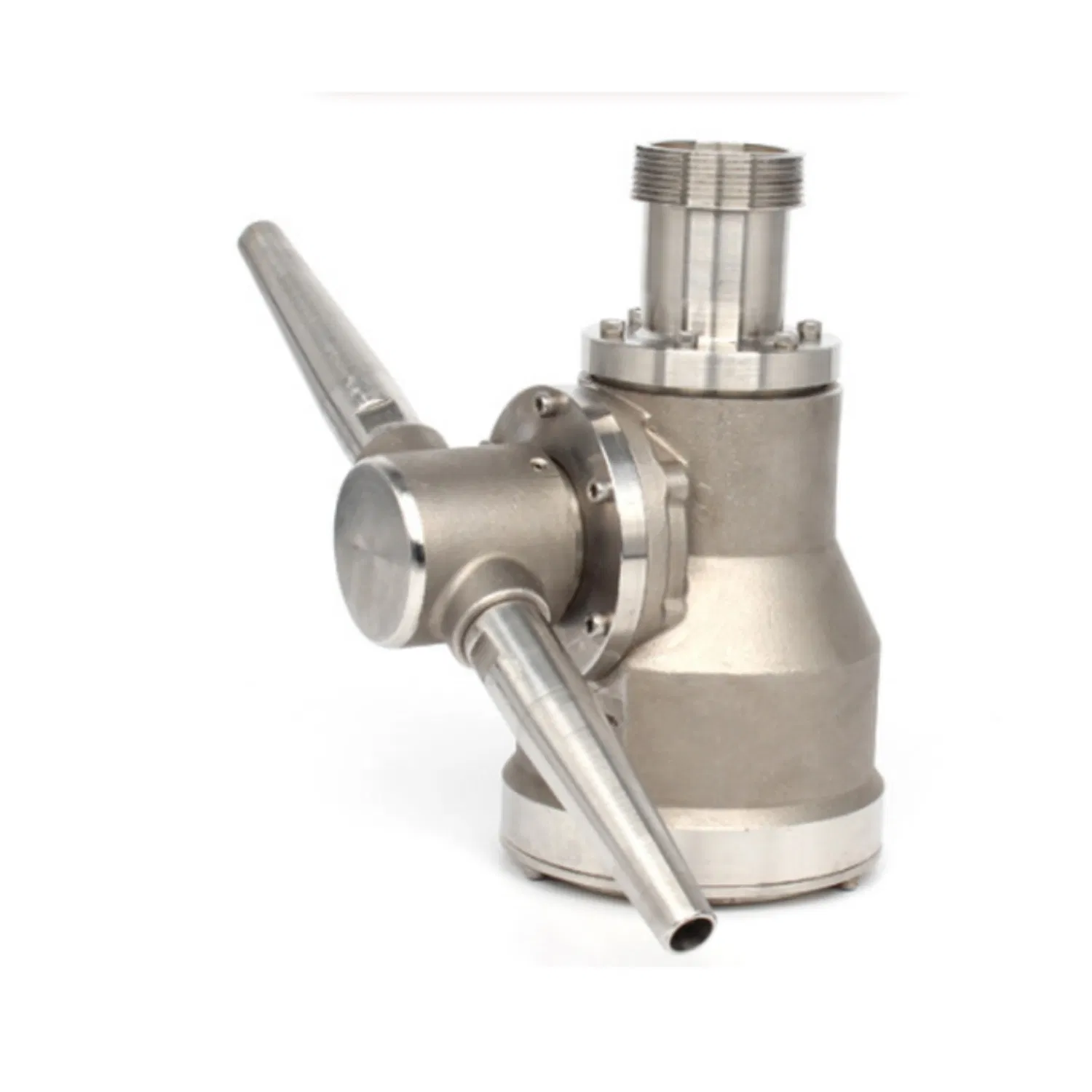

CL-N11 Harsh Environments Tank Cleaning Machine is a heavy-duty automatic rotary cleaning equipment designed for modern ship cargo tanks and large industrial tanks. It integrates a pressure water chamber, speed change mechanism, and automatic clutch nozzle into a compact, rugged structure.

Structural Design

Pressure Water Chamber: High-efficiency fluid intake.
Speed-change Transmission: Adopts new copper-graphite and stainless steel bearings for low wear and long life.
Automatic Clutch Nozzle: Independent modules for fast, low-cost maintenance.

Specifications

Item	Specification
Material	316L Stainless Steel
Net Weight	10 kg
Cleaning Diameter	φ45 m
Cleaning Radius	≤22.5 m
Max Working Pressure	<740 PSI (50 bar)
Normal Working Pressure	50–220 PSI
Flow Rate	130–240 L/min
Cycle Time	4–8 minutes
Drive Mode	Fluid-driven
Rotation	360° rotary
Connection	2" Female (DN25) / 2.5" Quick connector

Working Principle

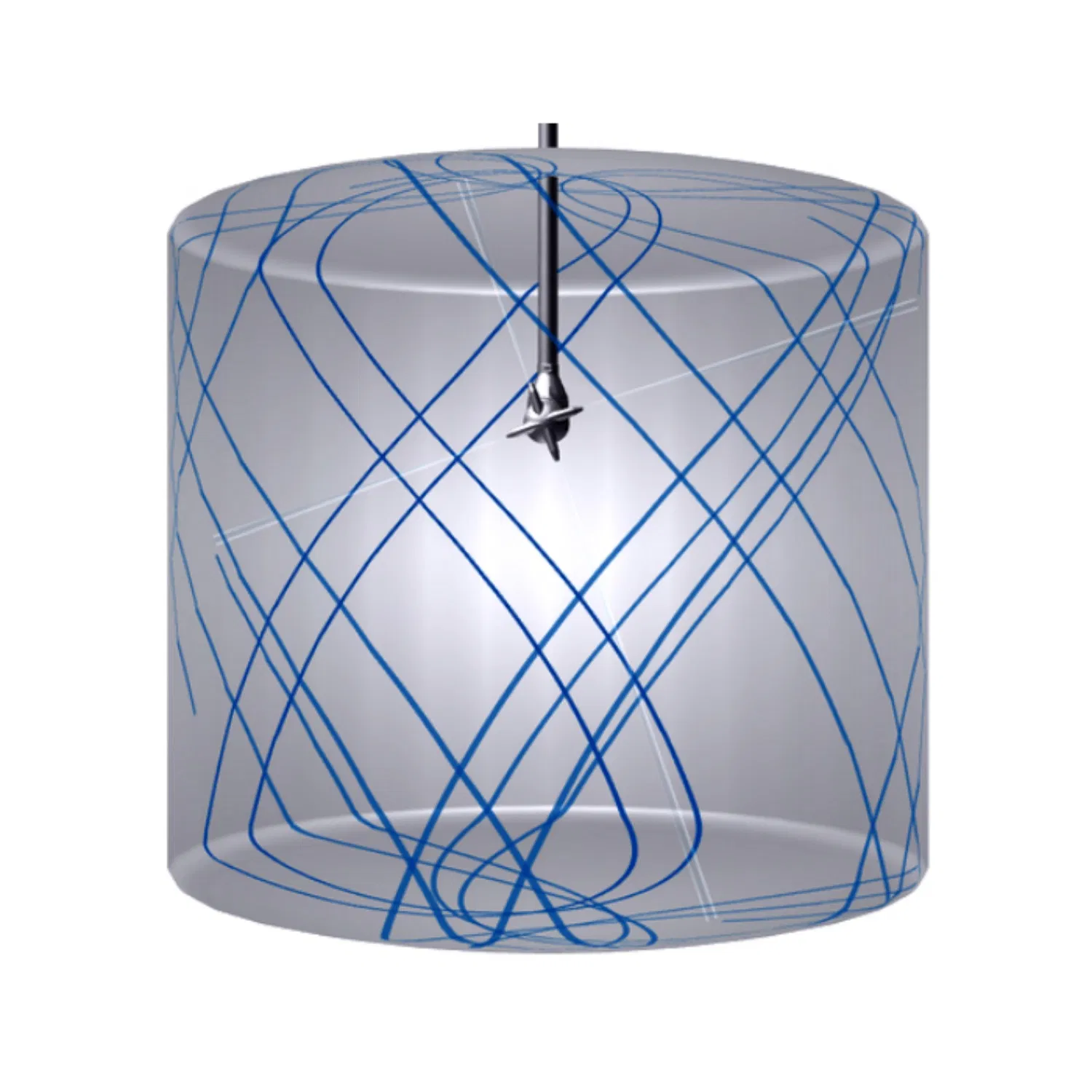

The internal impeller is driven purely by pressurized cleaning liquid. This system requires No electricity and No compressed air. Once connected to the pipeline, it automatically rotates and sprays high-impact jets for a full 360° internal clean, making it ideal for oil, fuel, and chemical tanks.

Key Applications

Ship cargo oil tanks & Crude oil storage
Large process vessels and fermenters
Large silos, dryers, and reactors

After Sales Service

Pre-delivery: English operation videos and manuals included.

Post-delivery: 24-hour online technical guidance.

Spare Parts: Consumables stocked for immediate shipment.

Warranty: 1-year warranty for the main unit.

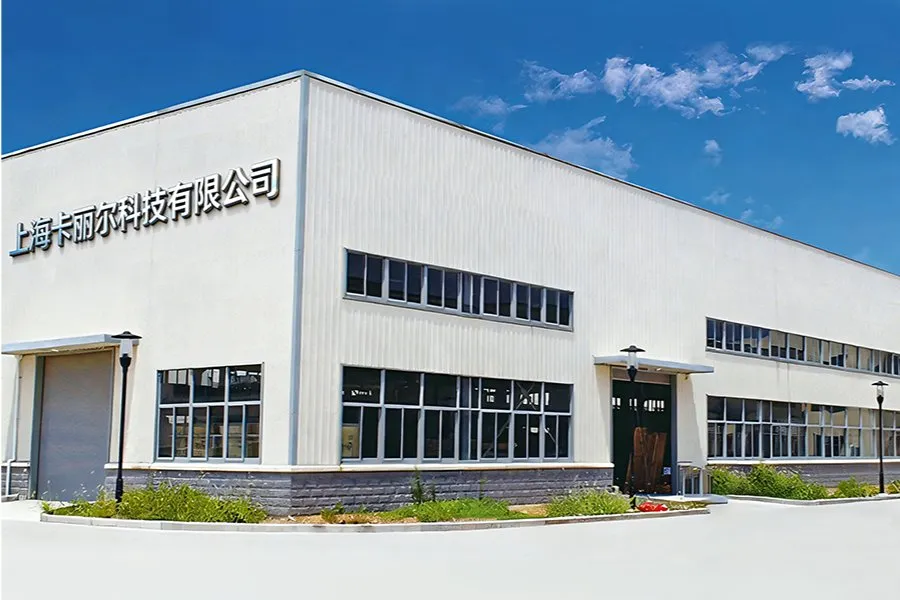

Manufacturing & Quality

Specializing in industrial cleaning equipment and system solutions, we integrate R&D, design, and manufacturing. Our goal is to provide efficient, energy-saving, and intelligent cleaning systems that reduce labor costs and enhance production environments.

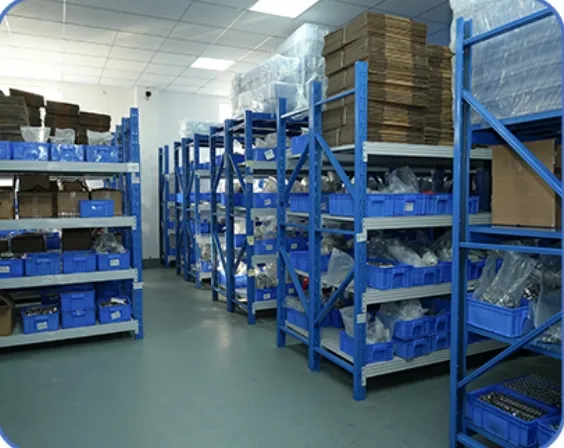

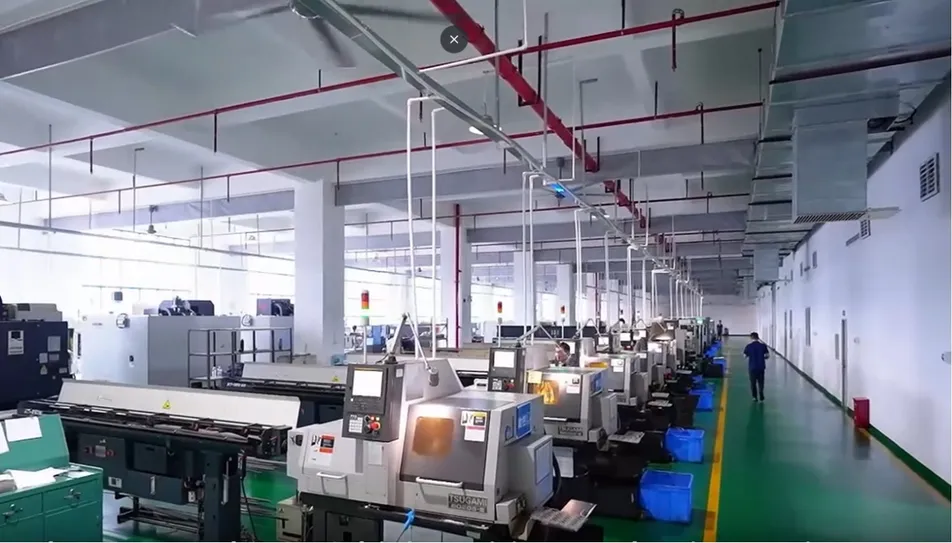

Production & Warehouse

Precision Organization

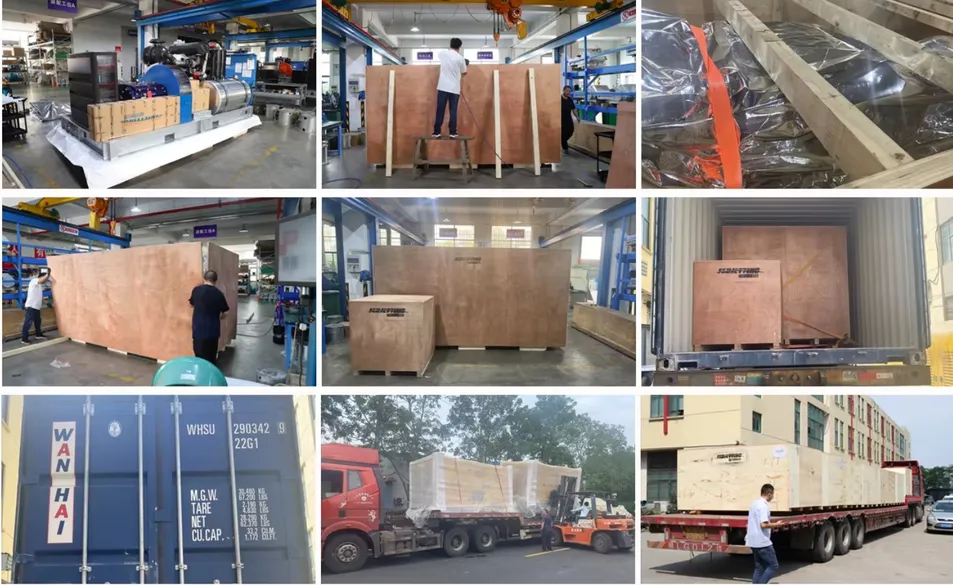

Packing and Shipping

For safe international transit, we offer reinforced wooden pallets or export cartons designed to protect precision equipment from damage.

Frequently Asked Questions

Q1: What tank size is the CL-N11 suitable for? A: It is designed for large industrial tanks and ship cargo tanks, with a cleaning diameter reaching up to 45 meters.

Q2: Does the machine require an external power source? A: No, it is fluid-driven. The pressurized cleaning liquid powers the internal impeller for rotation.

Q3: Is the CL-N11 made of corrosion-resistant materials? A: Yes, it is constructed from 316L Stainless Steel and features copper-graphite bearings for high corrosion resistance.

Q4: Can it be used with hot water or chemicals? A: Yes, it supports cold water, hot water (up to 95°C), and water mixed with detergents or solvents.

Q5: How difficult is the maintenance for this equipment? A: Maintenance is simple. The machine is modular (water chamber, transmission, nozzle), and each part can be independently repaired or replaced.

Q6: What is the typical cycle time for a full cleaning? A: A standard 360° cleaning cycle typically takes between 4 to 8 minutes depending on the pressure and flow settings.
