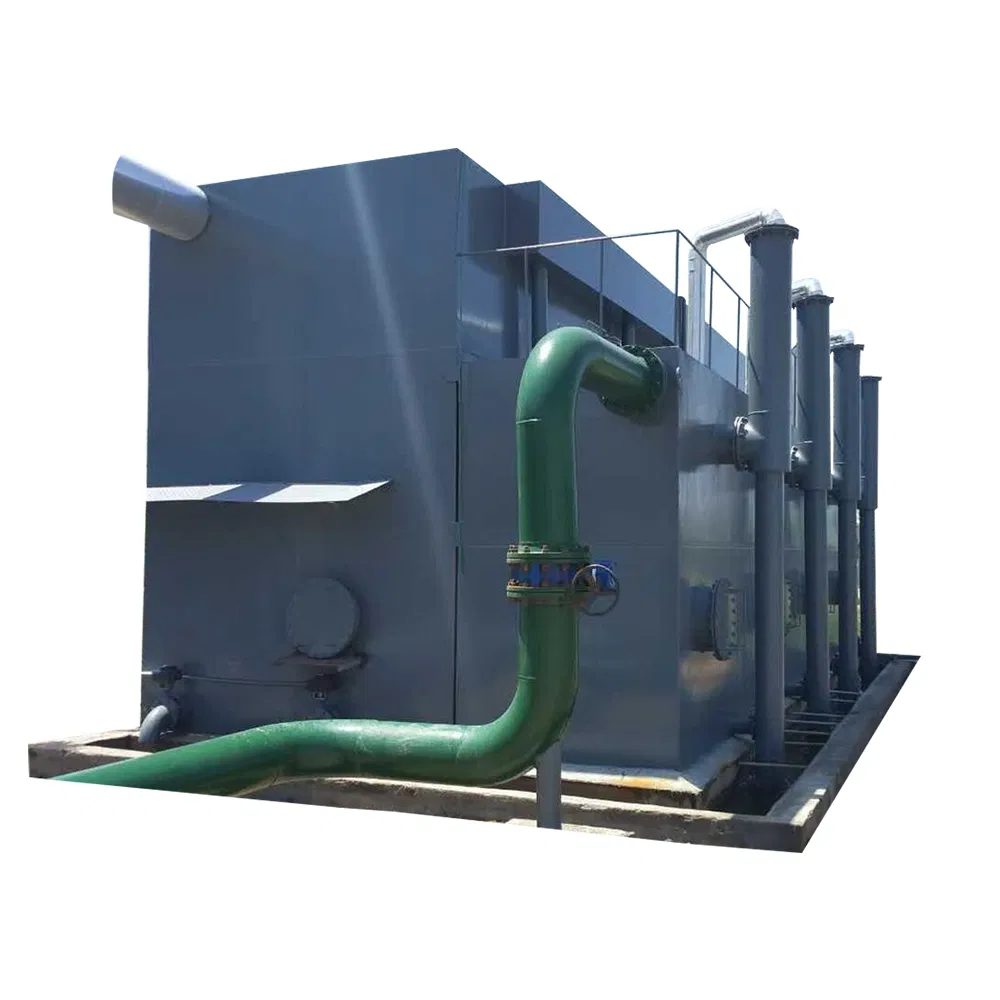

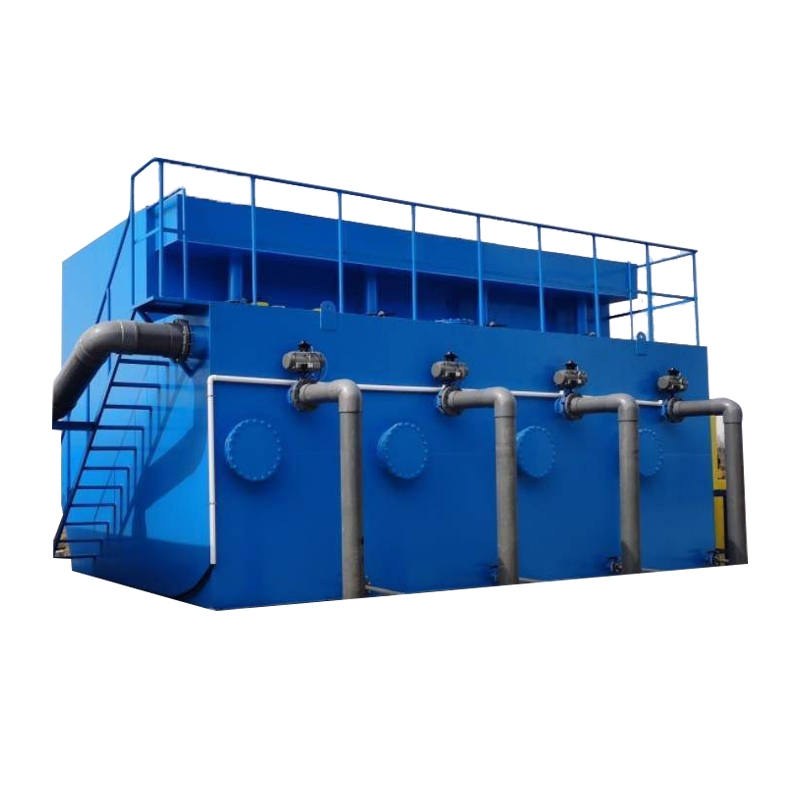

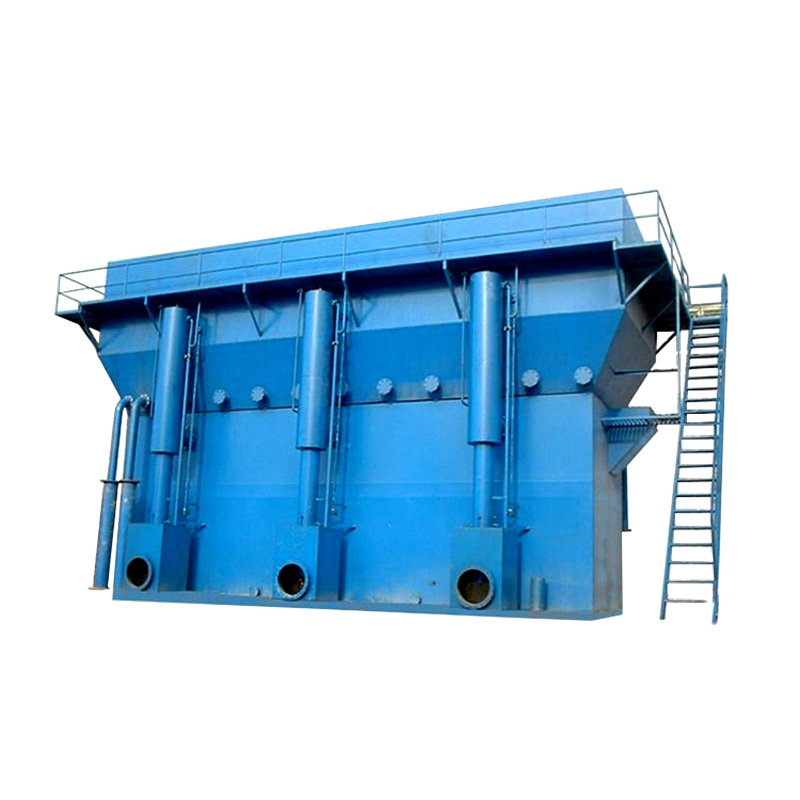

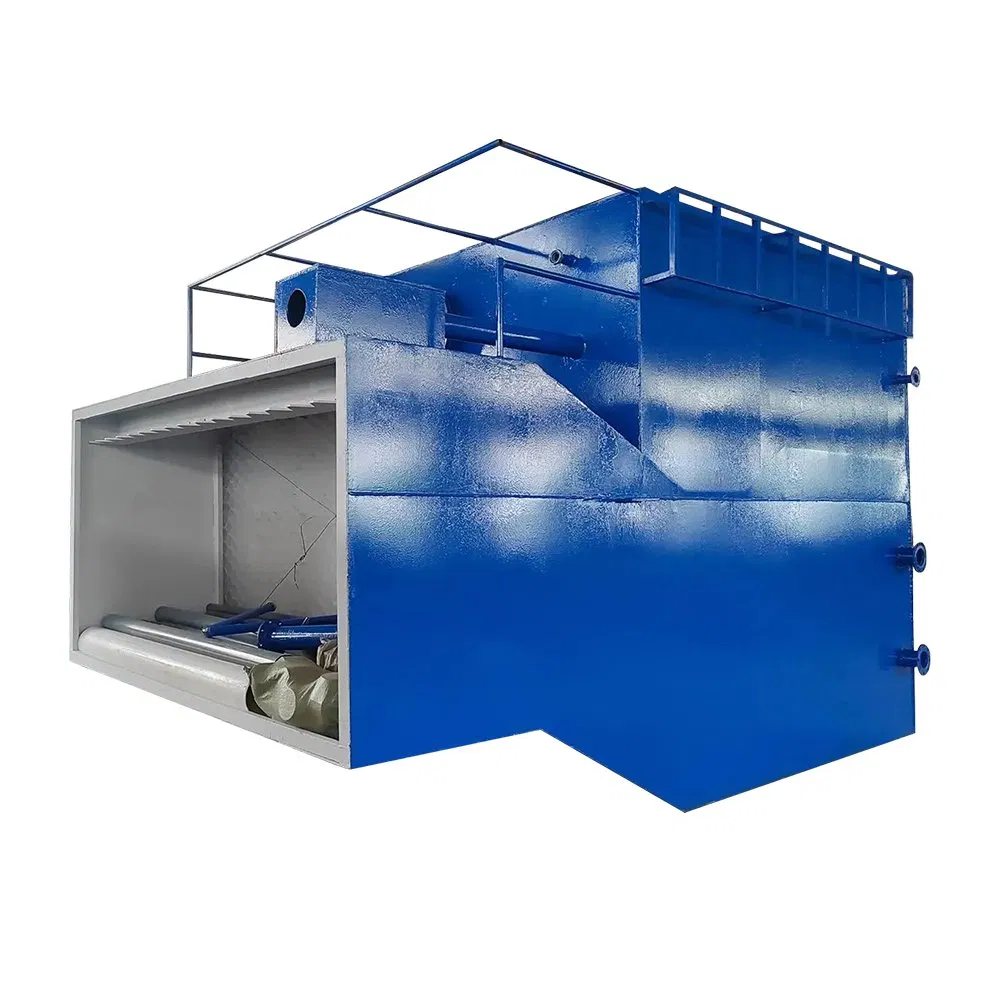

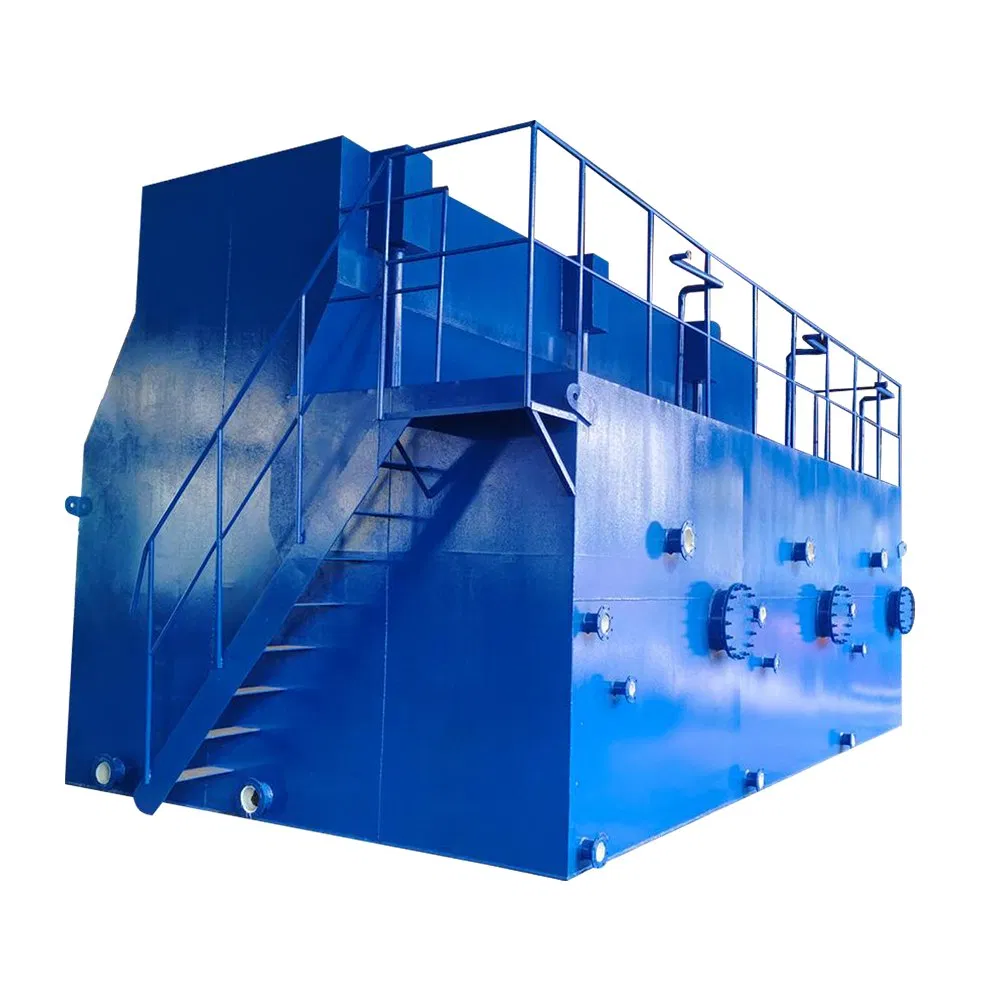

Complete Integrated Water Treatment Filter Purification System

1 / 5

Complete Integrated Water Treatment Filter Purification System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

Y69

Motive Force

Gravity

Style

Plate and Frame

Performance

Efficient Filtration

Color

Black/Blue/Green/etc

Painting

Epoxy Painting

Size

Customized

Material

Carbon Steel & Stainless Steel

Origin

China

HS Code

8421299090

⚙️

Technical Specifications

Equipment Model	FH-2
Inlet Pressure	≤0.06-0.15 MPa
Operating Temperature	Room Temperature (°C)
Retention Time	70 min
Raw Water Turbidity	≤3000 NTU (Inlet) / ≤3 NTU (Purified)
Flushing Time	4-5 min
Design Filtration Rate	9 m/h
Flushing Intensity	Water Flushing 18 L/m²/s
Equipment Material	Q235 with non-toxic coating/epoxy, SS304, SS316
Hygienic Standards	GB5749-2006 / JB/T2932-1999
Filter Media	Anthracite (CJ24.2) / Quartz Sand (CJ24.1)
Piping Standards	PVC (GB10002.1 / GB10002.2)

📸

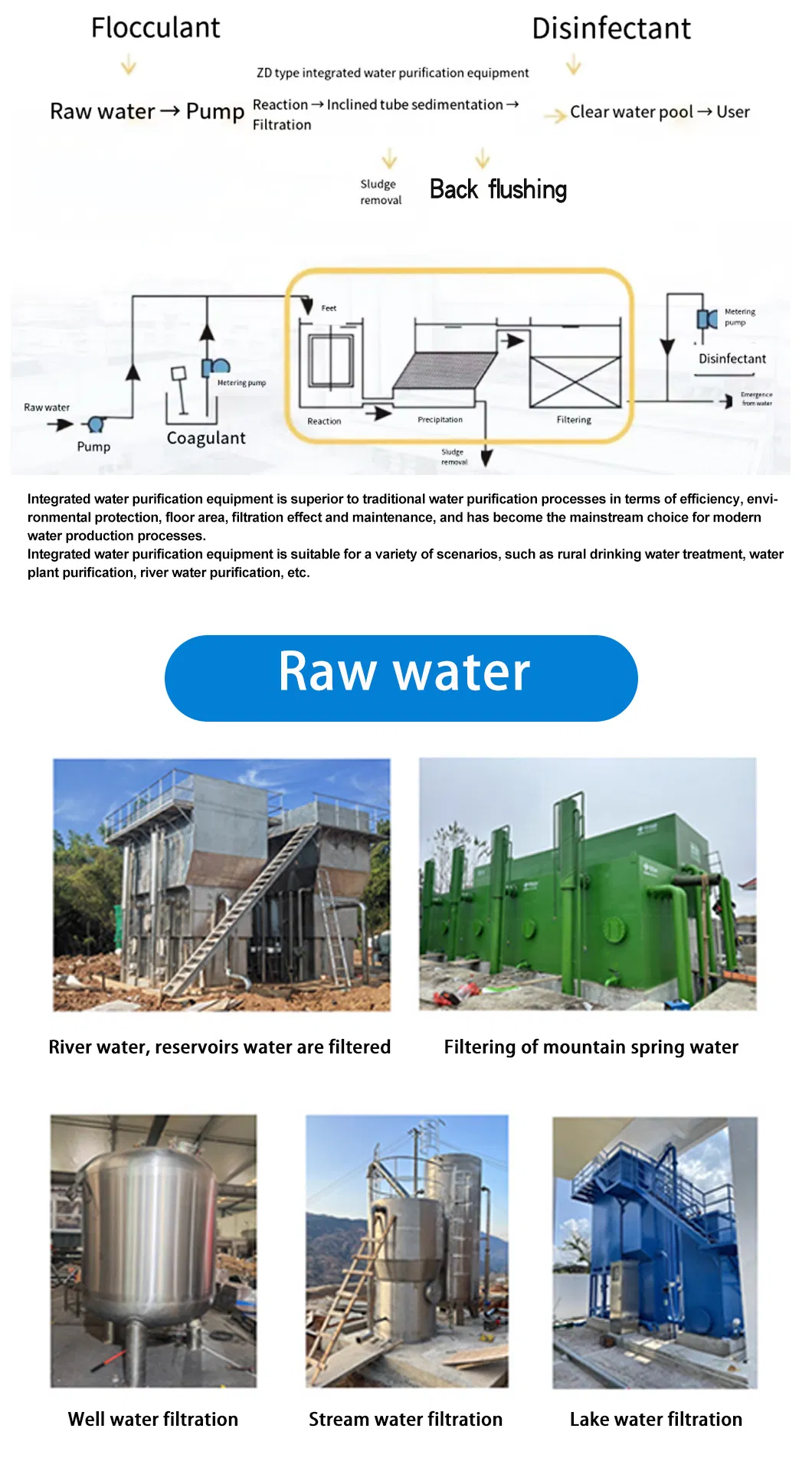

System Components & Details

🎥

Video Showcase

❓

Frequently Asked Questions

Which machine should I choose for my project?

Selection depends on your raw water quality and permeate water requirements. Systems typically include pretreatment (UF, sand filter, carbon filter, dosing systems), RO machines, and post-treatment (UV, Ozone, or EDI). We customize the process based on your specific water purpose.

What materials are used in the construction?

Pretreatment tanks are usually FRP or Stainless Steel. RO frames are available in Stainless Steel or Carbon Steel. Piping typically uses Stainless Steel or UPVC. We can select materials based on your specific environmental requirements.

What are the available control methods?

Pretreatment can be manual or automatic. For the entire system, we offer control via relays, PLC systems, or man-machine interface remote controls for seamless operation.

Which spare parts require regular replacement?

Filter cartridges in the security filter (replace every 3-6 months) and RO membranes (replace every 1-3 years). Lifespan depends significantly on water quality and routine maintenance.

What is the warranty and installation support?

We provide a 1-year warranty, though systems typically operate for over 5 years before major repairs. We include comprehensive manuals and operation videos with shipment, and our engineers provide 24/7 online guidance for installation and adjustment.
